4. Install the replacement bulb and connector assemblystraight into the fog lamp until it locks into place.
5. Reinstall the front lower wheel well access panel and fasteners.
Rear Turn Signal And Backup Lamp
The tail lamps are a two-piece design. The tail/stop/rear
turn signal lamps are located in the rear corner body
panels. The tail and backup lamps are located in the
liftgate.
Changing The Rear Turn Signal Lamp
1. Open the liftgate.
2. Remove the two fasteners from the inboard side of thetail lamp housing. 3. Carefully insert a trim stick (plastic flat-blade tool)
between the body panel and the outboard side of the tail
lamp housing with one hand and grasp the flange on the
inboard side of the tail lamp housing with the other
hand. Use the trim stick and hand pressure together to
disengage the tail lamp housing from the vehicle.
4. Rotate the applicable bulb’s electrical connector ¼ turn counterclockwise and remove it from the tail lamp
housing.
5. Remove the bulb from the connector socket and install the replacement bulb.Inboard Tail Lamp Housing Fasteners
7
MAINTAINING YOUR VEHICLE 469

6. Install the bulb and connector assembly into the taillamp housing and rotate the connector ¼ turn clockwise
to lock it in place.
7. Reinstall the tail lamp housing and fasteners.
Changing The Backup Lamp
1. Open the liftgate.
2. Remove the two fasteners retaining the tail lamp hous- ing to the liftgate from the inboard face of the liftgate.
3. Carefully insert a trim stick (plastic flat-blade tool) between the tail lamp housing and the liftgate. Use the trim stick and hand pressure together to disengage the
tail lamp housing from the liftgate.
4. Rotate the applicable bulb’s electrical connector ¼ turn counterclockwise and remove it from the housing.
5. Remove the bulb from the connector socket and install the replacement bulb.
6. Install the bulb and connector assembly into the housing and rotate the connector ¼ turn clockwise to lock it in
place.
7. Reinstall the tail lamp housing and fasteners.
Tail Lamp Housing Retainers
Tail Gate Lamp
470 MAINTAINING YOUR VEHICLE

License Plate Lamp
1. Push the small locking tab sticking out of the end of thelens toward the side of the vehicle and hold it in that
position.
2. Insert a small flat-blade tool between the end of the lens with the locking tab and the surrounding housing and
then pivot the tool to separate the lens from the housing.
3. Hold the lens with one hand and rotate the bulb’s electrical connector ¼ turn counterclockwise with the
other hand and then separate the bulb and connector
assembly from the lens. 4. Remove the bulb from the connector socket and install
the replacement bulb.
5. Install the bulb and connector assembly into the lens and rotate the connector ¼ turn clockwise to lock it in
place.
6. Insert the end of the lens without the locking tab into the housing on the liftgate and then push the opposite end
of the lens into the housing, making sure it locks in the
housing.
License Lamp
7
MAINTAINING YOUR VEHICLE 471

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
Front Wheel Drive (FWD) Models 20.5 Gallons77.6 Liters
All-Wheel Drive Models 21 Gallons79.8 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4L Engine and Single or Dual-Zone Climate Control System
(MOPAR Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 8 Quarts
7.5 Liters
2.4L Engine and Three-Zone Climate Control System (MOPAR
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 10 Quarts
9.5 Liters
3.6L Engine and Single or Dual-Zone Climate Control System
(MOPAR Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 13.1 Quarts
12.4 Liters
3.6L Engine and Three-Zone Climate Control System (MOPAR
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 14.5 Quarts
13.7 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
472 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology).
Engine Oil We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as MOPAR, Pennzoil, and Shell Helix. Re-
fer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filter.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection 87 Octane, 0-15% Ethanol.
Fuel Selection – 3.6L Flex Fuel (E-85) Engine – If
Equipped 87 Octane, Up To 85% Ethanol.
7
MAINTAINING YOUR VEHICLE 473

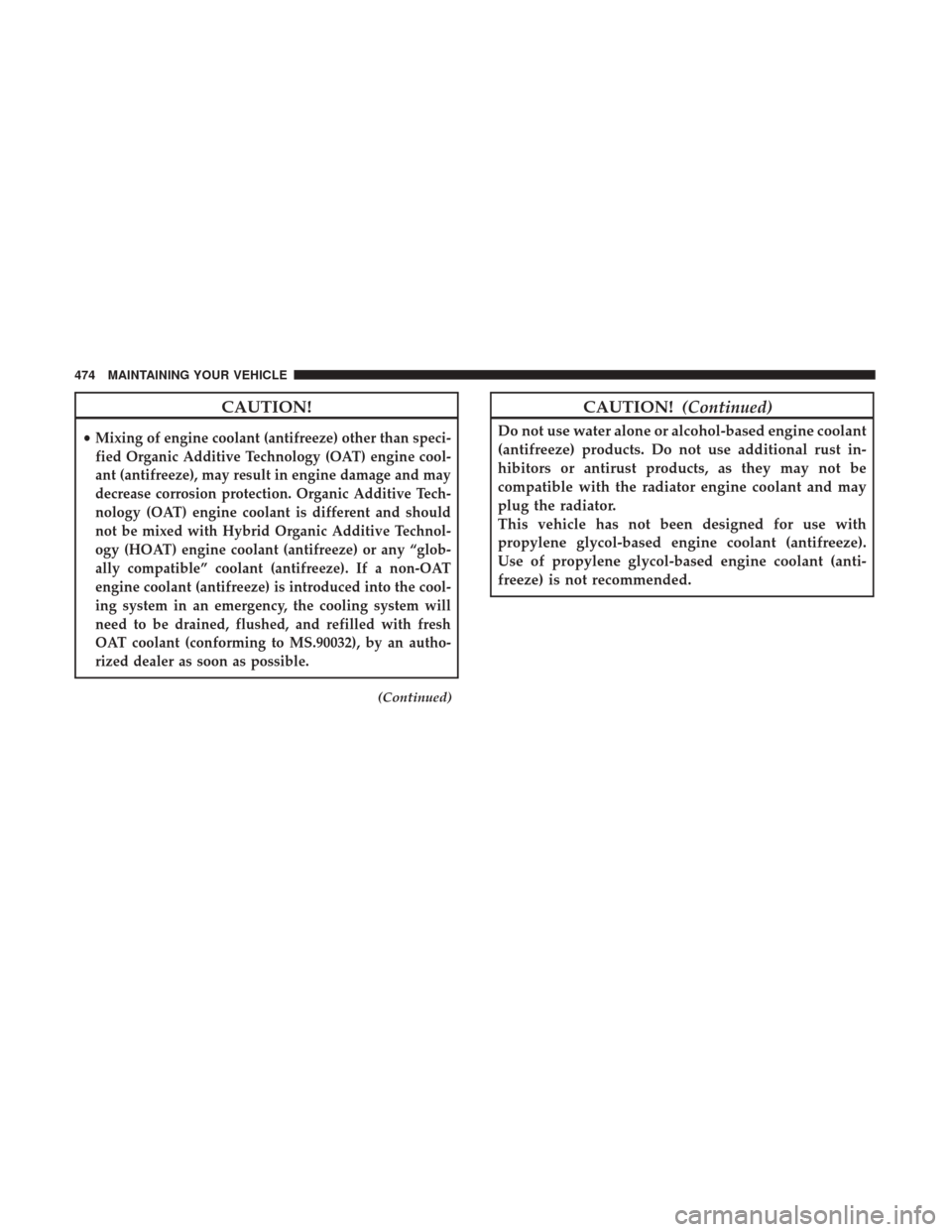

CAUTION!
•Mixing of engine coolant (antifreeze) other than speci-
fied Organic Additive Technology (OAT) engine cool-
ant (antifreeze), may result in engine damage and may
decrease corrosion protection. Organic Additive Tech-
nology (OAT) engine coolant is different and should
not be mixed with Hybrid Organic Additive Technol-
ogy (HOAT) engine coolant (antifreeze) or any “glob-
ally compatible” coolant (antifreeze). If a non-OAT
engine coolant (antifreeze) is introduced into the cool-
ing system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS.90032), by an autho-
rized dealer as soon as possible.
(Continued)
CAUTION! (Continued)
Do not use water alone or alcohol-based engine coolant
(antifreeze) products. Do not use additional rust in-
hibitors or antirust products, as they may not be
compatible with the radiator engine coolant and may
plug the radiator.
This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.
474 MAINTAINING YOUR VEHICLE

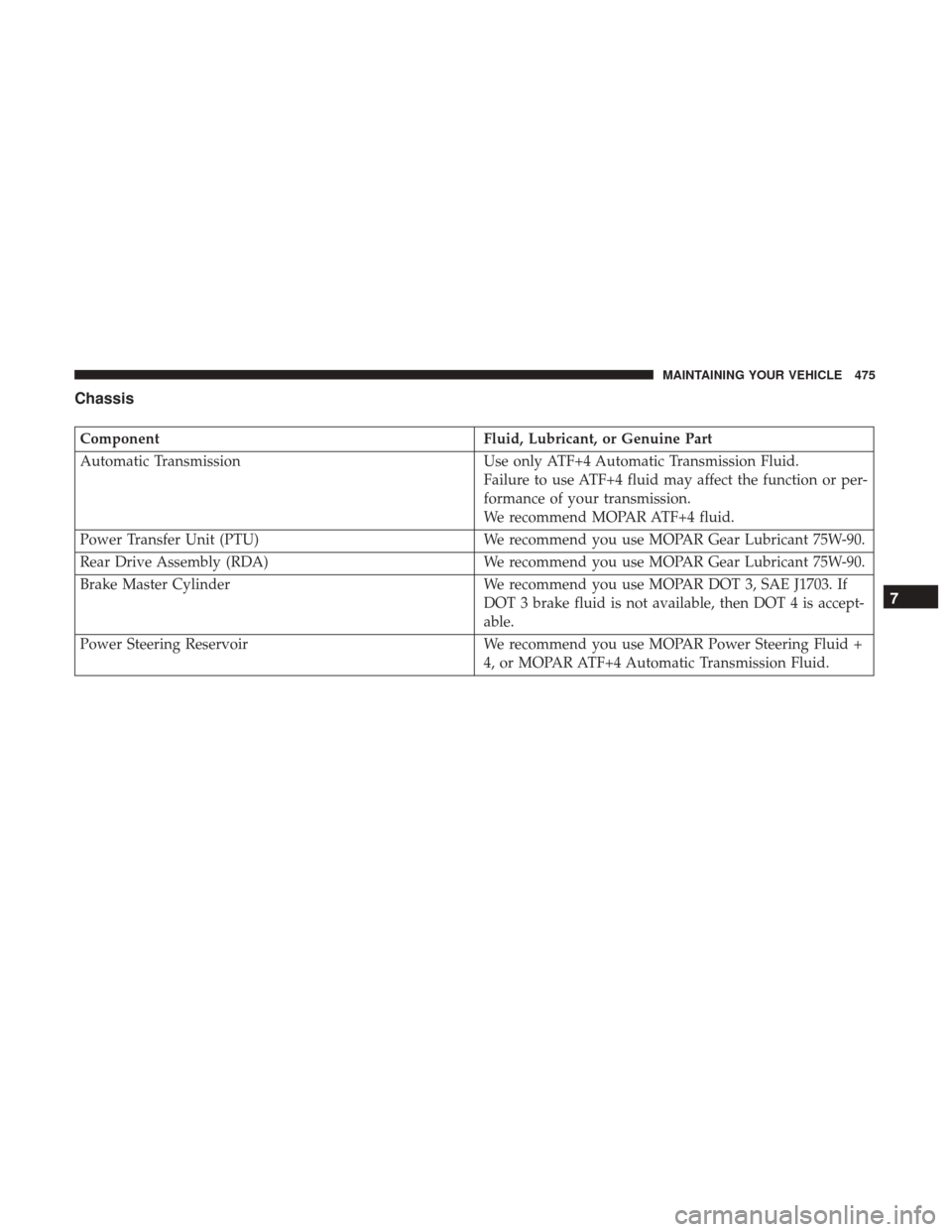

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission Use only ATF+4 Automatic Transmission Fluid.
Failure to use ATF+4 fluid may affect the function or per-
formance of your transmission.
We recommend MOPAR ATF+4 fluid.
Power Transfer Unit (PTU) We recommend you use MOPAR Gear Lubricant 75W-90.
Rear Drive Assembly (RDA) We recommend you use MOPAR Gear Lubricant 75W-90.
Brake Master Cylinder We recommend you use MOPAR DOT 3, SAE J1703. If
DOT 3 brake fluid is not available, then DOT 4 is accept-
able.
Power Steering Reservoir We recommend you use MOPAR Power Steering Fluid +
4, or MOPAR ATF+4 Automatic Transmission Fluid.
7
MAINTAINING YOUR VEHICLE 475

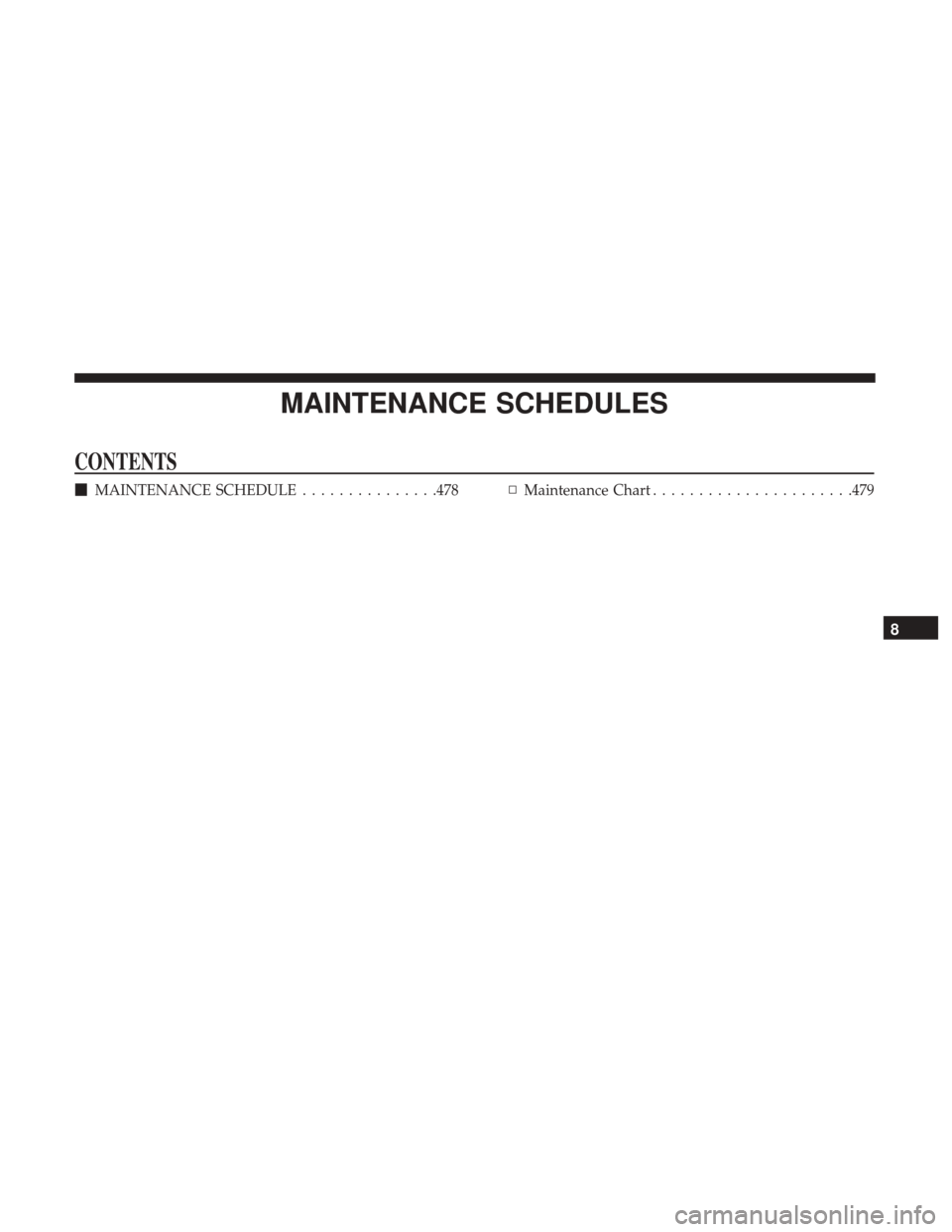

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE ...............478▫Maintenance Chart ..................... .479
8

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures, and E-85 fuel usage will influence
when the “Change Oil” or “Oil Change Required” message
is displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by
referring to the steps described under “Instrument Cluster
Display” in “Understanding Your Instrument Panel” for
further information.NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or 350
hours of engine run time, whichever comes first. The 350
hours of engine run or idle time is generally only a concern
for fleet customers.
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment or is
operated predominately at idle or only very low engine
RPM’s. This type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns on.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering, and transmission (4-
speed only) and fill as needed.
• Check function of all interior and exterior lights.
