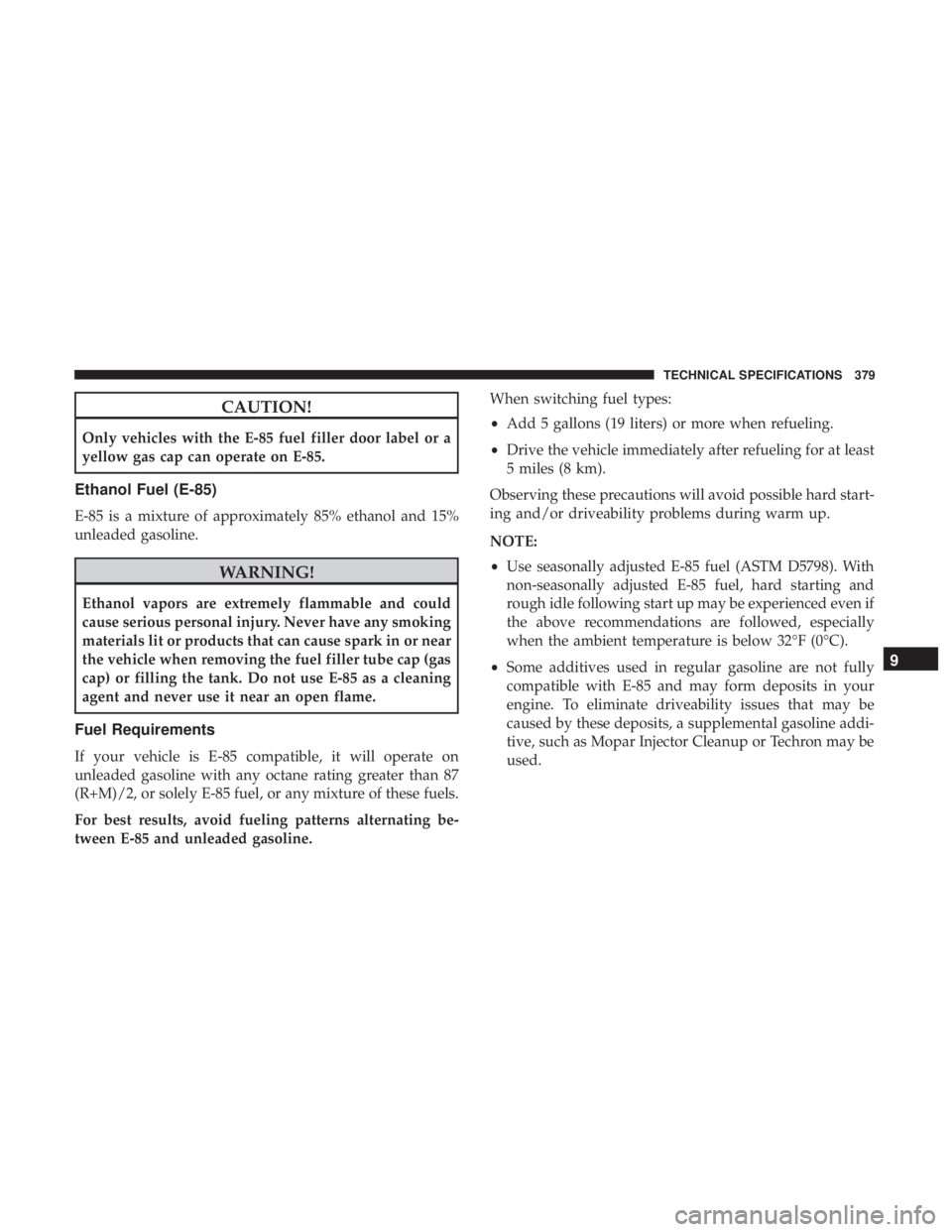

CAUTION!
Only vehicles with the E-85 fuel filler door label or a
yellow gas cap can operate on E-85.
Ethanol Fuel (E-85)
E-85 is a mixture of approximately 85% ethanol and 15%
unleaded gasoline.
WARNING!
Ethanol vapors are extremely flammable and could
cause serious personal injury. Never have any smoking
materials lit or products that can cause spark in or near
the vehicle when removing the fuel filler tube cap (gas
cap) or filling the tank. Do not use E-85 as a cleaning
agent and never use it near an open flame.
Fuel Requirements
If your vehicle is E-85 compatible, it will operate on
unleaded gasoline with any octane rating greater than 87
(R+M)/2, or solely E-85 fuel, or any mixture of these fuels.
For best results, avoid fueling patterns alternating be-
tween E-85 and unleaded gasoline.When switching fuel types:
•
Add 5 gallons (19 liters) or more when refueling.
• Drive the vehicle immediately after refueling for at least
5 miles (8 km).
Observing these precautions will avoid possible hard start-
ing and/or driveability problems during warm up.
NOTE:
• Use seasonally adjusted E-85 fuel (ASTM D5798). With
non-seasonally adjusted E-85 fuel, hard starting and
rough idle following start up may be experienced even if
the above recommendations are followed, especially
when the ambient temperature is below 32°F (0°C).
• Some additives used in regular gasoline are not fully
compatible with E-85 and may form deposits in your
engine. To eliminate driveability issues that may be
caused by these deposits, a supplemental gasoline addi-
tive, such as Mopar Injector Cleanup or Techron may be
used.
9
TECHNICAL SPECIFICATIONS 379

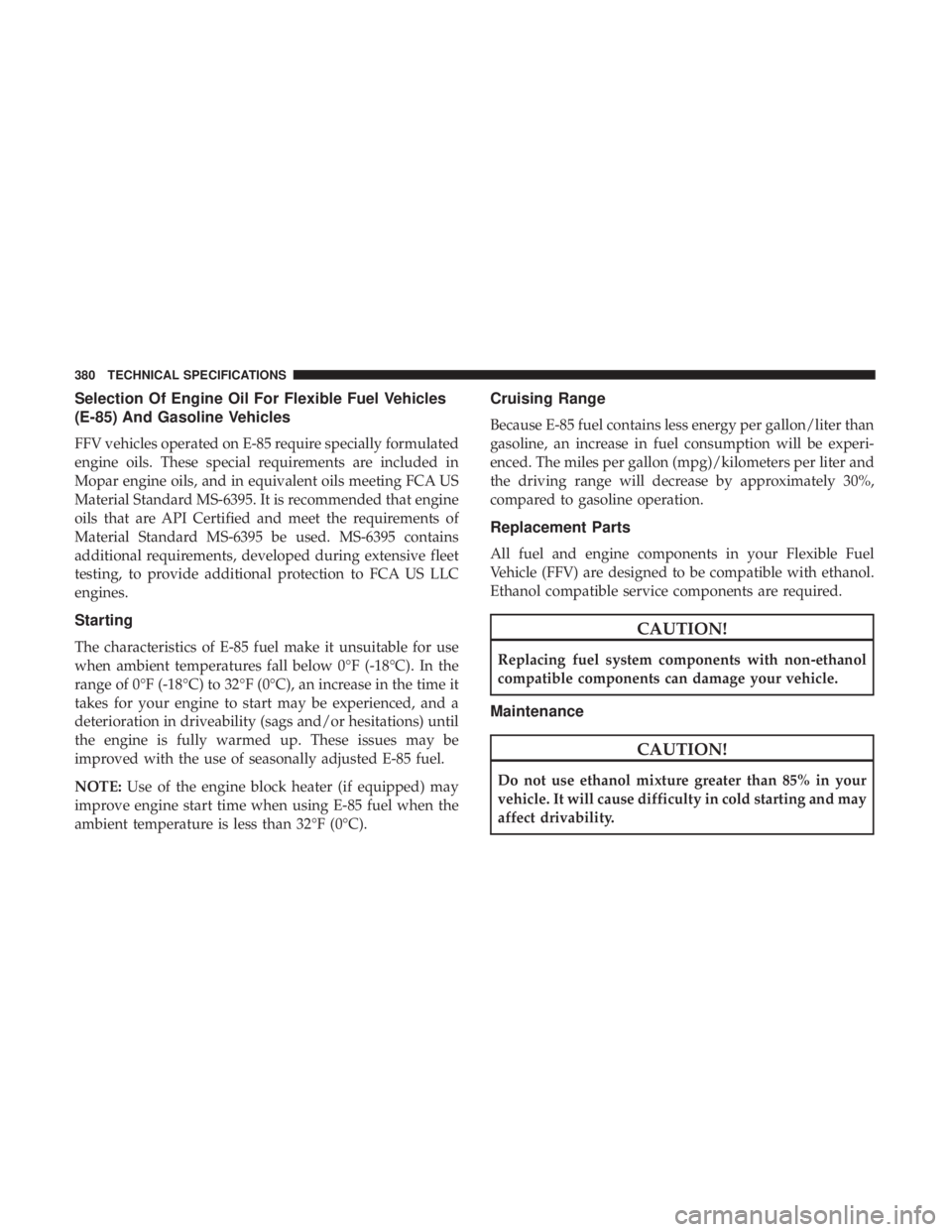

Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles
FFV vehicles operated on E-85 require specially formulated
engine oils. These special requirements are included in
Mopar engine oils, and in equivalent oils meeting FCA US
Material Standard MS-6395. It is recommended that engine
oils that are API Certified and meet the requirements of
Material Standard MS-6395 be used. MS-6395 contains
additional requirements, developed during extensive fleet
testing, to provide additional protection to FCA US LLC
engines.
Starting
The characteristics of E-85 fuel make it unsuitable for use
when ambient temperatures fall below 0°F (-18°C). In the
range of 0°F (-18°C) to 32°F (0°C), an increase in the time it
takes for your engine to start may be experienced, and a
deterioration in driveability (sags and/or hesitations) until
the engine is fully warmed up. These issues may be
improved with the use of seasonally adjusted E-85 fuel.
NOTE:Use of the engine block heater (if equipped) may
improve engine start time when using E-85 fuel when the
ambient temperature is less than 32°F (0°C).
Cruising Range
Because E-85 fuel contains less energy per gallon/liter than
gasoline, an increase in fuel consumption will be experi-
enced. The miles per gallon (mpg)/kilometers per liter and
the driving range will decrease by approximately 30%,
compared to gasoline operation.
Replacement Parts
All fuel and engine components in your Flexible Fuel
Vehicle (FFV) are designed to be compatible with ethanol.
Ethanol compatible service components are required.
CAUTION!
Replacing fuel system components with non-ethanol
compatible components can damage your vehicle.
Maintenance
CAUTION!
Do not use ethanol mixture greater than 85% in your
vehicle. It will cause difficulty in cold starting and may
affect drivability.
380 TECHNICAL SPECIFICATIONS

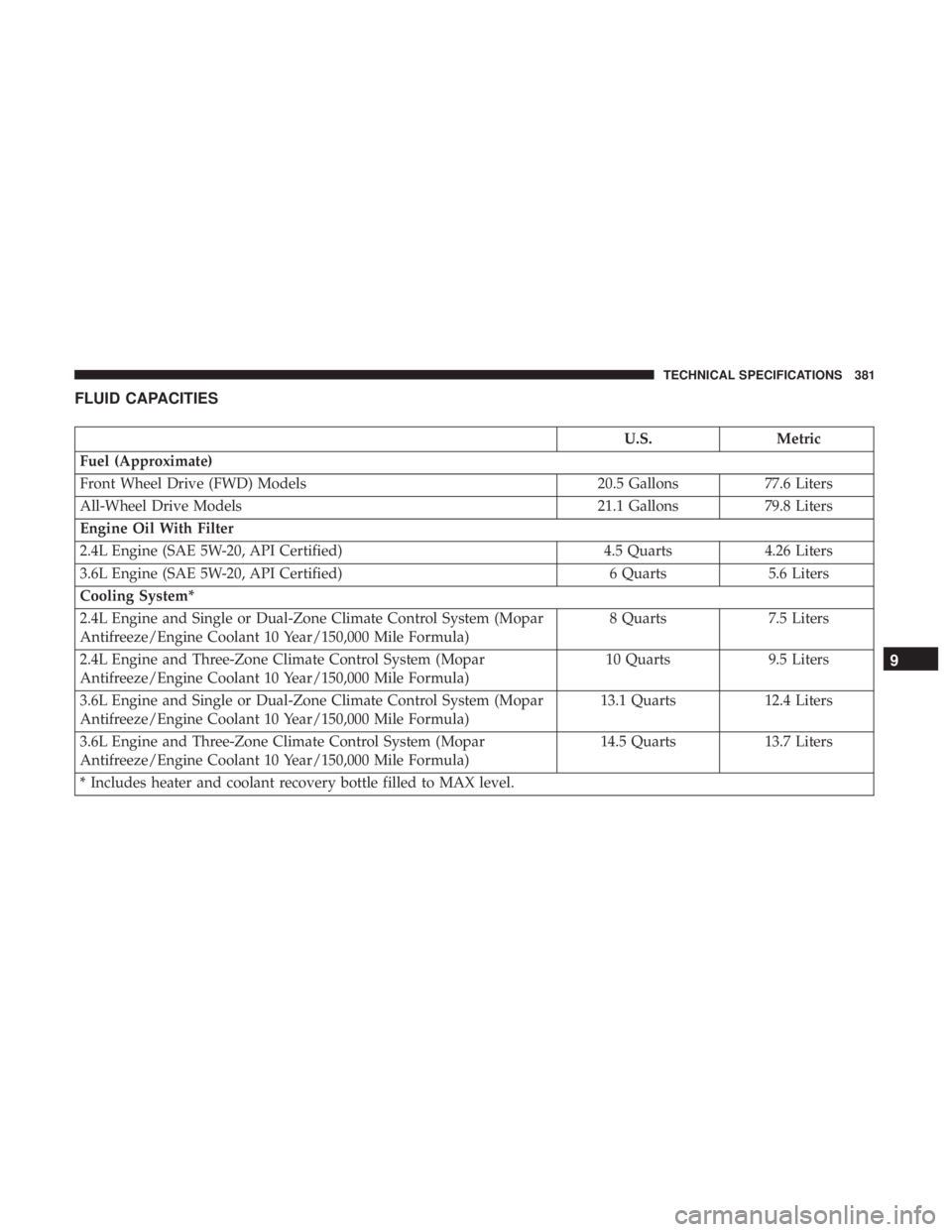

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
Front Wheel Drive (FWD) Models 20.5 Gallons77.6 Liters
All-Wheel Drive Models 21.1 Gallons79.8 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4L Engine and Single or Dual-Zone Climate Control System (Mopar
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 8 Quarts
7.5 Liters
2.4L Engine and Three-Zone Climate Control System (Mopar
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 10 Quarts
9.5 Liters
3.6L Engine and Single or Dual-Zone Climate Control System (Mopar
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 13.1 Quarts
12.4 Liters
3.6L Engine and Three-Zone Climate Control System (Mopar
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 14.5 Quarts
13.7 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
9
TECHNICAL SPECIFICATIONS 381

FLUIDS AND LUBRICANTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology).
Engine Oil We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as Mopar, Pennzoil, and Shell Helix. Refer
to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use Mopar Engine Oil Filter.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection 87 Octane, 0-15% Ethanol.
Fuel Selection – 3.6L Flex Fuel (E-85) Engine – If
Equipped 87 Octane, Up To 85% Ethanol.
382 TECHNICAL SPECIFICATIONS

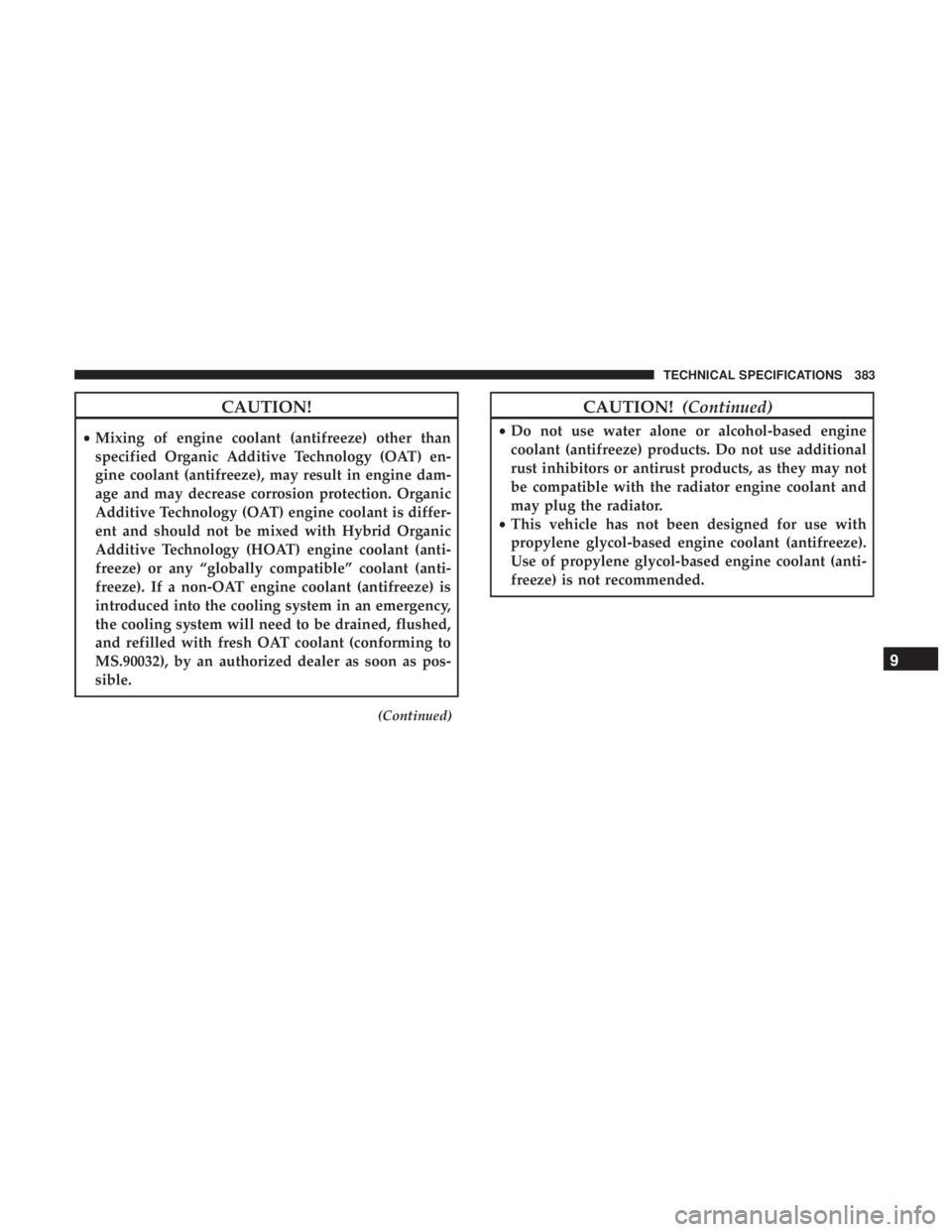

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.
(Continued)
CAUTION! (Continued)
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.
9
TECHNICAL SPECIFICATIONS 383

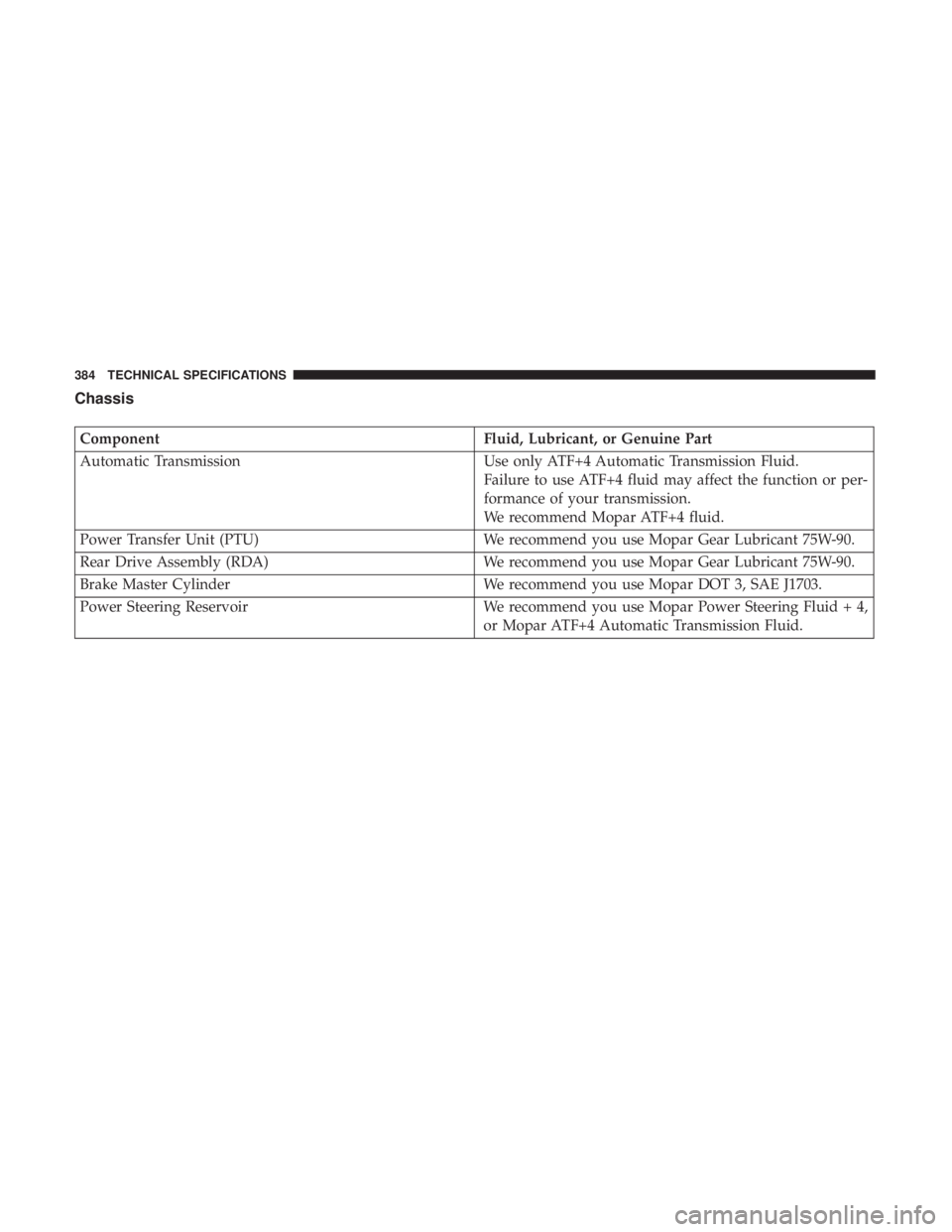

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission Use only ATF+4 Automatic Transmission Fluid.
Failure to use ATF+4 fluid may affect the function or per-
formance of your transmission.
We recommend Mopar ATF+4 fluid.
Power Transfer Unit (PTU) We recommend you use Mopar Gear Lubricant 75W-90.
Rear Drive Assembly (RDA) We recommend you use Mopar Gear Lubricant 75W-90.
Brake Master Cylinder We recommend you use Mopar DOT 3, SAE J1703.
Power Steering Reservoir We recommend you use Mopar Power Steering Fluid + 4,
or Mopar ATF+4 Automatic Transmission Fluid.
384 TECHNICAL SPECIFICATIONS

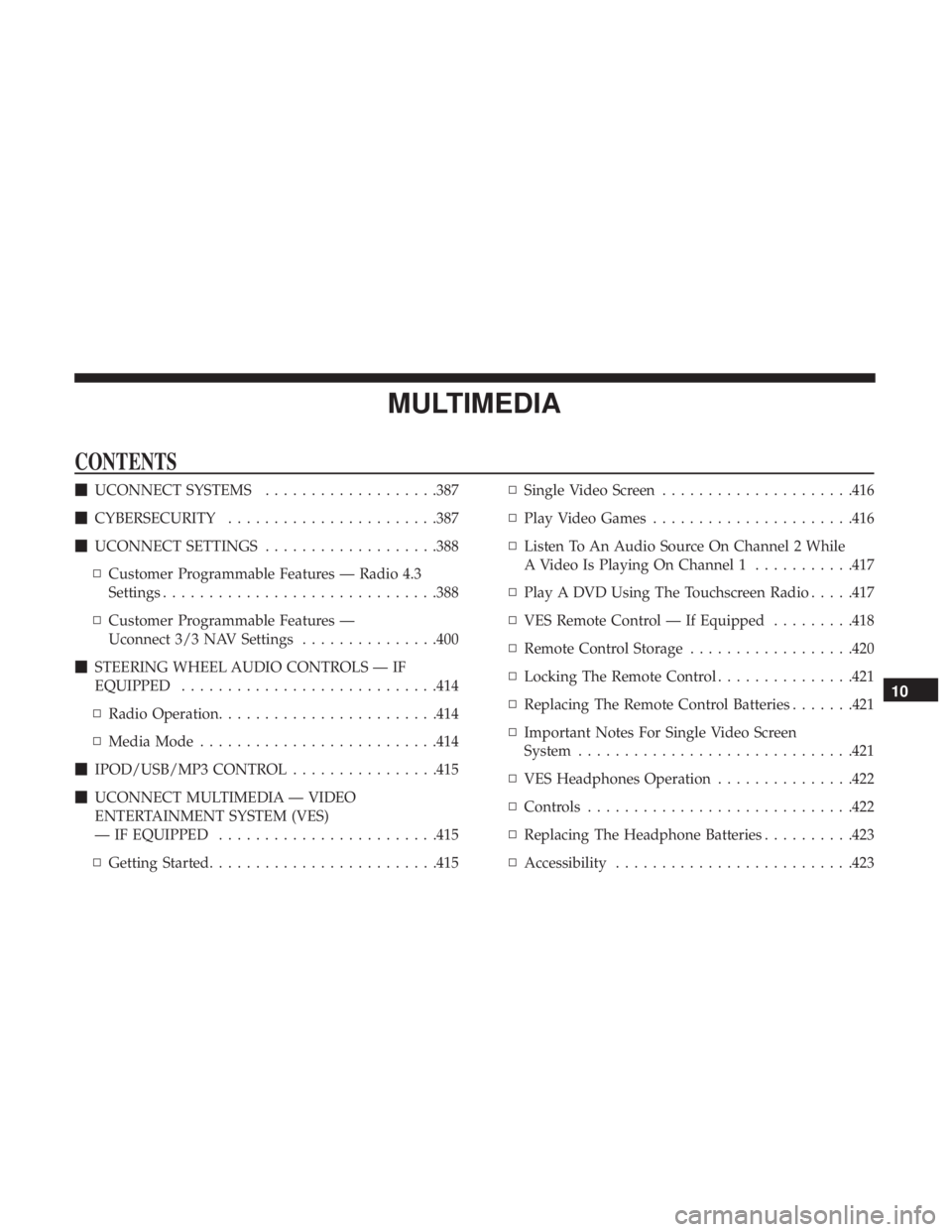

MULTIMEDIA
CONTENTS
UCONNECT SYSTEMS ...................387
 CYBERSECURITY ...................... .387
 UCONNECT SETTINGS ...................388
▫ Customer Programmable Features — Radio 4.3
Settings ............................. .388
▫ Customer Programmable Features —
Uconnect 3/3 NAV Settings ...............400
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED ........................... .414
▫ Radio Operation ....................... .414
▫ Media Mode ......................... .414
 IPOD/USB/MP3 CONTROL ................415
 UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES)
— IF EQUIPPED ....................... .415
▫ Getting Started ........................ .415▫
Single Video Screen .....................416
▫ Play Video Games ..................... .416
▫ Listen To An Audio Source On Channel 2 While
A Video Is Playing On Channel 1 ...........417
▫ Play A DVD Using The Touchscreen Radio .....417
▫ VES Remote Control — If Equipped .........418
▫ Remote Control Storage ..................420
▫ Locking The Remote Control ...............421
▫ Replacing The Remote Control Batteries .......421
▫ Important Notes For Single Video Screen
System ............................. .421
▫ VES Headphones Operation ...............422
▫ Controls ............................ .422
▫ Replacing The Headphone Batteries ..........423
▫ Accessibility ......................... .423
10

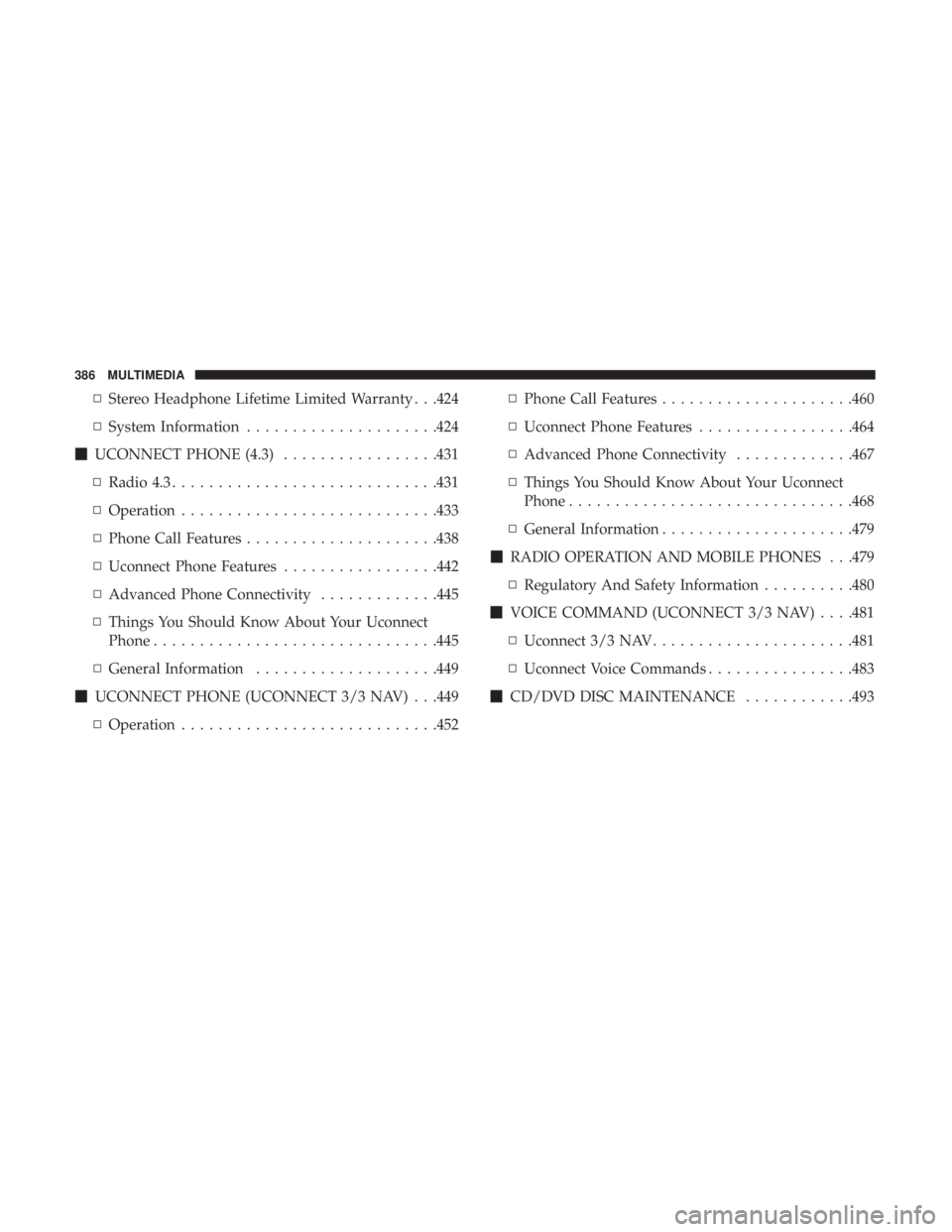

▫Stereo Headphone Lifetime Limited Warranty . . .424
▫ System Information .....................424
 UCONNECT PHONE (4.3) .................431
▫ Radio 4.3 ............................ .431
▫ Operation ........................... .433
▫ Phone Call Features .....................438
▫ Uconnect Phone Features .................442
▫ Advanced Phone Connectivity .............445
▫ Things You Should Know About Your Uconnect
Phone .............................. .445
▫ General Information ....................449
 UCONNECT PHONE (UCONNECT 3/3 NAV) . . .449
▫ Operation ........................... .452▫
Phone Call Features .....................460
▫ Uconnect Phone Features .................464
▫ Advanced Phone Connectivity .............467
▫ Things You Should Know About Your Uconnect
Phone .............................. .468
▫ General Information .....................479
 RADIO OPERATION AND MOBILE PHONES . . .479
▫ Regulatory And Safety Information ..........480
 VOICE COMMAND (UCONNECT 3/3 NAV) . . . .481
▫ Uconnect 3/3 NAV ..................... .481
▫ Uconnect Voice Commands ................483
 CD/DVD DISC MAINTENANCE ............493
386 MULTIMEDIA

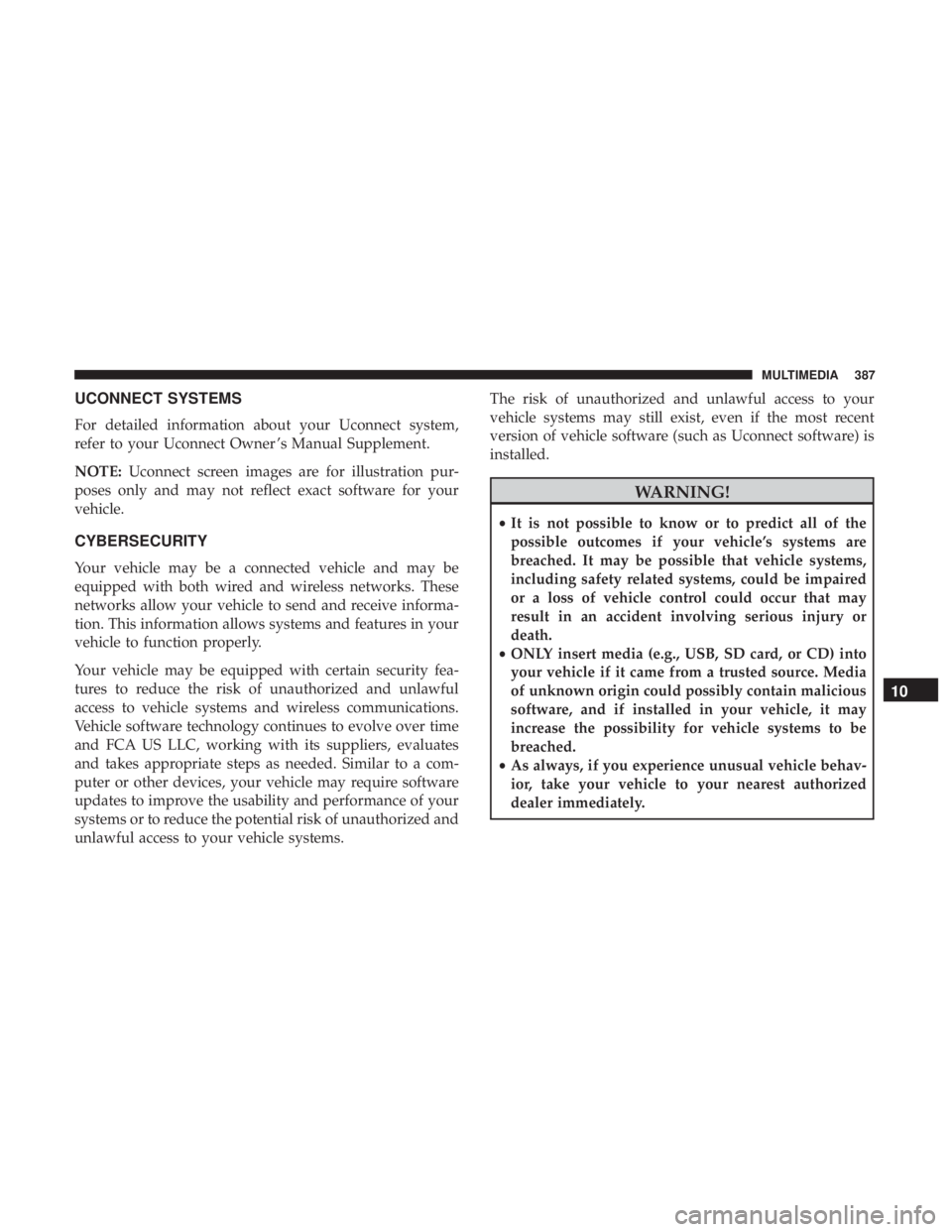

UCONNECT SYSTEMS
For detailed information about your Uconnect system,
refer to your Uconnect Owner ’s Manual Supplement.
NOTE:Uconnect screen images are for illustration pur-
poses only and may not reflect exact software for your
vehicle.
CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.
Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems. The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.
WARNING!
•
It is not possible to know or to predict all of the
possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.
• ONLY insert media (e.g., USB, SD card, or CD) into
your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.
• As always, if you experience unusual vehicle behav-
ior, take your vehicle to your nearest authorized
dealer immediately.
10
MULTIMEDIA 387

NOTE:
•FCA US LLC or your dealer may contact you directly
regarding software updates.
• To help further improve vehicle security and minimize
the potential risk of a security breach, vehicle owners
should:
• Routinely check www.driveuconnect.com/support/
software-update.html (U.S. Residents) or www.driveu-
connect.ca (Canadian Residents) to learn about avail-
able Uconnect software updates.
• Only connect and use trusted media devices (e.g.
personal mobile phones, USBs, CDs).
Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Onboard Diagnostic
System (OBD II) Cybersecurity” in “Getting To Know Your
Instrument Panel”.
UCONNECT SETTINGS
The Uconnect system uses a combination of buttons on the
touchscreen and buttons on the faceplate located on the
center of the instrument panel that allows you to access
and change the customer programmable features.
Customer Programmable Features — Radio 4.3
Settings
In this mode the Uconnect system allows you to access
programmable features that may be equipped such as Dis-
play, Clock, Safety & Driving Assistance, Lights, Doors &
Locks, Auto-On Comfort & Remote Start, Engine Off Op-
tions, Compass Settings, Audio, Phone/Bluetooth, and Sirius
Setup through buttons on the faceplate and touchscreen.
NOTE: Only one touchscreen area may be selected at a
time.
Radio 4.3 Buttons On The Faceplate and Touchscreen
1 — Uconnect Buttons On The Faceplate
2 — Uconnect Buttons On The Touchscreen
388 MULTIMEDIA
