WARNING!
With the ESP switched off, the enhanced vehicle
stability offered by ESP is unavailable. In an emer-
gency evasive maneuver, the ESP system will not
engage to assist in maintaining stability. The ªFull
Offº ESP mode is intended for off-highway or off-
road only.
Synchronizing ESP
The malfunction indicator light for the ESP is
combined with BAS indicator. If the power
supply is interrupted (battery disconnected or
discharged), the ESP/BAS malfunction indica-
tor light may illuminate with the engine running. If this
should occur, turn the steering wheel completely to the
left and then to the right. The ESP/BAS malfunction
indicator light should go out. However, if the light
remains on, have the ESP and BAS checked at your
authorized dealer as soon as possible.
ESP/BAS Malfunction Indicator Light and
ESP/TCS Indicator Light
The malfunction indicator light for the ESP is
combined with the BAS indicator. The yellow
ªESP/BAS Malfunction Indicator Lightº and
the yellow ªESP/TCS Indicator Lightº in the
instrument cluster both come on when the ignition
switch is turned to the ªONº position. They should go
out with the engine running.
The system will turn the ªESP/BAS Malfunction Indica-
tor Lightº on continuously while the engine running if it
detects a malfunction in either the ESP or the BAS or
both. If the light remains on after several ignition cycles,
and you have driven the vehicle several miles at speeds
greater than 30 mph (48 km/h), and the ESP is synchro-
nized (refer to Synchronizing ESP), see your authorized
dealer as soon as possible to have the problem diagnosed
and corrected.
STARTING AND OPERATING 227
5

NOTE:You can change the pressure units to display in
PSI, kPA, or BAR. Refer to ªLanguage,º under ªPersonal
Settings (Customer Programmable Features),º under
ªElectronic Vehicle Information Center (EVIC)º in Sec-
tion 4 of this manual for details.
If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the Tire Pressure Monitoring Telltale
Light will no longer flash, and the9CHECK TPM SYS-
TEM9message will no longer display, and a pressure
value will display in place of the dashes.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
²This device may not cause harmful interference.
²This device must accept any interference received,
including interference that may cause undesired op-
eration.The tire pressure sensors are covered under one of the
following licenses:
United States.....................KR5S120123
Canada........................2671-S120123
FUEL REQUIREMENTS
6.1L Engine
The 6.1L engine is designed to meet all
emissions regulations and provide excel-
lent fuel economy and performance when
using high-quality premium unleaded
gasoline with an octane rating of 91 or
higher.
Light spark knock at low engine speeds is not harmful to
your engine. However, continued heavy spark knock at
high speeds can cause damage and immediate service is
required.
Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of ªpremiumº gasoline
before considering service for the vehicle.
STARTING AND OPERATING 253
5

ONBOARD DIAGNOSTIC SYSTEM Ð OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the ªMalfunction Indicator Light.º It will
also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your dealer for service as soon as
possible.CAUTION!
Prolonged driving with the ªMalfunction Indicator
Lightº on could cause further damage to the emis-
sion control system. It could also affect fuel economy
and driveability. The vehicle must be serviced before
any emissions tests can be performed.
If the ªMalfunction Indicator Lightº is flashing
while the engine is running, severe catalytic con-
verter damage and power loss will soon occur. Im-
mediate service is required.
Loose Fuel Filler Cap
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
ªCheck Gascapº message will display in the Electronic
Vehicle Information Center (EVIC) Ð if equipped. If this
occurs, tighten the fuel filler cap properly and press the
odometer reset button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
292 MAINTAINING YOUR VEHICLE

A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle's emissions control system.
Failure to pass could prevent vehicle registration.
For states, which have an I/M (Inspection and
Maintenance) requirement, this check verifies the
following: the MIL (Malfunction Indicator Lamp)
is functioning and is not on when the engine is running,
and that the OBD (On Board Diagnostic) system is ready
for testing.
Normally, the OBD system will be ready. The OBD
system maynotbe ready if your vehicle was recently
serviced, if you recently had a dead battery, or a battery
replacement. If the OBD system should be determined
not ready for the I/M test, your vehicle may fail the test.Your vehicle has a simple ignition key actuated test,
which you can use prior to going to the test station. To
check if your vehicle's OBD system is ready, you must do
the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see your MIL symbol come on as part of a normal
bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn off
the ignition key or start the engine. This means that
your vehicle's OBD system isnot readyand you
shouldnotproceed to the I/M station.
MAINTAINING YOUR VEHICLE 293
7

Insure nylon tubing in these areas has not melted or
collapsed.
Inspect all hose connections such as clamps and cou-
plings to make sure they are secure and no leaks are
present.
NOTE:
²
Often, fluid such as oil, power steering fluid, and
brake fluid are used during assembly plant operations
to facilitate the assembly of hoses to couplings. There-
fore, oil wetness at the hose-coupling area is not
necessarily an indication of leakage. Actual dripping
of hot fluid when systems are under pressure (during
vehicle operation), should be noted before a hose is
replaced based on leakage.
²Inspect the brake hoses whenever the brake system is
serviced and at every engine oil change. Inspect hy-
draulic brake hoses for surface cracking, scuffing, or
worn spots. If there is any evidence of cracking,
scuffing, or worn spots, the hose should be replaced
immediately! Eventual deterioration of the hose can
take place resulting in a possibility of a burst failure.
WARNING!
Worn brake hoses can burst and cause brake failure.
You could have an accident. If you see any signs of
cracking, scuffing, or worn spots, have the brake
hoses replaced immediately.
Master Cylinder - Brake Fluid Level Check
Check the fluid level in the master cylinder immediately
if the brake system warning light indicates system fail-
ure.
Check the fluid level in the master cylinder when per-
forming underhood services.
Clean the top of the master cylinder area before removing
the cap. Add fluid to bring the level up to the top of the
ªFULLº mark on the side of the master cylinder reservoir.
Overfilling of fluid is not recommended because it may
cause leaking in the system.
Add enough fluid to bring the level up to the require-
ments described on the brake fluid reservoir. With disc
MAINTAINING YOUR VEHICLE 313
7

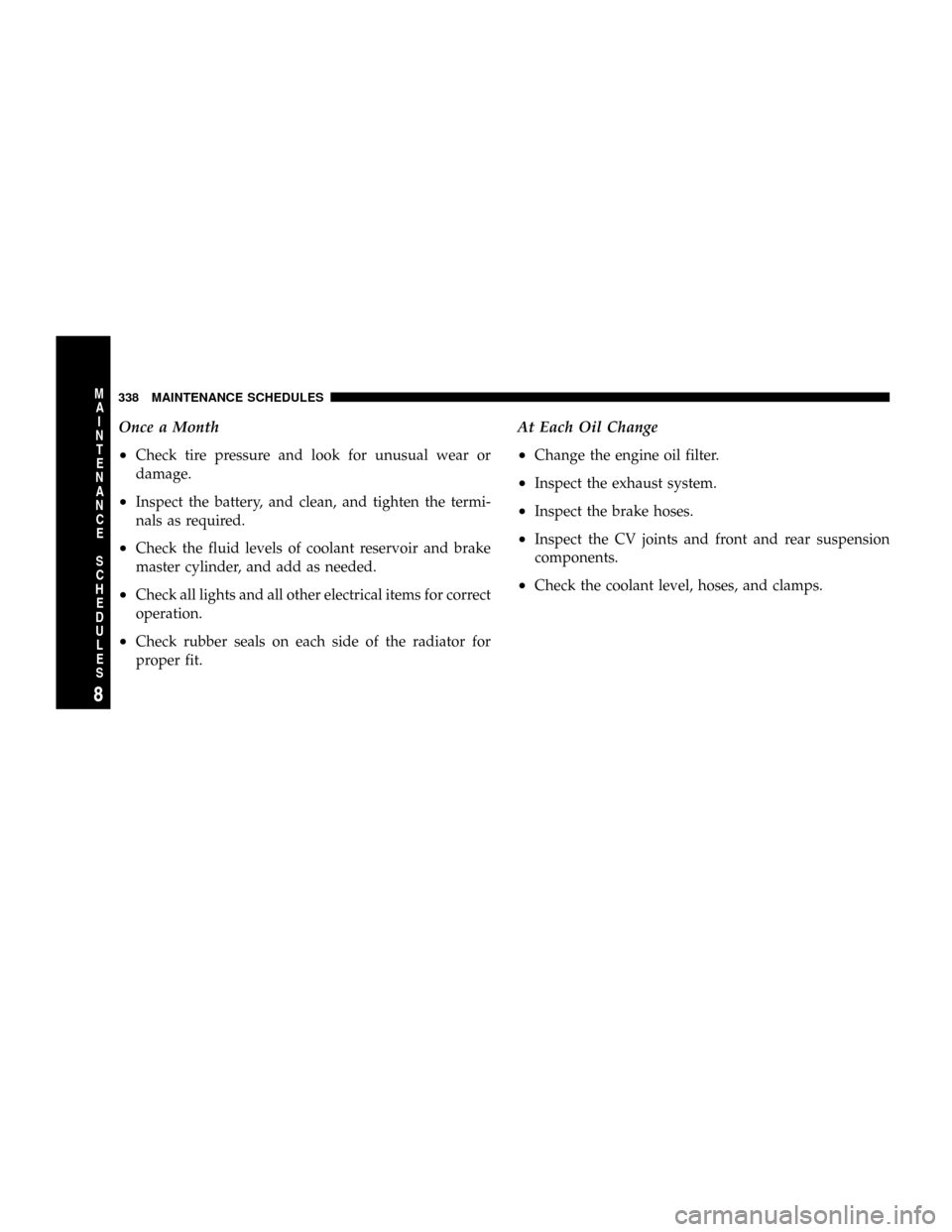

Once a Month
²
Check tire pressure and look for unusual wear or
damage.
²Inspect the battery, and clean, and tighten the termi-
nals as required.
²Check the fluid levels of coolant reservoir and brake
master cylinder, and add as needed.
²Check all lights and all other electrical items for correct
operation.
²Check rubber seals on each side of the radiator for
proper fit.
At Each Oil Change
²
Change the engine oil filter.
²Inspect the exhaust system.
²Inspect the brake hoses.
²Inspect the CV joints and front and rear suspension
components.
²Check the coolant level, hoses, and clamps.
338 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

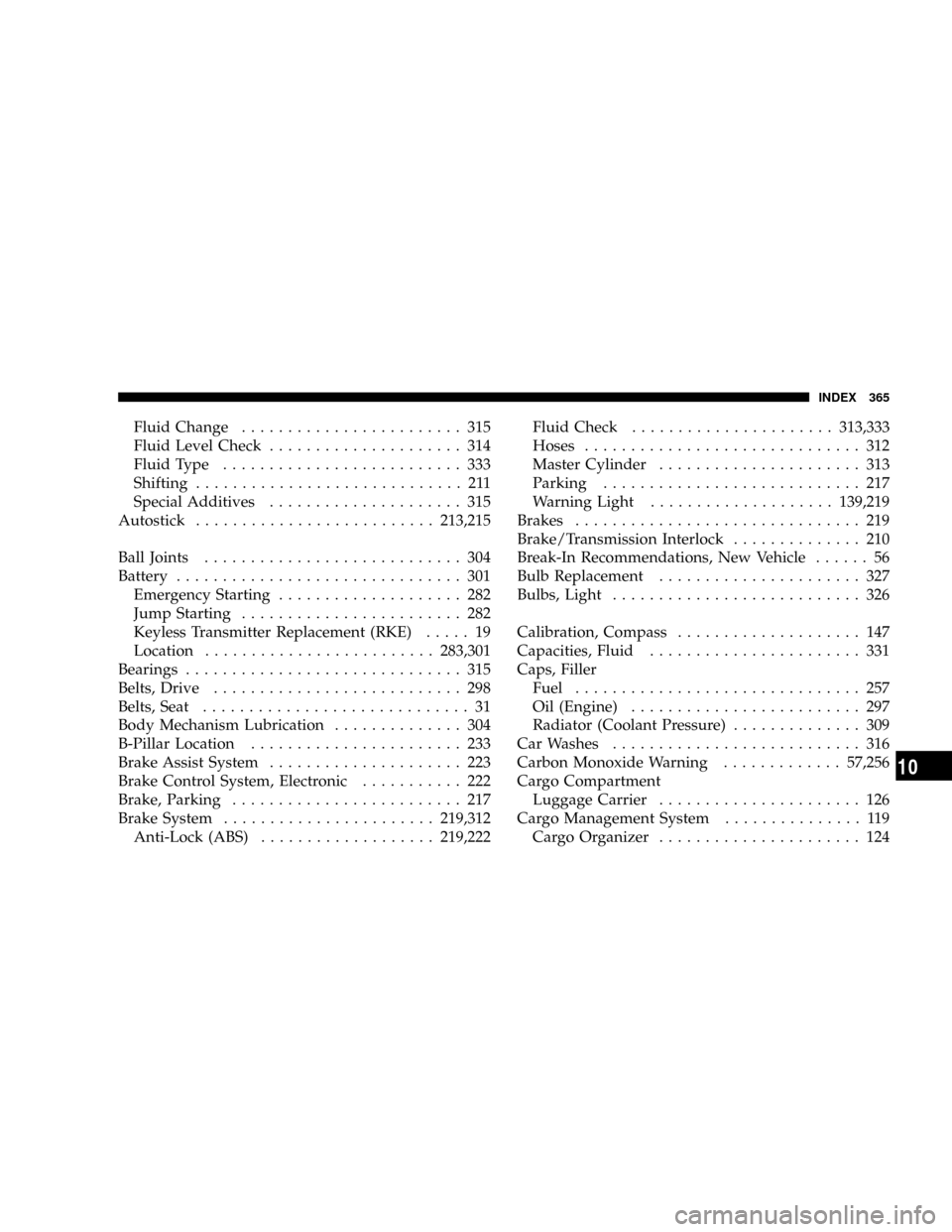

Fluid Change........................ 315
Fluid Level Check..................... 314
Fluid Type.......................... 333
Shifting............................. 211
Special Additives..................... 315
Autostick..........................213,215
Ball Joints............................ 304
Battery............................... 301
Emergency Starting.................... 282
Jump Starting........................ 282
Keyless Transmitter Replacement (RKE)..... 19
Location.........................283,301
Bearings.............................. 315
Belts, Drive........................... 298
Belts, Seat............................. 31
Body Mechanism Lubrication.............. 304
B-Pillar Location....................... 233
Brake Assist System..................... 223
Brake Control System, Electronic........... 222
Brake, Parking......................... 217
Brake System.......................219,312
Anti-Lock (ABS)...................219,222Fluid Check......................313,333
Hoses.............................. 312
Master Cylinder...................... 313
Parking............................ 217
Warning Light....................139,219
Brakes............................... 219
Brake/Transmission Interlock.............. 210
Break-In Recommendations, New Vehicle...... 56
Bulb Replacement...................... 327
Bulbs, Light........................... 326
Calibration, Compass.................... 147
Capacities, Fluid....................... 331
Caps, Filler
Fuel............................... 257
Oil (Engine)......................... 297
Radiator (Coolant Pressure).............. 309
Car Washes........................... 316
Carbon Monoxide Warning.............57,256
Cargo Compartment
Luggage Carrier...................... 126
Cargo Management System............... 119
Cargo Organizer...................... 124
INDEX 365
10

Rollaway Tonneau Cover............... 121
Tri-Fold Load Floor.................... 119
Waterproof Liner..................... 123
Cargo Tie-Downs....................... 125
Cassette Tape and Player Maintenance....... 185
Catalytic Converter..................... 299
CD (Compact Disc) Player.............155,162
Cellular Phone.......................... 67
Chains, Tire........................... 243
Chart, Tire Sizing....................... 230
Check Engine Light (Malfunction
Indicator Light)........................ 293
Child Restraint...................48,50,53,54
Child Restraint Tether Anchors...........51,53
Child Safety Locks....................... 23
Clean Air Gasoline...................... 254
Cleaning
Wheels............................. 317
Climate Control........................ 186
Clock..........................157,163,174
Compact Disc (CD) Maintenance........... 186
Compass............................. 147
Compass Calibration.................... 147Compass Variance...................... 148
Computer, Trip/Travel................... 145
Console.............................. 118
Console, Floor......................... 118
Console, Overhead...................... 106
Contract, Service....................... 358
Coolant Pressure Cap (Radiator Cap)........ 309
Cooling System........................ 307
Adding Coolant (Antifreeze)............. 309
Coolant Capacity..................... 331
Coolant Level.....................307,310
Disposal of Used Coolant............... 310
Drain, Flush, and Refill................. 308
Inspection........................... 310
Points to Remember................... 310
Pressure Cap........................ 309
Radiator Cap........................ 309
Selection of Coolant (Antifreeze)....308,331,332
Cruise Control (Speed Control)............. 103
Cruise Light........................... 135
Cup Holder........................ 117,319
Customer Assistance.................... 356
366 INDEX

Data Recorder, Event..................... 47
Daytime Running Lights.................. 95
Dealer Service......................... 294
Defroster, Rear Window.................. 198
Defroster, Windshield...............59,188,193
Delay (Intermittent) Wipers.............99,197
Diagnostic System, Onboard............... 292
Dimmer Switch, Headlight................. 96
Disposal
Antifreeze (Engine Coolant)............. 310
Door Locks............................ 21
Door Locks, Automatic................... 22
Door Opener, Garage.................... 107
Drive Belts............................ 298
Driving
On Slippery Surfaces.................. 216
DVD Player (Video Entertainment System).... 177
Electric Remote Mirrors................... 66
Electrical Power Outlets.................. 115
Electronic Brake Control System............ 222
Electronic Speed Control (Cruise Control)..... 103
Electronic Stability Program (ESP).......... 224Electronic Throttle Control Warning Light..... 135
Electronic Vehicle Information Center (EVIC) . . 143
Emergency, In Case of
Freeing Vehicle When Stuck............. 285
Hazard Warning Flasher................ 276
Jump Starting........................ 282
Overheating......................... 276
Towing............................. 286
Emission Control System Maintenance....293,336
Engine............................... 291
Air Cleaner.......................... 299
Block Heater......................... 207
Break-In Recommendations............... 56
Checking Oil Level.................... 295
Compartment........................ 291
Coolant (Antifreeze)................307,332
Cooling............................ 307
Exhaust Gas Caution..............30,57,256
Fails to Start......................... 205
Flooded, Starting..................... 205
Fuel Requirements.................253,331
Oil ..........................295,331,332
Oil Change Interval................... 296
INDEX 367
10

Oil Filler Cap........................ 297
Oil Selection......................297,331
Overheating......................... 276
Temperature Gauge................... 136
Enhanced Accident Response Feature......... 46
Ethanol.............................. 254
Event Data Recorder..................... 47
Exhaust Gas Caution...........30,57,58,256,306
Exhaust System......................57,306
Exterior Folding Mirrors.................. 65
Exterior Lighting........................ 93
Filters
Air Cleaner.......................... 299
Air Conditioning..................195,303
Engine Fuel......................... 299
Engine Oil.......................298,332
Engine Oil Disposal................... 298
Flashers
Hazard Warning...................... 276
Turn Signal........................96,137
Flash-To-Pass........................... 96
Flooded Engine Starting.................. 205Floor Console.......................... 118
Fluid Capacities........................ 331
Fluid Leaks............................ 59
Fluid Level Checks
Brake.............................. 313
Cooling System....................... 307
Engine Oil.......................... 295
Power Steering....................... 304
Fluids............................... 332
Fluids, Lubricants and Genuine Parts........ 332
Fog Lights..........................95,138
Folding Rear Seat....................... 91
Freeing A Stuck Vehicle.................. 285
Front Suspension Ball Joints............... 304
Front Wheel Bearings.................... 315
Fuel................................. 253
Adding............................. 257
Clean Air........................... 254
Ethanol............................. 254
Filler Cap (Gas Cap)................... 257
Filter.............................. 299
Gasoline............................ 253
Gauge............................. 135
368 INDEX
