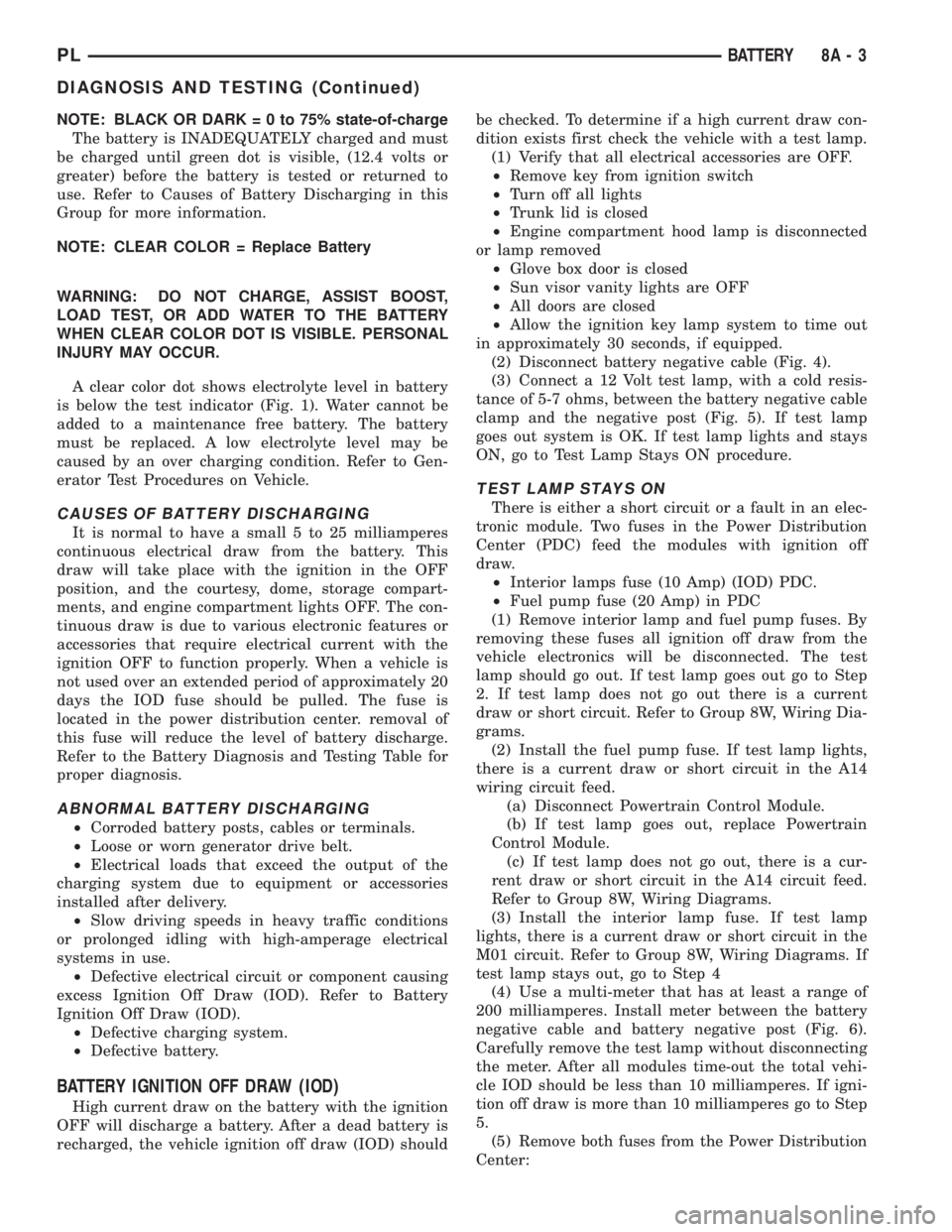

NOTE: BLACK OR DARK=0to75%state-of-charge
The battery is INADEQUATELY charged and must
be charged until green dot is visible, (12.4 volts or
greater) before the battery is tested or returned to
use. Refer to Causes of Battery Discharging in this
Group for more information.
NOTE: CLEAR COLOR = Replace Battery
WARNING: DO NOT CHARGE, ASSIST BOOST,
LOAD TEST, OR ADD WATER TO THE BATTERY
WHEN CLEAR COLOR DOT IS VISIBLE. PERSONAL
INJURY MAY OCCUR.
A clear color dot shows electrolyte level in battery
is below the test indicator (Fig. 1). Water cannot be
added to a maintenance free battery. The battery
must be replaced. A low electrolyte level may be
caused by an over charging condition. Refer to Gen-
erator Test Procedures on Vehicle.
CAUSES OF BATTERY DISCHARGING
It is normal to have a small 5 to 25 milliamperes
continuous electrical draw from the battery. This
draw will take place with the ignition in the OFF
position, and the courtesy, dome, storage compart-
ments, and engine compartment lights OFF. The con-
tinuous draw is due to various electronic features or
accessories that require electrical current with the
ignition OFF to function properly. When a vehicle is
not used over an extended period of approximately 20
days the IOD fuse should be pulled. The fuse is
located in the power distribution center. removal of
this fuse will reduce the level of battery discharge.
Refer to the Battery Diagnosis and Testing Table for
proper diagnosis.
ABNORMAL BATTERY DISCHARGING
²Corroded battery posts, cables or terminals.
²Loose or worn generator drive belt.
²Electrical loads that exceed the output of the
charging system due to equipment or accessories
installed after delivery.
²Slow driving speeds in heavy traffic conditions
or prolonged idling with high-amperage electrical
systems in use.
²Defective electrical circuit or component causing
excess Ignition Off Draw (IOD). Refer to Battery
Ignition Off Draw (IOD).
²Defective charging system.
²Defective battery.
BATTERY IGNITION OFF DRAW (IOD)
High current draw on the battery with the ignition
OFF will discharge a battery. After a dead battery is
recharged, the vehicle ignition off draw (IOD) shouldbe checked. To determine if a high current draw con-
dition exists first check the vehicle with a test lamp.
(1) Verify that all electrical accessories are OFF.
²Remove key from ignition switch
²Turn off all lights
²Trunk lid is closed
²Engine compartment hood lamp is disconnected
or lamp removed
²Glove box door is closed
²Sun visor vanity lights are OFF
²All doors are closed
²Allow the ignition key lamp system to time out
in approximately 30 seconds, if equipped.
(2) Disconnect battery negative cable (Fig. 4).
(3) Connect a 12 Volt test lamp, with a cold resis-
tance of 5-7 ohms, between the battery negative cable
clamp and the negative post (Fig. 5). If test lamp
goes out system is OK. If test lamp lights and stays
ON, go to Test Lamp Stays ON procedure.
TEST LAMP STAYS ON
There is either a short circuit or a fault in an elec-
tronic module. Two fuses in the Power Distribution
Center (PDC) feed the modules with ignition off
draw.
²Interior lamps fuse (10 Amp) (IOD) PDC.
²Fuel pump fuse (20 Amp) in PDC
(1) Remove interior lamp and fuel pump fuses. By
removing these fuses all ignition off draw from the
vehicle electronics will be disconnected. The test
lamp should go out. If test lamp goes out go to Step
2. If test lamp does not go out there is a current
draw or short circuit. Refer to Group 8W, Wiring Dia-
grams.
(2) Install the fuel pump fuse. If test lamp lights,
there is a current draw or short circuit in the A14
wiring circuit feed.
(a) Disconnect Powertrain Control Module.
(b) If test lamp goes out, replace Powertrain
Control Module.
(c) If test lamp does not go out, there is a cur-
rent draw or short circuit in the A14 circuit feed.
Refer to Group 8W, Wiring Diagrams.
(3) Install the interior lamp fuse. If test lamp
lights, there is a current draw or short circuit in the
M01 circuit. Refer to Group 8W, Wiring Diagrams. If
test lamp stays out, go to Step 4
(4) Use a multi-meter that has at least a range of
200 milliamperes. Install meter between the battery
negative cable and battery negative post (Fig. 6).
Carefully remove the test lamp without disconnecting
the meter. After all modules time-out the total vehi-
cle IOD should be less than 10 milliamperes. If igni-
tion off draw is more than 10 milliamperes go to Step
5.
(5) Remove both fuses from the Power Distribution
Center:
PLBATTERY 8A - 3
DIAGNOSIS AND TESTING (Continued)

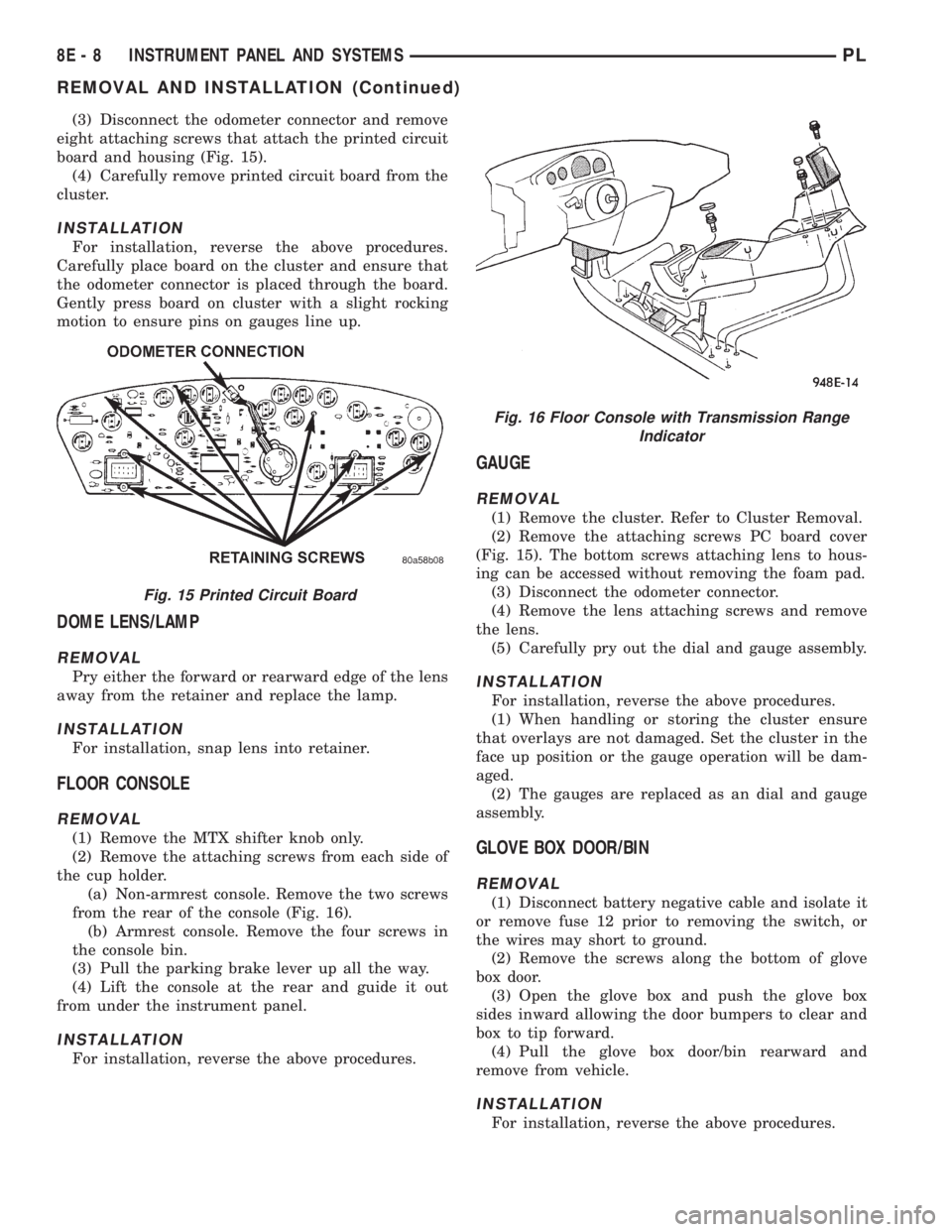

(3) Disconnect the odometer connector and remove
eight attaching screws that attach the printed circuit
board and housing (Fig. 15).
(4) Carefully remove printed circuit board from the
cluster.
INSTALLATION
For installation, reverse the above procedures.
Carefully place board on the cluster and ensure that
the odometer connector is placed through the board.
Gently press board on cluster with a slight rocking
motion to ensure pins on gauges line up.
DOME LENS/LAMP
REMOVAL
Pry either the forward or rearward edge of the lens
away from the retainer and replace the lamp.
INSTALLATION
For installation, snap lens into retainer.
FLOOR CONSOLE
REMOVAL
(1) Remove the MTX shifter knob only.
(2) Remove the attaching screws from each side of
the cup holder.
(a) Non-armrest console. Remove the two screws
from the rear of the console (Fig. 16).
(b) Armrest console. Remove the four screws in
the console bin.
(3) Pull the parking brake lever up all the way.
(4) Lift the console at the rear and guide it out
from under the instrument panel.
INSTALLATION
For installation, reverse the above procedures.
GAUGE
REMOVAL
(1) Remove the cluster. Refer to Cluster Removal.
(2) Remove the attaching screws PC board cover
(Fig. 15). The bottom screws attaching lens to hous-
ing can be accessed without removing the foam pad.
(3) Disconnect the odometer connector.
(4) Remove the lens attaching screws and remove
the lens.
(5) Carefully pry out the dial and gauge assembly.
INSTALLATION
For installation, reverse the above procedures.
(1) When handling or storing the cluster ensure
that overlays are not damaged. Set the cluster in the
face up position or the gauge operation will be dam-
aged.
(2) The gauges are replaced as an dial and gauge
assembly.
GLOVE BOX DOOR/BIN
REMOVAL
(1) Disconnect battery negative cable and isolate it
or remove fuse 12 prior to removing the switch, or
the wires may short to ground.
(2) Remove the screws along the bottom of glove
box door.
(3) Open the glove box and push the glove box
sides inward allowing the door bumpers to clear and
box to tip forward.
(4) Pull the glove box door/bin rearward and
remove from vehicle.
INSTALLATION
For installation, reverse the above procedures.
Fig. 15 Printed Circuit Board
Fig. 16 Floor Console with Transmission Range
Indicator
8E - 8 INSTRUMENT PANEL AND SYSTEMSPL
REMOVAL AND INSTALLATION (Continued)

GLOVE BOX SWITCH/LAMP
REMOVAL
(1) Disconnect battery negative cable and isolate it
or remove fuse 12 prior to removing the switch, or
wires may short to ground.
(2) Open the glove box and push the glove box
sides inward allowing the door bumpers to clear and
the box to tip rearward.
(3) Reach inside the opening and squeeze the
lamp/switch retainers until they are disengage.
(4) Pull the switch/lamp rearward and remove it.
Replace the lamp. To replace the switch disconnect
wire and replace the switch.
INSTALLATION
For installation, reverse the above procedures.
HEADLAMP SWITCH
REMOVAL
(1) Remove the steering column cover and liner.
(2) Remove the three screws securing headlamp
switch mounting plate to the instrument panel (Fig.
17).
(3) Pull the headlamp switch and mounting plate
rearward from the instrument panel opening.
(4) Disconnect both the nine way and the ground
wiring connectors from the switch.
(5) Remove the switch knob by depressing the
release button on the bottom on the switch and pull-
ing out knob from switch.
(6) Snap headlamp switch bezel out of mounting
plate to gain access to the mounting plate retaining
nut.
(7) Remove the headlamp switch, mounting plate
retaining nut and separate switch from mounting
plate.
INSTALLATION
For installation, reverse the above procedures.
HEATER A/C CONTROL
REMOVAL
(1) Disconnect and isolate the negative battery
cable.
(2) Using a trim stick (special tool #C-4755), gently
pry up on the top cover and cluster bezel to remove
(Fig. 19).
(3) Open the ash receiver.
(4) Using a trim stick (special tool #C-4755), gently
pry out on the center bezel and remove.
(5) Remove the six attaching screws across the for-
ward portion of the right upper trim panel. Then pull
the panel rearward to disengage the three locator
pins and remove.(6) Reach in and disconnect the wiring connector(s)
for the rear window defogger and/or fog lamp
switch(s) as required.
(7) If equipped with RKE, remove the two screws
retaining the module and lay over the instrument
cluster.
(8) Gently pull on the center A/C outlet duct to
remove.
(9) Remove three attaching screws at corners of
the control (Fig. 18), two front retaining and one
retaining from the top rear.
(10) Pull the control rearward and disconnect the
wiring connector.
(11) Using a screwdriver, disengage the cable
attachment clips.
INSTALLATION
For installation, reverse the above procedures.
Fig. 17 Headlamp Switch
Fig. 18 Heater A/C Control
PLINSTRUMENT PANEL AND SYSTEMS 8E - 9
REMOVAL AND INSTALLATION (Continued)

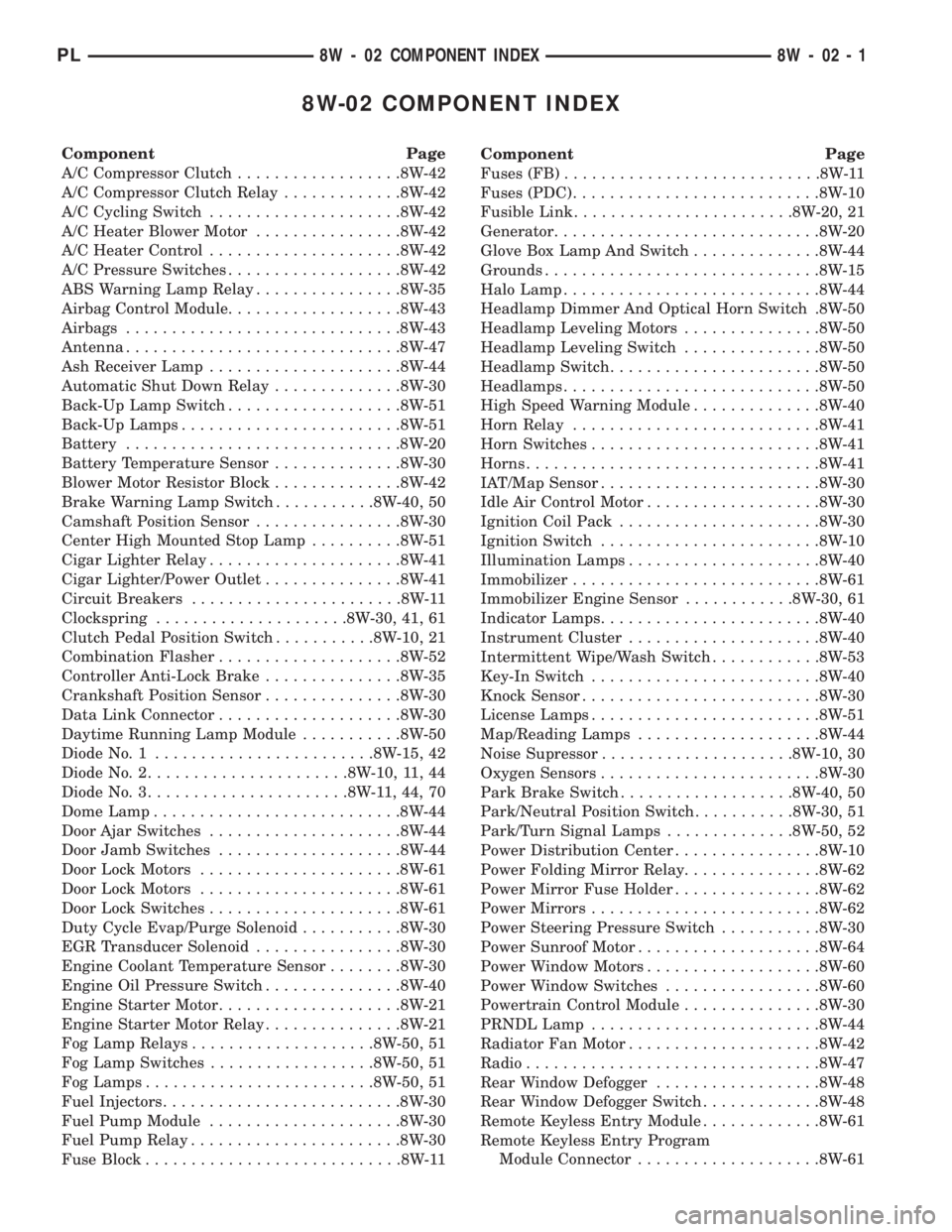

8W-02 COMPONENT INDEX
Component Page
A/C Compressor Clutch..................8W-42
A/C Compressor Clutch Relay.............8W-42
A/C Cycling Switch.....................8W-42
A/C Heater Blower Motor................8W-42
A/C Heater Control.....................8W-42
A/C Pressure Switches...................8W-42
ABS Warning Lamp Relay................8W-35
Airbag Control Module...................8W-43
Airbags..............................8W-43
Antenna..............................8W-47
Ash Receiver Lamp.....................8W-44
Automatic Shut Down Relay..............8W-30
Back-Up Lamp Switch...................8W-51
Back-Up Lamps........................8W-51
Battery..............................8W-20
Battery Temperature Sensor..............8W-30
Blower Motor Resistor Block..............8W-42
Brake Warning Lamp Switch...........8W-40, 50
Camshaft Position Sensor................8W-30
Center High Mounted Stop Lamp..........8W-51
Cigar Lighter Relay.....................8W-41
Cigar Lighter/Power Outlet...............8W-41
Circuit Breakers.......................8W-11
Clockspring.....................8W-30, 41, 61
Clutch Pedal Position Switch...........8W-10, 21
Combination Flasher....................8W-52
Controller Anti-Lock Brake...............8W-35
Crankshaft Position Sensor...............8W-30
Data Link Connector....................8W-30
Daytime Running Lamp Module...........8W-50
Diode No. 1........................8W-15, 42
Diode No. 2......................8W-10, 11, 44
Diode No. 3......................8W-11,44,70
Dome Lamp...........................8W-44
Door Ajar Switches.....................8W-44
Door Jamb Switches....................8W-44
Door Lock Motors......................8W-61
Door Lock Motors......................8W-61
Door Lock Switches.....................8W-61
Duty Cycle Evap/Purge Solenoid...........8W-30
EGR Transducer Solenoid................8W-30
Engine Coolant Temperature Sensor........8W-30
Engine Oil Pressure Switch...............8W-40
Engine Starter Motor....................8W-21
Engine Starter Motor Relay...............8W-21
Fog Lamp Relays....................8W-50, 51
Fog Lamp Switches..................8W-50, 51
Fog Lamps.........................8W-50, 51
Fuel Injectors..........................8W-30
Fuel Pump Module.....................8W-30
Fuel Pump Relay.......................8W-30
Fuse Block............................8W-11Component Page
Fuses (FB)............................8W-11
Fuses (PDC)...........................8W-10
Fusible Link........................8W-20, 21
Generator.............................8W-20
Glove Box Lamp And Switch..............8W-44
Grounds..............................8W-15
Halo Lamp............................8W-44
Headlamp Dimmer And Optical Horn Switch .8W-50
Headlamp Leveling Motors...............8W-50
Headlamp Leveling Switch...............8W-50
Headlamp Switch.......................8W-50
Headlamps............................8W-50
High Speed Warning Module..............8W-40
Horn Relay...........................8W-41
Horn Switches.........................8W-41
Horns................................8W-41
IAT/Map Sensor........................8W-30
Idle Air Control Motor...................8W-30
Ignition Coil Pack......................8W-30
Ignition Switch........................8W-10
Illumination Lamps.....................8W-40
Immobilizer...........................8W-61
Immobilizer Engine Sensor............8W-30, 61
Indicator Lamps........................8W-40
Instrument Cluster.....................8W-40
Intermittent Wipe/Wash Switch............8W-53
Key-In Switch.........................8W-40
Knock Sensor..........................8W-30
License Lamps.........................8W-51
Map/Reading Lamps....................8W-44
Noise Supressor.....................8W-10, 30
Oxygen Sensors........................8W-30
Park Brake Switch...................8W-40, 50
Park/Neutral Position Switch...........8W-30, 51
Park/Turn Signal Lamps..............8W-50, 52
Power Distribution Center................8W-10
Power Folding Mirror Relay...............8W-62
Power Mirror Fuse Holder................8W-62
Power Mirrors.........................8W-62
Power Steering Pressure Switch...........8W-30
Power Sunroof Motor....................8W-64
Power Window Motors...................8W-60
Power Window Switches.................8W-60
Powertrain Control Module...............8W-30
PRNDL Lamp.........................8W-44
Radiator Fan Motor.....................8W-42
Radio................................8W-47
Rear Window Defogger..................8W-48
Rear Window Defogger Switch.............8W-48
Remote Keyless Entry Module.............8W-61
Remote Keyless Entry Program
Module Connector....................8W-61
PL8W - 02 COMPONENT INDEX 8W - 02 - 1

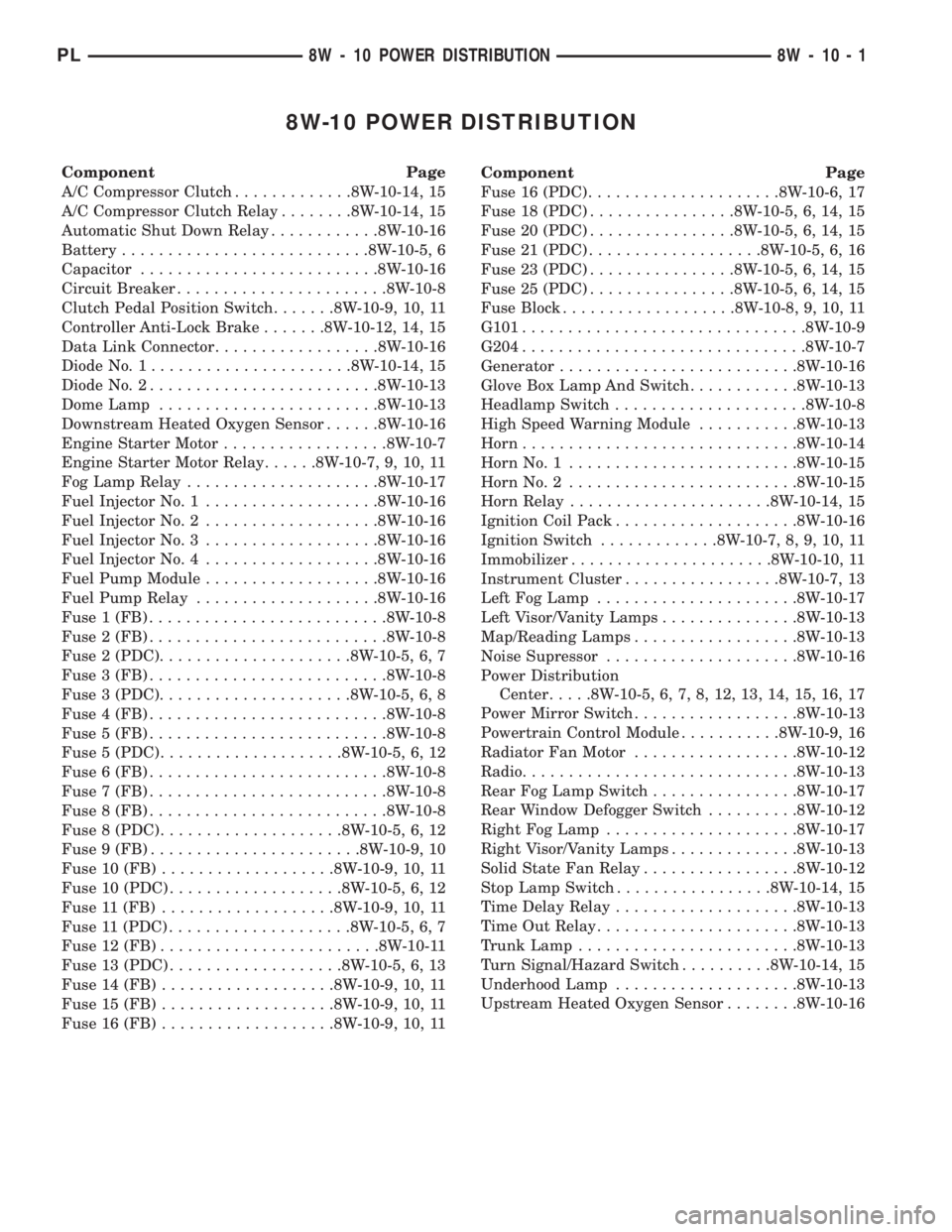

8W-10 POWER DISTRIBUTION
Component Page
A/C Compressor Clutch.............8W-10-14, 15
A/C Compressor Clutch Relay........8W-10-14, 15
Automatic Shut Down Relay............8W-10-16
Battery...........................8W-10-5, 6
Capacitor..........................8W-10-16
Circuit Breaker.......................8W-10-8
Clutch Pedal Position Switch.......8W-10-9, 10, 11
Controller Anti-Lock Brake.......8W-10-12, 14, 15
Data Link Connector..................8W-10-16
Diode No. 1......................8W-10-14, 15
Diode No. 2.........................8W-10-13
Dome Lamp........................8W-10-13
Downstream Heated Oxygen Sensor......8W-10-16
Engine Starter Motor..................8W-10-7
Engine Starter Motor Relay......8W-10-7, 9, 10, 11
Fog Lamp Relay.....................8W-10-17
Fuel Injector No. 1...................8W-10-16
Fuel Injector No. 2...................8W-10-16
Fuel Injector No. 3...................8W-10-16
Fuel Injector No. 4...................8W-10-16
Fuel Pump Module...................8W-10-16
Fuel Pump Relay....................8W-10-16
Fuse 1 (FB)..........................8W-10-8
Fuse 2 (FB)..........................8W-10-8
Fuse 2 (PDC).....................8W-10-5, 6, 7
Fuse 3 (FB)..........................8W-10-8
Fuse 3 (PDC).....................8W-10-5, 6, 8
Fuse 4 (FB)..........................8W-10-8
Fuse 5 (FB)..........................8W-10-8
Fuse 5 (PDC)....................8W-10-5, 6, 12
Fuse 6 (FB)..........................8W-10-8
Fuse 7 (FB)..........................8W-10-8
Fuse 8 (FB)..........................8W-10-8
Fuse 8 (PDC)....................8W-10-5, 6, 12
Fuse 9 (FB).......................8W-10-9, 10
Fuse 10 (FB)...................8W-10-9, 10, 11
Fuse 10 (PDC)...................8W-10-5, 6, 12
Fuse 11 (FB)...................8W-10-9, 10, 11
Fuse 11 (PDC)....................8W-10-5, 6, 7
Fuse 12 (FB)........................8W-10-11
Fuse 13 (PDC)...................8W-10-5, 6, 13
Fuse 14 (FB)...................8W-10-9, 10, 11
Fuse 15 (FB)...................8W-10-9, 10, 11
Fuse 16 (FB)...................8W-10-9, 10, 11Component Page
Fuse 16 (PDC).....................8W-10-6, 17
Fuse 18 (PDC)................8W-10-5, 6, 14, 15
Fuse 20 (PDC)................8W-10-5, 6, 14, 15
Fuse 21 (PDC)...................8W-10-5, 6, 16
Fuse 23 (PDC)................8W-10-5, 6, 14, 15
Fuse 25 (PDC)................8W-10-5, 6, 14, 15
Fuse Block...................8W-10-8, 9, 10, 11
G101...............................8W-10-9
G204...............................8W-10-7
Generator..........................8W-10-16
Glove Box Lamp And Switch............8W-10-13
Headlamp Switch.....................8W-10-8
High Speed Warning Module...........8W-10-13
Horn..............................8W-10-14
Horn No. 1.........................8W-10-15
Horn No. 2.........................8W-10-15
Horn Relay......................8W-10-14, 15
Ignition Coil Pack....................8W-10-16
Ignition Switch.............8W-10-7, 8, 9, 10, 11
Immobilizer......................8W-10-10, 11
Instrument Cluster.................8W-10-7, 13
Left Fog Lamp......................8W-10-17
Left Visor/Vanity Lamps...............8W-10-13
Map/Reading Lamps..................8W-10-13
Noise Supressor.....................8W-10-16
Power Distribution
Center.....8W-10-5, 6, 7, 8, 12, 13, 14, 15, 16, 17
Power Mirror Switch..................8W-10-13
Powertrain Control Module...........8W-10-9, 16
Radiator Fan Motor..................8W-10-12
Radio..............................8W-10-13
Rear Fog Lamp Switch................8W-10-17
Rear Window Defogger Switch..........8W-10-12
Right Fog Lamp.....................8W-10-17
Right Visor/Vanity Lamps..............8W-10-13
Solid State Fan Relay.................8W-10-12
Stop Lamp Switch.................8W-10-14, 15
Time Delay Relay....................8W-10-13
Time Out Relay......................8W-10-13
Trunk Lamp........................8W-10-13
Turn Signal/Hazard Switch..........8W-10-14, 15
Underhood Lamp....................8W-10-13
Upstream Heated Oxygen Sensor........8W-10-16
PL8W - 10 POWER DISTRIBUTION 8W - 10 - 1

13FUSE10A
13
BATT A0
M1
18
PK
13C103
M1
18
PK
LAMP UNDERHOOD
M1
22
PK
LAMP TRUNK
LAMP
DOME
M1
22
PK
1C225
M1
18
PK
M1
22
PK
2
7
RADIO
M1
22
PK
6
CLUSTER INSTRUMENT
M1
22
PK
M1
18
PK
C
MAP/
READING
LAMPS
M1
18
PK
LAMPS VANITY
VISOR/
LEFT RIGHT
VISOR/
VANITY
LAMPS
PK18 M1
S309S203
1
1 3
C105
M1
22
PK
CENTER DISTRIBUTION
POWER
C1 C214
SWITCH AND
LAMP
BOX
GLOVE
M1 20 PK
M1 22 PK
2
POWER
MIRROR
SWITCH
(EXCEPT BUILT-UP-EXPORT)
2
M1
PK22
8C231
22
PKM1
PK20 M1
A3
C2
(IN FB) RELAY
OUT
TIME (IN FB) RELAY
DELAY
TIME
PK20 M1
M1
20
PKDIODE
NO. 2
(LHD) (LHD) C104
1
PK18 M1
B1
(BUILT-UP-EXPORT) MODULE
WARNING
SPEED
HIGH
M1 22PK
(8W-44-7)(8W-44-2)
(8W-44-6)
(8W-44-2)
(8W-44-6)
(8W-47-2)
(8W-47-3)
(8W-40-5)
(8W-44-3)
(8W-44-5)
(8W-44-7) (8W-44-7)(8W-10-5)
(8W-44-2)
(8W-44-5)(8W-10-5)
(8W-10-6)
(8W-62-2)
(8W-11-23) (8W-11-23) (8W-40-12)
PL8W-10 POWER DISTRIBUTION 8W - 10 - 13
8202J988W-1

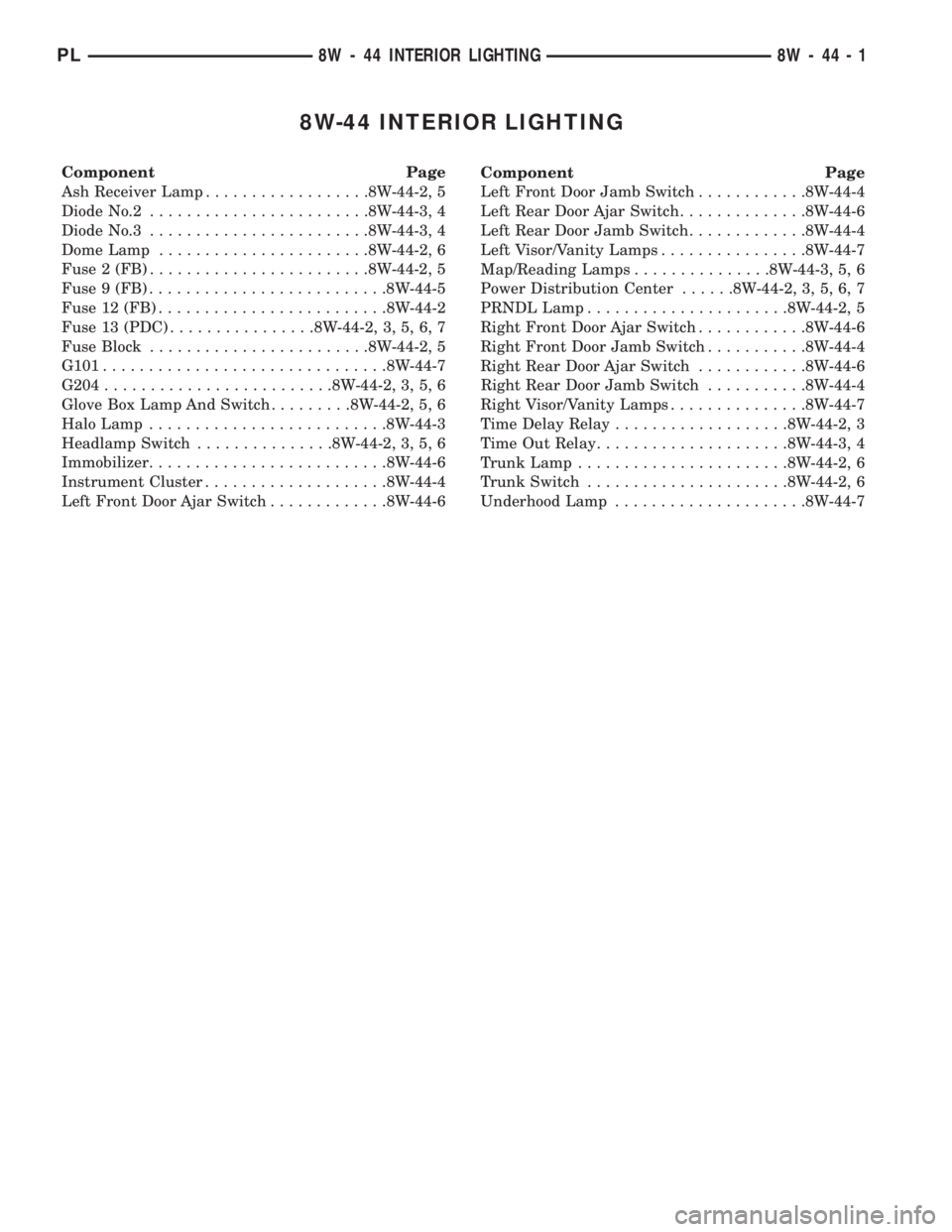

8W-44 INTERIOR LIGHTING
Component Page
Ash Receiver Lamp..................8W-44-2, 5
Diode No.2........................8W-44-3, 4
Diode No.3........................8W-44-3, 4
Dome Lamp.......................8W-44-2, 6
Fuse 2 (FB)........................8W-44-2, 5
Fuse 9 (FB)..........................8W-44-5
Fuse 12 (FB).........................8W-44-2
Fuse 13 (PDC)................8W-44-2, 3, 5, 6, 7
Fuse Block........................8W-44-2, 5
G101...............................8W-44-7
G204.........................8W-44-2, 3, 5, 6
Glove Box Lamp And Switch.........8W-44-2, 5, 6
Halo Lamp..........................8W-44-3
Headlamp Switch...............8W-44-2, 3, 5, 6
Immobilizer..........................8W-44-6
Instrument Cluster....................8W-44-4
Left Front Door Ajar Switch.............8W-44-6Component Page
Left Front Door Jamb Switch............8W-44-4
Left Rear Door Ajar Switch..............8W-44-6
Left Rear Door Jamb Switch.............8W-44-4
Left Visor/Vanity Lamps................8W-44-7
Map/Reading Lamps...............8W-44-3, 5, 6
Power Distribution Center......8W-44-2, 3, 5, 6, 7
PRNDL Lamp......................8W-44-2, 5
Right Front Door Ajar Switch............8W-44-6
Right Front Door Jamb Switch...........8W-44-4
Right Rear Door Ajar Switch............8W-44-6
Right Rear Door Jamb Switch...........8W-44-4
Right Visor/Vanity Lamps...............8W-44-7
Time Delay Relay...................8W-44-2, 3
Time Out Relay.....................8W-44-3, 4
Trunk Lamp.......................8W-44-2, 6
Trunk Switch......................8W-44-2, 6
Underhood Lamp.....................8W-44-7
PL8W - 44 INTERIOR LIGHTING 8W - 44 - 1

BATT A0
POWER
DISTRIBUTION
CENTER
RELAYOUT TIME
C3
13 14
10A
FUSE
13
(IN FB) RELAY
DELAY
TIME
2FUSE15A
2
22
BATT A3
BLOCK FUSE
32 12
4A
FUSE
12
1
HEADLAMP
SWITCH
4
F33
20
PK/RDE1
20
TN
13C103
M1
18
PK
M1
22
PK
2
1
GLOVE
BOX
LAMP
AND
SWITCH
G204
Z3
14
BK/OR
S201
Z3
20
BK/OR
S203
M1
22
PKM23
22
YL/BK
S220
M23
20
YL/BK
18C230
M23
20
YL/BK
3
1
DOME
LAMP
M1
22
PK
TRUNK
SWITCH
M4
18
GY/BK
M4
22
GY/BK
LAMP TRUNK
21
M1
20
PK
3C105
M1
22
PK
BK/OR20 Z3
LAMP PRNDL
21
OR22 E2 E2
22
OR
1
2
Z3
20
BK/OR
E2
20
OR
Z3
14
BK/OR
G204
LAMP RECEIVER
ASH S210
S201
2
1 0
0 OFF
1 PARK
2 HEAD
3C309
(8W-10-5)
(8W-10-6)
(8W-10-13)
(8W-11-23) (8W-11-7)
(8W-11-8)(8W-11-2)
(8W-11-3)
(8W-11-17)
(8W-11-18)
(8W-15-10)
(8W-15-11) (8W-15-10)
(8W-15-11)(8W-10-13)
(8W-70-5)
(8W-15-10)
(8W-15-11)(8W-11-17)
(8W-11-18)
(8W-15-10)
(8W-15-11) (8W-10-8) (8W-10-5)
(8W-50-2)
(8W-50-3)
8W - 44 - 2 8W-44 INTERIOR LIGHTING
LHDPL
J988W-18292

BATT A0
POWER
DISTRIBUTION
CENTER
13 14
10A
FUSE
13 2FUSE
15A
2
22
BATT A3
BLOCK FUSE
299
4A
FUSE
9
14
F33
20
PK/RDE1
20
TN
13C103
M1
18
PK
M1
22
PK
2
1
GLOVE
BOX
LAMP
AND
SWITCH
Z3
20
BK/OR
S203
M1
22
PK
BK/OR20 Z3
LAMP PRNDL
E2
22
OR
1
2
Z3
20
BK/OR
E2
20
OR
Z3
14
BK/OR
G204
LAMP RECEIVER
ASH S210
S201
2
1 0
LAMPS READING
MAP/
B
Z3
18
BK/OR
Z3
20
BK/OR
3C225
M2
22
YL
M23
18
YL/BK
2C225
M1
22
PK
E2
22
OR
2
1M1
18
PK
M1
18
PK
1C225
S309
CA
2 HEAD 1 PARK
0 OFF
HEADLAMP
SWITCH
TO
S224
(8W-10-6)
(8W-10-13) (8W-11-9)(8W-11-4)
(8W-11-19)
(8W-10-13)
(8W-15-11)(8W-11-19)
(8W-15-11) (8W-10-8) (8W-10-6)
(8W-10-13)(8W-50-4)
(8W-44-6)
PL8W-44 INTERIOR LIGHTING
RHD8W - 44 - 5
8295J988W-1

SWITCH AJAR
DOOR
FRONT
LEFT RIGHT
FRONT
DOOR
AJAR
SWITCH
LEFT
REAR
DOOR
AJAR
SWITCH
SWITCH AJAR
DOOR
REAR
RIGHT
S304
13FUSE10A
BATT A0
M1
18
PK
M2
20
YLM2
20
YLM2
20
YLM2
20
YL
M1
20
PK
M1
22
PK
13C103
3C105
21
M1
22
PK
1
3
M2
20
YL
M4
18
GY/BK
TRUNK
SWITCH
S224
M2
20
YL
3
SWITCH HEADLAMP
M2
20
YL
Z1
20
BK
Z1
20
BK
S202
G204
2
AND LAMP
BOX
GLOVE
M1
22
PK
M1
22
PK
S203
DOME
LAMP LAMP TRUNK
M2
20
YL
16C230
CENTER DISTRIBUTION
POWER
13 14
SWITCH
A
M23
18
YL/BK
M2
22
YL
MAP/
READING
LAMPS
2C225
GY/BK22 M4
PK22 M2
1
IMMOBILIZER
3C309
1C242
M23
20
YL/BK
(8W-10-13)(8W-10-6)
(8W-50-4)
(8W-15-11)
(8W-15-11) (8W-10-13)(8W-10-6)
(8W-44-5)(8W-44-5)
(8W-61-8)
8W - 44 - 6 8W-44 INTERIOR LIGHTING
RHDPL
J988W-18296
