high beam DODGE POWER WAGON 2007 2.G Owners Manual

Lights-on Reminder
If the headlights, parking lights, or cargo lights are left
on, after the ignition is turned off, a chime will sound
when the driver's door is opened.
Fog Lights Ð If Equipped
The foglights are turned ON by placing the head-
light rotary control in the parking light or head-
light position and pushing in the headlight rotary
control. The fog lights will operate only when the parking
lights are ON or when the vehicle headlights are ON low
beam. An indicator light located in the instrument cluster
will illuminate when the fog lights are on. The fog lights
will turn off when the switch is pushed a second time,
when the headlight switch is rotated to the OFF position,
or the high beam is selected.
Cargo Light Ð If Equipped
The cargo lights are turned on by pressing on the
CARGO button. The interior lights will also turn on
when the cargo lights are on. The cargo lights will also
turn on for 30 seconds when a key fob Unlock is pressed,
as part of the illuminated entry feature.
Cargo Light Switch
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

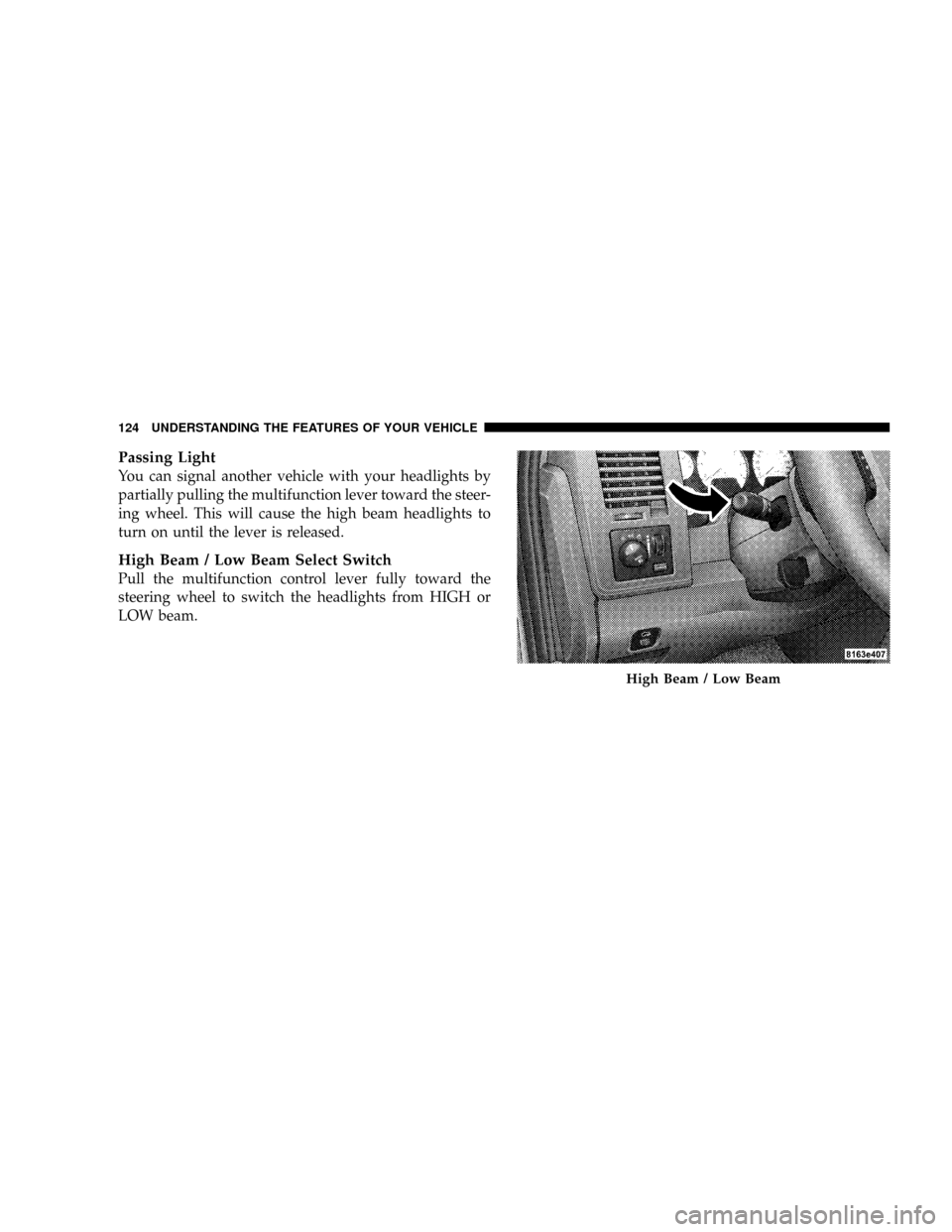

Passing Light
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the high beam headlights to
turn on until the lever is released.
High Beam / Low Beam Select Switch
Pull the multifunction control lever fully toward the
steering wheel to switch the headlights from HIGH or
LOW beam.
High Beam / Low Beam
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

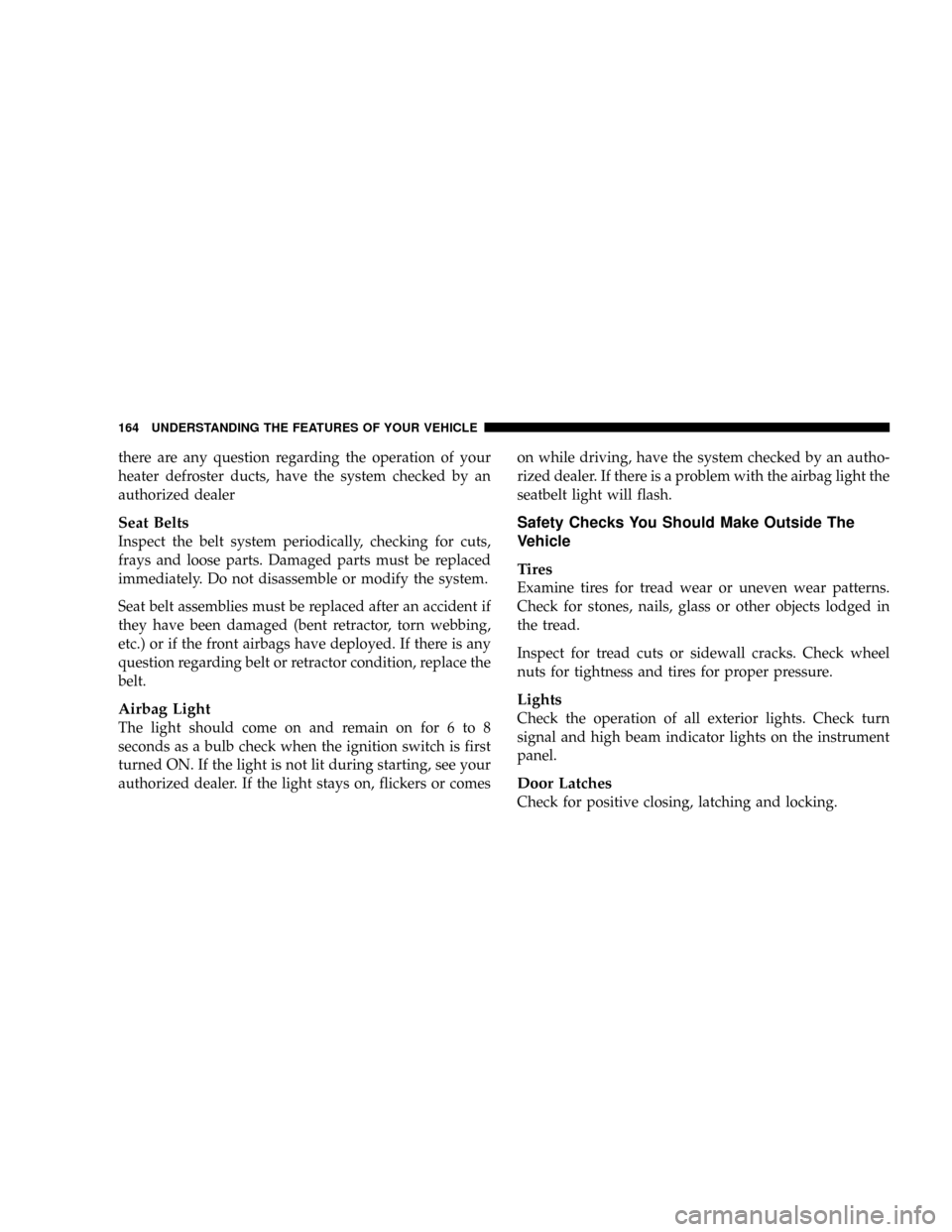

there are any question regarding the operation of your
heater defroster ducts, have the system checked by an
authorized dealer
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Seat belt assemblies must be replaced after an accident if
they have been damaged (bent retractor, torn webbing,
etc.) or if the front airbags have deployed. If there is any
question regarding belt or retractor condition, replace the
belt.
Airbag Light
The light should come on and remain on for 6 to 8
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers or comeson while driving, have the system checked by an autho-
rized dealer. If there is a problem with the airbag light the
seatbelt light will flash.
Safety Checks You Should Make Outside The
Vehicle
Tires
Examine tires for tread wear or uneven wear patterns.
Check for stones, nails, glass or other objects lodged in
the tread.
Inspect for tread cuts or sidewall cracks. Check wheel
nuts for tightness and tires for proper pressure.
Lights
Check the operation of all exterior lights. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for positive closing, latching and locking.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
Do not operate the engine with the tachometer
pointer at high rpm for extended periods. Engine
damage may occur.
5. Airbag Indicator Light
The indicator lights and remains lit for 6 to 8 seconds
when the ignition is first turned on. If the light stays on,
flickers or comes on while driving, have the airbag
system checked by an authorized dealer.
6. High Beam Indicator
This indicator shows that headlights are on high
beam.
7. Seat Belt Reminder Light
When the ignition switch is first turned ON, this
light will turn on for 5 to 8 seconds as a bulb check.
During the bulb check, if the driver's seat belt isunbuckled, a chime will sound. After the bulb check or
when driving, if the driver seat belt remains unbuckled,
the Seat Belt Warning Light will flash or remain on
continuously. Refer to9Enhanced Driver Seat Belt Re-
minder System (BeltAlertŸ)9in the Occupant Restraints
section for more information. (See page 43 for more
information.)
8. Speedometer
The speedometer shows the vehicle speed in miles per
hour and/or kilometers per hour.
9. Oil Pressure Gauge
The pointer should always indicate some oil pres-
sure when the engine is running. A continuous
high or low reading, under normal driving conditions,
may indicate a lubrication system malfunction. Immedi-
ate service should be obtained. (See page 389 for more
information.)
174 UNDERSTANDING YOUR INSTRUMENT PANEL

Freeing A Stuck Vehicle................... 378
Front Axle (Differential)................... 411
Front Wheel Bearings..................... 415
Fuel................................. 335
Adding............................. 339
Filter............................... 394
Gauge.............................. 180
Octane Rating......................335,442
Requirements......................335,441
Tank Capacity........................ 441
Fuses................................ 425
Garage Door Opener (HomeLinkt) ........... 139
Gas Cap (Fuel Filler Cap)...............341,385
Gasoline (Fuel)......................... 335
Gasoline, Reformulated................... 335
Gauges............................... 173
Coolant Temperature.................... 175
Fuel................................ 180Oil Pressure.......................... 174
Speedometer......................... 174
Tachometer.......................... 173
Voltmeter............................ 173
Gear Ranges........................250,257
Gear Ratios............................. 78
General Information...................... 18
Glass Cleaning.......................... 424
Gross Axle Weight Rating.................. 346
Gross Vehicle Weight Rating................ 345
GVWR............................... 342
Hands-Free Phone (UConnectŸ).............. 87
Hazard Warning Flasher................... 366
Head Restraints......................... 112
Headlights............................ 431
High Beam........................... 124
High Beam/Low Beam Select Switch........ 124
Lights On Reminder.................... 122
INDEX 479
10

Passing............................. 124
Switch.............................. 120
Heated Mirrors.......................86,154
Heated Seats........................... 115
Heater............................... 230
Heater, Engine Block..................... 249
High Beam/Low Beam Select (Dimmer) Switch . . 124
Hitches
Trailer Towing........................ 349
Hoisting.............................. 375
HomeLinkt(Garage Door Opener) Transmitter . . . 139
Hood Release.......................... 117
Hoses................................ 408
Hub Caps............................. 373
Ignition............................... 13
Cables (Spark Plug Wires)................ 393
Key ...............................12,13
Wiring System (Spark Plug Wires).......... 393Ignition Key Removal..................... 13
Illuminated Entry........................ 20
Infant Restraint........................58,59
Inflation Pressure Tires.................... 332
Inside Rearview Mirror.................... 83
Instrument Cluster....................172,173
Instrument Panel and Controls.............. 171
Instrument Panel Lens Cleaning............. 424
Integrated Power Module (Fuses)............ 425
Interior Appearance Care.................. 423
Interior Lights.......................... 119
Intermittent Wipers (Delay Wipers)........... 125
Introduction............................. 4
Jack Location........................... 367
Jack Operation.......................... 369
Jump Starting.......................... 375
Key, Replacement........................ 17
480 INDEX

Key, Sentry (Immobilizer)................... 16
Keyless Entry System...................... 20
Keys................................. 12
Lane Change and Turn Signals.............. 123
Lap Belts.............................. 42
Lap/Shoulder Belts....................... 34
LATCH (Lower Anchors and Tether for CHildren) . 62
Life of Tires............................ 330
Lights............................. 118,164
Airbag............................56,174
Anti-Lock Warning..................178,310
Brake Warning........................ 178
Bulb Replacement...................430,431
Cap Top Clearance..................... 438
Cargo .............................. 122
Center Mounted Stop................... 437
Check Engine (Malfunction Indicator)........ 177
Courtesy/Reading..................... 132Cruise.............................. 181
Daytime Running...................... 121
Fog ..........................122,179,440
Four-Wheel Drive Indicator............... 262
Hazard Warning Flasher................. 366
Headlights........................... 120
High Beam........................124,174
High Beam Indicator.................... 174
High Beam/Low Beam Select............. 124
Illuminated Entry....................... 20
Instrument Cluster..................... 173
Intensity Control....................... 119
Interior........................... 119,132
Lights On Reminder.................... 122
Passing............................. 124
Seat Belt Reminder..................... 174
Service...........................430,431
Transfer Case......................... 262
Transmission Warning................... 180
INDEX 481
10
