1) Low-reverse band is rear band on transmission. Oil pan
must be removed from transmission to adjust low-reverse band. Raise
and support vehicle. Loosen oil pan bolts. Allow fluid to drain from
oil pan. Remove oil pan bolts, oil pan and gasket.
2) Loosen low-reverse band adjusting screw lock nut while
preventing low-reverse band adjusting screw from rotating. Low-reverse
band adjusting screw lock nut and low-reverse band adjusting screw are
located inside transmission, near low-reverse band. See Fig. 5.
3) Back off low-reverse band adjusting screw lock nut 5
turns. Ensure low-reverse band adjusting screw rotates freely in
transmission case.
4) Tighten low-reverse band adjusting screw to 72 INCH lbs.
(8.1 N.m). Back off low-reverse band adjusting screw specified amount
of turns. See LOW-REVERSE BAND ADJUSTMENT table. Hold low-reverse band
adjusting screw and tighten low-reverse band adjusting screw lock nut
to specification. See TORQUE SPECIFICATIONS.
LOW-REVERSE BAND ADJUSTMENT
\
\
\
\
\
\
\
Application Back Off Adjusting Screw
32RH ....................................................... 4 Turns
36H ........................................................ 2 Turns
42RE ....................................................... 4 Turns
44RE ....................................................... 4 Turns
46RE ....................................................... 2 Turns
47RE ....................................................... 3 Turns
\
\
\
\
\
\
\
5) Clean oil pan, magnet and all sealing surfaces. Using NEW
gasket, install oil pan. Install and tighten oil pan bolts to
specification. See TORQUE SPECIFICATIONS.
6) Add Mopar ATF Plus Type 7176 fluid until fluid level is at
MIN arrow mark on dipstick. Start engine and allow engine to idle.
With brakes applied, shift transmission through all gears and back to
Neutral.
7) Add additional fluid to bring fluid level to MIN mark on
dipstick. Recheck fluid level with transmission at normal operating
temperature. Adjust fluid level to MAX arrow mark on dipstick. DO NOT
overfill transmission.
Fig. 5: Locating Low-Reverse Band Adjusting Screw & Low-Reverse
Band Adjusting Screw Lock Nut
Courtesy of Chrysler Corp.
SHIFT CABLE
Page 1502 of 1691
Dakota & Durango
1) Raise and support vehicle. Ensure shift lever is in Park.
Release shift cable adjuster lock. Shift cable adjuster lock is
located on shift cable, just below brake booster.
2) Disconnect shift cable from transmission shift lever on
transmission. Ensure transmission is still in Park by rotating
transmission shift lever fully toward rear of vehicle to Park detent.
3) Verify parking sprag on transmission is engaged by
attempting to rotate drive shaft. Install shift cable on transmission
shift lever. Lock shift cable in place by pressing shift cable
adjuster lock downward until it snaps into place.
4) To verify proper adjustment, check that engine only starts
with shift lever in Park and Neutral. If engine starts in any other
gears except Park or Neutral, shift cable may be improperly adjusted
or park/neutral position switch may be defective.
Ram Van/Wagon
1) Raise and support vehicle. Ensure shift lever is in Park.
Unsnap shift cable from ball at transmission shift lever on
transmission. See Fig. 6.
2) Check that transmission is still in Park by rotating
transmission shift lever fully toward rear of vehicle to Park detent
position. Release cable adjuster at transmission end of shift cable to
unlock shift cable. See Fig. 6. Snap shift cable back on ball at
transmission shift lever. Press cable lock inward to secure shift
cable.
3) To verify proper adjustment, ensure engine only starts
with shift lever in Park and Neutral. Shift lever should not move from
Park when ignition switch is in LOCK position. Shift lever should move
from Park when ignition switch is in any position except LOCK
position.
Fig. 6: Locating Cable Adjuster (Ram Van/Wagon)
Courtesy of Chrysler Corp.
SHIFT LINKAGE
Page 1503 of 1691
Ram Pickup
1) Raise and support vehicle. Inspect shift linkage for worn
components. Replace any damaged or worn grommets or shift linkage
components before adjusting.
2) Ensure shift lever is in Park. Loosen lock bolt on
adjusting swivel. See Fig. 7. Ensure shift rod slides freely in
adjusting swivel. If shift rod fails to slide freely in adjusting
swivel, lubricate shift rod as necessary.
3) Rotate transmission shift lever fully toward rear of
vehicle to the Park detent position. Position adjusting swivel so it
is centered in grommet on torque shaft arm. See Fig. 7. Tighten lock
bolt on adjusting swivel. Check that engine only starts with shift
lever in Park and Neutral. If engine starts in any other gears except
Park and Neutral, shift linkage adjustment is incorrect or
park/neutral position switch is defective.
Fig. 7: Identifying Typical Shift Linkage Components
Courtesy of Chrysler Corp.
THROTTLE VALVE CABLE
1) Ensure shift lever is in Park and ignition is off. Remove
air cleaner. Disconnect throttle valve cable from stud on throttle
lever at throttle body.
2) Ensure throttle lever on throttle body is in idle position
and throttle valve lever on transmission is in idle (fully forward)
position.
3) Using small screwdriver, remove retaining clip from
throttle valve cable. Center end of throttle valve cable with stud on
throttle lever at throttle body within .039" (1.00 mm), and install
retaining clip. Install throttle valve cable on throttle lever.
4) To verify proper adjustment, ensure throttle valve lever
on throttle body and throttle lever on transmission move
Page 1504 of 1691
simultaneously when throttle is depressed. If both levers to do not
move simultaneously, readjust throttle valve cable.
TRANSFER CASE SHIFT LINKAGE
Dakota
1) Place transfer case shift lever in 4L position. Use wire
or bungie cord to secure transfer case shift lever in 4L position.
Raise and support vehicle. Loosen lock bolt at adjusting swivel on
shift rod. See Fig. 8. Ensure shift rod slides freely in adjusting
swivel. If shift rod fails to slide freely in adjusting swivel,
lubricate shift rod as necessary.
2) Ensure shift lever on transfer case is still in 4L
position. Ensure pin on end of adjusting swivel is centered in hole on
shift arm. Tighten lock bolt. With all wheels off floor, start engine
and shift transfer case through all ranges to ensure proper operation.
3) Ensure pin on end of adjusting swivel is centered in hole
on shift arm. Tighten lock bolt. With all wheels off floor, start
engine and shift transfer case through all ranges to ensure proper
operation.

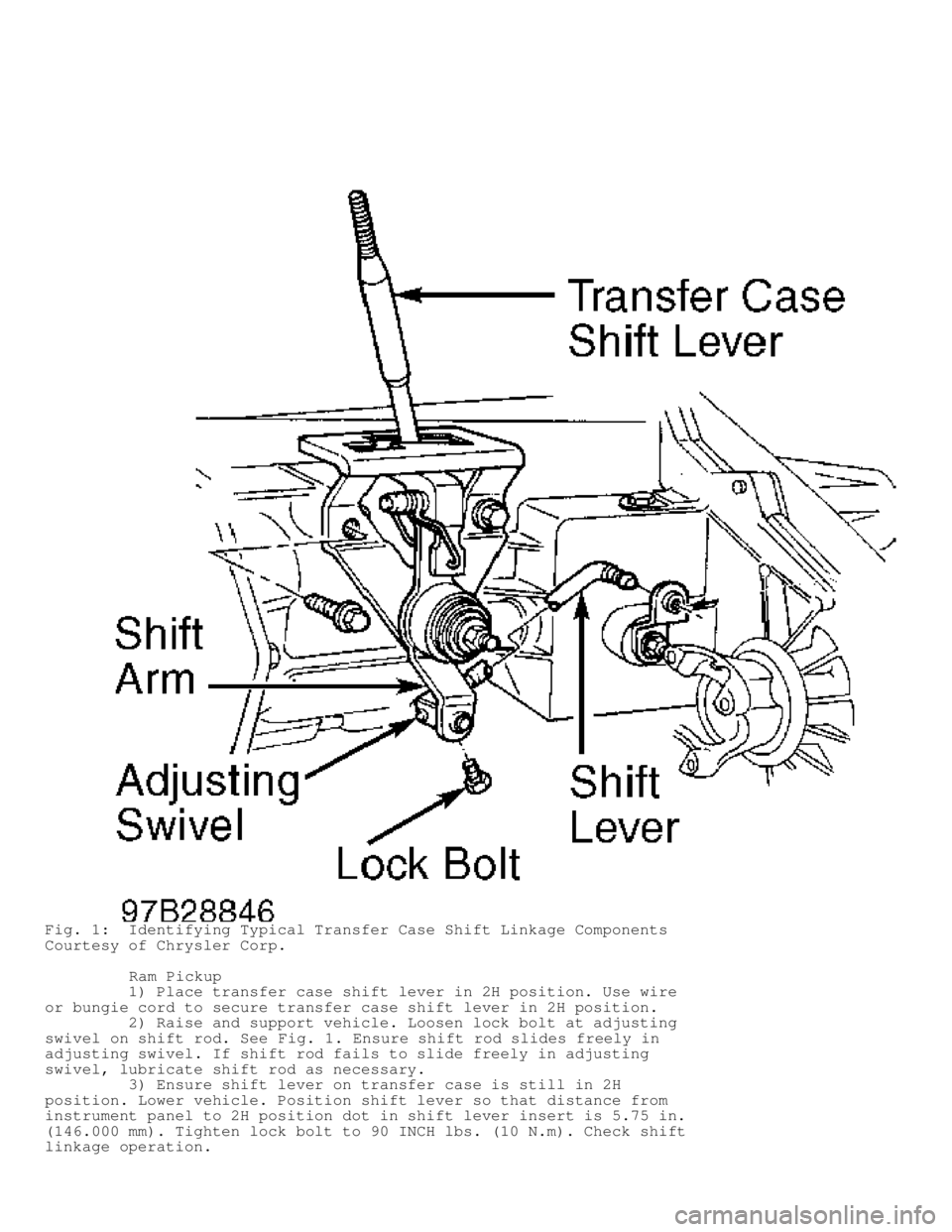

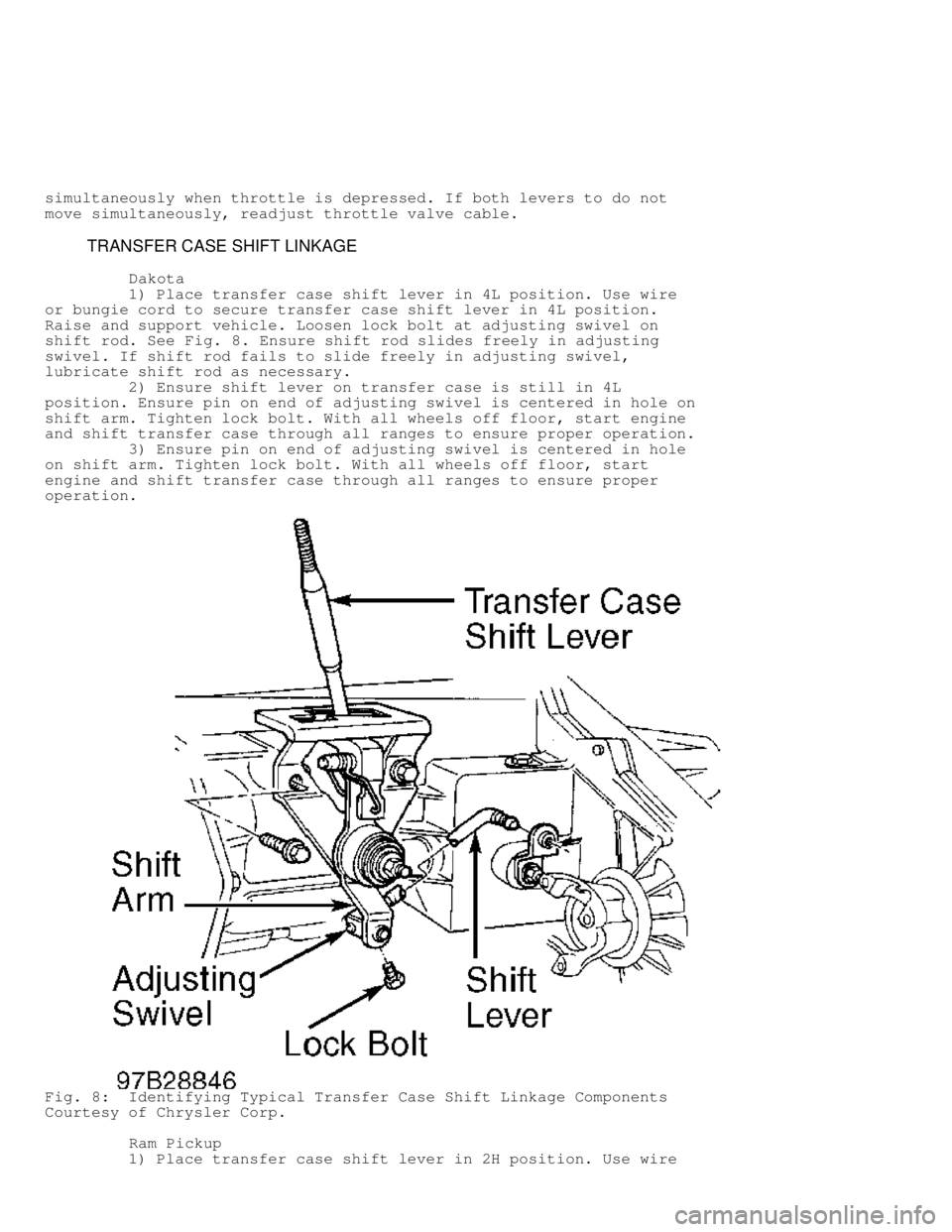

Fig. 8: Identifying Typical Transfer Case Shift Linkage Components
Courtesy of Chrysler Corp.
Ram Pickup
1) Place transfer case shift lever in 2H position. Use wire
Page 1505 of 1691
or bungie cord to secure transfer case shift lever in 2H position.
2) Raise and support vehicle. Loosen lock bolt at adjusting
swivel on shift rod. See Fig. 8. Ensure shift rod slides freely in
adjusting swivel. If shift rod fails to slide freely in adjusting
swivel, lubricate shift rod as necessary.
3) Ensure shift lever on transfer case is still in 2H
position. Tighten lock bolt. With all wheels off floor, start engine
and shift transfer case through all ranges to ensure proper operation.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Kickdown Band Adjusting Screw Lock Nut ..................... 30 (41)\
Low-Reverse Band Adjusting Screw Lock Nut .................. 25 (34)\
Oil Pan Bolt ............................................... 12 (16)\
PTO Adapter Drain Plug (Ram Pickup) ........................ 40 (54\
)
PTO Adapter Fill Plug (Ram Pickup) ......................... 40 (54\
)
Transfer Case Drain Plug ................................... 40 (54)\
Transfer Case Fill Plug .................................... 40 (54)\
INCH Lbs. (N.m)
Oil Filter Bolt ........................................... 35 (4.0)\
\
\
\
\
\
\
\
Page 1506 of 1691
TR AN SM IS SIO N S ER VIC IN G - M /T
1999 D odge P ic ku p R 1500
1998-99 TRANSMISSION SERVICING
CHRY - Manual Transmission - Trucks
Dakota, Ram Pickup
APPLICATION
MANUAL TRANSMISSION APPLICATIONS (TRUCKS) \
\
\
\
\
\
\
Model Designation
Dakota
2.5L & 3.9L .............................. AX15/AS82 & ( 1) NV1500
5.2L ...................................................... NV3500
Ram Pickup
3.9L & 5.2L ............................................... NV3500
5.2L & 5.9L (Gasoline) ......................... NV4500 & NV4500HD\
5.9L Diesel & 8.0L ..................... NV4500, NV4500HD & NV5600
( 1) - NV1500 is available on 4-cylinder 2WD models only.
\
\
\
\
\
\
\
TRANSFER CASE APPLICATIONS (TRUCKS) \
\
\
\
\
\
\
Model Designation
Dakota
3.9L ....................................................... NV231
5.2L ........................................ NV231HD Or ( 1) NV242HD
5.9L ........................................ NV231HD Or ( 1) NV242HD
Ram Pickup
1500 ..................................................... NV231HD
2500 & 3500 ..................................... NV241 Or NV241HD
( 1) - NV242HD is used on automatic transmission only.
\
\
\
\
\
\
\
IDENTIFICATION
TRANSMISSION
AX-15 identification numbers are located on bottom surface of
intermediate plate. NV1500 consists of 2 aluminum housings and a
removable clutch housing. NV1500 is available on 4-cylinder 2WD
models. NV3500 consists of 2 aluminum housings and a non-removable
clutch housing. NV4500 identification tag is attached to driver's side
PTO cover. NV5600 is equipped with 2 identification tags attached to
driver's side of clutch housing.
TRANSFER CASE
Transfer case identification tag is located on rear of
transfer case housing.
LUBRICATION
SERVICE INTERVALS
Page 1507 of 1691
Transmission (Dakota)
Check transmission fluid level when performing other
underhood services. Under normal service conditions, change
transmission fluid at 30 months or 37,500 miles. Under severe service
conditions, change transmission fluid at 18,000 miles. Severe service
are conditions such as long periods of engine idling, trailer towing,
off-highway operation, snow removal, or operating in dusty or
excessively hot conditions.
Transmission (Ram Pickup)
Check transmission fluid level when performing other
underhood services. Fluid change service interval information is not
available from manufacturer.
Transfer Case
Check transfer case fluid level when performing other
underhood services. On Dakota and Light-Duty Pickup, change transfer
case fluid at 37,500 miles or 30 months. On Medium-Duty and Heavy-Duty
Pickup, change transfer case fluid at 36,000 miles or 36 months.
CHECKING FLUID LEVEL
Transmission (Dakota)
1) Park vehicle on level surface. Remove transmission fill
plug from side of transmission. On AX-15 transmission, transmission
fill plug is located on driver's side of transmission. On NV3500
transmission, transmission fill plug is located near front of
transmission on passenger's side of transmission.
2) On all transmissions, fluid level should even with bottom
of fill plug hole on side of transmission. Add appropriate type of
transmission fluid if necessary. See RECOMMENDED FLUID. Install and
tighten transaxle fill plug to specification. See TORQUE
SPECIFICATIONS.
Transmission (Ram Pickup)
1) Park vehicle on level surface. Remove transmission fill
plug from side of transmission. On NV3500 transmissions, transmission
fill plug is located near front of transmission on passenger's side of
transmission. On NV4500 transmissions, transmission fill plug is
located near rear of transmission on passenger's side of transmission.
2) On all transmissions, fluid level should even with bottom
of fill plug hole on side of transmission. Add appropriate type of
transmission fluid if necessary. See RECOMMENDED FLUID. Install and
tighten transaxle fill plug to specification. See TORQUE
SPECIFICATIONS.
Transfer Case
Park vehicle on level surface. Remove transfer case fill plug
from rear of transfer case. Fluid level should even with bottom of
transfer case fill plug hole on rear of transfer case. Add appropriate
type of transfer case fluid if necessary. See RECOMMENDED FLUID.
Install and tighten transfer case fill plug to specification. See
TORQUE SPECIFICATIONS.
RECOMMENDED FLUID
Transmission (Dakota)
On AX-15 transmissions, use API 75W-90 GL-3 gear oil. On
NV1500 and NV3500 transmissions, use ONLY Mopar M/T Lube Part No.
4761526.
Transmission (Ram Pickup)
Page 1508 of 1691
On NV3500 and NV5600, use ONLY Mopar M/T Lube Part No.
4761526. On NV4500, use ONLY Mopar M/T Lube Part No. 4874459.
Transfer Case
Manufacturer recommends using Dexron II or Mopar ATF Plus
Type 7176.
FLUID CAPACITIES
TRANSMISSION REFILL CAPACITIES ( 1) \
\
\
\
\
\
\
Application Pts. (L)\
Dakota
AX-15 .................................................. 6.6 (3.1)\
NV1500HD ............................................... 4.7 (2.2)\
NV3500 ................................................. 4.2 (1.9)\
Ram Pickup
NV3500 ................................................. 4.2 (1.9)\
NV4500 & NV4500HD ...................................... 8.0 (3.8)\
NV5600 ................................................. 9.5 (4.5)\
(1) - Approximate quantity listed.
\
\
\
\
\
\
\
TRANSFER CASE REFILL CAPACITIES ( 1) \
\
\
\
\
\
\
Application Pts. (L)\
Dakota ................................................... 2.5 (1.2)\
Ram Pickup
NV231HD ................................................ 2.5 (1.2)\
NV241 .................................................. 5.0 (2.7)\
NV241HD ................................................ 6.5 (3.1)\
NV241HD With Power Take-Off (PTO) Adapter .............. 9.0 (4.3\
)
(1) - Approximate quantity listed.
\
\
\
\
\
\
\
DRAINING & FILLING
Transmission (Dakota)
1) Park vehicle on level surface. Remove transmission drain
plug and allow fluid to drain from transmission. On AX-15
transmission, drain plug is located on passenger's side of
transmission. On NV3500 transmission, drain plug is located on bottom
of transmission housing, at center of transmission housing.
2) On all transmissions, install and tighten transmission
drain plug to specification. See TORQUE SPECIFICATIONS.
3) Remove transmission fill plug from side of transmission.
On AX-15 transmission, fill plug is located on driver's side of
transmission. On NV3500 transmission, fill plug is located near front
of transmission on passenger's side of transmission.
4) On all transmissions, fill transmission with appropriate
type of transmission fluid until fluid level is even with bottom of
fill plug hole on transmission. See RECOMMENDED FLUID. Install and
tighten transmission fill plug to specification. See TORQUE
SPECIFICATIONS.
Transmission (Ram Pickup With NV3500)
1) Park vehicle on level surface. Remove transmission drain
plug and allow fluid to drain from transmission. Transmission drain
plug is located on bottom of transmission housing, at center of
Page 1509 of 1691
transmission housing.
2) Install and tighten transmission drain plug to
specification. See TORQUE SPECIFICATIONS.
3) Remove transmission fill plug from side of transmission.
Transmission fill plug is located near front of transmission on
passenger's side of transmission. Fill transmission with appropriate
type of transmission fluid until fluid level is even with bottom of
fill plug hole on transmission. See RECOMMENDED FLUID. Install and
tighten transmission fill plug to specification. See TORQUE
SPECIFICATIONS.
Transmission (Ram Pickup With NV4500 Or NV5600)
1) Park vehicle on level surface. Remove bottom bolt from
Power Take-Off (PTO) cover on passenger's side of transmission. Allow
fluid to drain.
2) Install and tighten PTO cover bolt to specification. See
TORQUE SPECIFICATIONS. Remove transmission fill plug from side of
transmission. Transmission fill plug is located near rear of
transmission on passenger's side of transmission.
3) Fill transmission with appropriate type of transmission
fluid until fluid level is even with bottom of fill plug hole on
transmission. See RECOMMENDED FLUID. Install and tighten transmission
fill plug to specification. See TORQUE SPECIFICATIONS.
Transfer Case
1) Ensure vehicle is parked on level surface. Remove transfer
case drain plug. Transfer case drain plug is located on rear of
transfer case at driver's side corner of transfer case. Allow fluid to
drain from transfer case.
2) Reinstall transfer case drain plug. Tighten transfer case
drain plug to specification. See TORQUE SPECIFICATIONS. Remove
transfer case fill plug fill plug from rear of transfer case. Transfer
case fill plug is located on rear of transfer case, just below
identification tag.
3) Fill transfer case with appropriate type of transfer case
fluid until fluid level is even with bottom of fill plug hole on
transfer case. See RECOMMENDED FLUID. Install and tighten transfer
case fill plug to specification. See TORQUE SPECIFICATIONS.
ADJUSTMENTS
TRANSFER CASE SHIFT LINKAGE
Dakota
1) On NV231, place transfer case lever in 4H position. On
NV242, place transfer case lever in 4FT position. On all models, use
wire or tape to hold lever in position. Raise and support vehicle.
Loosen shifter rod lock bolt at adjusting swivel. Ensure shift rod
slides freely in adjusting swivel.
2) Ensure shift lever on transfer case is in 4H position.
Slide adjusting swivel forward until shift lever touches shifter gate
crossover. Slide adjusting swivel slightly rearward to provide a 3-5
mm gap between shift lever shifter gate.
3) Center pin on adjusting swivel in shift arm and tighten
lock bolt to 90 INCH lbs. (10 N.m). Lower vehicle enough to enter
vehicle. Ensure wheels are off floor. Start engine and shift
transmission into gear. Operate transfer case to verify correct
adjustment.
Page 1510 of 1691
Fig. 1: Identifying Typical Transfer Case Shift Linkage Components
Courtesy of Chrysler Corp.
Ram Pickup
1) Place transfer case shift lever in 2H position. Use wire
or bungie cord to secure transfer case shift lever in 2H position.
2) Raise and support vehicle. Loosen lock bolt at adjusting
swivel on shift rod. See Fig. 1. Ensure shift rod slides freely in
adjusting swivel. If shift rod fails to slide freely in adjusting
swivel, lubricate shift rod as necessary.
3) Ensure shift lever on transfer case is still in 2H
position. Lower vehicle. Position shift lever so that distance from
instrument panel to 2H position dot in shift lever insert is 5.75 in.
(146.000 mm). Tighten lock bolt to 90 INCH lbs. (10 N.m). Check shif\
t
linkage operation.
