Fuel pump is a positive displacement, immersible pump with a
permanent magnet electric motor. Fuel is drawn in through a separate
filter/strainer at bottom of fuel pump and pushed through filter to
fuel outlet line (to fuel injectors). Voltage to operate pump is
supplied from fuel pump relay. On some models, fuel pump relay is
activated by ASD relay.
Fuel pump module includes a combination fuel filter/fuel
pressure regulator, fuel pump reservoir, a separate in-tank fuel
filter, pressure relief/rollover valve, fuel gauge sending unit and
fuel supply line. See Fig. 3.

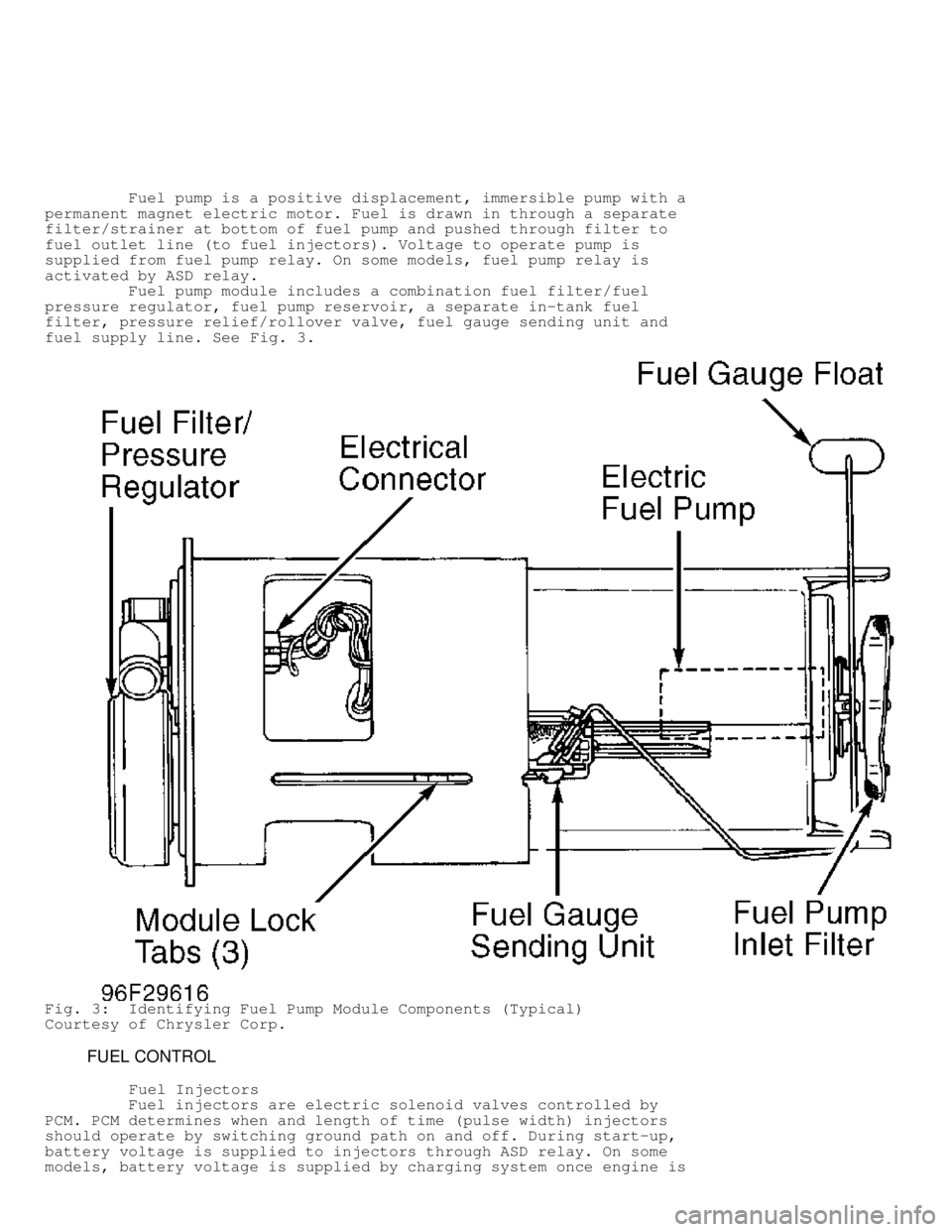

Fig. 3: Identifying Fuel Pump Module Components (Typical)
Courtesy of Chrysler Corp.
FUEL CONTROL
Fuel Injectors
Fuel injectors are electric solenoid valves controlled by
PCM. PCM determines when and length of time (pulse width) injectors
should operate by switching ground path on and off. During start-up,
battery voltage is supplied to injectors through ASD relay. On some
models, battery voltage is supplied by charging system once engine is

operating. When ground is supplied to injector by PCM, armature and
pintle inside injector move a short distance against spring and open a
small orifice. Since fuel is under high pressure, a fine spray is
developed.
Modes Of Operation
As input signals to PCM change, PCM adjusts its response to
output devices. Modes of operation come in 2 types, open loop and
closed loop. In open loop mode, PCM is not using input from HO2S and
is responding to preset programming to determine injector pulse width
and ignition timing. In closed loop mode, PCM adjusts ignition timing
and uses input from HO2S to fine tune injector pulse width.
The following inputs may be used to determine PCM mode:
* A/C Control Positions
* A/C Switch
* Battery Voltage
* Brake Switch
* Camshaft Position (CMP) Sensor
* Crankshaft Position (CKP) Sensor
* Engine Coolant Temperature (ECT) Sensor
* Engine Speed (RPM)
* Heated Oxygen Sensor (HO2S)
* Intake Air Temperature (IAT) Sensor
* Manifold Absolute Pressure (MAP) Sensor
* Park/Neutral (P/N) Switch
* Starter Relay
* Throttle Position (TP) Sensor
* Vehicle Speed Sensor (VSS)
From these inputs, PCM determines which mode vehicle is in
and responds appropriately. Not all inputs are used in all modes or by
all models. Modes of operation are:
* Ignition Switch On (Engine Not Running) - This is an open
loop mode. PCM pre-positions IAC motor based on ECT sensor
input. PCM determines atmospheric pressure from MAP sensor
and determines basic fuel strategy. PCM modifies fuel
strategy according to IAT sensor, ECT sensor and TP sensor
inputs. PCM activates ASD relay, which in turn activates fuel
pump for only 2 seconds unless engine is cranked. PCM also
energizes HO2S heater element for approximately 2 seconds
unless engine is cranked.
* Engine Start-Up - This is an open loop mode. When starter is
engaged, PCM receives input from battery voltage, ignition
switch, CKP sensor, CMP sensor, ECT sensor, IAT sensor, MAP
sensor and TP sensor. Based on these inputs, voltage is
applied to fuel injectors with PCM controlling injection
sequence, rate, and pulse width. PCM provides ground for
injectors to fire in proper order.
PCM determines proper ignition timing according to input
received from CKP sensor. If PCM does not receive CKP sensor signal
within 3 seconds after engine begins cranking, fuel injection system
is shut down and a Diagnostic Trouble Code (FTC) is set in PCM memory.\
* Engine Warm-Up - This is an open loop mode. PCM determines
injector pulse width using input information from battery
voltage, CKP sensor, CMP sensor, ECT sensor, IAT sensor, MAP
sensor and TP sensor. PCM also monitors A/C request and P/N
switch (A/T only) for fuel calculation. PCM controls engine
idle speed through IAC motor. PCM controls ignition timing
based on CKP sensor input.

PCM also operates A/C compressor clutch (if A/C is requested)\
through A/C clutch relay. When engine reaches operating temperature,
vehicle will go into idle mode and PCM will begin monitoring HO2S
input and go into closed loop operation.
* Idle - When engine is at operating temperature, this is a
closed loop mode. In idle mode, PCM now adds HO2S signal to
array of inputs used in ENGINE WARM-UP mode. PCM maintains
correct air/fuel ratio by adjusting injector pulse width and
ignition timing. PCM also controls A/C clutch operation (if
A/C is requested).
* Cruise - When engine is at operating temperature, this is a
closed loop mode. Using information from A/C switch, battery
voltage, CKP sensor, ECT sensor, IAT sensor, MAP sensor and
CMP sensor. PCM also monitors A/C request and P/N switch (A/T
only), TP sensor and VSS signals for fuel calculation. PCM
monitors HO2S and adjusts air/fuel ratio as needed. PCM
controls engine idle speed through IAC motor. PCM controls
spark advance as necessary.
* Acceleration - This is an open loop mode. When PCM
recognizes an abrupt increase in throttle position or
manifold pressure as a demand for increased engine output, it
increases injector pulse width in response to increased fuel
demand. HO2S signals are ignored.
* Deceleration - This is an open loop mode when engine is at
operating temperature and under deceleration. When PCM
receives inputs signaling a closed throttle and an abrupt
decrease in manifold pressure, it reduces injector pulse
width to lean air/fuel mixture. Under certain RPM and closed
throttle position conditions, HO2S signals are ignored and
PCM cuts off fuel injection until idle speed is reached. PCM
also drives IAC motor for smooth transition to idle mode.
* Wide Open Throttle - This is an open loop mode. When PCM
senses wide open throttle, it grounds fuel injectors in
sequence, it ignores HO2S input and it controls pulse width
to supply a pre-determined amount of additional fuel. PCM
also adjusts spark advance and disengages A/C clutch for
approximately 15 seconds.
* Ignition Switch Off - This is an open loop mode. PCM drives
IAC motor into position in anticipation of next start-up. All
outputs are turned off, no inputs are monitored and PCM shuts
down.
Sequential Fuel Injection (SFI)
Individual, electrically pulsed injectors (one per cylinder)
are located in intake manifold runners. These injectors are next to
intake valves in intake manifold. PCM controls injection timing based
on crankshaft position signal input. PCM regulates air/fuel mixture by
length of time injector stays open (pulse width) based on inputs from
HO2S, ECT sensor, MAP and other sensors.
IDLE SPEED
NOTE: DO NOT attempt to correct a high idle speed condition by
turning factory sealed throttle body throttle plate set
screw. This will not change idle speed of warm engine, but
may cause cold start problems due to restricted airflow.
Idle Air Control (IAC) Motor
IAC motor adjusts idle speed to compensate for engine load
and ambient temperature by adjusting amount of air flowing through by-
pass in back of throttle body. PCM uses ECT sensor, VSS, TP sensor and

various switch input operations to adjust IAC motor to obtain optimum
idle conditions. Deceleration stall is prevented by increasing airflow
when throttle is closed suddenly.
IGNITION SYSTEM
NOTE: Pickup equipped with 8.0L engine uses Distributorless
Ignition system (DIS). All other models use a Hall Effect
ignition system.
The PCM completely controls ignition system. During
crank/start mode, PCM will set a fixed amount of spark advance for an
efficient engine start. Amount of spark advance or retard is
determined by inputs that PCM receives from ECT sensor, engine vacuum
and engine RPM. During engine operation, PCM can supply an infinite
number of advance curves to ensure proper engine operation.
DISTRIBUTORLESS IGNITION SYSTEM (DIS)
DIS eliminates mechanical ignition components that can wear
out. PCM has complete ignition control and uses a coil pack, CMP
sensor and CKP sensor to control ignition timing. CMP sensor reads
slots in cam timing sprocket. PCM uses this information along with
information from CKP sensor to determine if fuel injectors and
ignition coils are properly sequenced for correct cylinders.
Basic timing is determined by CKP sensor position and is not
adjustable. One complete engine revolution may be required for PCM to
determine crankshaft position during cranking.
Molded ignition coils are used. Each coil fires 2 paired
spark plugs at the same time. One cylinder is on compression stroke
and other cylinder is on exhaust stroke.
HALL EFFECT IGNITION SYSTEM
This system is equipped with a Hall Effect distributor. See
Fig. 1 . Shutter(s) attached to distributor shaft rotate through
distributor Hall Effect switch, also referred to as a CMP sensor,
which contains a distributor pick-up (a Hall Effect device and
magnet). As shutter blade(s) pass through pick-up, magnetic field is
interrupted and voltage is toggled between high and low. PCM uses this
cylinder position data from CMP sensor, along with engine speed (RPM)
and CKP sensor data, to control ignition timing and injector pulse
width to maintain optimum driveability.
EMISSION SYSTEMS
Vehicles are equipped with different combinations of emission
system components. Not all components are used on all models. To
determine component usage on a specific model, see EMISSION
APPLICATIONS - TRUCKS article.
AIR INJECTION SYSTEM
This system adds a controlled amount of air to exhaust gases,
through air relief valve and check valves, to assist oxidation of
hydrocarbons and carbon monoxide in exhaust stream. Air is injected at
catalytic converters.
CRANKCASE VENTILATION (CCV) SYSTEM
CCV system performs same function as a conventional Positive

Crankcase Ventilation (PCV) system, but does not use a vacuum
controlled valve. See POSITIVE CRANKCASE VENTILATION (PCV).
EVAPORATIVE (EVAP) EMISSIONS SYSTEM
This system stores fuel vapors from fuel tank, preventing
vapors from reaching the atmosphere. As fuel evaporates inside fuel
tank, vapors are routed through vent hoses to charcoal canister where
they are stored until engine is started.
Evaporative Canister Purge Control Solenoid (EVAP-CPCS)
Charcoal canister purging is controlled by PCM through an
EVAP-CPCS. During engine warm-up and for a short period after hot
restarts, PCM energizes EVAP-CPCS, interrupting engine vacuum signal
to charcoal canister.
After engine reaches a predetermined operating temperature
and PCM internal timer has expired, PCM will de-energize EVAP-CPCS,
allowing engine vacuum to purge charcoal canister. EVAP-CPCS will also
be de-energized during certain idle conditions so PCM can update fuel
delivery calibration.
POSITIVE CRANKCASE VENTILATION (PCV)
PCV system uses a vacuum operated valve. A closed engine
crankcase breather/filter, with a hose connecting it to air filter
housing, provides source of air for system. Crankcase blow-by gases
are removed from crankcase through PCV valve with manifold vacuum.
These gases are introduced into incoming air/fuel mixture and become
part of the calibrated mixture.
A non-vacuum operated Crankcase Ventilation (CCV) system is
used on some engines, see CRANKCASE VENTILATION (CCV) SYSTEM.
SELF-DIAGNOSTIC SYSTEM
The PCM monitors several different circuits of engine control
system. If a problem is sensed with a monitored circuit, PCM will
store a Diagnostic Trouble Code (FTC) to aid technician in diagnosis
of system. The Malfunction Indicator Light (MIL), or a scan tool can
be used to read DTCs. For additional information, see SELF-DIAGNOSTICS
- JEEP, TRUCKS & RWD VANS article.
MALFUNCTION INDICATOR LIGHT
Malfunction Indicator Light (MIL) comes on and remains on for\
3 seconds as a bulb test each time ignition switch is turned to ON
position. If PCM receives an incorrect signal or receives no signal
from battery voltage input, charging system, ECT sensor, MAP sensor or
TP sensor, MIL will come on. MIL will also come on if certain
emission-related faults exist. This warns driver that PCM is in limp-
in mode and immediate repairs are necessary. See LIMP-IN MODE under
MISCELLANEOUS CONTROLS. MIL can also be used to display Diagnostic
Trouble Codes (DTCs). For additional information, see SELF-DIAGNOSTICS\
- JEEP, TRUCKS & RWD VANS article.
SERIAL COMMUNICATIONS INTERFACE (SCI)
SCI circuit is used by PCM to send data to and receive data
and sensor activation signals from scan tool. Scan tool uses signals
sent on SCI to display fault messages or Diagnostic Trouble Codes
(DTCs), sensor voltages and device states (On/Off). Scan tool uses S\
CI
to send solenoid and switch activation commands to PCM so that devices
and circuits can be tested. SCI is also used to write SRI mileage to

PCM.
MISCELLANEOUS CONTROLS
NOTE: Although not strictly considered part of engine performance
system, some controlled devices can adversely affect
driveability if they malfunction.
A/C CLUTCH RELAY
A/C clutch relay is controlled by PCM. When A/C or Defrost
mode is selected and PCM receives A/C request signal from evaporator
switch, PCM will cycle clutch on and off through A/C clutch relay.
When this relay is energized during engine operation, PCM will
determine correct engine idle speed through IAC motor.
When PCM senses low idle speed or wide open throttle through
TP sensor, PCM will de-energize A/C clutch relay, preventing A/C
operation.
AUTO SHUTDOWN (ASD) RELAY & FUEL PUMP RELAY
ASD relay and electric fuel pump relay are energized when
ignition is on. These relays are controlled through PCM by switching a
common ground circuit on and off. Following components are controlled
by ASD and fuel pump relays:
* Electric Fuel Pump
* Fuel Injectors
* Generator Field Winding
* Ignition Coil(s)
* HO2S Heating Element
When ignition switch is turned to RUN position, PCM energizes
ASD relay and electric fuel pump relay which powers these components.
If PCM does not receive a CMP and CKP sensor signal within one second
of engine cranking (start-up), PCM will turn ground circuit off and
de-energize ASD relay.
GENERATOR
Powertrain Control Module (PCM) regulates charging system
voltage.
LIMP-IN MODE
Limp-in mode is the attempt by PCM to compensate for failure
of certain components by substituting information from other sources
so that vehicle can still be operated. If PCM senses incorrect data or
no data at all from MAP sensor, TP sensor, ECT sensor or battery
voltage, system is placed into limp-in mode and Malfunction Indicator
Light (MIL) on instrument panel comes on.
If faulty sensor comes back on line, PCM will resume closed
loop operation. On some vehicles, MIL will remain on until ignition is
shut off and vehicle is restarted. To prevent damage to catalytic
converter, vehicle should NOT be driven for extended periods in limp-
in mode.
RADIATOR FAN RELAY
Electric cooling fan is used only on Dakota. Using
information supplied by A/C signal (if equipped), ECT sensor, and VSS,\

PCM controls operation of electric cooling fan. PCM operates fan
through radiator fan relay by grounding or ungrounding relay control
circuit. PCM regulates engine idle speed through IAC motor when fan is
on.
SHIFT INDICATOR LIGHT
PCM provides ground for shift indicator light on models
equipped with manual transmission. Based on engine speed, throttle
position, and vehicle speed, PCM turns shift indicator light on to
advise driver to shift to a higher gear for optimum fuel economy.
SPEED CONTROL SERVO
System is electrically actuated and vacuum operated. Controls
are located on steering wheel. Controls consist of 3 buttons: OFF/ON,
RESUME/ACCEL and SET/DECEL. Speed control servo is controlled by PCM.
System will operate at 35-85 MPH.
TACHOMETER
PCM provides signal to drive tachometer.
TORQUE CONVERTER CLUTCH (TCC) SOLENOID
PCM controls torque converter lock-up through TCC solenoid.
PCM controls lock-up according to various operating conditions.
TRANSMISSION GOVERNOR SOLENOID
PCM controls solenoid to regulate line pressure for shift
control.
TRANSMISSION OVERDRIVE/OVERRIDE (OD/OR) SWITCH INDICATOR
LIGHT
PCM controls indicator light on OD/OR switch on models
equipped with overdrive automatic transmission.
TRANSMISSION OVERDRIVE (OD) SOLENOID
On models equipped with OD transmission, PCM controls 3-4 OD
upshift and downshift through OD solenoid. PCM determines optimum OD
shift scheduling for all operating conditions.

TR AN SM IS SIO N R EM OVA L & IN STA LLA TIO N

1999 D odge P ic ku p R 1500
1998-99 TRANSMISSION SERVICING
CHRY - Trans Removal & Installation - Trucks & RWD Vans
Dakota, Ram Pickup, Ram Van/Wagon
WARNING: When battery is disconnected, vehicle computer and memory
systems may lose memory data. Driveability problems may exist
until computer systems have completed a relearn cycle. See
COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION
before disconnecting battery.
MANUAL TRANSMISSION
NOTE: For manual transmission replacement procedures, see
appropriate article in CLUTCHES.
AUTOMATIC TRANSMISSION
DAKOTA & DURANGO
Removal
1) Disconnect negative battery cable. Raise and support
vehicle. Disconnect and remove necessary skid plates and exhaust
components for transmission removal. Remove engine-to-transmission
struts (if equipped). These struts are located between front of
transmission and engine.
2) Ensure area around transmission oil cooler lines fitting
are clean. Disengage retainer on quick-disconnect cooler line fitting.
Pull cooler line from transmission oil cooler.
CAUTION: Crankshaft position sensor must be removed from transmission
housing before removing transmission to prevent damage to
crankshaft position sensor.
3) Remove starter. Disconnect electrical connector for
crankshaft position sensor. On 2.5L, crankshaft position sensor is
mounted on driver's side of transmission housing. See Fig. 1. On 3.9L,
5.2L and 5.9L, crankshaft position sensor is mounted on passenger's
side of transmission housing. See Fig. 2.
4) Remove crankshaft position sensor bolts or nuts. Remove
crankshaft position sensor from transmission housing. Remove dipstick,
dipstick tube and "O" ring from transmission.
5) Remove torque converter cover. Place reference mark on
flexplate and torque converter for installation reference. Rotate
crankshaft clockwise and remove torque converter bolts.
6) Place reference mark on drive shaft flanges for
installation reference. Remove drive shaft from transmission. On 4WD
models, disconnect drive shaft from transfer case. Disconnect shift
rod for transfer case from transfer case shift lever.
7) On all models, disconnect necessary control cables, wiring
harnesses, and shift linkage or cable from transmission. Support rear
of engine with jack stand. Using transmission jack, slightly raise
transmission to release pressure from rear mount and rear crossmember.
8) Remove bolts securing rear support and rear mount to
transmission and rear crossmember. Raise transmission slightly. Slide
exhaust hanger arm from bracket on rear support. Remove rear support
and rear mount.
9) Remove rear crossmember located below the transmission. On
4WD models, disconnect electrical connectors from transfer case. On

all models, remove transmission-to-cylinder block bolts. Slide
transmission rearward from dowels on cylinder block.
10) Install "C" clamp on edge of transmission housing to hold
torque converter in place. Lower transmission and remove transmission
from vehicle.

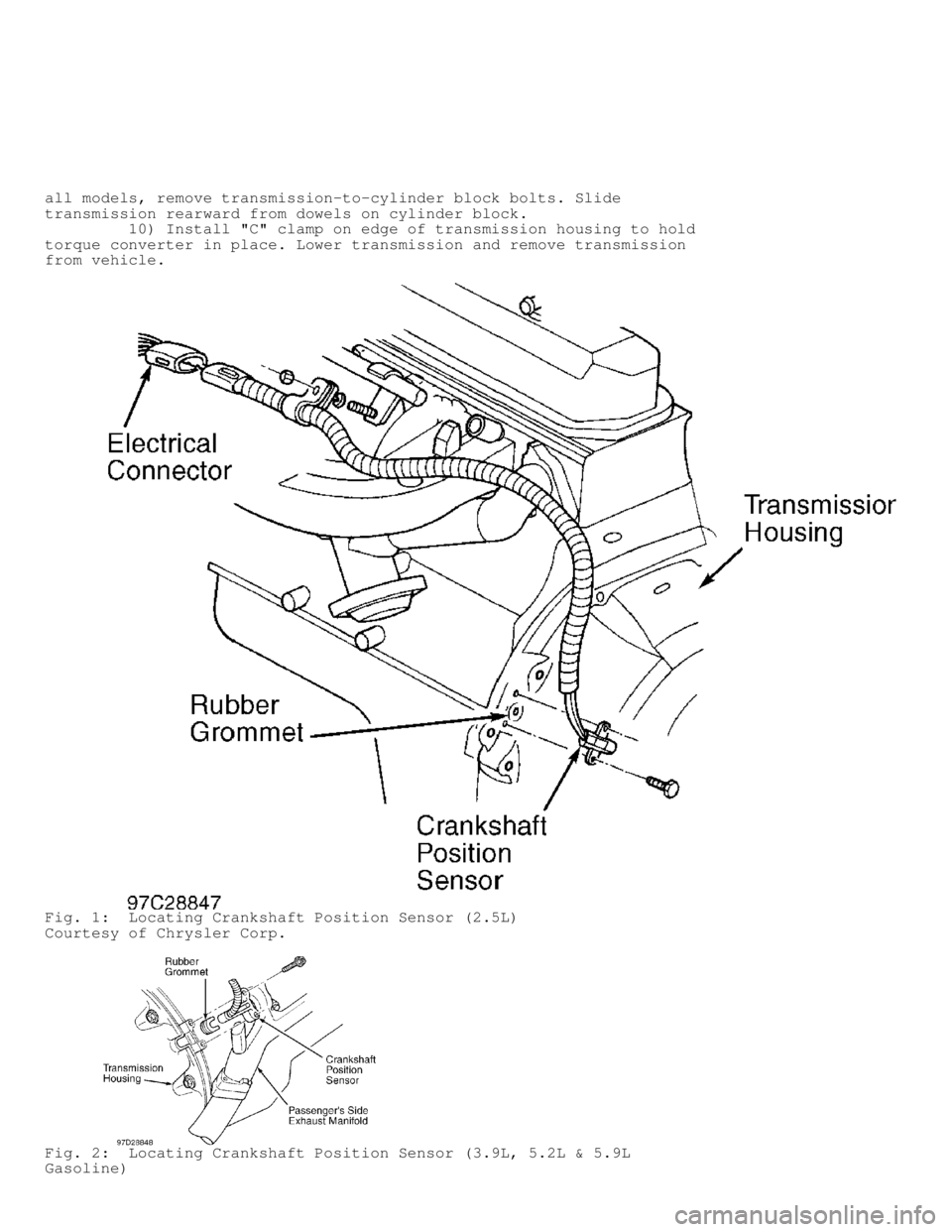

Fig. 1: Locating Crankshaft Position Sensor (2.5L)
Courtesy of Chrysler Corp.
Fig. 2: Locating Crankshaft Position Sensor (3.9L, 5.2L & 5.9L
Gasoline)

Courtesy of Chrysler Corp.
Installation
1) To install, reverse removal procedure. Ensure torque
converter is fully seated in transmission by measuring distance from
cylinder block surface on transmission housing to front edge on torque
converter bolt lug on front of torque converter. Distance should be .
50" (12.7 mm) if torque converter is fully seated.
CAUTION: Proper length torque converter bolts must be used. If
replacing any torque converter bolts, ensure proper length
bolt is used.
2) Tighten bolt/nuts to specification. See TORQUE
SPECIFICATIONS. Ensure reference mark on torque converter and
flexplate, and drive shaft flanges are aligned. Adjust shift cable or
linkage, throttle valve cable and transfer case shift linkage if
necessary. See AUTOMATIC TRANSMISSION - TRUCKS & RWD VANS article.
3) Use NEW "O" ring when installing dipstick tube. Before
installing oil cooler lines on transmission, ensure all fittings are
clean. Install oil cooler line into quick-disconnect fitting. Push oil
cooler line inward until a click is heard. Pull on oil cooler line to
ensure oil cooler line is locked in place. Fill transmission with
Mopar ATF Plus Type 7176.
RAM PICKUP
Removal
1) Disconnect negative battery cable. Raise and support
vehicle. Disconnect and remove necessary skid plates and exhaust
components for transmission removal. Remove engine-to-transmission
struts (if equipped). These struts are located between front of
transmission and engine.
2) Ensure area around transmission oil cooler lines fitting
are clean. Disengage retainer on quick-disconnect cooler line fitting.
Pull cooler line from transmission oil cooler. Remove starter.
CAUTION: On 3.9L, 5.2L and 5.9L gasoline models, crankshaft position
sensor must be removed from transmission housing before
removing transmission to prevent damage to crankshaft
position sensor.
3) On 3.9L, 5.2L and 5.9L gasoline models, disconnect
electrical connector for crankshaft position sensor. Crankshaft
position sensor is mounted on passenger's side of transmission
housing. See Fig. 2.
4) Remove crankshaft position sensor bolts. Remove crankshaft
position sensor from transmission housing. Remove dipstick, dipstick
tube and "O" ring from transmission.
5) Remove torque converter cover. Place reference mark on
flexplate and torque converter for installation reference. Rotate
crankshaft clockwise and remove torque converter bolts.
6) Place reference mark on drive shaft flanges for
installation reference. Remove drive shaft from transmission. On 4WD
models, disconnect drive shaft from transfer case. Disconnect shift
rod for transfer case from transfer case shift lever.
7) On all models, disconnect necessary control cables, wiring
harnesses, and shift linkage from transmission. Support rear of engine
with jack stand. Using transmission jack, slightly raise transmission
to release pressure from rear mount and rear crossmember.
8) Remove bolts securing rear support and rear mount to
transmission and rear crossmember. Raise transmission slightly. Slide
exhaust hanger arm from bracket on rear support. Remove rear support
