TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS








\









\









\









\









\









\









\







Application Ft. Lbs.
PTO Cover Bolt
Ram Pickup ............................................... 30 (40)\
Transfer Case Drain Plug & Fill Plug ....................... 40 (54)\
Dakota ............................................. 15-25 (20-25)\
Ram Pickup ........................................... 30-40 (40-54)\
Transmission Drain Plug & Fill Plug
Dakota
AX-15 ................................................... 33 (44)\
NV1500 .................................................. 25 (34)\
NV3500 ............................................ 14-20 (19-27)\
Ram Pickup
NV3500 ............................................ 14-20 (19-27)\
NV4500 ............................................ 25-35 (34-47)\
NV5600 .................................................. 22 (30)\









\









\









\









\









\









\









\


M - V A C UUM D IA G RAM S
1999 D odge P ic ku p R 1500
1999 ENGINE PERFORMANCE
CHRY - Vacuum Diagrams - Trucks
Caravan, Dakota, Durango, Ram Pickup, Ram Van, Ram Wagon,
Town & Country, Voyager
INTRODUCTION
This article contains underhood views or schematics of vacuum
hose routing. Use these vacuum diagrams during the visual inspection
in appropriate BASIC DIAGNOSTIC PROCEDURES article. This will assist
in identifying improperly routed vacuum hoses, which may cause
driveability and/or computer-indicated malfunctions.
VACUUM DIAGRAMS
NOTE: References to California models apply to California emission
vehicles, which may be verified by underhood Emission Control
label. California emissions may be available in other
states.
NOTE: Vacuum diagrams for applications not shown were not available
at time of publication. See underhood Emission Control
label.

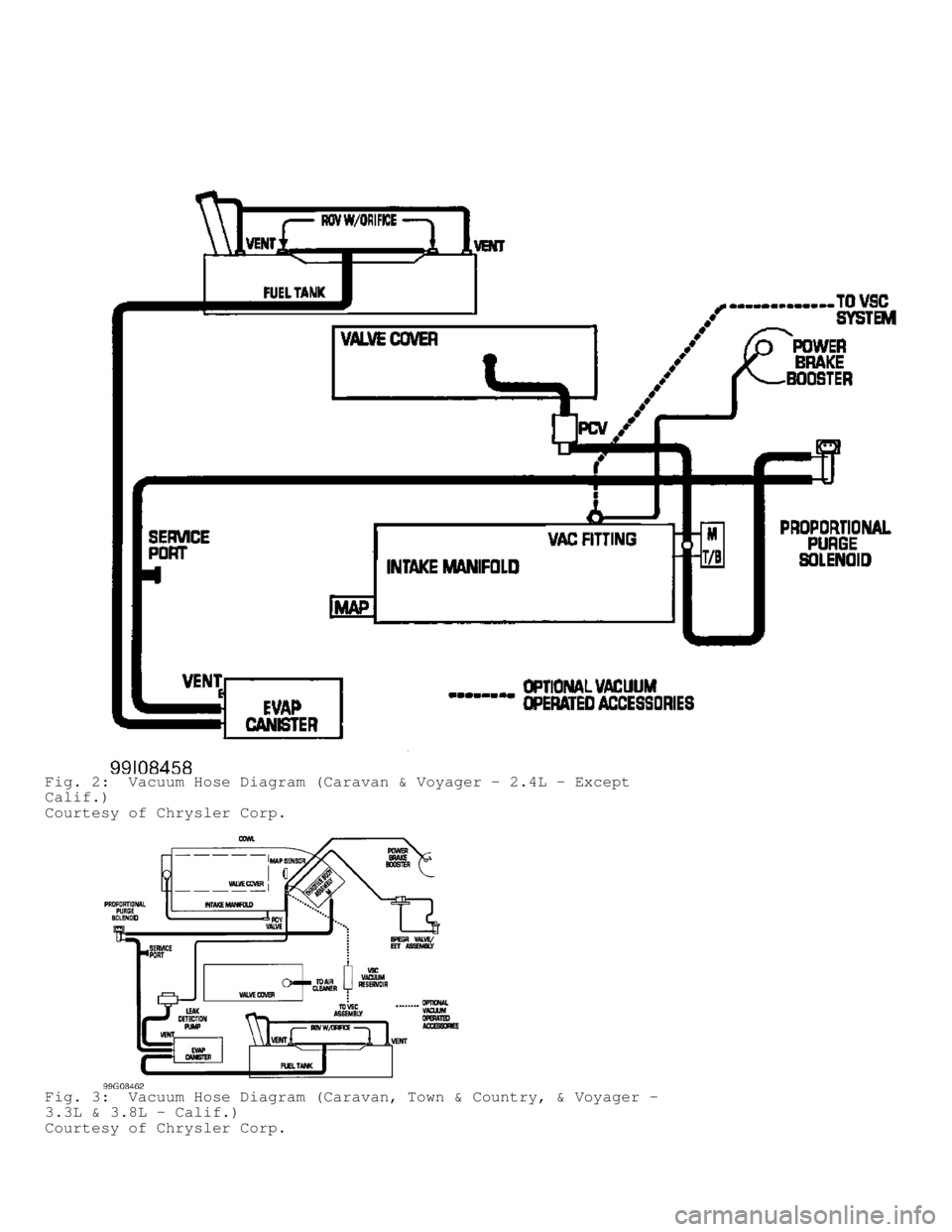

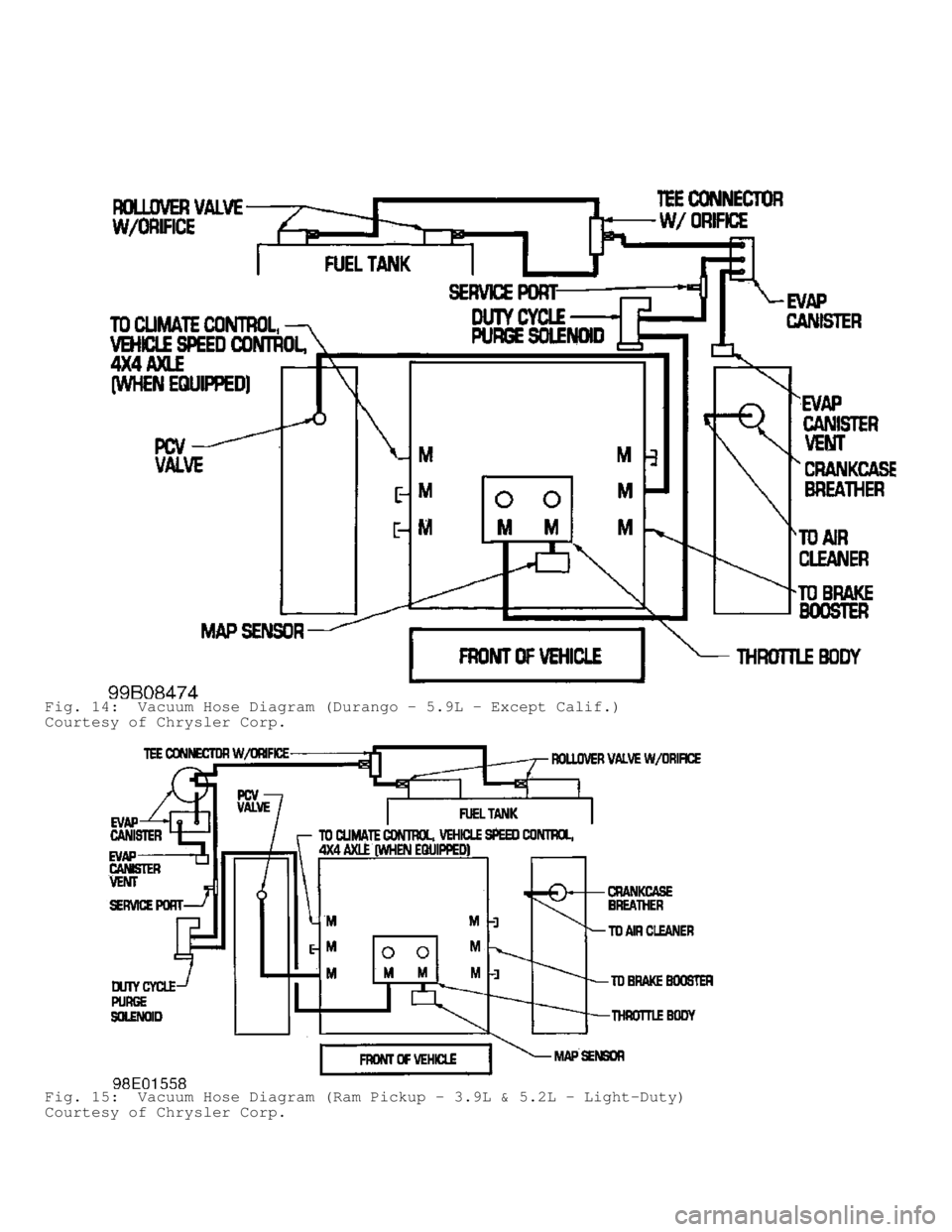

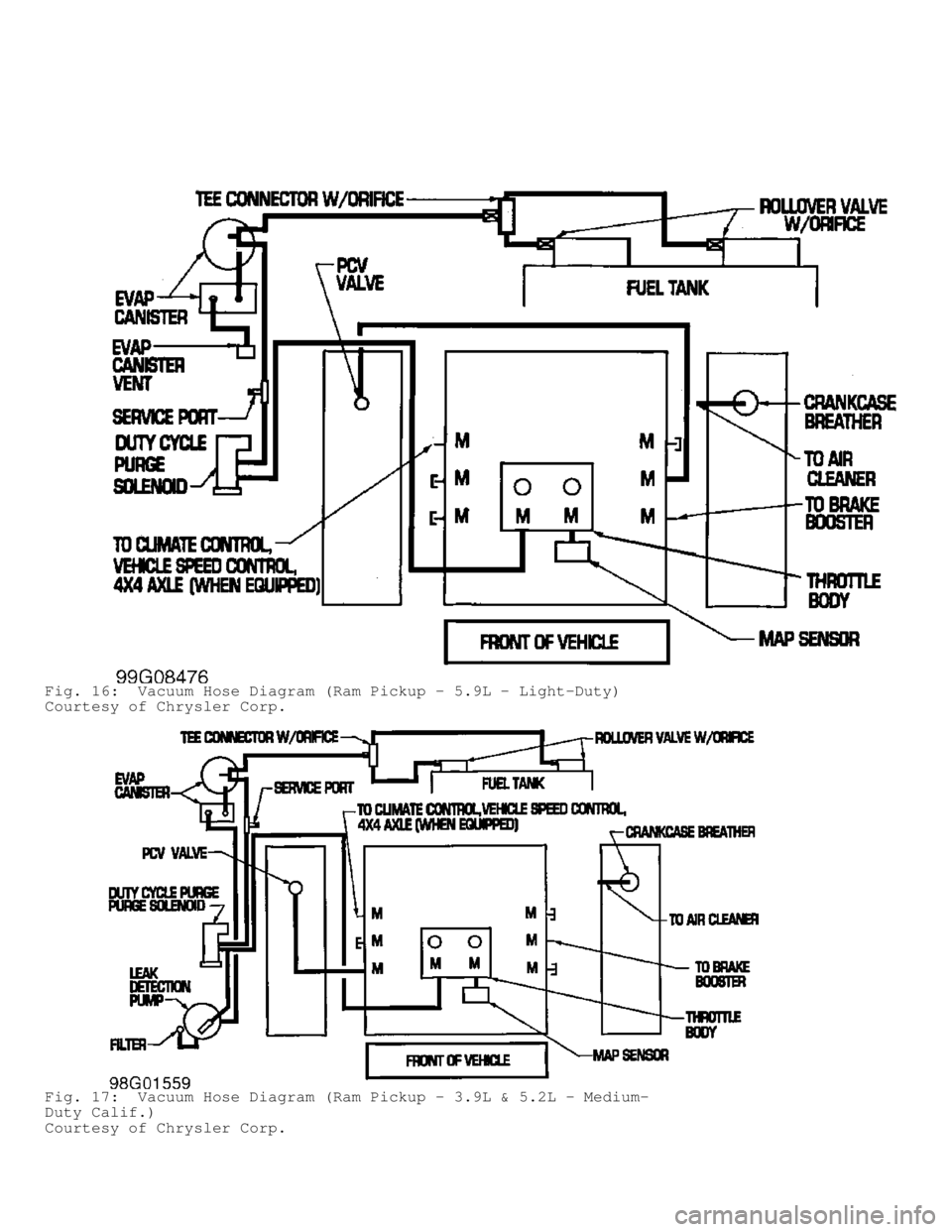

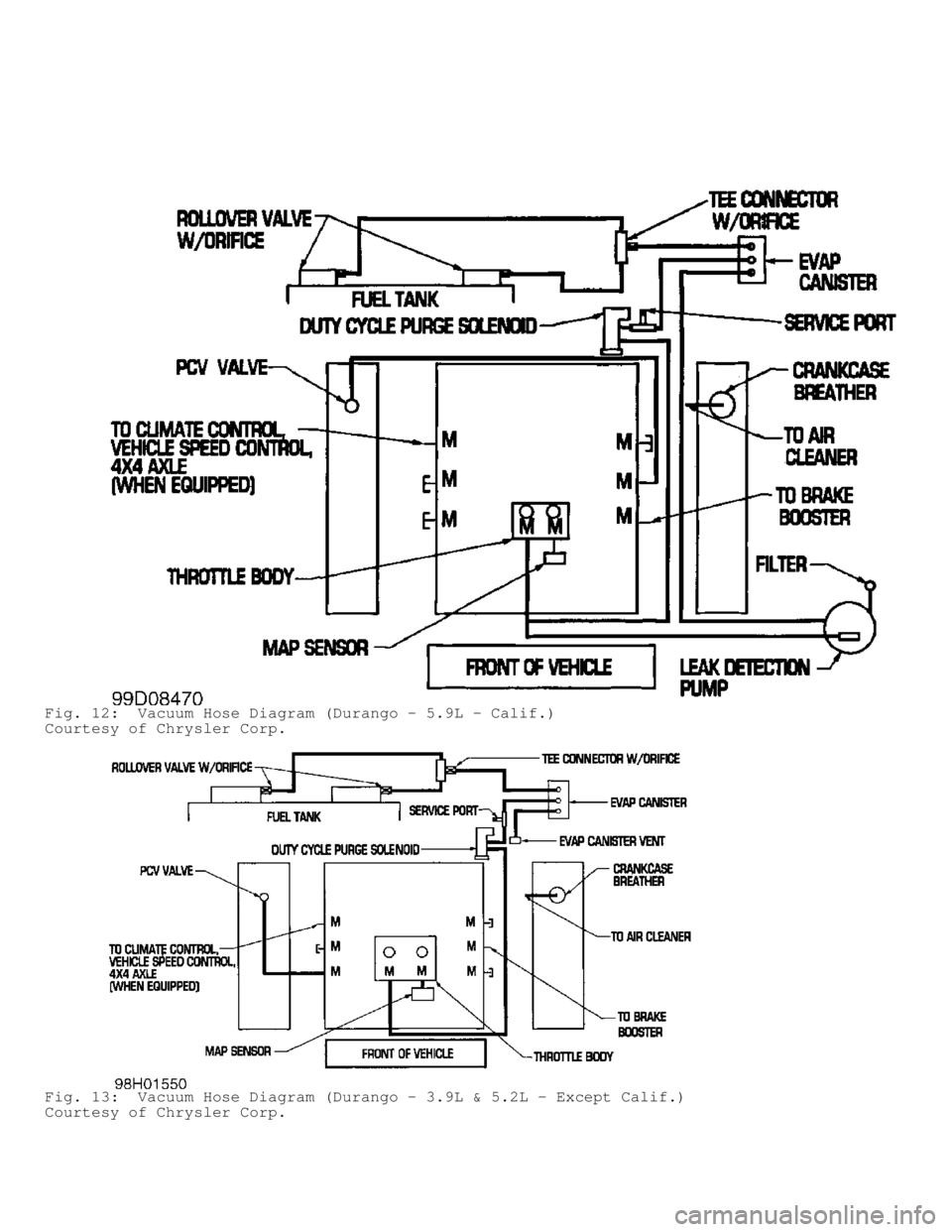

Fig. 1: Vacuum Hose Diagram (Caravan & Voyager - 2.4L - Calif.)
Courtesy of Chrysler Corp.

Fig. 2: Vacuum Hose Diagram (Caravan & Voyager - 2.4L - Except
Calif.)
Courtesy of Chrysler Corp.
Fig. 3: Vacuum Hose Diagram (Caravan, Town & Country, & Voyager -
3.3L & 3.8L - Calif.)
Courtesy of Chrysler Corp.

Fig. 4: Vacuum Hose Diagram (Caravan, Town & Country, & Voyager -
3.3L & 3.8L - Except Calif.)
Courtesy of Chrysler Corp.
Fig. 5: Vacuum Hose Diagram (Dakota - 2.5L - Calif.)
Courtesy of Chrysler Corp.

Fig. 6: Vacuum Hose Diagram (Dakota - 2.5L - Except Calif.)
Courtesy of Chrysler Corp.
Fig. 7: Vacuum Hose Diagram (Dakota - 3.9L & 5.2L - Calif.)
Courtesy of Chrysler Corp.

Fig. 8: Vacuum Hose Diagram (Dakota - 5.9L - Calif.)
Courtesy of Chrysler Corp.
Fig. 9: Vacuum Hose Diagram (Dakota - 3.9L & 5.2L - Except Calif.)
Courtesy of Chrysler Corp.

Fig. 10: Vacuum Hose Diagram (Dakota - 5.9L - Except Calif.)
Courtesy of Chrysler Corp.
Fig. 11: Vacuum Hose Diagram (Durango - 3.9L & 5.2L - Calif.)
Courtesy of Chrysler Corp.

Fig. 12: Vacuum Hose Diagram (Durango - 5.9L - Calif.)
Courtesy of Chrysler Corp.
Fig. 13: Vacuum Hose Diagram (Durango - 3.9L & 5.2L - Except Calif.)
Courtesy of Chrysler Corp.

Fig. 14: Vacuum Hose Diagram (Durango - 5.9L - Except Calif.)
Courtesy of Chrysler Corp.
Fig. 15: Vacuum Hose Diagram (Ram Pickup - 3.9L & 5.2L - Light-Duty)
Courtesy of Chrysler Corp.

Fig. 16: Vacuum Hose Diagram (Ram Pickup - 5.9L - Light-Duty)
Courtesy of Chrysler Corp.
Fig. 17: Vacuum Hose Diagram (Ram Pickup - 3.9L & 5.2L - Medium-
Duty Calif.)
Courtesy of Chrysler Corp.
