Component Page
Crankshaft Position Sensor
(Gas Except 8.0L)................. 8W-80-34
Cummins Bus (Diesel)............... 8W-80-34
Cup Holder Lamp................... 8W-80-34
Data Link Connector................. 8W-80-35
Daytime Running Lamp Module........ 8W-80-35
Dome Lamp....................... 8W-80-35
Driver Airbag...................... 8W-80-35
Driver Cylinder Lock Switch........... 8W-80-36
Driver Door Ajar Switch (Premium)..... 8W-80-36
Driver Door Ajar Switch (Base)......... 8W-80-36
Driver Door Lock Motor.............. 8W-80-36
Driver Door Window/Lock Switch....... 8W-80-36
Driver Heated Seat Cushion........... 8W-80-37
Driver Heated Seat Switch............ 8W-80-37
Driver Lumbar Motor................ 8W-80-37
Driver Power Seat Front Vertical Motor
(Club Cab)....................... 8W-80-37
Driver Power Seat Front Vertical Motor
(Standard Cab)................... 8W-80-37
Driver Power Seat Horizontal Motor
(Club Cab)....................... 8W-80-38
Driver Power Seat Horizontal Motor
(Standard Cab)................... 8W-80-38
Driver Power Seat Rear Vertical Motor
(Club Cab)....................... 8W-80-38
Driver Power Seat Rear Vertical Motor
(Standard Cab)................... 8W-80-38
Driver Power Seat Switch (Club Cab).... 8W-80-38
Driver Power Seat Switch
(Standard Cab)................... 8W-80-39
Driver Power Window Motor........... 8W-80-39
Electric Brake Provision.............. 8W-80-39
Engine Control Module (Diesel)........ 8W-80-40
Engine Coolant Temperature Sensor
(Diesel)......................... 8W-80-41
Engine Coolant Temperature Sensor
(Gas)........................... 8W-80-41
Engine Oil Pressure Sensor (Diesel)..... 8W-80-41
Engine Oil Pressure Sensor (Gas)....... 8W-80-41
Evap/Purge Solenoid................. 8W-80-41
Front Washer Pump................. 8W-80-41
Fuel Heater (Diesel)................. 8W-80-42
Fuel Injection Pump (Diesel)........... 8W-80-42
Fuel Injector No. 1.................. 8W-80-42
Fuel Injector No. 2.................. 8W-80-42
Fuel Injector No. 3.................. 8W-80-42
Fuel Injector No. 4.................. 8W-80-43
Fuel Injector No. 5.................. 8W-80-43
Fuel Injector No. 6.................. 8W-80-43
Fuel Injector No. 7 (5.2L/5.9L/8.0L)..... 8W-80-43
Fuel Injector No. 8 (5.2L/5.9L/8.0L)..... 8W-80-43
Fuel Injector No. 9 (8.0L)............. 8W-80-43
Fuel Injector No. 10 (8.0L)............ 8W-80-44
Fuel Pump Module (Gas)............. 8W-80-44
Fuel Tank Module (Diesel)............ 8W-80-44
Fuel Transfer Pump (Diesel)........... 8W-80-44Component Page
G300............................. 8W-80-44

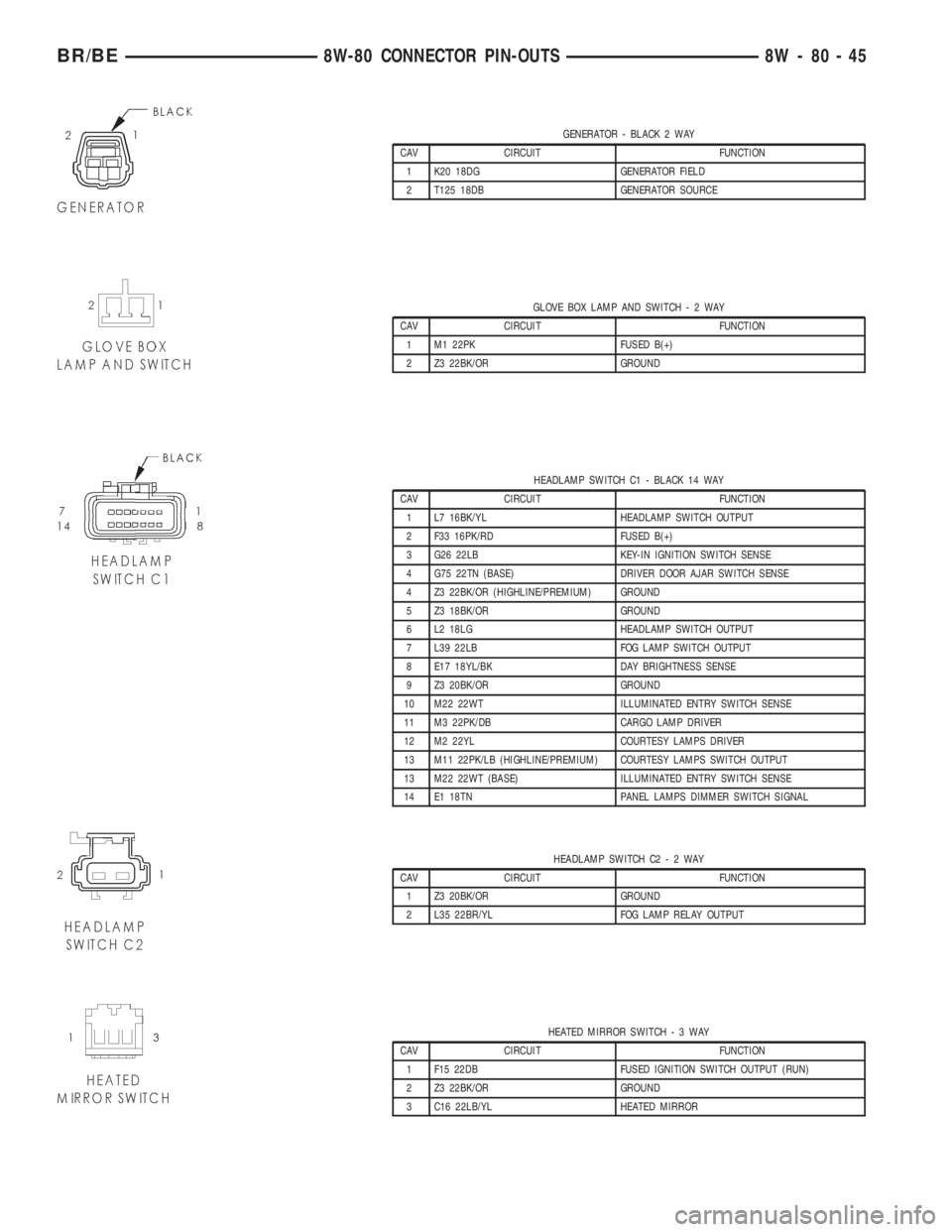

Generator......................... 8W-80-45
Glove Box Lamp And Switch........... 8W-80-45
Headlamp Switch C1................ 8W-80-45
Headlamp Switch C2................ 8W-80-45
Heated Mirror Switch................ 8W-80-45
High Note Horn.................... 8W-80-46
Idle Air Control Motor................ 8W-80-46
Ignition Coil (3.9L/5.2L/5.9L).......... 8W-80-46
Ignition Coil 4 Pack (8.0L)............ 8W-80-46
Ignition Coil 6 Pack (8.0L)............ 8W-80-46
Ignition Switch C1.................. 8W-80-47
Ignition Switch C2.................. 8W-80-47
Instrument Cluster C1............... 8W-80-47
Instrument Cluster C2............... 8W-80-47
Intake Air Heater Relays (Diesel)....... 8W-80-47
Intake Air Temperature Sensor (Diesel) . . 8W-80-48
Intake Air Temperature Sensor (Gas).... 8W-80-48
Joint Connector No. 1 (In PDC)........ 8W-80-48
Joint Connector No. 2 (In PDC)........ 8W-80-49
Joint Connector No. 3................ 8W-80-49
Joint Connector No. 4................ 8W-80-49
Joint Connector No. 5................ 8W-80-50
Joint Connector No. 6................ 8W-80-50
Joint Connector No. 7................ 8W-80-51
Joint Connector No. 8................ 8W-80-51
Junction Block C1................... 8W-80-52
Junction Block C2................... 8W-80-52
Junction Block C3................... 8W-80-52
Junction Block C4................... 8W-80-53
Junction Block C5................... 8W-80-53
Junction Block C6................... 8W-80-53
Junction Block C7................... 8W-80-53
Junction Block C8................... 8W-80-54
Junction Block C9................... 8W-80-54
Leak Detection Pump (Gas)........... 8W-80-54
Left Back-Up Lamp.................. 8W-80-54
Left Fog Lamp..................... 8W-80-54
Left Front Door Speaker (Premium)..... 8W-80-55
Left Front Door Speaker (Standard)..... 8W-80-55
Left Front Fender Lamp
(Dual Rear Wheels)................ 8W-80-55
Left Front Wheel Speed Sensor (ABS) . . . 8W-80-55
Left Headlamp..................... 8W-80-55
Left License Lamp.................. 8W-80-56
Left Outboard Clearance Lamp......... 8W-80-56
Left Outboard Headlamp............. 8W-80-56
Left Outboard Identification Lamp...... 8W-80-56
Left Park/Turn Signal Lamp........... 8W-80-56
Left Power Mirror................... 8W-80-56
Left Rear Fender Lamp
(Dual Rear Wheels)................ 8W-80-57
Left Rear Speaker (Premium 2 Door).... 8W-80-57
Left Rear Speaker (Premium 4 Door).... 8W-80-57
Left Rear Speaker (Standard 2 Door).... 8W-80-57
Left Rear Speaker (Standard 4 Door).... 8W-80-57
Left Remote Radio Switch............. 8W-80-57
8W - 80 - 2 8W-80 CONNECTOR PIN-OUTSBR/BE

Component Page
Left Speed Control Switch............ 8W-80-58
Left Tail/Stop/Turn Signal Lamp........ 8W-80-58
Left Tweeter (Premium).............. 8W-80-58
Left Visor/Vanity Lamp............... 8W-80-58
Low Note Horn..................... 8W-80-58
Manifold ABSolute Pressure Sensor
(3.9L/5.2L/5.9L)................... 8W-80-58
Manifold ABSolute Pressure Sensor
(8.0L).......................... 8W-80-59
Manifold Air Pressure Sensor (Diesel).... 8W-80-59
Multi-Function Switch............... 8W-80-59
Output Speed Sensor................ 8W-80-59
Overdrive Switch................... 8W-80-60
Overhead Console (Base).............. 8W-80-60
Overhead Console (Highline)........... 8W-80-60
Oxygen Sensor 1/1 Left Bank Up
(5.9L HD/8.0L)................... 8W-80-60
Oxygen Sensor 1/1 Left Bank Up
(California)...................... 8W-80-60
Oxygen Sensor 1/1 Upstream
(A/T Except 8.0L)................. 8W-80-61
Oxygen Sensor 1/1 Upstream
(M/T Except 8.0L)................. 8W-80-61
Oxygen Sensor 1/2 Downstream
(3.9L/5.2L)....................... 8W-80-61
Oxygen Sensor 1/2 Left Bank Down
(California)...................... 8W-80-61
Oxygen Sensor 1/2 Pre-Catalyst (8.0L) . . . 8W-80-61
Oxygen Sensor 1/3 Post Catalyst (8.0L) . . 8W-80-62
Oxygen Sensor 2/1 Right Bank Up (5.9L HD)
(5.2L/5.9L/8.0L California).......... 8W-80-62
Oxygen Sensor 2/2 Right Bank Down
(California)...................... 8W-80-62
Park/Neutral Position Switch
(A/T Except 8.0L)................. 8W-80-62
Park/Neutral Position Switch (A/T 8.0L) . . 8W-80-62
Passenger Airbag................... 8W-80-63
Passenger Airbag On/Off Switch C1..... 8W-80-63
Passenger Airbag On/Off Switch C2..... 8W-80-63
Passenger Cylinder Lock Switch........ 8W-80-63
Passenger Door Ajar Switch........... 8W-80-63
Passenger Door Lock Motor........... 8W-80-63
Passenger Door Window/Lock Switch.... 8W-80-64
Passenger Heated Seat Cushion........ 8W-80-64
Passenger Heated Seat Switch......... 8W-80-64
Passenger Lumbar Motor............. 8W-80-64
Passenger Power Seat Front Vertical Motor
(Club Cab)....................... 8W-80-64
Passenger Power Seat Horizontal Motor
(Club Cab)....................... 8W-80-65
Passenger Power Seat Rear Vertical Motor
(Club Cab)....................... 8W-80-65Component Page
Passenger Power Seat Switch
(Club Cab)....................... 8W-80-65
Passenger Power Window Motor........ 8W-80-65
Power Mirror Switch................. 8W-80-65
Power Outlet....................... 8W-80-66
Powertrain Control Module C1 (Diesel) . . . 8W-80-66
Powertrain Control Module C1 (Gas).... 8W-80-67
Powertrain Control Module C2 (Diesel) . . . 8W-80-67
Powertrain Control Module C2 (Gas).... 8W-80-68
Powertrain Control Module C3 (Diesel) . . . 8W-80-69
Powertrain Control Module C3 (Gas).... 8W-80-70
Radio C1.......................... 8W-80-70
Radio C2.......................... 8W-80-71
Radio C3.......................... 8W-80-71
Radio Choke Relay.................. 8W-80-71
Rear Wheel Speed Sensor (ABS)........ 8W-80-71
Right Back-Up Lamp................ 8W-80-71
Right Fog Lamp.................... 8W-80-72
Right Front Door Speaker (Premium).... 8W-80-72
Right Front Door Speaker (Standard).... 8W-80-72
Right Front Fender Lamp
(Dual Rear Wheels)................ 8W-80-72
Right Front Wheel Speed Sensor (ABS) . . 8W-80-72
Right Headlamp.................... 8W-80-73
Right License Lamp................. 8W-80-73
Right Outboard Clearance Lamp....... 8W-80-73
Right Outboard Headlamp............ 8W-80-73
Right Outboard Identification Lamp..... 8W-80-73
Right Park/Turn Signal Lamp.......... 8W-80-73
Right Power Mirror.................. 8W-80-74
Right Rear Fender Lamp
(Dual Rear Wheels)................ 8W-80-74
Right Rear Speaker (2 Door Premium) . . . 8W-80-74
Right Rear Speaker (4 Door Premium) . . . 8W-80-74
Right Rear Speaker (Standard 2 Door) . . . 8W-80-74
Right Rear Speaker (Standard 4 Door) . . . 8W-80-74
Right Remote Radio Switch........... 8W-80-75
Right Speed Control Switch........... 8W-80-75
Right Tail/Stop/Turn Signal Lamp...... 8W-80-75
Right Tweeter (Premium)............. 8W-80-75
Right Visor/Vanity Lamp.............. 8W-80-75
Seat Belt Switch (Club Cab)........... 8W-80-75
Seat Belt Switch (Standard Cab)....... 8W-80-76
Seat Heat Interface Module........... 8W-80-76
Speed Control Servo................. 8W-80-76
Tailgate Lamp (Dual Rear Wheels)...... 8W-80-76
Throttle Position Sensor (Gas)......... 8W-80-76
Trailer Tow Connector................ 8W-80-77
Transmission Solenoid Assembly........ 8W-80-77
Underhood Lamp................... 8W-80-77
Washer Fluid Level Switch............ 8W-80-77
Water In Fuel Sensor (Diesel).......... 8W-80-78
Wiper Motor....................... 8W-80-78
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 3

C105 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 L34 20RD/OR
2 L39 20LB
C106 - BLACK (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 G107 20GY
2 Z1 20BK
C106 - BLACK (4X4 INDICATOR SIDE)
CAV CIRCUIT
1 G107 18BK/GY
2 Z1 18BK
C114 - BLACK (AMBIENT TEMPERATURE SEN-
SOR SIDE)
CAV CIRCUIT
1 G31 20VT/LG
2 G32 20BK/VT
C114 - BLACK (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 G31 20VT/LG
2 G32 20BK/VT
C125 (DIESEL) - (TRANSMISSION SIDE)
CAV CIRCUIT
1 F18 18LG/BK
2 G113 18OR
3 A14 14RD/WT
4 C3 18DB/BK
5 C90 18LG/WT
6 K22 18OR/DB
7 A40 14RD/LG
8 K131 18BR/WT
9 A93 12RD/BK
10 K104 18BK/LB
11 G7 18WT/OR
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTSBR/BE

C129 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 B113 20RD/VT
2 B114 20WT/VT
3 Z13 12BK
4 B40 12LB
5 K4 20BK/LB
6 K226 20DB/WT
7 L7 16BK/YL
8 L50 18WT/TN
9 L76 12BK/OR
10 L63 16DG/RD
11 L1 18VT/BK
12 A6 12RD/OR
13 L62 16BR/RD
14 A61 16DG/BK (GAS)
C129 - (CHASSIS HARNESS SIDE)
CAV CIRCUIT
1 B113 20RD/VT
2 B114 20WT/VT
3 Z13 12BK
4 B40 12LB
5 K4 20BK/LB
6 K226 20DB/WT
7 L7 16BK/YL
8 L50 18WT/TN
9 L76 12BK/OR
10 L63 16DG/RD
11 L1 18VT/BK
12 A6 12RD/OR
13 L62 16BR/RD
14 A61 16DG/BK
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSBR/BE

C130 (DIESEL) (IN PDC) - (HEADLAMP AND
DASH SIDE)
CAV CIRCUIT
1 V35 20LG/RD
2 V32 20YL/RD
3 A14 16RD/WT
4 A142 14DG/OR
5 A40 14RD/LG
6 A93 12RD/BK
7 K118 20PK/YL
8 L1 18VT/BK
9 K131 20BR/WT
10 G85 22OR/BK
11 V40 22WT/PK
12 L10 18BR/LG
13 D1 20VT/BR
14 K51 20DB/YL
15 C13 22DB/OR
16 D20 20DG
17 D2 20WT/BK
18 K4 22BK/LB
19 C90 22LG/WT
20 D21 20PK/DB
21 C3 22DB/BK
22 V37 22RD/LG
23 K226 20DB/WT
24 V36 20TN/RD
25 Y128 18DG/GY
26 T41 22BK/WT
27 K31 20BR/WT
28 F18 20LG/BK
29 K30 22PK
30 A341 20DG/YL
31 T16 18RD
32 D220 20WT/VT
33 G7 20WT/OR
34 T6 22OR/WT
35 T125 18DB
36 S21 18YL/BK
37 S22 18OR/BK
38 Y193 18WT/LG
39 Z12 18BK/TN
40 V30 20DB/RD
41 V30 20DB/RD
42 K52 18PK/WT
43 Z12 18BK/TN
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTSBR/BE

C130 (GAS) (IN PDC) - (HEADLAMP AND DASH
SIDE)
CAV CIRCUIT
1 V35 20LG/RD
2 V32 20YL/RD
3 A14 16RD/WT
4 A142 14DG/OR
5-
6 A93 12RD/BK
7 K118 20PK/YL
8 L1 18VT/BK
9-
10 -
11 V40 22WT/PK
12 L10 18BR/LG
13 D1 20VT/BR
14 K51 20DB/YL
15 C13 22DB/OR
16 D20 20DG
17 D2 20WT/BK
18 K4 22BK/LB
19 C90 22LG/WT
20 D21 20PK/DB
21 C3 22DB/BK
22 V37 22RD/LG
23 K226 20DB/WT
24 V36 18TN/RD
25 Y128 18DG/GY (8.0L)
26 T41 22BK/WT
27 K31 20BR/WT
28 F18 20LG/BK
29 K30 22PK (A/T)
30 A341 20DG/YL (CALIFORNIA)
31 T16 18RD
32 -
33 G7 20WT/OR
34 T6 22OR/WT (A/T)
35 T125 18DB (A/T)
36 K106 18WT/DG
37 K107 18OR
38 Y193 18WT/LG
39 Z12 18BK/TN
40 -
41 K145 20DG/PK
42 K52 18PK/WT
43 A141 20DG/WT (EXCEPT CALIFORNIA)
8W - 80 - 14 8W-80 CONNECTOR PIN-OUTSBR/BE

C134 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1-
2-
3 D220 20WT/VT (DIESEL)
4-
5 L3 18RD/OR
6-
7-
8 Z12 18BK/TN
9-
10 D2 20WT/BK
11 D1 20VT/BR
12 -
13 D20 20DG
14 D21 20PK/DB
15 -
16 D1 20VT/BR
17 D2 20WT/BK
18 -
19 L7 18BK/YL
20 A12 16RD/TN
21 T6 22OR/WT
22 L39 20LB (HIGHLINE)
23 F15 22DB
24 -
25 F32 16PK/DB
26 K4 22BK/LB
27 L35 22BR/YL (DRL)
27 L35 20BR/YL (EXCEPT DRL)
28 -
29 V37 22RD/LG
30 G11 20WT/LG
31 Z9 16BK/VT
32 X3 22BK/RD
33 -
34 Z5 18BK/DB
35 F33 16PK/RD
36 L4 18 VT/WT
37 V4 16RD/YL
38 V49 16RD/BK
39 V3 16BR/WT
40 V5 16DG
41 Z2 16BK/LG
42 Z6 18BK/PK
43 C90 22LG/WT
44 A1 10RD
45 C1 12DG
46 -
47 G50 22RD/DB
48 V30 20DB/RD
49 -
50 A2 14PK/BK
51 A41 14YL
52 -
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 15

C134 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
53 V32 20YL/RD
54 -
55 V18 22YL/DG
56 V40 22WT/PK
57 L62 16BR/RD
58 G85 22OR/BK (DIESEL)
59 G107 20GY
60 -
61 G29 18BK/WT
62 G34 20RD/GY
63 L63 16DG/RD
64 L50 18WT/TN
65 F12 20DB/WT
66 L10 18BR/LG
67 Z3 18BK/OR
68 V10 16BR
69 -
70 -
71 -
72 -
73 -
74 -
C134 - (I/P HARNESS SIDE)
CAV CIRCUIT
1 Y128 18DG/GY
2 Y193 18WT/LG
3 D220 20WT/VT (DIESEL)
4-
5 L3 14RD/OR
6-
7-
8 Z12 18BK/TN
9-
10 D2 20WT/BK
11 D1 20VT/BR
12 -
13 D20 20DG
14 D21 20PK/DB
15 -
16 D1 20VT/BR
17 D2 20WT/BK
18 -
19 L7 16BK/YL
20 A12 16RD/TN
21 T6 22OR/WT
22 L39 22LB
23 F15 22DB
24 -
25 F32 16PK/DB
26 K4 22BK/LB
8W - 80 - 16 8W-80 CONNECTOR PIN-OUTSBR/BE

CARGO LAMP NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M1 18PK FUSED B(+)
2 M3 18PK/DB CARGO LAMP DRIVER
CARGO LAMP NO. 2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M1 18PK FUSED B(+)
2 M3 18PK/DB CARGO LAMP DRIVER
CENTER HIGH MOUNTED STOP LAMP NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 Z3 18BK/OR GROUND
CENTER HIGH MOUNTED STOP LAMP NO. 2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 Z3 18BK/OR GROUND
CENTER IDENTIFICATION LAMP-2WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z4 18BK GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 31

GENERATOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K20 18DG GENERATOR FIELD
2 T125 18DB GENERATOR SOURCE
GLOVE BOX LAMP AND SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 M1 22PK FUSED B(+)
2 Z3 22BK/OR GROUND
HEADLAMP SWITCH C1 - BLACK 14 WAY
CAV CIRCUIT FUNCTION
1 L7 16BK/YL HEADLAMP SWITCH OUTPUT
2 F33 16PK/RD FUSED B(+)
3 G26 22LB KEY-IN IGNITION SWITCH SENSE
4 G75 22TN (BASE) DRIVER DOOR AJAR SWITCH SENSE
4 Z3 22BK/OR (HIGHLINE/PREMIUM) GROUND
5 Z3 18BK/OR GROUND
6 L2 18LG HEADLAMP SWITCH OUTPUT
7 L39 22LB FOG LAMP SWITCH OUTPUT
8 E17 18YL/BK DAY BRIGHTNESS SENSE
9 Z3 20BK/OR GROUND
10 M22 22WT ILLUMINATED ENTRY SWITCH SENSE
11 M3 22PK/DB CARGO LAMP DRIVER
12 M2 22YL COURTESY LAMPS DRIVER
13 M11 22PK/LB (HIGHLINE/PREMIUM) COURTESY LAMPS SWITCH OUTPUT
13 M22 22WT (BASE) ILLUMINATED ENTRY SWITCH SENSE
14 E1 18TN PANEL LAMPS DIMMER SWITCH SIGNAL
HEADLAMP SWITCH C2-2WAY
CAV CIRCUIT FUNCTION
1 Z3 20BK/OR GROUND
2 L35 22BR/YL FOG LAMP RELAY OUTPUT
HEATED MIRROR SWITCH-3WAY
CAV CIRCUIT FUNCTION
1 F15 22DB FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z3 22BK/OR GROUND
3 C16 22LB/YL HEATED MIRROR
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 45
