DODGE RAM 3500 DIESEL 2009 4.G Owners Manual

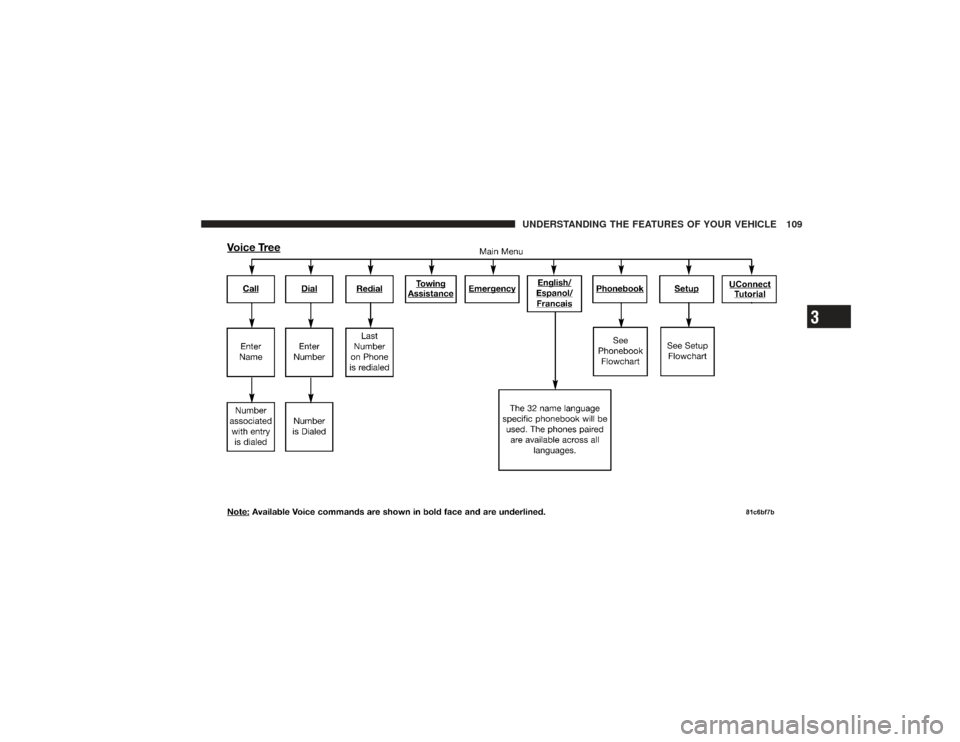

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
3

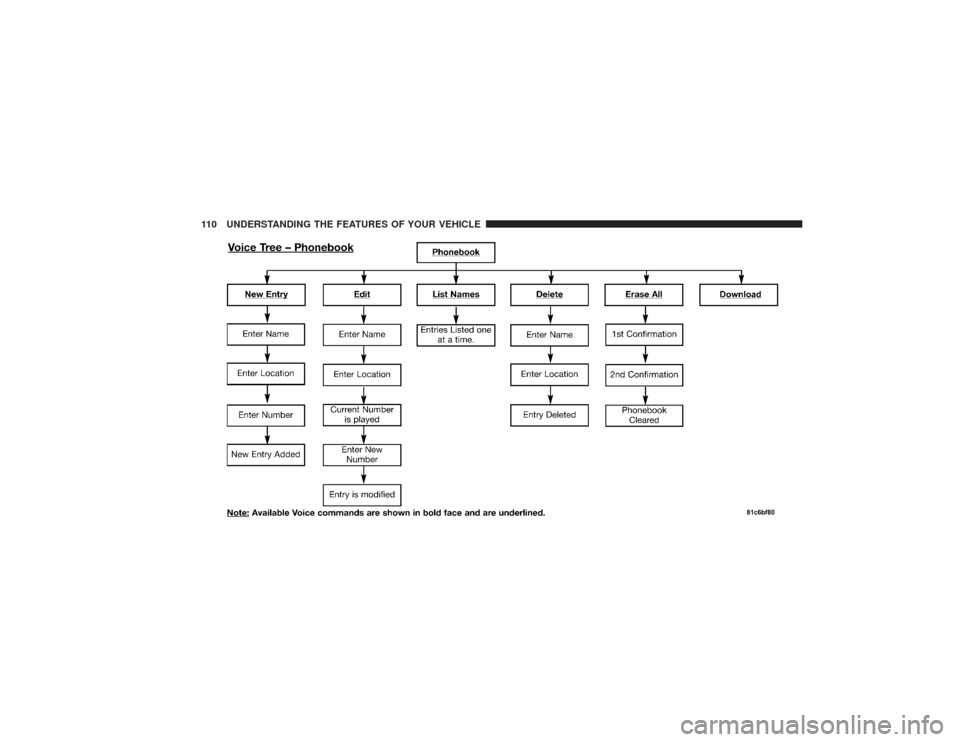

110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

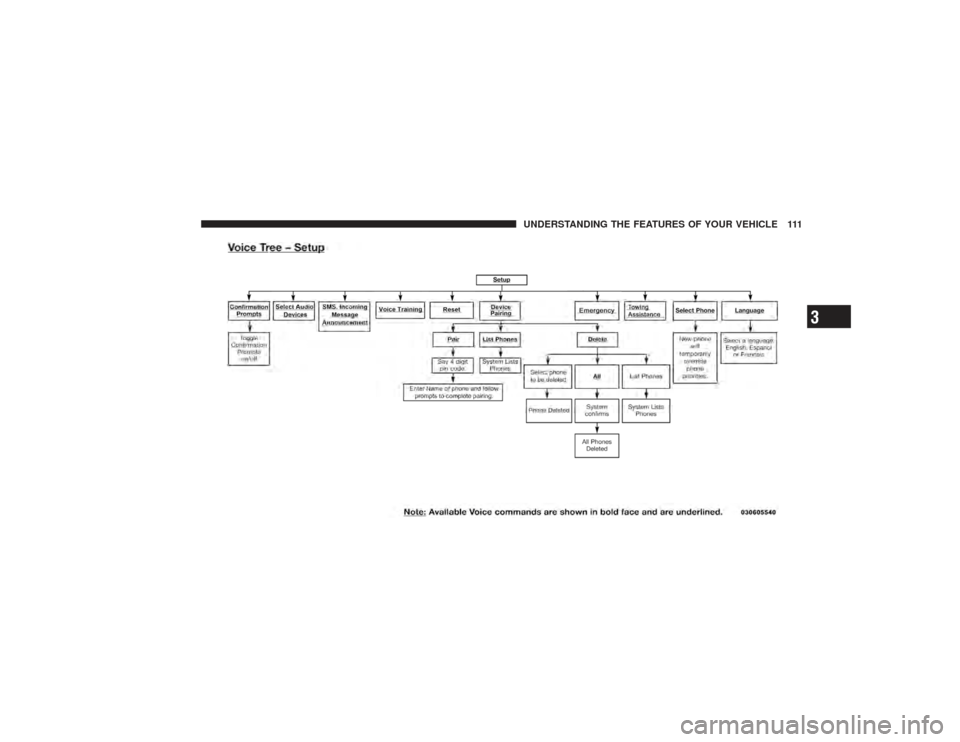

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111
3

Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
all
Voice Commands
Primary Alternate(s)
call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

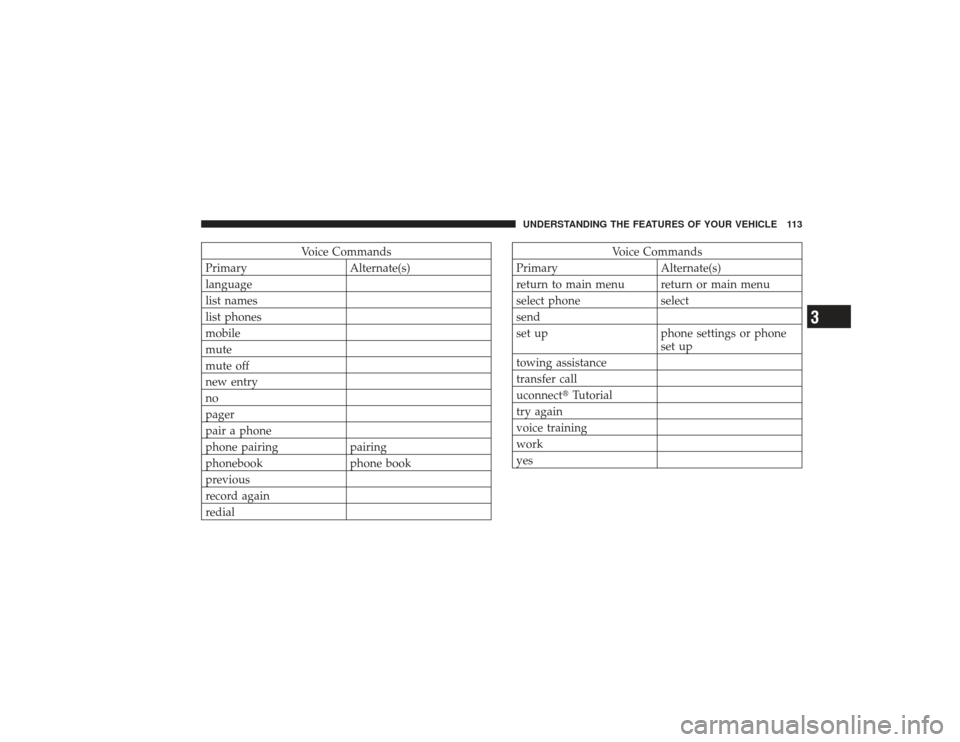

Voice Commands
Primary Alternate(s)
language
list names
list phones
mobile
mute
mute off
new entry
no
pager
pair a phone
phone pairing pairing
phonebook phone book
previous
record again
redial
Voice Commands
Primary Alternate(s)
return to main menu return or main menu
select phone select
send
set up phone settings or phone set up
towing assistance
transfer call
uconnect Tutorial
try again
voice training
work
yes
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3

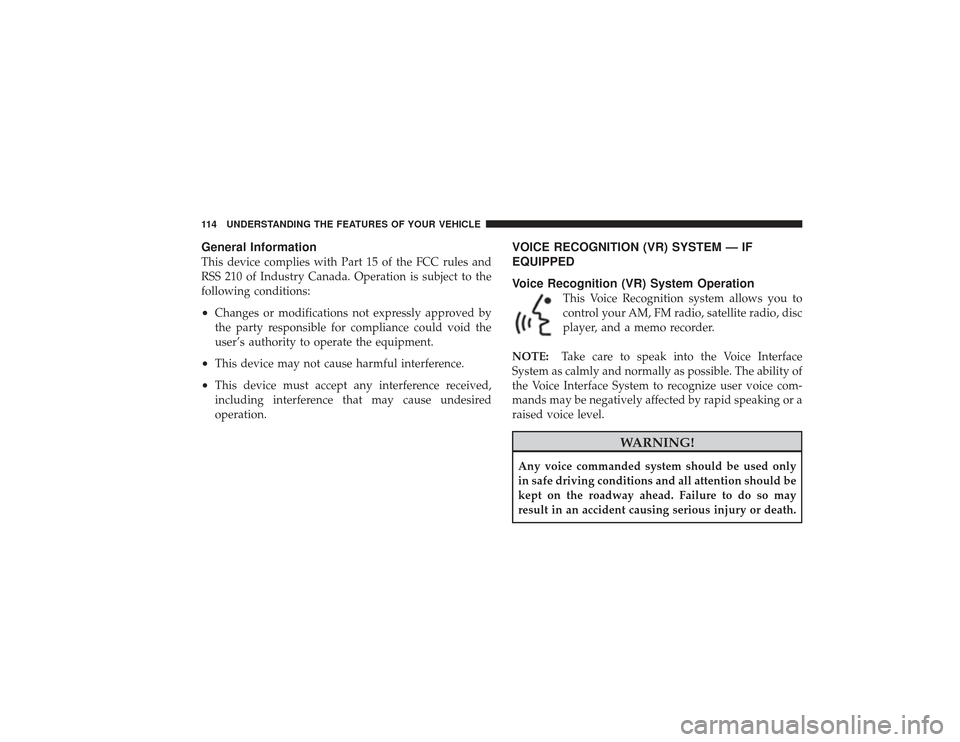

General InformationThis device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:•
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•
This device may not cause harmful interference.
•
This device must accept any interference received,
including interference that may cause undesired
operation.
VOICE RECOGNITION (VR) SYSTEM — IF
EQUIPPED
Voice Recognition (VR) System Operation
This Voice Recognition system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.
NOTE: Take care to speak into the Voice Interface
System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice com-
mands may be negatively affected by rapid speaking or a
raised voice level.
WARNING!
Any voice commanded system should be used only
in safe driving conditions and all attention should be
kept on the roadway ahead. Failure to do so may
result in an accident causing serious injury or death.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

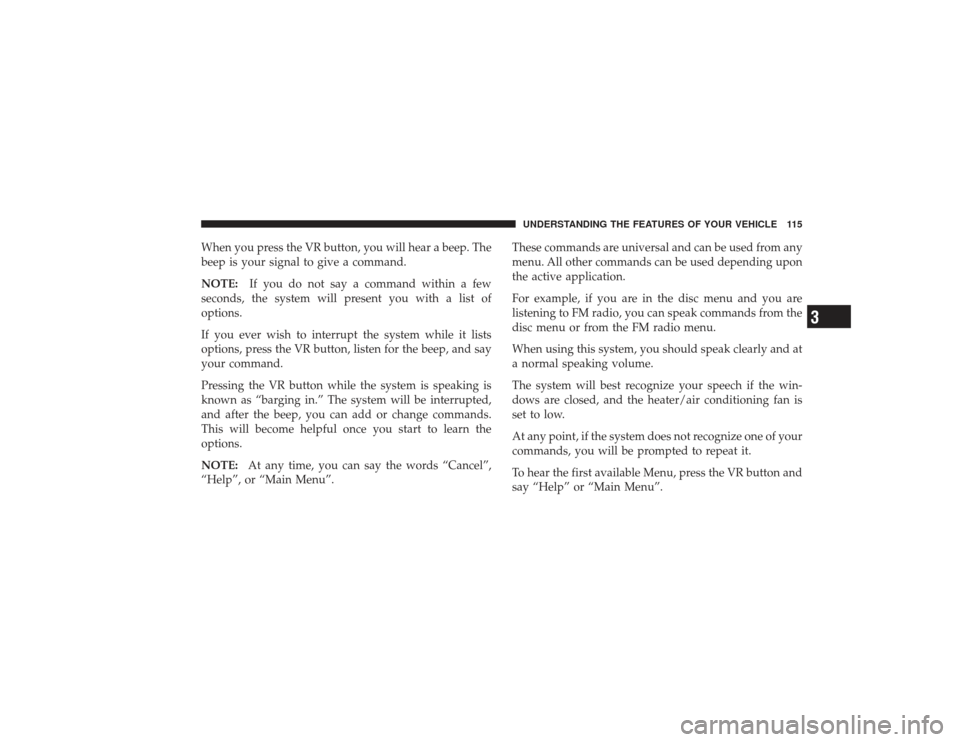

When you press the VR button, you will hear a beep. The
beep is your signal to give a command.
NOTE:If you do not say a command within a few
seconds, the system will present you with a list of
options.
If you ever wish to interrupt the system while it lists
options, press the VR button, listen for the beep, and say
your command.
Pressing the VR button while the system is speaking is
known as “barging in.” The system will be interrupted,
and after the beep, you can add or change commands.
This will become helpful once you start to learn the
options.
NOTE: At any time, you can say the words “Cancel”,
“Help”, or “Main Menu”. These commands are universal and can be used from any
menu. All other commands can be used depending upon
the active application.
For example, if you are in the disc menu and you are
listening to FM radio, you can speak commands from the
disc menu or from the FM radio menu.
When using this system, you should speak clearly and at
a normal speaking volume.
The system will best recognize your speech if the win-
dows are closed, and the heater/air conditioning fan is
set to low.
At any point, if the system does not recognize one of your
commands, you will be prompted to repeat it.
To hear the first available Menu, press the VR button and
say “Help” or “Main Menu”.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

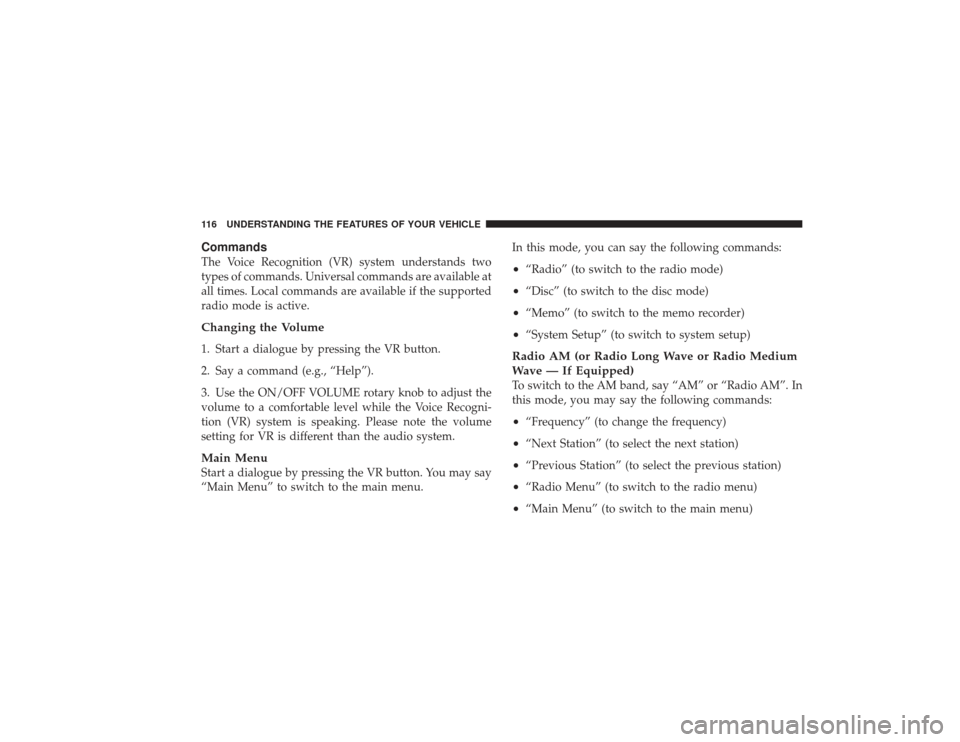

CommandsThe Voice Recognition (VR) system understands two
types of commands. Universal commands are available at
all times. Local commands are available if the supported
radio mode is active.Changing the Volume1. Start a dialogue by pressing the VR button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Recogni-
tion (VR) system is speaking. Please note the volume
setting for VR is different than the audio system.Main MenuStart a dialogue by pressing the VR button. You may say
“Main Menu” to switch to the main menu.In this mode, you can say the following commands:
•
“Radio” (to switch to the radio mode)
•
“Disc” (to switch to the disc mode)
•
“Memo” (to switch to the memo recorder)
•
“System Setup” (to switch to system setup)
Radio AM (or Radio Long Wave or Radio Medium
Wave — If Equipped)To switch to the AM band, say “AM” or “Radio AM”. In
this mode, you may say the following commands:•
“Frequency” (to change the frequency)
•
“Next Station” (to select the next station)
•
“Previous Station” (to select the previous station)
•
“Radio Menu” (to switch to the radio menu)
•
“Main Menu” (to switch to the main menu)
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

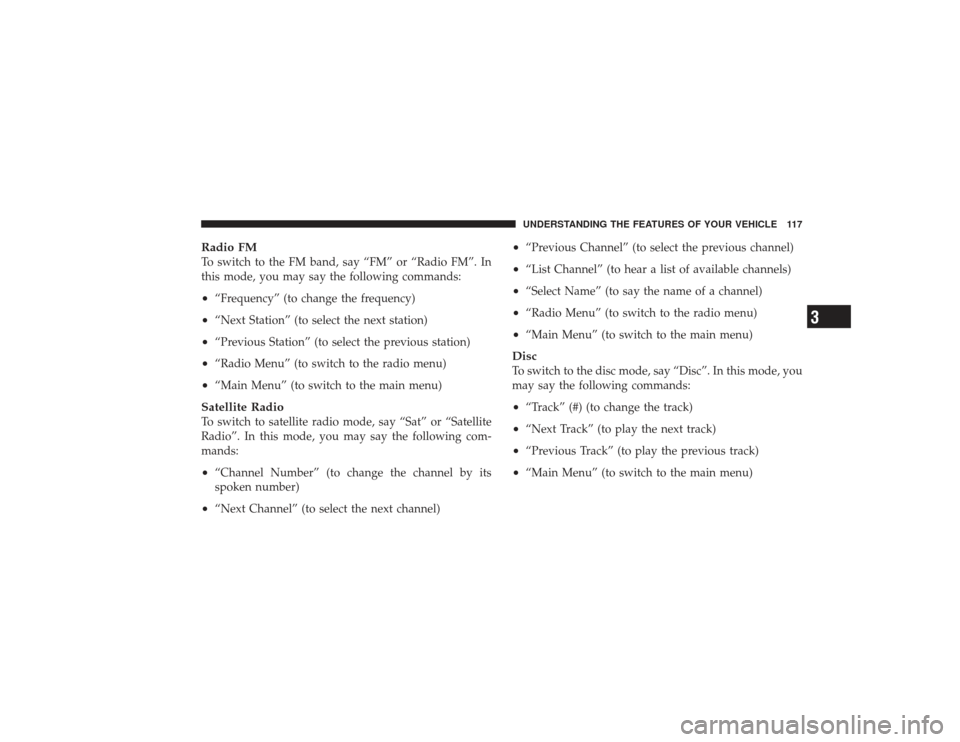

Radio FMTo switch to the FM band, say “FM” or “Radio FM”. In
this mode, you may say the following commands:•
“Frequency” (to change the frequency)
•
“Next Station” (to select the next station)
•
“Previous Station” (to select the previous station)
•
“Radio Menu” (to switch to the radio menu)
•
“Main Menu” (to switch to the main menu)
Satellite RadioTo switch to satellite radio mode, say “Sat” or “Satellite
Radio”. In this mode, you may say the following com-
mands:•
“Channel Number” (to change the channel by its
spoken number)
•
“Next Channel” (to select the next channel)
•
“Previous Channel” (to select the previous channel)
•
“List Channel” (to hear a list of available channels)
•
“Select Name” (to say the name of a channel)
•
“Radio Menu” (to switch to the radio menu)
•
“Main Menu” (to switch to the main menu)
DiscTo switch to the disc mode, say “Disc”. In this mode, you
may say the following commands:•
“Track” (#) (to change the track)
•
“Next Track” (to play the next track)
•
“Previous Track” (to play the previous track)
•
“Main Menu” (to switch to the main menu)UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3

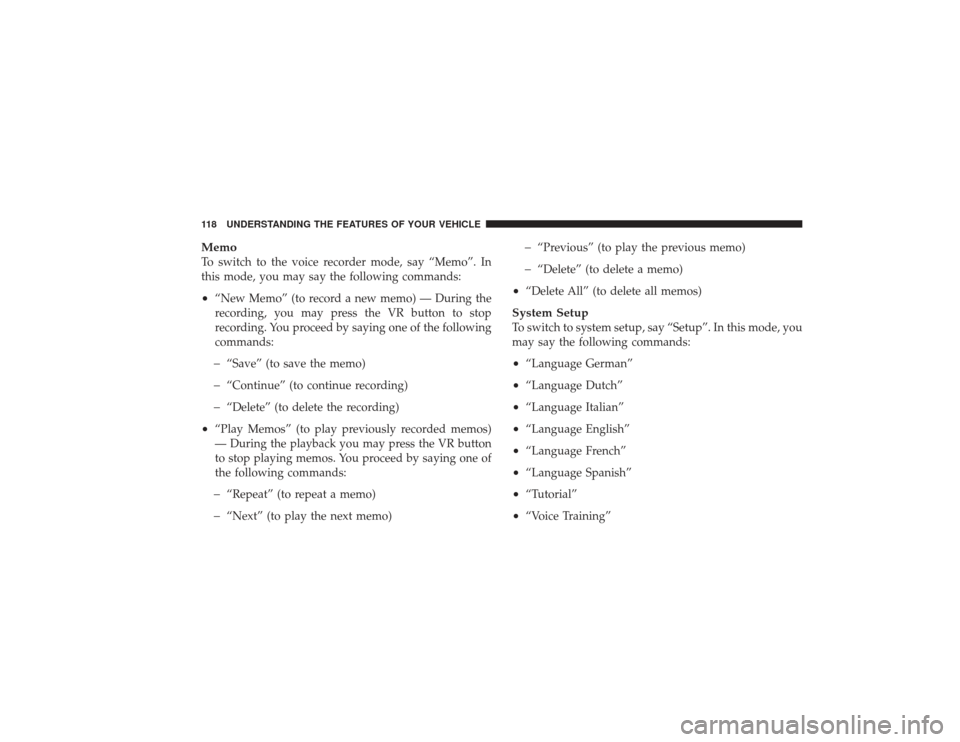

MemoTo switch to the voice recorder mode, say “Memo”. In
this mode, you may say the following commands:•
“New Memo” (to record a new memo) — During the
recording, you may press the VR button to stop
recording. You proceed by saying one of the following
commands:
“Save” (to save the memo)

“Continue” (to continue recording)

“Delete” (to delete the recording)
•
“Play Memos” (to play previously recorded memos)
— During the playback you may press the VR button
to stop playing memos. You proceed by saying one of
the following commands:
“Repeat” (to repeat a memo)

“Next” (to play the next memo)

“Previous” (to play the previous memo)

“Delete” (to delete a memo)
•
“Delete All” (to delete all memos)
System SetupTo switch to system setup, say “Setup”. In this mode, you
may say the following commands:•
“Language German”
•
“Language Dutch”
•
“Language Italian”
•
“Language English”
•
“Language French”
•
“Language Spanish”
•
“Tutorial”
•
“Voice Training”
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
