DODGE RAM 3500 DIESEL 2009 4.G Owners Manual

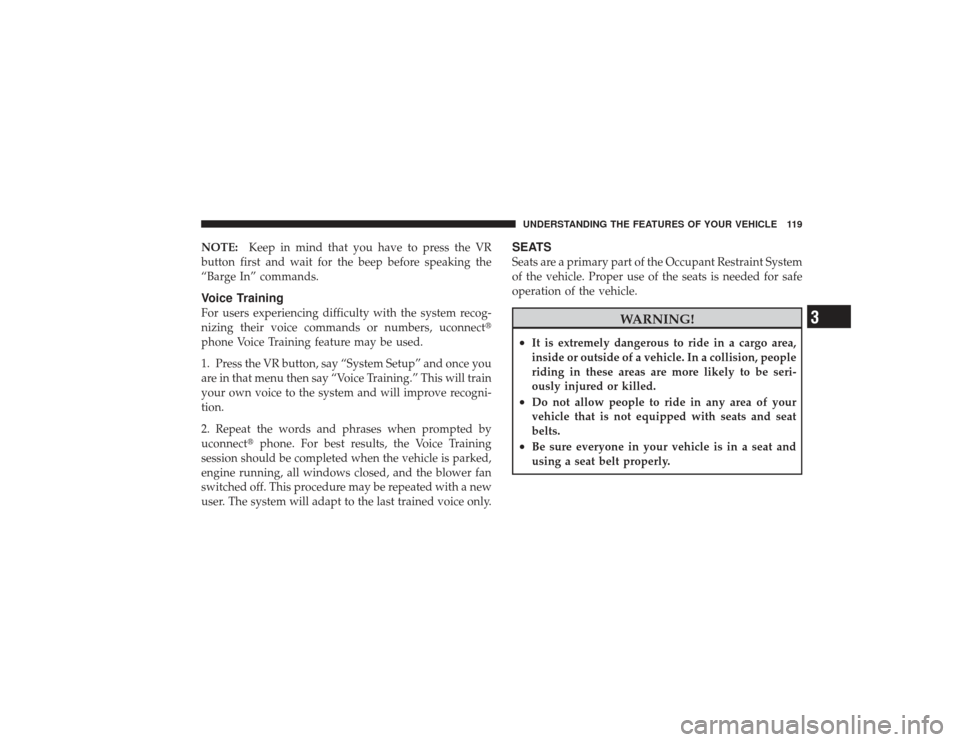

NOTE:Keep in mind that you have to press the VR
button first and wait for the beep before speaking the
“Barge In” commands.Voice TrainingFor users experiencing difficulty with the system recog-
nizing their voice commands or numbers, uconnect
phone Voice Training feature may be used.
1. Press the VR button, say “System Setup” and once you
are in that menu then say “Voice Training.” This will train
your own voice to the system and will improve recogni-
tion.
2. Repeat the words and phrases when prompted by
uconnect phone. For best results, the Voice Training
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.
SEATSSeats are a primary part of the Occupant Restraint System
of the vehicle. Proper use of the seats is needed for safe
operation of the vehicle.
WARNING!
•
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

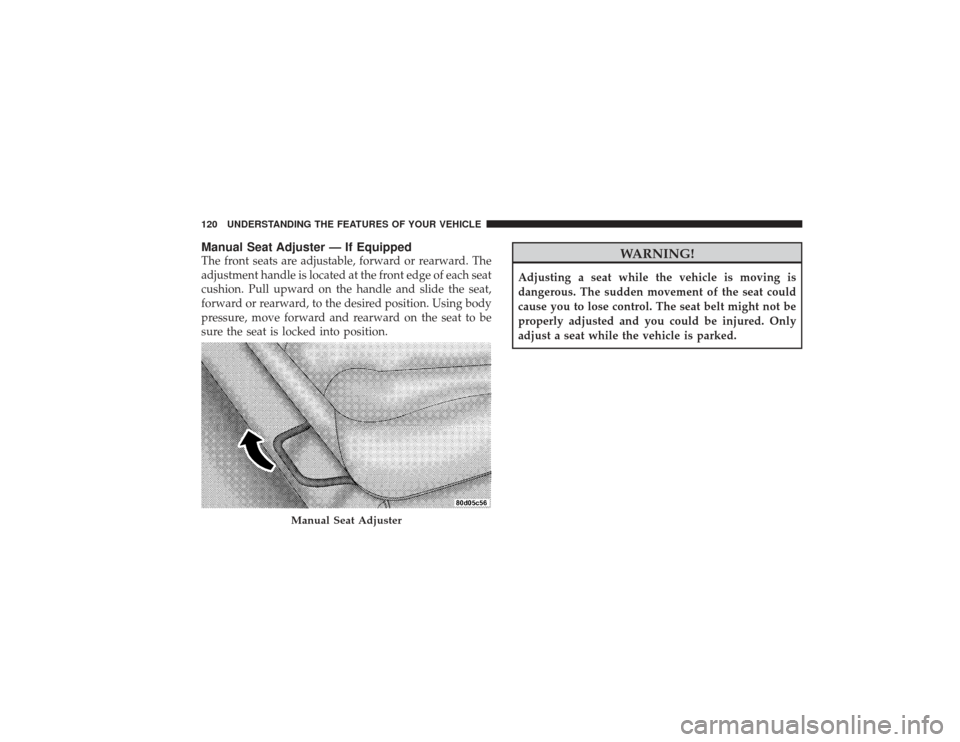

Manual Seat Adjuster — If EquippedThe front seats are adjustable, forward or rearward. The
adjustment handle is located at the front edge of each seat
cushion. Pull upward on the handle and slide the seat,
forward or rearward, to the desired position. Using body
pressure, move forward and rearward on the seat to be
sure the seat is locked into position.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Only
adjust a seat while the vehicle is parked.
Manual Seat Adjuster
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

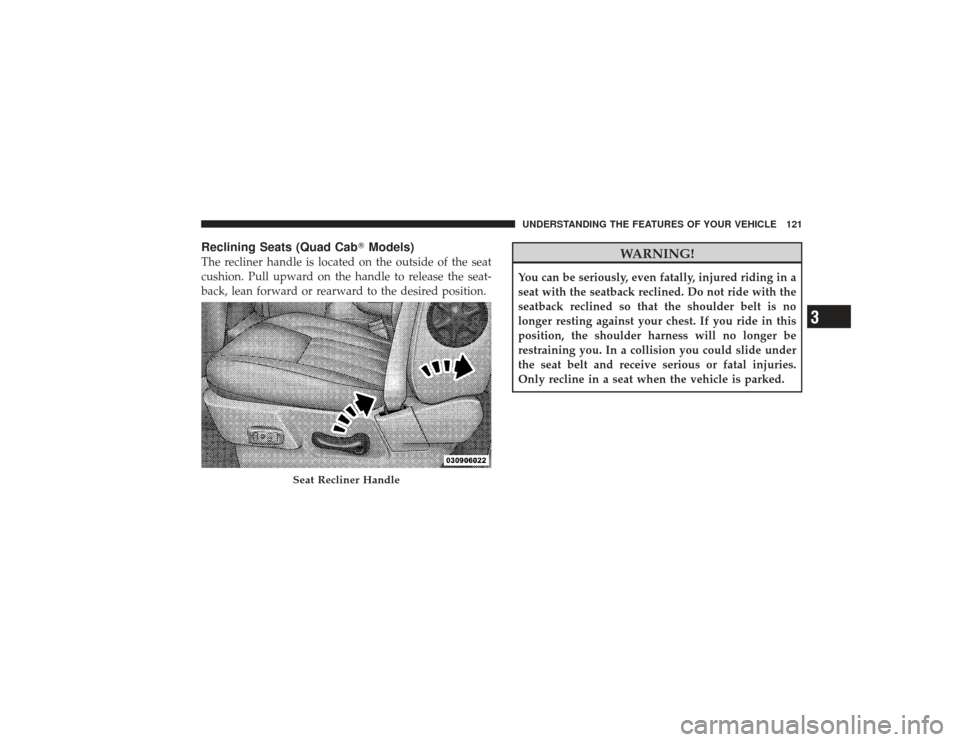

Reclining Seats (Quad CabModels)The recliner handle is located on the outside of the seat
cushion. Pull upward on the handle to release the seat-
back, lean forward or rearward to the desired position.
WARNING!
You can be seriously, even fatally, injured riding in a
seat with the seatback reclined. Do not ride with the
seatback reclined so that the shoulder belt is no
longer resting against your chest. If you ride in this
position, the shoulder harness will no longer be
restraining you. In a collision you could slide under
the seat belt and receive serious or fatal injuries.
Only recline in a seat when the vehicle is parked.
Seat Recliner Handle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

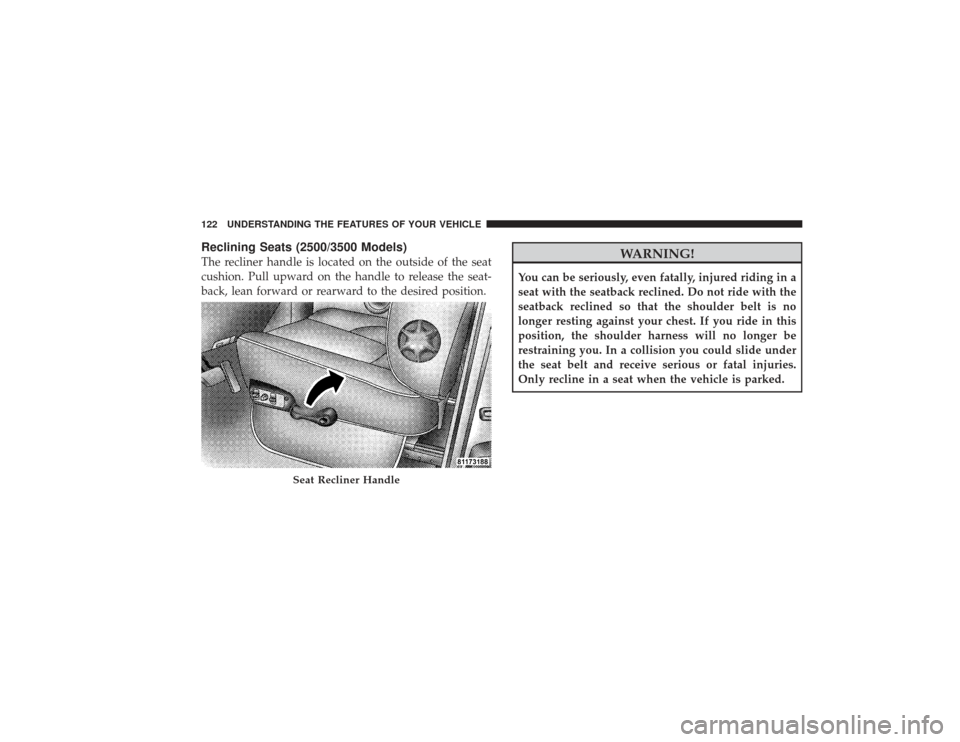

Reclining Seats (2500/3500 Models)The recliner handle is located on the outside of the seat
cushion. Pull upward on the handle to release the seat-
back, lean forward or rearward to the desired position.
WARNING!
You can be seriously, even fatally, injured riding in a
seat with the seatback reclined. Do not ride with the
seatback reclined so that the shoulder belt is no
longer resting against your chest. If you ride in this
position, the shoulder harness will no longer be
restraining you. In a collision you could slide under
the seat belt and receive serious or fatal injuries.
Only recline in a seat when the vehicle is parked.
Seat Recliner Handle
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

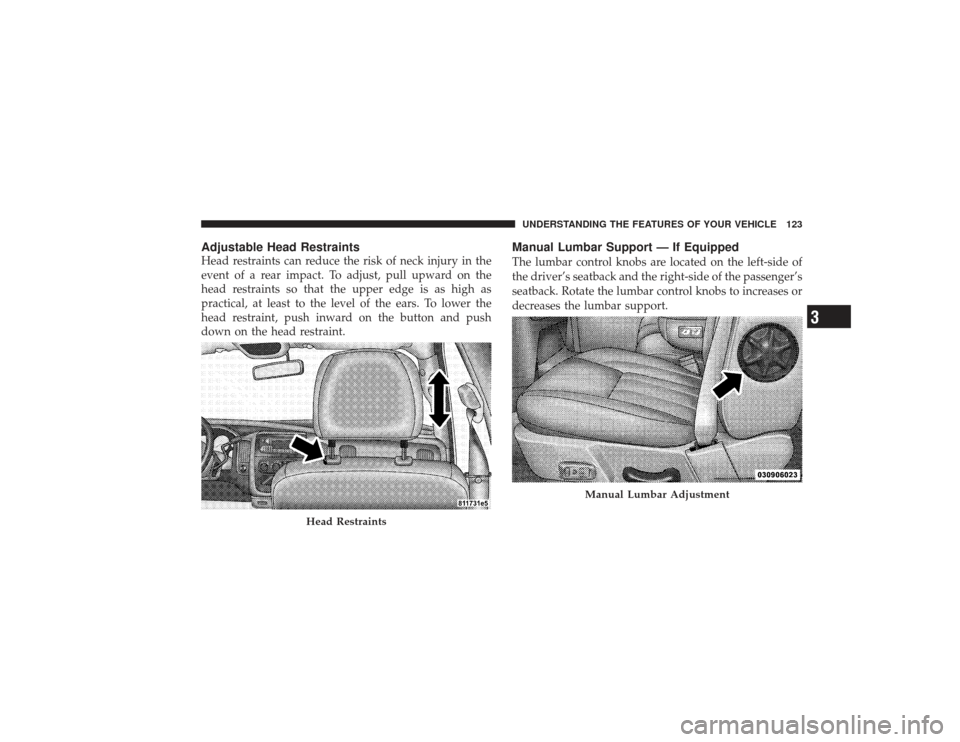

Adjustable Head RestraintsHead restraints can reduce the risk of neck injury in the
event of a rear impact. To adjust, pull upward on the
head restraints so that the upper edge is as high as
practical, at least to the level of the ears. To lower the
head restraint, push inward on the button and push
down on the head restraint.
Manual Lumbar Support — If EquippedThe lumbar control knobs are located on the left-side of
the driver’s seatback and the right-side of the passenger’s
seatback. Rotate the lumbar control knobs to increases or
decreases the lumbar support.
Head Restraints
Manual Lumbar Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

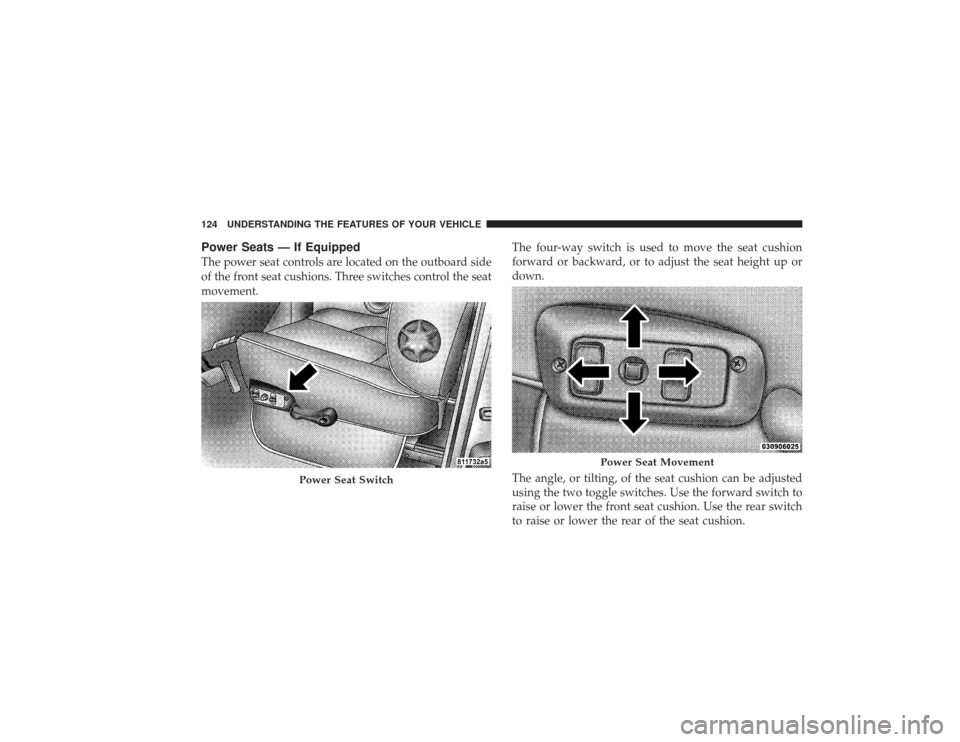

Power Seats — If EquippedThe power seat controls are located on the outboard side
of the front seat cushions. Three switches control the seat
movement.The four-way switch is used to move the seat cushion
forward or backward, or to adjust the seat height up or
down.
The angle, or tilting, of the seat cushion can be adjusted
using the two toggle switches. Use the forward switch to
raise or lower the front seat cushion. Use the rear switch
to raise or lower the rear of the seat cushion.
Power Seat Switch
Power Seat Movement
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

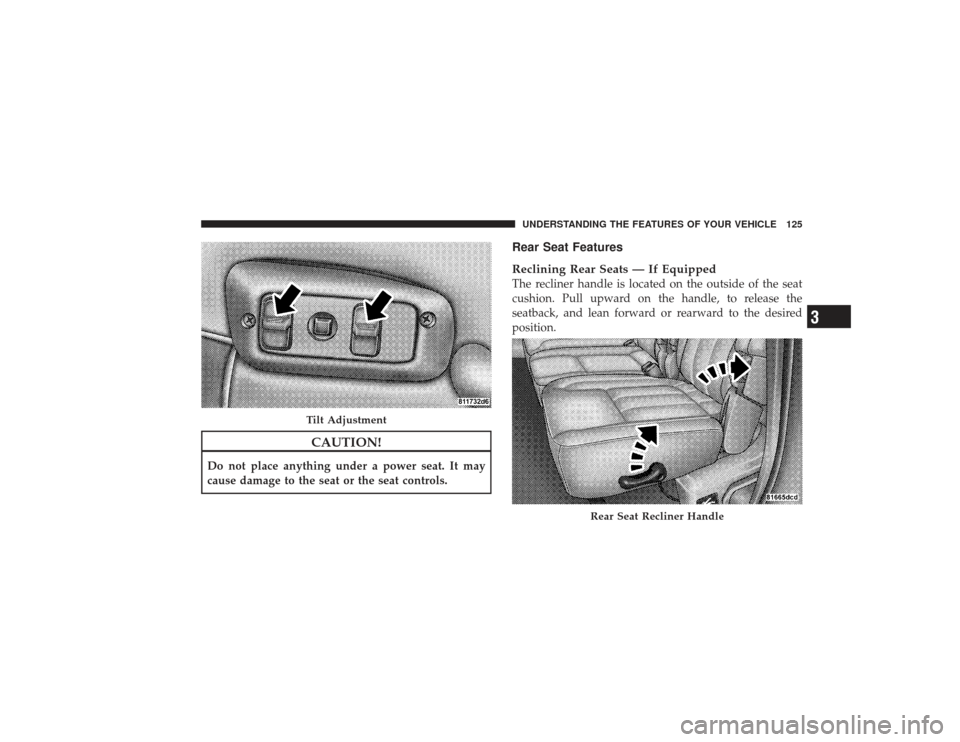

CAUTION!
Do not place anything under a power seat. It may
cause damage to the seat or the seat controls.
Rear Seat Features
Reclining Rear Seats — If EquippedThe recliner handle is located on the outside of the seat
cushion. Pull upward on the handle, to release the
seatback, and lean forward or rearward to the desired
position.
Tilt Adjustment
Rear Seat Recliner Handle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

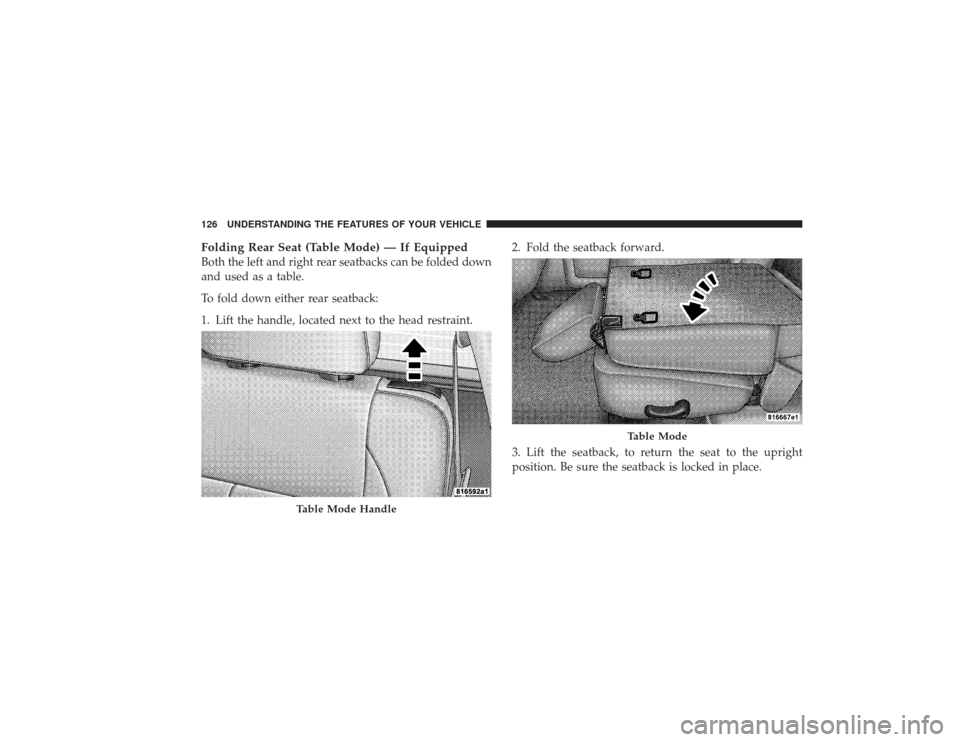

Folding Rear Seat (Table Mode) — If EquippedBoth the left and right rear seatbacks can be folded down
and used as a table.
To fold down either rear seatback:
1. Lift the handle, located next to the head restraint.2. Fold the seatback forward.
3. Lift the seatback, to return the seat to the upright
position. Be sure the seatback is locked in place.
Table Mode Handle
Table Mode
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

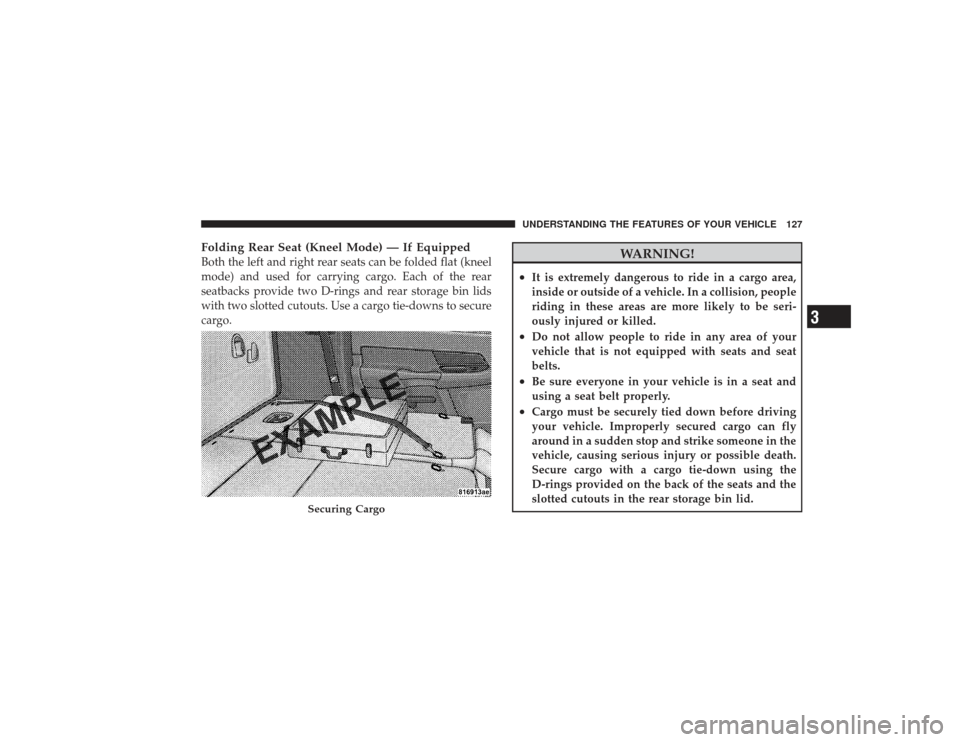

Folding Rear Seat (Kneel Mode) — If EquippedBoth the left and right rear seats can be folded flat (kneel
mode) and used for carrying cargo. Each of the rear
seatbacks provide two D-rings and rear storage bin lids
with two slotted cutouts. Use a cargo tie-downs to secure
cargo.
WARNING!
•
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•
Cargo must be securely tied down before driving
your vehicle. Improperly secured cargo can fly
around in a sudden stop and strike someone in the
vehicle, causing serious injury or possible death.
Secure cargo with a cargo tie-down using the
D-rings provided on the back of the seats and the
slotted cutouts in the rear storage bin lid.
Securing Cargo
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

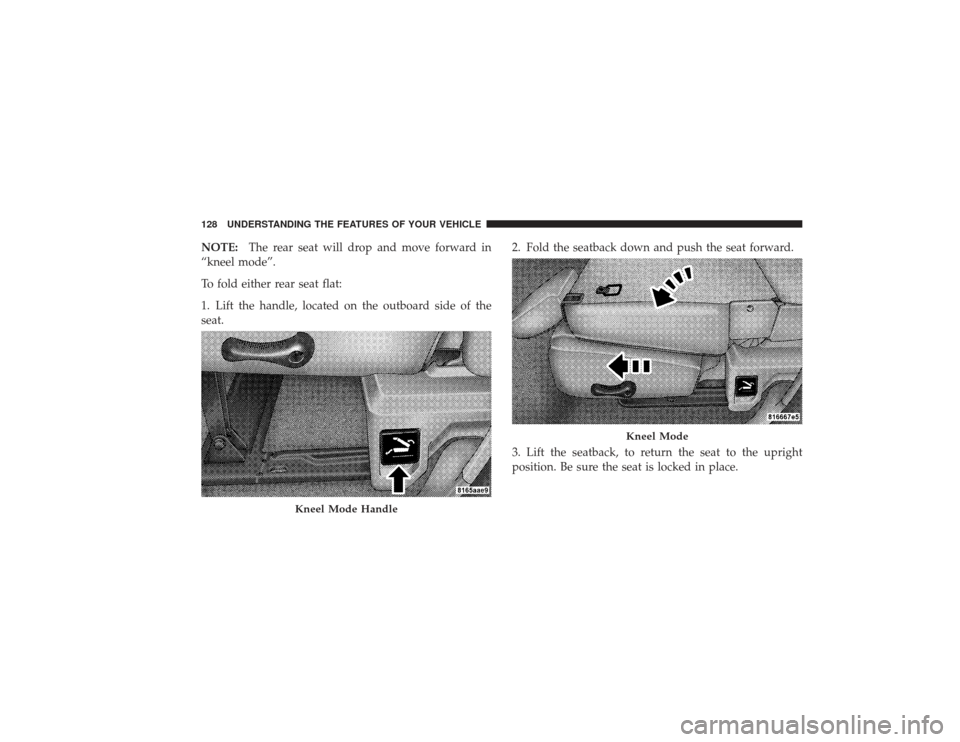

NOTE:The rear seat will drop and move forward in
“kneel mode”.
To fold either rear seat flat:
1. Lift the handle, located on the outboard side of the
seat. 2. Fold the seatback down and push the seat forward.
3. Lift the seatback, to return the seat to the upright
position. Be sure the seat is locked in place.
Kneel Mode Handle
Kneel Mode
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
