DODGE RAM 4500 CHASSIS CAB 2009 4.G Owners Manual

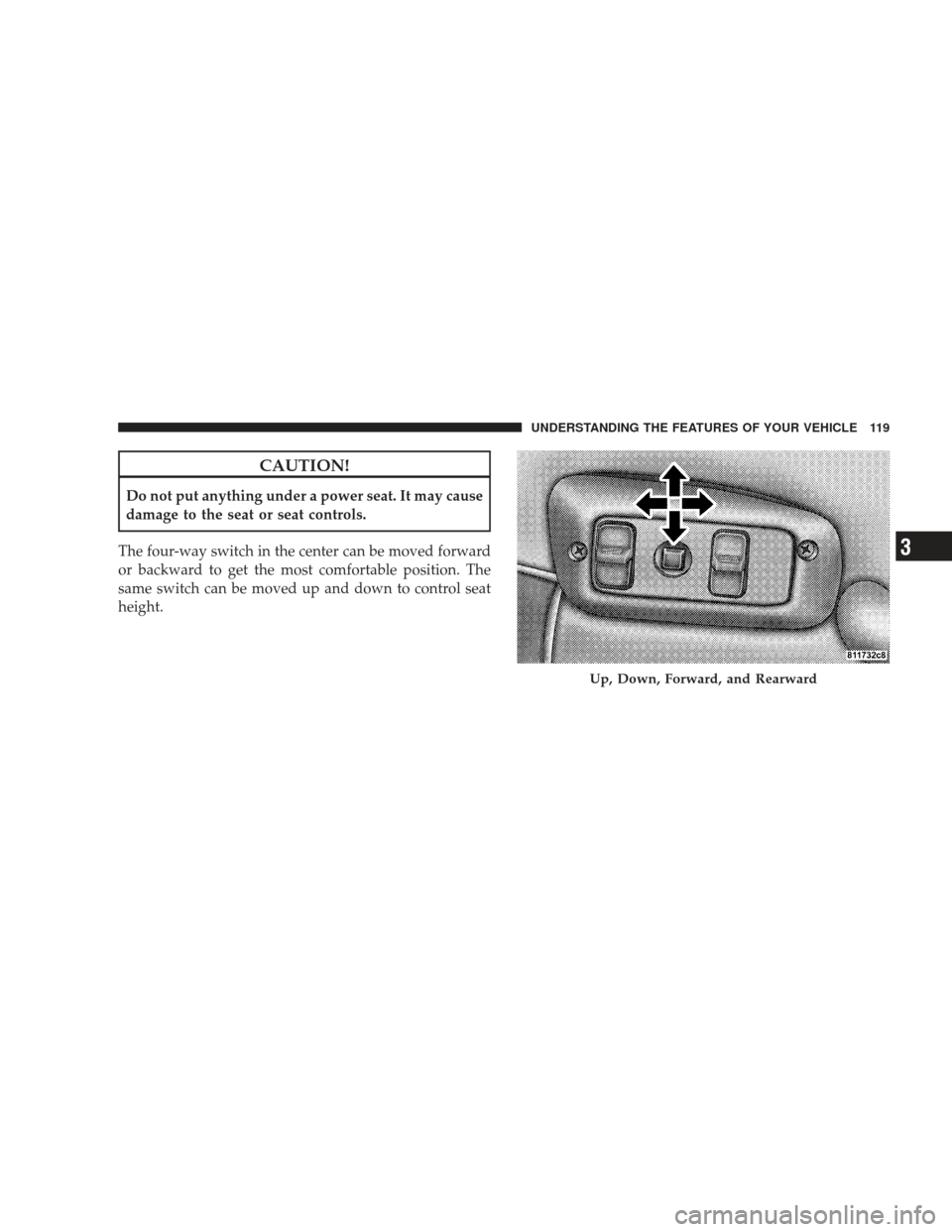

CAUTION!
Do not put anything under a power seat. It may cause
damage to the seat or seat controls.
The four-way switch in the center can be moved forward
or backward to get the most comfortable position. The
same switch can be moved up and down to control seat
height.
Up, Down, Forward, and Rearward
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

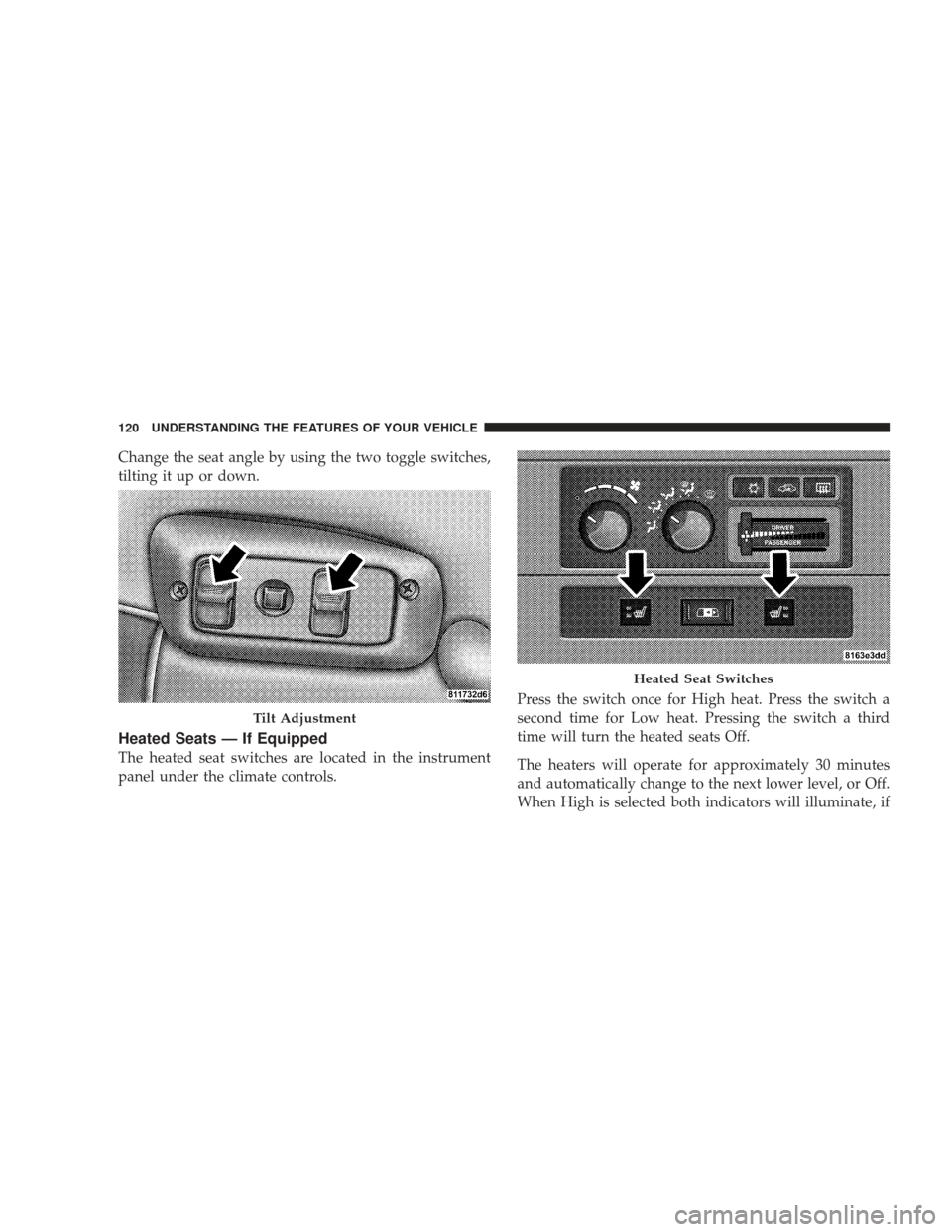

Change the seat angle by using the two toggle switches,
tilting it up or down.
Heated Seats — If Equipped
The heated seat switches are located in the instrument
panel under the climate controls.Press the switch once for High heat. Press the switch a
second time for Low heat. Pressing the switch a third
time will turn the heated seats Off.
The heaters will operate for approximately 30 minutes
and automatically change to the next lower level, or Off.
When High is selected both indicators will illuminate, if
Tilt Adjustment
Heated Seat Switches
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

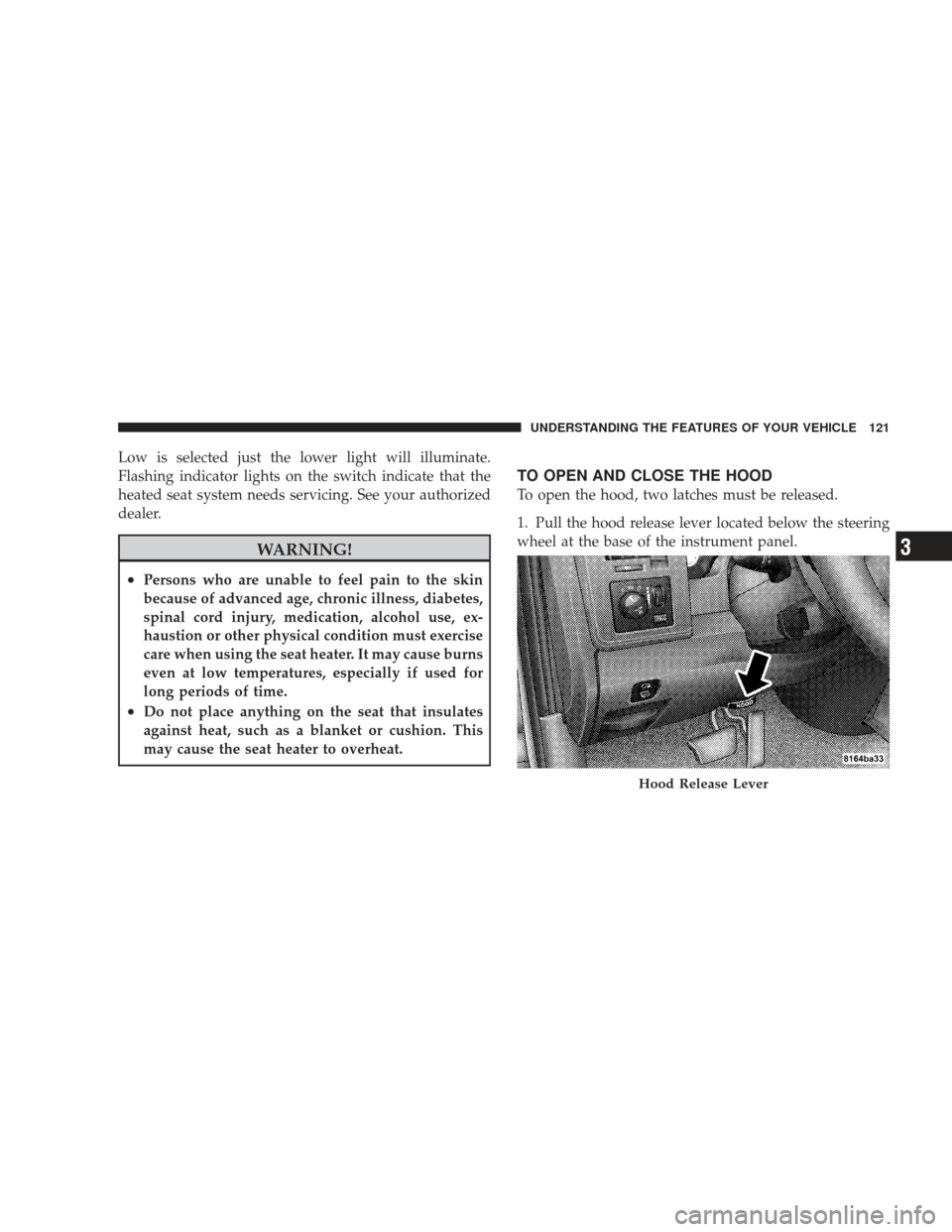

Low is selected just the lower light will illuminate.
Flashing indicator lights on the switch indicate that the
heated seat system needs servicing. See your authorized
dealer.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located below the steering
wheel at the base of the instrument panel.
Hood Release Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

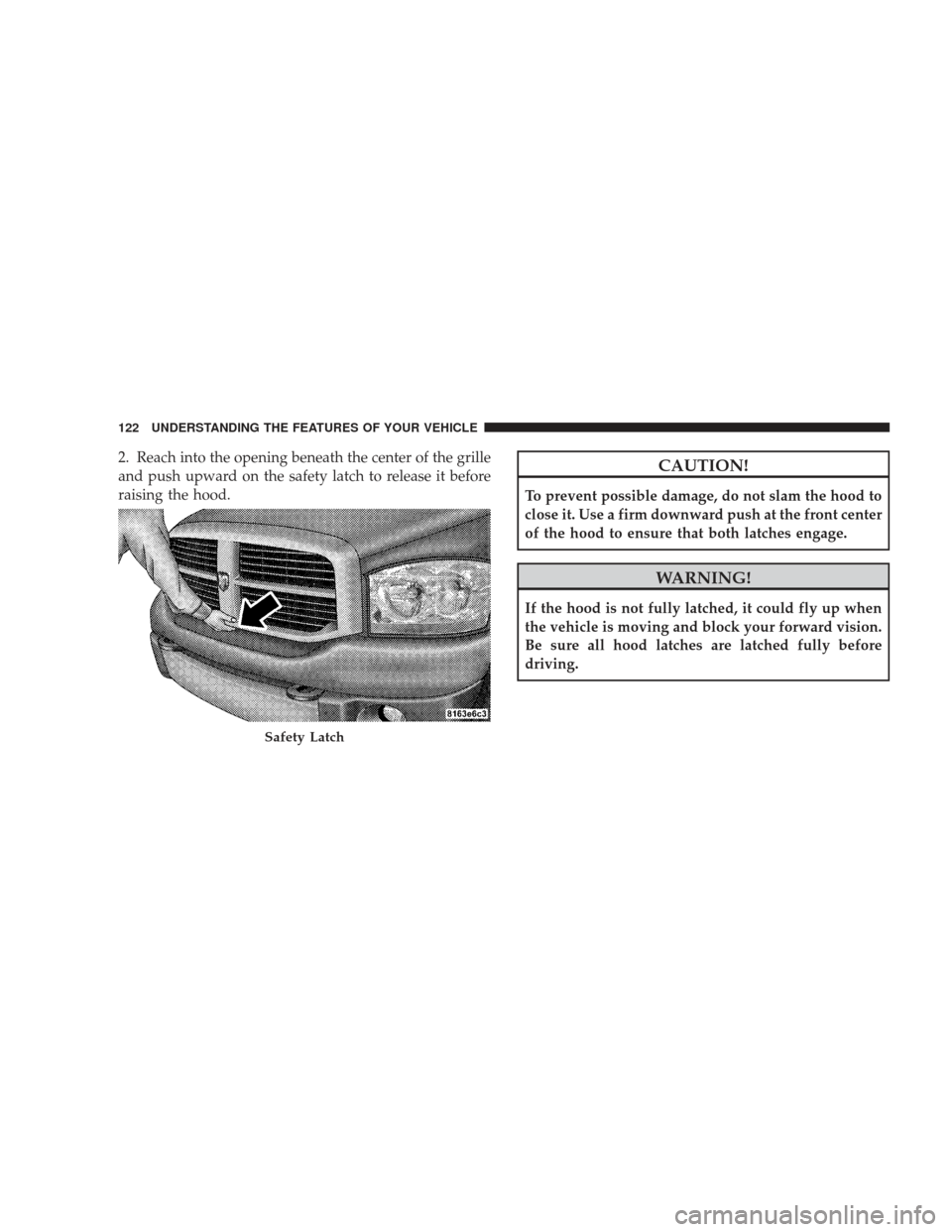

2. Reach into the opening beneath the center of the grille
and push upward on the safety latch to release it before
raising the hood.CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the front center
of the hood to ensure that both latches engage.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are latched fully before
driving.
Safety Latch
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

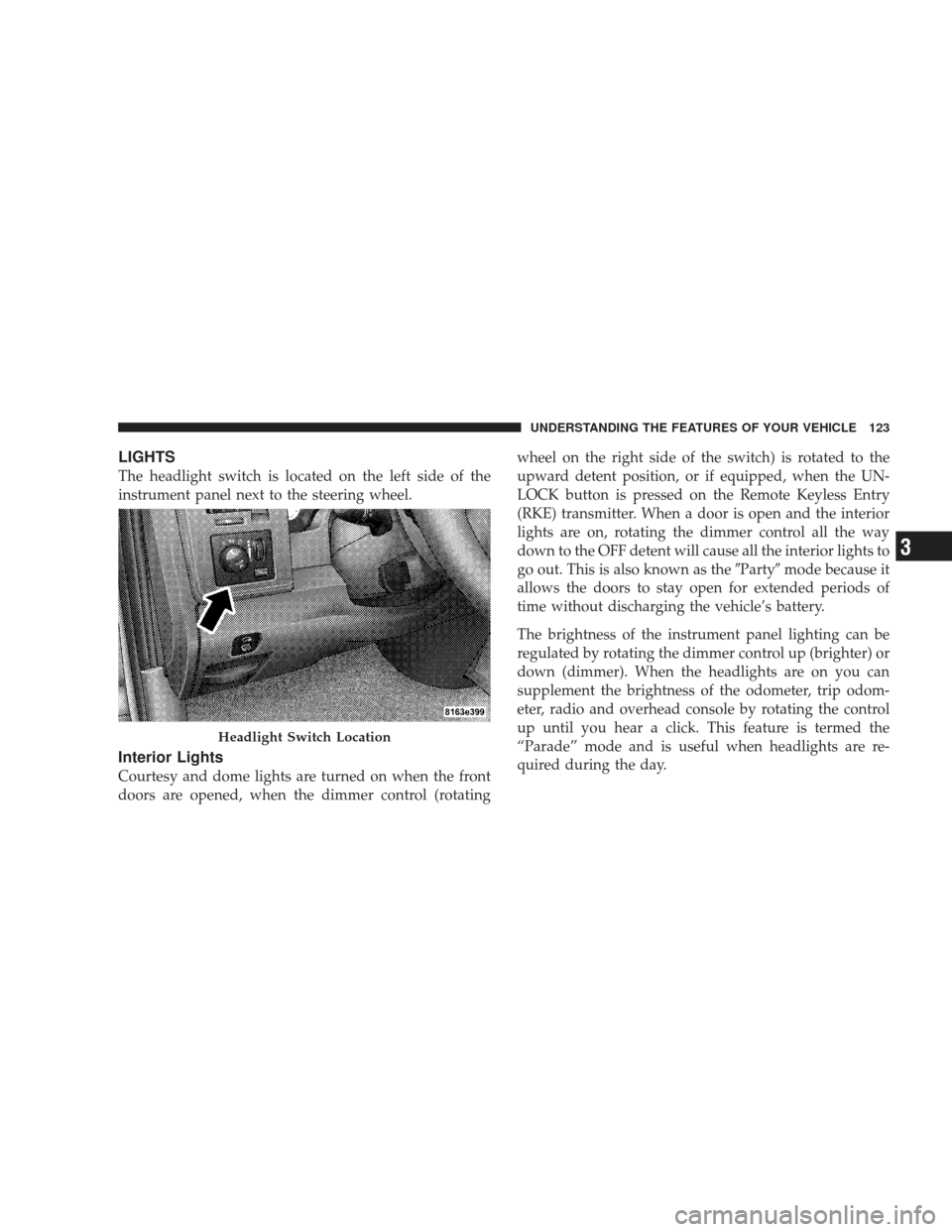

LIGHTS
The headlight switch is located on the left side of the
instrument panel next to the steering wheel.
Interior Lights
Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control (rotatingwheel on the right side of the switch) is rotated to the
upward detent position, or if equipped, when the UN-
LOCK button is pressed on the Remote Keyless Entry
(RKE) transmitter. When a door is open and the interior
lights are on, rotating the dimmer control all the way
down to the OFF detent will cause all the interior lights to
go out. This is also known as the
Partymode because it
allows the doors to stay open for extended periods of
time without discharging the vehicle’s battery.
The brightness of the instrument panel lighting can be
regulated by rotating the dimmer control up (brighter) or
down (dimmer). When the headlights are on you can
supplement the brightness of the odometer, trip odom-
eter, radio and overhead console by rotating the control
up until you hear a click. This feature is termed the
“Parade” mode and is useful when headlights are re-
quired during the day.
Headlight Switch Location
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

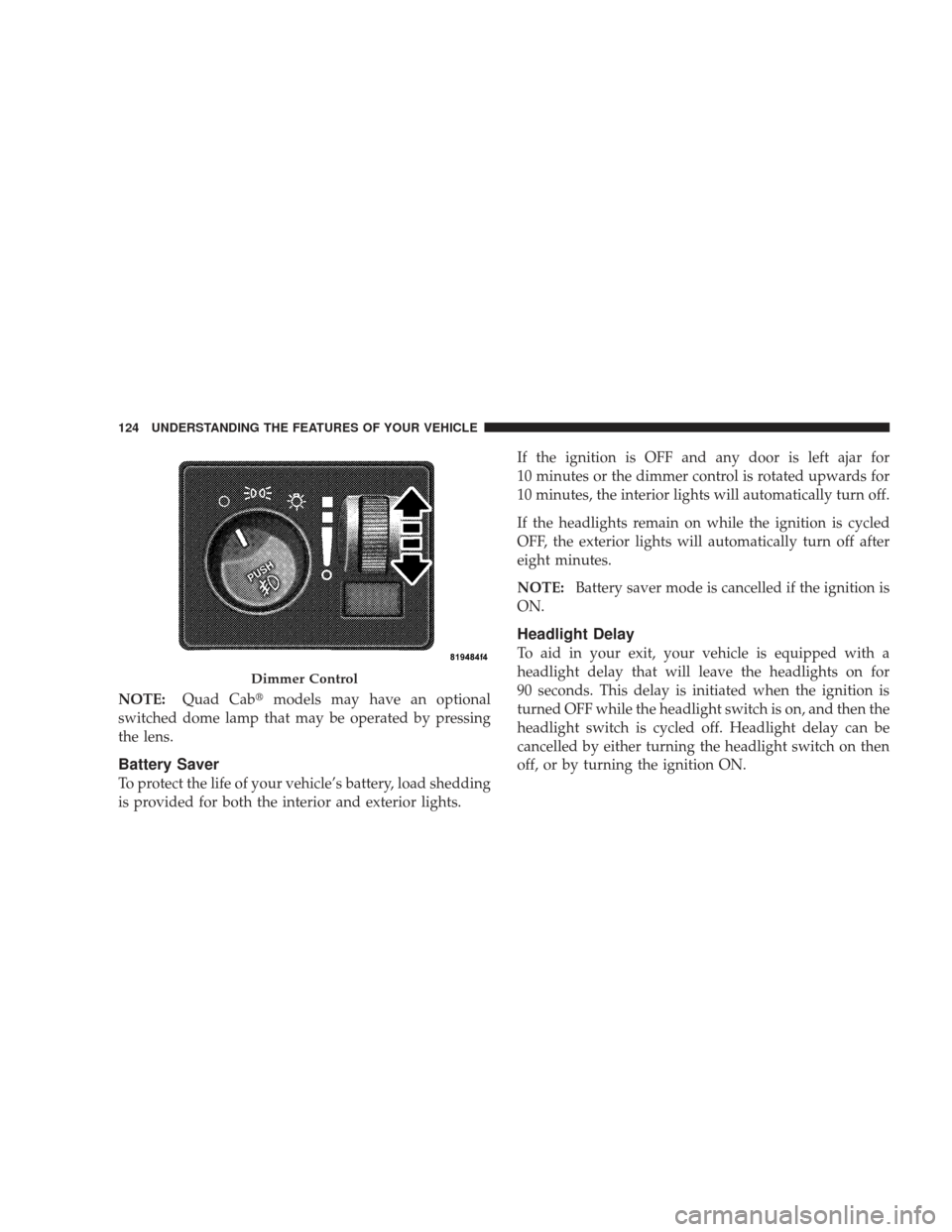

NOTE:Quad Cab models may have an optional
switched dome lamp that may be operated by pressing
the lens.
Battery Saver
To protect the life of your vehicle’s battery, load shedding
is provided for both the interior and exterior lights. If the ignition is OFF and any door is left ajar for
10 minutes or the dimmer control is rotated upwards for
10 minutes, the interior lights will automatically turn off.
If the headlights remain on while the ignition is cycled
OFF, the exterior lights will automatically turn off after
eight minutes.
NOTE:
Battery saver mode is cancelled if the ignition is
ON.
Headlight Delay
To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for
90 seconds. This delay is initiated when the ignition is
turned OFF while the headlight switch is on, and then the
headlight switch is cycled off. Headlight delay can be
cancelled by either turning the headlight switch on then
off, or by turning the ignition ON.
Dimmer Control
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

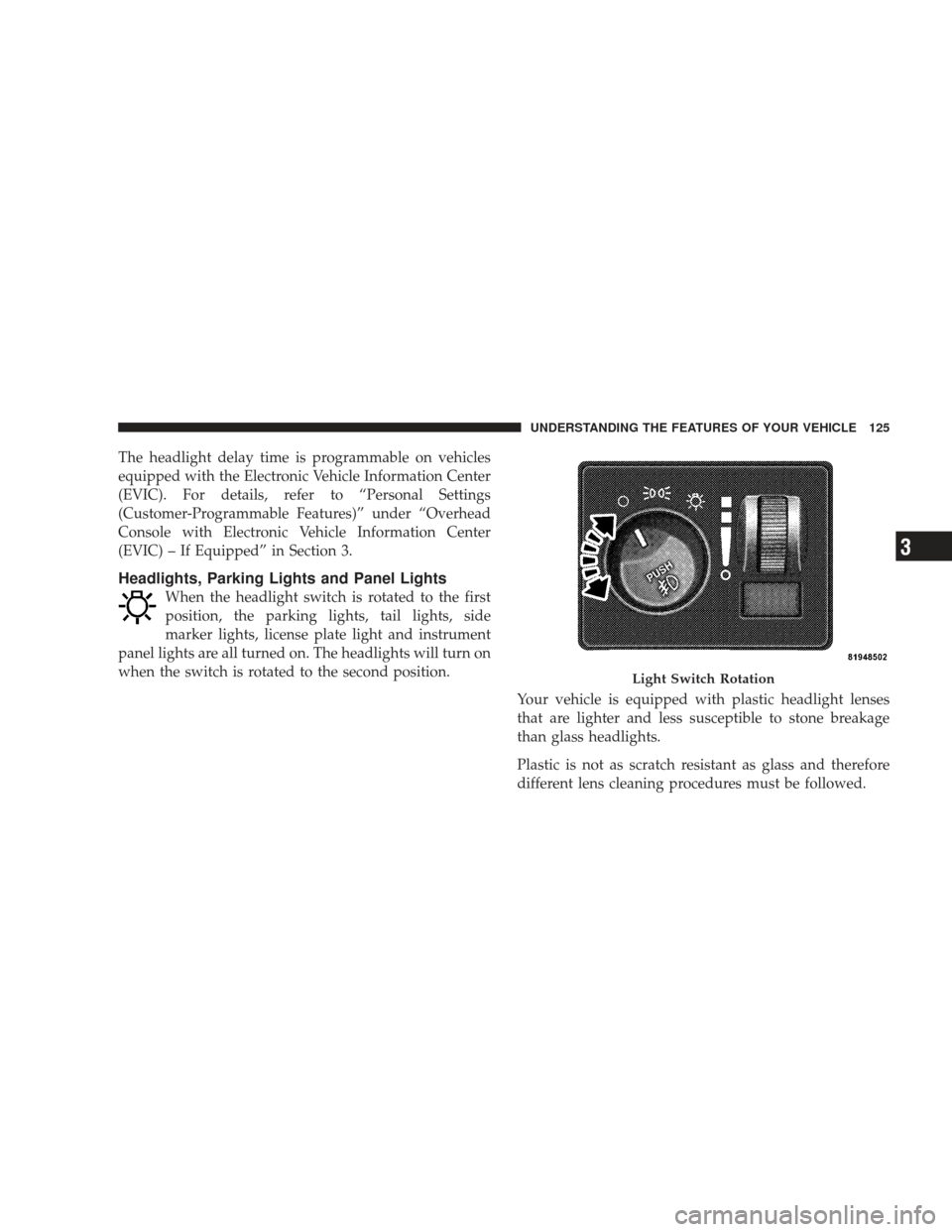

The headlight delay time is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Personal Settings
(Customer-Programmable Features)” under “Overhead
Console with Electronic Vehicle Information Center
(EVIC) – If Equipped” in Section 3.
Headlights, Parking Lights and Panel Lights
When the headlight switch is rotated to the first
position, the parking lights, tail lights, side
marker lights, license plate light and instrument
panel lights are all turned on. The headlights will turn on
when the switch is rotated to the second position.
Your vehicle is equipped with plastic headlight lenses
that are lighter and less susceptible to stone breakage
than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
Light Switch Rotation
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

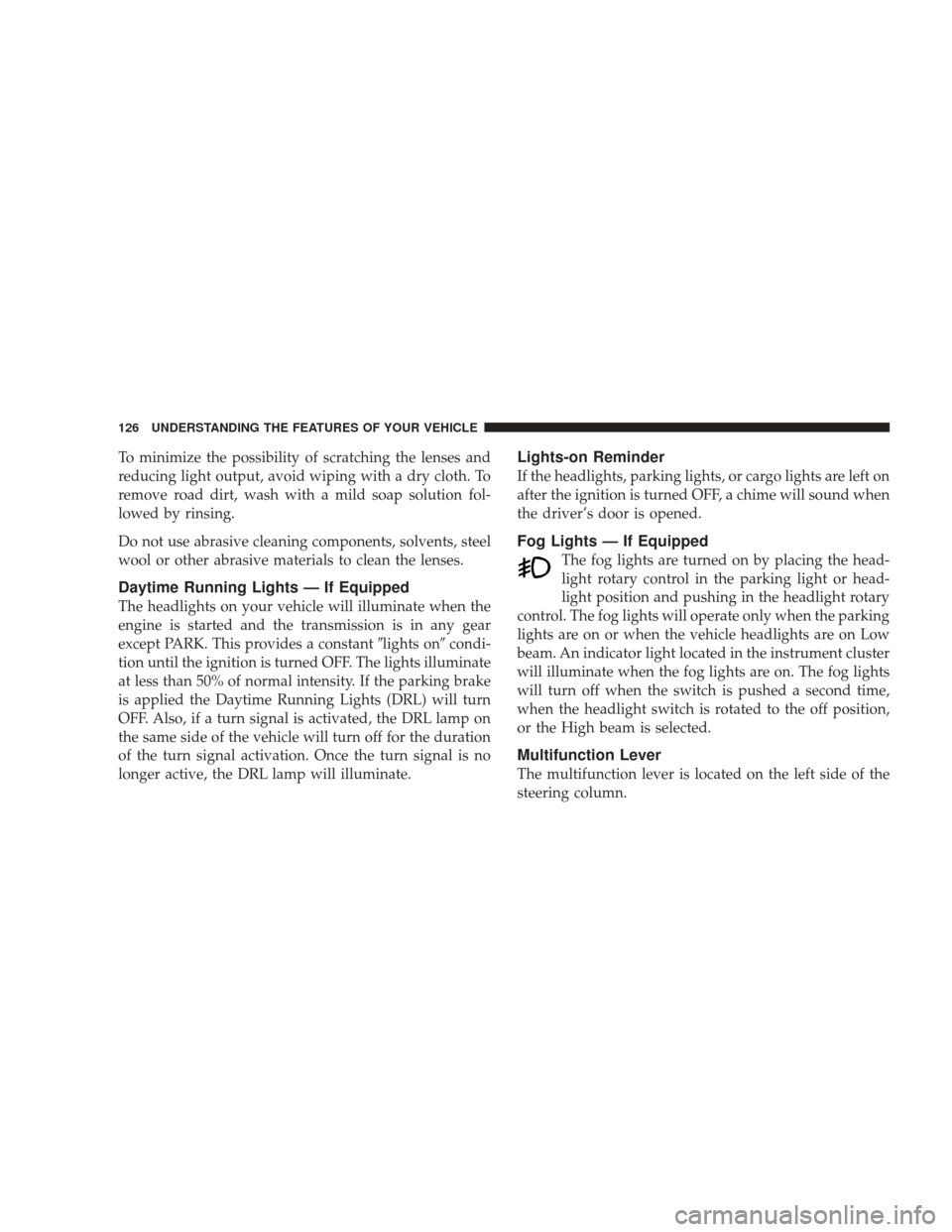

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other abrasive materials to clean the lenses.
Daytime Running Lights — If Equipped
The headlights on your vehicle will illuminate when the
engine is started and the transmission is in any gear
except PARK. This provides a constantlights oncondi-
tion until the ignition is turned OFF. The lights illuminate
at less than 50% of normal intensity. If the parking brake
is applied the Daytime Running Lights (DRL) will turn
OFF. Also, if a turn signal is activated, the DRL lamp on
the same side of the vehicle will turn off for the duration
of the turn signal activation. Once the turn signal is no
longer active, the DRL lamp will illuminate.
Lights-on Reminder
If the headlights, parking lights, or cargo lights are left on
after the ignition is turned OFF, a chime will sound when
the driver’s door is opened.
Fog Lights — If Equipped
The fog lights are turned on by placing the head-
light rotary control in the parking light or head-
light position and pushing in the headlight rotary
control. The fog lights will operate only when the parking
lights are on or when the vehicle headlights are on Low
beam. An indicator light located in the instrument cluster
will illuminate when the fog lights are on. The fog lights
will turn off when the switch is pushed a second time,
when the headlight switch is rotated to the off position,
or the High beam is selected.
Multifunction Lever
The multifunction lever is located on the left side of the
steering column.
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

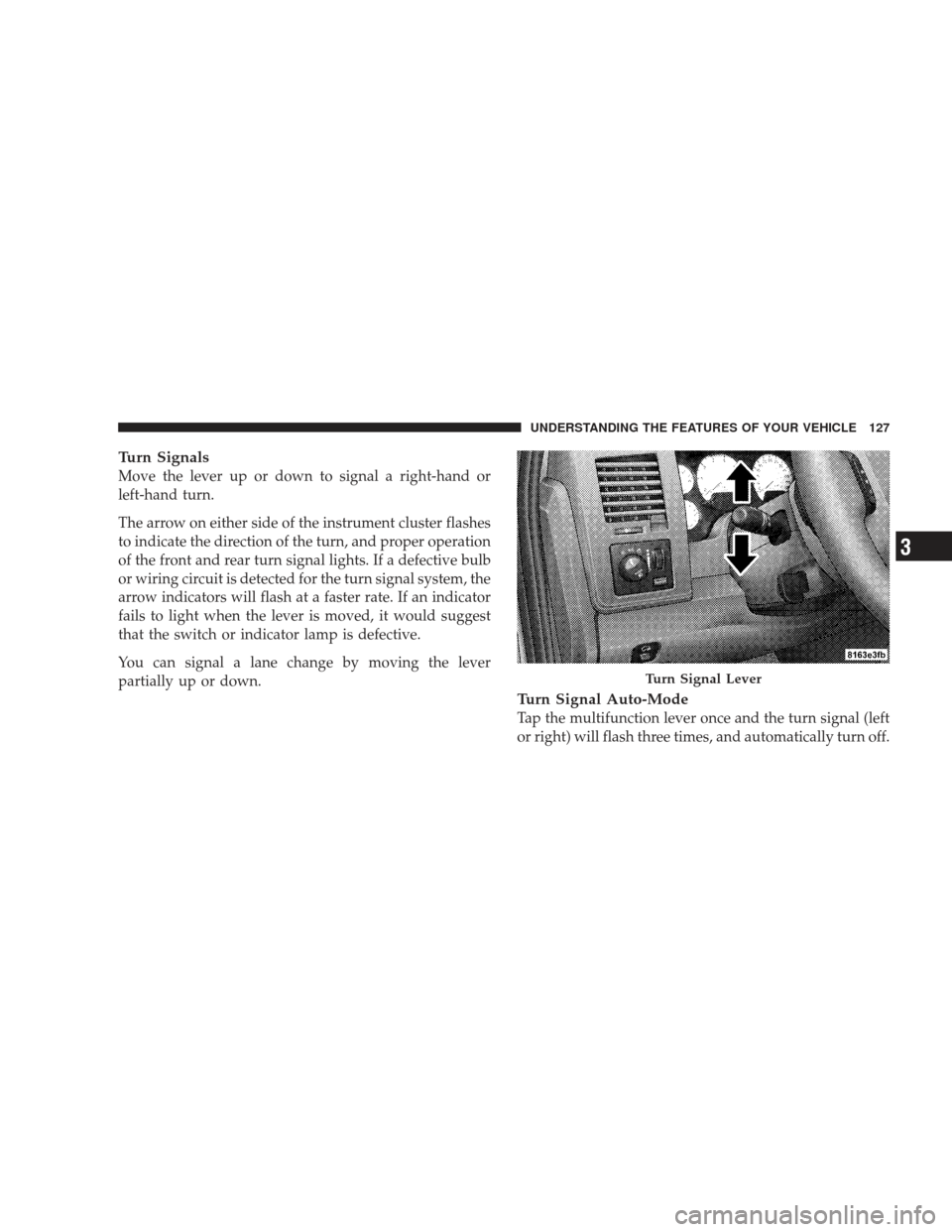

Turn Signals
Move the lever up or down to signal a right-hand or
left-hand turn.
The arrow on either side of the instrument cluster flashes
to indicate the direction of the turn, and proper operation
of the front and rear turn signal lights. If a defective bulb
or wiring circuit is detected for the turn signal system, the
arrow indicators will flash at a faster rate. If an indicator
fails to light when the lever is moved, it would suggest
that the switch or indicator lamp is defective.
You can signal a lane change by moving the lever
partially up or down.
Turn Signal Auto-Mode
Tap the multifunction lever once and the turn signal (left
or right) will flash three times, and automatically turn off.
Turn Signal Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

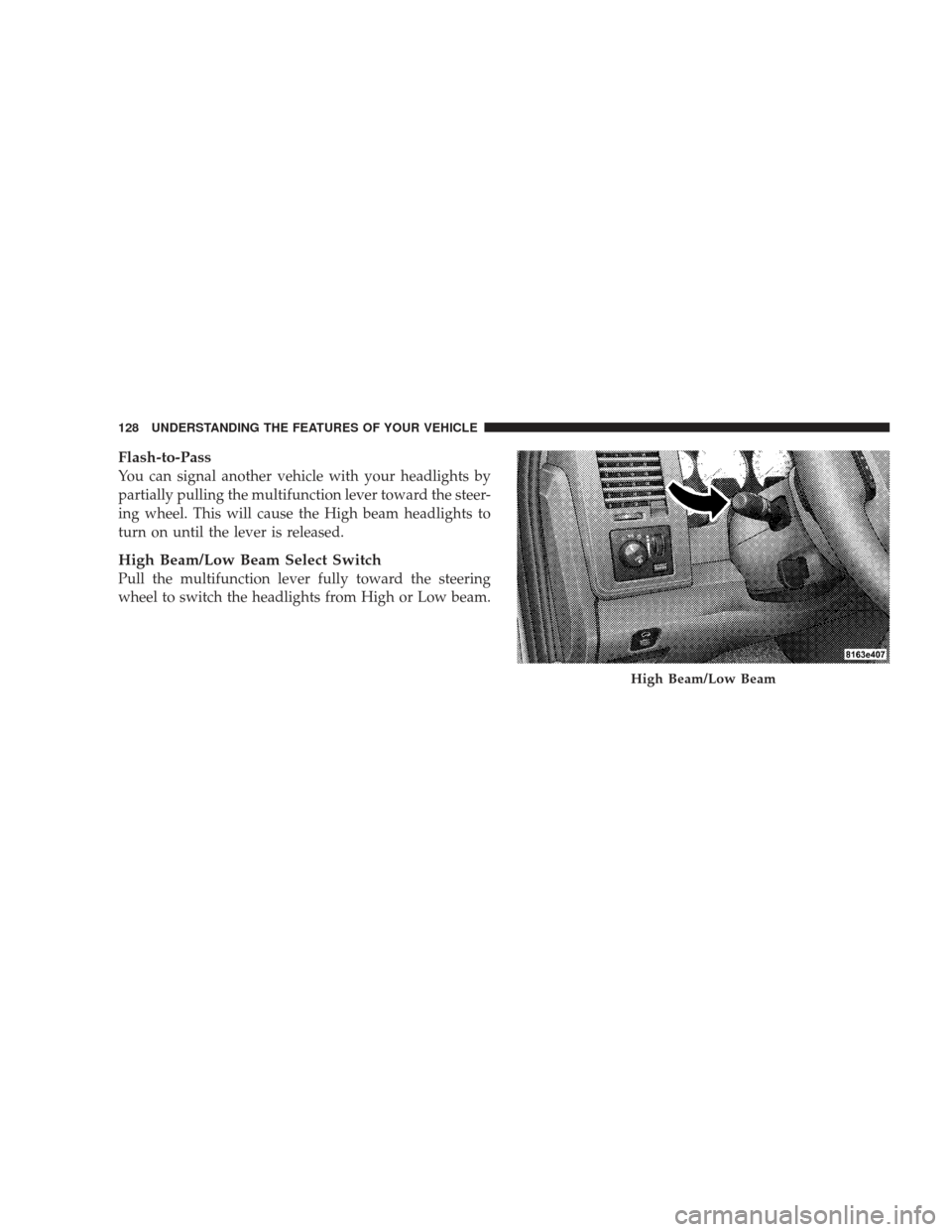

Flash-to-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the High beam headlights to
turn on until the lever is released.
High Beam/Low Beam Select Switch
Pull the multifunction lever fully toward the steering
wheel to switch the headlights from High or Low beam.
High Beam/Low Beam
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
