Page 111 of 429

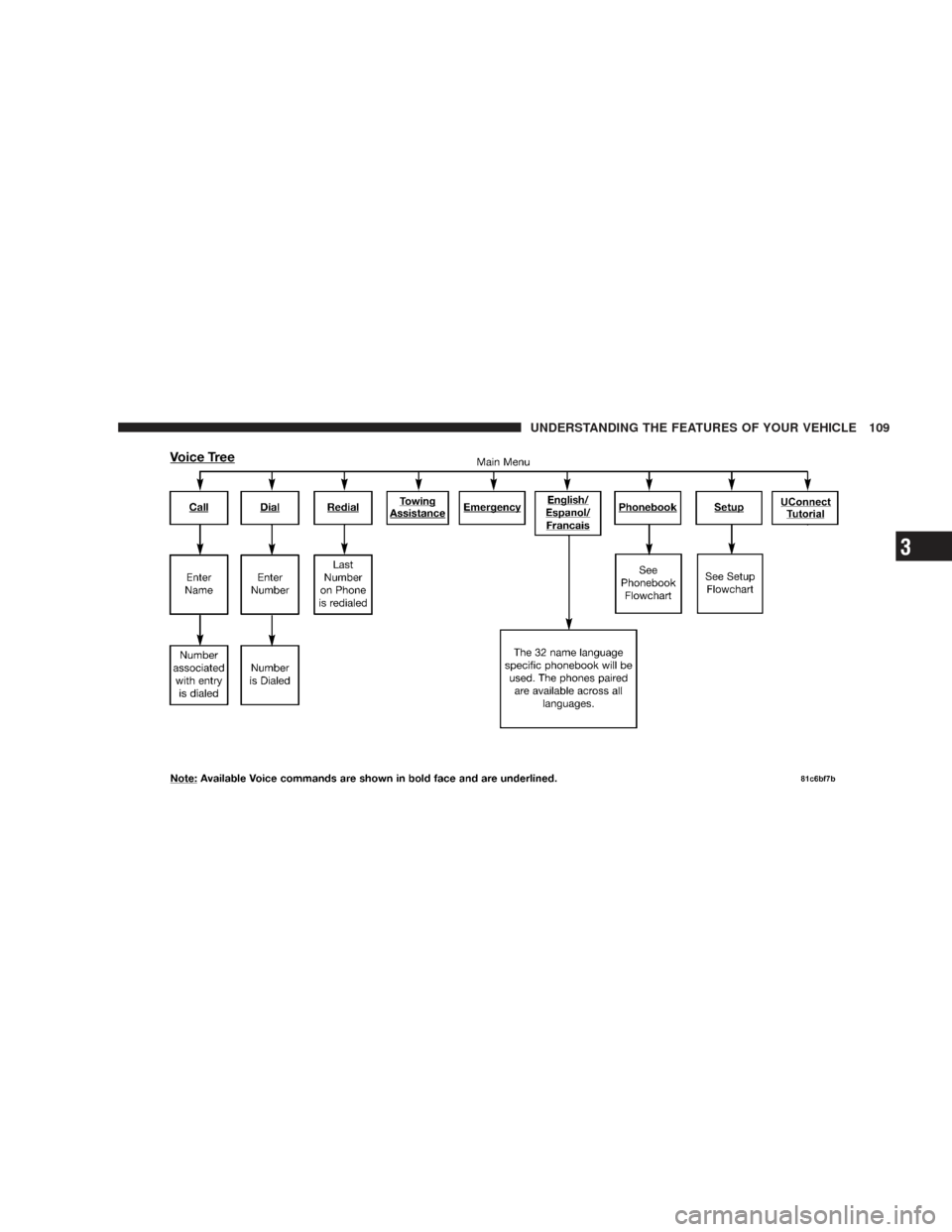

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
3
Page 112 of 429

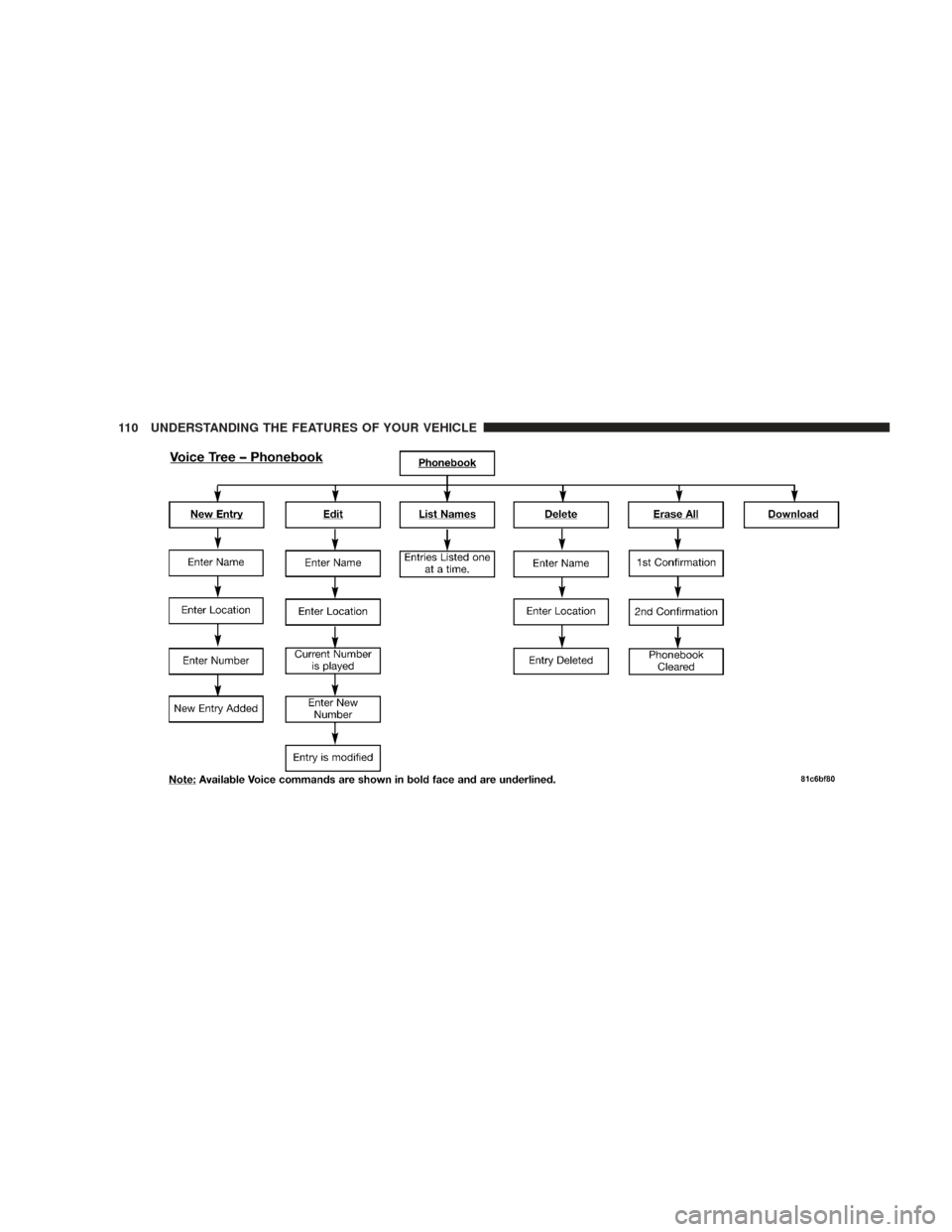

110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 113 of 429

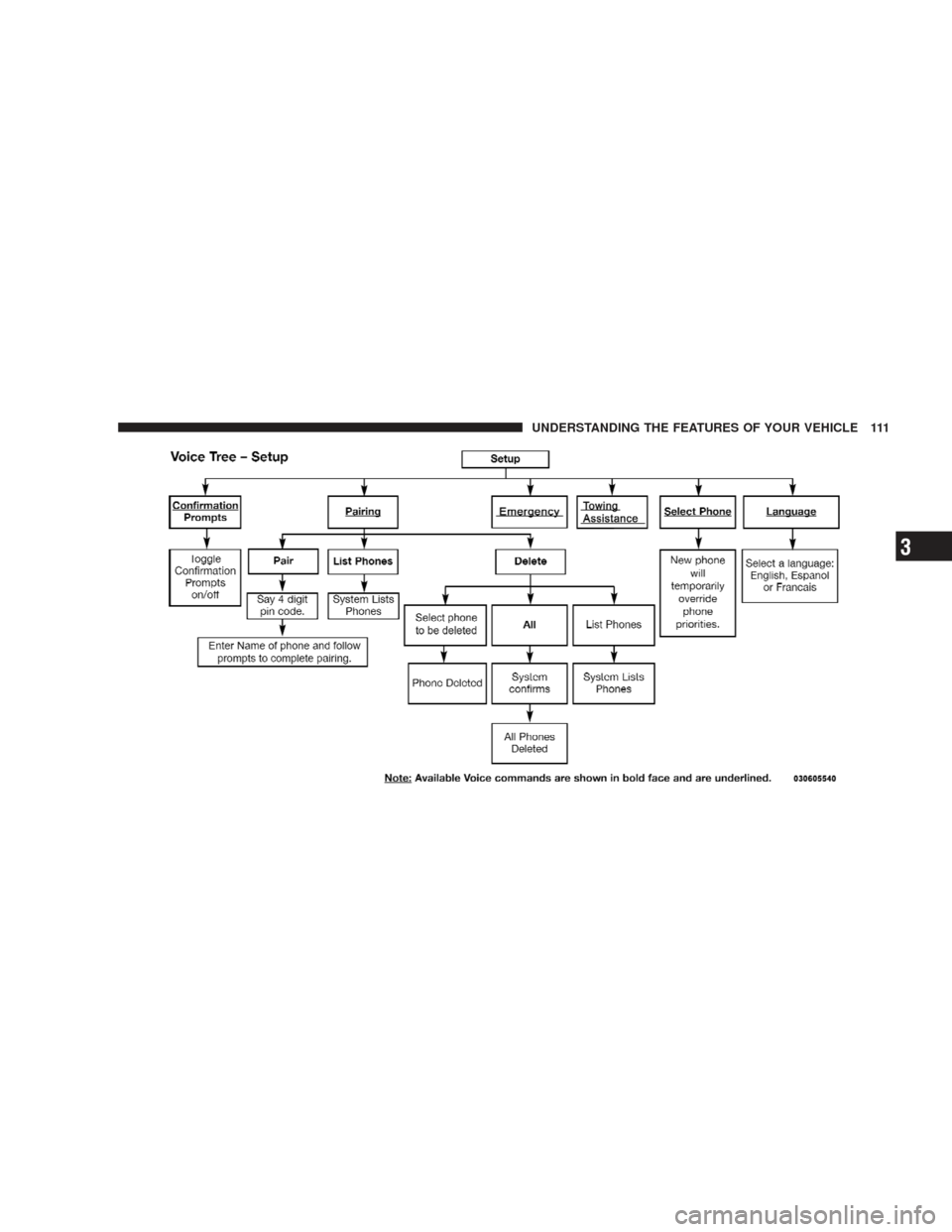

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111
3
Page 114 of 429

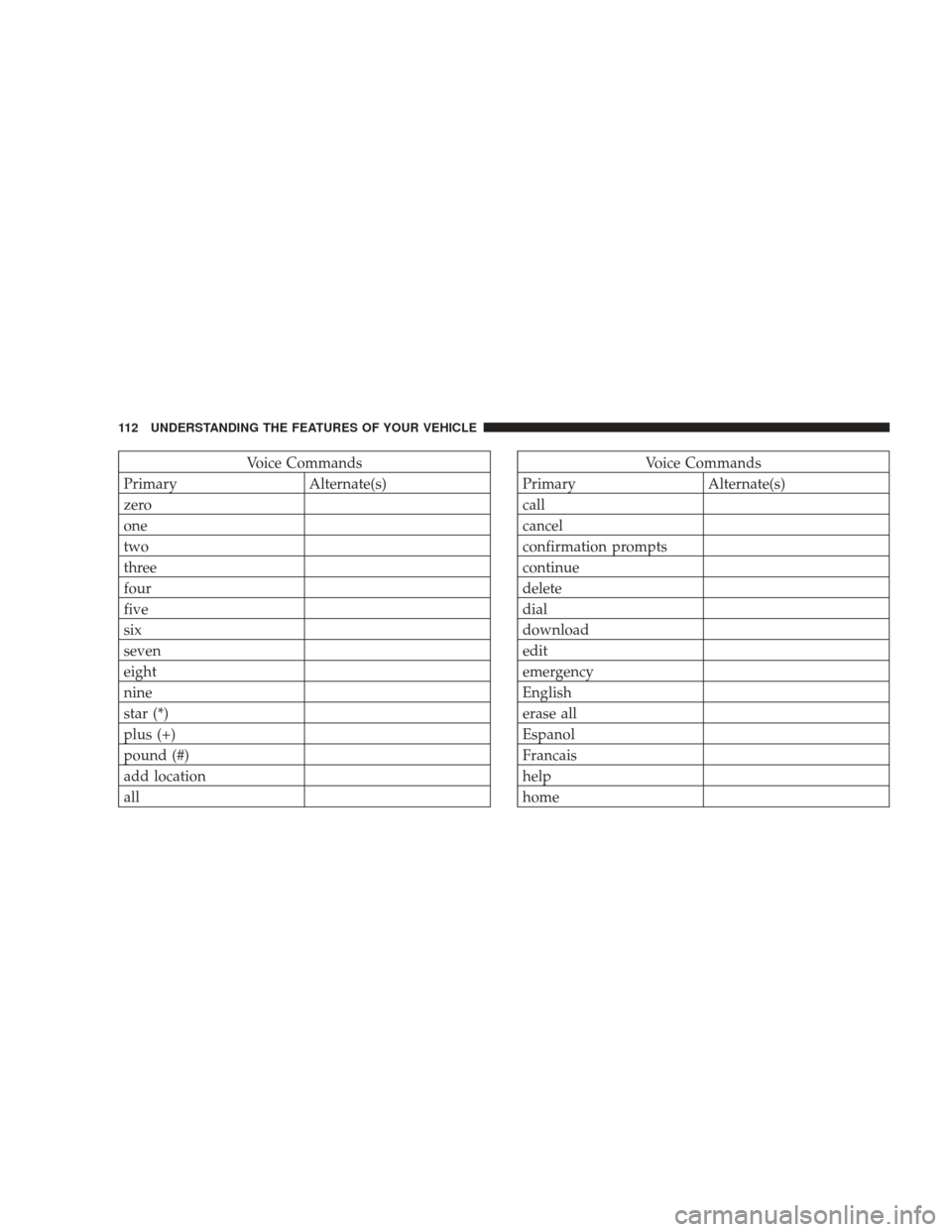

Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
allVoice Commands
Primary Alternate(s)
call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 115 of 429

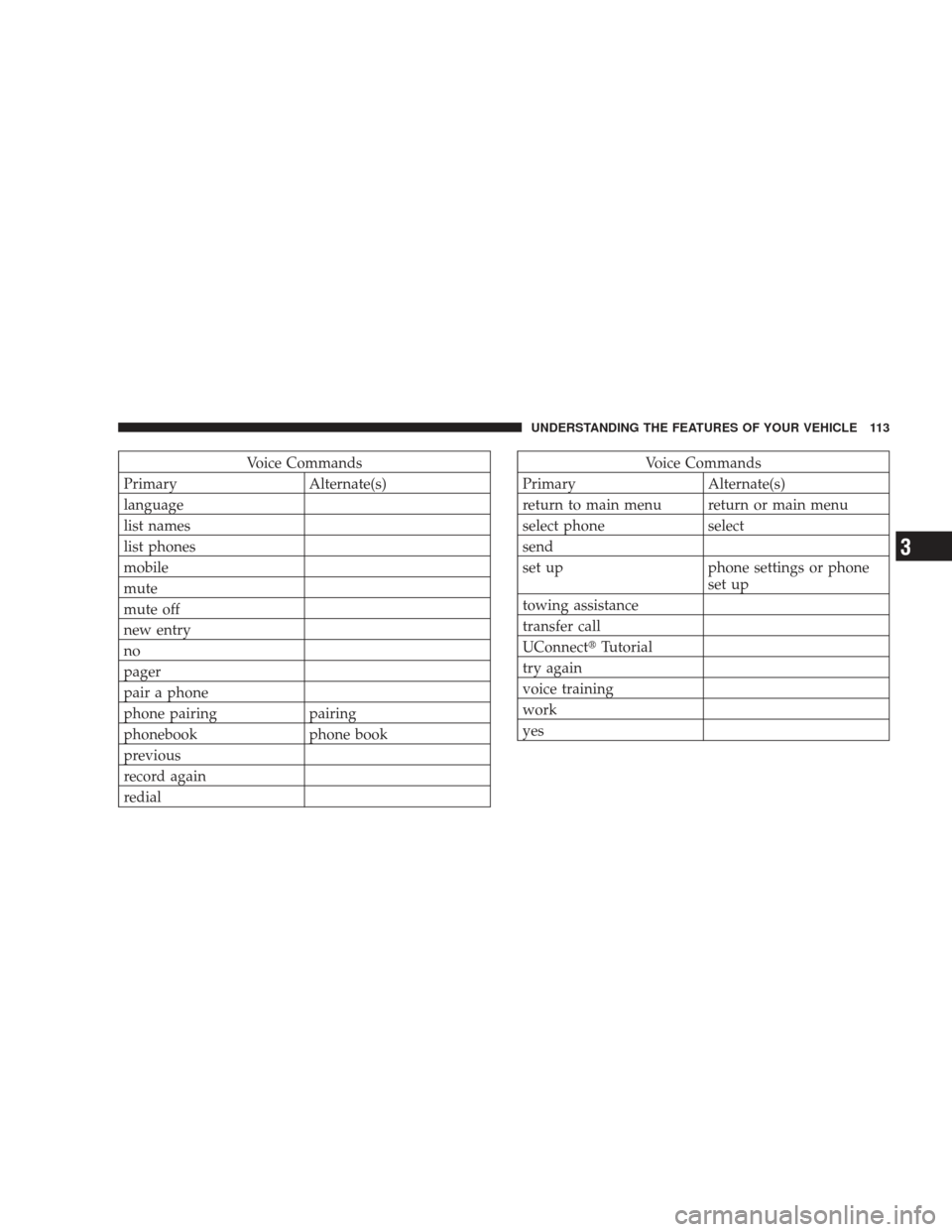

Voice Commands
Primary Alternate(s)
language
list names
list phones
mobile
mute
mute off
new entry
no
pager
pair a phone
phone pairing pairing
phonebook phone book
previous
record again
redialVoice Commands
Primary Alternate(s)
return to main menu return or main menu
select phone select
send
set up phone settings or phone set up
towing assistance
transfer call
UConnect Tutorial
try again
voice training
work
yes
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3
Page 116 of 429

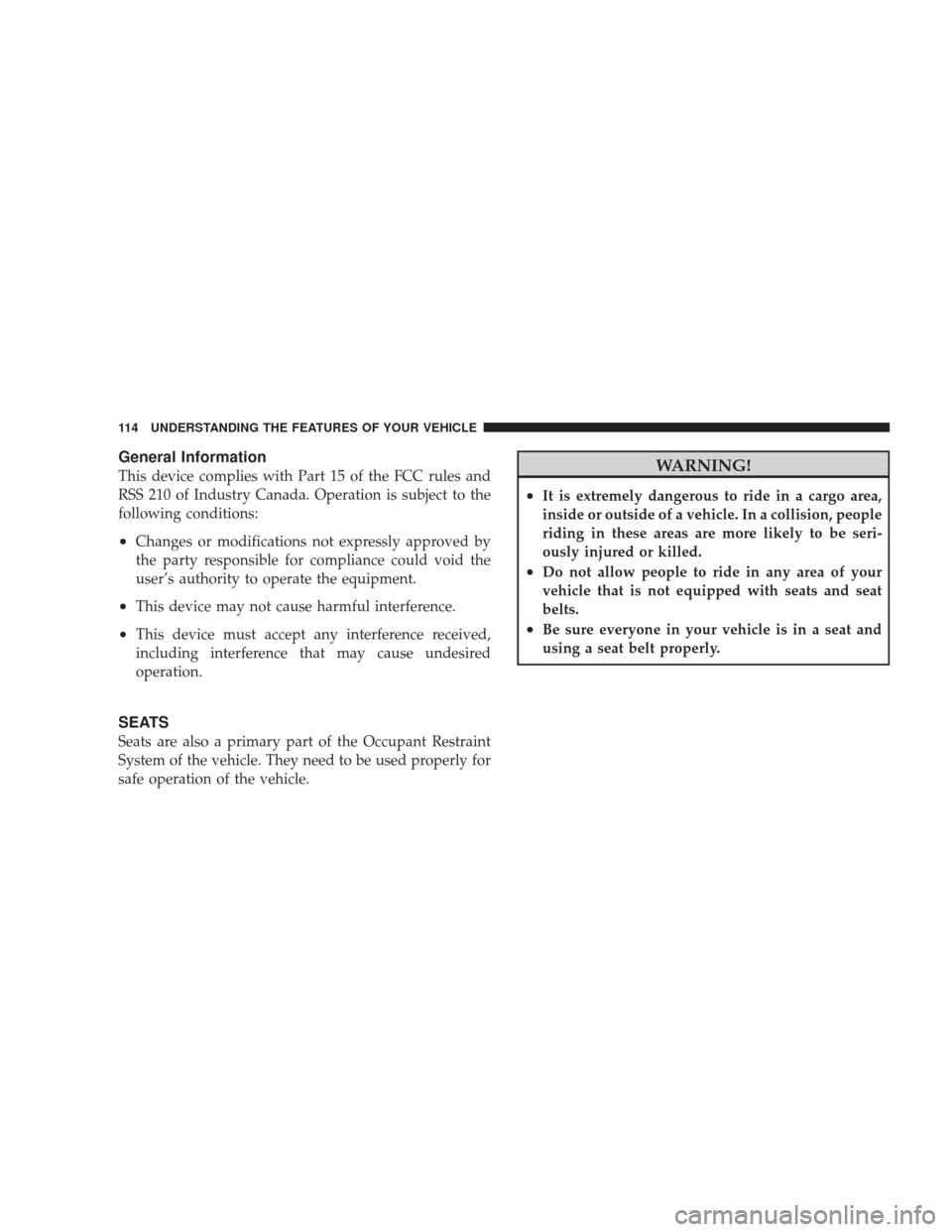

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
SEATS
Seats are also a primary part of the Occupant Restraint
System of the vehicle. They need to be used properly for
safe operation of the vehicle.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 117 of 429

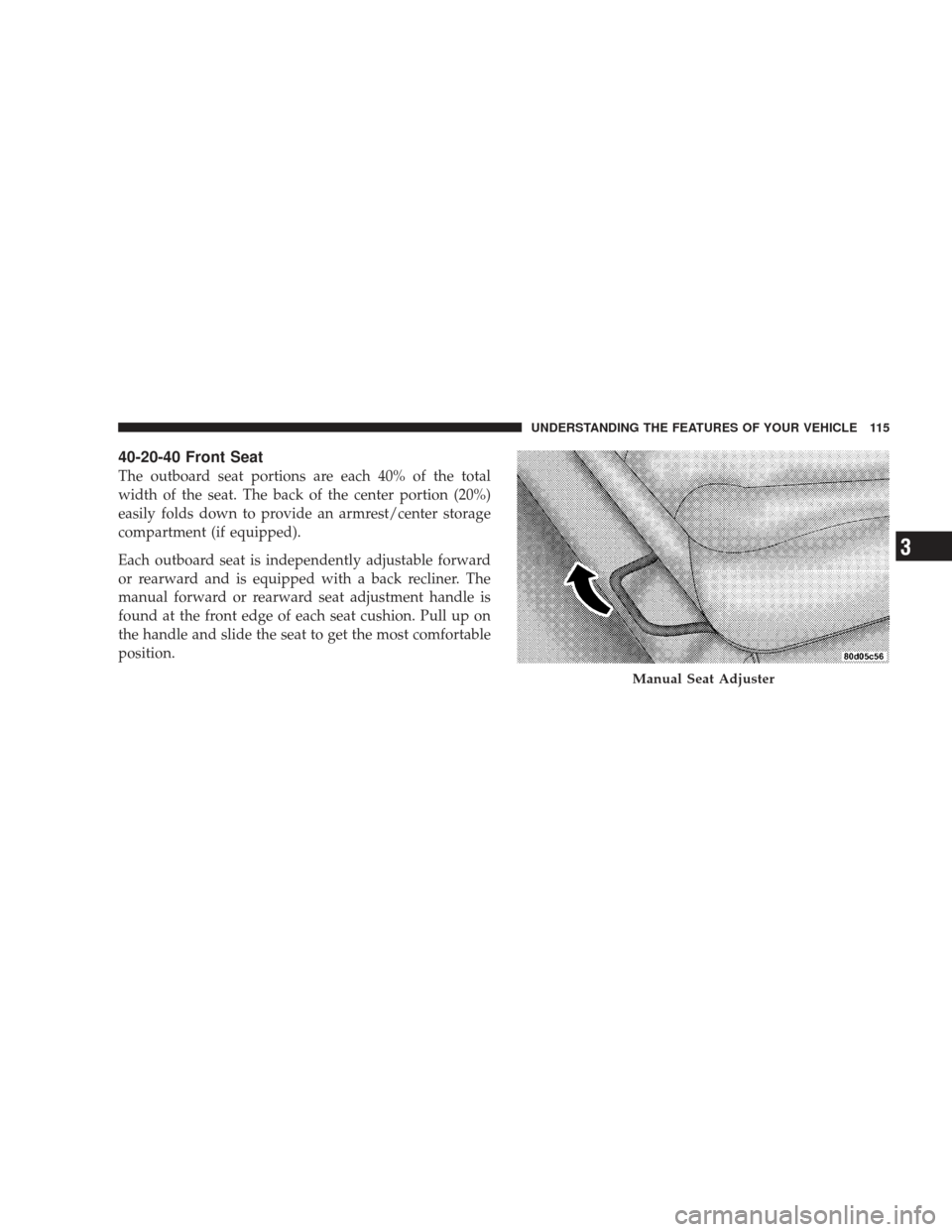

40-20-40 Front Seat
The outboard seat portions are each 40% of the total
width of the seat. The back of the center portion (20%)
easily folds down to provide an armrest/center storage
compartment (if equipped).
Each outboard seat is independently adjustable forward
or rearward and is equipped with a back recliner. The
manual forward or rearward seat adjustment handle is
found at the front edge of each seat cushion. Pull up on
the handle and slide the seat to get the most comfortable
position.
Manual Seat Adjuster
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3
Page 118 of 429
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
Reclining Seats
The recliner handle is on the outside of the seat cushion.
Pull up on the handle, as shown, to release the seatback
and adjust for comfort.
Seat Recliner Handle
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 119 of 429

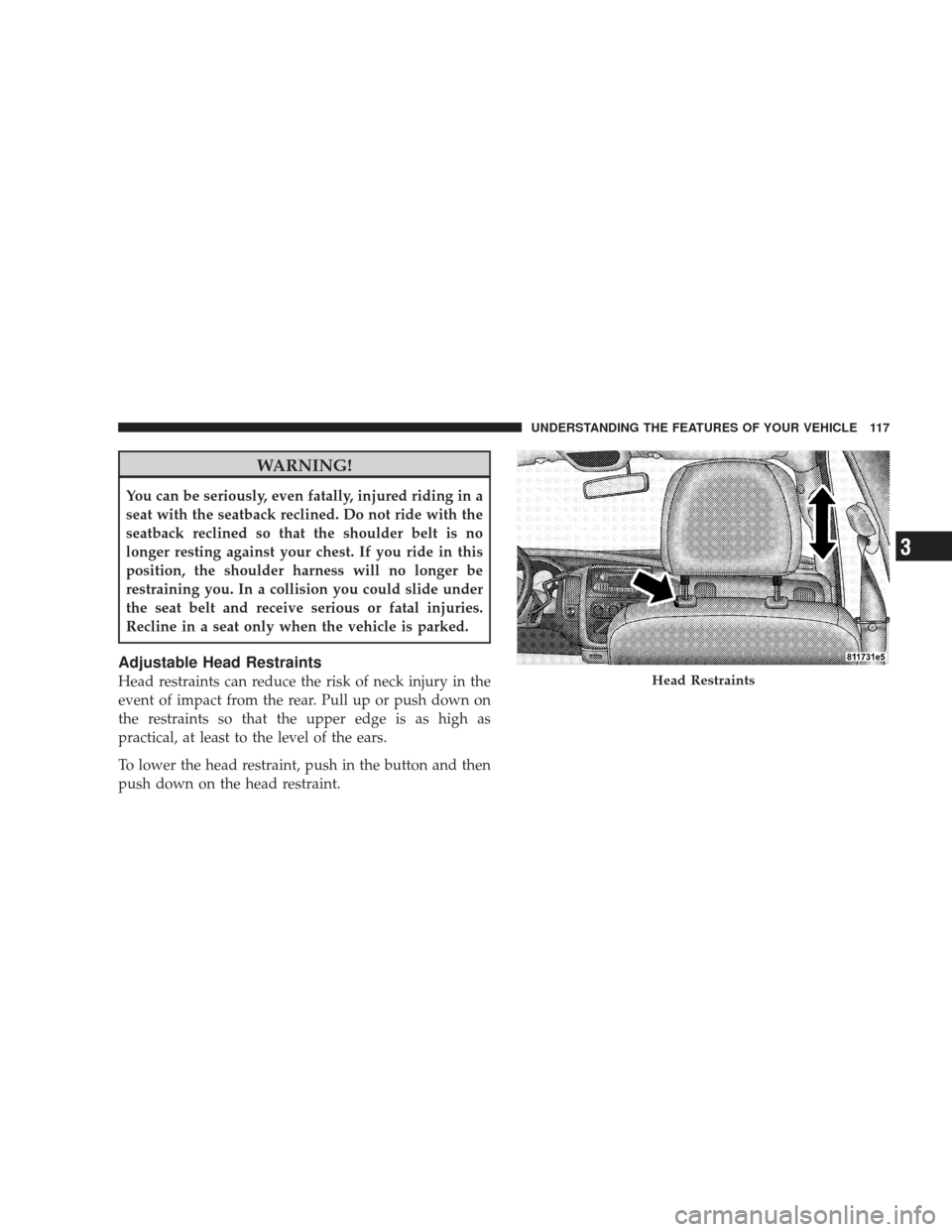

WARNING!
You can be seriously, even fatally, injured riding in a
seat with the seatback reclined. Do not ride with the
seatback reclined so that the shoulder belt is no
longer resting against your chest. If you ride in this
position, the shoulder harness will no longer be
restraining you. In a collision you could slide under
the seat belt and receive serious or fatal injuries.
Recline in a seat only when the vehicle is parked.
Adjustable Head Restraints
Head restraints can reduce the risk of neck injury in the
event of impact from the rear. Pull up or push down on
the restraints so that the upper edge is as high as
practical, at least to the level of the ears.
To lower the head restraint, push in the button and then
push down on the head restraint.Head Restraints
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3
Page 120 of 429

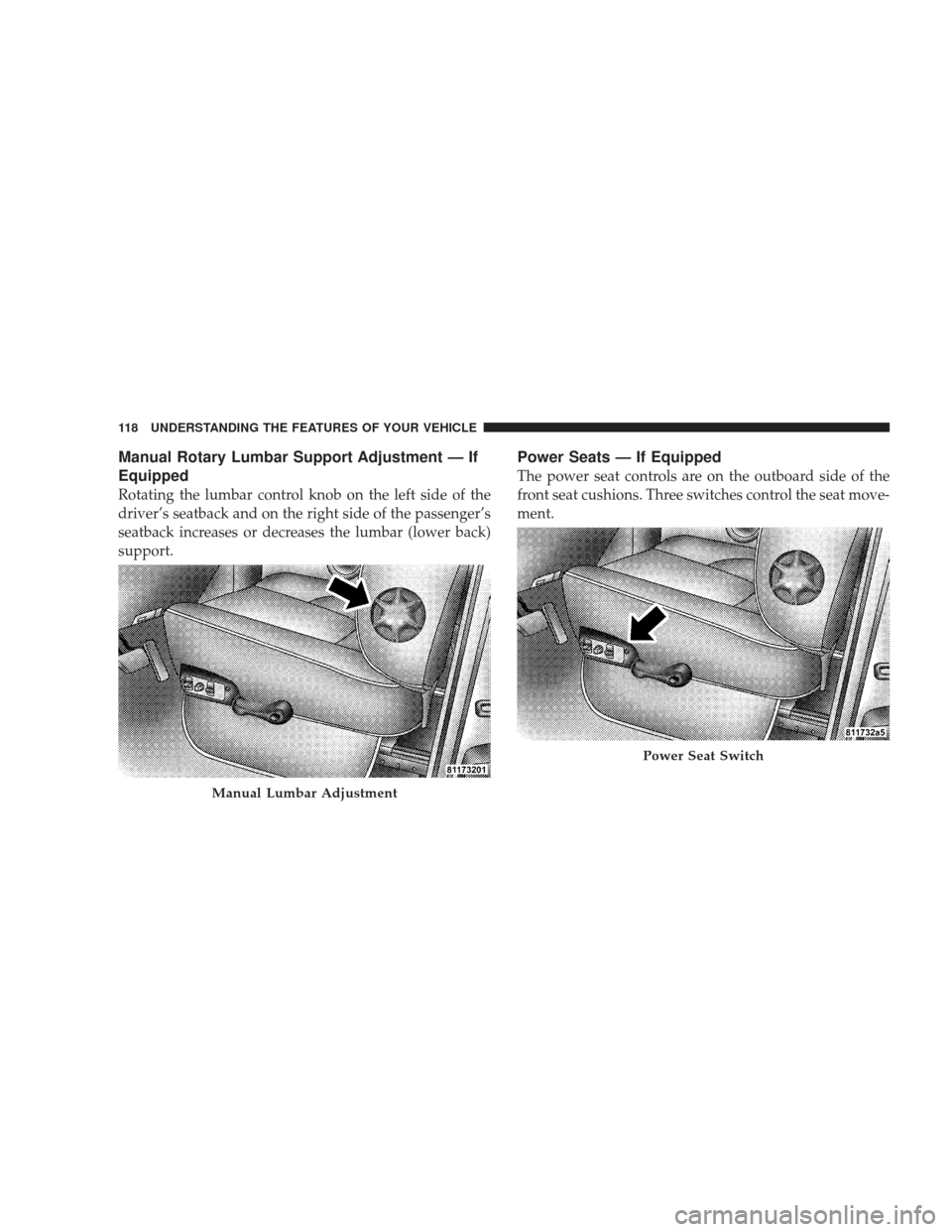

Manual Rotary Lumbar Support Adjustment — If
Equipped
Rotating the lumbar control knob on the left side of the
driver’s seatback and on the right side of the passenger’s
seatback increases or decreases the lumbar (lower back)
support.
Power Seats — If Equipped
The power seat controls are on the outboard side of the
front seat cushions. Three switches control the seat move-
ment.
Manual Lumbar Adjustment
Power Seat Switch
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
