Multiple Child Restraint Installation Sequence
(Quad Cab- Rear Seats)
1. Obtain tether straps by raising the head restraints and
reaching between the rear glass and rear seat. The tether
strap may be retained with an elastic band. Accessibility
to the tether strap is greatly improved by raising the seat
cushion to the “up” position. Remove the elastic before
use.
2. Place a child restraint on each outboard rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
then to the anchor directly behind the center rear seat.
3. Pass each tether strap hook under the head restraint
and through the loop of webbing behind the child seat.
4. Route each tether strap to the anchor behind the center
seat, and attach the hooks to the metal ring.

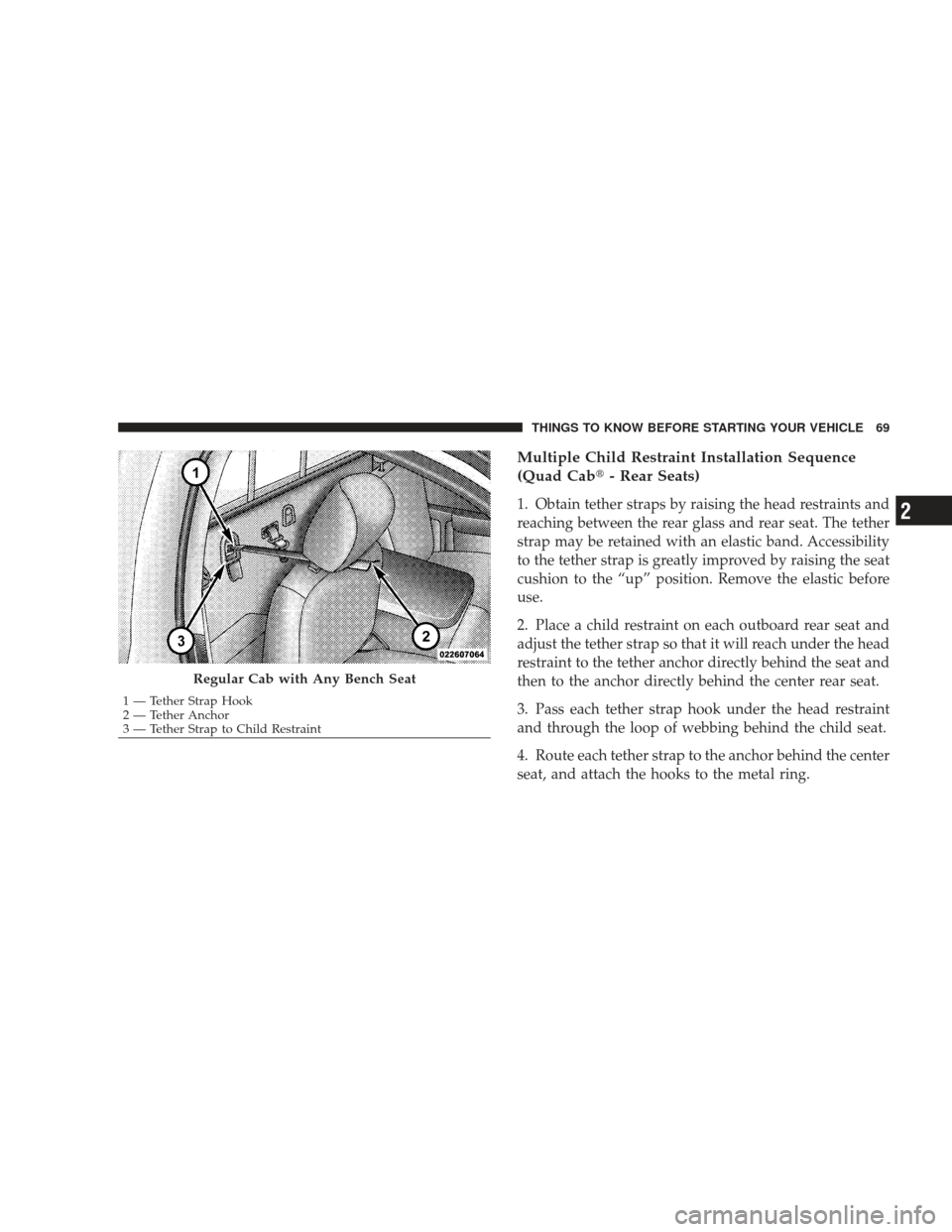

Regular Cab with Any Bench Seat
1 — Tether Strap Hook
2 — Tether Anchor
3 — Tether Strap to Child Restraint THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
2
Page 72 of 429
5. Place a child restraint on the center rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
to the anchor directly behind the right seat.
6. Install each child restraint and remove the slack in the
tether strap according to the child restraint manufactur-
er’s instructions.

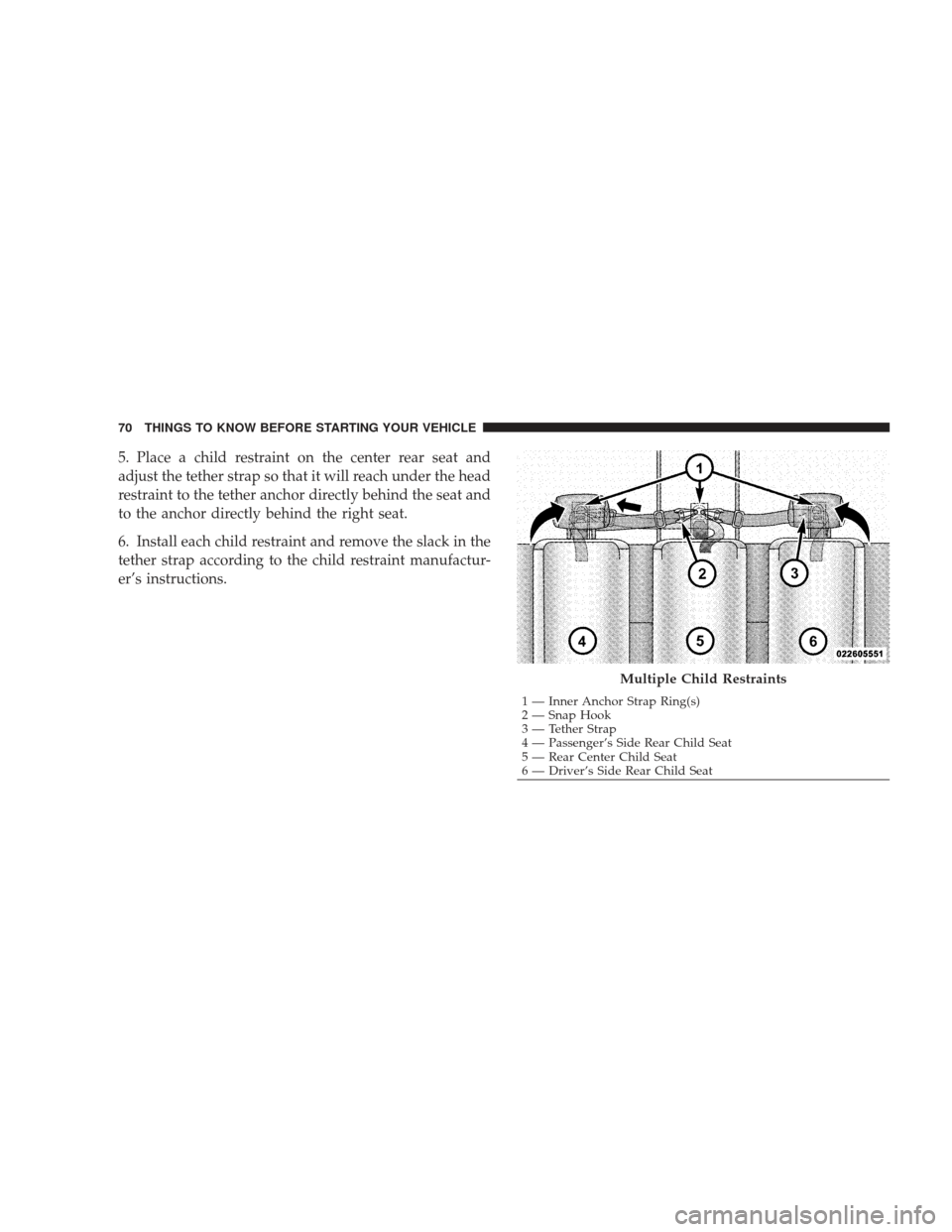

Multiple Child Restraints
1 — Inner Anchor Strap Ring(s)
2 — Snap Hook
3 — Tether Strap
4 — Passenger’s Side Rear Child Seat
5 — Rear Center Child Seat
6 — Driver’s Side Rear Child Seat
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 73 of 429
Tether Anchorage Points at All Three Seating
Positions
1. Place the child restraint on the seat and adjust the
tether strap so that it will reach over the seat back under
the head restraint to the tether anchor directly behind the
seat.
2. Lift the cover, and attach the hook to the square
opening in the sheet metal.
3. Install the child restraint and remove the slack in the
tether strap according to the manufacturer’s instructions.

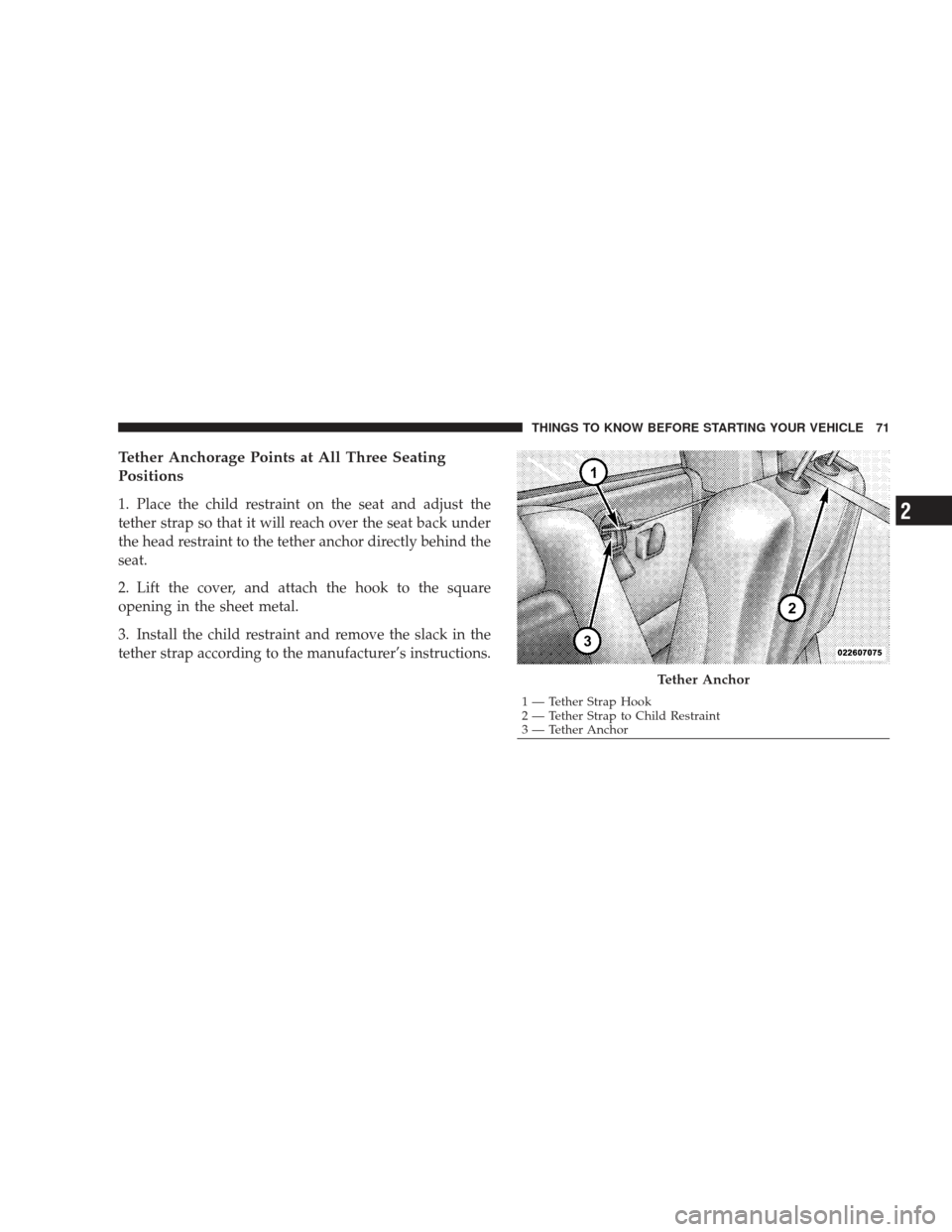

Tether Anchor
1 — Tether Strap Hook
2 — Tether Strap to Child Restraint
3 — Tether AnchorTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71
2
Page 74 of 429
Children Too Large for Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seat back should use the lap/shoulder belt in a rear seat.
•Make sure that the child is upright in the seat.
•The lap portion should be low on the hips and as snug
as possible.
•Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.
If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.
Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly injured, or injure a passenger during panic braking or in
a collision. Pets should be restrained in the rear seat in
pet harnesses or pet carriers that are secured by seat belts.
NEW ENGINE BREAK-IN
5.7L Gas Engine – 3500 Models Only
A long break-in period is not required for the engine in
your new vehicle. Drive moderately during the first 300
mi (500 km). After the initial 60 mi (100 km), speeds up to
50 or 55 mph (80 or 90 km/h) are desirable. While
cruising, brief full-throttle acceleration within the limits
of local traffic laws contributes to a good break-in.
Avoid wide open throttle acceleration in low gear.
The engine oil installed in the engine at the factory is a
high quality, energy conserving type lubricant. Oil
changes should be consistent with the anticipated cli-
matic conditions under which vehicle operation will
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 75 of 429
occur. For recommended viscosity and quality grades,
refer to “Engine Oil” under “Maintenance Procedures” in
Section 7.

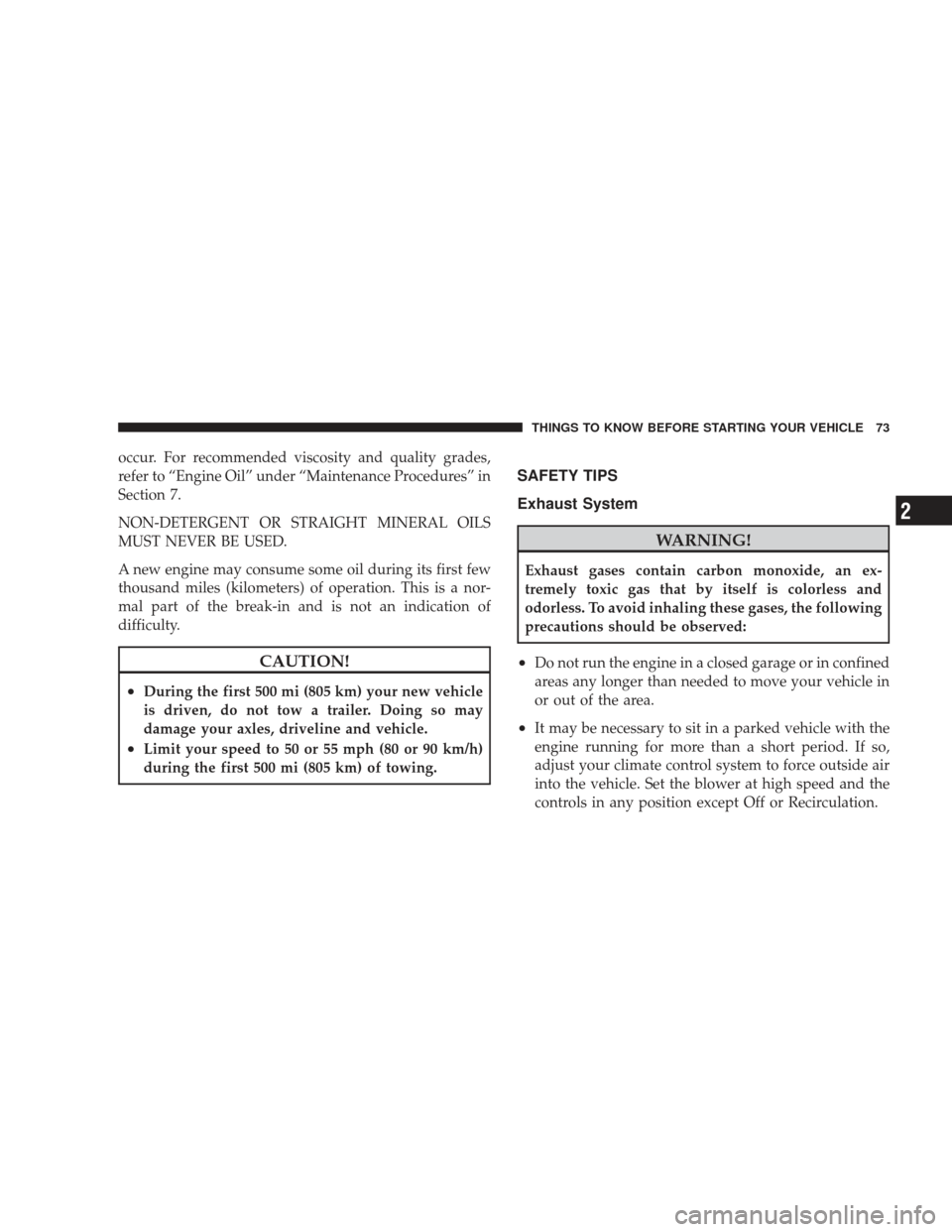

NON-DETERGENT OR STRAIGHT MINERAL OILS
MUST NEVER BE USED.
A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This is a nor-
mal part of the break-in and is not an indication of
difficulty.
CAUTION!
•During the first 500 mi (805 km) your new vehicle
is driven, do not tow a trailer. Doing so may
damage your axles, driveline and vehicle.
•Limit your speed to 50 or 55 mph (80 or 90 km/h)
during the first 500 mi (805 km) of towing.
SAFETY TIPS
Exhaust System
WARNING!
Exhaust gases contain carbon monoxide, an ex-
tremely toxic gas that by itself is colorless and
odorless. To avoid inhaling these gases, the following
precautions should be observed:
•Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in
or out of the area.
•It may be necessary to sit in a parked vehicle with the
engine running for more than a short period. If so,
adjust your climate control system to force outside air
into the vehicle. Set the blower at high speed and the
controls in any position except Off or Recirculation.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73
2
Page 76 of 429
•The best protection against carbon monoxide entry
into the vehicle body is a properly maintained engine
exhaust system.
Be aware of changes in the sound of the exhaust system,
exhaust fumes detected inside the vehicle, or damage to
the underside or rear of the vehicle. Have a competent
mechanic inspect the complete exhaust system and adja-
cent body areas for broken, damaged, deteriorated or
mispositioned parts. Open seams or loose connections
could permit exhaust fumes to seep into the passenger
compartment. In addition, inspect the exhaust system
each time the vehicle is raised for lubrication or oil
change. Replace or adjust as required.Safety Checks You Should Make Inside The
Vehicle
Heater Defroster Ducts
Inspect the heater defroster ducts for proper operation.
Check for proper airflow through all defroster ducts. If
there is any question regarding the operation of your
heater defroster ducts, have the system checked by an
authorized dealer
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Seat belt assemblies must be replaced after an accident if
they have been damaged (bent retractor, torn webbing,
etc.) or if the front airbags have deployed. If there is any
question regarding seat belt or retractor condition, re-
place the seat belt.
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 77 of 429

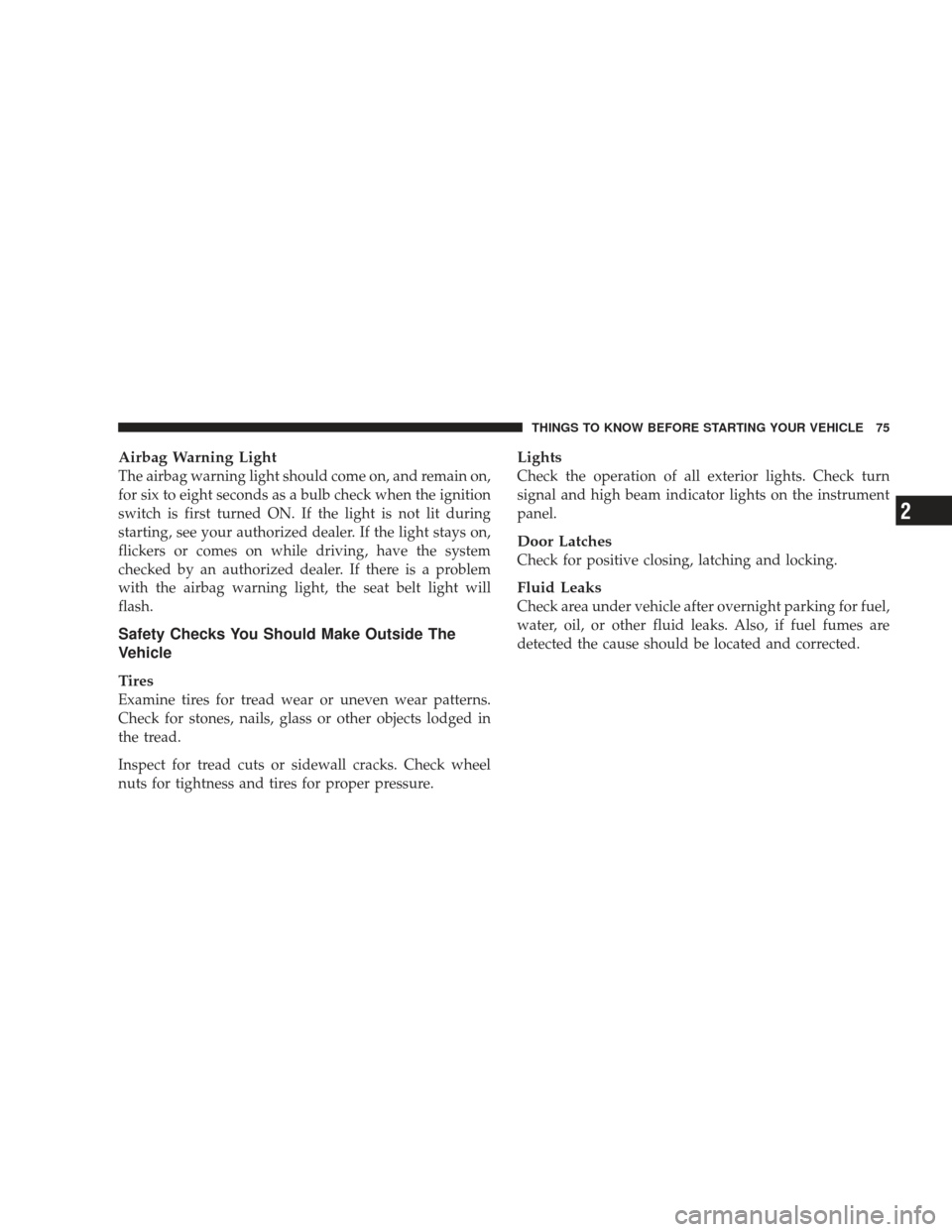

Airbag Warning Light
The airbag warning light should come on, and remain on,
for six to eight seconds as a bulb check when the ignition
switch is first turned ON. If the light is not lit during
starting, see your authorized dealer. If the light stays on,
flickers or comes on while driving, have the system
checked by an authorized dealer. If there is a problem
with the airbag warning light, the seat belt light will
flash.
Safety Checks You Should Make Outside The
Vehicle
Tires
Examine tires for tread wear or uneven wear patterns.
Check for stones, nails, glass or other objects lodged in
the tread.
Inspect for tread cuts or sidewall cracks. Check wheel
nuts for tightness and tires for proper pressure.
Lights
Check the operation of all exterior lights. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for positive closing, latching and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
water, oil, or other fluid leaks. Also, if fuel fumes are
detected the cause should be located and corrected.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75
2
Page 78 of 429
Page 79 of 429
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 81
▫ Inside Day/Night Mirror ................ 81
▫ Automatic Dimming Mirror — If Equipped . . . 82
▫ Outside Mirrors ...................... 82
▫ Outside Mirrors Folding Feature .......... 83
▫ Power Mirrors — If Equipped ............ 83
▫ Heated Power Mirrors — If Equipped ...... 84
▫ Trailer Towing Mirrors — If Equipped ...... 84
Hands-Free Communication (UConnect)—
If Equipped ........................... 86
▫ Operation .......................... 88
▫ Phone Call Features ................... 96
▫ UConnect System Features .............. 99
▫ Advanced Phone Connectivity ........... 104
▫ Things You Should Know About Your
UConnect System................... 105
▫ General Information .................. 114
3
Page 80 of 429
Seats .............................. 114
▫ 40-20-40 Front Seat ................... 115
▫ Reclining Seats ...................... 116
▫ Adjustable Head Restraints ............. 117
▫ Manual Rotary Lumbar Support
Adjustment — If Equipped ............. 118
▫ Power Seats — If Equipped ............. 118
▫ Heated Seats — If Equipped ............ 120
To Open And Close The Hood ............ 121
Lights ............................. 123
▫ Interior Lights ...................... 123
▫ Battery Saver ....................... 124
▫ Headlight Delay ..................... 124 ▫
Headlights, Parking Lights And
Panel Lights ........................ 125
▫ Daytime Running Lights — If Equipped .... 126
▫ Lights-On Reminder .................. 126
▫ Fog Lights — If Equipped .............. 126
▫ Multifunction Lever .................. 126
Windshield Wipers And Washers .......... 129
▫ Intermittent Wiper System .............. 129
▫ Windshield Washers .................. 130
Tilt Steering Column ................... 130
Driver Adjustable Pedals — If Equipped ..... 131
▫ Adjustment ........................ 132
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
