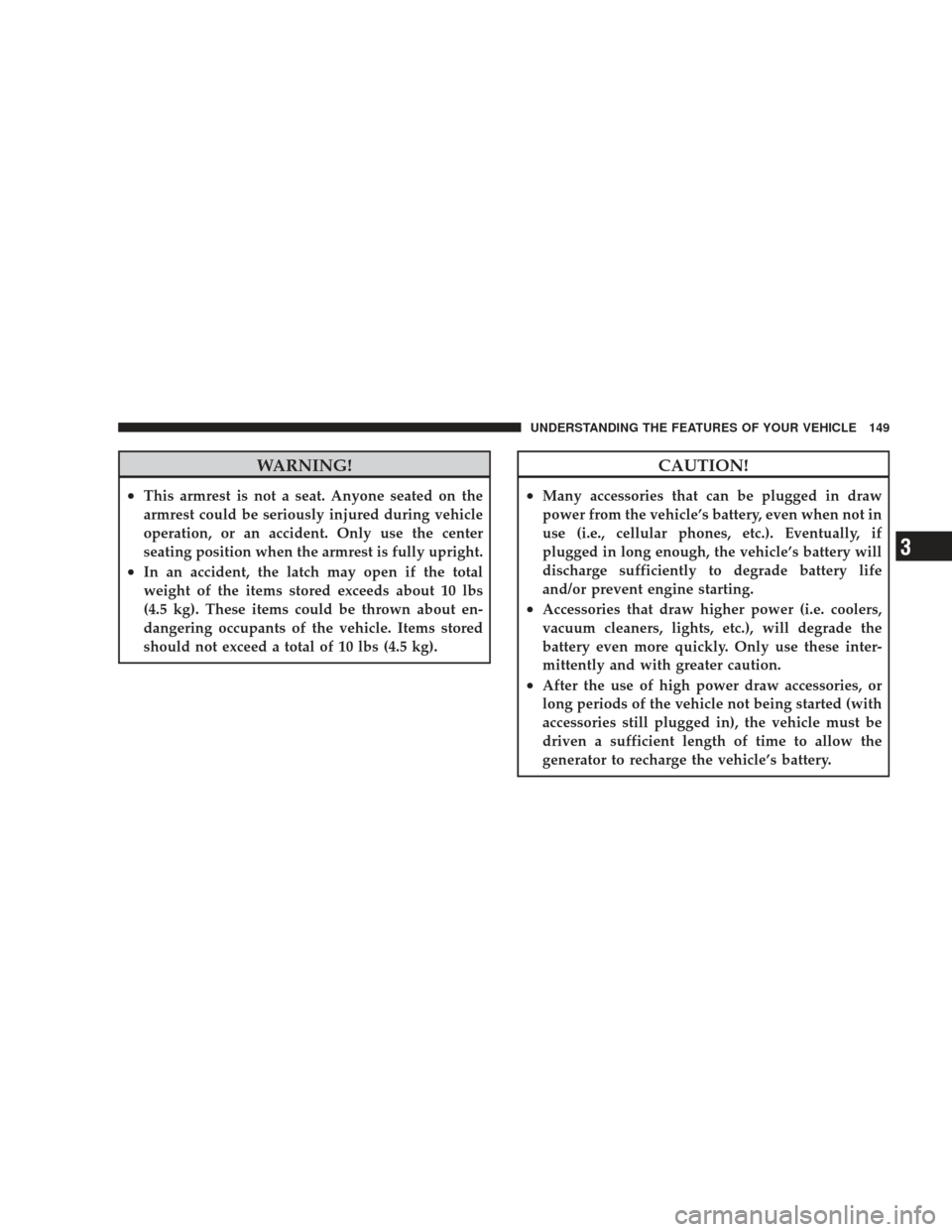

WARNING!
•This armrest is not a seat. Anyone seated on the
armrest could be seriously injured during vehicle
operation, or an accident. Only use the center
seating position when the armrest is fully upright.
•In an accident, the latch may open if the total
weight of the items stored exceeds about 10 lbs
(4.5 kg). These items could be thrown about en-
dangering occupants of the vehicle. Items stored
should not exceed a total of 10 lbs (4.5 kg).
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
•Accessories that draw higher power (i.e. coolers,
vacuum cleaners, lights, etc.), will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3

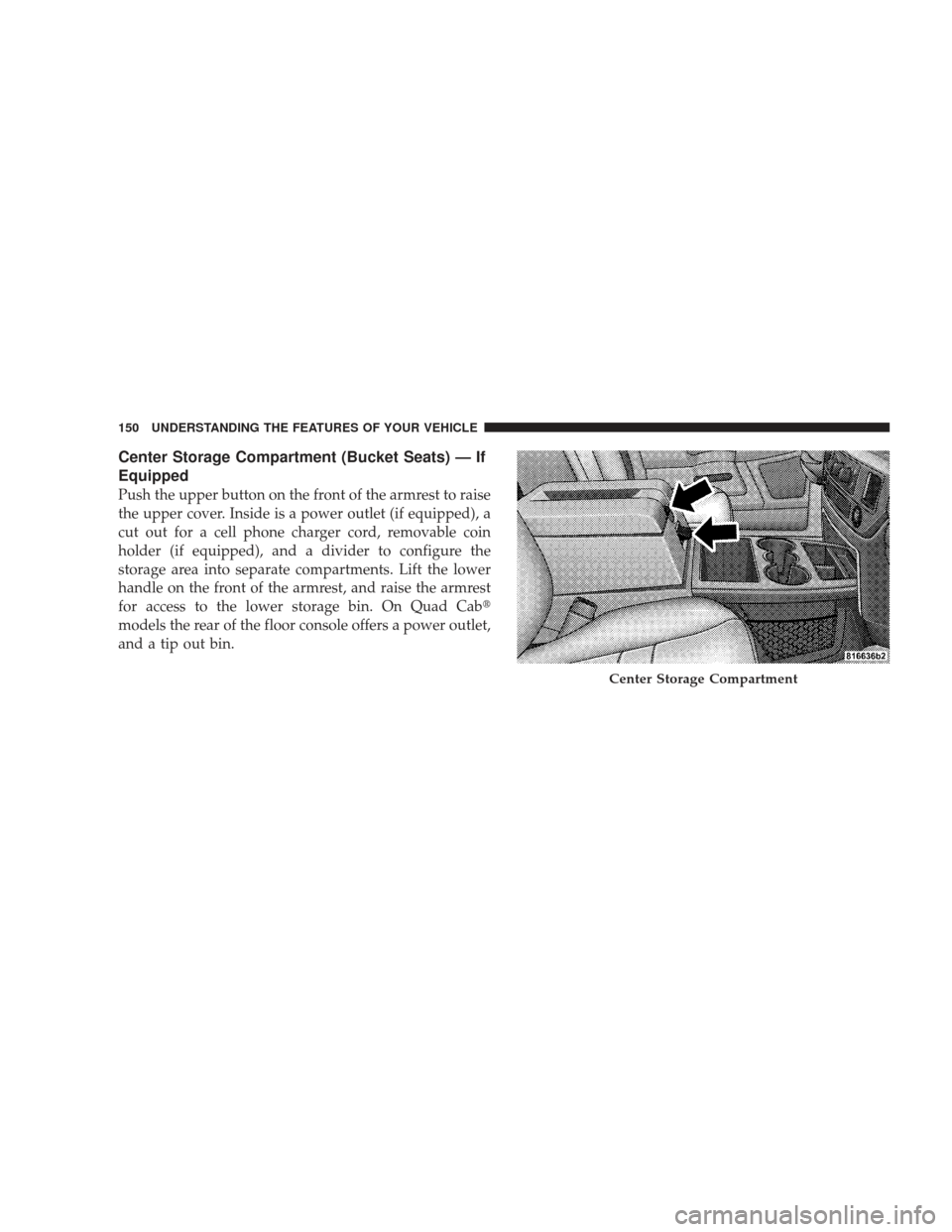

Center Storage Compartment (Bucket Seats) — If
Equipped
Push the upper button on the front of the armrest to raise
the upper cover. Inside is a power outlet (if equipped), a
cut out for a cell phone charger cord, removable coin
holder (if equipped), and a divider to configure the
storage area into separate compartments. Lift the lower
handle on the front of the armrest, and raise the armrest
for access to the lower storage bin. On Quad Cab
models the rear of the floor console offers a power outlet,
and a tip out bin.
Center Storage Compartment
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
•This armrest is not a seat. Anyone seated on the
armrest could be seriously injured during vehicle
operation, or an accident. Only use the center
seating position when the armrest is fully upright.
•In an accident, the latch may open if the total
weight of the items stored exceeds about 10 lbs
(4.5 kg). These items could be thrown about en-
dangering occupants of the vehicle. Items stored
should not exceed a total of 10 lbs (4.5 kg).
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
•Accessories that draw higher power (i.e. coolers,
vacuum cleaners, lights, etc.), will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

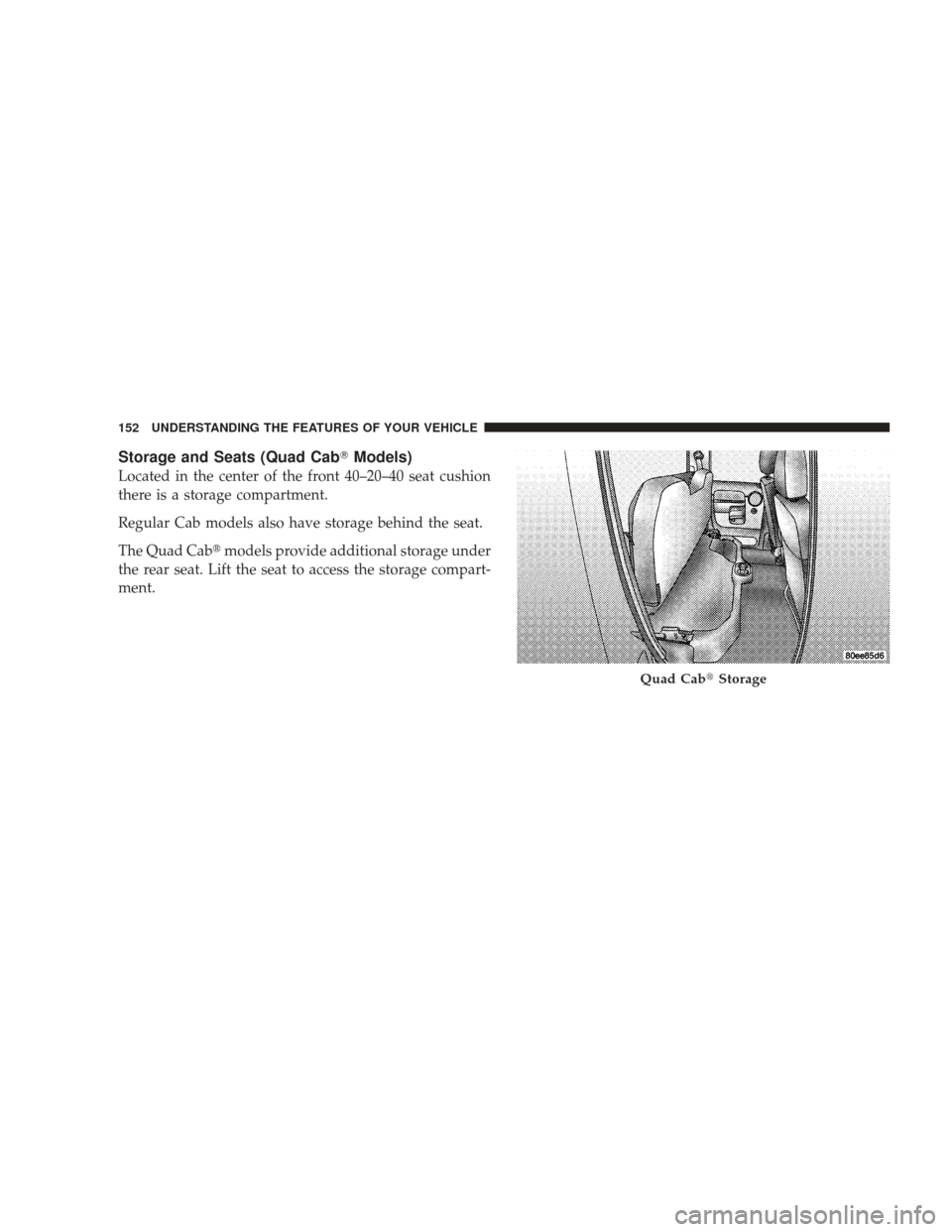

Storage and Seats (Quad CabModels)
Located in the center of the front 40–20–40 seat cushion
there is a storage compartment.
Regular Cab models also have storage behind the seat.
The Quad Cab models provide additional storage under
the rear seat. Lift the seat to access the storage compart-
ment.
Quad Cab Storage
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

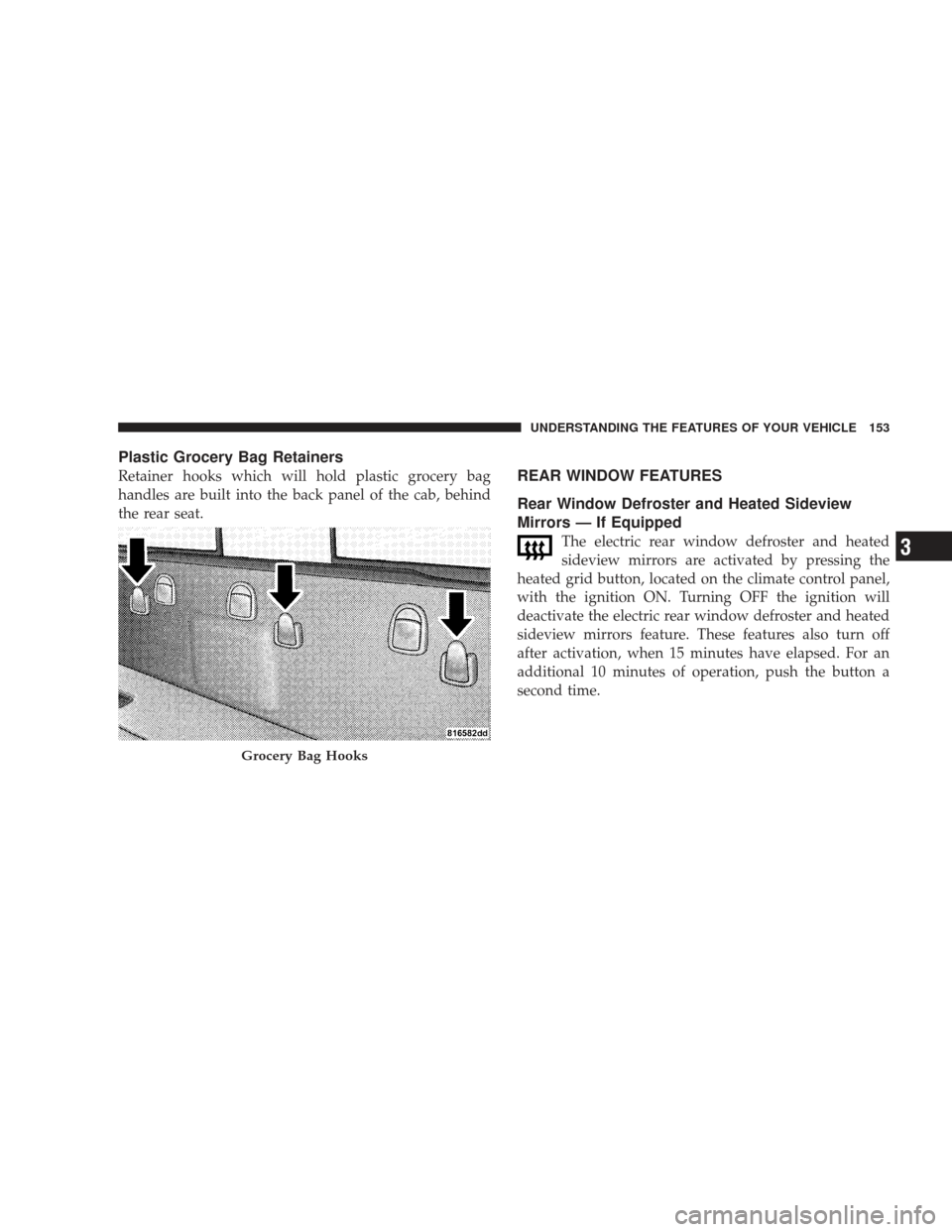

Plastic Grocery Bag Retainers
Retainer hooks which will hold plastic grocery bag
handles are built into the back panel of the cab, behind
the rear seat.REAR WINDOW FEATURES
Rear Window Defroster and Heated Sideview
Mirrors — If Equipped
The electric rear window defroster and heated
sideview mirrors are activated by pressing the
heated grid button, located on the climate control panel,
with the ignition ON. Turning OFF the ignition will
deactivate the electric rear window defroster and heated
sideview mirrors feature. These features also turn off
after activation, when 15 minutes have elapsed. For an
additional 10 minutes of operation, push the button a
second time.
Grocery Bag Hooks
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

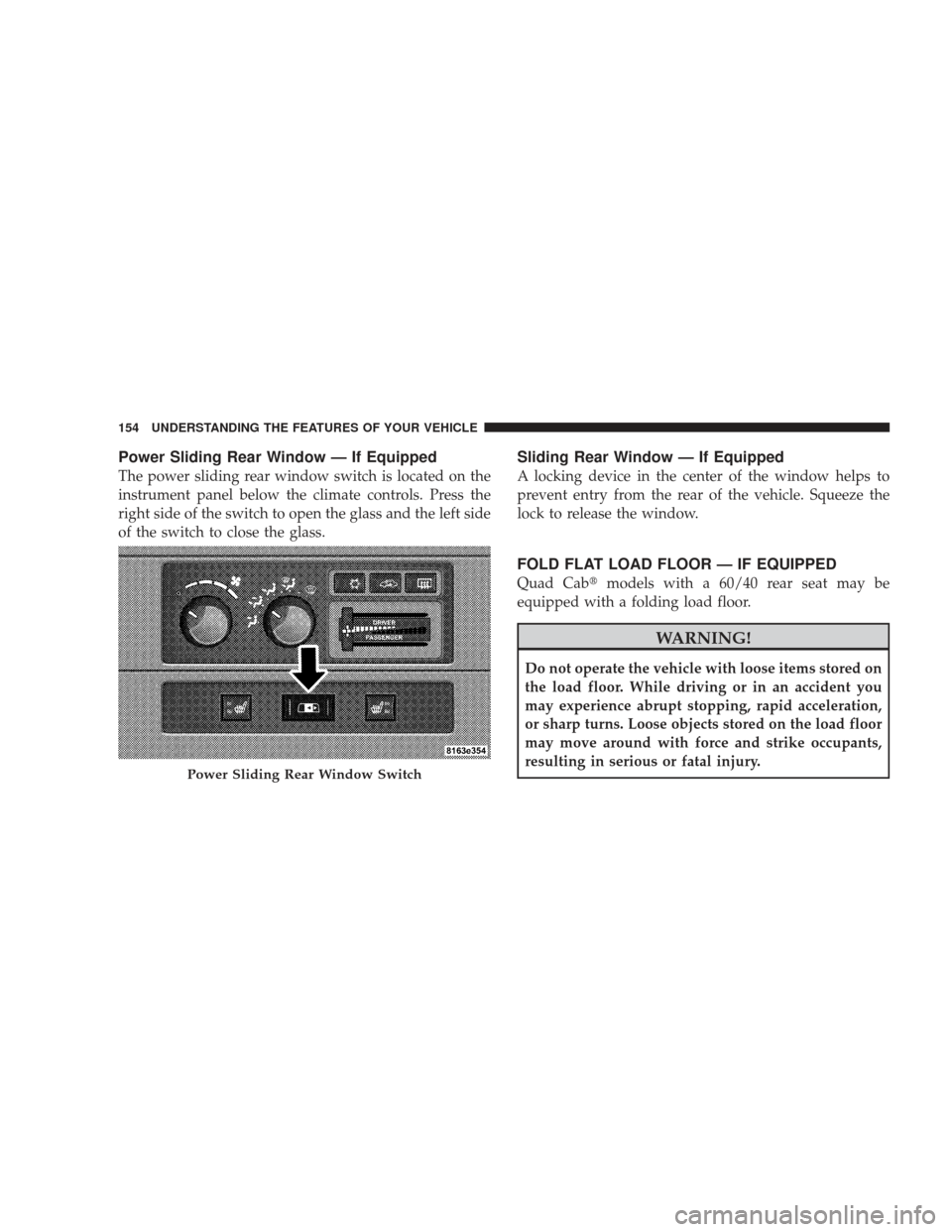

Power Sliding Rear Window — If Equipped
The power sliding rear window switch is located on the
instrument panel below the climate controls. Press the
right side of the switch to open the glass and the left side
of the switch to close the glass.
Sliding Rear Window — If Equipped
A locking device in the center of the window helps to
prevent entry from the rear of the vehicle. Squeeze the
lock to release the window.
FOLD FLAT LOAD FLOOR — IF EQUIPPED
Quad Cabmodels with a 60/40 rear seat may be
equipped with a folding load floor.
WARNING!
Do not operate the vehicle with loose items stored on
the load floor. While driving or in an accident you
may experience abrupt stopping, rapid acceleration,
or sharp turns. Loose objects stored on the load floor
may move around with force and strike occupants,
resulting in serious or fatal injury.
Power Sliding Rear Window Switch
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

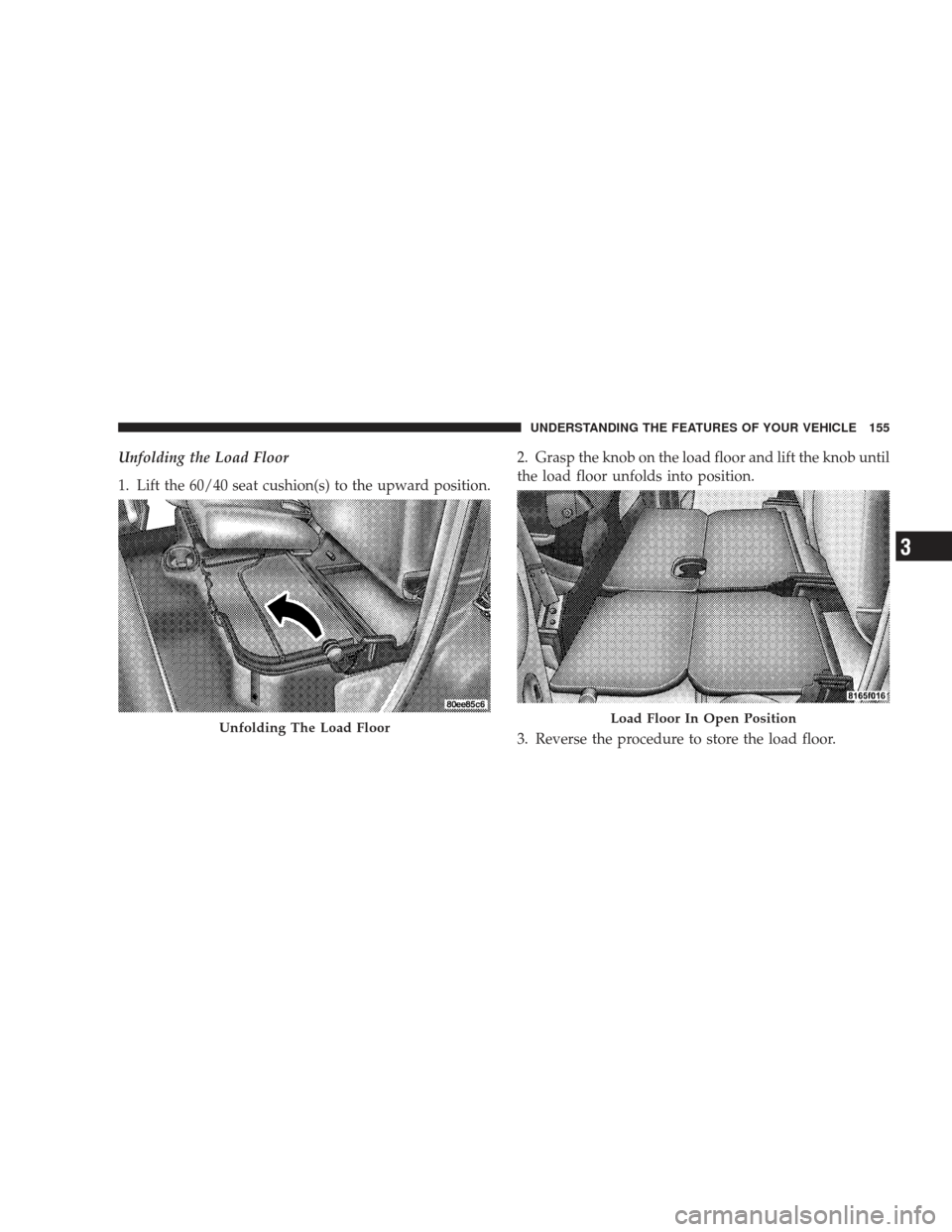

Unfolding the Load Floor
1. Lift the 60/40 seat cushion(s) to the upward position.2. Grasp the knob on the load floor and lift the knob until
the load floor unfolds into position.
3. Reverse the procedure to store the load floor.
Unfolding The Load FloorLoad Floor In Open Position
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
3

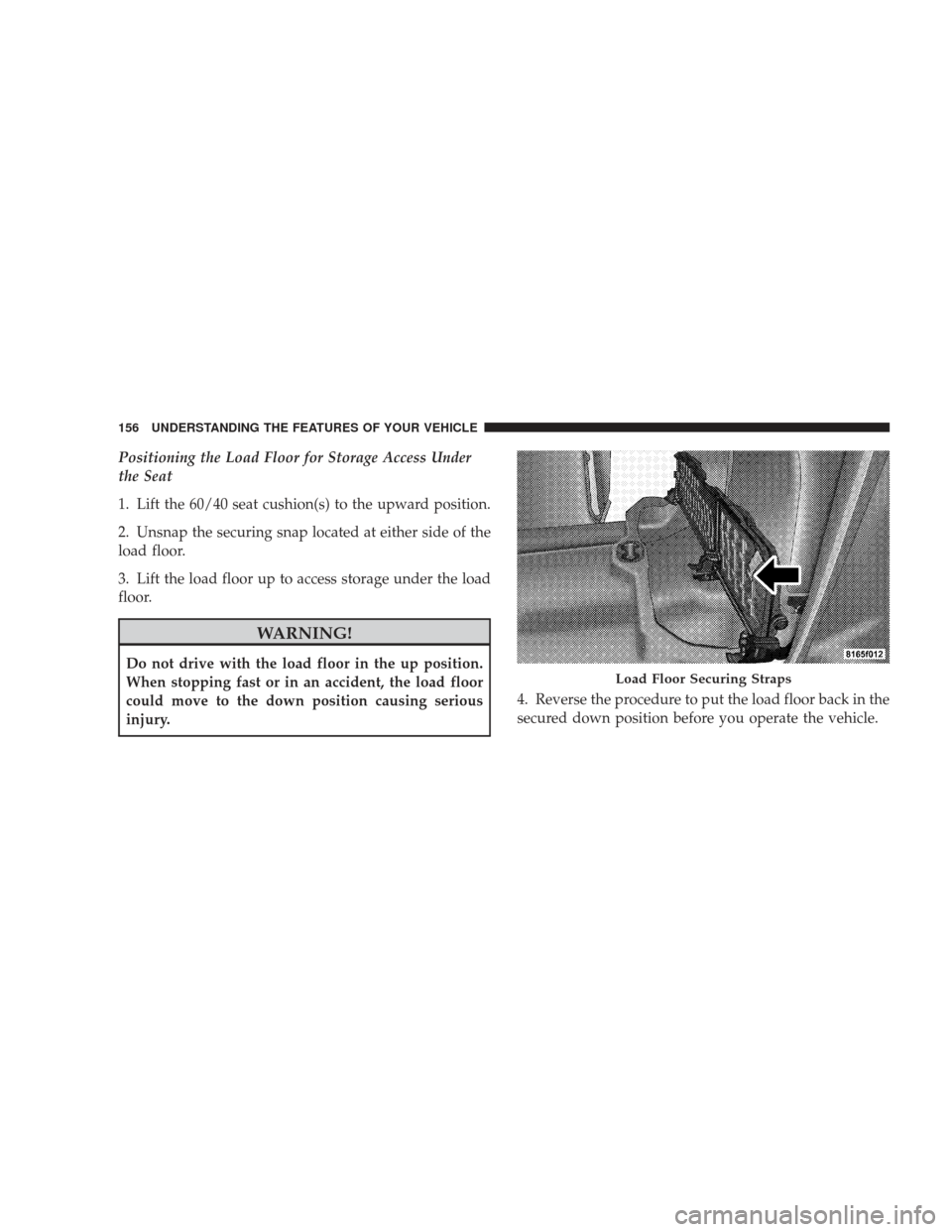

Positioning the Load Floor for Storage Access Under
the Seat
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Unsnap the securing snap located at either side of the
load floor.
3. Lift the load floor up to access storage under the load
floor.
WARNING!
Do not drive with the load floor in the up position.
When stopping fast or in an accident, the load floor
could move to the down position causing serious
injury.4. Reverse the procedure to put the load floor back in the
secured down position before you operate the vehicle.Load Floor Securing Straps
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

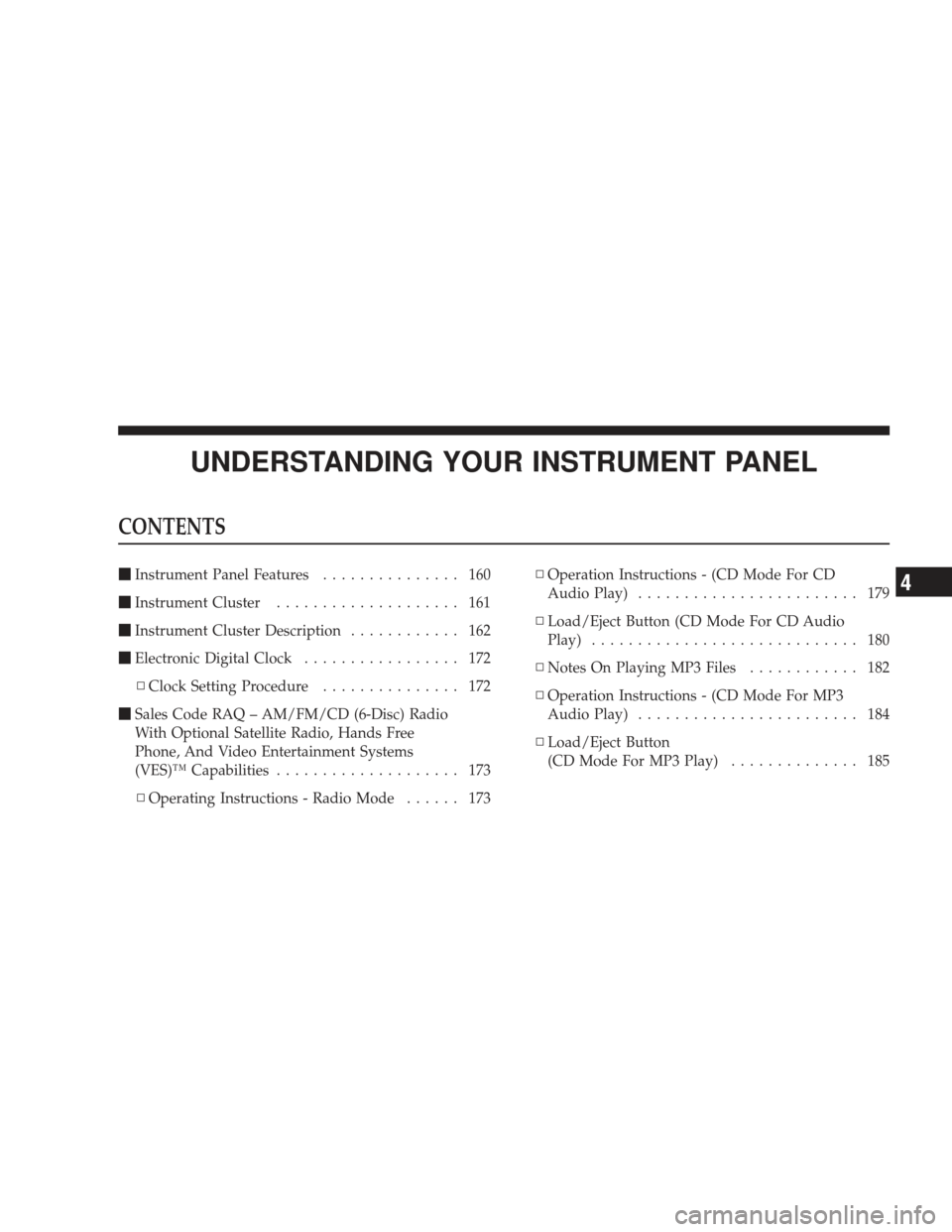

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 160
 Instrument Cluster .................... 161
 Instrument Cluster Description ............ 162
 Electronic Digital Clock ................. 172
▫ Clock Setting Procedure ............... 172
 Sales Code RAQ – AM/FM/CD (6-Disc) Radio
With Optional Satellite Radio, Hands Free
Phone, And Video Entertainment Systems
(VES)™ Capabilities .................... 173
▫ Operating Instructions - Radio Mode ...... 173▫
Operation Instructions - (CD Mode For CD
Audio Play) ........................ 179
▫ Load/Eject Button (CD Mode For CD Audio
Play) ............................. 180
▫ Notes On Playing MP3 Files ............ 182
▫ Operation Instructions - (CD Mode For MP3
Audio Play) ........................ 184
▫ Load/Eject Button
(CD Mode For MP3 Play) .............. 1854

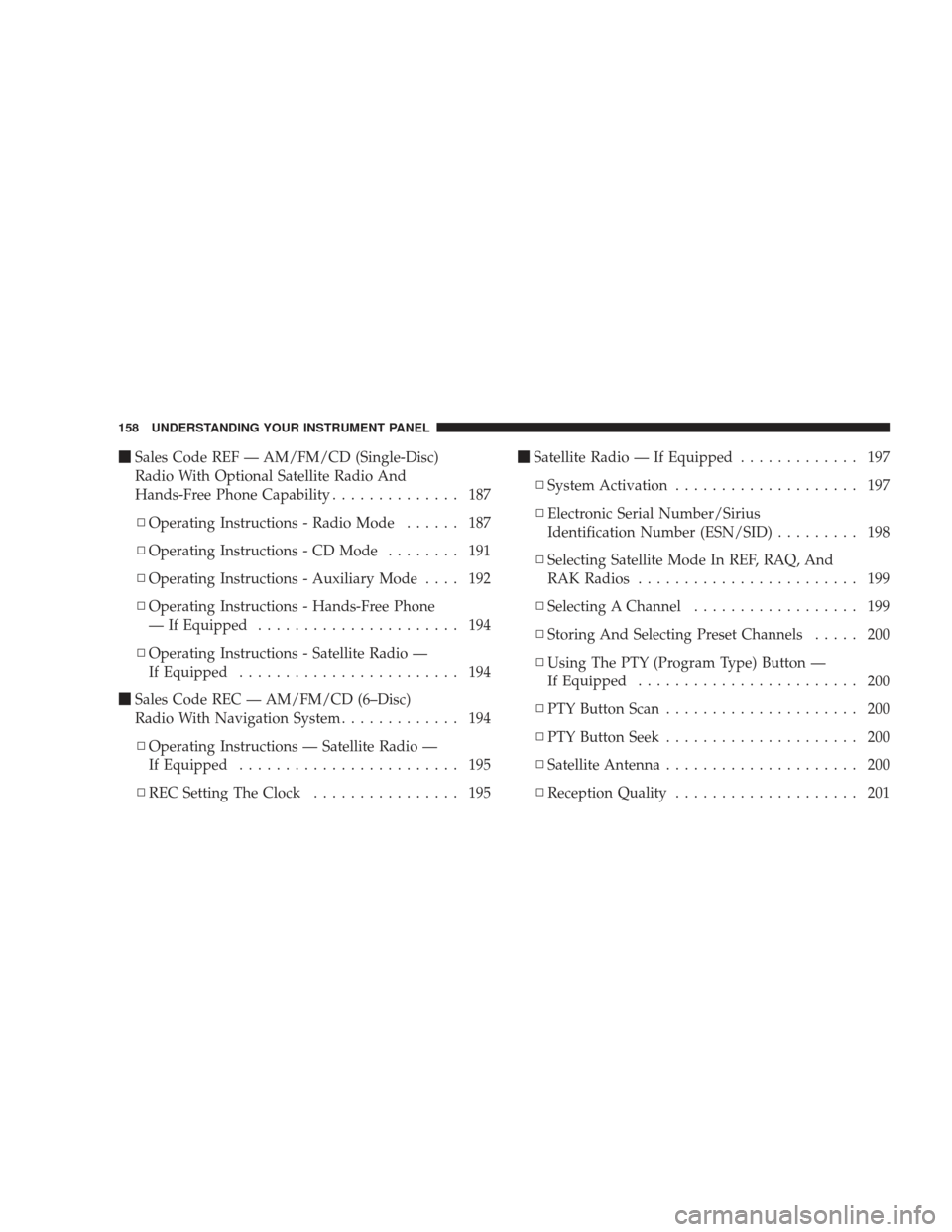

Sales Code REF — AM/FM/CD (Single-Disc)
Radio With Optional Satellite Radio And
Hands-Free Phone Capability .............. 187
▫ Operating Instructions - Radio Mode ...... 187
▫ Operating Instructions - CD Mode ........ 191
▫ Operating Instructions - Auxiliary Mode .... 192
▫ Operating Instructions - Hands-Free Phone
— If Equipped ...................... 194
▫ Operating Instructions - Satellite Radio —
If Equipped ........................ 194
 Sales Code REC — AM/FM/CD (6–Disc)
Radio With Navigation System ............. 194
▫ Operating Instructions — Satellite Radio —
If Equipped ........................ 195
▫ REC Setting The Clock ................ 195
Satellite Radio — If Equipped ............. 197
▫ System Activation .................... 197
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 198
▫ Selecting Satellite Mode In REF, RAQ, And
RAK Radios ........................ 199
▫ Selecting A Channel .................. 199
▫ Storing And Selecting Preset Channels ..... 200
▫ Using The PTY (Program Type) Button —
If Equipped ........................ 200
▫ PTY Button Scan ..................... 200
▫ PTY Button Seek ..................... 200
▫ Satellite Antenna ..................... 200
▫ Reception Quality .................... 201
