DODGE RAM SRT-10 2006 Service Repair Manual

Fig. 4 1500 QUAD CAB - 4 WHEEL DRIVE

Fig. 5 140.5 IN WHEELBASE - HEAVY DUTY - 2 WHEEL DRIVE

Fig. 6 140.5 IN WHEELBASE - HEAVY DUTY - 4 WHEEL DRIVE

Fig. 7 160.5 IN WHEELBASE - 2500 - 2 WHEEL DRIVE

Fig. 8 160.5 IN WHEELBASE - 2500 - 4 WHEEL DRIVE

Fig. 9 160.5 IN WHEELBASE - 3500 - 2 WHEEL DRIVE

Fig. 10 160.5 IN WHEELBASE - 3500 - 4 WHEEL DRIVE

TORQUE

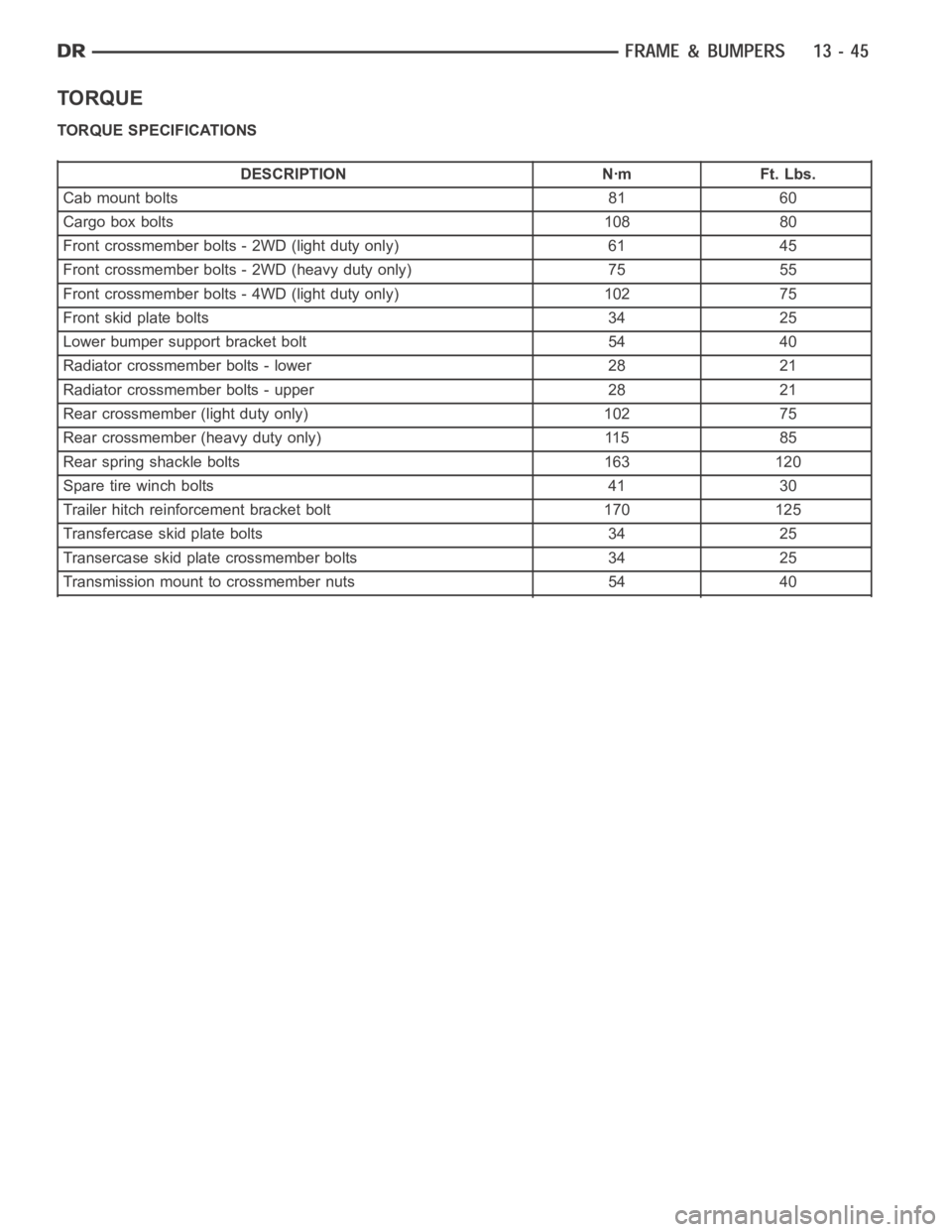

TORQUE SPECIFICATIONS
DESCRIPTION Nꞏm Ft. Lbs.
Cab mount bolts 81 60
Cargo box bolts 108 80
Front crossmember bolts - 2WD (light duty only) 61 45
Front crossmember bolts - 2WD (heavy duty only) 75 55
Front crossmember bolts - 4WD (light duty only) 102 75
Front skid plate bolts 34 25
Lower bumper support bracket bolt 54 40
Radiator crossmember bolts - lower 28 21
Radiator crossmember bolts - upper 28 21
Rear crossmember (light duty only) 102 75
Rear crossmember (heavy duty only) 115 85
Rear spring shackle bolts 163 120
Sparetirewinchbolts 41 30
Trailer hitch reinforcement bracket bolt 170 125
Transfercase skid plate bolts 34 25
Transercase skid plate crossmember bolts 34 25
Transmission mount to crossmember nuts 54 40

FRONT CROSSMEMBER
REMOVAL
1. Raise and support the vehicle (Refer to LUBRICA-
TION & MAINTENANCE/HOISTING - STANDARD
PROCEDURE).
2. Remove the front skid plate (2 - if equipped) (Refer
to 13 - FRAME & BUMPERS/FRAME/FRONT SKID
PLATE - REMOVAL).

3. On the 2WD models, remove the bolts (2) and
remove the crossmember (1).
CAUTION: Do not use any flame or plasma cutting
equipment to cut the frame in this procedure. This
is due to the inaccurate nature of the cut-line and
the fact that the high temperatures achieved dur-
ing flame or plasma cutting will change the metal
characteristics and may weaken the frame and/or
repair location.
4. On SRT-10 vehicles, remove the welds using a
grinder or equivalent.
5. On the 4WD models, remove the bolts (1) and
remove the crossmember (2).
