UNDERSTANDING YOUR INSTRUMENT PANEL
4
CONTENTS

Instruments and Controls . . . . . . . . . . . . . . . . . . . . 89


Instrument Cluster and Indicator Lamps . . . . . . . 91
Indicator Lamp Symbols . . . . . . . . . . . . . . . . . . . 93
Multi-Function Indicator . . . . . . . . . . . . . . . . . . . 94
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Odometer and Trip Meter . . . . . . . . . . . . . . . . . . 97
Instrument and Display Lighting . . . . . . . . . . . 97
Outside Temperature Display . . . . . . . . . . . . . . 98
Reversing Aid Distance Display (Optional) . . . 99
Tachometer (Engine rpm) . . . . . . . . . . . . . . . . . 101
Coolant Temperature Gauge . . . . . . . . . . . . . . 101
Fuel Gauge with Reserve Fuel Indicator
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Battery Charge Indicator Lamp . . . . . . . . . . . . 104
Water in Fuel Indicator Lamp . . . . . . . . . . . . . 104
Engine Oil Level Indicator Lamp . . . . . . . . . . . 105
Coolant Level Indicator Lamp . . . . . . . . . . . . . 106
Engine Control Unit Indicator Lamp . . . . . . . 107


Switch Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 108


ASSYST Maintenance Computer (Optional). . . . 110
Engine Oil Level – Display in Instrument
Cluster (Vehicles with ASSYST Maintenance
Computer only) . . . . . . . . . . . . . . . . . . . . . . . . . 112
Displaying Engine Oil Level with
Engine Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113


Engine Oil Level Indicator in Instrument
Cluster (Vehicles without ASSYST Maintenance
Computer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115


Heating, Ventilation . . . . . . . . . . . . . . . . . . . . . . . . 116
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Air Recirculation . . . . . . . . . . . . . . . . . . . . . . . . . 117
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
De-Fogging and De-Icing The Front
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Side Air Vents and Center Air Vents . . . . . . . . 120

92 UNDERSTANDING YOUR INSTRUMENT PANELLegend For Instrument Cluster And Indicator Lamps
1. Tachometer (Engine rpm), refer to "Tachometer (Engine rpm)".
2. Turn signal indicator lamp (left), refer to "Multifunction Switch".
3. Turn signal indicator lamp (right), refer to "Multifunction switch".
4. ASR warning lamp or ESP
* warning lamp .
5. Speedometer.
6. Multi-function indicator, refer to "Multi-Function Indicator".
7. Gear selector lever position .
8. Coolant temperature gauge, refer to "Coolant Temperature Gauge".
* 2500 Type vehicles only 9. Fuel gauge with reserve fuel indicator lamp
(yellow), refer to "Fuel Gauge with Reserve Fuel
Indicator Lamp".
10. Warning and indicator lamps.
11. Odometer/trip meter selector, refer to "Odometer and Trip Meter".
Clock/outside temperature display selector, refer
to "Clock and Outside Temperature Display".
12. Instrument lighting brighter/dimmer, refer to "Instrument Lighting".

UNDERSTANDING YOUR INSTRUMENT PANEL 95
4
The multi-function indicator can be used to call up the
odometer, trip meter, clock and outside temperature,
or information such as remaining time/distance until
the next service is due, or the engine oil level.
If your vehicle is equipped with reversing aid, the
multi-function indicator also displays the distance
between your vehicle and a detected obstacle.
The multi-function indicator is activated by:
Turning the key to position 2 in the ignition lock,
opening the driver’s door,
pressing one of the buttons ( ‘), I , ç or
æ ,
switching the side lights on, refer to "Combination
Switch". 1. Press the button (
‘) to switch between the
odometer and the trip meter, and to reset the trip
meter.
Press the button ( ‘) to activate the ASSYST
maintenance computer.
2. Press the I button to switch between the time
and outside temperature and to activate the time
adjustment.
3. Press the ç to adjust (dim) the display and
instrument lighting and to adjust the clock.
4. Press the æ to adjust (brighten) the display and
instrument lighting and to adjust the clock.

UNDERSTANDING YOUR INSTRUMENT PANEL 97
4
Odometer and Trip MeterActivate the multi-function indicator. The total
distance covered by the vehicle will be shown.

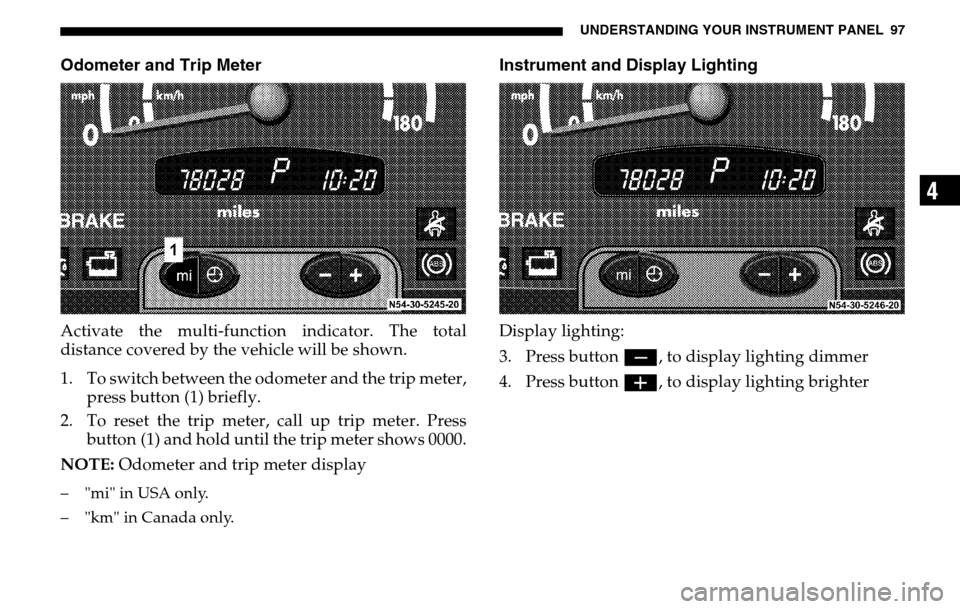

1. To switch between the odometer and the trip meter, press button (1) briefly.
2. To reset the trip meter, call up trip meter. Press
button (1) and hold until the trip meter shows 0000.
NOTE: Odometer and trip meter display– "mi" in USA only.
– "km" in Canada only.
Instrument and Display LightingDisplay lighting:
3. Press button ç, to display lighting dimmer
4. Press button æ, to display lighting brighter

284 INDEX
