service indicator DODGE SPRINTER 2005 1.G Owners Manual
[x] Cancel search | Manufacturer: DODGE, Model Year: 2005, Model line: SPRINTER, Model: DODGE SPRINTER 2005 1.GPages: 288, PDF Size: 27.89 MB
Page 95 of 288
UNDERSTANDING YOUR INSTRUMENT PANEL 95
4
The multi-function indicator can be used to call up the
odometer, trip meter, clock and outside temperature,
or information such as remaining time/distance until
the next service is due, or the engine oil level.
If your vehicle is equipped with reversing aid, the
multi-function indicator also displays the distance
between your vehicle and a detected obstacle.

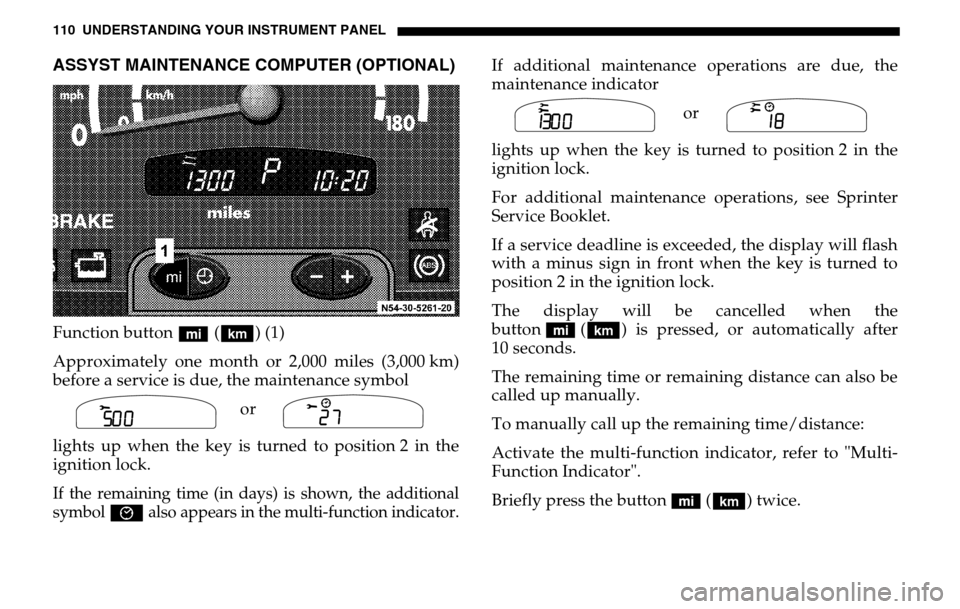

The multi-function indicator is activated by:
Turning the key to position 2 in the ignition lock,
opening the driver’s door,
pressing one of the buttons ( ‘), I , ç or
æ ,
switching the side lights on, refer to "Combination
Switch". 1. Press the button (
‘) to switch between the
odometer and the trip meter, and to reset the trip
meter.
Press the button ( ‘) to activate the ASSYST
maintenance computer.
2. Press the I button to switch between the time
and outside temperature and to activate the time
adjustment.
3. Press the ç to adjust (dim) the display and
instrument lighting and to adjust the clock.
4. Press the æ to adjust (brighten) the display and
instrument lighting and to adjust the clock.
Page 110 of 288
110 UNDERSTANDING YOUR INSTRUMENT PANELASSYST MAINTENANCE COMPUTER (OPTIONAL)Function button (‘) (1)
Approximately one month or 2,000 miles (3,000 km)
before a service is due, the maintenance symbol or
lights up when the key is turned to position 2 in the
ignition lock.If the remaining time (in days) is shown, the additional
symbol
È
also appears in the multi-function indicator.
If additional maintenance operations are due, the
maintenance indicator or
lights up when the key is turned to position 2 in the
ignition lock.
For additional maintenance operations, see Sprinter
Service Booklet.
If a service deadline is exceeded, the display will flash
with a minus sign in front when the key is turned to
position 2 in the ignition lock.
The display will be cancelled when the
button ( ‘) is pressed, or automatically after
10 seconds.
The remaining time or remaining distance can also be
called up manually.
To manually call up the remaining time/distance:
Activate the multi-function indicator, refer to "Multi-
Function Indicator".
Briefly press the button ( ‘) twice.
Symb
N00.00-2387-00
Symb
N00.00-2156-00
Symb
N00.00-2388-00
Symb
N00.00-2157-00
Page 111 of 288
UNDERSTANDING YOUR INSTRUMENT PANEL 111
4
Depending on the driving style, the mileage covered
and the operating conditions, the next service due is
displayed either as a remaining distance in "mi"
(in km) or as a remaining time in "days". The length of
time between services should not exceed 2 years.
The display will be cancelled when the
button ( ‘) is pressed, or automatically after
10 seconds.
When a service has been performed, have the ASSYST
maintenance computer reset by an authorized Sprinter
Dealer.
Should your Sprinter for any reason not be serviced by
an authorized Sprinter Dealer, the ASSYST
maintenance computer can, in exceptional
circumstances, be reset as follows:
Turn the key to position 2 in the ignition lock and
immediately press the button ( ‘) twice.
Within 10 seconds, return the key to position 0 in the
ignition lock.
Press and hold the button ( ‘). Turn the key to
position 2 in the ignition lock. Keep the
button ( ‘) pressed. The maintenance indicator with the current remaining
time/distance is shown.
After about 10 seconds, an acoustic signal will sound
and the maintenance indicator is displayed with the
new remaining time/distance.
Release the button (
‘).
NOTE:
The ASSYST maintenance computer provides
information on the optimum maintenance requirements.
If maintenance intervals are not observed, resulting
damage will not be covered by Warranty.
The ASSYST maintenance computer is not an engine
oil gauge.
Engine oil level – for display in instrument cluster, see
next page.
If the engine oil level indicator lamp lights up, refer to
"Engine Oil Level Indicator Lamp".
If the battery is disconnected, the time is not recorded
by the ASSYST maintenance computer. Such periods
must be considered if maintenance intervals are
measured by time.
Page 139 of 288
STARTING AND OPERATING
5
CONTENTS
Power Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . . . . 141Maximum Engine Speed . . . . . . . . . . . . . . . . . . 142Constant RPMs (Optional) . . . . . . . . . . . . . . . . 143
Stopping the Engine . . . . . . . . . . . . . . . . . . . . . . . . 144
Automatic Transmission . . . . . . . . . . . . . . . . . . . . 145Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145Accelerator Position . . . . . . . . . . . . . . . . . . . . . . 146Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146Maneuvering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146Gear Selector Lever Position . . . . . . . . . . . . . . . 147Gear Selection for Special Circumstances . . . . 148
Transmission Selector Lever, Manually
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150Reversing Aid (Optional) . . . . . . . . . . . . . . . . . 150
Loading the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 153Loading Guidelines . . . . . . . . . . . . . . . . . . . . . . 154
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155Service Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155Brake Pad Wear Indicator . . . . . . . . . . . . . . . . . 156Brake Indicator and Electronic Brake Force
Distribution (EBD) Indicator Lamp . . . . . . . . . 157Parking Brake Indicator Lamp . . . . . . . . . . . . . 158Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . 159Driving Safety Systems . . . . . . . . . . . . . . . . . . . 160Anti-Lock Brake System (ABS) Indicator
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161Anti-Lock Brake System (ABS) . . . . . . . . . . . . . 162Electronic Brake Force Distribution (EBD) . . . 164Acceleration Skid Control Indicator Lamp
(ASR) and Brake Assist System (BAS)
1
if equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Acceleration Skid Control (ASR) Warning
Lamp and Electronic Stability Program
(ESP)
1 – if equipped . . . . . . . . . . . . . . . . . . . . . 166
Acceleration Skid Control (ASR) . . . . . . . . . . . 167
Page 213 of 288
MAINTAINING YOUR VEHICLE
7
CONTENTS
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . . 215
Sprinter Original Parts . . . . . . . . . . . . . . . . . . . . . . 217
Service Products . . . . . . . . . . . . . . . . . . . . . . . . . . . 217Disposal of Service Products . . . . . . . . . . . . . . 218
Emission Related Component Warranty
Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Regular Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218Windshield Washer System Fluid Reservoir . 219Air Filter Restriction Indicator (Optional) . . . 219Engine Oils . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220Engine Oil Level . . . . . . . . . . . . . . . . . . . . . . . . 221Ribbed V-Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . 222Hydraulic Brake System, Clutch
Mechanism Fluid Level . . . . . . . . . . . . . . . . . . . 222Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223Engine Cooling System . . . . . . . . . . . . . . . . . . . 223
Engine Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 223Checking Coolant Level . . . . . . . . . . . . . . . . . . 224
Winter Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227Disconnecting the Battery . . . . . . . . . . . . . . . . . 227Reconnecting the Battery . . . . . . . . . . . . . . . . . . 228Charging the Battery . . . . . . . . . . . . . . . . . . . . . 228
Replacing Wiper Blades . . . . . . . . . . . . . . . . . . . . . 230Appearance Care and Corrosion Protection . 231Power Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . 232Automatic Car Wash . . . . . . . . . . . . . . . . . . . . . 233Tar Stains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233Paintwork, Painted Body Components . . . . . . 233Engine Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 233Vehicle Washing . . . . . . . . . . . . . . . . . . . . . . . . . 234Ornamental Moldings . . . . . . . . . . . . . . . . . . . . 234
Page 218 of 288
218 MAINTAINING YOUR VEHICLEDisposal of Service ProductsDispose of service products and of parts which come
into contact with them (e.g. filters) in an
environmentally responsible manner. Comply with
applicable bars and regulations.EMISSION RELATED COMPONENT WARRANTY
STATEMENTThe Manufacturer warrants to the original and each
subsequent owner of a Sprinter heavy-duty on
highway diesel engine that:
(1) the engine was designed, built and equipped so as
to conform at the time of sale with the applicable
regulations adopted by the Federal Environmental
Protection Agency, and
(2) the emission control system of such engine is free
from defects in materials and workmanship which
would cause it not to conform with those regulations
for a period of use of five years or 100 000 miles or
3 000 hours of engine operation, whichever occurs
first.
REGULAR CHECKSThe following checks should be performed at regular
intervals (for example once a week or each time the
vehicle is refueled):
Windshield cleaner system – fluid reservoir.
Air strainer, in vehicles with an air strainer element maintenance indicator (optional equipment).
Engine oil level.
Checking ribbed V-belt.
Hydraulic brake system, clutch mechanism fluid level.
Coolant level.
Tire and spare wheel condition and pressures of the same. For more information, refer to "Wheels and
Tires".
Vehicle lighting.
Page 266 of 288
266 MAINTENANCE SCHEDULES
M A I
N T
E
N A
N
C E
S
C
H
E
D
U L
E
S8
MAINTENANCE - WITH ASSYST MAINTENANCE
COMPUTERASSYST provides you with information on the best
possible timing for maintenance work.
When the next maintenance service is due, this will be
indicated in the multi-function display with the
symbol
9 Oil service and fuel filter replacement
9 Maintenance service - displayed in km/miles
or days.
9
If the display shows the number of days, the symbol
È will also appear in the multi-function display.
You should have the maintenance performed within
the stated period/distance.
The service indicator will be reset by your Sprinter
Dealer after an oil service and/or maintenance service
has been performed.
REGULAR CHECK-UPSTo maintain the safe operation of your vehicle, it is
recommended that you perform the following tasks on
a regular basis (i.e., weekly or whenever the vehicle is
refueled). Check:
Engine oil level
Brake system, clutch mechanism – fluid level
Battery – acid level
Windshield washer system and headlamp cleaning
system – fluid level
Mechanical assemblies (e. g. ,engine, transmission, etc.) – check for leaks
Condition of tires and tire pressures
All exterior lights
Page 268 of 288
268 MAINTENANCE SCHEDULES
M A I
N T
E
N A
N
C E
S
C
H
E
D
U L
E
S8
SCOPE OF WORK FOR MAINTENANCE SERVICE
Oil ServiceOil change
Engine:
Oil change and filter replacement
Check fluid levels of the following system, refill as
necessary.
If fluid is lost, trace and eliminate cause – as a separate
order.
Power-assisted steering
Lubrication work:
Trailer tow hitch (original equipment)
Maintenance
ASSYST maintenance computer reset Function check
Signalling system,
warning and indicator lamps
Headlamps, exterior lighting
Windscreen wipers,
windscreen washer system
Check for leaks and damage.
Check for abrasion points and ensure that
lines are correctly routed!
All assemblies:
Engine, transmission, transfer case, front axle, rear
axle, steering, power steering pump
All lines and hoses, sensor cables
Rubber boots on front axle drive shafts,
rubber boots on front axle suspension ball joints, shock
absorbers
Page 270 of 288
270 MAINTENANCE SCHEDULES
M A I
N T
E
N A
N
C E
S
C
H
E
D
U L
E
S8
Additional Maintenance WorkAutomatic transmission once only at 80,000 miles/
128000km
Oil and filter change
During every second maintenance service
Air cleaner without maintenance indicator:
Air cleaner filter element renewal
Check poly-V-belt for wear and signs of damage
During every sixth maintenance service
Rear axle
Additional Maintenance Work After ... YearsEvery 2 years
Change brake fluid
Every 3 years
Air cleaner filter element renewal
(note installation date
)
Every 15 years or 100,000 miles
Coolant renewal
Note coolant composition
Page 278 of 288
278 INDEXASSYST Maintenance Computer . . . . . . . . . . . . . . . 110
Automatic Lock Feature . . . . . . . . . . . . . . . . . . . . . . . . 19
Automatic Transmission . . . . . . . . . . . . . . . . . . . . . . 145Accelerator Position . . . . . . . . . . . . . . . . . . . . . . . . 146
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Gear Selector Lever Position . . . . . . . . . . . . . . . . . 147
Maneuvering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Selector Lever Manually Unlocking. . . . . . . . . . . 150
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Auxiliary Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Auxiliary Heat Exchanger . . . . . . . . . . . . . . . . . . . . . 137
Auxiliary Heater Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Timer Auxiliary Heater (Water and Air Heater) 132
Tips for Coping with Problems . . . . . . . . . . . . . . 138BBatteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . 228
Disconnecting the Battery . . . . . . . . . . . . . . . . . . . 227
Reconnecting the Battery . . . . . . . . . . . . . . . . . . . . 228
Replacing Batteries in Remote Keyless Entry . . . . 22
Battery Charge Indicator Lamp . . . . . . . . . . . . . . . . . 104 Belt Tensioners
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Belt Tensioners and Airbag . . . . . . . . . . . . . . . . . . . . . 49
Bleeding the Diesel Fuel System . . . . . . . . . . . . . . . . 185
Body Builder Guideline . . . . . . . . . . . . . . . . . . . . . . . 193
Brake Assist System (BAS) . . . . . . . . . . . . . . . . . . . . . 169
Brake fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Brake Fluid Reservoir . . . . . . . . . . . . . . . . . . . . . . . . . 222
Brake Indicator Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 157
Brake Pad Wear Indicator. . . . . . . . . . . . . . . . . . . . . . 156
Brake System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Fluid Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Brake System, Anti-Lock . . . . . . . . . . . . . . . . . . . . . . 162
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Service Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Bulbs Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Front Lamp Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
CCapacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Care of Vehicle
