98 UNDERSTANDING YOUR INSTRUMENT PANEL
Clock
Activate the multi-function indicator, refer to "Multi-
Function Indicator".
Button I – to reverse the time adjustment/
switch between hours and minutes (1)
Button ç – to turn the time back (2)
Button æ – to advance the time (3)To switch between Time and Outside Temperature
Display (Optional)
Press the I button briefly.
If button I is pressed twice within one second, the
display will revert to the original mode after
20 seconds.
To Adjust the Time
Call up time display:
1. Press button I and hold – the hours display will
flash.
To change the time by one hour = briefly press
button æ or ç.
To change the time by several hours = press and
hold button æ or ç.
2. Briefly press button I – the minutes display will
flash.
To change the time by one minute = briefly press
button æ or ç.
To change the time by several minutes = press and
hold button æ or ç.
3. Briefly press button I – the set time is accepted.

UNDERSTANDING YOUR INSTRUMENT PANEL 99
4

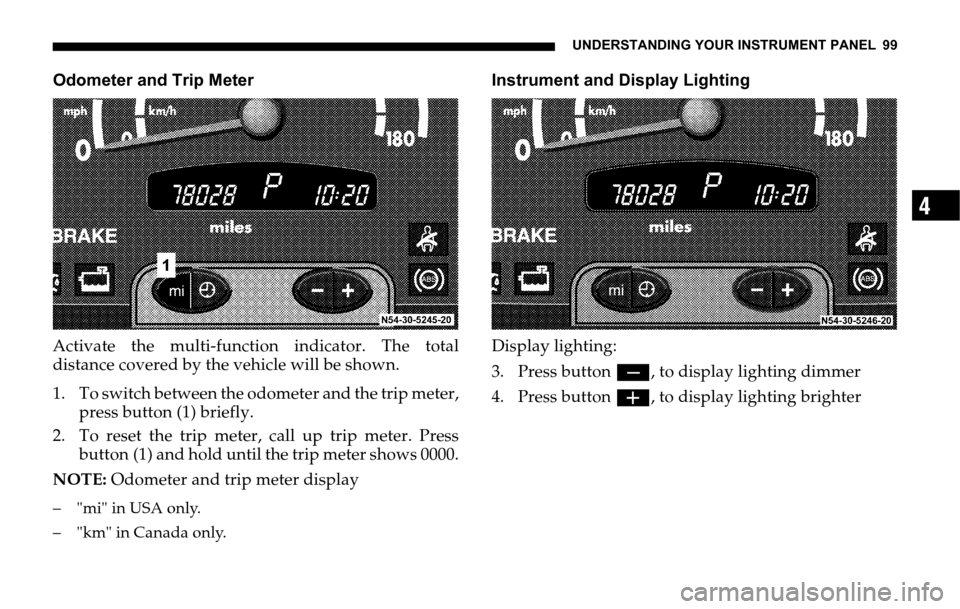

Odometer and Trip Meter
Activate the multi-function indicator. The total
distance covered by the vehicle will be shown.
1. To switch between the odometer and the trip meter,
press button (1) briefly.
2. To reset the trip meter, call up trip meter. Press
button (1) and hold until the trip meter shows 0000.
NOTE: Odometer and trip meter display
– "mi" in USA only.
– "km" in Canada only.
Instrument and Display Lighting
Display lighting:
3. Press button ç, to display lighting dimmer
4. Press button æ, to display lighting brighter

100 UNDERSTANDING YOUR INSTRUMENT PANEL
Instrument and display lighting:
1. Switch on the marker lamps, refer to "Combination
Switch"
2. Press button ç, to make instrument and display
lighting dimmer
3. Press button æ, to make instrument display

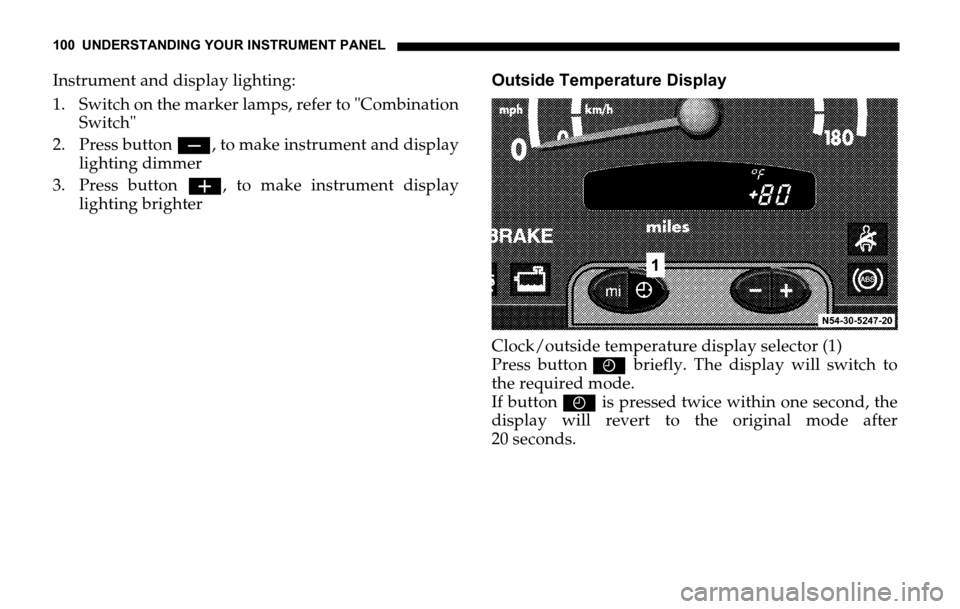

lighting brighterOutside Temperature Display
Clock/outside temperature display selector (1)
Press buttonI briefly. The display will switch to
the required mode.
If buttonI is pressed twice within one second, the
display will revert to the original mode after
20 seconds.

UNDERSTANDING YOUR INSTRUMENT PANEL 101
4
The outside temperature is displayed when the multi-
function indicator is activated. Sudden changes in
temperature, for instance when leaving a garage, are
only shown after a certain delay.
NOTE: Outside temperature display
°F in USA only.
°C in Canada only.

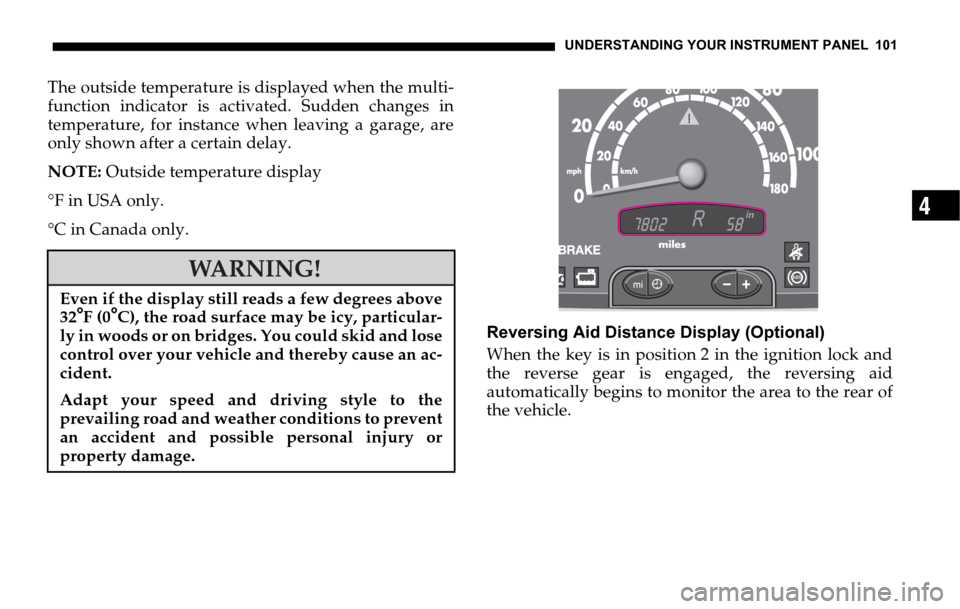

Reversing Aid Distance Display (Optional)
When the key is in position 2 in the ignition lock and
the reverse gear is engaged, the reversing aid
automatically begins to monitor the area to the rear of
the vehicle.
WARNING!
Even if the display still reads a few degrees above
32
°F (0°C), the road surface may be icy, particular-
ly in woods or on bridges. You could skid and lose
control over your vehicle and thereby cause an ac-
cident.
Adapt your speed and driving style to the
prevailing road and weather conditions to prevent
an accident and possible personal injury or
property damage.
in

102 UNDERSTANDING YOUR INSTRUMENT PANEL
The following display appears if the reversing aid does
not detect an obstacle.
NOTE: Distance display
 "in" in USA only.
 "cm" in Canada only.
The distance between the sensors and an obstacle
detected within the monitoring range is displayed in
increments of 2 in (5 cm).
If the distance is less than 40 in (100 cm), a warning
signal also sounds, which is repeated increasingly
frequently as the vehicle approaches the obstacle.
A continuous warning signal sounds if the distance
undershoots 20 in (50 cm).
When a continuous warning signal sounds for
approximately three seconds and the error code
appears in the multi-function indicator, the reversing
aid is malfunctioning.
Maneuver with particular care, if interference from an
external source of ultrasonic waves (compressed-air
brakes of trucks, a car wash or a pneumatic drill) is
causing the reversing aid to malfunction.
Dirty reversing aid sensors or malfunctioning backup
lamps could also cause the reversing aid to
malfunction. Clean the reversing aid sensors and check
the backup lamps.
Otherwise have the malfunction traced and rectified by
an authorized Sprinter Dealer.

UNDERSTANDING YOUR INSTRUMENT PANEL 103
4

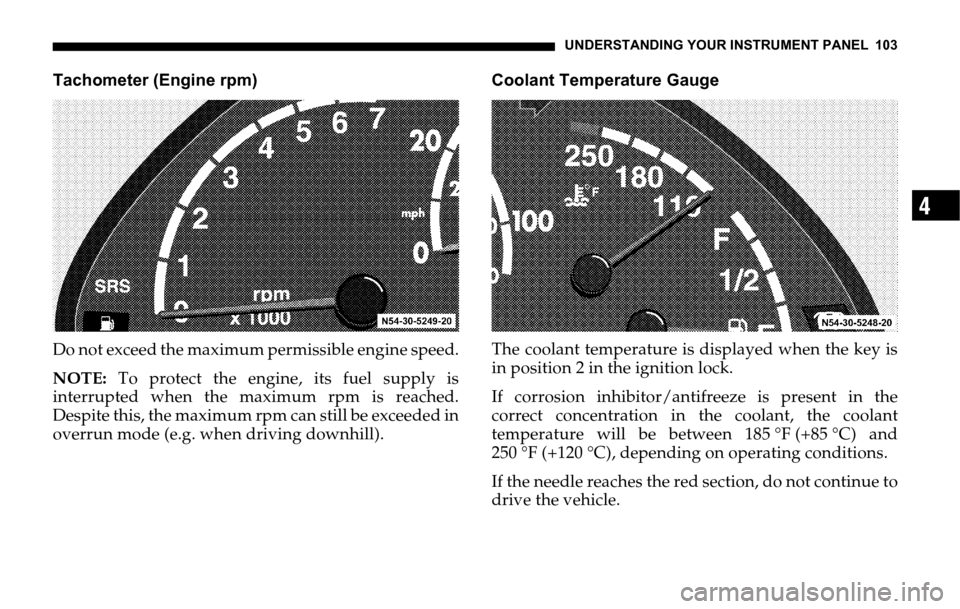

Tachometer (Engine rpm)
Do not exceed the maximum permissible engine speed.
NOTE: To protect the engine, its fuel supply is
interrupted when the maximum rpm is reached.
Despite this, the maximum rpm can still be exceeded in
overrun mode (e.g. when driving downhill).Coolant Temperature Gauge
The coolant temperature is displayed when the key is
in position 2 in the ignition lock.
If corrosion inhibitor/antifreeze is present in the
correct concentration in the coolant, the coolant
temperature will be between 185 °F (+85 °C) and
250 °F (+120 °C), depending on operating conditions.
If the needle reaches the red section, do not continue to
drive the vehicle.

104 UNDERSTANDING YOUR INSTRUMENT PANEL
For coolant level indicator lamp /, refer to "Coolant
Level Indicator Lamp".
NOTE: Coolant temperature display
°F in USA only.
°C in Canada only.
CAUTION!
Do not leave your vehicle unattended with the
engine running as you would not be able to react to
the temperature indicator if the engine overheats.
This would lead in turn to engine damage.
WARNING!
Driving when your engine is badly overheated
can cause some fluids which may have leaked into
the engine compartment to catch fire. You could
be seriously burned. Steam from an overheated
engine can cause serious burns and can occur just
by opening the engine hood. Stay away from the
engine if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle and do
not stand near the vehicle until it cools down.

UNDERSTANDING YOUR INSTRUMENT PANEL 105
4

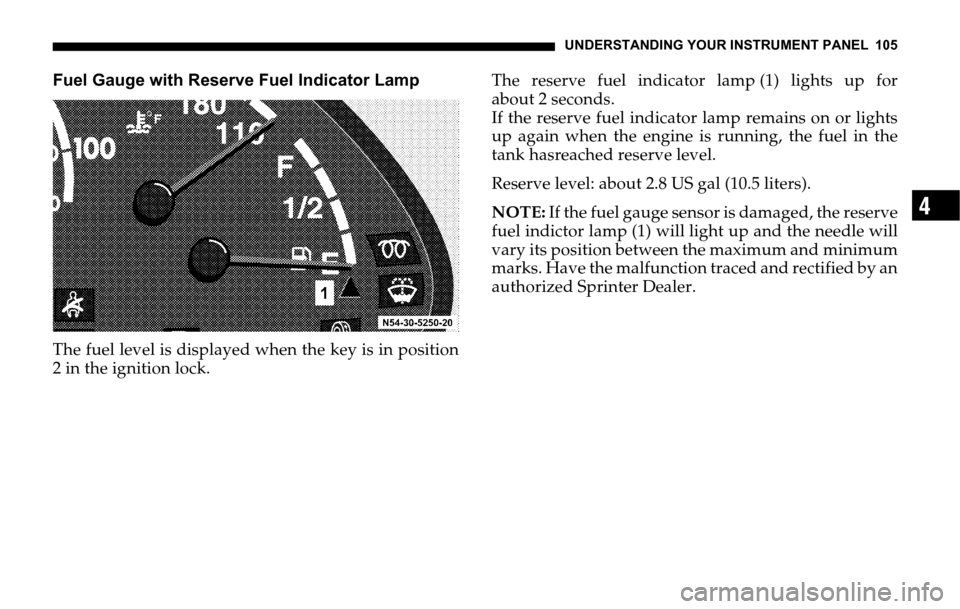

Fuel Gauge with Reserve Fuel Indicator Lamp
The fuel level is displayed when the key is in position
2 in the ignition lock.The reserve fuel indicator lamp (1) lights up for
about 2 seconds.
If the reserve fuel indicator lamp remains on or lights
up again when the engine is running, the fuel in the
tank hasreached reserve level.
Reserve level: about 2.8 US gal (10.5 liters).
NOTE: If the fuel gauge sensor is damaged, the reserve
fuel indictor lamp (1) will light up and the needle will
vary its position between the maximum and minimum
marks. Have the malfunction traced and rectified by an
authorized Sprinter Dealer.

112 UNDERSTANDING YOUR INSTRUMENT PANEL

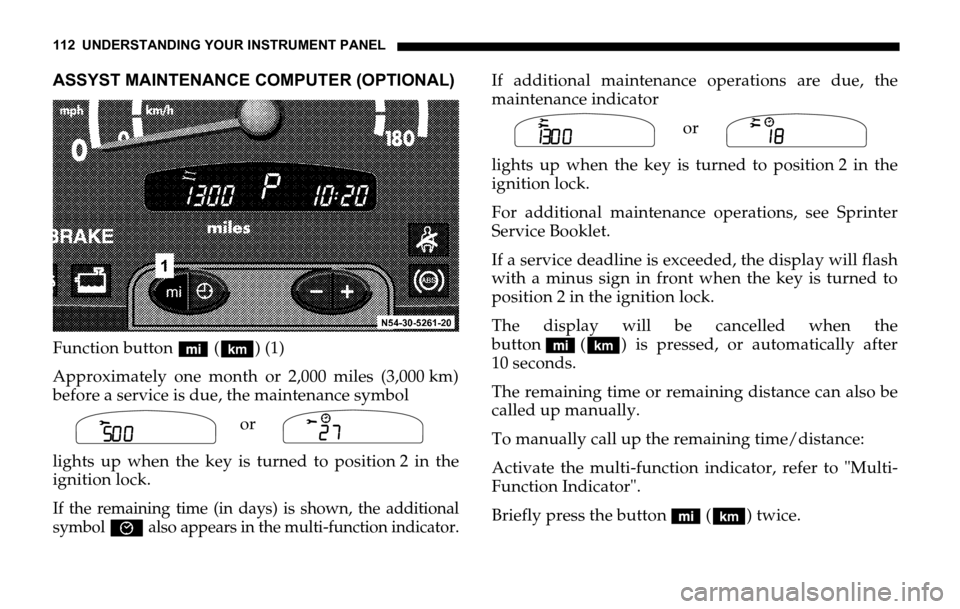

ASSYST MAINTENANCE COMPUTER (OPTIONAL)
Function button (‘) (1)
Approximately one month or 2,000 miles (3,000 km)
before a service is due, the maintenance symbol
or
lights up when the key is turned to position 2 in the
ignition lock.
If the remaining time (in days) is shown, the additional
symbol
È also appears in the multi-function indicator.
If additional maintenance operations are due, the
maintenance indicator
or
lights up when the key is turned to position 2 in the
ignition lock.
For additional maintenance operations, see Sprinter
Service Booklet.
If a service deadline is exceeded, the display will flash
with a minus sign in front when the key is turned to
position 2 in the ignition lock.
The display will be cancelled when the
button (‘) is pressed, or automatically after
10 seconds.
The remaining time or remaining distance can also be
called up manually.
To manually call up the remaining time/distance:
Activate the multi-function indicator, refer to "Multi-
Function Indicator".
Briefly press the button (‘) twice.
Symb
N00.00-2387-00Symb
N00.00-2156-00
Symb
N00.00-2388-00Symb
N00.00-2157-00

UNDERSTANDING YOUR INSTRUMENT PANEL 113
4
Depending on the driving style, the mileage covered
and the operating conditions, the next service due is
displayed either as a remaining distance in "mi"
(in km) or as a remaining time in "days". The length of
time between services should not exceed 2 years.
The display will be cancelled when the
button (‘) is pressed, or automatically after
10 seconds.
When a service has been performed, have the ASSYST
maintenance computer reset by an authorized Sprinter
Dealer.
Should your Sprinter for any reason not be serviced by
an authorized Sprinter Dealer, the ASSYST
maintenance computer can, in exceptional
circumstances, be reset as follows:
Turn the key to position 2 in the ignition lock and
immediately press the button (‘) twice.
Within 10 seconds, return the key to position 0 in the
ignition lock.
Press and hold the button (‘). Turn the key to
position 2 in the ignition lock. Keep the
button (‘) pressed.The maintenance indicator with the current remaining
time/distance is shown.
After about 10 seconds, an acoustic signal will sound
and the maintenance indicator is displayed with the
new remaining time/distance.
Release the button (‘).
NOTE: The ASSYST maintenance computer provides
information on the optimum maintenance requirements.
If maintenance intervals are not observed, resulting
damage will not be covered by Warranty.
The ASSYST maintenance computer is not an engine
oil gauge.
Engine oil level – for display in instrument cluster, see
next page.
If the engine oil level indicator lamp lights up, refer to
"Engine Oil Level Indicator Lamp".
If the battery is disconnected, the time is not recorded
by the ASSYST maintenance computer. Such periods
must be considered if maintenance intervals are
measured by time.
