Page 91 of 393

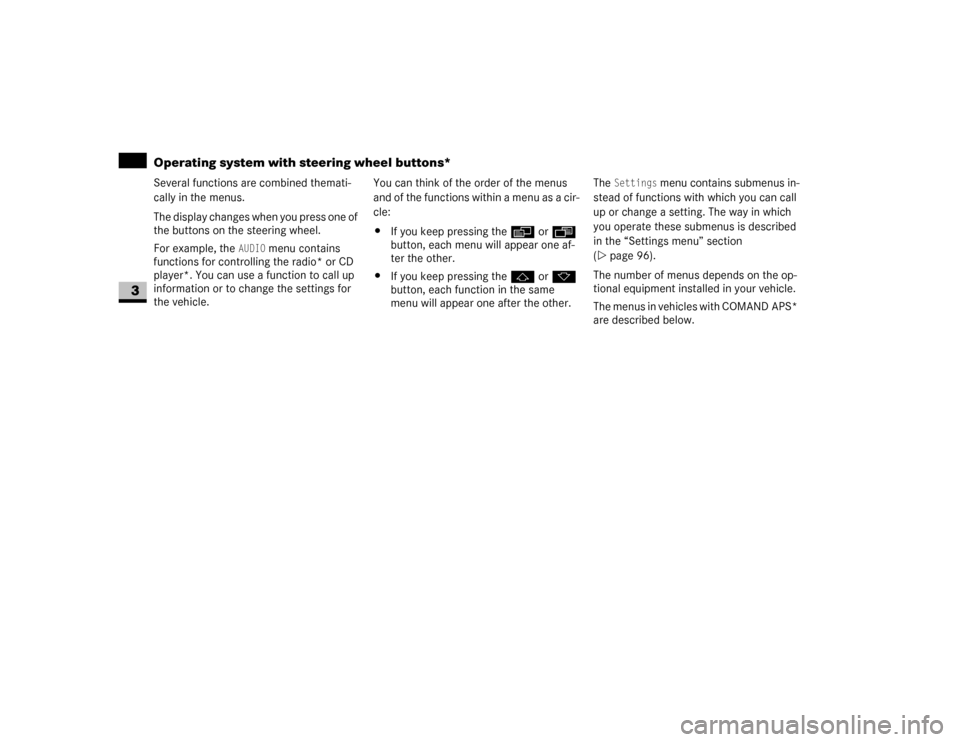

90 Controls in detailOperating system with steering wheel buttons*
3
Several functions are combined themati-
cally in the menus.
The display changes when you press one of
the buttons on the steering wheel.
For example, the
AUDIO
menu contains
functions for controlling the radio* or CD
player*. You can use a function to call up
information or to change the settings for
the vehicle.You can think of the order of the menus
and of the functions within a menu as a cir-
cle:
\4If you keep pressing theè or ÿ
button, each menu will appear one af-
ter the other.
\4If you keep pressing thej or k
button, each function in the same
menu will appear one after the other.The
Settings
menu contains submenus in-
stead of functions with which you can call
up or change a setting. The way in which
you operate these submenus is described
in the “Settings menu” section
(\2page 96).
The number of menus depends on the op-
tional equipment installed in your vehicle.
The menus in vehicles with COMAND APS*
are described below.
Page 93 of 393
92 Controls in detailOperating system with steering wheel buttons*
3
The table below shows the menus and the individual functions.
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Operation
Audio*
Navigation*
Malfunction
memory
Settings
Trip computer
Telephone*
Commands / submenusStandard display with
trip meter and odometer
Select a radio
station
Activate route
guidance
Display
malfunctions
Reset to
factory
settings
Consumption sta-
tistics after start
Enter PIN
Display coolant tempera-
ture
Operate the
CD player/
CD changer
Instrument
cluster sub-
menu
Consumption sta-
tistics after reset
Look for a
name in the
phone book
Call up the service due
date
Clock/Date
submenu
Look for the
most recently
dialed phone
numbers
Tire pressure monitor
Lighting sub-
menu
Check the engine oil
level (only on vehicles
with a diesel engine)
Vehicle
submenuAuxiliary heat-
ing* submenuConvenience*
submenu
Page 95 of 393

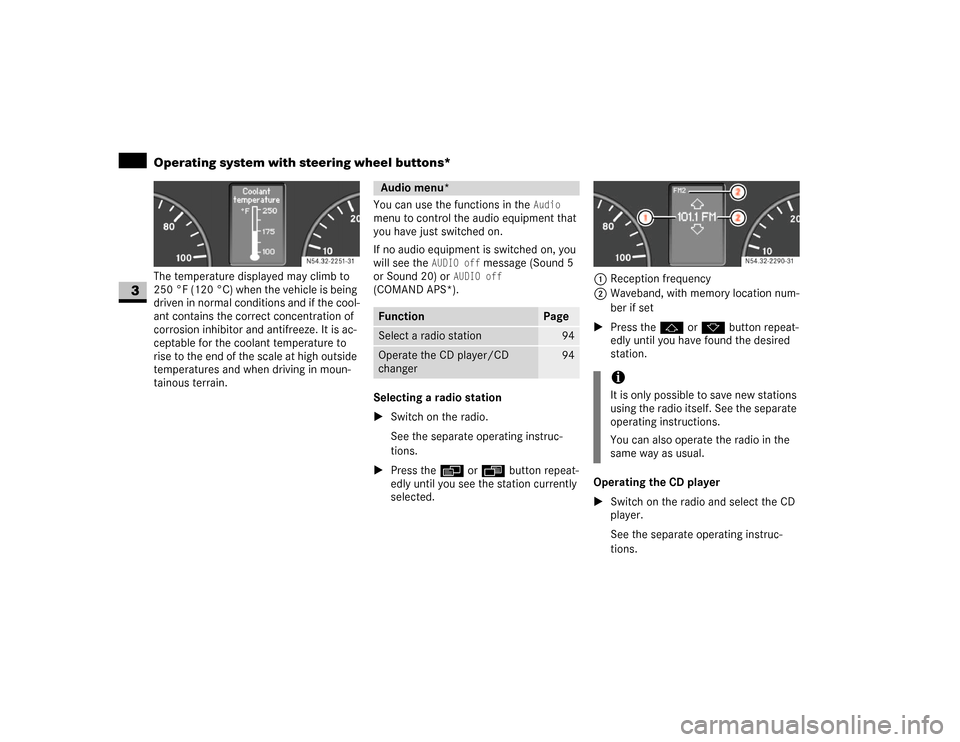

94 Controls in detailOperating system with steering wheel buttons*
3
The temperature displayed may climb to
250 °F (120 °C) when the vehicle is being
driven in normal conditions and if the cool-
ant contains the correct concentration of
corrosion inhibitor and antifreeze. It is ac-
ceptable for the coolant temperature to
rise to the end of the scale at high outside
temperatures and when driving in moun-
tainous terrain.You can use the functions in the
Audio
menu to control the audio equipment that
you have just switched on.
If no audio equipment is switched on, you
will see the
AUDIO off
message (Sound 5
or Sound 20) or
AUDIO off
(COMAND APS*).
Selecting a radio station
\1Switch on the radio.
See the separate operating instruc-
tions.
\1Press the è or ÿ button repeat-
edly until you see the station currently
selected.1Reception frequency
2Waveband, with memory location num-
ber if set
\1Press thej or k button repeat-
edly until you have found the desired
station.
Operating the CD player
\1Switch on the radio and select the CD
player.
See the separate operating instruc-
tions. N54.32-2251-31Audio menu*Function
Page
Select a radio station
94
Operate the CD player/CD
changer
94
iIt is only possible to save new stations
using the radio itself. See the separate
operating instructions.
You can also operate the radio in the
same way as usual.
Page 349 of 393
348 Practical hintsFuses
5
Preliminary fuse box in the battery recess in
the driver’s footwell F59
The fuse box is located in the base of the
driver’s seat on the outboard side.
1Latching springs
\1To open: adjust the seat to its highest
position (\2page 69).
\1Press both latching springs1 down
and remove the cover.
\1To close: attach the cover at the bot-
tom and fold it closed.
The cover must engage.
No.
Consumer
Amp.
15
Non MB-body electrics
10 A
16
Heating, rear heating/
Tempmatic (air-conditioning
system), front/CD-player*
10 A
17
Motion detector*/con-
venience interior lighting*/
satellite radio*
10 A
18
Air conditioning in the rear*
7.5 A
No.
Consumer
Amp.
1
Pre-glow relay/secondary
air pump
80/40 A
2
Engine fan air-conditio-
ning system
80 A
3
Signal acquisition and ac-
tuation module SAM/fuse
and relay block SRB
80 A
4
Auxiliary battery* in the
engine compartment
150 A
5
T erm in al 30 f us e bo xe s, si-
gnal acquisition and actu-
ation module SAM/fuse
and relay block SRB
150 A
6
Connecting point in
driver’s seat base
Brücke
7
Heater booster (PTC)
150 A
Fuse box in the driver’s seat
N54.15-2149-31
Page 380 of 393
379 Index
Care of batteries
. . . . . . . . . . . . . . . 196
Care of the vehicle . . . . . . . . . . . . . 241
after driving off-road or on
construction sites . . . . . . . . . . . . . 246
Carrier systems
. . . . . . . . . . . 162
, 372
Catalytic converter
. . . . . . . . . . . . . 181
CD player/CD changer
. . . . . . . . . . . 94
Cell phone
. . . . . . . . . . . . . . . . . . . . 171
Center console
. . . . . . . . . . . . . . . . . 18
switch unit
. . . . . . . . . . . . . . . . . . . . 20
Central locking
locking/unlocking
. . . . . . . . . . . . . . 52
(from the inside)
. . . . . . . . . . . . . . . 63
Central locking system
malfunctions
. . . . . . . . . . . . . . . . . 259
Certification label
. . . . . . . . . . . . . . 209
Changing bulbs
. . . . . . . . . . . . . . . . 306
clearance lamp . . . . . . . . . . . . . . . 312
headlamps
. . . . . . . . . . . . . . . . . . . 308
identification lamps
. . . . . . . . 311
, 313
interior lamp
. . . . . . . . . . . . . . . . . 314
license plate lamp
. . . . . . . . . . . . . 312
rear lamp units
chassis
. . . . . . . . . . . . . . . . . . . . 310
panel van/crewbus
. . . . . . . . . . 310
side marker lamps
. . . . . . . . . . . . . 312Checking tire pressure electronically
with the Advanced Tire Pressure
Monitoring System
(Advanced TPMS)
. . . . . . . . . . . . . . 217
Checking tire pressure electronically
with the Tire Pressure Monitoring
System (TPMS)
. . . . . . . . . . . . . . . . 214
Checks, regular . . . . . . . . . . . . . . . . 181
Children
in the vehicle
. . . . . . . . . . . . . . . . . . 36
ISOFIX seat securing system
. . . . . . 39
LATCH type child restraint system
. 39
restraint systems
. . . . . . . . . . . . . . . 37
Chock
. . . . . . . . . . . . . . . . . . . . . . . . 303
Cigarette lighter
. . . . . . . . . . . . . . . 169
Cleaning
. . . . . . . . . . . . . . . . . . . . . . 241
after driving off-road or
on construction sites
. . . . . . . . . . . 246
air cleaner element
. . . . . . . . . . . . 240
cockpit
. . . . . . . . . . . . . . . . . . . . . . 245
headlamps
. . . . . . . . . . . . . . . . . . . 244
padded boss of the steering wheel
245
rear view camera lens
. . . . . . . . . . 244
rear window
. . . . . . . . . . . . . . . . . . 244
side windows . . . . . . . . . . . . . . . . . 244
vehicle
. . . . . . . . . . . . . . . . . . . . . . 242
windshield . . . . . . . . . . . . . . . . . . . 243
windshield wipers
. . . . . . . . . . . . . 243Clearance lamp
changing bulbs
. . . . . . . . . . . . . . . . 312
see identification lamp
. . . . . . . . . . 311
Clock
setting
vehicles with steering wheel
buttons
. . . . . . . . . . . . . . . . . . . . 101
vehicles without steering wheel
buttons . . . . . . . . . . . . . . . . . . . . . 88
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . 12
Co-driver's seat
foldable . . . . . . . . . . . . . . . . . . . . . . 74
Cold tire inflation pressure
. . . . . . 228
COMAND
see the separate Operating Instructions
Comfort seat
. . . . . . . . . . . . . . . . . . . 69
Constant headlamp mode
. . . . . . . 102
Consumption statistics
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . . 106
Coolant . . . . . . . . . . . . . . . . . . . . . . . 363
adding . . . . . . . . . . . . . . . . . . . . . . 191
anticorrosion/antifreeze fluid
. . . . 363
display message
. . . . . . . . . . . . . . 292
temperature
. . . . . . . . . . . . . . . . . . 120
temperature display
(vehicle with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . . 93
