Page 6 of 393
5 Introduction
Operating safety
The manufacturer warrants to the original
and each subsequent owner of a
Mercedes-Benz heavy-duty on highway
diesel engine that:
(1) the engine was designed, built and
equipped so as to conform at the time
of sale with the applicable regulations
adopted by the Federal Environmental
Protection Agency, and
(2) the emission control system of such
engine is free from defects in materials
and workmanship which would cause it
not to conform with those regulations
for a period of use of five years or
100000 miles or 3000 hours of engine
operation, whichever occurs first.
The Owner’s Warranty Information Book
contains detailed information about the
warranties covering your Sprinter.The manufacturer may instruct its autho-
rized Sprinter Dealer to carry out technical
inspections on certain vehicles to improve
their quality or safety.
If you did not purchase your vehicle from
an authorized dealership and your vehicle
has not yet been inspected at an autho-
rized Sprinter Dealer, there is a possibility
that your vehicle has not been registered in
your name with the manufacturer. The
manufacturer will only be able to inform
you about vehicle inspections if the manu-
facturer is in possession of your registra-
tion data.
It is advisable to have your vehicle regis-
tered at an authorized Sprinter Dealer.
Inform the manufacturer as soon as possi-
ble if your address has changed or there
has been a change of vehicle owner.
Warning
G
A heavy impact to the underbody, tires or
wheels, for example when bottoming out on
rough terrain or driving over an obstacle at
high speed, could damage your vehicle. This
also applies to vehicles equipped with un-
derbody protection.
In this case, have your vehicle checked at an
authorized Sprinter Dealer which has the
necessary specialist knowledge and tools to
carry out the work required. The manufac-
turer recommends that you use an autho-
rized Sprinter Dealer for this purpose.
In particular, work relevant to safety or on
safety-related systems must be carried out
at an authorized Sprinter Dealer.
Service and warranty information
Registering your vehicle
Page 16 of 393
15 At a glance
Instrument cluster
1
Function
Page
1
Instrument cluster on vehi-
cles without steering wheel
buttons
84
2
Instrument cluster on vehi-
cles with steering wheel
buttons*
84
3
On vehicles without
steering wheel but-
tons:
\4Changes the stan-
dard display
\4Selects menus
87
4
On vehicles with
steering wheel but-
tons*:
Checks the engine oil
level
187
Function
Page
5
Reset button
84
6
Speedometer with:
85
Indicator and warning
lamps
16
7
Indicator and warning
lamps
16
8
Display on vehicles without
steering wheel buttons
87
9
Display on vehicles with
steering wheel buttons*
89
a
Tachometer with:
85
Indicator and warning
lamps
16
b
\4Instrument lighting
brighter / dimmer
85
Function
Page
c
Fuel gauge with:
\4Reserve fuel warning
lamp
\4Fuel filler flap location
indicator
Ö: Fuel filler flap is
on the left-hand
side
86
276
iVehicles without steering wheel
buttons:
Display8 contains a digital fuel
gauge.
Vehicles with steering wheel buttons*:
The tachometer contains an analog fuel
gauge.
Page 47 of 393
46 SafetyDriving safety systems
2
EBV monitors and regulates the brake
pressure at the rear wheels to improve
driving stability during braking.There is a malfunction if the #, k,
- and indicator lamps are perma-
nently lit while the engine is running
(\2page 268). Electronic brake force distribution
(EBV)Warning
G
If EBV malfunctions, the brake system is still
available with the full brake boosting effect.
However, the rear wheels may lock, for ex-
ample if the brakes are applied with maxi-
mum force. You could then lose control of
the vehicle and cause an accident. Always
adapt your driving style to the change in
handling characteristics.
Have the system checked at an authorized
Sprinter Dealer as soon as possible.
Page 85 of 393
84 Controls in detailLighting
3
\3 Instrument clusterYou will find a full overview of the instru-
ment cluster in the “At a glance” section
(\2page 14).The display in the instrument cluster is ac-
tivated when you:
\4open the driver’s door
\4switch on the ignition
\4press the reset button
\4switch on the lights
The display switches off automatically af-
ter approximately 30 seconds if:
\4there is no vehicle lighting switched on
\4the key is in position 0 in the ignition
lock (\2page 67)
iDo not hang any objects (e.g. coats) in
the load compartment. This will help to
prevent the motion detector from inad-
vertently switching on the rear interior
lamps.
N54.32-2279-31
Instrument cluster1
Vehicles without steering wheel
buttons
2
Vehicles with steering wheel but-
tons*
3
Adjustment buttons
button buttonMenu buttonReset buttonTo check the engine oil level
(\2page 187)
Page 89 of 393
88 Controls in detailOperating system without steering wheel buttons
3
There may be a short delay before a lower
outside temperature is displayed, for ex-
ample after leaving a garage. There may
also be a short delay before a rise in the
outside temperature is displayed. This
prevents you from seeing a temperature
display influenced by heat from the engine
when the vehicle is stationary or moving
slowly.
Setting the time
\1Switch on the ignition (\2page 67).
\1Press menu button repeatedly until
the hours figure flashes.
\1Set the hour using the or button.
\1Press the reset button .
The minute display flashes.
\1Set the minutes using the or
button.Setting the date
\1Switch on the ignition (\2page 67).
\1Press menu button repeatedly until
the day flashes.
\1Set the day using the or button.
\1Press reset button.
The month display flashes.
\1Set the month using the or but-
ton.
\1Press reset button.
The year display flashes.
\1Set the year using the or button.MenusFunction
Page
Calling up the service due date*
238
Checking the engine oil level
187
Selecting/setting the auxiliary
heating switch-on time*
142
Tire pressure monitor
213
Setting the time
88
Setting the date
88
iTo return to the standard display:
\4press and hold menu button for
more than 1 second
\4do not press a button for
10 seconds
The display accepts the changed set-
tings.iIf you keep the button pressed, the val-
ues will change continuously.
iIf you keep the button pressed, the val-
ues will change continuously.
Page 93 of 393
92 Controls in detailOperating system with steering wheel buttons*
3
The table below shows the menus and the individual functions.
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Operation
Audio*
Navigation*
Malfunction
memory
Settings
Trip computer
Telephone*
Commands / submenusStandard display with
trip meter and odometer
Select a radio
station
Activate route
guidance
Display
malfunctions
Reset to
factory
settings
Consumption sta-
tistics after start
Enter PIN
Display coolant tempera-
ture
Operate the
CD player/
CD changer
Instrument
cluster sub-
menu
Consumption sta-
tistics after reset
Look for a
name in the
phone book
Call up the service due
date
Clock/Date
submenu
Look for the
most recently
dialed phone
numbers
Tire pressure monitor
Lighting sub-
menu
Check the engine oil
level (only on vehicles
with a diesel engine)
Vehicle
submenuAuxiliary heat-
ing* submenuConvenience*
submenu
Page 94 of 393

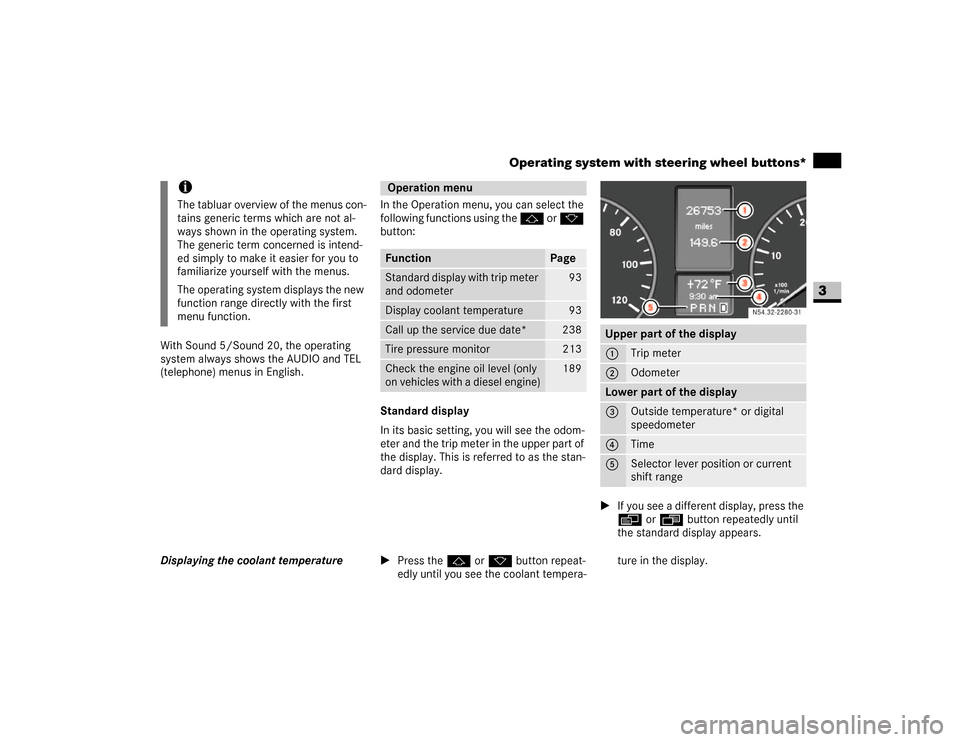

93 Controls in detail
Operating system with steering wheel buttons*
3
With Sound 5/Sound 20, the operating
system always shows the AUDIO and TEL
(telephone) menus in English.In the Operation menu, you can select the
following functions using the j or k
button:
Standard display
In its basic setting, you will see the odom-
eter and the trip meter in the upper part of
the display. This is referred to as the stan-
dard display.
\1If you see a different display, press the
è or ÿ button repeatedly until
the standard display appears.
Displaying the coolant temperature\1Press thej or k button repeat-
edly until you see the coolant tempera-ture in the display.
iThe tabluar overview of the menus con-
tains generic terms which are not al-
ways shown in the operating system.
The generic term concerned is intend-
ed simply to make it easier for you to
familiarize yourself with the menus.
The operating system displays the new
function range directly with the first
menu function.
Operation menuFunction
Page
Standard display with trip meter
and odometer
93
Display coolant temperature
93
Call up the service due date*
238
Tire pressure monitor
213
Check the engine oil level (only
on vehicles with a diesel engine)
189
Upper part of the display1
Trip meter
2
Odometer
Lower part of the display3
Outside temperature* or digital
speedometer
4
Time
5
Selector lever position or current
shift range
N54.32-2280-31
Page 111 of 393

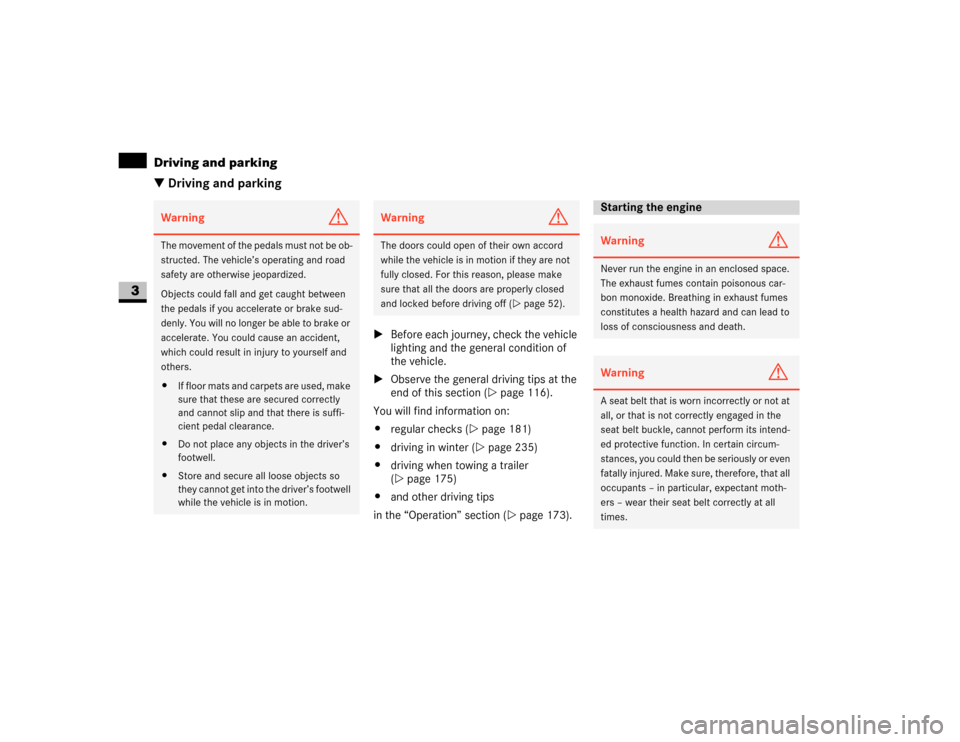

110 Controls in detailDriving and parking
3
\3 Driving and parking
\1Before each journey, check the vehicle
lighting and the general condition of
the vehicle.
\1Observe the general driving tips at the
end of this section (\2page 116).
You will find information on:
\4regular checks (\2page 181)
\4driving in winter (\2page 235)
\4driving when towing a trailer
(\2page 175)
\4and other driving tips
in the “Operation” section (\2page 173).
Warning
G
T h e m o v e m e n t o f t h e p e d a l s m u s t n o t b e o b -
structed. The vehicle’s operating and road
safety are otherwise jeopardized.
Objects could fall and get caught between
the pedals if you accelerate or brake sud-
denly. You will no longer be able to brake or
accelerate. You could cause an accident,
which could result in injury to yourself and
others.
\4If floor mats and carpets are used, make
sure that these are secured correctly
and cannot slip and that there is suffi-
cient pedal clearance.
\4Do not place any objects in the driver’s
footwell.
\4Store and secure all loose objects so
they cannot get into the driver’s footwell
while the vehicle is in motion.
Warning
G
The doors could open of their own accord
while the vehicle is in motion if they are not
fully closed. For this reason, please make
sure that all the doors are properly closed
and locked before driving off (\2page 52).
Starting the engineWarning
G
Never run the engine in an enclosed space.
The exhaust fumes contain poisonous car-
bon monoxide. Breathing in exhaust fumes
constitutes a health hazard and can lead to
loss of consciousness and death.Warning
G
A seat belt that is worn incorrectly or not at
all, or that is not correctly engaged in the
seat belt buckle, cannot perform its intend-
ed protective function. In certain circum-
stances, you could then be seriously or even
fatally injured. Make sure, therefore, that all
occupants – in particular, expectant moth-
ers – wear their seat belt correctly at all
times.
Page 114 of 393
113 Controls in detail
Driving and parking
3

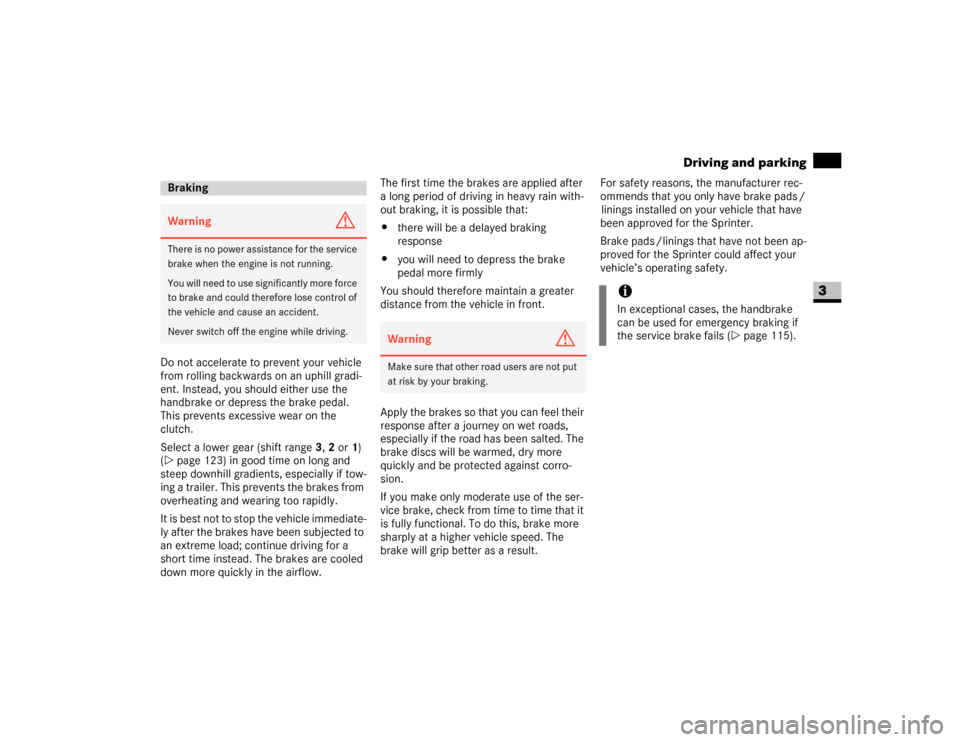

Do not accelerate to prevent your vehicle
from rolling backwards on an uphill gradi-
ent. Instead, you should either use the
handbrake or depress the brake pedal.
This prevents excessive wear on the
clutch.
Select a lower gear (shift range 3, 2 or 1)
(\2page 123) in good time on long and
steep downhill gradients, especially if tow-
ing a trailer. This prevents the brakes from
overheating and wearing too rapidly.
It is best not to stop the vehicle immediate-
ly after the brakes have been subjected to
an extreme load; continue driving for a
short time instead. The brakes are cooled
down more quickly in the airflow.The first time the brakes are applied after
a long period of driving in heavy rain with-
out braking, it is possible that:
\4there will be a delayed braking
response
\4you will need to depress the brake
pedal more firmly
You should therefore maintain a greater
distance from the vehicle in front.
Apply the brakes so that you can feel their
response after a journey on wet roads,
especially if the road has been salted. The
brake discs will be warmed, dry more
quickly and be protected against corro-
sion.
If you make only moderate use of the ser-
vice brake, check from time to time that it
is fully functional. To do this, brake more
sharply at a higher vehicle speed. The
brake will grip better as a result.For safety reasons, the manufacturer rec-
ommends that you only have brake pads /
linings installed on your vehicle that have
been approved for the Sprinter.
Brake pads /linings that have not been ap-
proved for the Sprinter could affect your
vehicle’s operating safety.BrakingWarning
G
There is no power assistance for the service
brake when the engine is not running.
You will need to use significantly more force
to brake and could therefore lose control of
the vehicle and cause an accident.
Never switch off the engine while driving.
Warning
G
Make sure that other road users are not put
at risk by your braking.
iIn exceptional cases, the handbrake
can be used for emergency braking if
the service brake fails (\2page 115).
Page 118 of 393
117 Controls in detail
Driving and parking
3

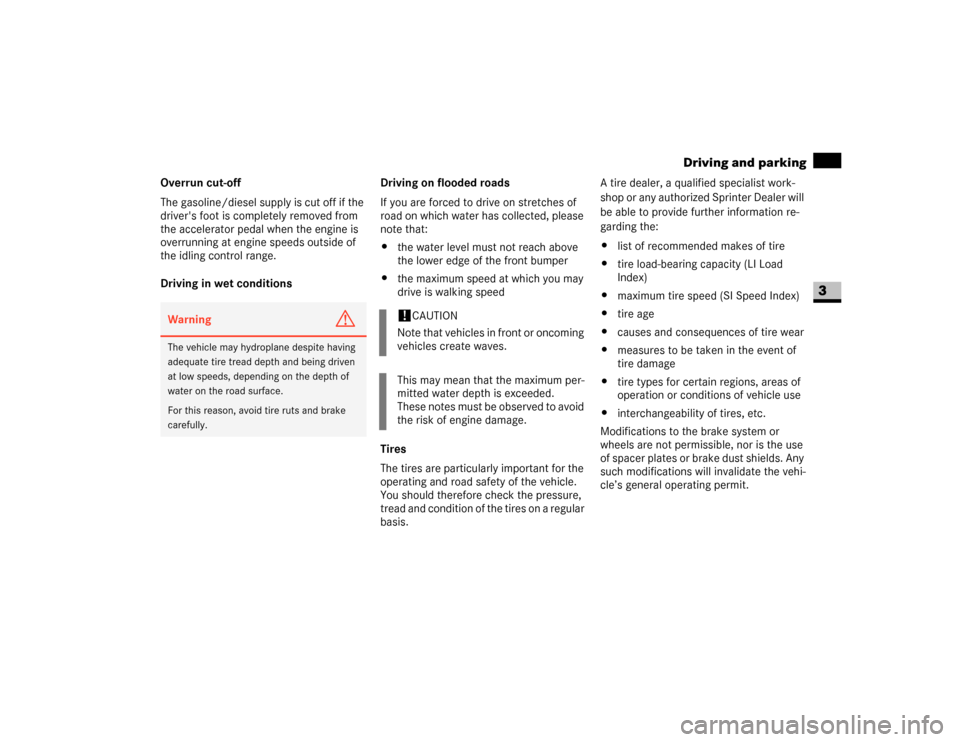

Overrun cut-off
The gasoline/diesel supply is cut off if the
driver's foot is completely removed from
the accelerator pedal when the engine is
overrunning at engine speeds outside of
the idling control range.
Driving in wet conditionsDriving on flooded roads
If you are forced to drive on stretches of
road on which water has collected, please
note that:
\4the water level must not reach above
the lower edge of the front bumper
\4the maximum speed at which you may
drive is walking speed
Tires
The tires are particularly important for the
operating and road safety of the vehicle.
You should therefore check the pressure,
tread and condition of the tires on a regular
basis.A tire dealer, a qualified specialist work-
shop or any authorized Sprinter Dealer will
be able to provide further information re-
garding the:
\4list of recommended makes of tire
\4tire load-bearing capacity (LI Load
Index)
\4maximum tire speed (SI Speed Index)
\4tire age
\4causes and consequences of tire wear
\4measures to be taken in the event of
tire damage
\4tire types for certain regions, areas of
operation or conditions of vehicle use
\4interchangeability of tires, etc.
Modifications to the brake system or
wheels are not permissible, nor is the use
of spacer plates or brake dust shields. Any
such modifications will invalidate the vehi-
cle’s general operating permit.Warning
G
The vehicle may hydroplane despite having
adequate tire tread depth and being driven
at low speeds, depending on the depth of
water on the road surface.
For this reason, avoid tire ruts and brake
carefully.
!
CAUTION
Note that vehicles in front or oncoming
vehicles create waves.
This may mean that the maximum per-
mitted water depth is exceeded.
These notes must be observed to avoid
the risk of engine damage.
