337 Practical hints

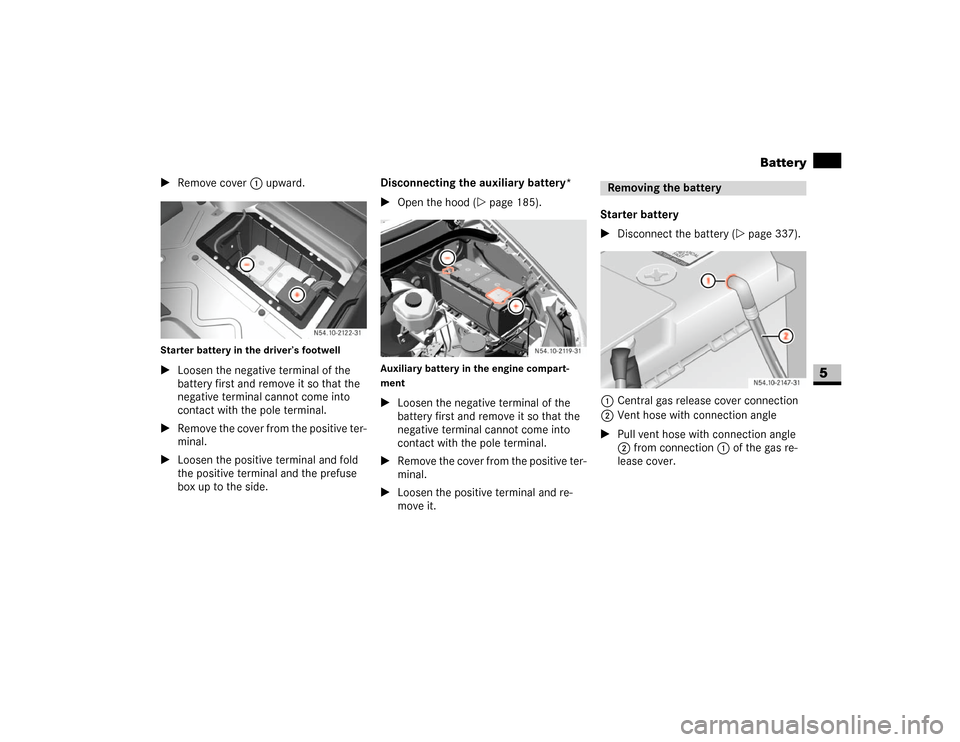

Battery
5
\1Remove cover1 upward.Starter battery in the driver’s footwell\1Loosen the negative terminal of the
battery first and remove it so that the
negative terminal cannot come into
contact with the pole terminal.
\1Remove the cover from the positive ter-
minal.
\1Loosen the positive terminal and fold
the positive terminal and the prefuse
box up to the side.Disconnecting the auxiliary battery*
\1Open the hood (\2page 185).
Auxiliary battery in the engine compart-
ment\1Loosen the negative terminal of the
battery first and remove it so that the
negative terminal cannot come into
contact with the pole terminal.
\1Remove the cover from the positive ter-
minal.
\1Loosen the positive terminal and re-
move it.Starter battery
\1Disconnect the battery (\2page 337).
1Central gas release cover connection
2Vent hose with connection angle
\1Pull vent hose with connection angle
2 from connection1 of the gas re-
lease cover.
Removing the battery

345 Practical hintsFuses
5
\3 FusesThe fuses and relays for the standard
equipment are in the main fuse box in the
footwell on the left-hand side of the vehi-
cle.
\1Switch off the ignition and electrical
consumers before replacing fuses.The fuse box is in the footwell on the left-
hand side of the vehicle.
1Unlocked
2Locked\1To open: release1 the quick-release
lock and remove the cover.
\1To close: attach the cover at the bot-
tom and fold it closed.
The cover must engage.
\1Lock2 the quick-release lock.Warning
G
Only use fuses of the amperage recommend-
ed by the manufacturer. Any authorized
Sprinter Dealer will be happy to advise you.
Do not attempt to repair or bridge blown fuses.Have the cause determined and rectified at
a qualified specialist workshop, e.g. an au-
thorized Sprinter Dealer.iAdditional fuses and relays for the op-
tional equipment are in the fuse box in
the driver’s seat.
Main fuse boxiThe fuse allocation chart for the fuse
boxes is in the vehicle document wallet
in the glove box and names all the num-
bered fuses.
N54.15-2148-31

347 Practical hintsFuses
5
Fuse block F55/1Fuse block F55/2
No.
Consumer
Amp.
1
Horn
15 A
2
Electric steering lock ESTL
(electronic ignition switch
EIS)
25 A
3
Te rm ina l 30 Z , ve hi cle s wit h
gasoline engine/electronic
ignition switch EIS/instru-
ment cluster
10 A
4
Light switch/center
console switch unit
5A
5
Windshield wipers
30 A
6
Fuel pump
15 A
7
MRM (jacket tube module)
5A
8
Terminal 87 (2)
20 A
9
Terminal 87 (3)
20 A
10
Terminal 87 (4)
10 A
11
Terminal 15 R vehicle
15 A
12
Airbag control unit
10 A
13
Cigarette lighter/glove box
lighting/radio*
15 A
14
Diagnostic socket/light
switch/instrument cluster
5A
No.
Consumer
Amp.
15
Front heating system
5A
16
Terminal 87 (1)
10 A
17
Airbag control unit
10 A
18
Terminal 15 vehicle, brake
lamp switch
7.5 A
19
Interior lights
7.5 A
20
Power window co-driver’s
side/terminal 30/2 signal
acquisition and actuation
module SAM
25 A
21
Engine control unit
5A
22
Antilock Brake System
(ABS)
5A
23
Starter motor
25 A
24
Diesel engine components
10 A
25
12V socket on the bottom
of the center console
25 A
No.
Consumer
Amp.
1
Control panel, left door
25 A
2
Diagnostic socket
10 A
No.
Consumer
Amp.
3
Brake system (valves)
25 A
4
Brake system (delivery
pump)
40 A
5
Terminal 87 (5), vehicles
with gasoline engine
7.5 A
6
Terminal 87 (6), vehicles
with gasoline engine
7.5 A
7
Headlamp cleaning system*
30 A
8
Anti-theft alarm system
(ATA)
15 A
9
Unassigned
–
No.
Consumer
Amp.
10
Radio*
15 A
11
Telephone*
7.5 A
12
Front blowers
30 A
13
Unassigned
–
14
Seat heating*/center
console switch unit
30 A

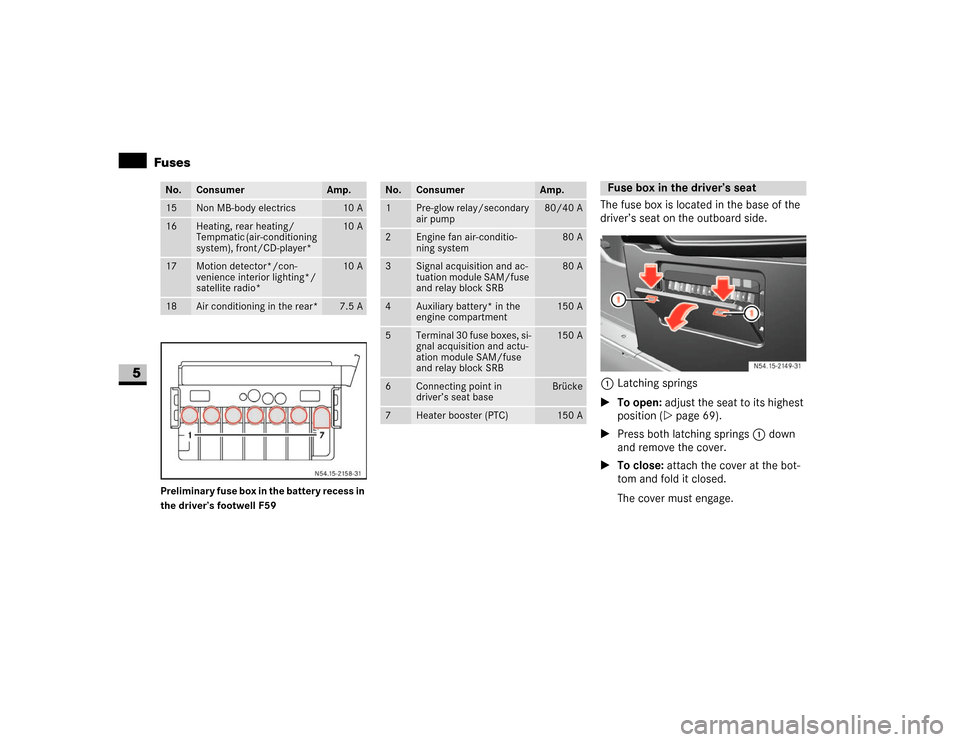

348 Practical hintsFuses
5
Preliminary fuse box in the battery recess in
the driver’s footwell F59
The fuse box is located in the base of the
driver’s seat on the outboard side.
1Latching springs
\1To open: adjust the seat to its highest
position (\2page 69).
\1Press both latching springs1 down
and remove the cover.
\1To close: attach the cover at the bot-
tom and fold it closed.
The cover must engage.
No.
Consumer
Amp.
15
Non MB-body electrics
10 A
16
Heating, rear heating/
Tempmatic (air-conditioning
system), front/CD-player*
10 A
17
Motion detector*/con-
venience interior lighting*/
satellite radio*
10 A
18
Air conditioning in the rear*
7.5 A
No.
Consumer
Amp.
1
Pre-glow relay/secondary
air pump
80/40 A
2
Engine fan air-conditio-
ning system
80 A
3
Signal acquisition and ac-
tuation module SAM/fuse
and relay block SRB
80 A
4
Auxiliary battery* in the
engine compartment
150 A
5
T erm in al 30 f us e bo xe s, si-
gnal acquisition and actu-
ation module SAM/fuse
and relay block SRB
150 A
6
Connecting point in
driver’s seat base
Brücke
7
Heater booster (PTC)
150 A
Fuse box in the driver’s seat
N54.15-2149-31
