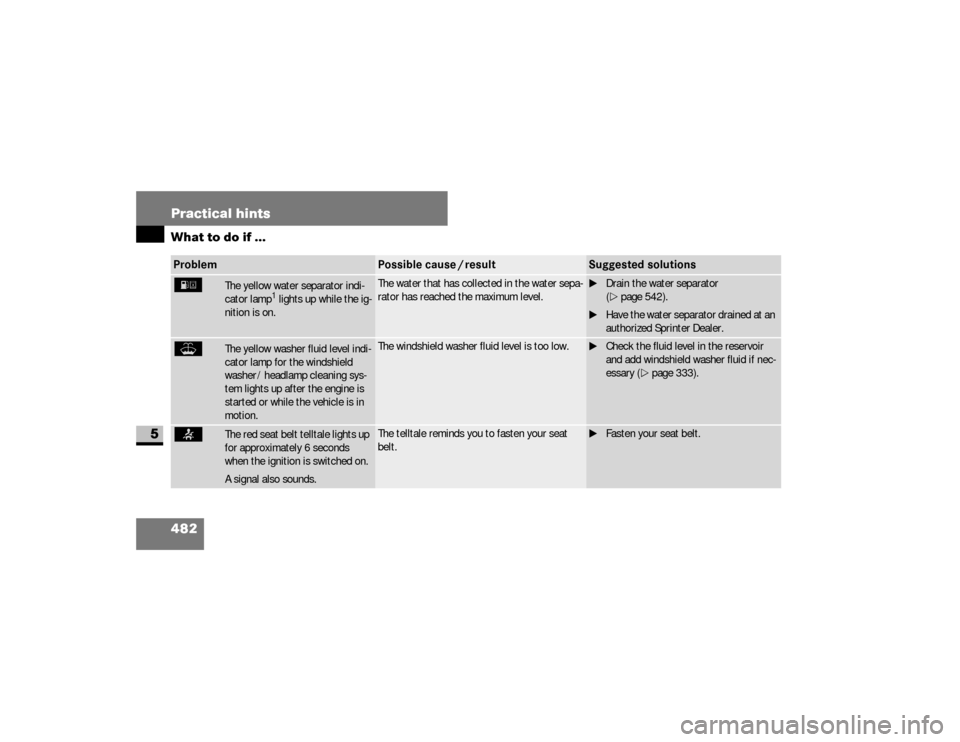

482 Practical hintsWhat to do if ...
5
Problem
Possible cause / result
Suggested solutions
/
The yellow water separator indi-
cator lamp
1 lights up while the ig-
nition is on.
The water that has collected in the water sepa-
rator has reached the maximum level.
\1Drain the water separator
(\2page 542).
\1Have the water separator drained at an
authorized Sprinter Dealer.
W
The yellow washer fluid level indi-
cator lamp for the windshield
washer / headlamp cleaning sys-
tem lights up after the engine is
started or while the vehicle is in
motion.
The windshield washer fluid level is too low.
\1Check the fluid level in the reservoir
and add windshield washer fluid if nec-
essary (\2page 333).
<

The red seat belt telltale lights up
for approximately 6 seconds
when the ignition is switched on.
A signal also sounds.
The telltale reminds you to fasten your seat
belt.
\1Fasten your seat belt.
nf_BA.book Page 482 Friday, January 25, 2008 3:53 PM

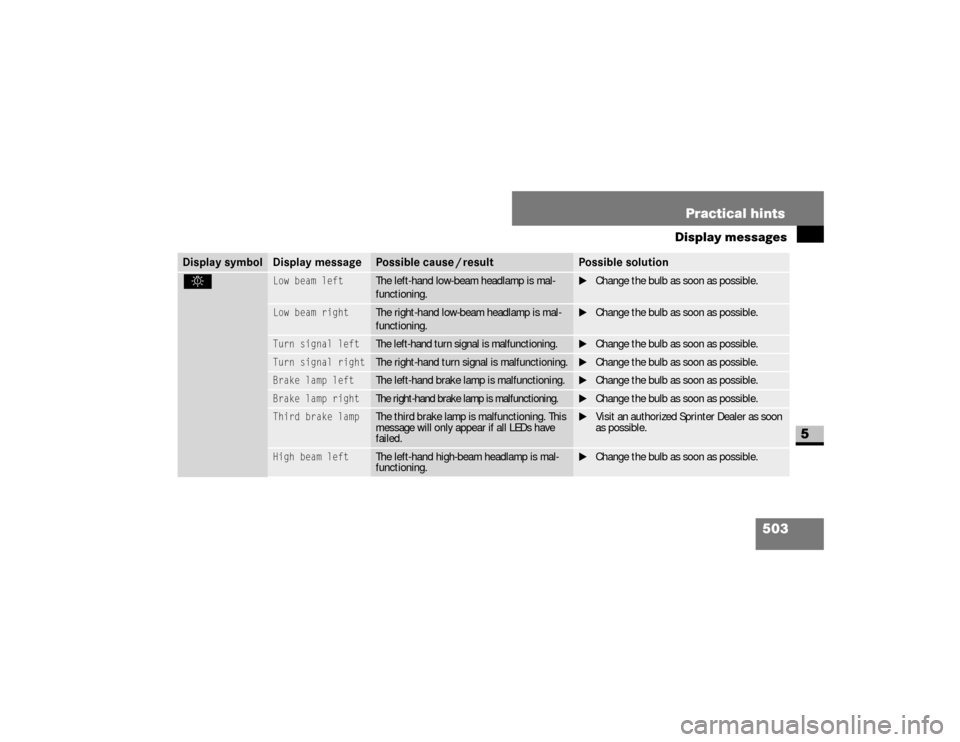

503 Practical hints
Display messages
5
.
Low beam left
The left-hand low-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Low beam right
The right-hand low-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Turn signal left
The left-hand turn signal is malfunctioning.
\1Change the bulb as soon as possible.
Turn signal right
The right-hand turn signal is malfunctioning.
\1Change the bulb as soon as possible.
Brake lamp left
The left-hand brake lamp is malfunctioning.
\1Change the bulb as soon as possible.
Brake lamp right
The right-hand brake lamp is malfunctioning.
\1Change the bulb as soon as possible.
Third brake lamp
The third brake lamp is malfunctioning. This
message will only appear if all LEDs have
failed.
\1Visit an authorized Sprinter Dealer as soon
as possible.
High beam left
The left-hand high-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution
nf_BA.book Page 503 Friday, January 25, 2008 3:53 PM

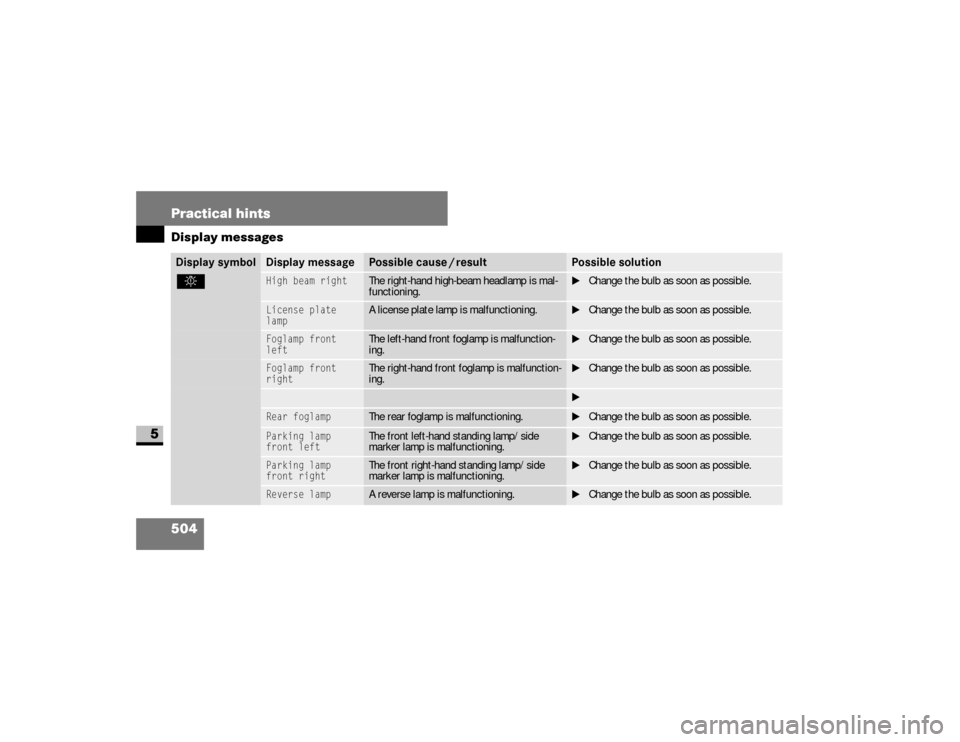

504 Practical hintsDisplay messages
5
.
High beam right
The right-hand high-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
License plate
lamp
A license plate lamp is malfunctioning.
\1Change the bulb as soon as possible.
Foglamp front
left
The left-hand front foglamp is malfunction-
ing.
\1Change the bulb as soon as possible.
Foglamp front
right
The right-hand front foglamp is malfunction-
ing.
\1Change the bulb as soon as possible.\1
Rear foglamp
The rear foglamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp
front left
The front left-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp
front right
The front right-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Reverse lamp
A reverse lamp is malfunctioning.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution
nf_BA.book Page 504 Friday, January 25, 2008 3:53 PM

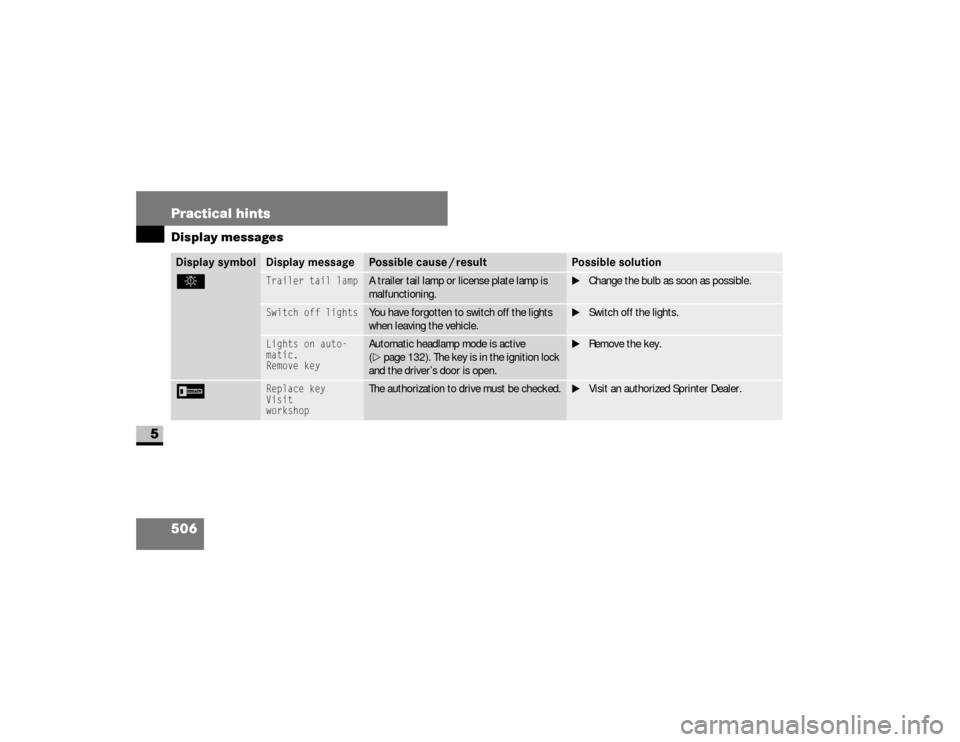

506 Practical hintsDisplay messages
5
.
Trailer tail lamp
A trailer tail lamp or license plate lamp is
malfunctioning.
\1Change the bulb as soon as possible.
Switch off lights
You have forgotten to switch off the lights
when leaving the vehicle.
\1Switch off the lights.
Lights on auto-
matic.
Remove key
Automatic headlamp mode is active
(\2page 132). The key is in the ignition lock
and the driver’s door is open.
\1Remove the key.
I
Replace key
Visit
workshop
The authorization to drive must be checked.
\1Visit an authorized Sprinter Dealer.
Display symbol
Display message
Possible cause / result
Possible solution
nf_BA.book Page 506 Friday, January 25, 2008 3:53 PM

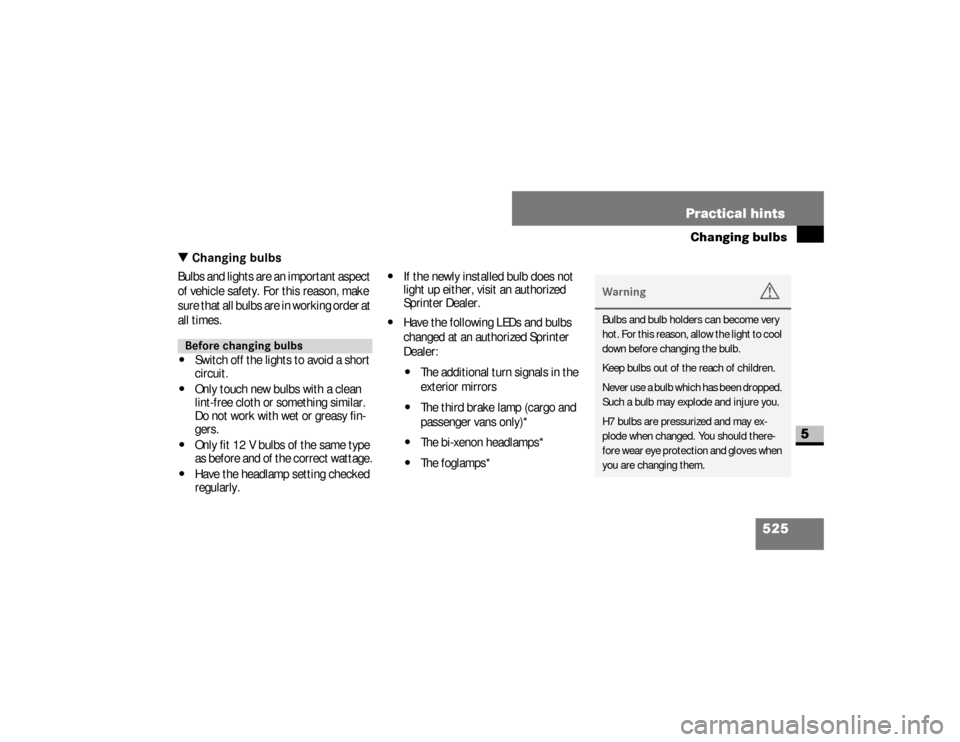

525 Practical hints
Changing bulbs
5
\3 Changing bulbsBulbs and lights are an important aspect
of vehicle safety. For this reason, make
sure that all bulbs are in working order at
all times.\4
Switch off the lights to avoid a short
circuit.
\4
Only touch new bulbs with a clean
lint-free cloth or something similar.
Do not work with wet or greasy fin-
gers.
\4
Only fit 12 V bulbs of the same type
as before and of the correct wattage.
\4
Have the headlamp setting checked
regularly.
\4
If the newly installed bulb does not
light up either, visit an authorized
Sprinter Dealer.
\4
Have the following LEDs and bulbs
changed at an authorized Sprinter
Dealer:\4
The additional turn signals in the
exterior mirrors
\4
The third brake lamp (cargo and
passenger vans only)*
\4
The bi-xenon headlamps*
\4
The foglamps*
Before changing bulbs
Warning
G
Bulbs and bulb holders can become very
hot. For this reason, allow the light to cool
down before changing the bulb.
Keep bulbs out of the reach of children.
Never use a bulb which has been dropped.
Such a bulb may explode and injure you.
H7 bulbs are pressurized and may ex-
plode when changed. You should there-
fore wear eye protection and gloves when
you are changing them.
nf_BA.book Page 525 Friday, January 25, 2008 3:53 PM

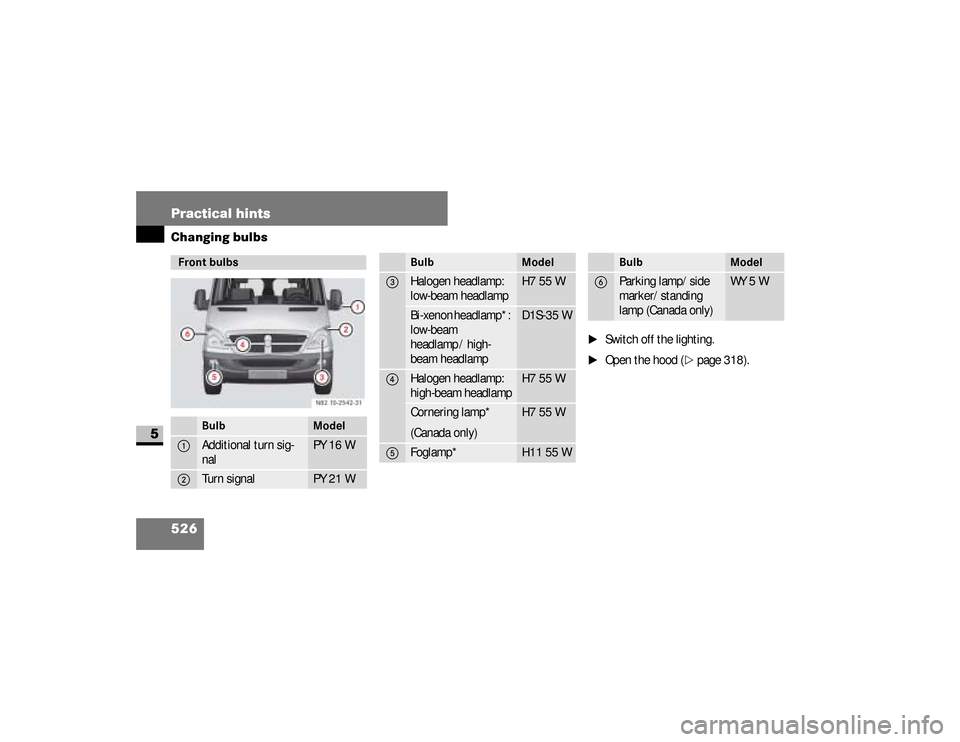

526 Practical hintsChanging bulbs
5

\1
Switch off the lighting.
\1
Open the hood (
\2
page 318).
Front bulbs
Bulb
Model
1
Additional turn sig-
nal
PY 16 W
2
Turn signal
PY 21 W
3
Halogen headlamp:
low-beam headlamp
H7 55 W
Bi-xenon headlamp*:
low-beam
headlamp / high-
beam headlamp
D1S-35 W
4
Halogen headlamp:
high-beam headlamp
H7 55 W
Cornering lamp*
(Canada only)
H7 55 W
5
Foglamp*
H11 55 W
Bulb
Model
6
Parking lamp/side
marker/standing
lamp (Canada only)
WY 5 W
Bulb
Model
nf_BA.book Page 526 Friday, January 25, 2008 3:53 PM

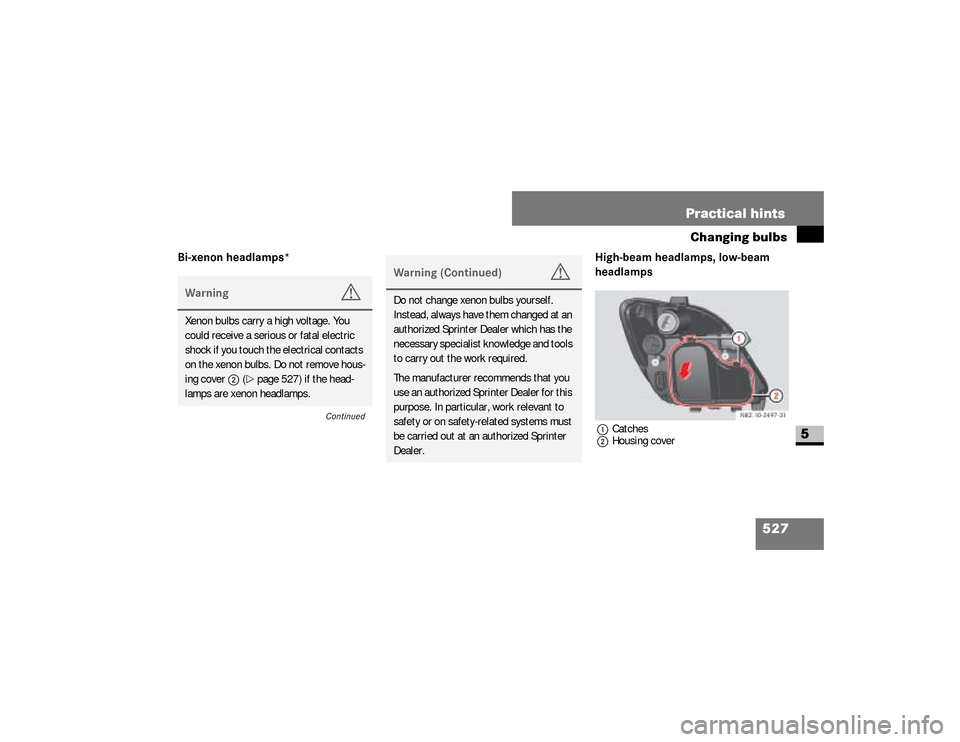

527 Practical hints
Changing bulbs
5
Bi-xenon headlamps* High-beam headlamps, low-beam
headlamps
1Catches
2Housing cover
Warning
G
Xenon bulbs carry a high voltage. You
could receive a serious or fatal electric
shock if you touch the electrical contacts
on the xenon bulbs. Do not remove hous-
ing cover 2 (\2page 527) if the head-
lamps are xenon headlamps.
Continued
Warning (Continued)
G
Do not change xenon bulbs yourself.
Instead, always have them changed at an
authorized Sprinter Dealer which has the
necessary specialist knowledge and tools
to carry out the work required.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at an authorized Sprinter
Dealer.
nf_BA.book Page 527 Friday, January 25, 2008 3:53 PM

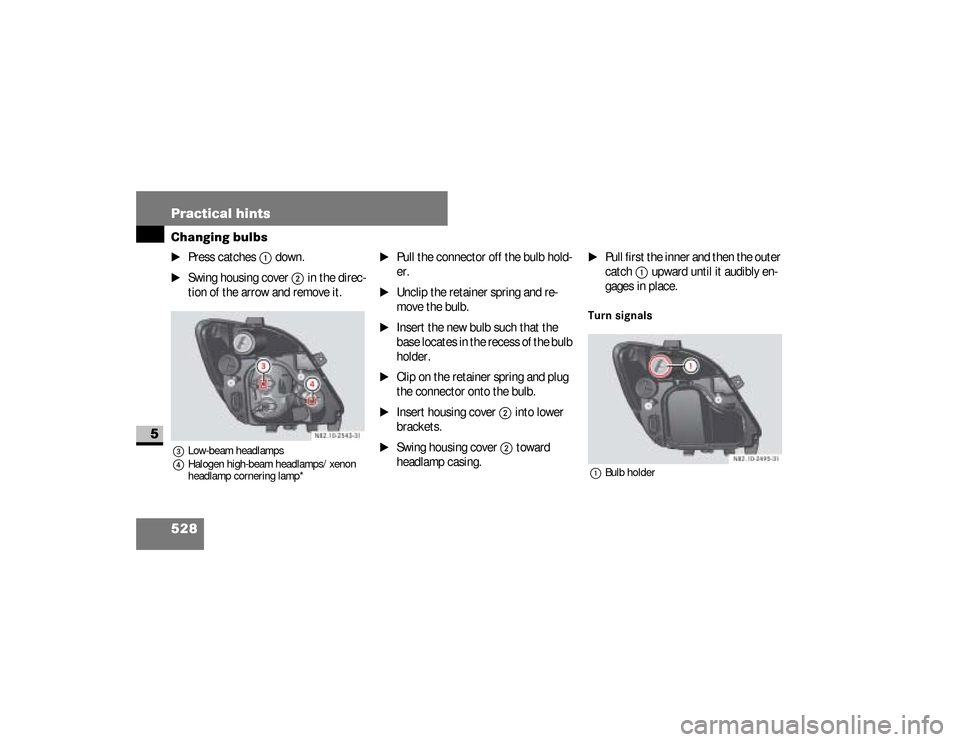

528 Practical hintsChanging bulbs
5
\1
Press catches
1
down.
\1
Swing housing cover
2
in the direc-
tion of the arrow and remove it.
3Low-beam headlamps
4Halogen high-beam headlamps/xenon
headlamp cornering lamp*
\1
Pull the connector off the bulb hold-
er.
\1
Unclip the retainer spring and re-
move the bulb.
\1
Insert the new bulb such that the
base locates in the recess of the bulb
holder.
\1
Clip on the retainer spring and plug
the connector onto the bulb.
\1
Insert housing cover
2
into lower
brackets.
\1
Swing housing cover
2
toward
headlamp casing.
\1
Pull first the inner and then the outer
catch
1
upward until it audibly en-
gages in place.
Turn signals1Bulb holder
nf_BA.book Page 528 Friday, January 25, 2008 3:53 PM

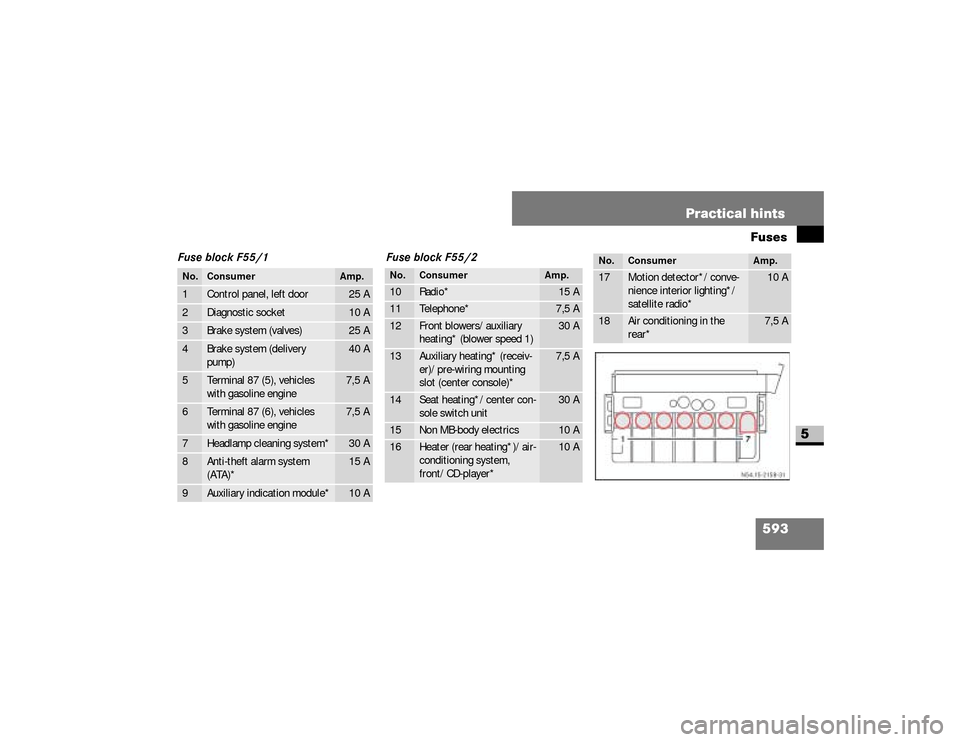

593 Practical hintsFuses
5
Fuse block F55/1 Fuse block F55/2No.
Consumer
Amp.
1
Control panel, left door
25 A
2
Diagnostic socket
10 A
3
Brake system (valves)
25 A
4
Brake system (delivery
pump)
40 A
5
Terminal 87 (5), vehicles
with gasoline engine
7,5 A
6
Terminal 87 (6), vehicles
with gasoline engine
7,5 A
7
Headlamp cleaning system*
30 A
8
Anti-theft alarm system
(ATA)*
15 A
9
Auxiliary indication module*
10 A
No.
Consumer
Amp.
10
Radio*
15 A
11
Telephone*
7,5 A
12
Front blowers/auxiliary
heating* (blower speed 1)
30 A
13
Auxiliary heating* (receiv-
er)/pre-wiring mounting
slot (center console)*
7,5 A
14
Seat heating*/center con-
sole switch unit
30 A
15
Non MB-body electrics
10 A
16
Heater (rear heating*)/air-
conditioning system,
front/CD-player*
10 A
17
Motion detector*/conve-
nience interior lighting*/
satellite radio*
10 A
18
Air conditioning in the
rear*
7,5 A
No.
Consumer
Amp.
nf_BA.book Page 593 Friday, January 25, 2008 3:53 PM

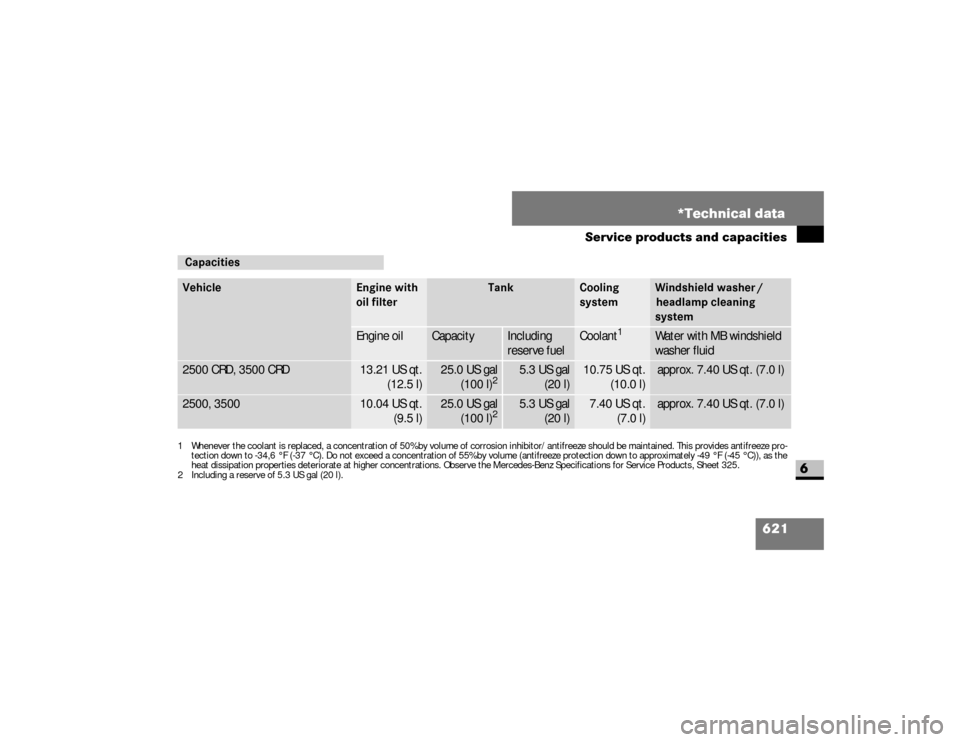

621 *Technical data
Service products and capacities
6
CapacitiesVehicle
Engine with
oil filter
Tank
Cooling
system
Windshield washer /
headlamp cleaning
system
Engine oil
Capacity
Including
reserve fuel
Coolant
1
1 Whenever the coolant is replaced, a concentration of 50% by volume of corrosion inhibitor/antifreeze should be maintained. This provides antifreeze pro-
tection down to -34,6 °F (-37 °C). Do not exceed a concentration of 55% by volume (antifreeze protection down to approximately -49 °F (-45 °C)), as the
heat dissipation properties deteriorate at higher concentrations. Observe the Mercedes-Benz Specifications for Service Products, Sheet 325.
Water with MB windshield
washer fluid
2500 CRD, 3500 CRD
13.21 US qt.
(12.5 l)
25.0 US gal
(100 l)
2
2 Including a reserve of 5.3 US gal (20 l).
5.3 US gal
(20 l)
10.75 US qt.
(10.0 l)
approx. 7.40 US qt. (7.0 l)
2500, 3500
10.04 US qt.
(9.5 l)
25.0 US gal
(100 l)
2
5.3 US gal
(20 l)
7.40 US qt.
(7.0 l)
approx. 7.40 US qt. (7.0 l)
