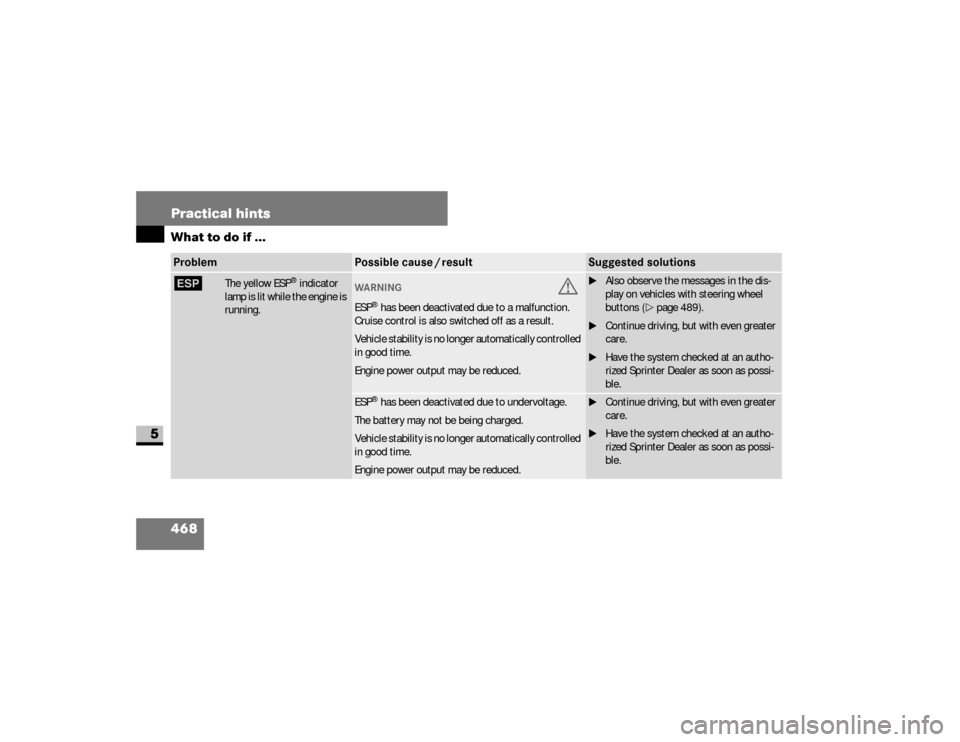

Page 470 of 666
468 Practical hintsWhat to do if ...
5
#
The yellow ESP
® indicator
lamp is lit while the engine is
running.
WA RNING
G
ESP
® has been deactivated due to a malfunction.
Cruise control is also switched off as a result.
Vehicle stability is no longer automatically controlled
in good time.
Engine power output may be reduced.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
ESP
® has been deactivated due to undervoltage.
The battery may not be being charged.
Vehicle stability is no longer automatically controlled
in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 468 Friday, January 25, 2008 3:53 PM

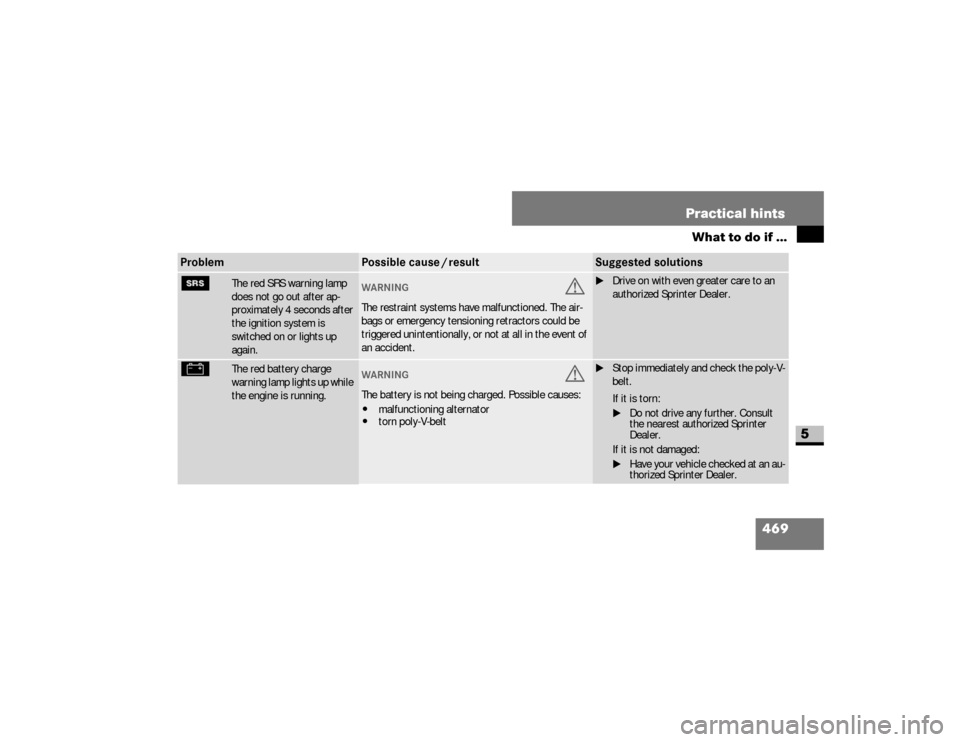

Page 471 of 666
469 Practical hints
What to do if ...
5
1
The red SRS warning lamp
does not go out after ap-
proximately 4 seconds after
the ignition system is
switched on or lights up
again.
WARNING
G
The restraint systems have malfunctioned. The air-
bags or emergency tensioning retractors could be
triggered unintentionally, or not at all in the event of
an accident.
\1Drive on with even greater care to an
authorized Sprinter Dealer.
#
The red battery charge
warning lamp lights up while
the engine is running.
WARNING
G
The battery is not being charged. Possible causes:
\4malfunctioning alternator
\4torn poly-V-belt
\1Stop immediately and check the poly-V-
belt.
If it is torn:
\1Do not drive any further. Consult
the nearest authorized Sprinter
Dealer.
If it is not damaged:
\1Have your vehicle checked at an au-
thorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 469 Friday, January 25, 2008 3:53 PM

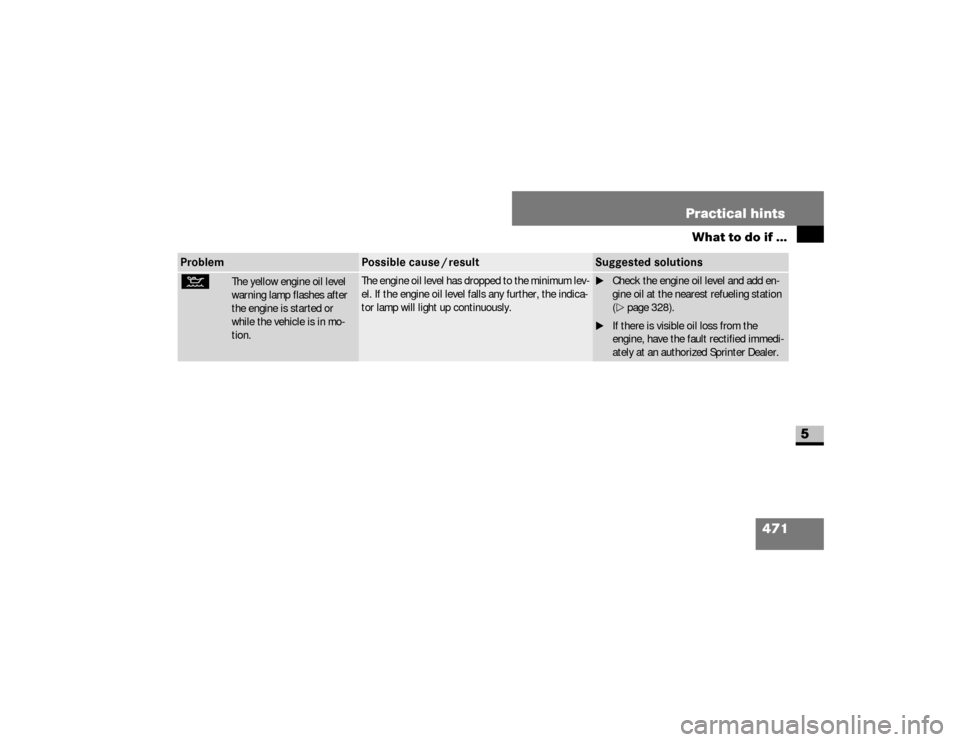

Page 473 of 666
471 Practical hints
What to do if ...
5
:
The yellow engine oil level
warning lamp flashes after
the engine is started or
while the vehicle is in mo-
tion.
The engine oil level has dropped to the minimum lev-
el. If the engine oil level falls any further, the indica-
tor lamp will light up continuously.
\1Check the engine oil level and add en-
gine oil at the nearest refueling station
(\2page 328).
\1If there is visible oil loss from the
engine, have the fault rectified immedi-
ately at an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 471 Friday, January 25, 2008 3:53 PM
Page 474 of 666

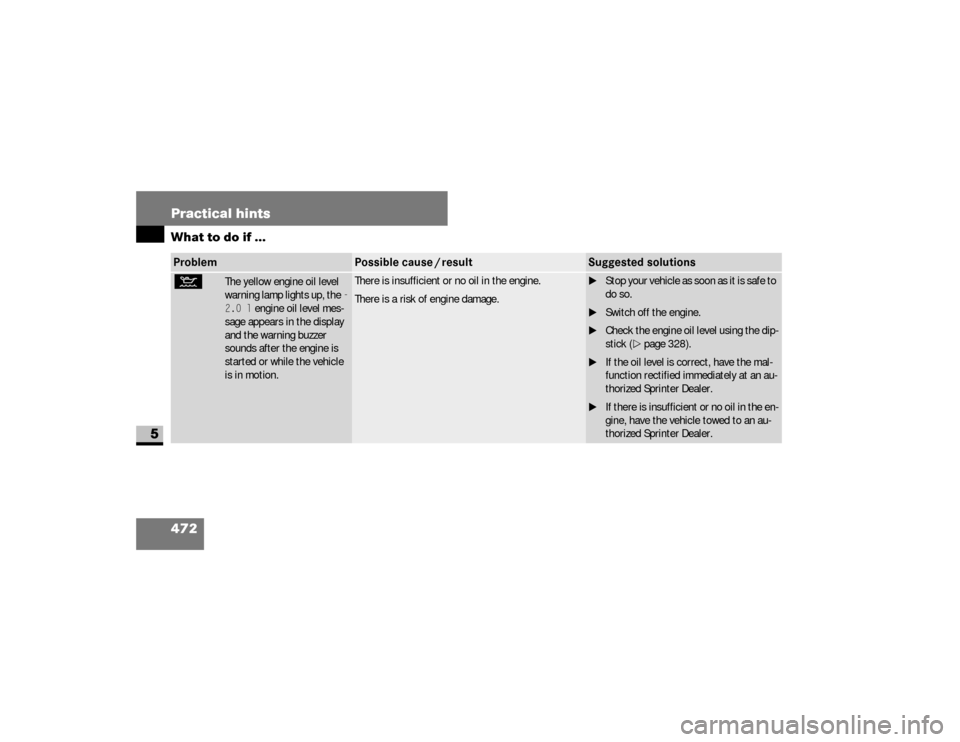

472 Practical hintsWhat to do if ...
5
:
The yellow engine oil level
warning lamp lights up, the
-
2.0 l
engine oil level mes-
sage appears in the display
and the warning buzzer
sounds after the engine is
started or while the vehicle
is in motion.
There is insufficient or no oil in the engine.
There is a risk of engine damage.
\1Stop your vehicle as soon as it is safe to
do so.
\1Switch off the engine.
\1Check the engine oil level using the dip-
stick (\2page 328).
\1If the oil level is correct, have the mal-
function rectified immediately at an au-
thorized Sprinter Dealer.
\1If there is insufficient or no oil in the en-
gine, have the vehicle towed to an au-
thorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 472 Friday, January 25, 2008 3:53 PM

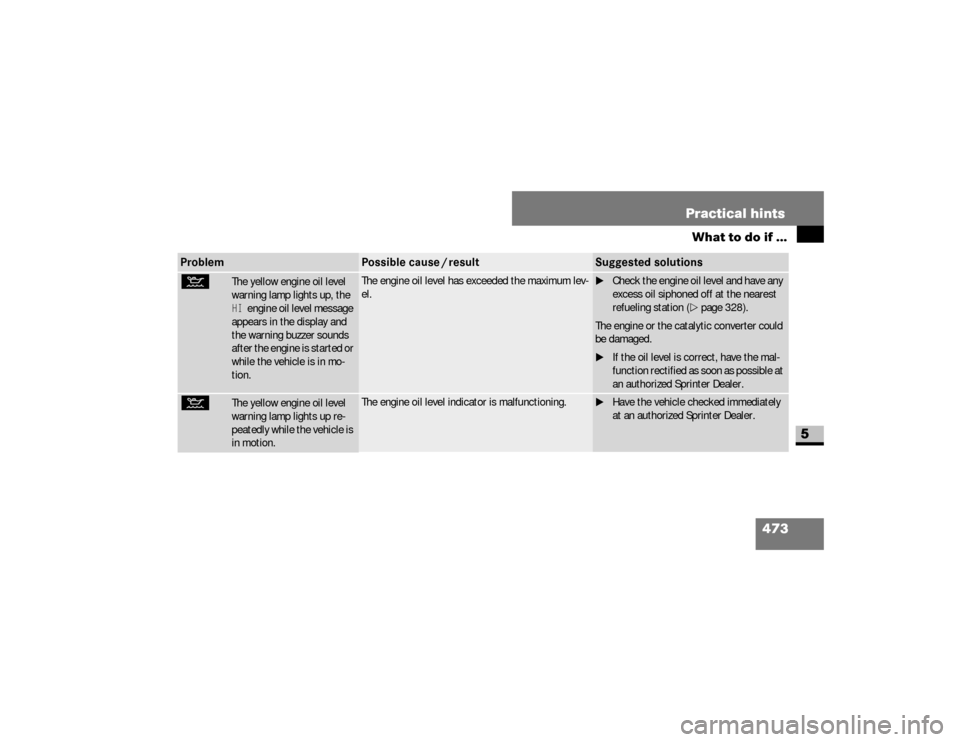

Page 475 of 666
473 Practical hints
What to do if ...
5
:
The yellow engine oil level
warning lamp lights up, the HI
engine oil level message
appears in the display and
the warning buzzer sounds
after the engine is started or
while the vehicle is in mo-
tion.
The engine oil level has exceeded the maximum lev-
el.
\1Check the engine oil level and have any
excess oil siphoned off at the nearest
refueling station (\2page 328).
The engine or the catalytic converter could
be damaged.
\1If the oil level is correct, have the mal-
function rectified as soon as possible at
an authorized Sprinter Dealer.
:
The yellow engine oil level
warning lamp lights up re-
peatedly while the vehicle is
in motion.
The engine oil level indicator is malfunctioning.
\1Have the vehicle checked immediately
at an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 473 Friday, January 25, 2008 3:53 PM

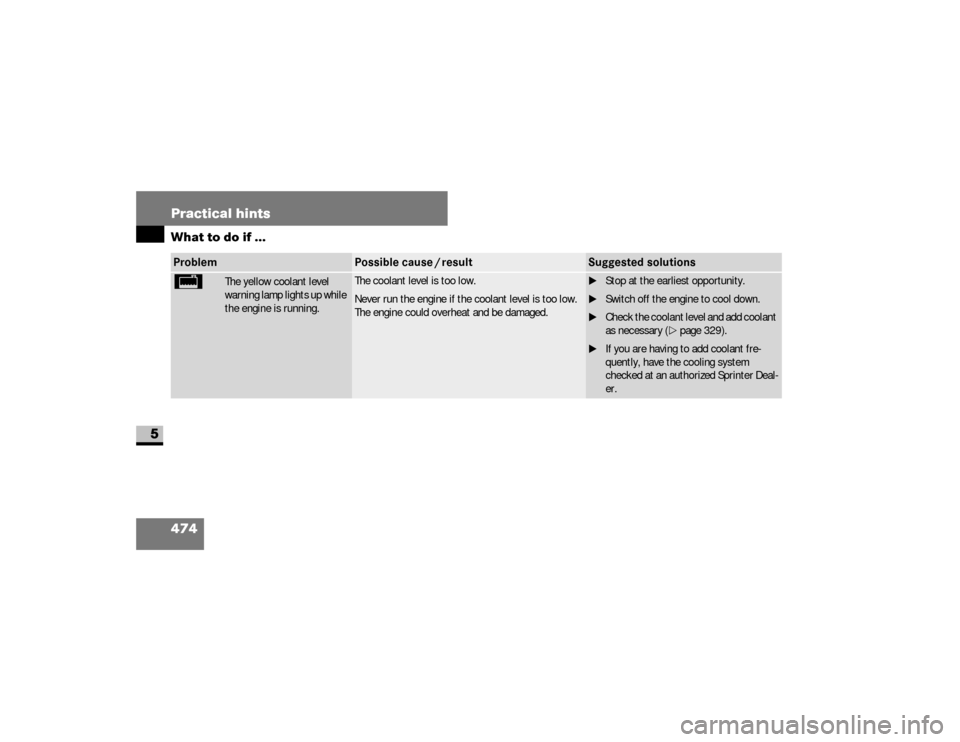

Page 476 of 666
474 Practical hintsWhat to do if ...
5
/
The yellow coolant level
warning lamp lights up while
the engine is running.
The coolant level is too low.
Never run the engine if the coolant level is too low.
The engine could overheat and be damaged.
\1Stop at the earliest opportunity.
\1Switch off the engine to cool down.
\1Check the coolant level and add coolant
as necessary (\2page 329).
\1If you are having to add coolant fre-
quently, have the cooling system
checked at an authorized Sprinter Deal-
er.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 474 Friday, January 25, 2008 3:53 PM

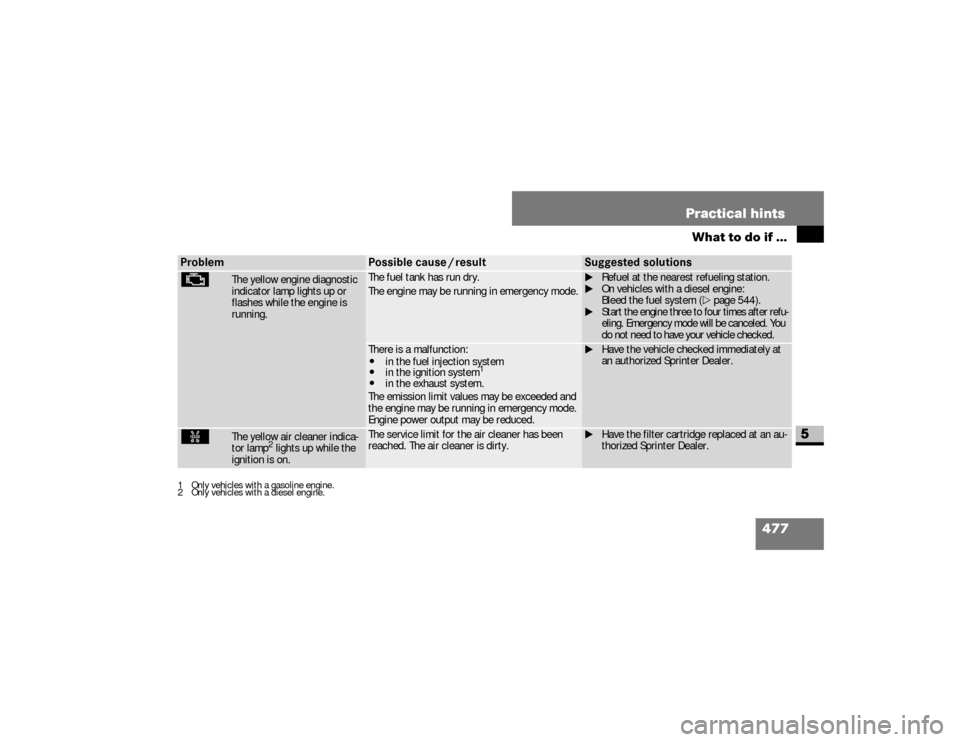

Page 479 of 666
477 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
±
The yellow engine diagnostic
indicator lamp lights up or
flashes while the engine is
running.
The fuel tank has run dry.
The engine may be running in emergency mode.
\1Refuel at the nearest refueling station.
\1On vehicles with a diesel engine:
Bleed the fuel system (\2page 544).
\1
Start the engine three to four times after refu-
eling. Emergency mode will be canceled. You
do not need to have your vehicle checked.
There is a malfunction:
\4in the fuel injection system
\4in the ignition system
1
\4in the exhaust system.
The emission limit values may be exceeded and
the engine may be running in emergency mode.
Engine power output may be reduced.
\1Have the vehicle checked immediately at
an authorized Sprinter Dealer.
‰
The yellow air cleaner indica-
tor lamp
2 lights up while the
ignition is on.
The service limit for the air cleaner has been
reached. The air cleaner is dirty.
\1Have the filter cartridge replaced at an au-
thorized Sprinter Dealer.
1 Only vehicles with a gasoline engine.
2 Only vehicles with a diesel engine.
nf_BA.book Page 477 Friday, January 25, 2008 3:53 PM
Page 484 of 666
482 Practical hintsWhat to do if ...
5
Problem
Possible cause / result
Suggested solutions
/
The yellow water separator indi-
cator lamp
1 lights up while the ig-
nition is on.
The water that has collected in the water sepa-
rator has reached the maximum level.
\1Drain the water separator
(\2page 542).
\1Have the water separator drained at an
authorized Sprinter Dealer.
W
The yellow washer fluid level indi-
cator lamp for the windshield
washer / headlamp cleaning sys-
tem lights up after the engine is
started or while the vehicle is in
motion.
The windshield washer fluid level is too low.
\1Check the fluid level in the reservoir
and add windshield washer fluid if nec-
essary (\2page 333).
<
The red seat belt telltale lights up
for approximately 6 seconds
when the ignition is switched on.
A signal also sounds.
The telltale reminds you to fasten your seat
belt.
\1Fasten your seat belt.
nf_BA.book Page 482 Friday, January 25, 2008 3:53 PM

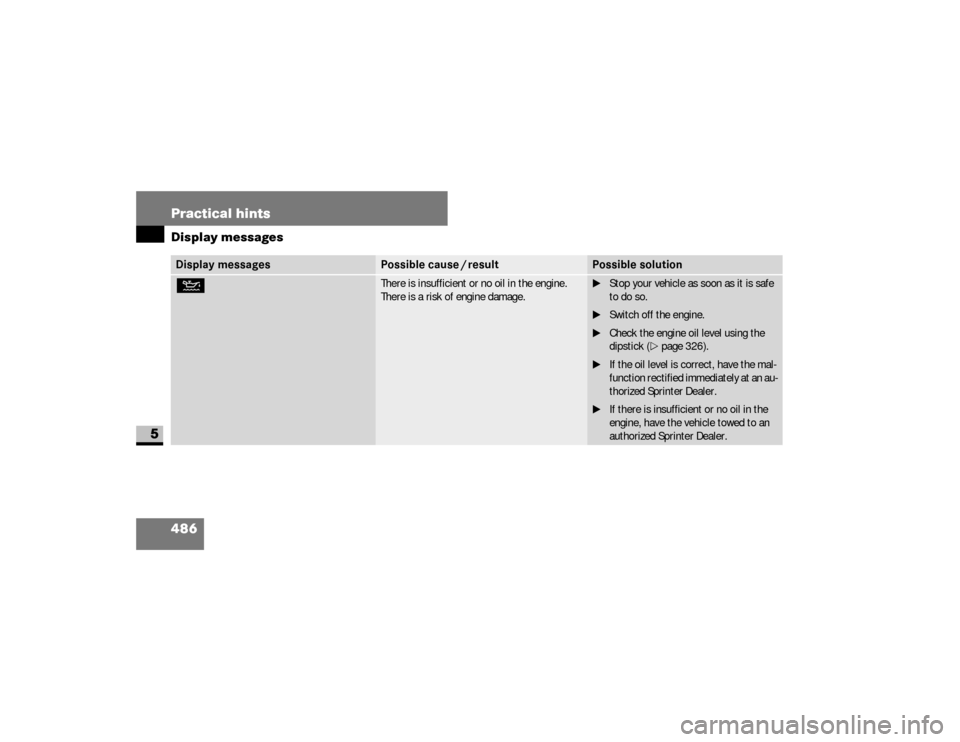

Page 488 of 666
486 Practical hintsDisplay messages
5
Display messages
Possible cause / result
Possible solution
N
There is insufficient or no oil in the engine.
There is a risk of engine damage.
\1Stop your vehicle as soon as it is safe
to do so.
\1Switch off the engine.
\1Check the engine oil level using the
dipstick (\2page 326).
\1If the oil level is correct, have the mal-
function rectified immediately at an au-
thorized Sprinter Dealer.
\1If there is insufficient or no oil in the
engine, have the vehicle towed to an
authorized Sprinter Dealer.
nf_BA.book Page 486 Friday, January 25, 2008 3:53 PM

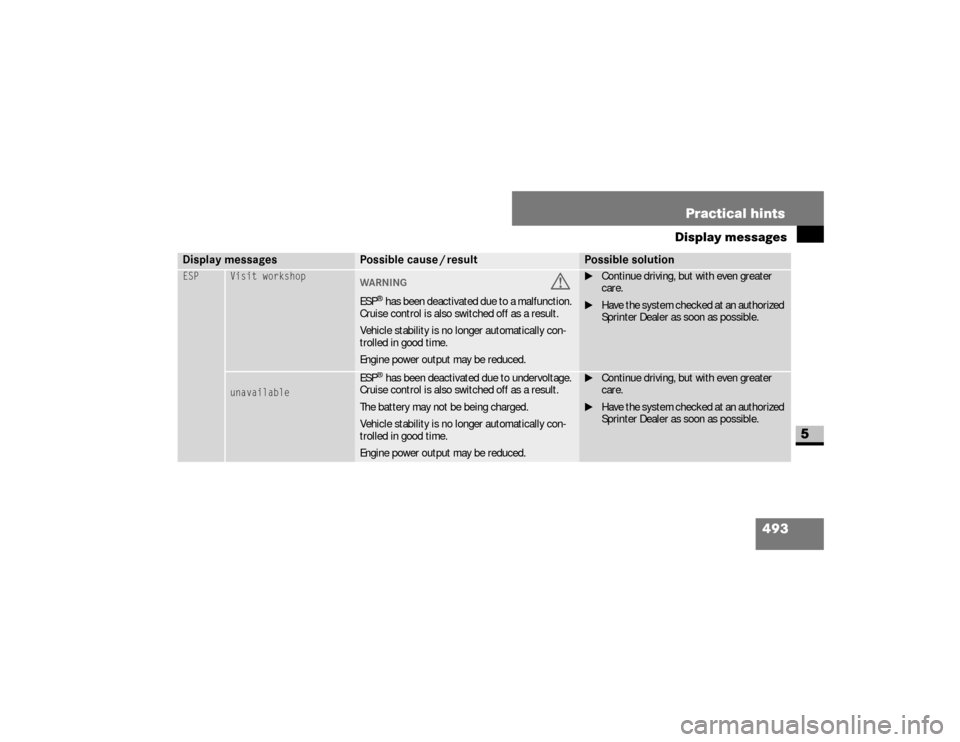

Page 495 of 666
493 Practical hints
Display messages
5
ESP
Visit workshop
WARNING
G
ESP
® has been deactivated due to a malfunction.
Cruise control is also switched off as a result.
Vehicle stability is no longer automatically con-
trolled in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an authorized
Sprinter Dealer as soon as possible.
unavailable
ESP
® has been deactivated due to undervoltage.
Cruise control is also switched off as a result.
The battery may not be being charged.
Vehicle stability is no longer automatically con-
trolled in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an authorized
Sprinter Dealer as soon as possible.
Display messages
Possible cause / result
Possible solution
nf_BA.book Page 493 Friday, January 25, 2008 3:53 PM
