Page 26 of 666
24 At a glanceInstrument cluster
1
Indicator and warning lamps
Page
Water in the fuel
482
#
Battery charge mal-
function
469
.
Defective bulb
483
Handbrake applied
191
B
Low-beam headlamps
on
131
™
Operating speed gov-
ernor on*
273
A
High-beam headlamps
on
131
<
Seat belt reminder
482
iVehicles with steering wheel buttons:
Corresponding messages may also
be shown in display
9
(
\2
page 157).
nf_BA.book Page 24 Friday, January 25, 2008 3:53 PM

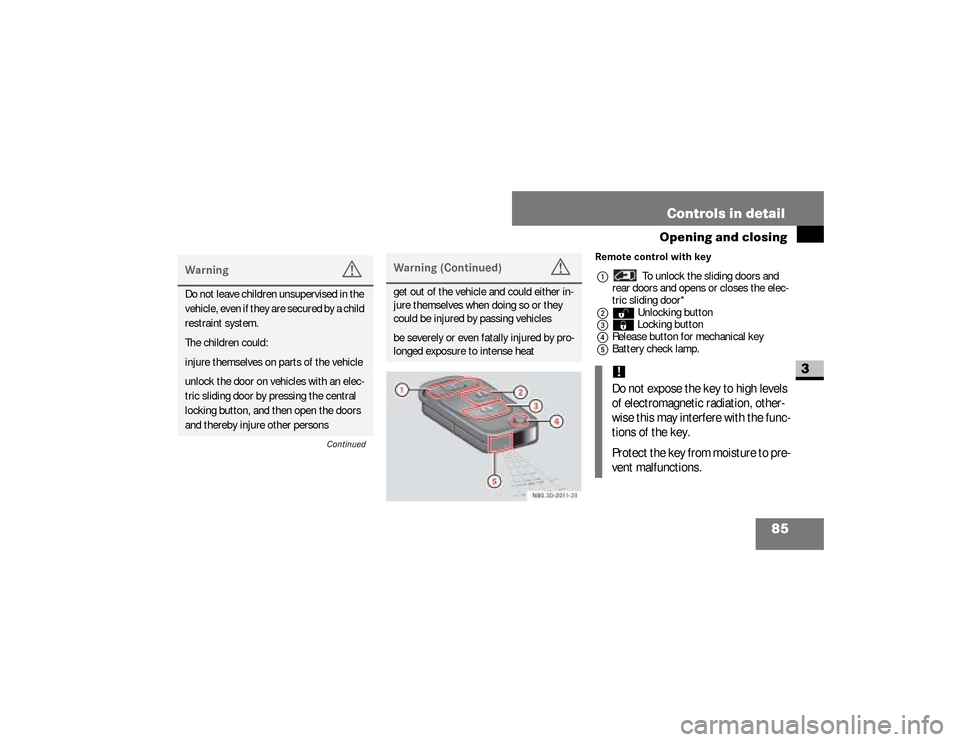

Page 87 of 666
85 Controls in detail
Opening and closing
3
Remote control with key
1 To unlock the sliding doors and
rear doors and opens or closes the elec-
tric sliding door*
2Œ Unlocking button
3‹ Locking button
4Release button for mechanical key
5Battery check lamp.
Warning
G
Do not leave children unsupervised in the
vehicle, even if they are secured by a child
restraint system.The children could:injure themselves on parts of the vehicleunlock the door on vehicles with an elec-
tric sliding door by pressing the central
locking button, and then open the doors
and thereby injure other persons
Continued
Warning (Continued)
G
get out of the vehicle and could either in-
jure themselves when doing so or they
could be injured by passing vehiclesbe severely or even fatally injured by pro-
longed exposure to intense heat
!Do not expose the key to high levels
of electromagnetic radiation, other-
wise this may interfere with the func-
tions of the key.
Protect the key from moisture to pre-
vent malfunctions.
nf_BA.book Page 85 Friday, January 25, 2008 3:53 PM

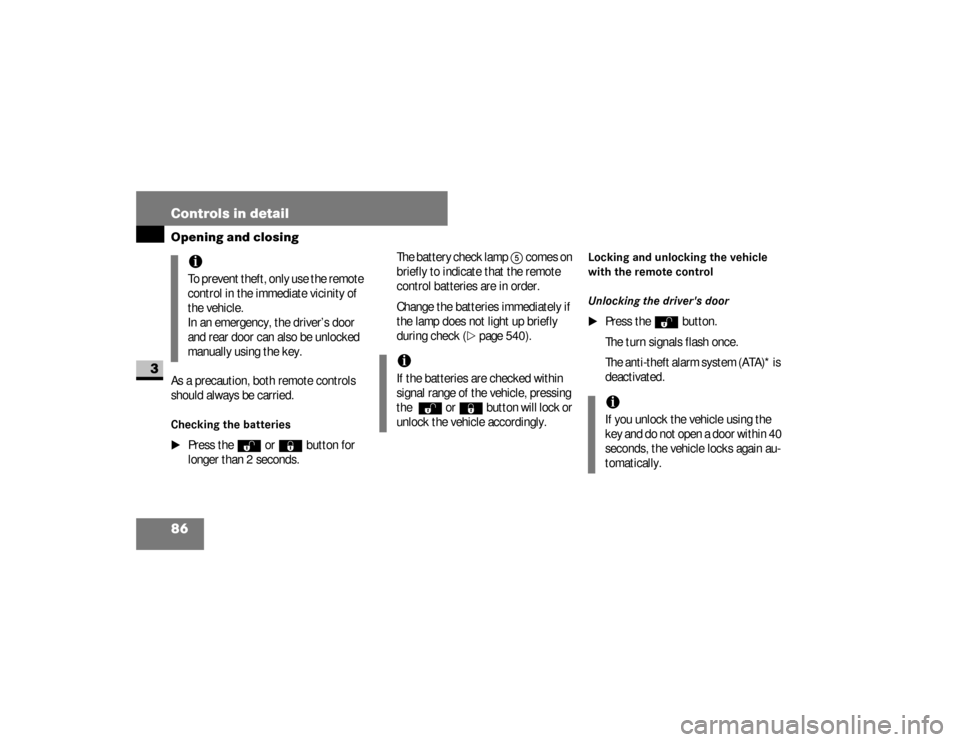

Page 88 of 666
86 Controls in detailOpening and closing
3
As a precaution, both remote controls
should always be carried.Checking the batteries
\1
Press the
Œ
or
‹
button for
longer than 2 seconds.The battery check lamp
5
comes on
briefly to indicate that the remote
control batteries are in order.
Change the batteries immediately if
the lamp
does not
light up briefly
during check (
\2
page 540).
Locking and unlocking the vehicle
with the remote control
Unlocking the driver's door
\1
Press the
Œ
button.
The turn signals flash once.
The anti-theft alarm system (ATA)* is
deactivated.
iTo prevent theft, only use the remote
control in the immediate vicinity of
the vehicle.
In an emergency, the driver’s door
and rear door can also be unlocked
manually using the key.
iIf the batteries are checked within
signal range of the vehicle, pressing
the
Œ
or
‹
but ton wil l lock or
unlock the vehicle accordingly.
iIf you unlock the vehicle using the
key and do not open a door within 40
seconds, the vehicle locks again au-
tomatically.
nf_BA.book Page 86 Friday, January 25, 2008 3:53 PM

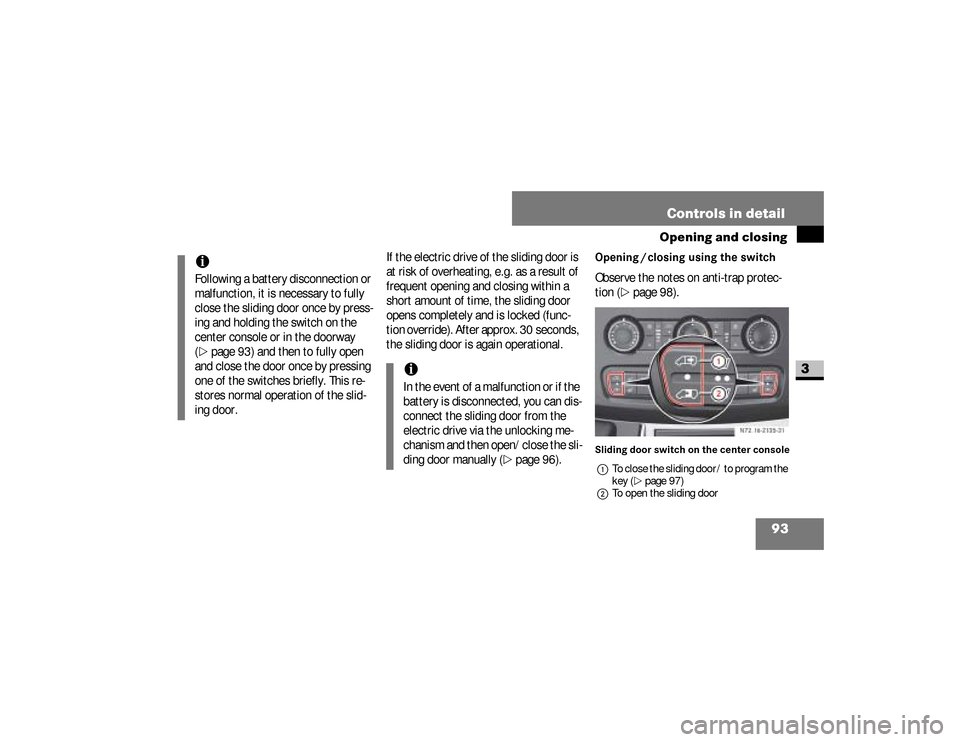

Page 95 of 666
93 Controls in detail
Opening and closing
3
If the electric drive of the sliding door is
at risk of overheating, e.g. as a result of
frequent opening and closing within a
short amount of time, the sliding door
opens completely and is locked (func-
tion override). After approx. 30 seconds,
the sliding door is again operational.
Opening / closing using the switchObserve the notes on anti-trap protec-
tion (
\2
page 98).
Sliding door switch on the center console
1To close the sliding door / to program the
key (\2page 97)
2To open the sliding door
iFollowing a battery disconnection or
malfunction, it is necessary to fully
close the sliding door once by press-
ing and holding the switch on the
center console or in the doorway
(\2
page 93) and then to fully open
and close the door once by pressing
one of the switches briefly. This re-
stores normal operation of the slid-
ing door.
iIn the event of a malfunction or if the
battery is disconnected, you can dis-
connect the sliding door from the
electric drive via the unlocking me-
chanism and then open/close the sli-
ding door manually (
\2
page 96).
N72.16-2135-31
nf_BA.book Page 93 Friday, January 25, 2008 3:53 PM

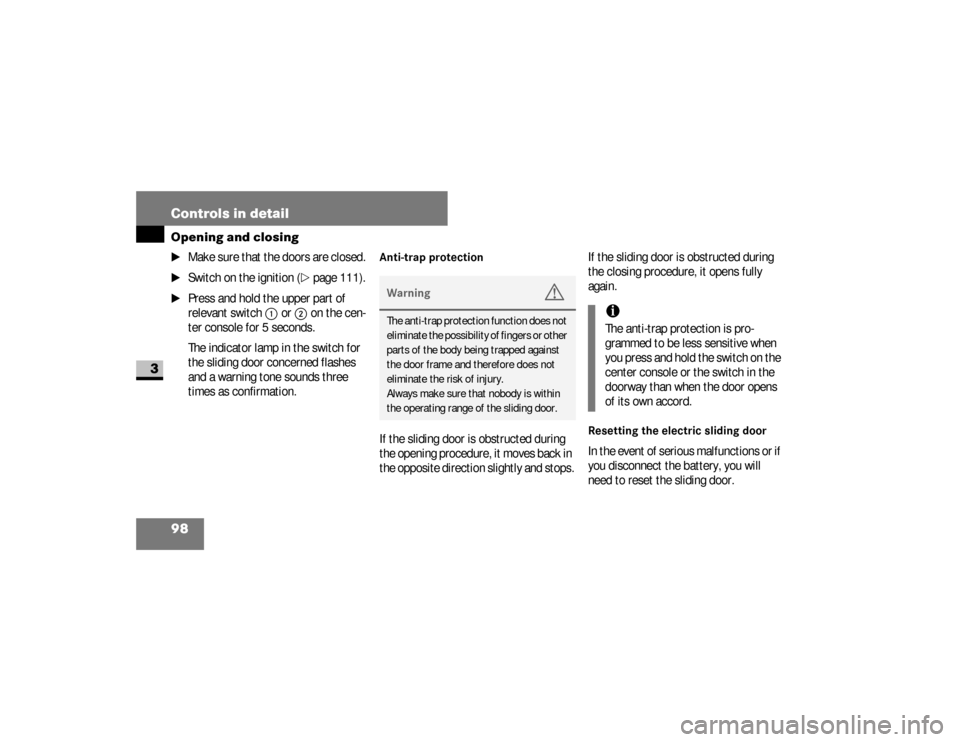

Page 100 of 666
98 Controls in detailOpening and closing
3
\1
Make sure that the doors are closed.
\1
Switch on the ignition (
\2
page 111).
\1
Press and hold the upper part of
relevant switch
1
or
2
on the cen-
ter console for 5 seconds.
The indicator lamp in the switch for
the sliding door concerned flashes
and a warning tone sounds three
times as confirmation.
Anti-trap protectionIf the sliding door is obstructed during
the opening procedure, it moves back in
the opposite direction slightly and stops.If the sliding door is obstructed during
the closing procedure, it opens fully
again.
Resetting the electric sliding door In the event of serious malfunctions or if
you disconnect the battery, you will
need to reset the sliding door.
Warning
G
The anti-trap protection function does not
eliminate the possibility of fingers or other
parts of the body being trapped against
the door frame and therefore does not
eliminate the risk of injury.
Always make sure that nobody is within
the operating range of the sliding door.
iThe anti-trap protection is pro-
grammed to be less sensitive when
you press and hold the switch on the
center console or the switch in the
doorway than when the door opens
of its own accord.
nf_BA.book Page 98 Friday, January 25, 2008 3:53 PM

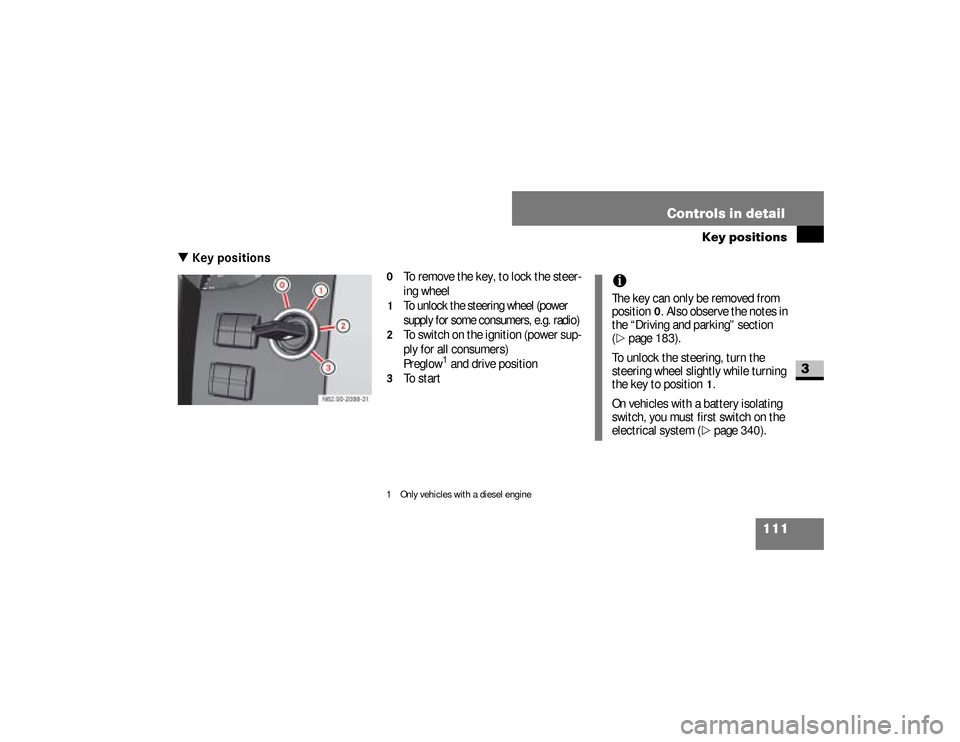

Page 113 of 666
111 Controls in detail
Key positions
3
\3 Key positions
0
To remove the key, to lock the steer-
ing wheel
1
To unlock the steering wheel (power
supply for some consumers, e.g. radio)
2
To switch on the ignition (power sup-
ply for all consumers)
Preglow
1 and drive position
3
To start
1 Only vehicles with a diesel engine
iThe key can only be removed from
position
0. Also observe the notes in
the “Driving and parking” section
(
\2
page 183).
To unlock the steering, turn the
steering wheel slightly while turning
the key to position
1.
On vehicles with a battery isolating
switch, you must first switch on the
electrical system (\2
page 340).
nf_BA.book Page 111 Friday, January 25, 2008 3:53 PM
Page 143 of 666
141 Controls in detail
Lighting
3
Load compartment motion detector*On panel vans equipped with a motion
detector in the load compartment, the
rear interior lighting may also switch on
if motion is detected.
The rear interior lighting can be switched
on by the motion detector with a delay of
no more than 4 seconds if:
\4
the switch on the rear interior lamp
(\2
page 139) is set to “automatic
control”
\4
the vehicle is stationary, the hand-
brake is applied and the service
brake is not applied
or
\4
the selector lever is in position
P and
the service brake is not applied
\4
the vehicle has not been locked from
the outside using the key
Warning
G
Motion detectors work with invisible in-
frared beams emitted by LEDs (Light
Emitting Diodes).
Do not view invisible infrared radiation, la-
ser class 1M, directly using optical instru-
ments.
Your eyes could otherwise be injured.
iIf the motion detector detects move-
ment in the load compartment when
the vehicle is stationary, the rear in-
terior lighting switches on for ap-
proximately 2 minutes. If new
movements are detected, the dura-
tion resumes from the beginning and
the rear interior lighting remains
switched on.
iThe motion detector switches off auto-
matically if no change is detected in the
vehicle for several hours, e.g. door
opened, ignition key turned, etc.This prevents the battery from dis-
charging.
nf_BA.book Page 141 Friday, January 25, 2008 3:53 PM

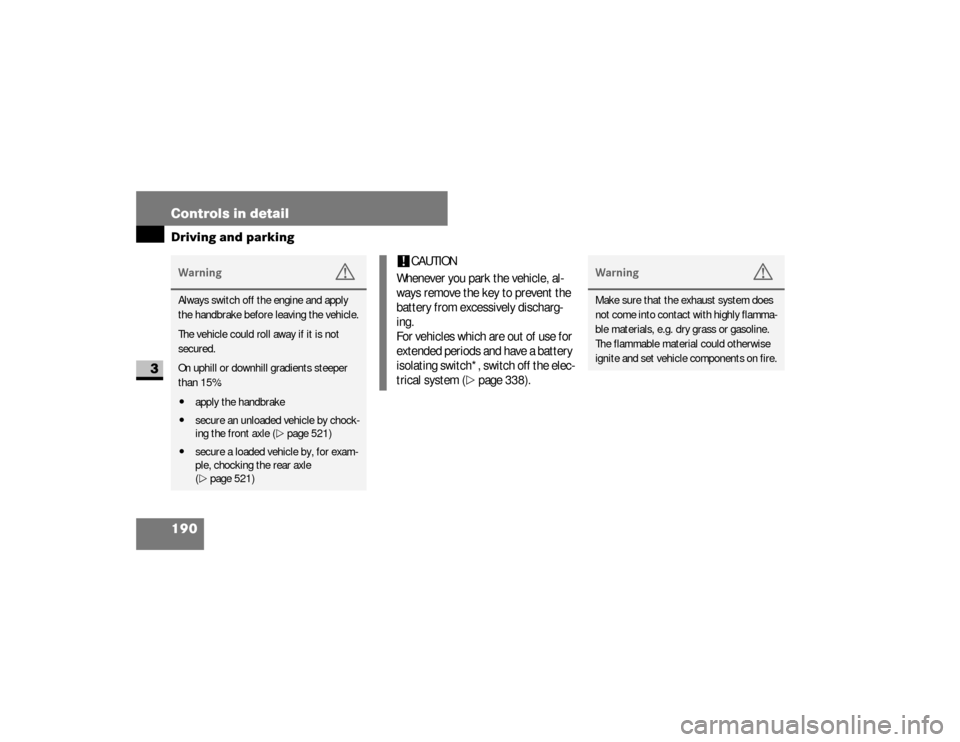

Page 192 of 666
190 Controls in detailDriving and parking
3
Warning
G
Always switch off the engine and apply
the handbrake before leaving the vehicle.
The vehicle could roll away if it is not
secured.
On uphill or downhill gradients steeper
than 15%:
\4apply the handbrake
\4secure an unloaded vehicle by chock-
ing the front axle (\2page 521)
\4secure a loaded vehicle by, for exam-
ple, chocking the rear axle
(\2page 521)
!
CAUTION
Whenever you park the vehicle, al-
ways remove the key to prevent the
battery from excessively discharg-
ing.
For vehicles which are out of use for
extended periods and have a battery
isolating switch*, switch off the elec-
trical system (
\2
page 338).
Warning
G
Make sure that the exhaust system does
not come into contact with highly flamma-
ble materials, e.g. dry grass or gasoline.
The flammable material could otherwise
ignite and set vehicle components on fire.
nf_BA.book Page 190 Friday, January 25, 2008 3:53 PM

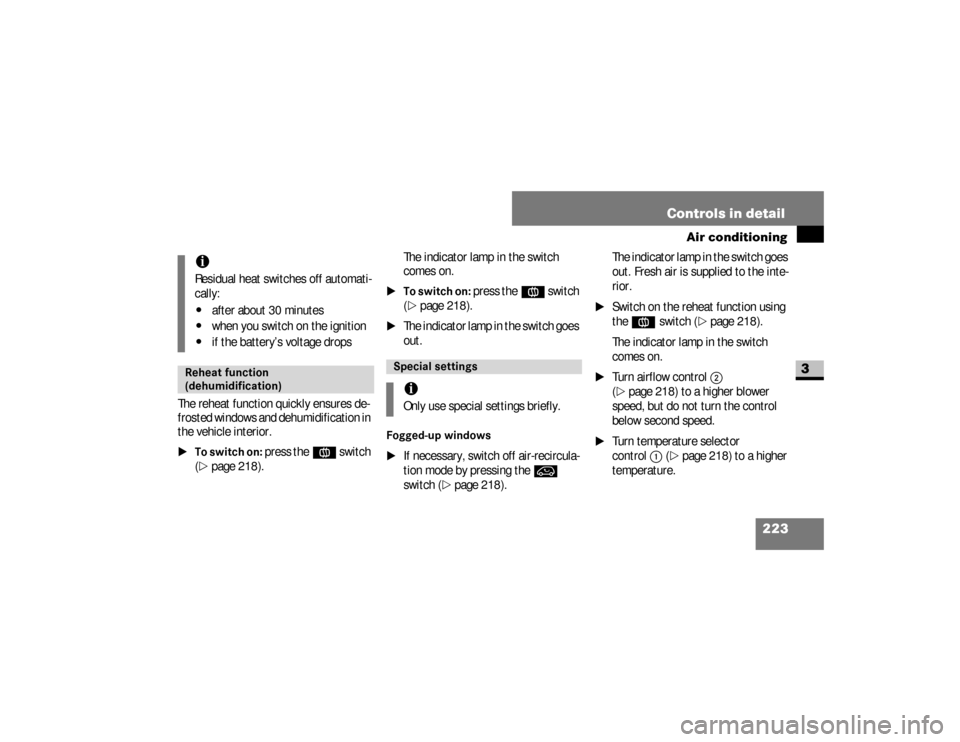

Page 225 of 666
223 Controls in detail
Air conditioning
3
The reheat function quickly ensures de-
frosted windows and dehumidification in
the vehicle interior.\1To switch on:
press the
Å
switch
(
\2
page 218).The indicator lamp in the switch
comes on.
\1To switch on:
press the
Å
switch
(
\2
page 218).
\1
The indicator lamp in the switch goes
out.
Fogged-up windows
\1
If necessary, switch off air-recircula-
tion mode by pressing the
Ä
switch (
\2
page 218).The indicator lamp in the switch goes
out. Fresh air is supplied to the inte-
rior.
\1
Switch on the reheat function using
the
Å
switch (
\2
page 218).
The indicator lamp in the switch
comes on.
\1
Turn airflow control
2
(
\2
page 218) to a higher blower
speed, but do not turn the control
below second speed.
\1
Turn temperature selector
control
1
(\2
page 218) to a higher
temperature.
iResidual heat switches off automati-
cally:\4
after about 30 minutes
\4
when you switch on the ignition
\4
if the battery’s voltage drops
Reheat function
(dehumidification)
Special settingsiOnly use special settings briefly.
nf_BA.book Page 223 Friday, January 25, 2008 3:53 PM

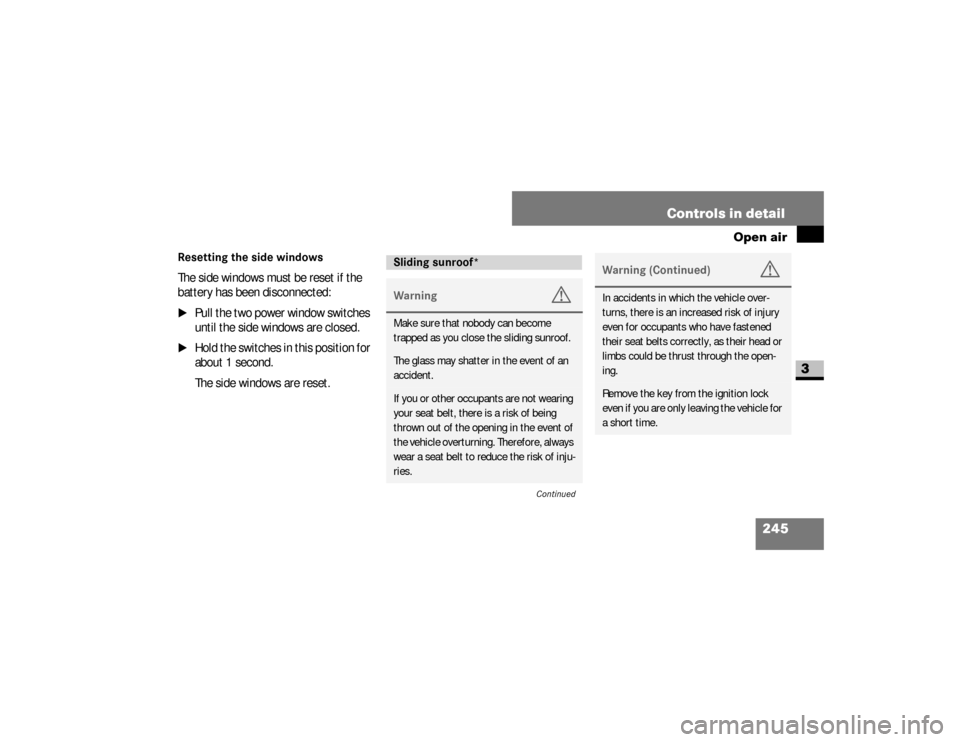

Page 247 of 666
245 Controls in detail
Open air
3
Resetting the side windowsThe side windows must be reset if the
battery has been disconnected:\1
Pull the two power window switches
until the side windows are closed.
\1
Hold the switches in this position for
about 1 second.
The side windows are reset.
Sliding sunroof*Warning
G
Make sure that nobody can become
trapped as you close the sliding sunroof.The glass may shatter in the event of an
accident.If you or other occupants are not wearing
your seat belt, there is a risk of being
thrown out of the opening in the event of
the vehicle overturning. Therefore, always
wear a seat belt to reduce the risk of inju-
ries.
Continued
Warning (Continued)
G
In accidents in which the vehicle over-
turns, there is an increased risk of injury
even for occupants who have fastened
their seat belts correctly, as their head or
limbs could be thrust through the open-
ing.Remove the key from the ignition lock
even if you are only leaving the vehicle for
a short time.
nf_BA.book Page 245 Friday, January 25, 2008 3:53 PM
