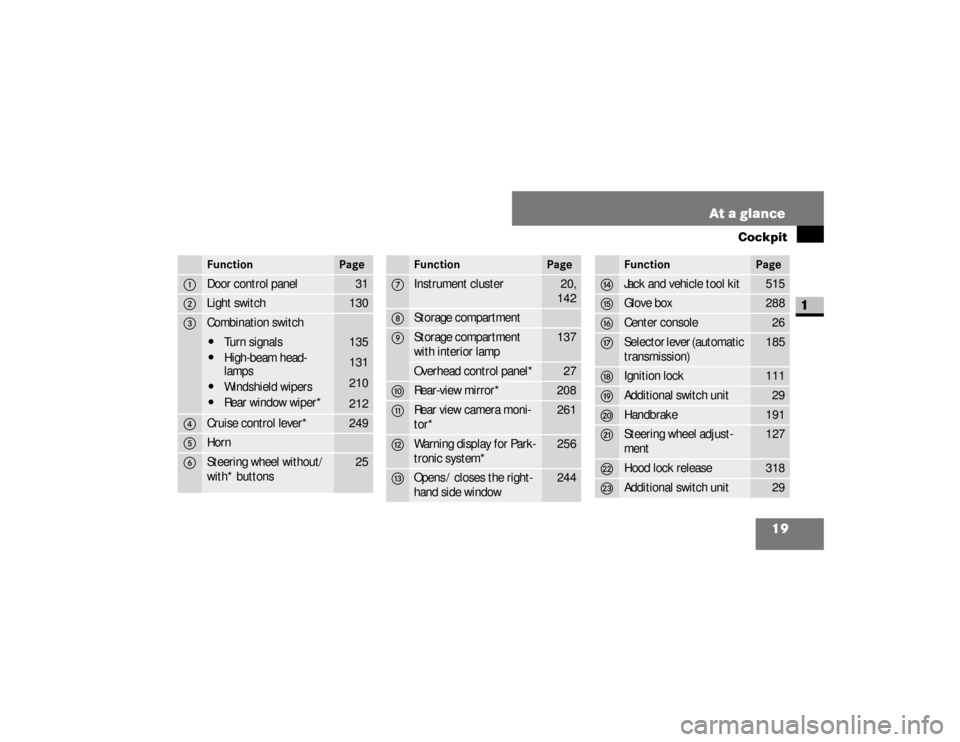

19 At a glance
Cockpit
1
Function
Page
1
Door control panel
31
2
Light switch
130
3
Combination switch\4
Turn signals
\4
High-beam head-
lamps
\4
Windshield wipers
\4
Rear window wiper*
135
131
210
212
4
Cruise control lever*
249
5
Horn
6
Steering wheel without/
with* buttons
25
Function
Page
7
Instrument cluster
20,
142
8
Storage compartment
9
Storage compartment
with interior lamp
137
Overhead control panel*
27
a
Rear-view mirror*
208
b
Rear view camera moni-
tor*
261
c
Warning display for Park-
tronic system*
256
d
Opens / closes the right-
hand side window
244
Function
Page
e
Jack and vehicle tool kit
515
f
Glove box
288
g
Center console
26
h
Selector lever (automatic
transmission)
185
j
Ignition lock
111
k
Additional switch unit
29
l
Handbrake
191
m
Steering wheel adjust-
ment
127
n
Hood lock release
318
o
Additional switch unit
29
nf_BA.book Page 19 Friday, January 25, 2008 3:53 PM

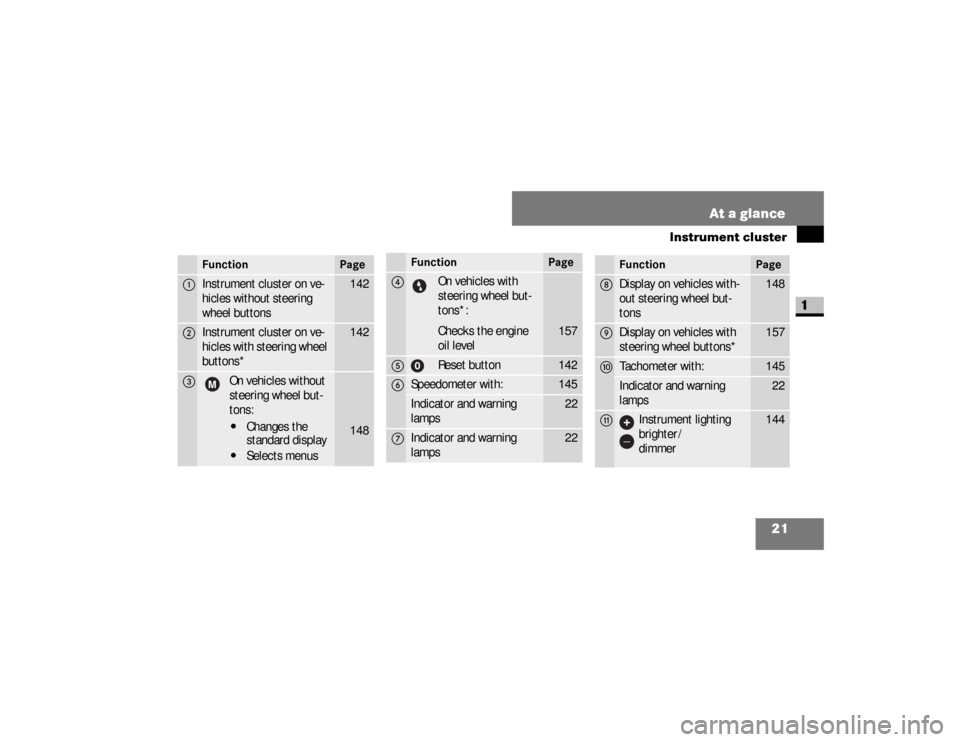

21 At a glance
Instrument cluster
1
Function
Page
1
Instrument cluster on ve-
hicles without steering
wheel buttons
142
2
Instrument cluster on ve-
hicles with steering wheel
buttons*
142
3
On vehicles without
steering wheel but-
tons:\4
Changes the
standard display
\4
Selects menus
148
4
On vehicles with
steering wheel but-
tons*:
Checks the engine
oil level
157
5
Reset button
142
6
Speedometer with:
145
Indicator and warning
lamps
22
7
Indicator and warning
lamps
22
Function
Page
Function
Page
8
Display on vehicles with-
out steering wheel but-
tons
148
9
Display on vehicles with
steering wheel buttons*
157
a
Tachometer with:
145
Indicator and warning
lamps
22
b
Instrument lighting
brighter /
dimmer
144
nf_BA.book Page 21 Friday, January 25, 2008 3:53 PM

42 SafetyOccupant safety
2
Activation of emergency tensioning
retractors, belt force limiters and air-
bagsIn the event of a collision, the
sensor in
the airbag control unit evaluates impor-
tant physical data, such as duration, di-
rection and rate of vehicle deceleration
or acceleration. Based on the evaluation
of this data and depending on the vehi-
cle’s rate of longitudinal deceleration in
a collision, in the first stage, the airbag
control unit pre-emptively triggers the
emergency tensioning retractors.
Warning
G
A malfunction has occurred if the 1
warning lamp:d o e s n o t c o m e o n w h e n y o u s w i t c h o n t h e
ignitiondoes not go out after approximately 4 sec-
ondslights up againIndividual systems may be activated unin-
tentionally or may not be triggered in the
ev en t o f a n ac c ide n t wi th a hi gh ra te o f v e-
hicle deceleration.
Continued
Warning (Continued)
G
In this case, have the SRS system
checked and repaired immediately at a
qualified specialist workshop which has
the necessary specialist knowledge and
tools to carry out the work required.The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at a qualified specialist
workshop.
nf_BA.book Page 42 Friday, January 25, 2008 3:53 PM

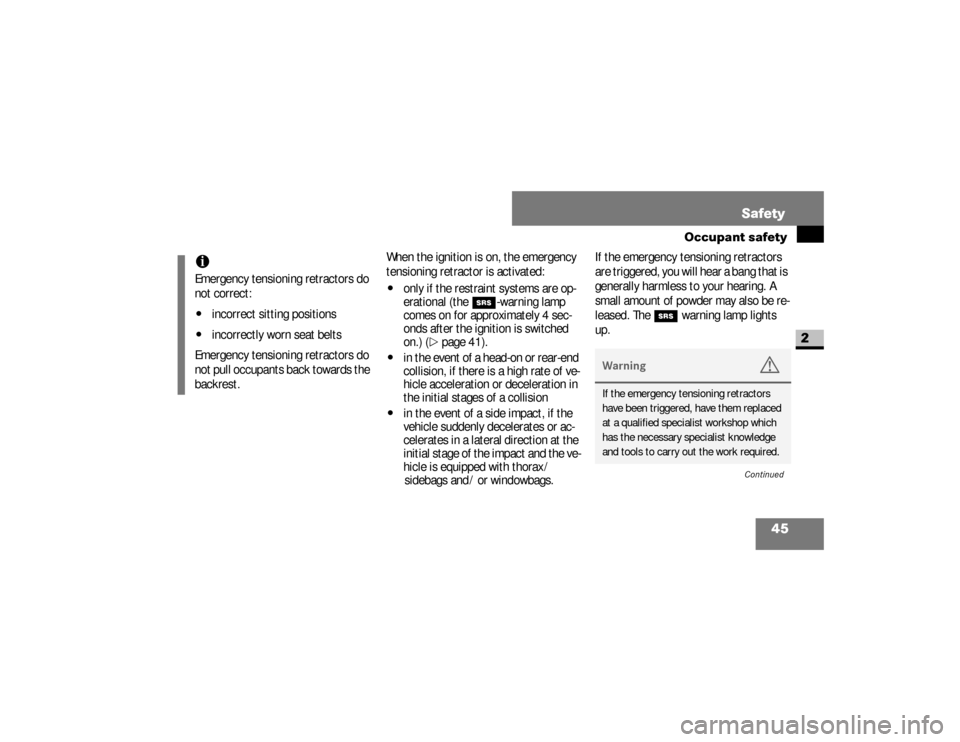

45 Safety
Occupant safety
2
When the ignition is on, the emergency
tensioning retractor is activated:\4
only if the restraint systems are op-
erational (the
1
-warning lamp
comes on for approximately 4 sec-
onds after the ignition is switched
on.) (
\2
page 41).
\4
in the event of a head-on or rear-end
collision, if there is a high rate of ve-
hicle acceleration or deceleration in
the initial stages of a collision
\4
in the event of a side impact, if the
vehicle suddenly decelerates or ac-
celerates in a lateral direction at the
initial stage of the impact and the ve-
hicle is equipped with thorax /
sidebags and / or windowbags.If the emergency tensioning retractors
are triggered, you will hear a bang that is
generally harmless to your hearing. A
small amount of powder may also be re-
leased. The
1
warning lamp lights
up.
iEmergency tensioning retractors do
not correct:\4
incorrect sitting positions
\4
incorrectly worn seat belts
Emergency tensioning retractors do
not pull occupants back towards the
backrest.
Warning
G
If the emergency tensioning retractors
have been triggered, have them replaced
at a qualified specialist workshop which
has the necessary specialist knowledge
and tools to carry out the work required.
Continued
nf_BA.book Page 45 Friday, January 25, 2008 3:53 PM

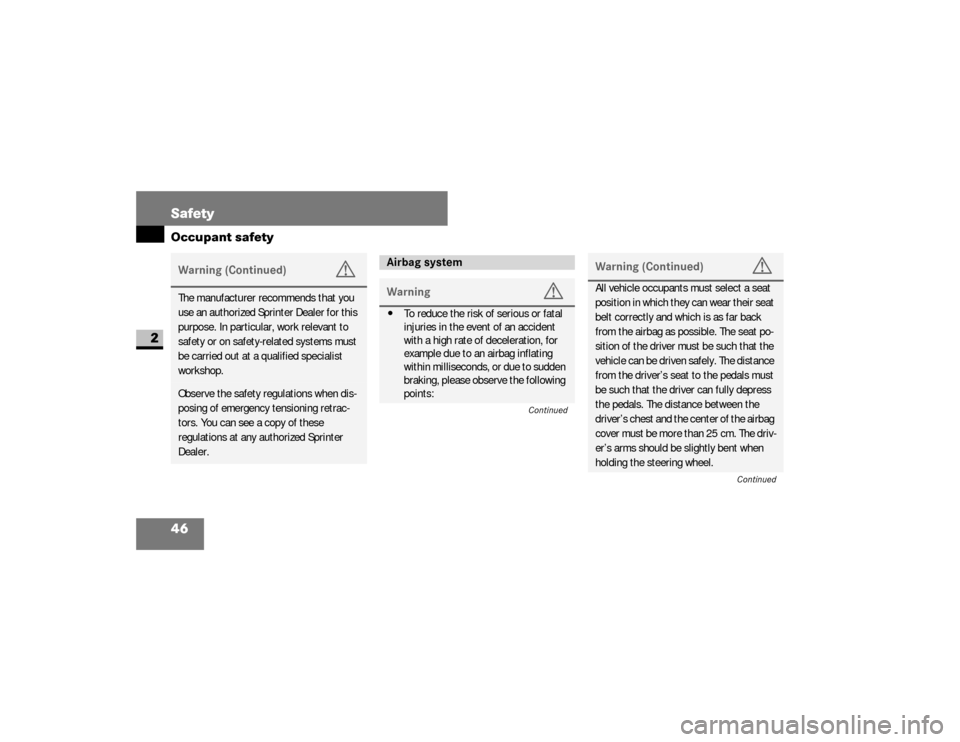

46 SafetyOccupant safety
2
Warning (Continued)
G
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at a qualified specialist
workshop.Observe the safety regulations when dis-
posing of emergency tensioning retrac-
tors. You can see a copy of these
regulations at any authorized Sprinter
Dealer.
Airbag systemWarning
G
\4To reduce the risk of serious or fatal
injuries in the event of an accident
with a high rate of deceleration, for
example due to an airbag inflating
within milliseconds, or due to sudden
braking, please observe the following
points:
Continued
Warning (Continued)
G
All vehicle occupants must select a seat
position in which they can wear their seat
belt correctly and which is as far back
from the airbag as possible. The seat po-
sition of the driver must be such that the
vehicle can be driven safely. The distance
from the driver’s seat to the pedals must
be such that the driver can fully depress
the pedals. The distance between the
driver’s chest and the center of the airbag
cover must be more than 25 cm. The driv-
er’s arms should be slightly bent when
holding the steering wheel.
Continued
nf_BA.book Page 46 Friday, January 25, 2008 3:53 PM

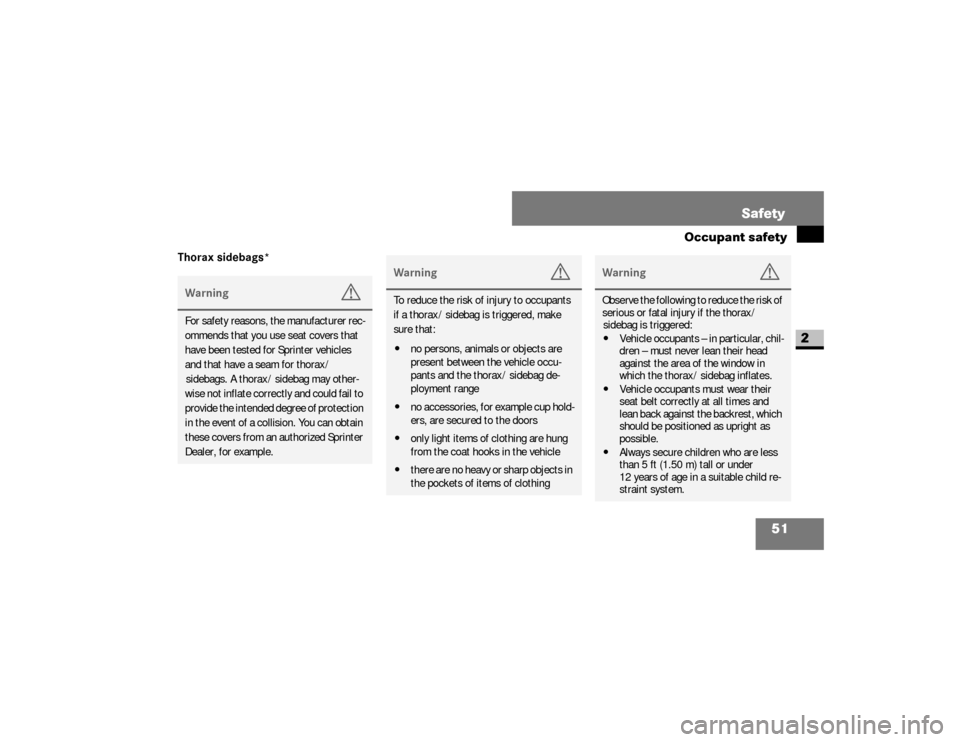

51 Safety
Occupant safety
2
Thorax sidebags*Warning
G
For safety reasons, the manufacturer rec-
ommends that you use seat covers that
have been tested for Sprinter vehicles
and that have a seam for thorax /
sidebags. A thorax / sidebag may other-
wise not inflate correctly and could fail to
provide the intended degree of protection
in the event of a collision. You can obtain
these covers from an authorized Sprinter
Dealer, for example.
Warning
G
To reduce the risk of injury to occupants
if a thorax / sidebag is triggered, make
sure that:
\4no persons, animals or objects are
present between the vehicle occu-
pants and the thorax / sidebag de-
ployment range
\4no accessories, for example cup hold-
ers, are secured to the doors
\4only light items of clothing are hung
from the coat hooks in the vehicle
\4there are no heavy or sharp objects in
the pockets of items of clothing
Warning
G
Observe the following to reduce the risk of
serious or fatal injury if the thorax /
sidebag is triggered:
\4Vehicle occupants – in particular, chil-
dren – must never lean their head
against the area of the window in
which the thorax / sidebag inflates.
\4Vehicle occupants must wear their
seat belt correctly at all times and
lean back against the backrest, which
should be positioned as upright as
possible.
\4Always secure children who are less
than 5 ft (1.50 m) tall or under
12 years of age in a suitable child re-
straint system.
nf_BA.book Page 51 Friday, January 25, 2008 3:53 PM

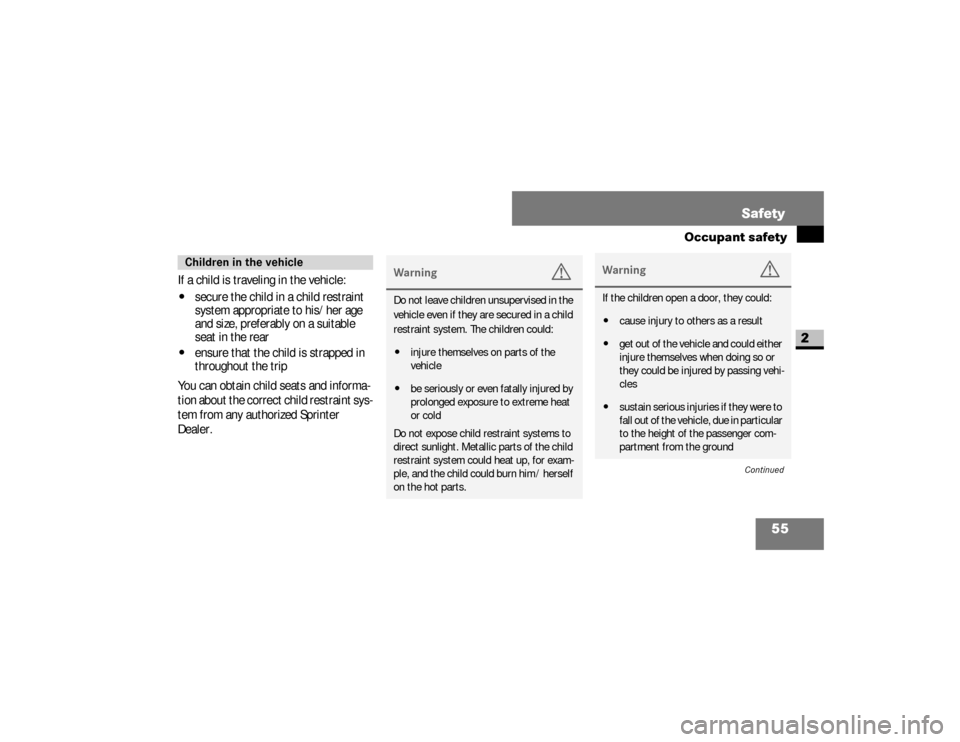

55 Safety
Occupant safety
2
If a child is traveling in the vehicle:\4
secure the child in a child restraint
system appropriate to his/her age
and size, preferably on a suitable
seat in the rear
\4
ensure that the child is strapped in
throughout the trip
You can obtain child seats and informa-
tion about the correct child restraint sys-
tem from any authorized Sprinter
Dealer.Children in the vehicle
Warning
G
Do not leave children unsupervised in the
vehicle even if they are secured in a child
restraint system. The children could:\4injure themselves on parts of the
vehicle\4be seriously or even fatally injured by
prolonged exposure to extreme heat
or cold
Do not expose child restraint systems to
direct sunlight. Metallic parts of the child
restraint system could heat up, for exam-
ple, and the child could burn him / herself
on the hot parts.
Warning
G
If the children open a door, they could:\4cause injury to others as a result\4get out of the vehicle and could either
injure themselves when doing so or
they could be injured by passing vehi-
cles\4sustain serious injuries if they were to
fall out of the vehicle, due in particular
to the height of the passenger com-
partment from the ground
Continued
nf_BA.book Page 55 Friday, January 25, 2008 3:53 PM

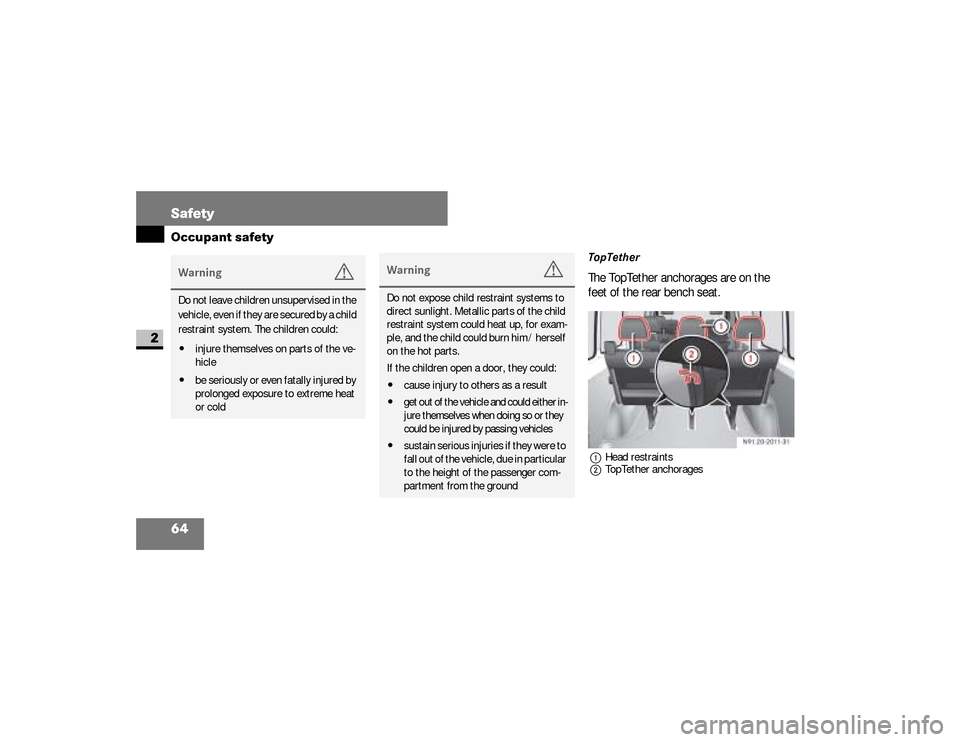

64 SafetyOccupant safety
2
TopTetherThe TopTether anchorages are on the
feet of the rear bench seat.1Head restraints
2TopTether anchorages
Warning
G
Do not leave children unsupervised in the
vehicle, even if they are secured by a child
restraint system. The children could:
\4injure themselves on parts of the ve-
hicle
\4be seriously or even fatally injured by
prolonged exposure to extreme heat
or cold
Warning
G
Do not expose child restraint systems to
direct sunlight. Metallic parts of the child
restraint system could heat up, for exam-
ple, and the child could burn him / herself
on the hot parts.
If the children open a door, they could:
\4cause injury to others as a result
\4
get out of the vehicle and could either in-
jure themselves when doing so or they
could be injured by passing vehicles
\4sustain serious injuries if they were to
fall out of the vehicle, due in particular
to the height of the passenger com-
partment from the ground
nf_BA.book Page 64 Friday, January 25, 2008 3:53 PM

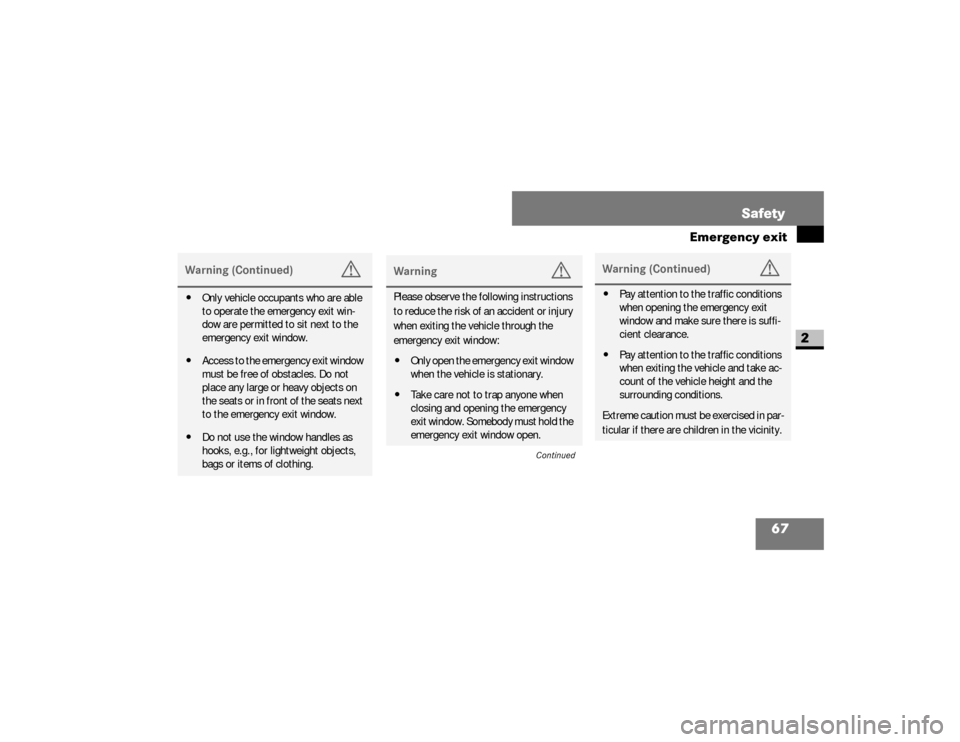

67 Safety
Emergency exit
2
Warning (Continued)
G
\4Only vehicle occupants who are able
to operate the emergency exit win-
dow are permitted to sit next to the
emergency exit window.\4Access to the emergency exit window
must be free of obstacles. Do not
place any large or heavy objects on
the seats or in front of the seats next
to the emergency exit window.\4Do not use the window handles as
hooks, e.g., for lightweight objects,
bags or items of clothing.
Warning
G
Please observe the following instructions
to reduce the risk of an accident or injury
when exiting the vehicle through the
emergency exit window:\4Only open the emergency exit window
when the vehicle is stationary.\4Take care not to trap anyone when
closing and opening the emergency
exit window. Somebody must hold the
emergency exit window open.
Continued
Warning (Continued)
G
\4Pay attention to the traffic conditions
when opening the emergency exit
window and make sure there is suffi-
cient clearance.\4Pay attention to the traffic conditions
when exiting the vehicle and take ac-
count of the vehicle height and the
surrounding conditions.Extreme caution must be exercised in par-
ticular if there are children in the vicinity.
nf_BA.book Page 67 Friday, January 25, 2008 3:53 PM

75 Safety
Driving safety systems
2
The ASR switch is located on the center
console.1To deactivate/activate ASR
\1To switch off:
press upper
section
1
of the switch.
The
v
warning lamp in the speed-
ometer lights up.
\1To switch on:
press upper
section
1
of the switch again.
The
v
warning lamp in the speed-
ometer goes out.
Warning
G
ESP
® remains active despite ASR having
been deactivated and carries out braking
interventions if this is necessary to im-
prove driving stability. Thev warning
lamp flashes.
If ASR is deactivated, there is an in-
creased risk that the brake system of your
vehicle could overheat and be damaged
when subjected to high loads for a long
period of time. A hot brake system also in-
creases the stopping distance.
For this reason, only deactivate ASR when
it is absolutely necessary.
N54.25-2916-31
nf_BA.book Page 75 Friday, January 25, 2008 3:53 PM
