hood release DODGE STRATUS SEDAN 2005 Owners Manual
[x] Cancel search | Manufacturer: DODGE, Model Year: 2005, Model line: STRATUS SEDAN, Model: DODGE STRATUS SEDAN 2005Pages: 293, PDF Size: 4.72 MB
Page 62 of 293
![DODGE STRATUS SEDAN 2005 Owners Manual WARNING!
The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They DODGE STRATUS SEDAN 2005 Owners Manual WARNING!
The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They](/img/12/58715/w960_58715-61.png)
WARNING!
The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children should
be seated and using the proper restraint system.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released. First pull
the hood release lever located under the left side of the
instrument panel.
Hood Release Lever
62 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 217 of 293
![DODGE STRATUS SEDAN 2005 Owners Manual underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
Hood Latch
When performing other under hood services, the hood
latch release mechanism and safe DODGE STRATUS SEDAN 2005 Owners Manual underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
Hood Latch
When performing other under hood services, the hood
latch release mechanism and safe](/img/12/58715/w960_58715-216.png)

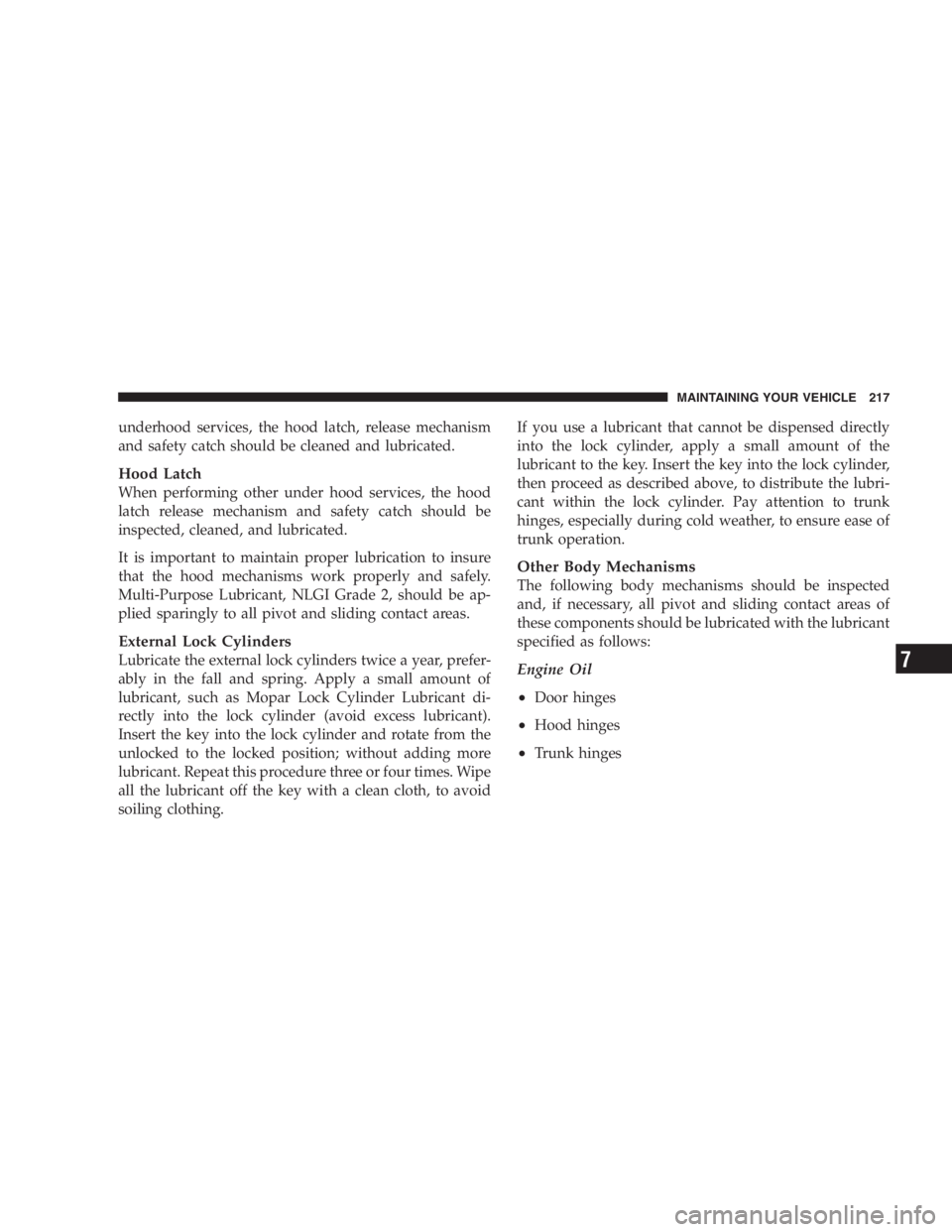

underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
Hood Latch
When performing other under hood services, the hood
latch release mechanism and safety catch should be
inspected, cleaned, and lubricated.
It is important to maintain proper lubrication to insure
that the hood mechanisms work properly and safely.
Multi-Purpose Lubricant, NLGI Grade 2, should be ap-
plied sparingly to all pivot and sliding contact areas.
External Lock Cylinders
Lubricate the external lock cylinders twice a year, prefer-
ably in the fall and spring. Apply a small amount of
lubricant, such as Mopar Lock Cylinder Lubricant di-
rectly into the lock cylinder (avoid excess lubricant).
Insert the key into the lock cylinder and rotate from the
unlocked to the locked position; without adding more
lubricant. Repeat this procedure three or four times. Wipe
all the lubricant off the key with a clean cloth, to avoid
soiling clothing.If you use a lubricant that cannot be dispensed directly
into the lock cylinder, apply a small amount of the
lubricant to the key. Insert the key into the lock cylinder,
then proceed as described above, to distribute the lubri-
cant within the lock cylinder. Pay attention to trunk
hinges, especially during cold weather, to ensure ease of
trunk operation.
Other Body Mechanisms
The following body mechanisms should be inspected
and, if necessary, all pivot and sliding contact areas of
these components should be lubricated with the lubricant
specified as follows:
Engine Oil
•
Door hinges
•Hood hinges
•Trunk hinges
MAINTAINING YOUR VEHICLE 217
7
Page 218 of 293
![DODGE STRATUS SEDAN 2005 Owners Manual Smooth White Body Lubricant - Such as Mopar
Spray White Lube:
•
Hood hinge springs and links
•Lock cylinders
•Parking brake mechanism
•Trunk latches
•Ash tray
Windshield Wiper Blades
Clean t DODGE STRATUS SEDAN 2005 Owners Manual Smooth White Body Lubricant - Such as Mopar
Spray White Lube:
•
Hood hinge springs and links
•Lock cylinders
•Parking brake mechanism
•Trunk latches
•Ash tray
Windshield Wiper Blades
Clean t](/img/12/58715/w960_58715-217.png)
Smooth White Body Lubricant - Such as Mopar
Spray White Lube:
•
Hood hinge springs and links
•Lock cylinders
•Parking brake mechanism
•Trunk latches
•Ash tray
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild non abrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield. Avoid using the wiper blades to
remove frost or ice from the windshield. Keep the blade
rubber out of contact with petroleum products such as
engine oil, gasoline, etc.
Windshield Wiper Blade Replacement
•
Lift the wiper arm away from the glass.
•Push the release tab and slide the wiper blade assem-
bly away from the wiper arm. Gently place the wiper
arm on the windshield.
•Install the new blade assembly onto the wiper arm tip
until it locks in place.
Windshield Washers
The fluid reservoir in the engine compartment should be
checked for fluid level at regular intervals. Fill the
reservoir with windshield antifreeze (not radiator anti-
freeze) rated not to freeze at -25°F (-31°C). Operate the
system for a few seconds to flush out the residual water.
218 MAINTAINING YOUR VEHICLE
Page 285 of 293
![DODGE STRATUS SEDAN 2005 Owners Manual Filler Cap........................... 176
Filter.............................. 211
Gasoline............................ 173
Gauge.............................. 89
Hoses.............................. 2 DODGE STRATUS SEDAN 2005 Owners Manual Filler Cap........................... 176
Filter.............................. 211
Gasoline............................ 173
Gauge.............................. 89
Hoses.............................. 2](/img/12/58715/w960_58715-284.png)
Filler Cap........................... 176
Filter.............................. 211
Gasoline............................ 173
Gauge.............................. 89
Hoses.............................. 228
Light............................... 94
Octane Rating........................ 245
Requirements.....................173,244
Tank Capacity........................ 244
Fueling.............................. 176
Fuses................................ 235
Garage Door Opener..................... 74
GasCap .............................. 176
Gasoline............................. 173
Gasoline, Clean Air..................... 174
Gasoline, Reformulated.................. 174
Gasoline/Oxygenate Blends............... 174
Gauges
Coolant Temperature................... 91
Fuel................................ 89
Speedometer......................... 90
Tachometer.......................... 90Gearshift............................. 148
General Information...................15,21
Glass Cleaning......................... 233
Hazard Warning Flasher.................. 186
Head Restraints......................... 61
Headlights............................ 238
Aiming............................. 244
Automatic........................... 66
Bulb Replacement..................... 238
Cleaning............................ 233
High Beam.........................67,90
High Beam/Low Beam Select Switch....... 67
Passing............................. 67
Switch.............................. 66
Time Delay........................66,67
Heater............................125,132
Heater, Engine Block.................... 145
Homelink Transmitter.................... 74
Hood Prop............................ 63
Hood Release.......................... 62
Hoses............................225,228
INDEX 285
10
Page 292 of 293
![DODGE STRATUS SEDAN 2005 Owners Manual Tread Wear Indicators.................. 168
Towing.........................178,197,198
Disabled Vehicle...................... 197
Trailering........................... 178
Traction Control............ DODGE STRATUS SEDAN 2005 Owners Manual Tread Wear Indicators.................. 168
Towing.........................178,197,198
Disabled Vehicle...................... 197
Trailering........................... 178
Traction Control............](/img/12/58715/w960_58715-291.png)
Tread Wear Indicators.................. 168
Towing.........................178,197,198
Disabled Vehicle...................... 197
Trailering........................... 178
Traction Control....................70,89,153
Traction Control Switch................70,153
Trailer Towing......................... 178
Minimum Requirements................ 179
Trailer and Tongue Weight.............. 179
Warnings........................... 178
Transaxle............................. 228
Additives........................... 230
Automatic.....................145,147,228
Filter.............................. 229
Overdrive........................... 149
Selection of Lubricant.................. 228
Transmission
Range Indicator....................... 91
Transmission....................See Transaxle
Transmitter Battery Service................ 22
Transmitter, Garage Door Opener............ 74
Transmitter, Remote Keyless Entry........... 19
Transporting Pets........................ 48Tread Wear Indicators................... 168
Trip Computer.......................... 95
Trip Odometer.......................... 92
Trunk Release, Emergency...............24,25
Trunk Release Remote Control.............. 24
Turn Signals.........................67,90
Underhood Fuses....................... 235
Uniform Tire Quality Grades.............. 276
Universal Transmitter.................... 74
Unleaded Gasoline...................... 173
Vacuum/Vapor Harnesses................ 225
Vanity Mirrors.......................... 58
Vehicle Identification Number............... 6
Vehicle Loading.....................160,178
Vehicle Modifications/Alterations............ 7
Vehicle Storage......................... 237
Vehicle Theft Alarm...................... 23
Vinyl Trim............................ 232
Viscosity, Engine Oil..................... 244
Voltmeter.............................. 90
292 INDEX
