DODGE TOWN AND COUNTRY 2001 Service Manual

MESSAGE CENTER (HIGH LINE) - WHITE 14 WAY
CAV CIRCUIT FUNCTION
1 L160 20WT/TN (LHD) RIGHT TURN INDICATOR DRIVER
2 G3 20VT/LB (LHD) MALFUNCTION INDICATOR LAMP DRIVER
3 L134 20WT/GY (RHD) HIGH BEAM INDICATOR DRIVER
4 G69 20VT/WT (LHD) VTSS INDICATOR DRIVER
4 L160 20WT/TN (RHD) RIGHT TURN INDICATOR DRIVER
5- -
6 G7 20VT/GY (LHD) LOW OIL PRESSURE INDICATOR DRIVER
7 A701 16BR/RD (LHD) FUSED B(+) (HAZARD)
8 A701 16BR/RD (RHD) FUSED B(+) (HAZARD)
9 G7 20VT/GY (RHD) LOW OIL PRESSURE INDICATOR DRIVER
10 - -
11 L161 20WT/LG (LHD) LEFT TURN INDICATOR DRIVER
11 G69 20VT/WT (RHD) VTSS INDICATOR DRIVER
12 L134 20WT/GY (LHD) HIGH BEAM INDICATOR DRIVER
13 G3 20VT/LB (RHD) MALFUNCTION INDICATOR LAMP DRIVER
14 L161 20WT/LG (RHD) LEFT TURN INDICATOR DRIVER
MODE DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C135 20DB/GY MODE DOOR DRIVER (B)
2 C35 20LB/OR MODE DOOR DRIVER (A)
MODE DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB COMMON DOOR DRIVER (B)
2 C35 20LB/OR MODE DOOR DRIVER (A)
MULTI-FUNCTION SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 W52 20BR/YL FRONT WIPER SWITCH MUX
2 G902 20VT/OR MULTI-FUNCTION SWITCH MUX RETURN
3 L305 20WT/LB TURN SIGNAL SWITCH MUX
4 G194 20VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
8Wa - 80 - 88 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
5 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
6 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
7 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
8 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
9 R61 18LG/VT DRIVER SQUIB 2 LINE 1
10 R63 18LG/WT DRIVER SQUIB 2 LINE 2
11 R43 18LG/BR DRIVER SQUIB 1 LINE 1
12 R45 18LG/OR DRIVER SQUIB 1 LINE 2
13 - -
14 F201 18PK/OR FCM OUTPUT (RUN-START)
15 F100 18PK/VT FCM OUTPUT (RUN)
16 Z12 18BK/OR GROUND
17 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
18 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
19 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
20 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
21 D25 18WT/VT PCI BUS
22 - -
23 - -
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 G23 20VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 20VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT BUILT-UP-EX-
PORT) (PREMIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/LUXURY) BACK-UP LAMP FEED
RADIATOR FAN RELAY NO. 1 (DIESEL) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT
3- -
4 K342 16BR/WT ECM/PCM RELAY OUTPUT
5- -
6 N210 18DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
7- -
8 A201 12RD/LG FUSED B(+)
9- -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-89
ProCarManuals.com

OXYGEN SENSOR 1/1 UPSTREAM (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
3 K902 18BR/DG OXYGEN SENSOR 1/1 GROUND
4 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/2 DOWNSTREAM (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z43 18BK/DB GROUND
2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
3 K902 18BR/DG OXYGEN SENSOR 1/2 GROUND
4 K141 18DB/YL OXYGEN SENSOR 1/2 SIGNAL
PARK/NEUTRAL POSITION SWITCH (ATX) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z252 18BK/WT GROUND
2 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
3 T2 18DG/WT TRS REVERSE SENSE
PASSENGER AIRBAG - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
2 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
PASSENGER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
2 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
8Wa - 80 - 90 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

PASSENGER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C33 20LB/BR (RHD) PASSENGER BLEND DOOR DRIVER (A)
2 C33 20LB/BR (LHD) PASSENGER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
PASSENGER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (LHD) GROUND
1 Z321 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
PASSENGER FOLDING MIRROR RELAY (BUILT-UP-EXPORT) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-91
ProCarManuals.com

PASSENGER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18WT (LHD) HEATED SEAT DRIVER
A S2 18GY (RHD) GROUND
B S2 18GY (LHD) GROUND
B S1 18WT (RHD) HEATED SEAT DRIVER
PASSENGER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A P87 16LG/OR HEATED SEAT DRIVER
B P88 16LG/LB HEATED SEAT DRIVER
C P89 20LG/BR HEATED SEAT BACK
D Z848 18BK/OR GROUND
PASSENGER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z848 18BK/OR GROUND
2 P8 20LG/WT PASSENGER HEATED SEAT SWITCH
3 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED HEATED SEAT DRIVER
PASSENGER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18WT HEATED SEAT DRIVER
2 S2 18GY GROUND
8Wa - 80 - 92 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

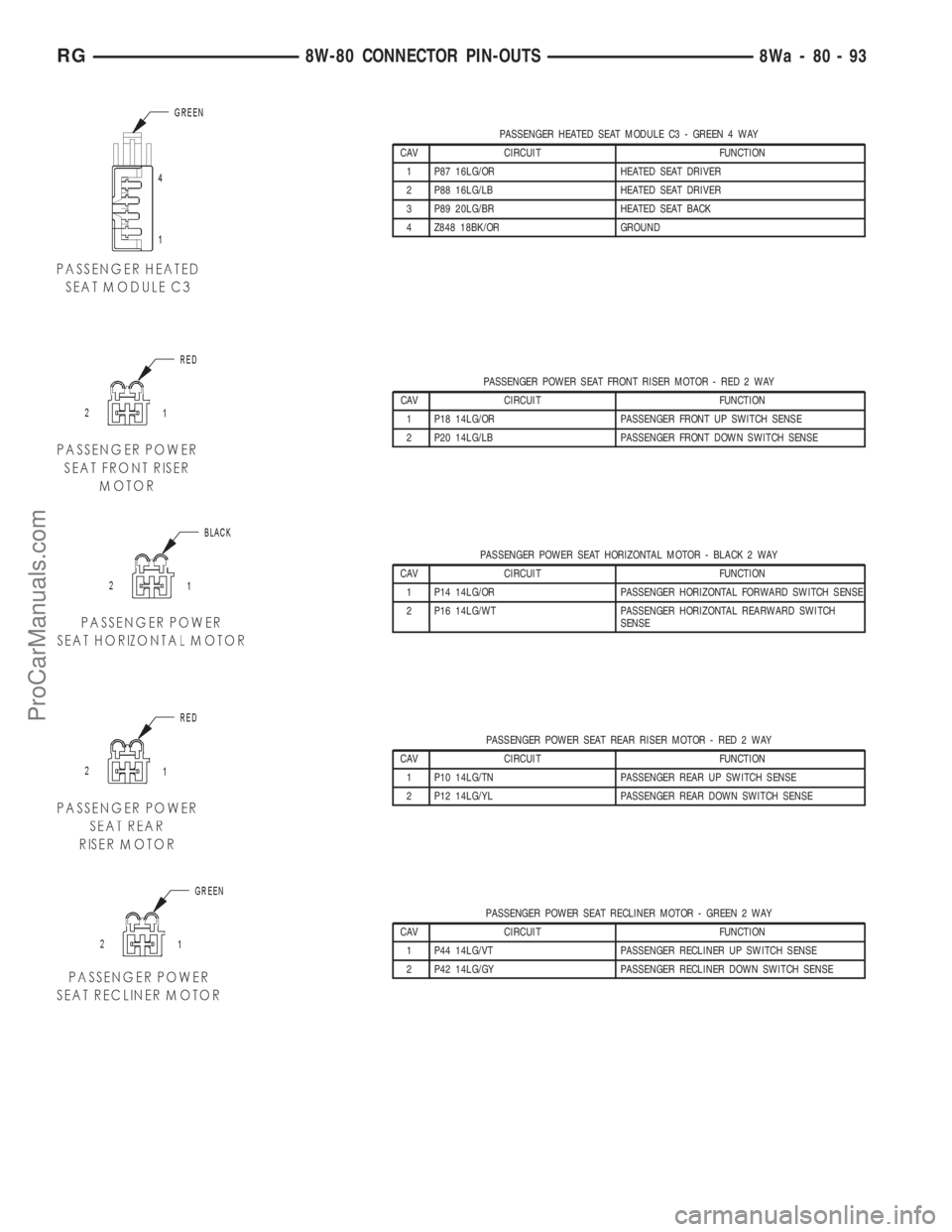

PASSENGER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16LG/OR HEATED SEAT DRIVER
2 P88 16LG/LB HEATED SEAT DRIVER
3 P89 20LG/BR HEATED SEAT BACK
4 Z848 18BK/OR GROUND
PASSENGER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
2 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
PASSENGER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
2 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
PASSENGER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
2 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
PASSENGER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE
2 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-93
ProCarManuals.com

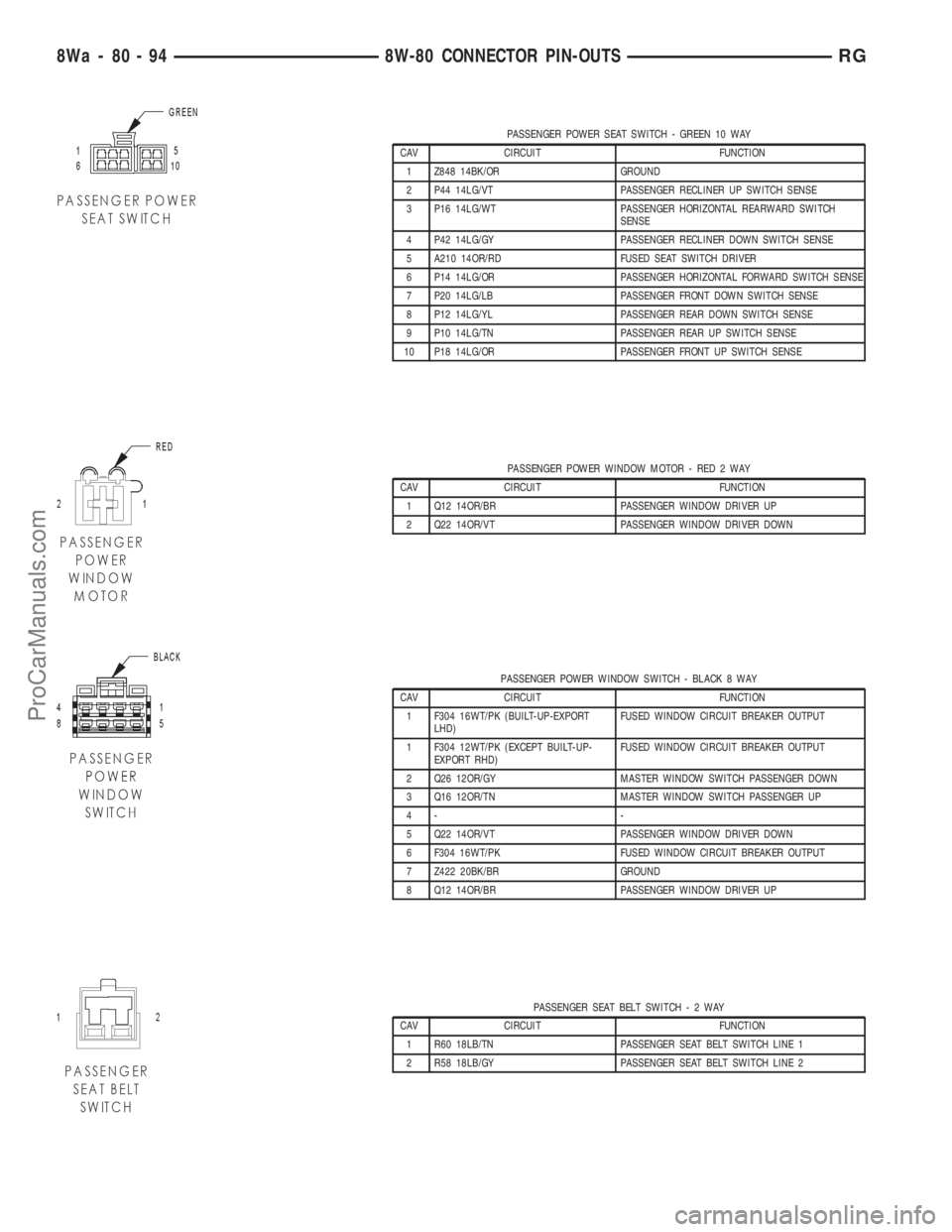

PASSENGER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z848 14BK/OR GROUND
2 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE
3 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
4 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD FUSED SEAT SWITCH DRIVER
6 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
7 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
8 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
9 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
10 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
PASSENGER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q12 14OR/BR PASSENGER WINDOW DRIVER UP
2 Q22 14OR/VT PASSENGER WINDOW DRIVER DOWN
PASSENGER POWER WINDOW SWITCH - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (BUILT-UP-EXPORT
LHD)FUSED WINDOW CIRCUIT BREAKER OUTPUT
1 F304 12WT/PK (EXCEPT BUILT-UP-
EXPORT RHD)FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
3 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
4- -
5 Q22 14OR/VT PASSENGER WINDOW DRIVER DOWN
6 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
7 Z422 20BK/BR GROUND
8 Q12 14OR/BR PASSENGER WINDOW DRIVER UP
PASSENGER SEAT BELT SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
2 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
8Wa - 80 - 94 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

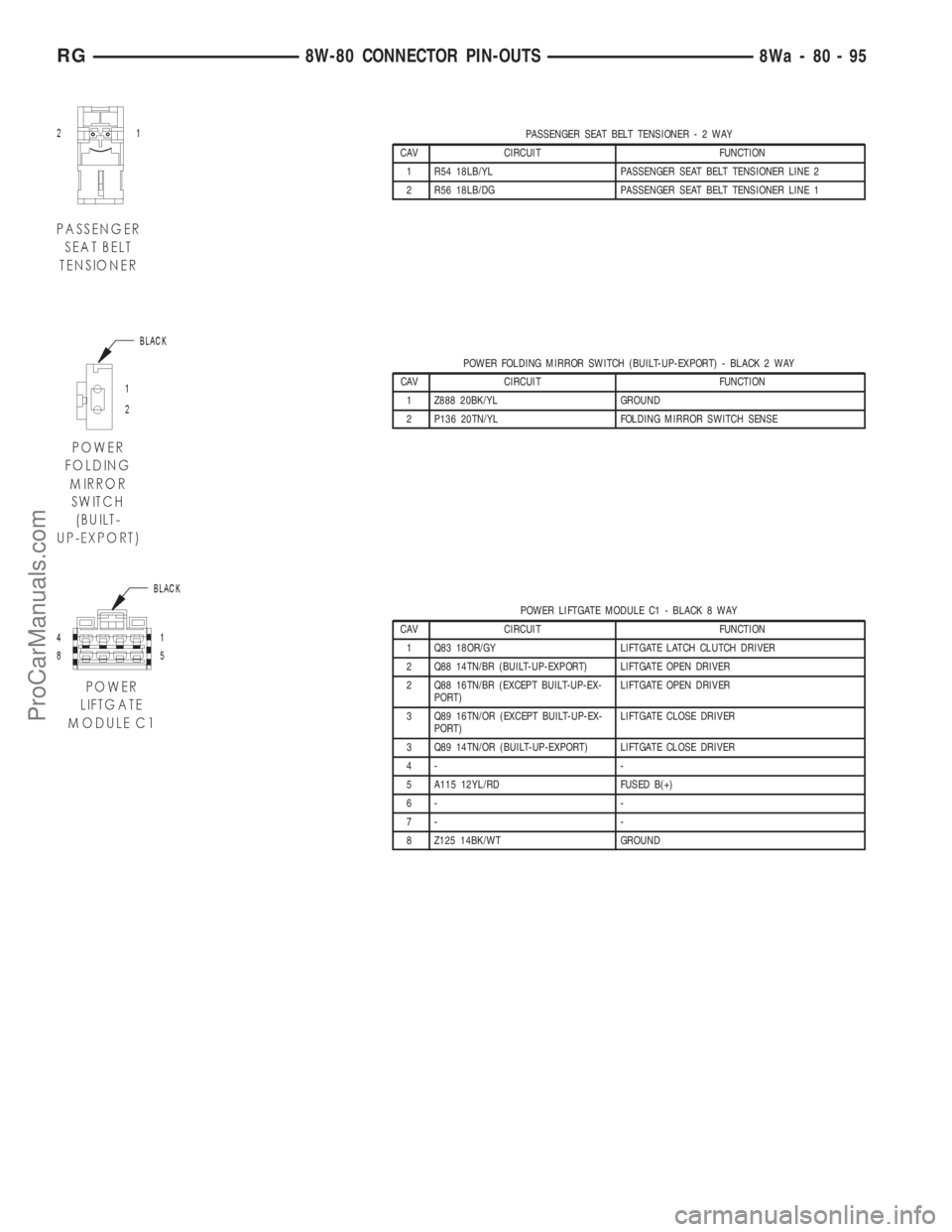

PASSENGER SEAT BELT TENSIONER-2WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
POWER FOLDING MIRROR SWITCH (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z888 20BK/YL GROUND
2 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
POWER LIFTGATE MODULE C1 - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 14TN/BR (BUILT-UP-EXPORT) LIFTGATE OPEN DRIVER
2 Q88 16TN/BR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE OPEN DRIVER
3 Q89 16TN/OR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE CLOSE DRIVER
3 Q89 14TN/OR (BUILT-UP-EXPORT) LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-95
ProCarManuals.com

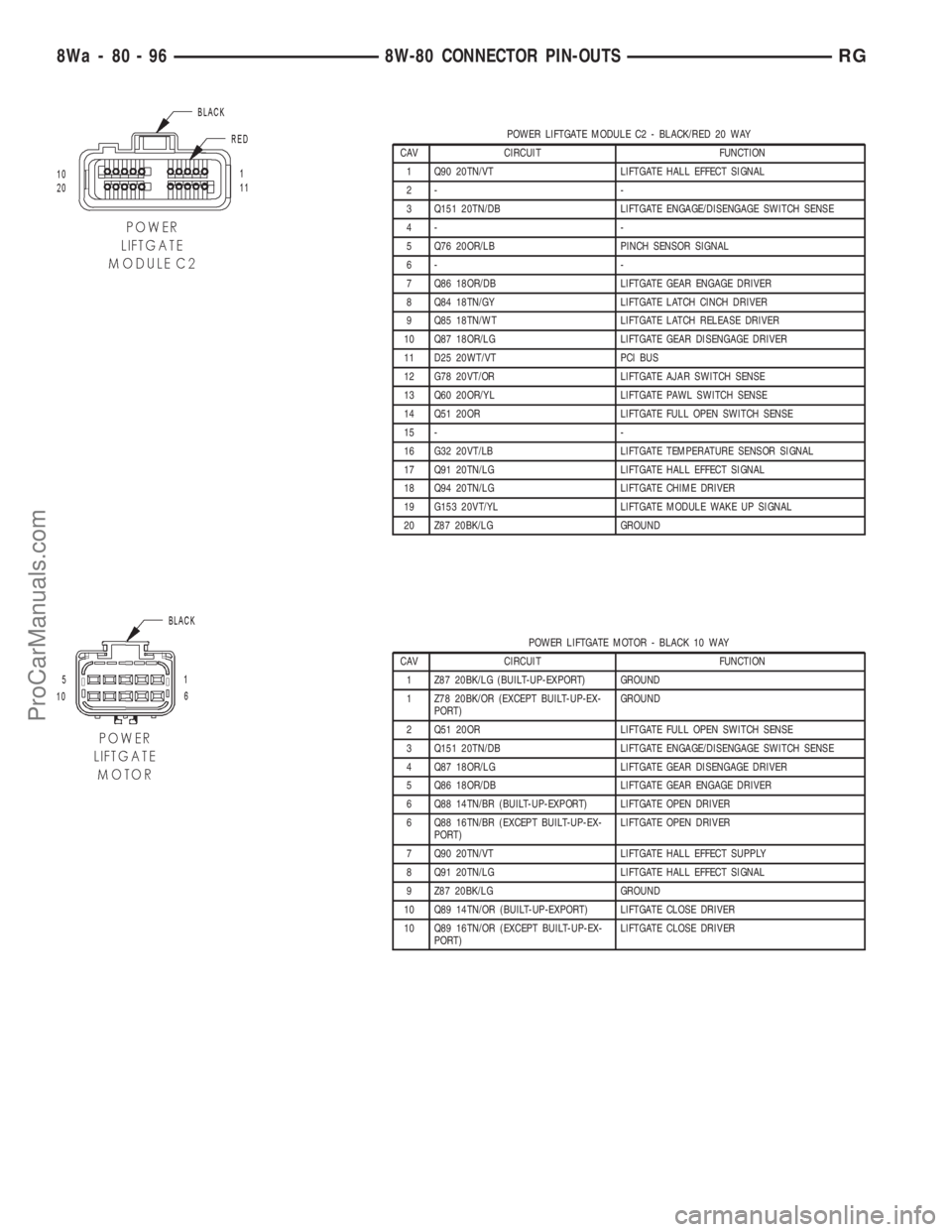

POWER LIFTGATE MODULE C2 - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SIGNAL
2- -
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 20OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
18 Q94 20TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/YL LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
POWER LIFTGATE MOTOR - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 Z87 20BK/LG (BUILT-UP-EXPORT) GROUND
1 Z78 20BK/OR (EXCEPT BUILT-UP-EX-
PORT)GROUND
2 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 14TN/BR (BUILT-UP-EXPORT) LIFTGATE OPEN DRIVER
6 Q88 16TN/BR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 14TN/OR (BUILT-UP-EXPORT) LIFTGATE CLOSE DRIVER
10 Q89 16TN/OR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE CLOSE DRIVER
8Wa - 80 - 96 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

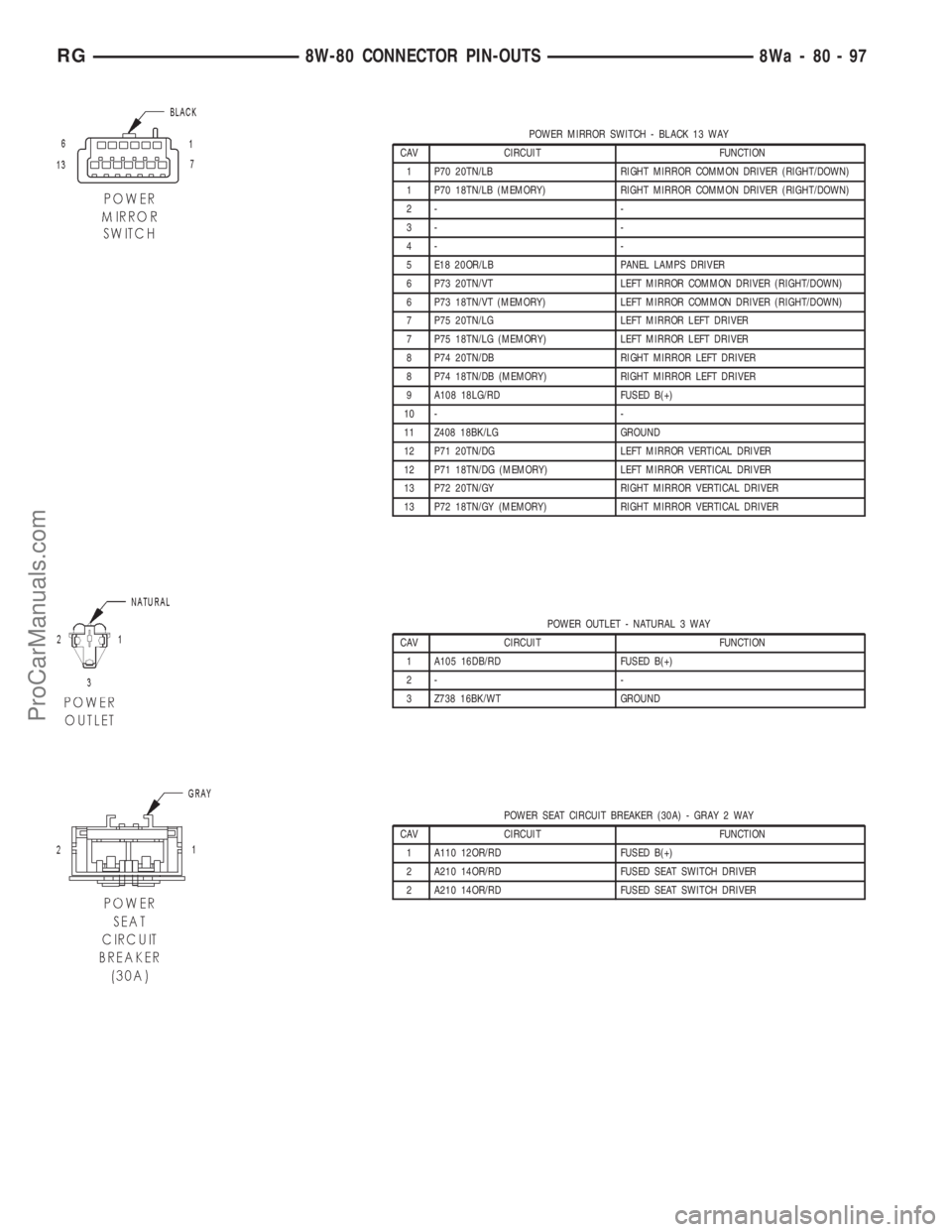

POWER MIRROR SWITCH - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
1 P70 18TN/LB (MEMORY) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
2- -
3- -
4- -
5 E18 20OR/LB PANEL LAMPS DRIVER
6 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
6 P73 18TN/VT (MEMORY) LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
7 P75 20TN/LG LEFT MIRROR LEFT DRIVER
7 P75 18TN/LG (MEMORY) LEFT MIRROR LEFT DRIVER
8 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
8 P74 18TN/DB (MEMORY) RIGHT MIRROR LEFT DRIVER
9 A108 18LG/RD FUSED B(+)
10 - -
11 Z408 18BK/LG GROUND
12 P71 20TN/DG LEFT MIRROR VERTICAL DRIVER
12 P71 18TN/DG (MEMORY) LEFT MIRROR VERTICAL DRIVER
13 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
13 P72 18TN/GY (MEMORY) RIGHT MIRROR VERTICAL DRIVER
POWER OUTLET - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 A105 16DB/RD FUSED B(+)
2- -
3 Z738 16BK/WT GROUND
POWER SEAT CIRCUIT BREAKER (30A) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A110 12OR/RD FUSED B(+)
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-97
ProCarManuals.com
