DODGE TOWN AND COUNTRY 2001 Service Manual

CRANKSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
2 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
3 Z122 18WT GROUND (DRAIN)
CRANKSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT (EXCEPT BUILT-UP-
EXPORT)GROUND
5 Z111 20BK/WT (BUILT-UP-EXPORT) GROUND
6 D20 20WT/LG (GAS) SCI RECEIVE
7 D21 20WT/BR SCI TRANSMIT
8- -
9 D23 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D16 20WT/OR (GAS) SCI RECEIVE
15 - -
16 A105 20DB/RD FUSED B(+)
8Wa - 80 - 48 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

DIAGNOSTIC JUNCTION PORT - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1 D25 20WT/VT PCI BUS (PCM/SKIM/ECM/THATCHAM)
2 D25 20WT/VT PCI BUS (HVAC)
3 D25 20WT/VT PCI BUS (RADIO)
4 D25 20WT/VT PCI BUS (ORC)
5 D25 20WT/VT PCI BUS (CLUSTER)
6 D25 20WT/VT PCI BUS (BCM)
7 D25 20WT/VT PCI BUS (DLC)
8 D25 20WT/VT PCI BUS (OVERHEAD CONSOLE)
9 D25 20WT/VT PCI BUS (FCM/TCM/CAB)
10 D25 20WT/VT PCI BUS (LSIACM)
11 D25 20WT/VT (MEMORY) PCI BUS (MEMORY)
12 D25 20WT/VT PCI BUS (PWR DOOR LT/RT/LIFTGATE)
13 D25 20WT/VT PCI BUS (RSIACM)
14 - -
15 - -
16 - -
DOSING PUMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 18RD DOSING PUMP CONTROL
2 Z149 18BK/DB GROUND
DRIVER AIRBAG C1 - BROWN 2 WAY
CAV CIRCUIT FUNCTION
1 R43 18BK/LB DRIVER SQUIB 1 LINE 1
2 R45 18OR/LB DRIVER SQUIB 1 LINE 2
DRIVER AIRBAG C2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R61 18OR/LB DRIVER SQUIB 2 LINE 1
2 R63 18TN/LB DRIVER SQUIB 2 LINE 2
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-49
ProCarManuals.com

DRIVER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
DRIVER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C61 20LB/WT(RHD) DRIVER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
2 C61 20LB/WT (LHD) DRIVER BLEND DOOR DRIVER (A)
DRIVER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (RHD) GROUND
1 Z321 20BK/BR (LHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (RHD) GROUND
3 Z461 20BK/DG (LHD) GROUND
DRIVER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18DB (LHD) HEATED SEAT DRIVER
A S1 18RD (RHD) HEATED SEAT DRIVER
B S2 18DG (LHD) GROUND
B S2 18BK (RHD) GROUND
8Wa - 80 - 50 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

DRIVER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A P87 16LG/OR HEATED SEAT DRIVER
B P88 16LG/LB HEATED SEAT DRIVER
C P89 20LG/BR HEATED SEAT BACK
D Z848 18BK/OR GROUND
DRIVER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z849 18BK/OR GROUND
2 P7 20LG/DG DRIVER HEATED SEAT SWITCH
3 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED SEAT SWITCH DRIVER
DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18RD (RHD) HEATED SEAT DRIVER
1 S1 18DB (LHD) HEATED SEAT DRIVER
2 S2 18DG (LHD) GROUND
2 S2 18BK (RHD) GROUND
DRIVER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
A P87 16LG/OR HEATED SEAT DRIVER
B P88 16LG/LB HEATED SEAT DRIVER
C P89 20LG/BR HEATED SEAT BACK
D Z848 18BK/OR GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-51
ProCarManuals.com

DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P19 14LG/LB DRIVER FRONT UP SWITCH SENSE
2 P21 14LG/TN DRIVER FRONT DOWN SWITCH SENSE
DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
2 P15 14LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
DRIVER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P11 14LG/YL DRIVER SEAT REAR UP SWITCH SENSE
2 P13 14LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
DRIVER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P41 14LG/GY DRIVER SEAT RECLINER DOWN SWITCH SENSE
2 P43 14LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
DRIVER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR GROUND
2 P43 14LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
3 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
4 P41 14LG/GY DRIVER SEAT RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD FUSED SEAT SWITCH DRIVER
6 P15 14LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
7 P19 14LG/LB DRIVER FRONT UP SWITCH SENSE
8 P11 14LG/YL DRIVER SEAT REAR UP SWITCH SENSE
9 P13 14LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P21 14LG/TN DRIVER FRONT DOWN SWITCH SENSE
8Wa - 80 - 52 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

DRIVER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
2 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
DRIVER POWER WINDOW SWITCH (LHD) - GREEN 14 WAY
CAV CIRCUIT FUNCTION
1 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
2 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
3 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
4 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
5 Q14 16OR/GY PASSENGER SIDE REAR WINDOW CLOSE
6 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
7 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
8 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
9 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 Z421 12BK/BR GROUND
14 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
DRIVER POWER WINDOW SWITCH (RHD) - NATURAL 14 WAY
CAV CIRCUIT FUNCTION
1 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
2 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
3 Q14 16OR/GY PASSENGER SIDE REAR WINDOW CLOSE
4 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
5 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
6 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
7 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
8 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
9 Z421 12BK/BR GROUND
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
14 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-53
ProCarManuals.com

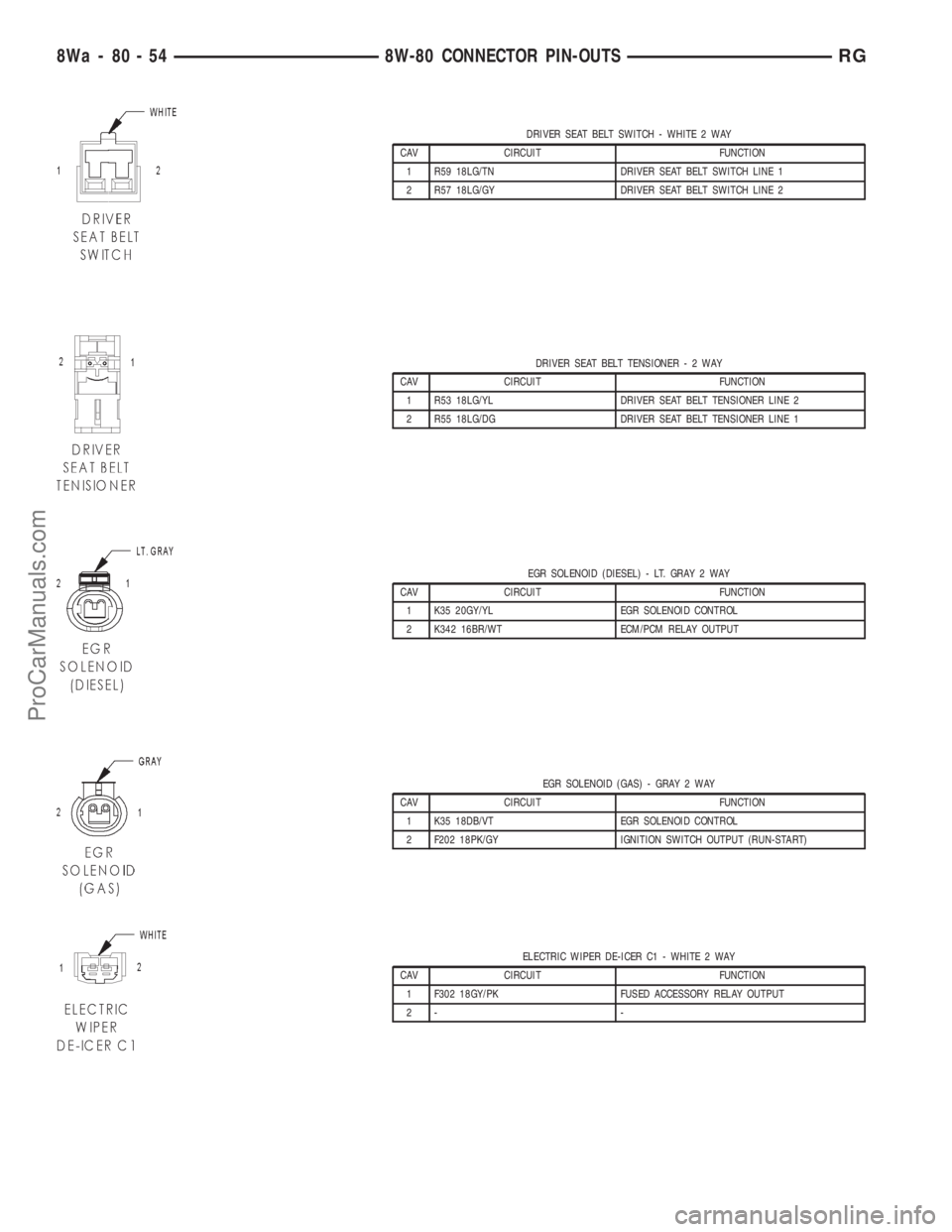

DRIVER SEAT BELT SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
2 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
DRIVER SEAT BELT TENSIONER-2WAY
CAV CIRCUIT FUNCTION
1 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
2 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
EGR SOLENOID (DIESEL) - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K35 20GY/YL EGR SOLENOID CONTROL
2 K342 16BR/WT ECM/PCM RELAY OUTPUT
EGR SOLENOID (GAS) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K35 18DB/VT EGR SOLENOID CONTROL
2 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
ELECTRIC WIPER DE-ICER C1 - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
2- -
8Wa - 80 - 54 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

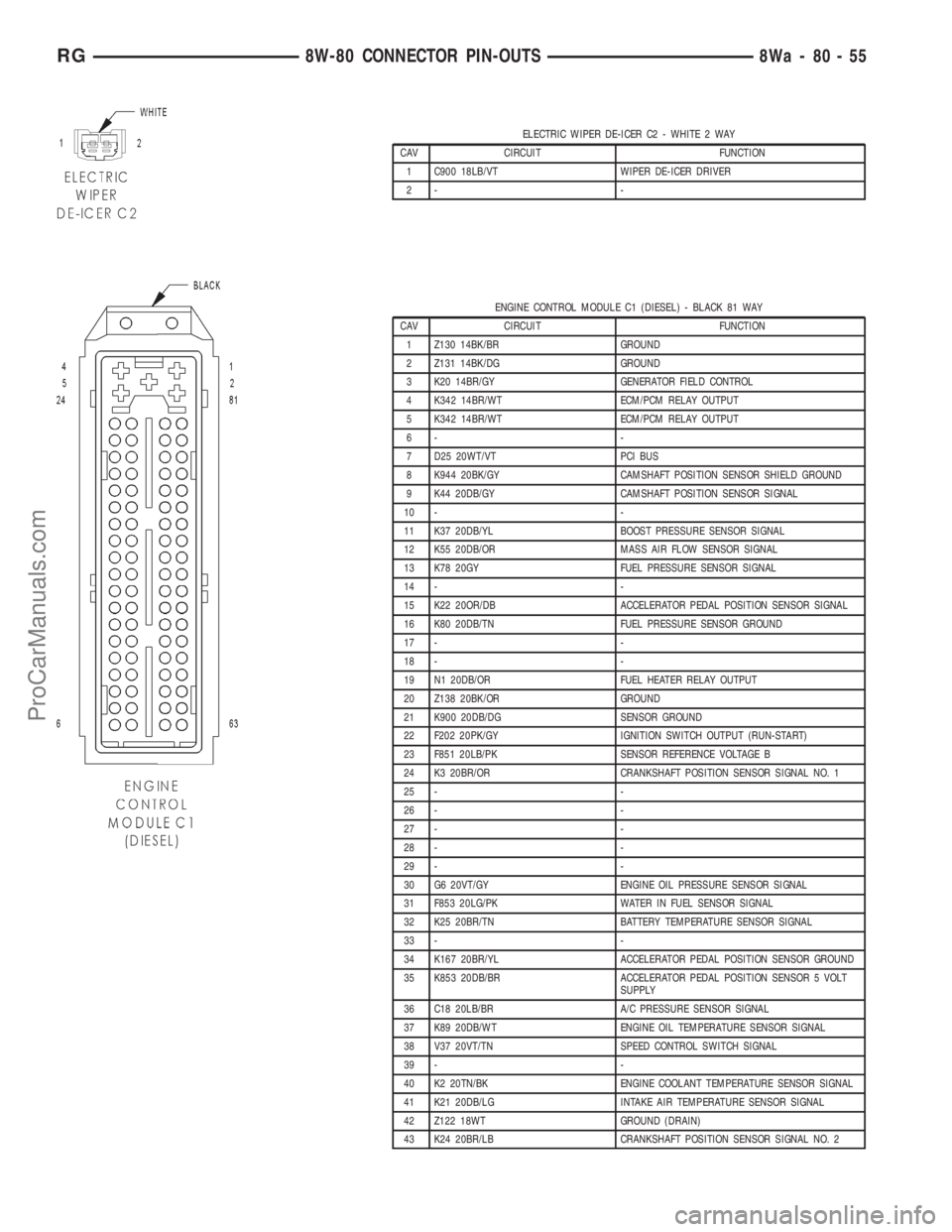

ELECTRIC WIPER DE-ICER C2 - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 C900 18LB/VT WIPER DE-ICER DRIVER
2- -
ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY
CAV CIRCUIT FUNCTION
1 Z130 14BK/BR GROUND
2 Z131 14BK/DG GROUND
3 K20 14BR/GY GENERATOR FIELD CONTROL
4 K342 14BR/WT ECM/PCM RELAY OUTPUT
5 K342 14BR/WT ECM/PCM RELAY OUTPUT
6- -
7 D25 20WT/VT PCI BUS
8 K944 20BK/GY CAMSHAFT POSITION SENSOR SHIELD GROUND
9 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
10 - -
11 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
12 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
13 K78 20GY FUEL PRESSURE SENSOR SIGNAL
14 - -
15 K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
16 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
17 - -
18 - -
19 N1 20DB/OR FUEL HEATER RELAY OUTPUT
20 Z138 20BK/OR GROUND
21 K900 20DB/DG SENSOR GROUND
22 F202 20PK/GY IGNITION SWITCH OUTPUT (RUN-START)
23 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
24 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
25 - -
26 - -
27 - -
28 - -
29 - -
30 G6 20VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
31 F853 20LG/PK WATER IN FUEL SENSOR SIGNAL
32 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
33 - -
34 K167 20BR/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
35 K853 20DB/BR ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
36 C18 20LB/BR A/C PRESSURE SENSOR SIGNAL
37 K89 20DB/WT ENGINE OIL TEMPERATURE SENSOR SIGNAL
38 V37 20VT/TN SPEED CONTROL SWITCH SIGNAL
39 - -
40 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
41 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
42 Z122 18WT GROUND (DRAIN)
43 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-55
ProCarManuals.com

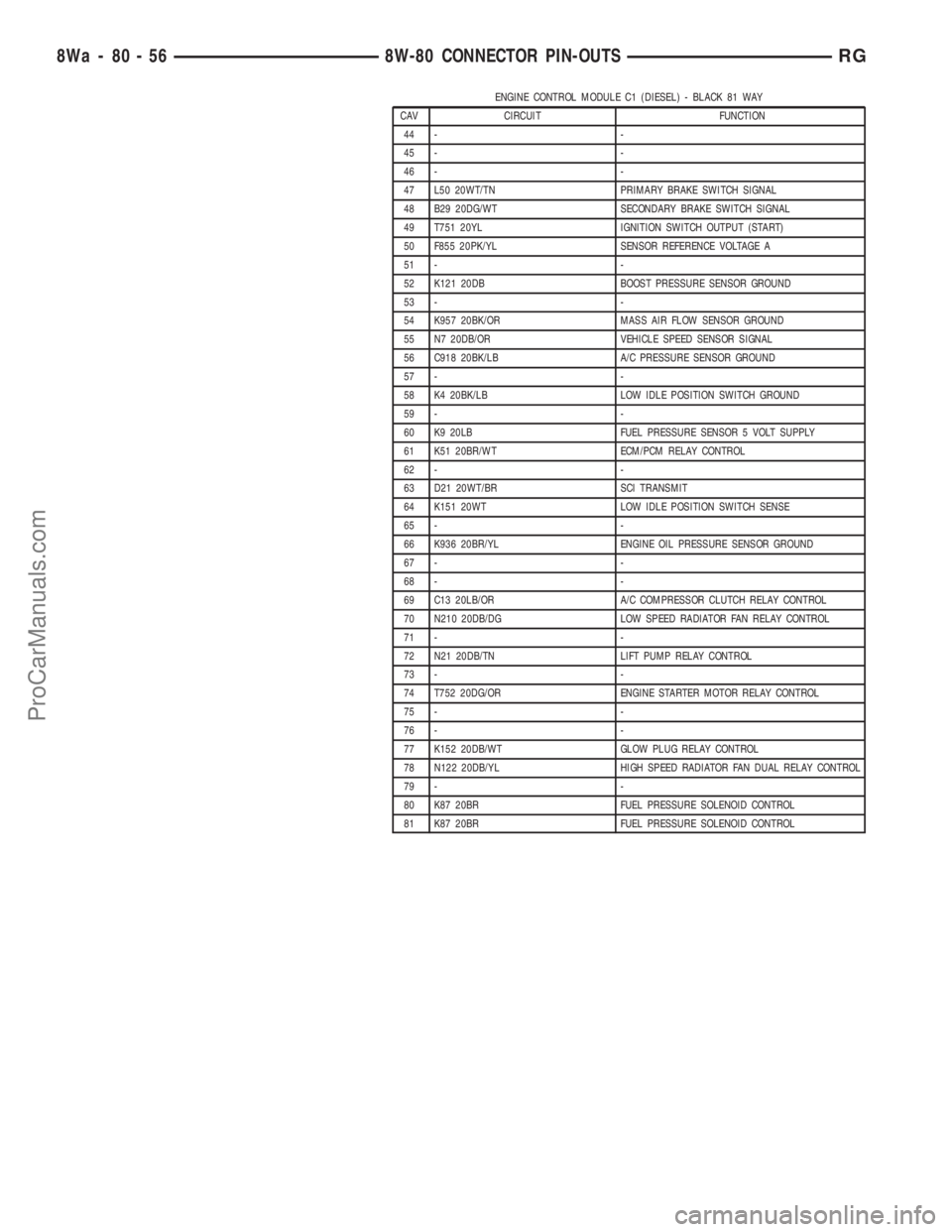

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY
CAV CIRCUIT FUNCTION
44 - -
45 - -
46 - -
47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL
48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
49 T751 20YL IGNITION SWITCH OUTPUT (START)
50 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
51 - -
52 K121 20DB BOOST PRESSURE SENSOR GROUND
53 - -
54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL
56 C918 20BK/LB A/C PRESSURE SENSOR GROUND
57 - -
58 K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
59 - -
60 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
61 K51 20BR/WT ECM/PCM RELAY CONTROL
62 - -
63 D21 20WT/BR SCI TRANSMIT
64 K151 20WT LOW IDLE POSITION SWITCH SENSE
65 - -
66 K936 20BR/YL ENGINE OIL PRESSURE SENSOR GROUND
67 - -
68 - -
69 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
70 N210 20DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
71 - -
72 N21 20DB/TN LIFT PUMP RELAY CONTROL
73 - -
74 T752 20DG/OR ENGINE STARTER MOTOR RELAY CONTROL
75 - -
76 - -
77 K152 20DB/WT GLOW PLUG RELAY CONTROL
78 N122 20DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
79 - -
80 K87 20BR FUEL PRESSURE SOLENOID CONTROL
81 K87 20BR FUEL PRESSURE SOLENOID CONTROL
8Wa - 80 - 56 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

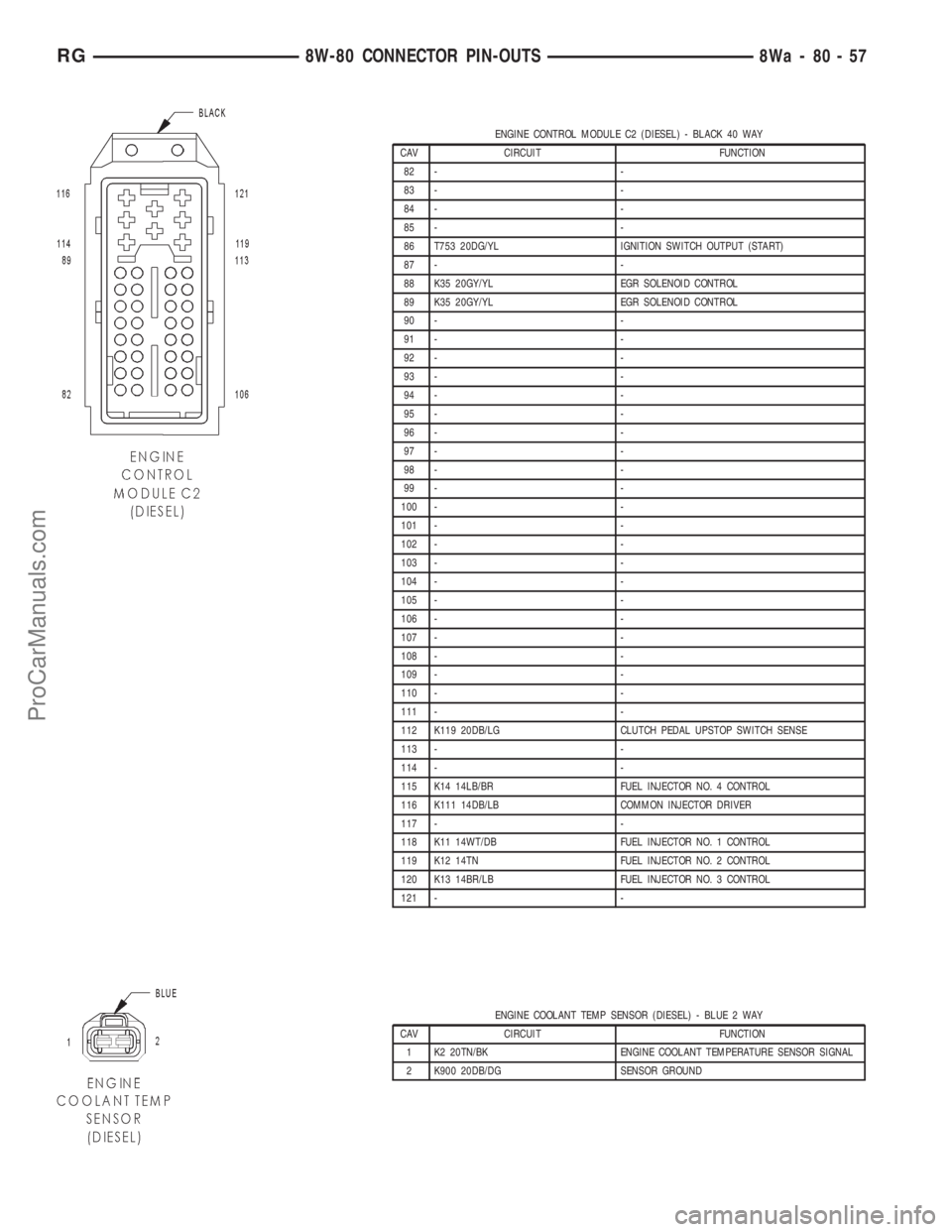

ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
82 - -
83 - -
84 - -
85 - -
86 T753 20DG/YL IGNITION SWITCH OUTPUT (START)
87 - -
88 K35 20GY/YL EGR SOLENOID CONTROL
89 K35 20GY/YL EGR SOLENOID CONTROL
90 - -
91 - -
92 - -
93 - -
94 - -
95 - -
96 - -
97 - -
98 - -
99 - -
100 - -
101 - -
102 - -
103 - -
104 - -
105 - -
106 - -
107 - -
108 - -
109 - -
110 - -
111 - -
112 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
113 - -
114 - -
115 K14 14LB/BR FUEL INJECTOR NO. 4 CONTROL
116 K111 14DB/LB COMMON INJECTOR DRIVER
117 - -
118 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL
119 K12 14TN FUEL INJECTOR NO. 2 CONTROL
120 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL
121 - -
ENGINE COOLANT TEMP SENSOR (DIESEL) - BLUE 2 WAY
CAV CIRCUIT FUNCTION
1 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-57
ProCarManuals.com
