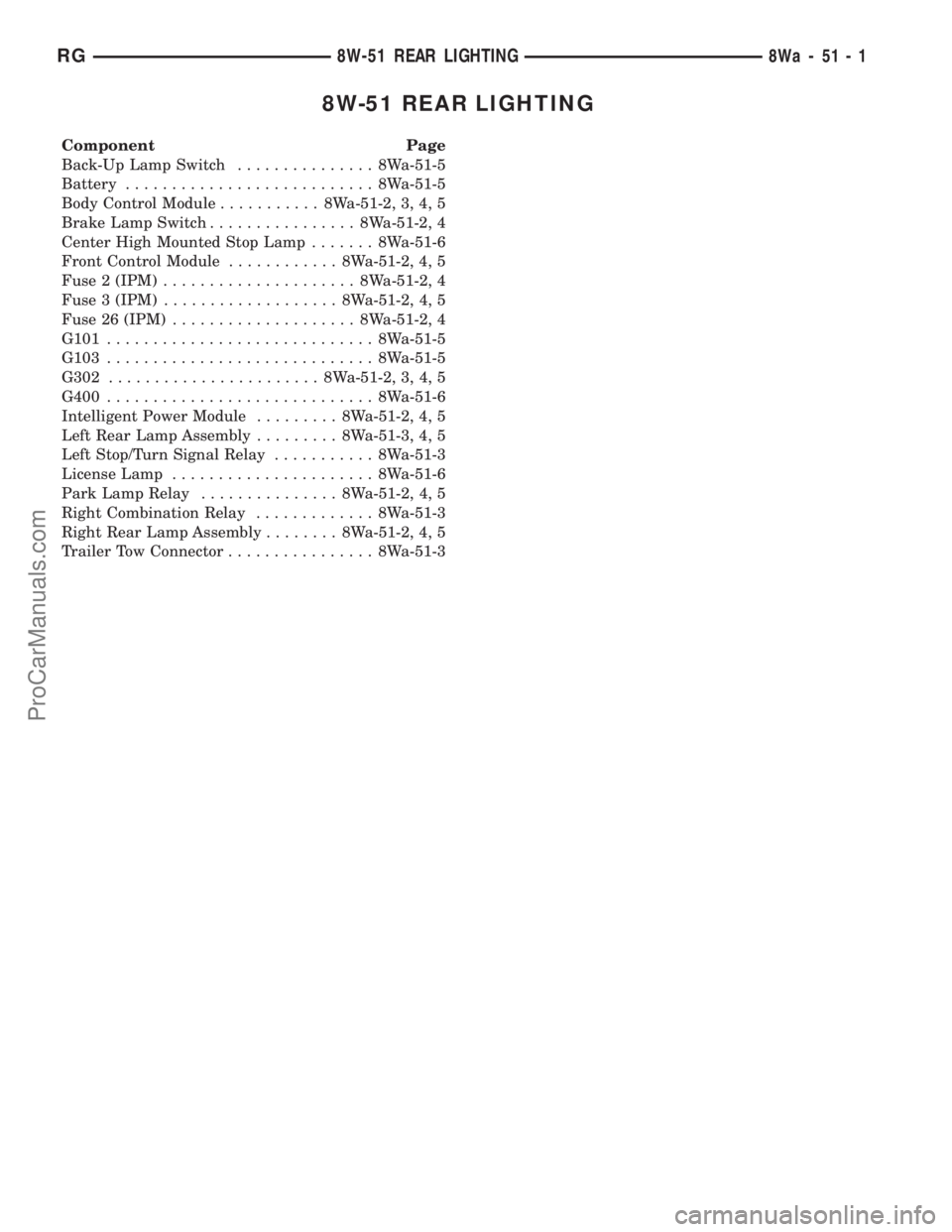

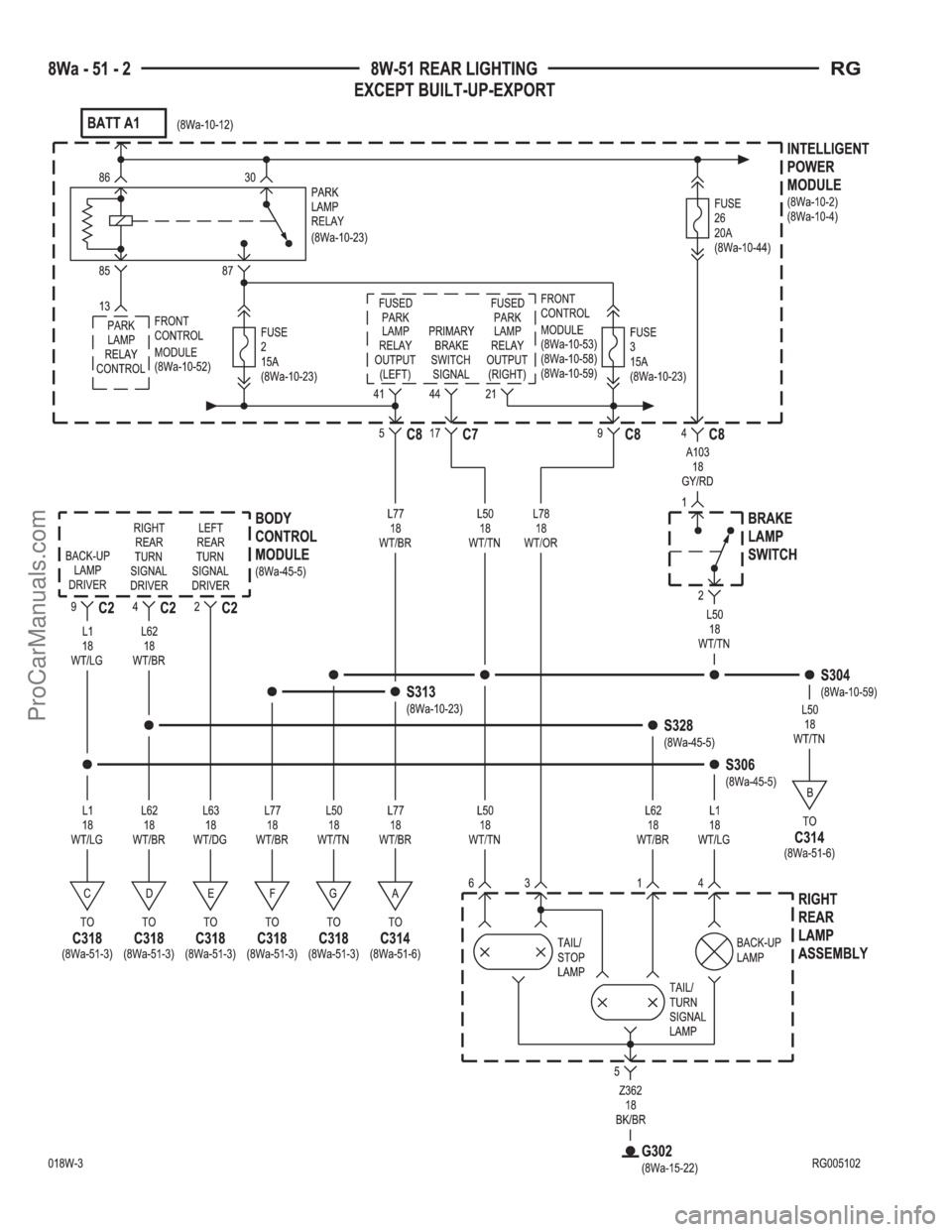

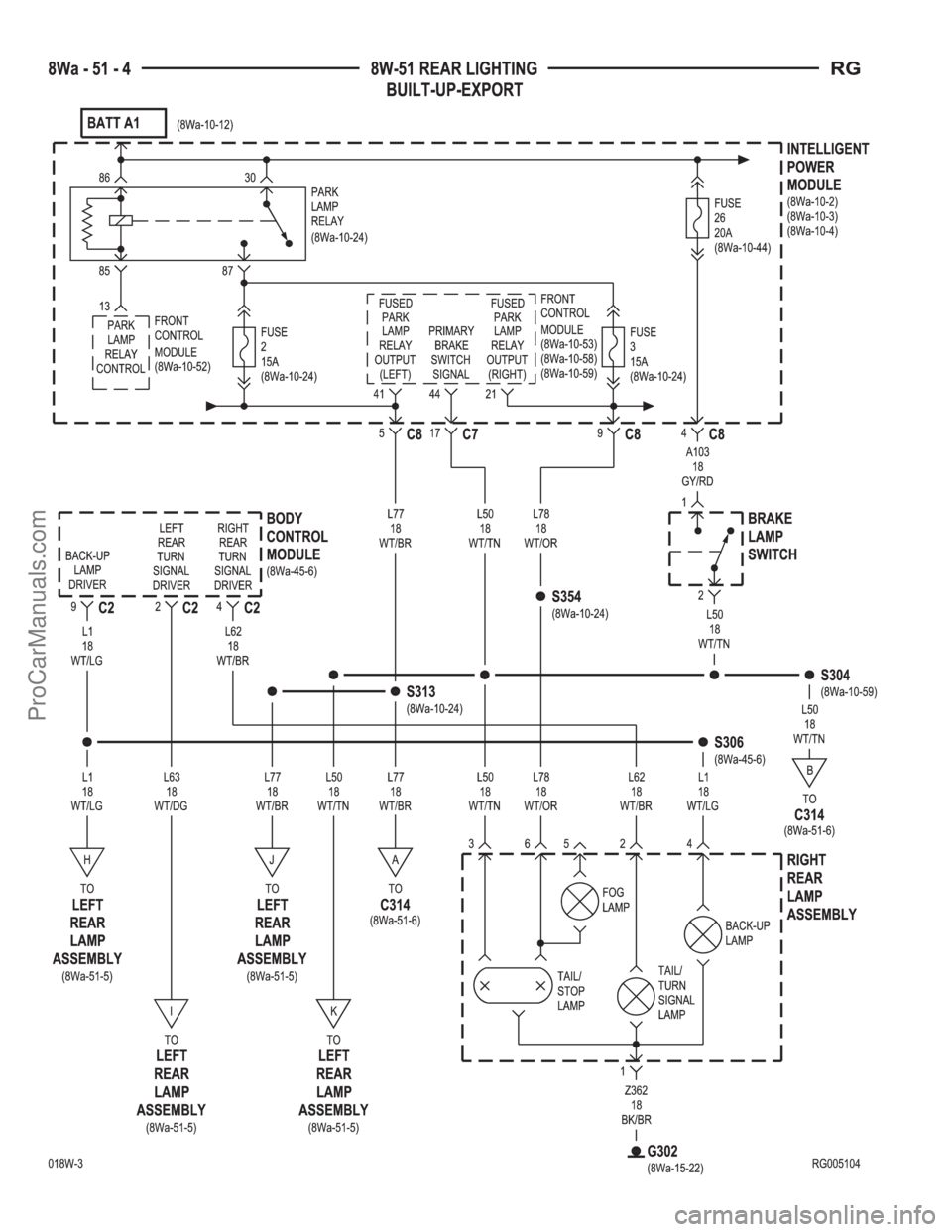

8W-51 REAR LIGHTING
Component Page

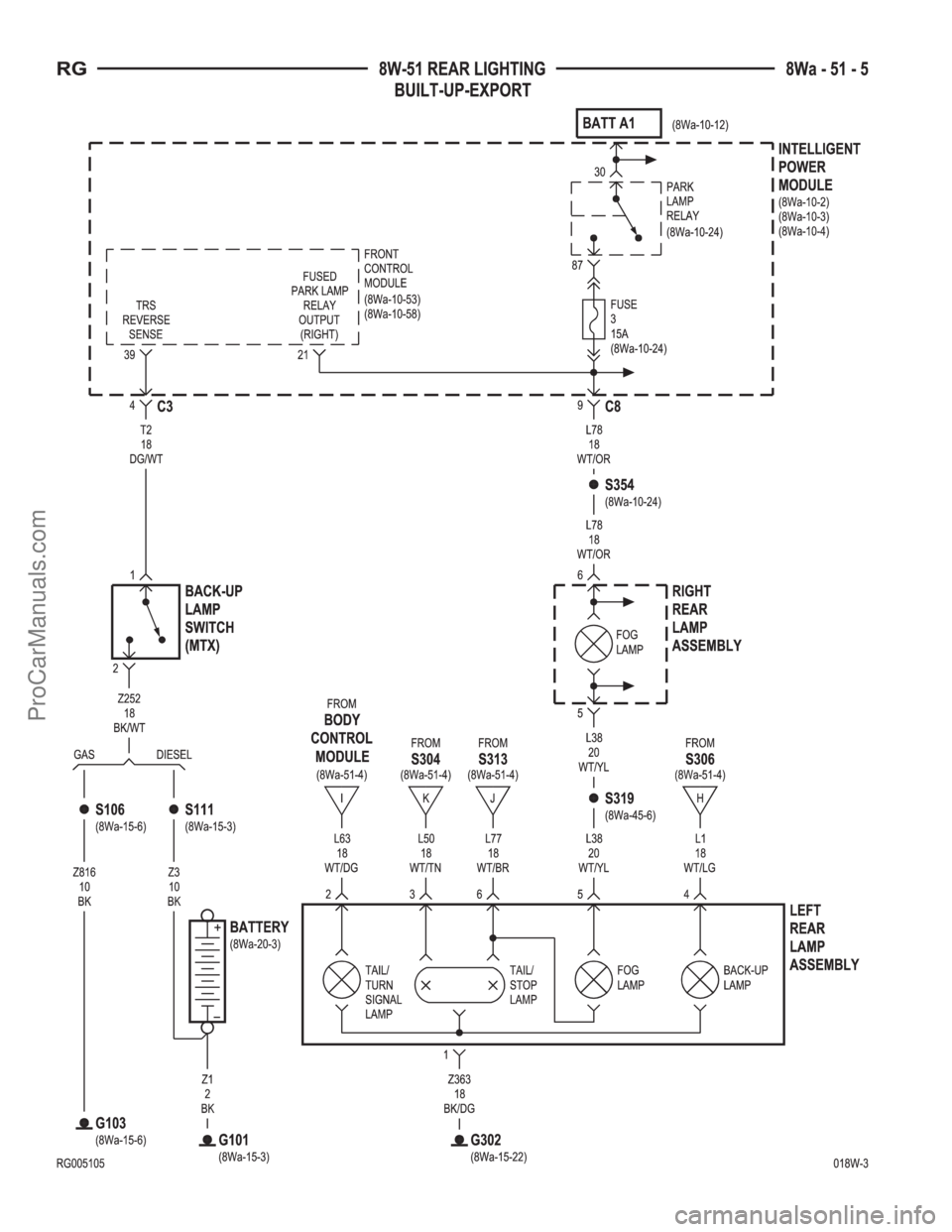

Back-Up Lamp Switch............... 8Wa-51-5
Battery........................... 8Wa-51-5
Body Control Module........... 8Wa-51-2, 3, 4, 5
Brake Lamp Switch................ 8Wa-51-2, 4
Center High Mounted Stop Lamp....... 8Wa-51-6
Front Control Module............ 8Wa-51-2, 4, 5
Fuse 2 (IPM)..................... 8Wa-51-2, 4
Fuse 3 (IPM)................... 8Wa-51-2, 4, 5
Fuse 26 (IPM).................... 8Wa-51-2, 4
G101............................. 8Wa-51-5
G103............................. 8Wa-51-5
G302....................... 8Wa-51-2, 3, 4, 5
G400............................. 8Wa-51-6
Intelligent Power Module......... 8Wa-51-2, 4, 5

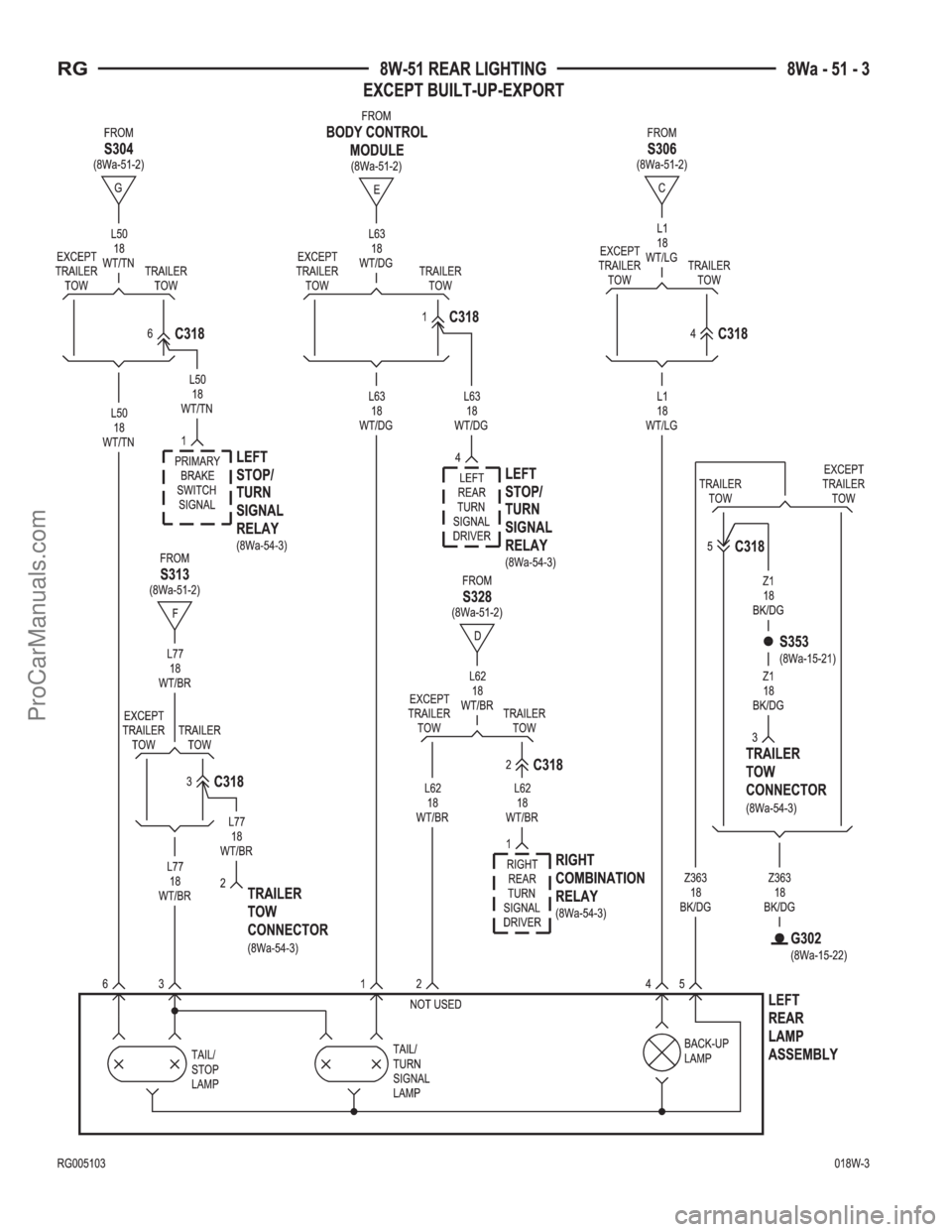

Left Rear Lamp Assembly......... 8Wa-51-3, 4, 5
Left Stop/Turn Signal Relay........... 8Wa-51-3

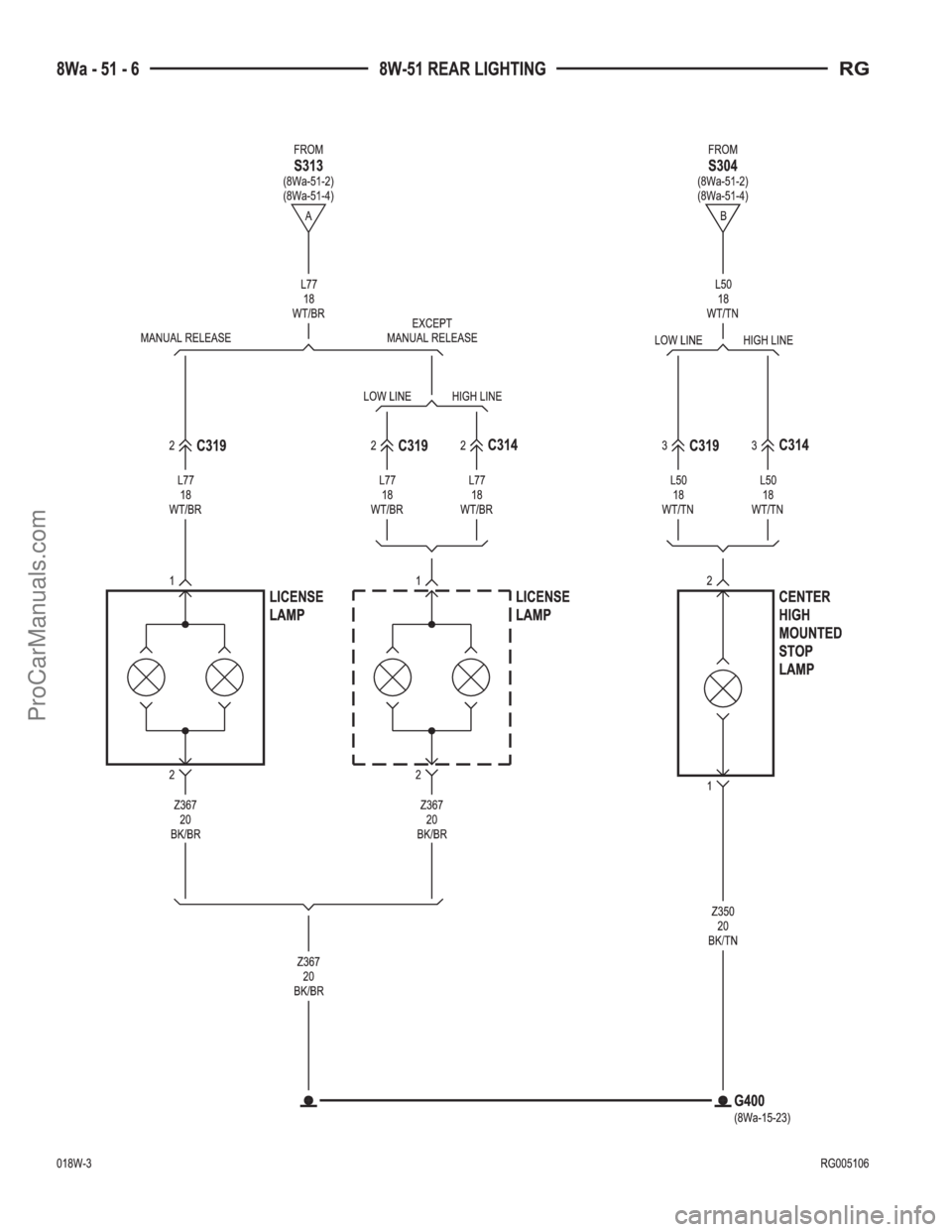

License Lamp...................... 8Wa-51-6
Park Lamp Relay............... 8Wa-51-2, 4, 5
Right Combination Relay............. 8Wa-51-3
Right Rear Lamp Assembly........ 8Wa-51-2, 4, 5
Trailer Tow Connector................ 8Wa-51-3
RG8W-51 REAR LIGHTING8Wa-51-1
ProCarManuals.com

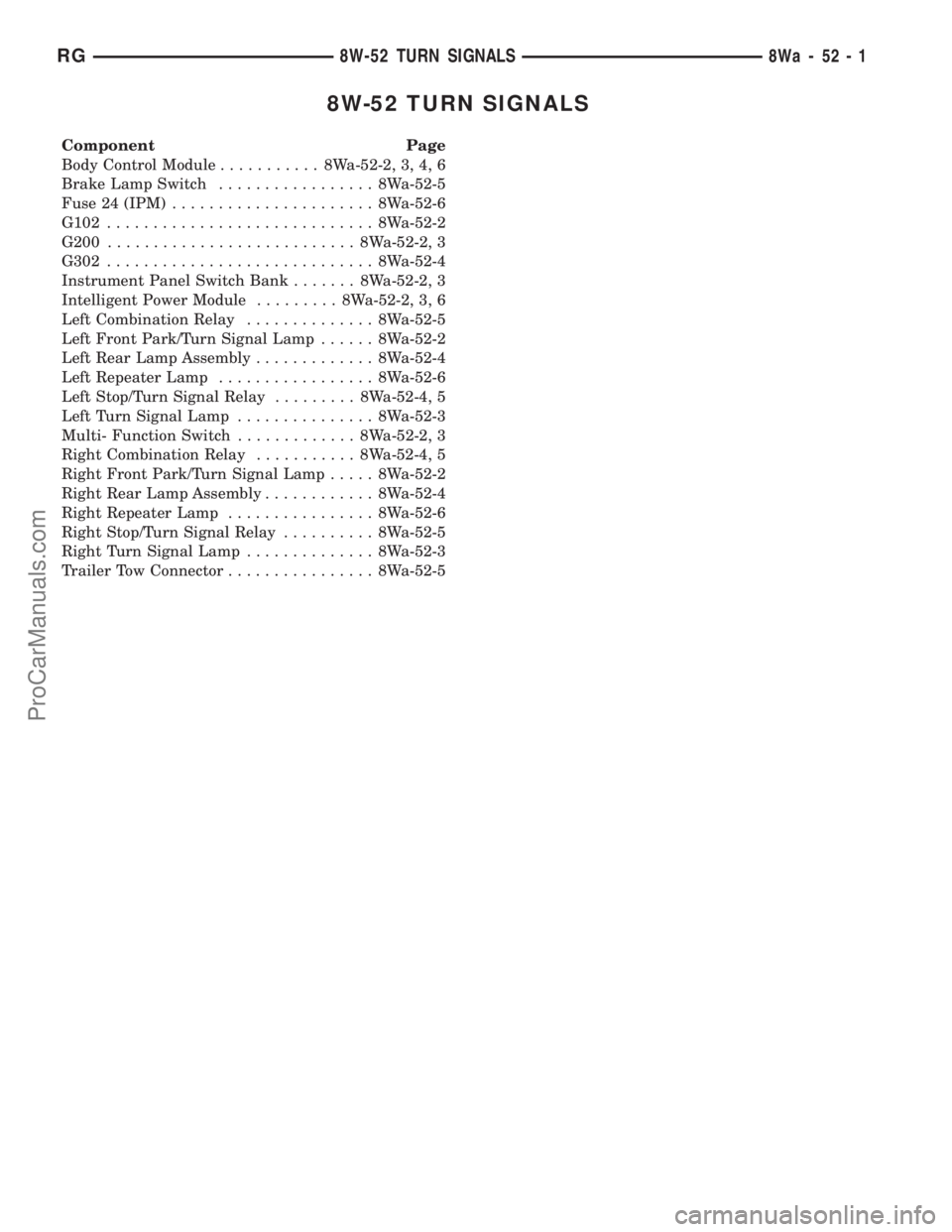

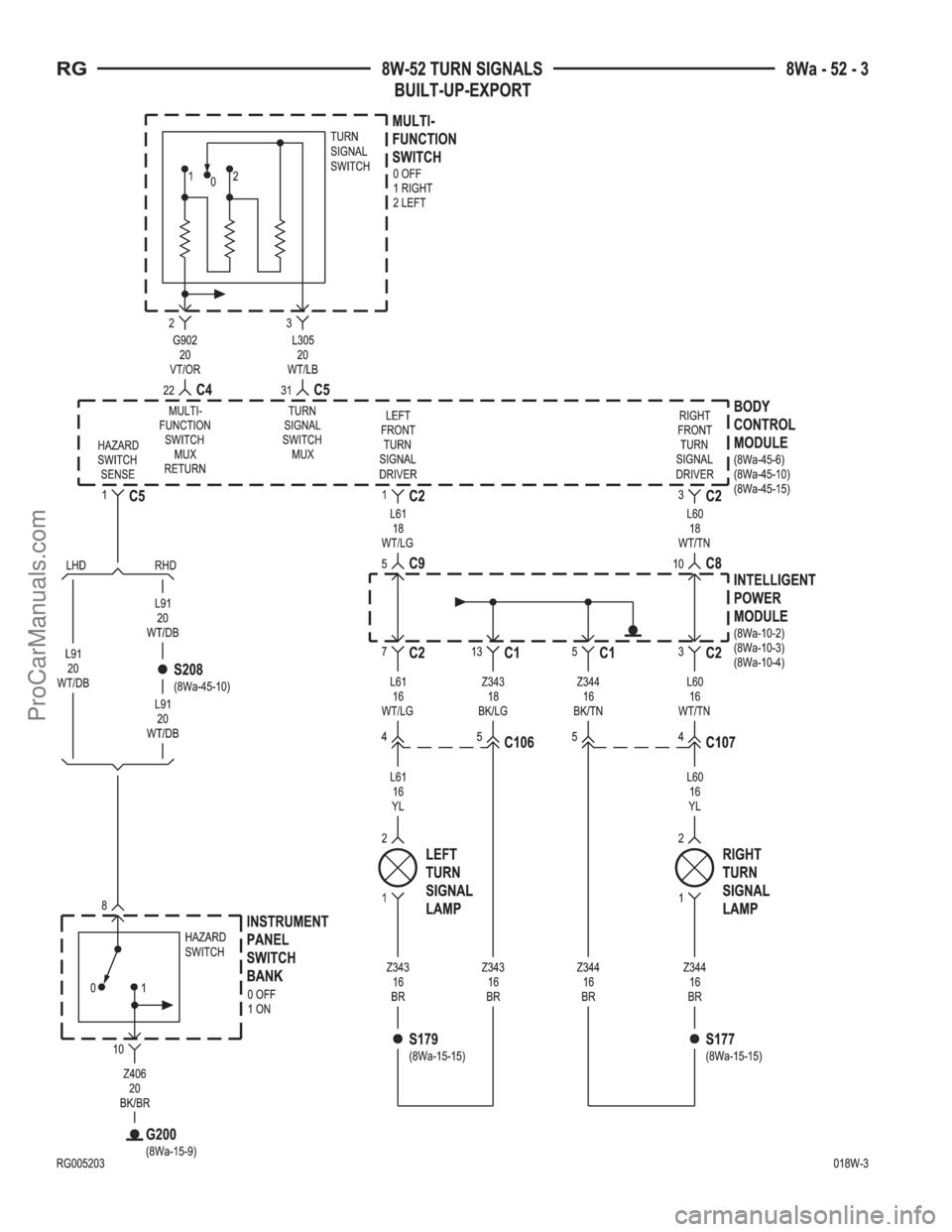

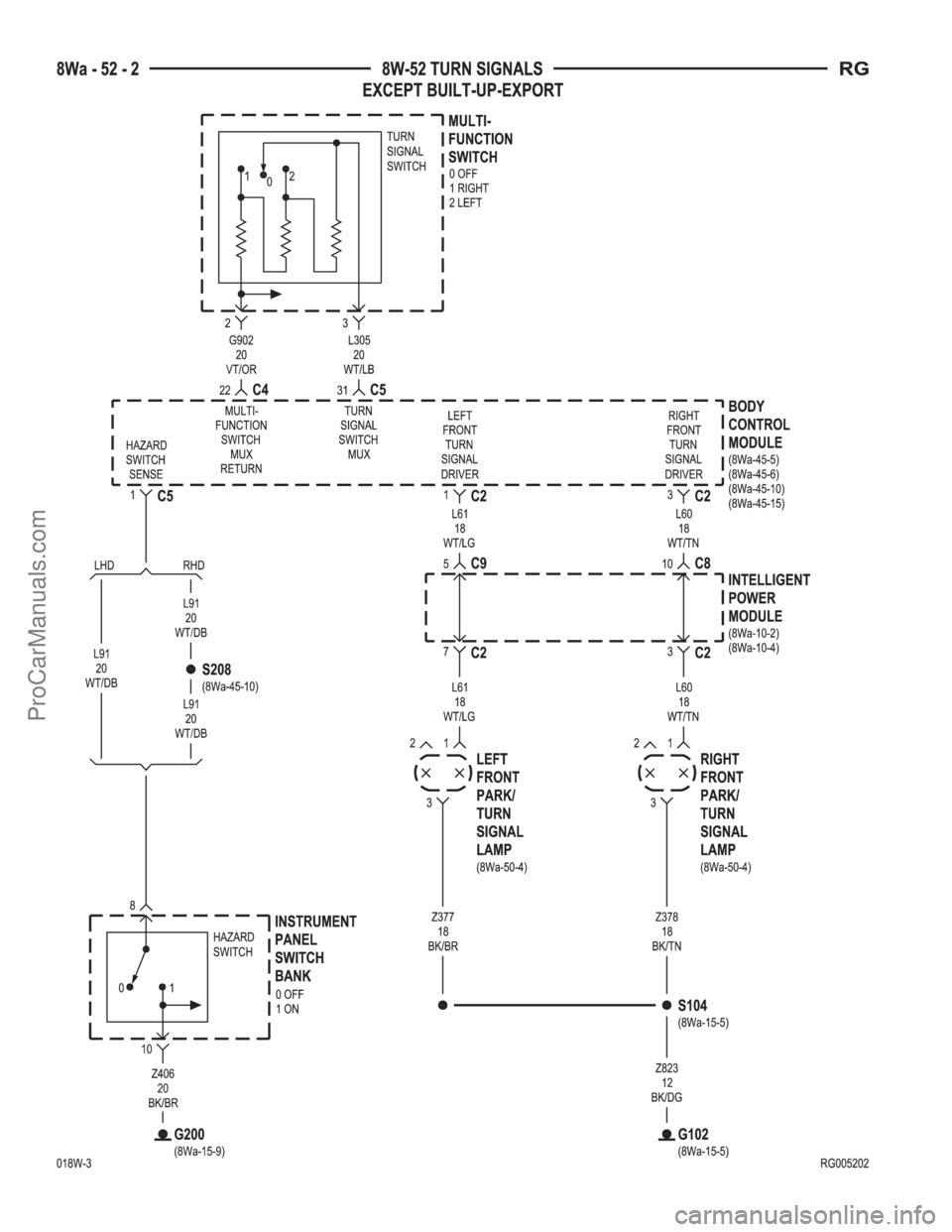

8W-52 TURN SIGNALS
Component Page
Body Control Module........... 8Wa-52-2, 3, 4, 6
Brake Lamp Switch................. 8Wa-52-5
Fuse 24 (IPM)...................... 8Wa-52-6
G102............................. 8Wa-52-2
G200........................... 8Wa-52-2, 3
G302............................. 8Wa-52-4
Instrument Panel Switch Bank....... 8Wa-52-2, 3
Intelligent Power Module......... 8Wa-52-2, 3, 6
Left Combination Relay.............. 8Wa-52-5
Left Front Park/Turn Signal Lamp...... 8Wa-52-2
Left Rear Lamp Assembly............. 8Wa-52-4
Left Repeater Lamp................. 8Wa-52-6
Left Stop/Turn Signal Relay......... 8Wa-52-4, 5
Left Turn Signal Lamp............... 8Wa-52-3
Multi- Function Switch............. 8Wa-52-2, 3
Right Combination Relay........... 8Wa-52-4, 5
Right Front Park/Turn Signal Lamp..... 8Wa-52-2
Right Rear Lamp Assembly............ 8Wa-52-4
Right Repeater Lamp................ 8Wa-52-6
Right Stop/Turn Signal Relay.......... 8Wa-52-5
Right Turn Signal Lamp.............. 8Wa-52-3
Trailer Tow Connector................ 8Wa-52-5
RG8W-52 TURN SIGNALS8Wa-52-1
