Page 1851 of 2585

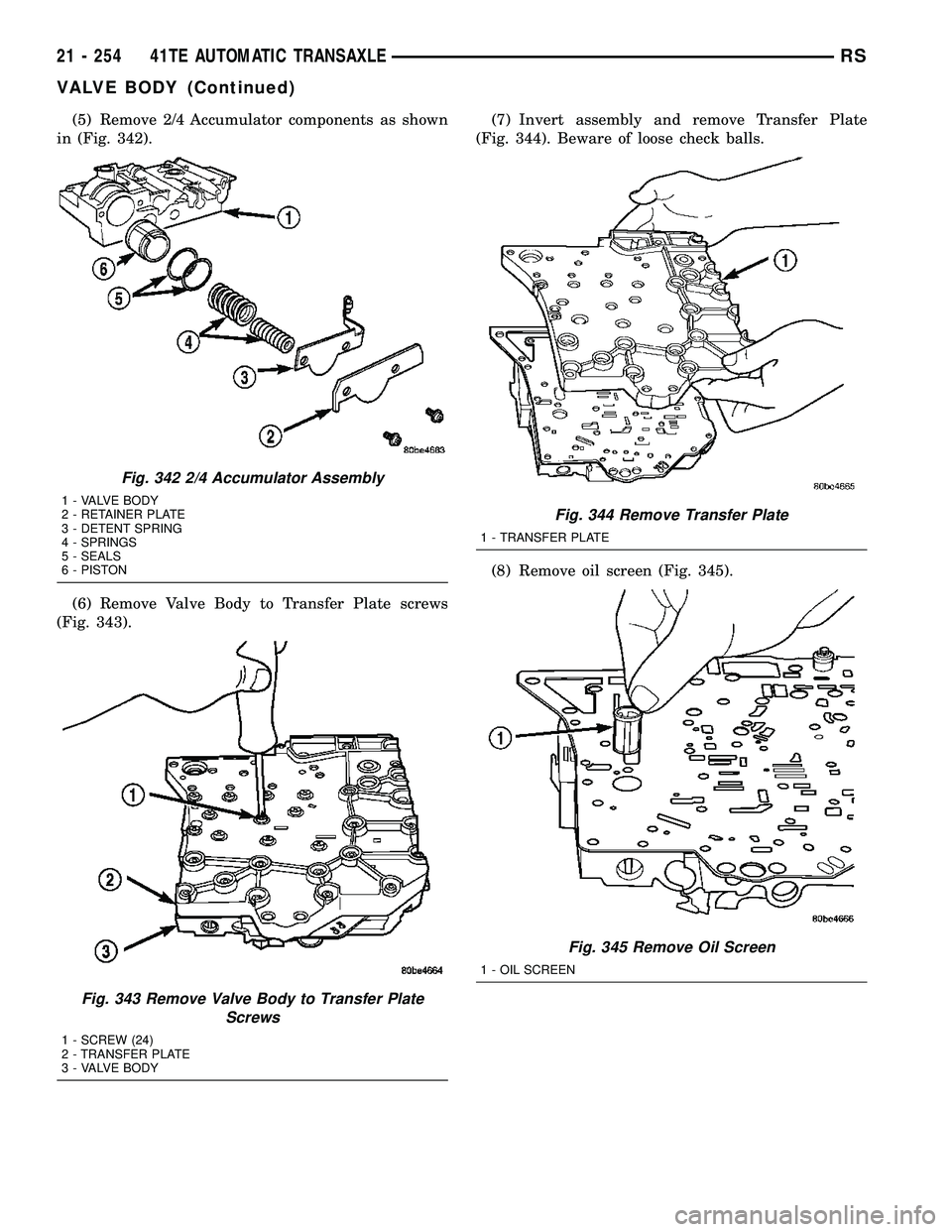

DODGE TOWN AND COUNTRY 2004  Service Manual (5) Remove 2/4 Accumulator components as shown
in (Fig. 342).
(6) Remove Valve Body to Transfer Plate screws
(Fig. 343).(7) Invert assembly and remove Transfer Plate
(Fig. 344). Beware of loose check

Page 1852 of 2585

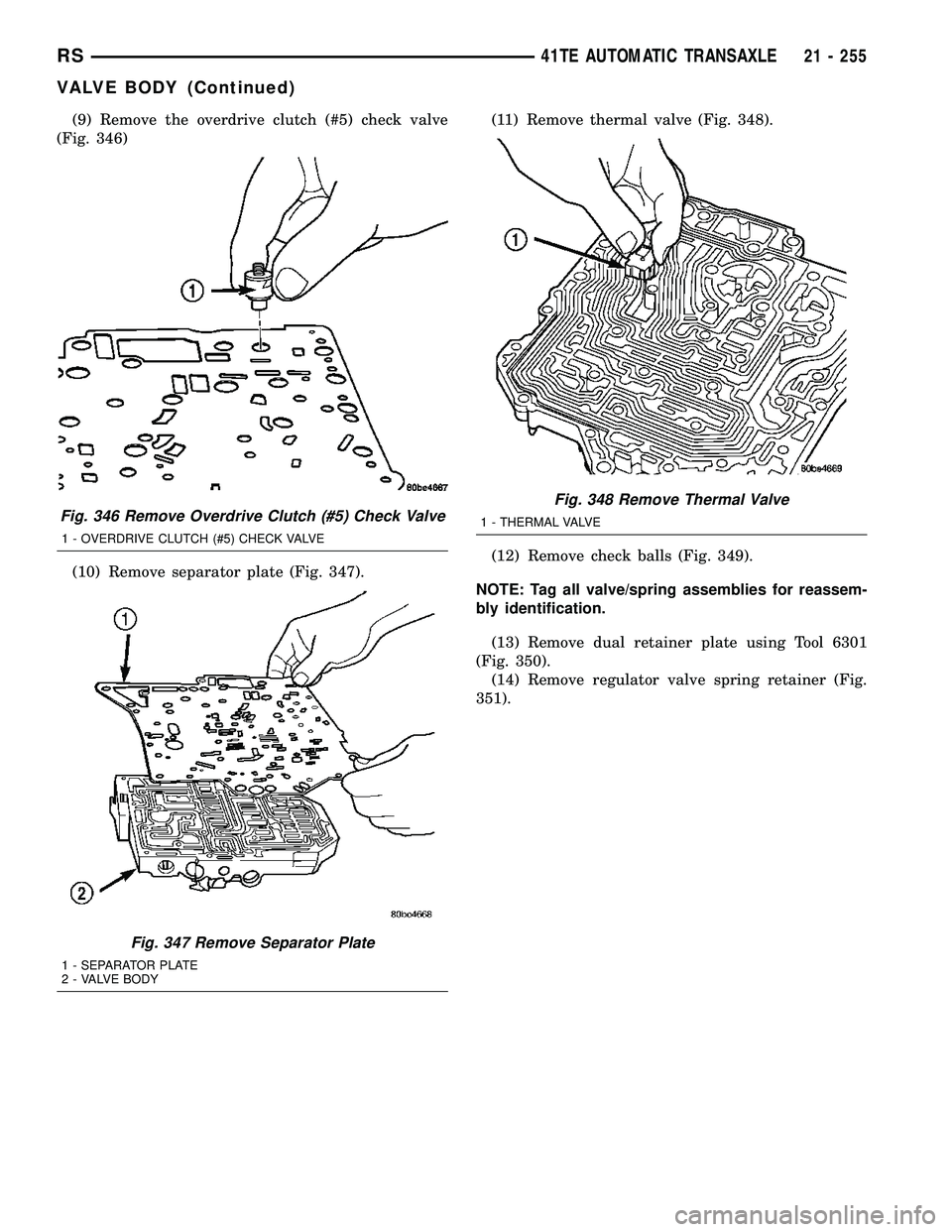

DODGE TOWN AND COUNTRY 2004  Service Manual (9) Remove the overdrive clutch (#5) check valve
(Fig. 346)
(10) Remove separator plate (Fig. 347).(11) Remove thermal valve (Fig. 348).
(12) Remove check balls (Fig. 349).
NOTE: Tag all valve/spring

Page 1853 of 2585

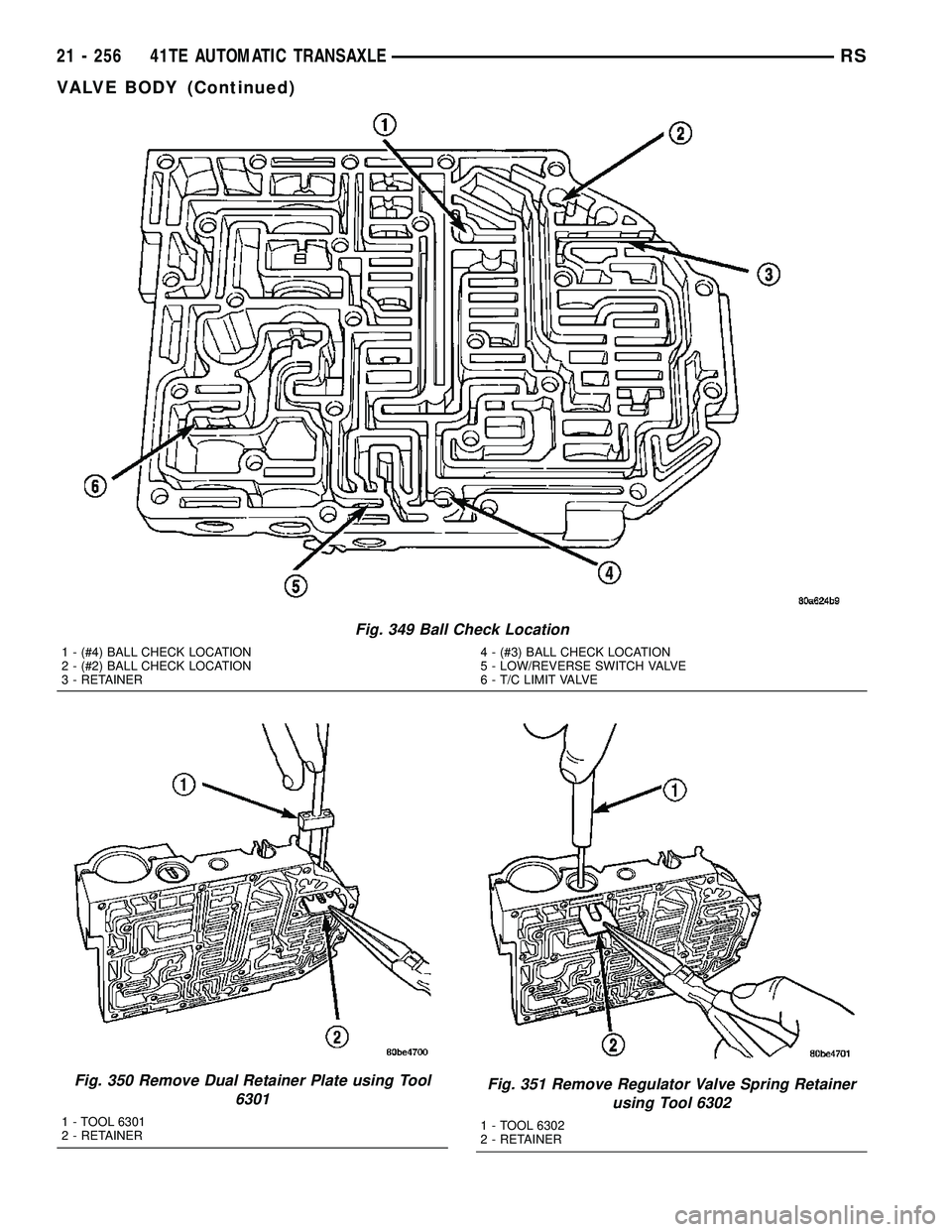

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 349 Ball Check Location
1 - (#4) BALL CHECK LOCATION
2 - (#2) BALL CHECK LOCATION
3 - RETAINER4 - (#3) BALL CHECK LOCATION
5 - LOW/REVERSE SWITCH VALVE
6 - T/C LIMIT VALVE
Fig. 350 Remove Dual Re

Page 1854 of 2585

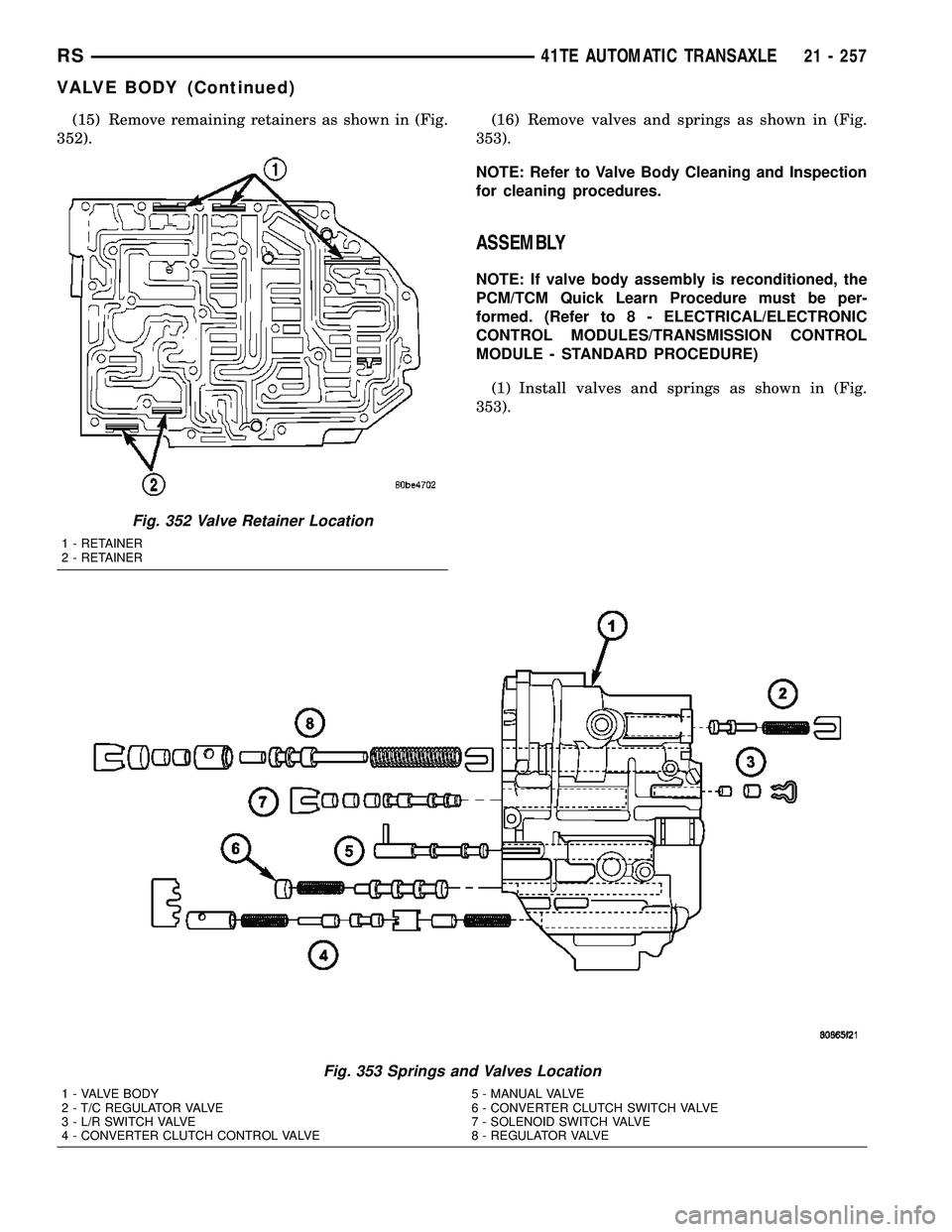

DODGE TOWN AND COUNTRY 2004  Service Manual (15) Remove remaining retainers as shown in (Fig.
352).(16) Remove valves and springs as shown in (Fig.
353).
NOTE: Refer to Valve Body Cleaning and Inspection
for cleaning procedures.
ASSEMBLY
NOTE:

Page 1855 of 2585

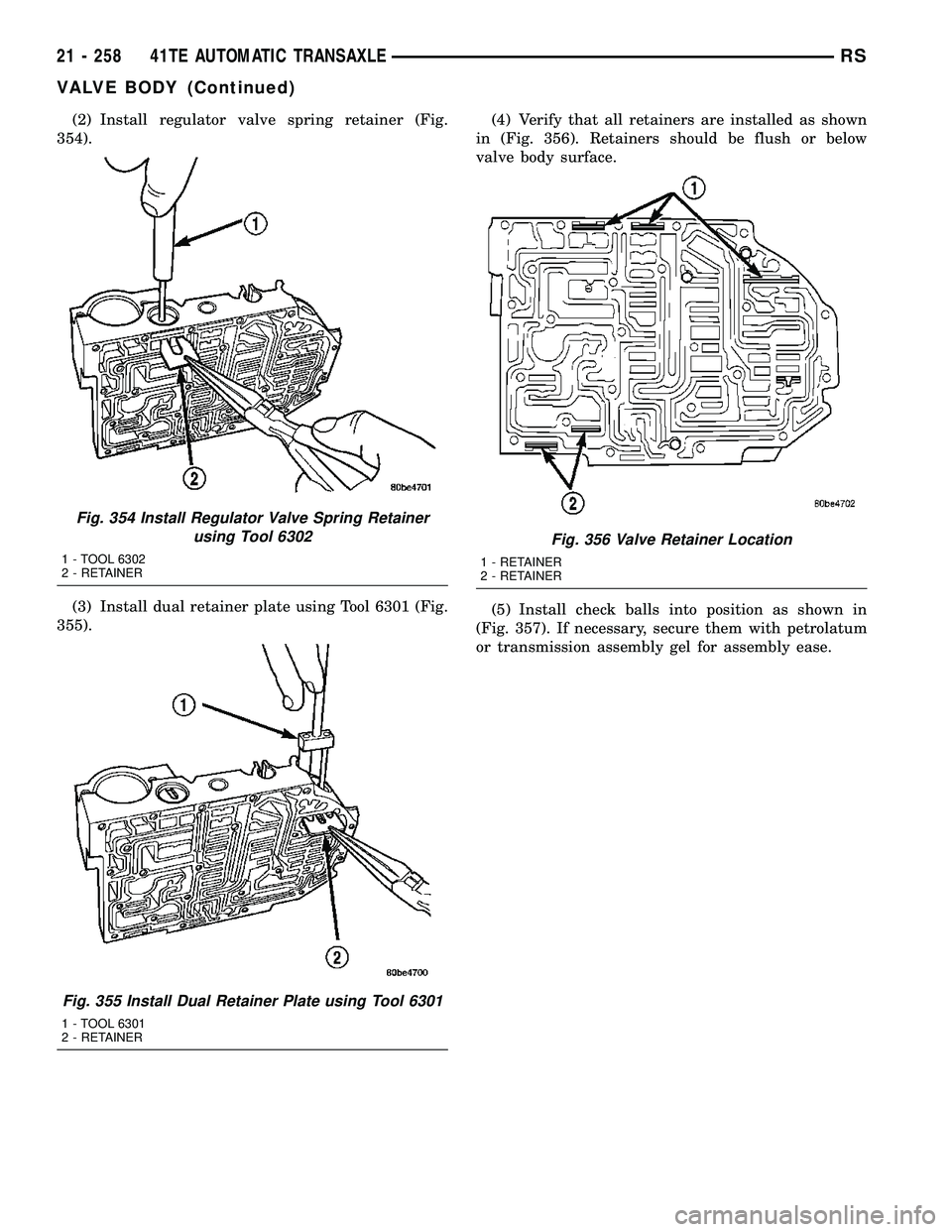

DODGE TOWN AND COUNTRY 2004  Service Manual (2) Install regulator valve spring retainer (Fig.
354).
(3) Install dual retainer plate using Tool 6301 (Fig.
355).(4) Verify that all retainers are installed as shown
in (Fig. 356). Retainers should

Page 1856 of 2585

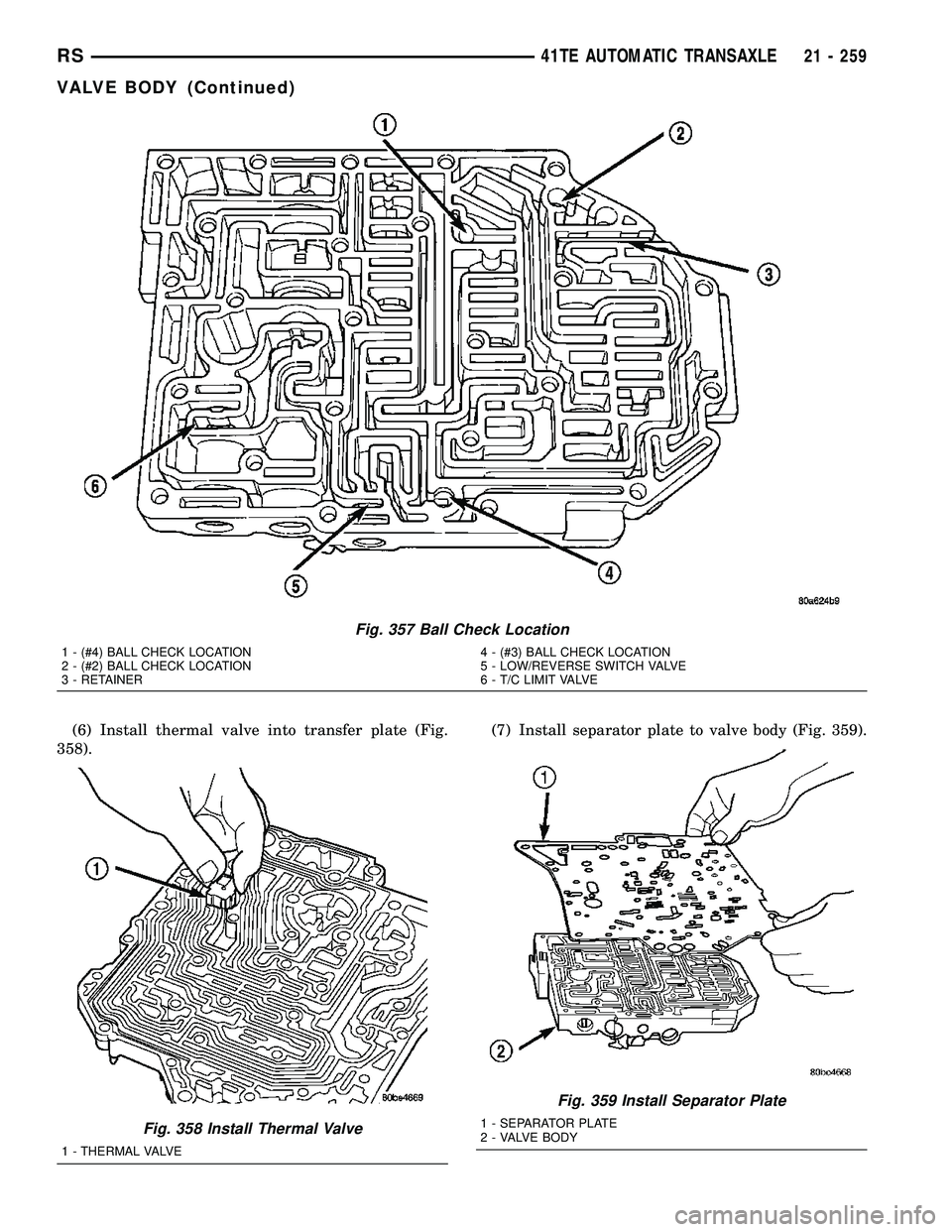

DODGE TOWN AND COUNTRY 2004  Service Manual (6) Install thermal valve into transfer plate (Fig.
358).(7) Install separator plate to valve body (Fig. 359).
Fig. 357 Ball Check Location
1 - (#4) BALL CHECK LOCATION
2 - (#2) BALL CHECK LOCATION
3

Page 1857 of 2585

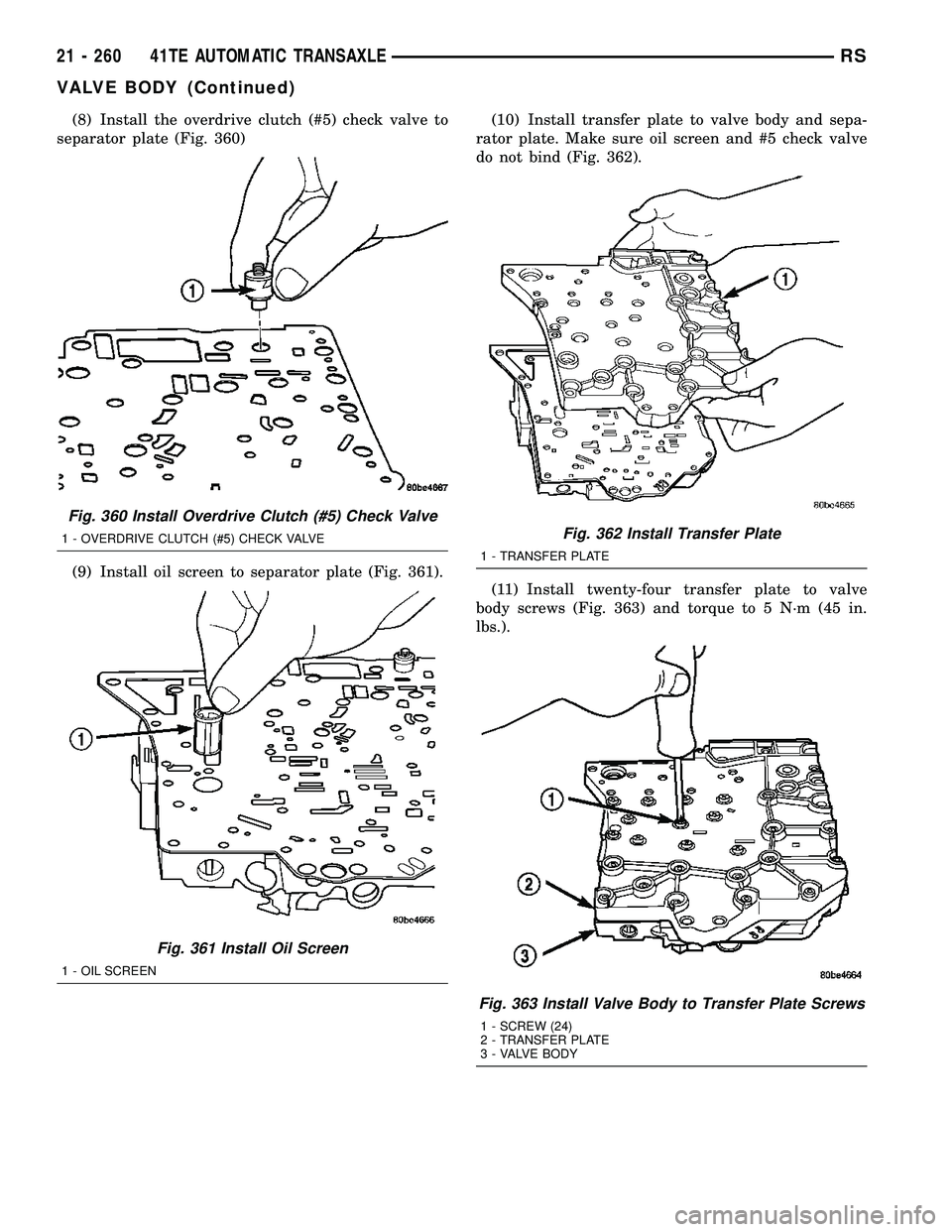

DODGE TOWN AND COUNTRY 2004  Service Manual (8) Install the overdrive clutch (#5) check valve to
separator plate (Fig. 360)
(9) Install oil screen to separator plate (Fig. 361).(10) Install transfer plate to valve body and sepa-
rator plate. Ma

Page 1858 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual (12) Install 2/4 Accumulator components as shown
in (Fig. 364).
(13) Torque 2/4 Accumulator retainer to 5 N´m (45
in. lbs.) (Fig. 365).(14) Install Manual Shaft/Rooster Comb and
Transmission Range Se

Page 1859 of 2585

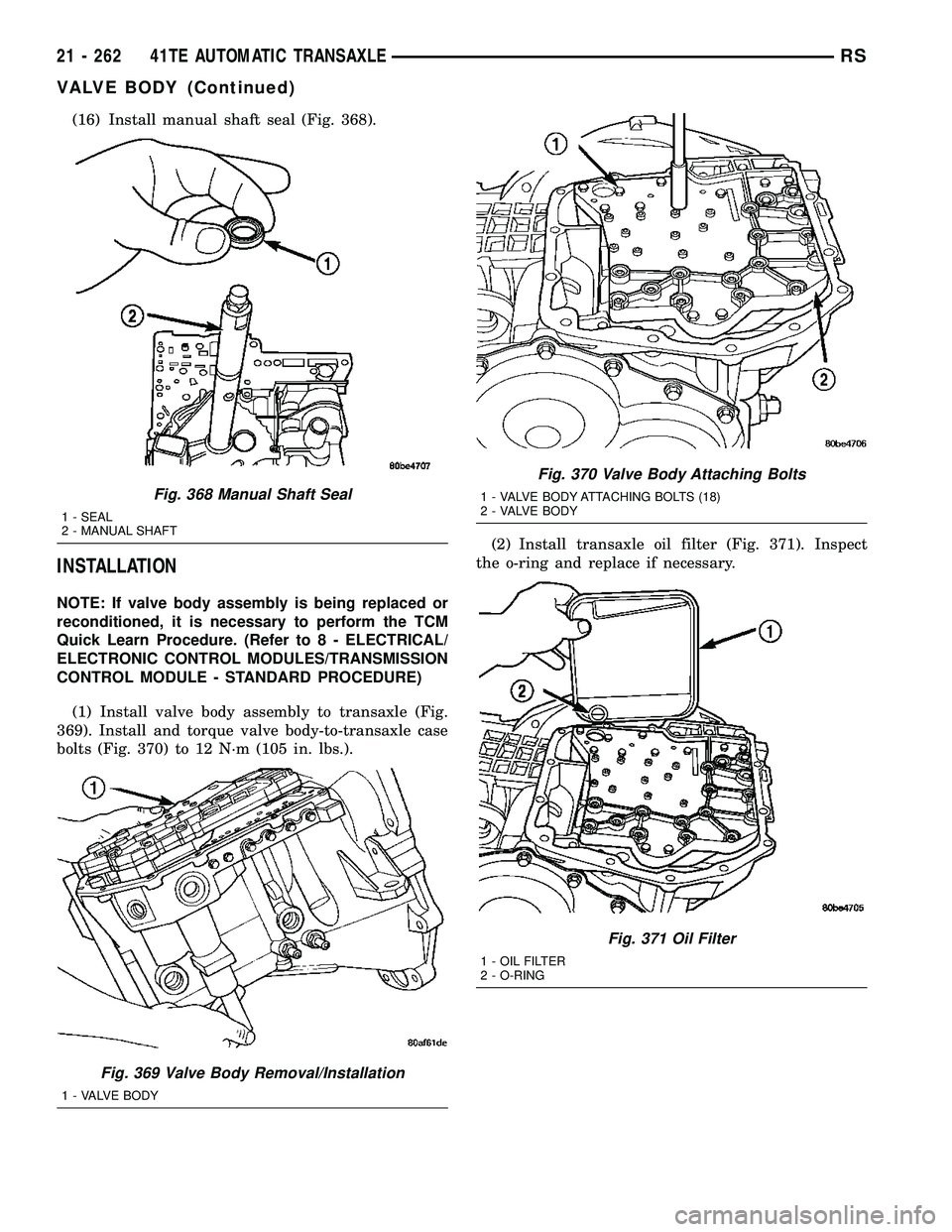

DODGE TOWN AND COUNTRY 2004  Service Manual (16) Install manual shaft seal (Fig. 368).
INSTALLATION
NOTE: If valve body assembly is being replaced or
reconditioned, it is necessary to perform the TCM
Quick Learn Procedure. (Refer to 8 - ELECTRI

Page 1860 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual (3) Ensure the transaxle oil pan and transaxle
case sealing surfaces are clean and dry. Install an
1/8º bead of MopartSilicone Rubber Adhesive Seal-
ant to the oil pan and install (Fig. 372). Torque
