Page 2301 of 2585

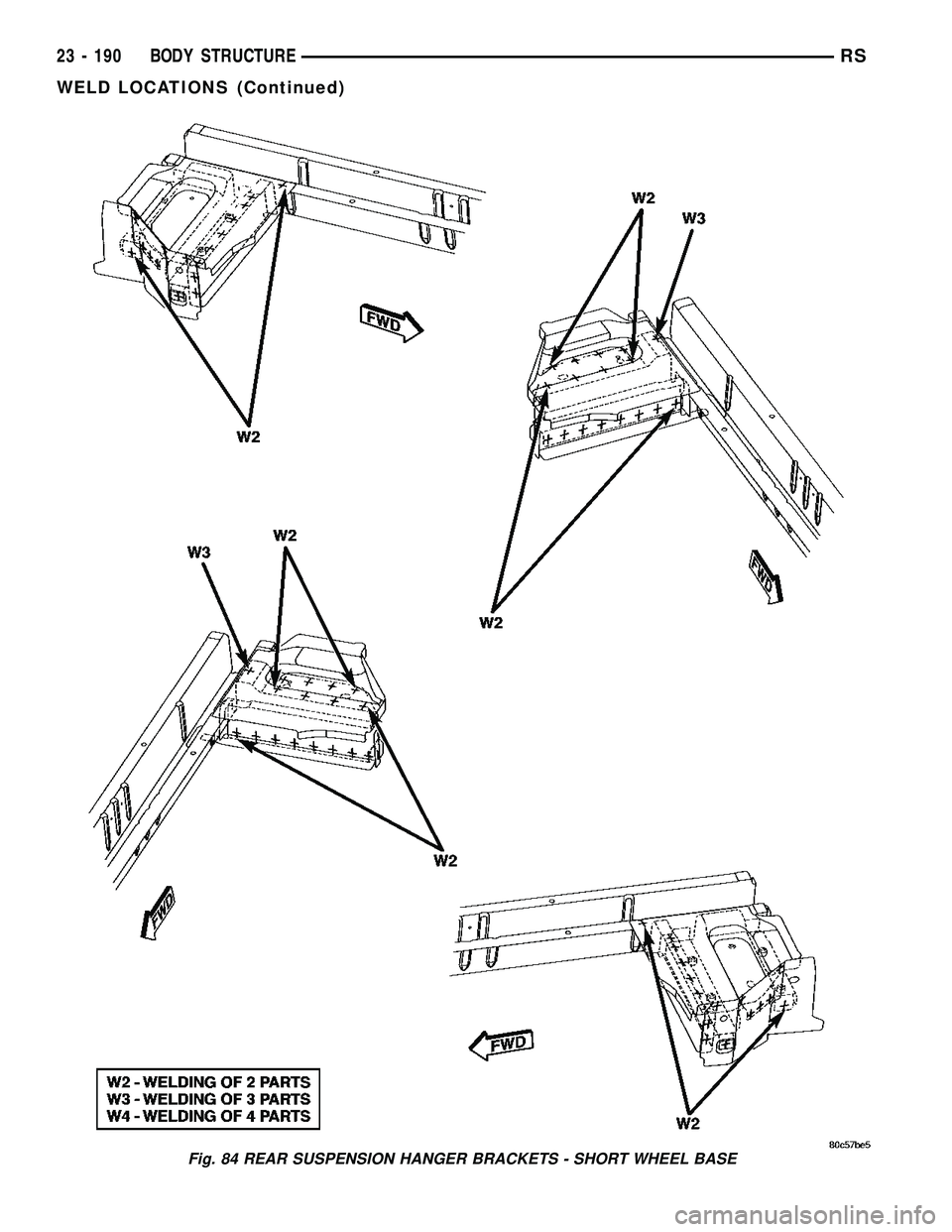

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 84 REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE
23 - 190 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2302 of 2585

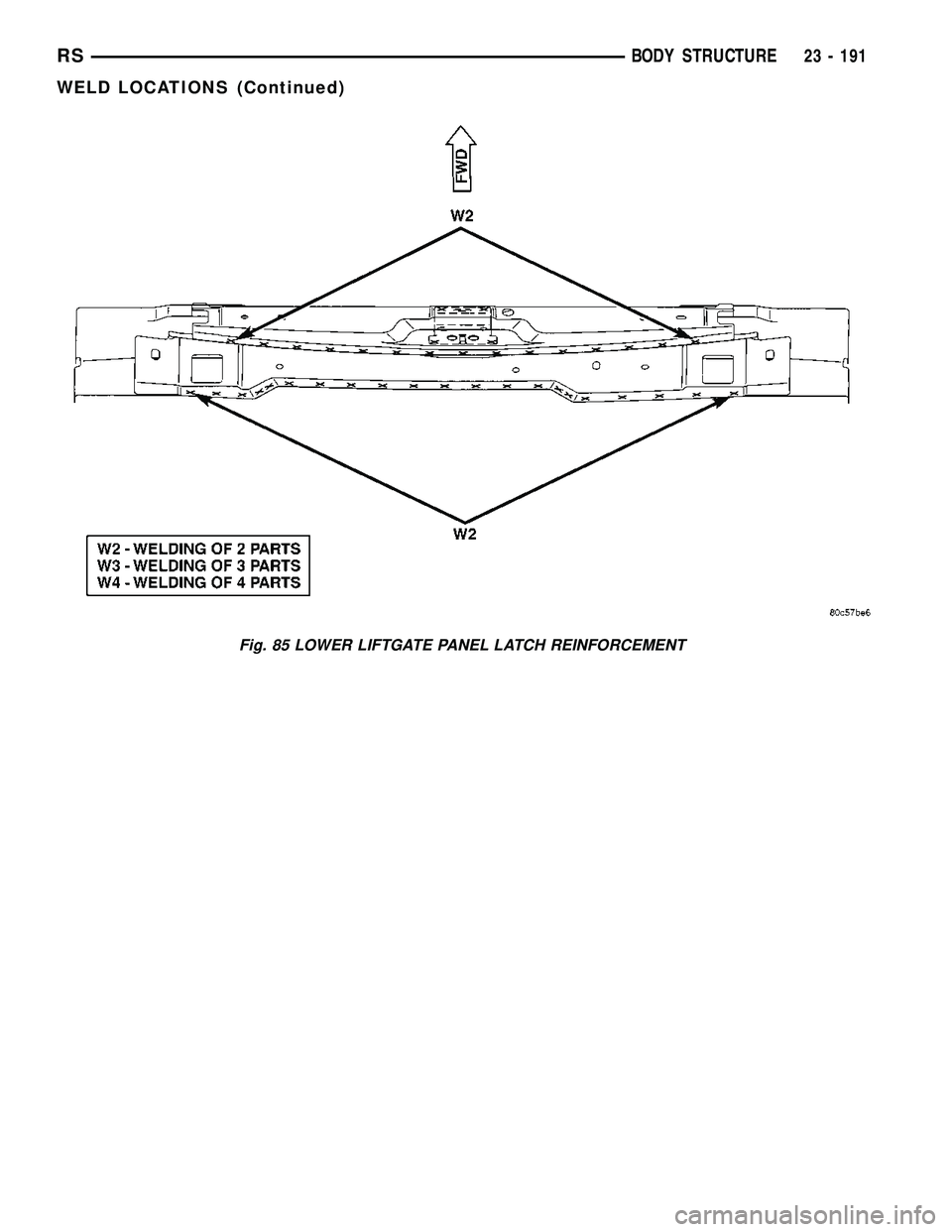

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 85 LOWER LIFTGATE PANEL LATCH REINFORCEMENT
RSBODY STRUCTURE23 - 191
WELD LOCATIONS (Continued)

Page 2303 of 2585

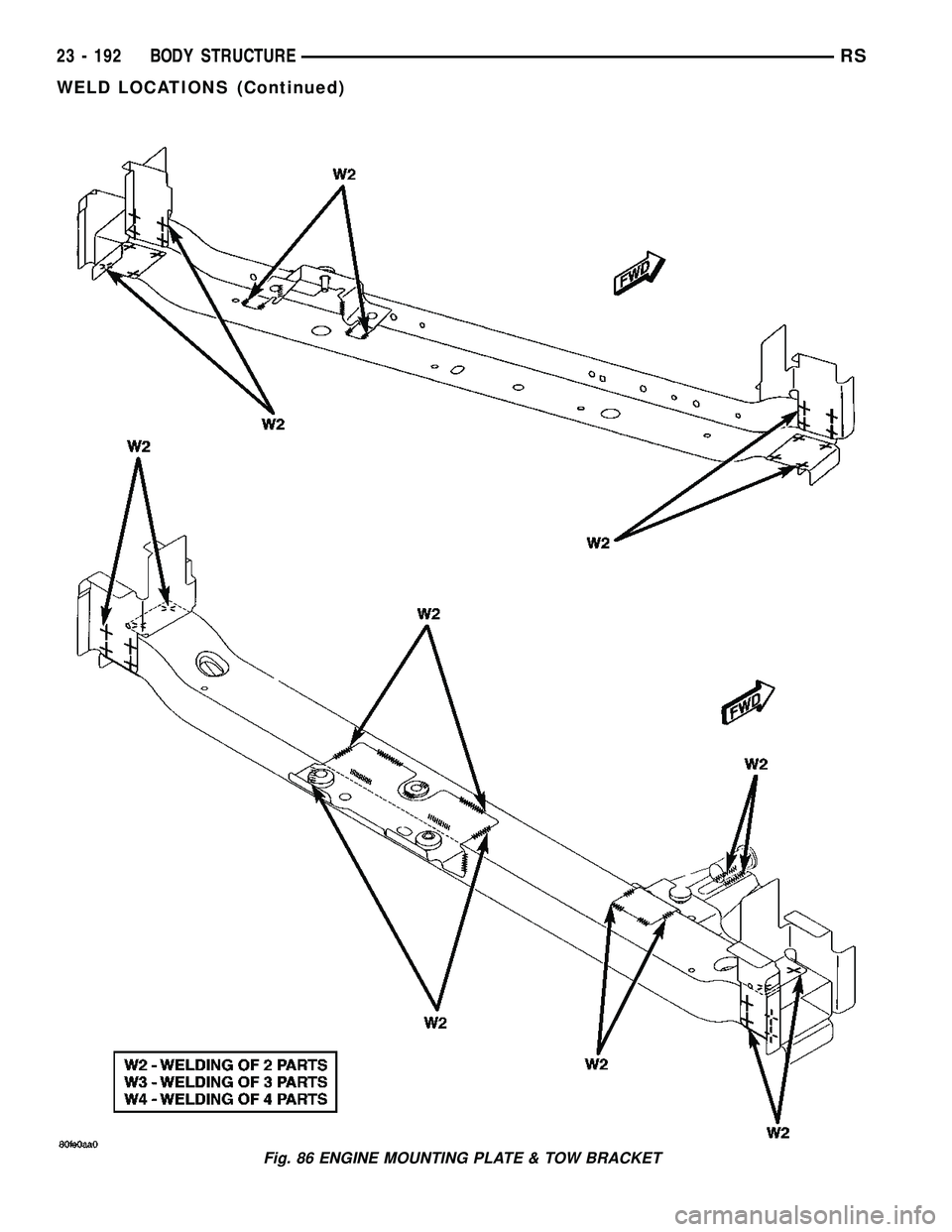

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 86 ENGINE MOUNTING PLATE & TOW BRACKET
23 - 192 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2304 of 2585

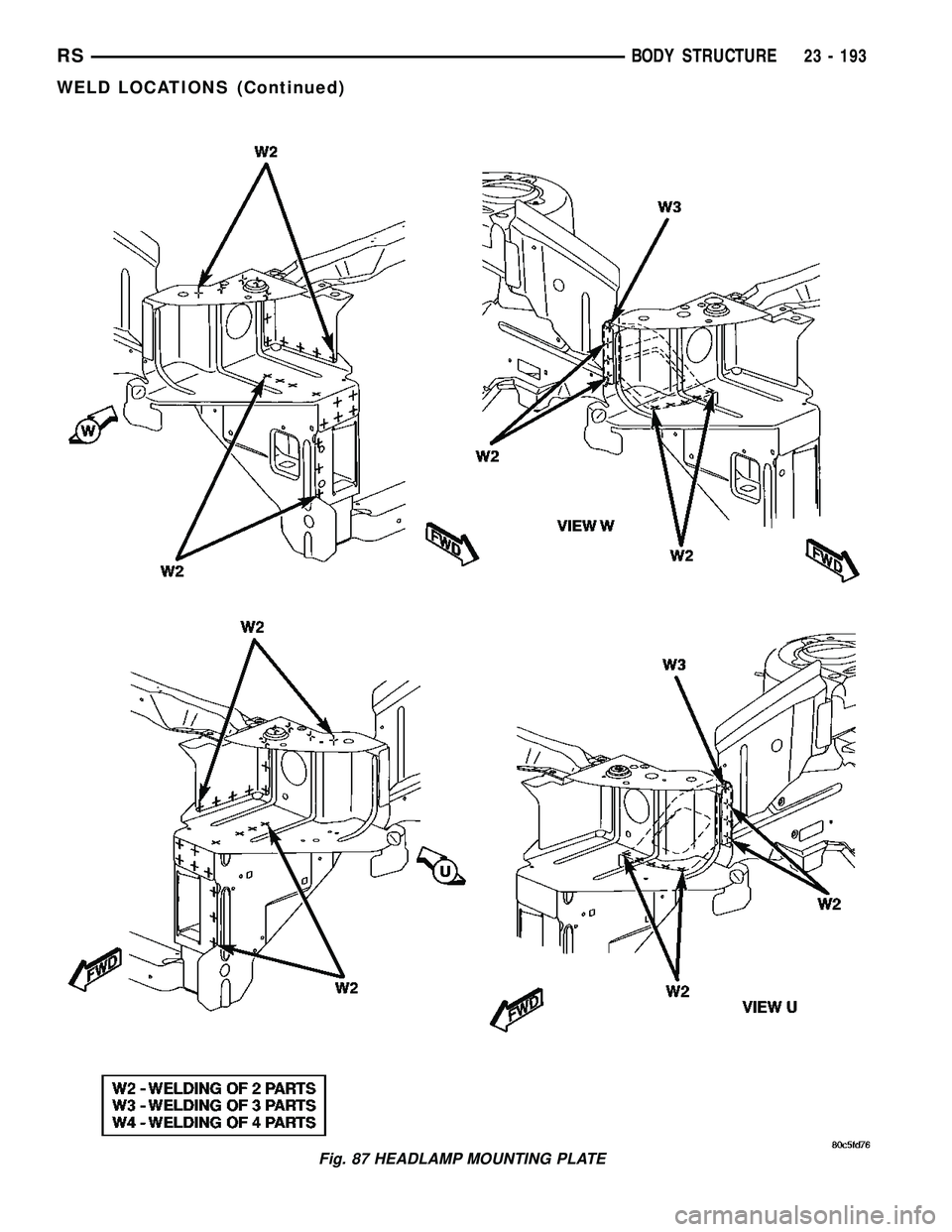

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 87 HEADLAMP MOUNTING PLATE
RSBODY STRUCTURE23 - 193
WELD LOCATIONS (Continued)

Page 2305 of 2585

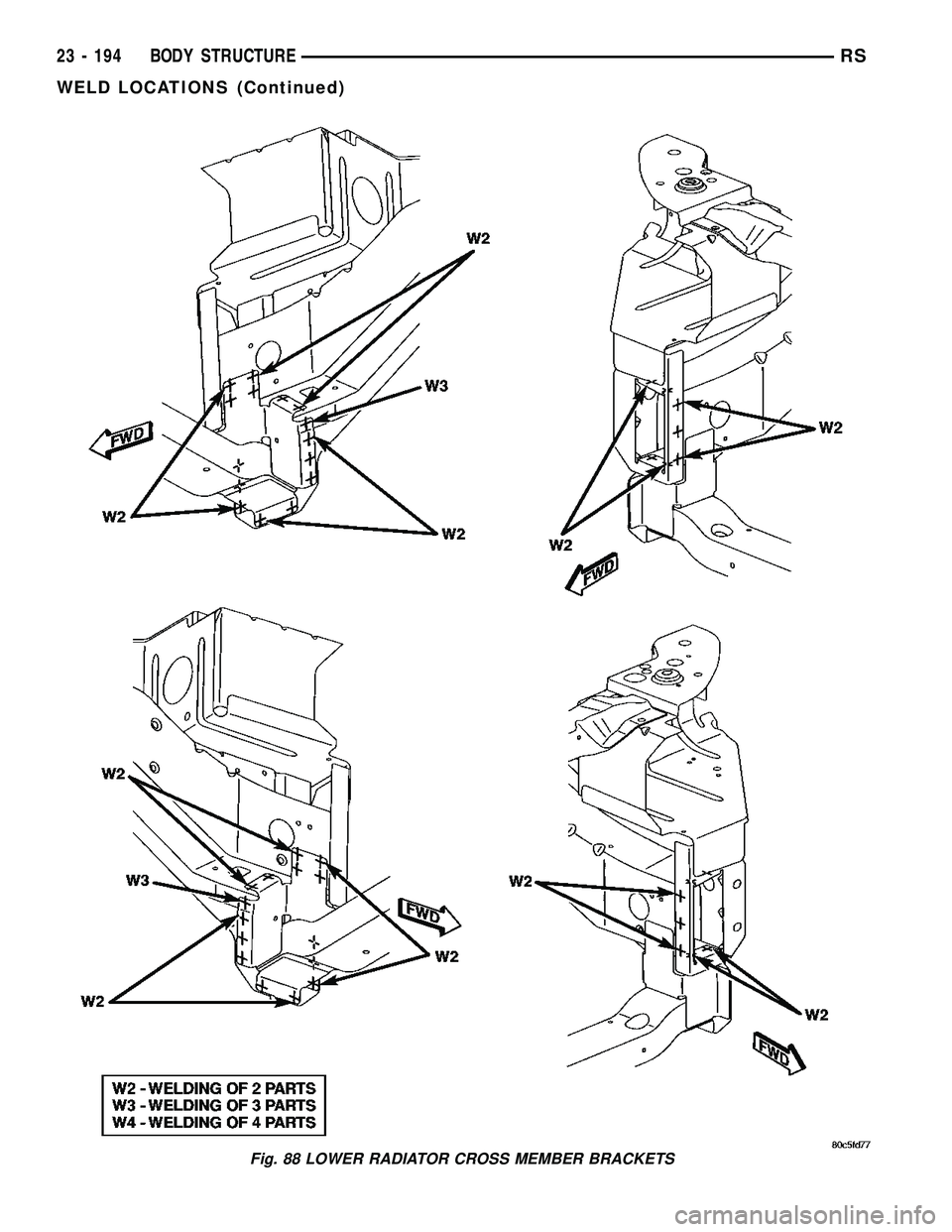

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 88 LOWER RADIATOR CROSS MEMBER BRACKETS
23 - 194 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2306 of 2585

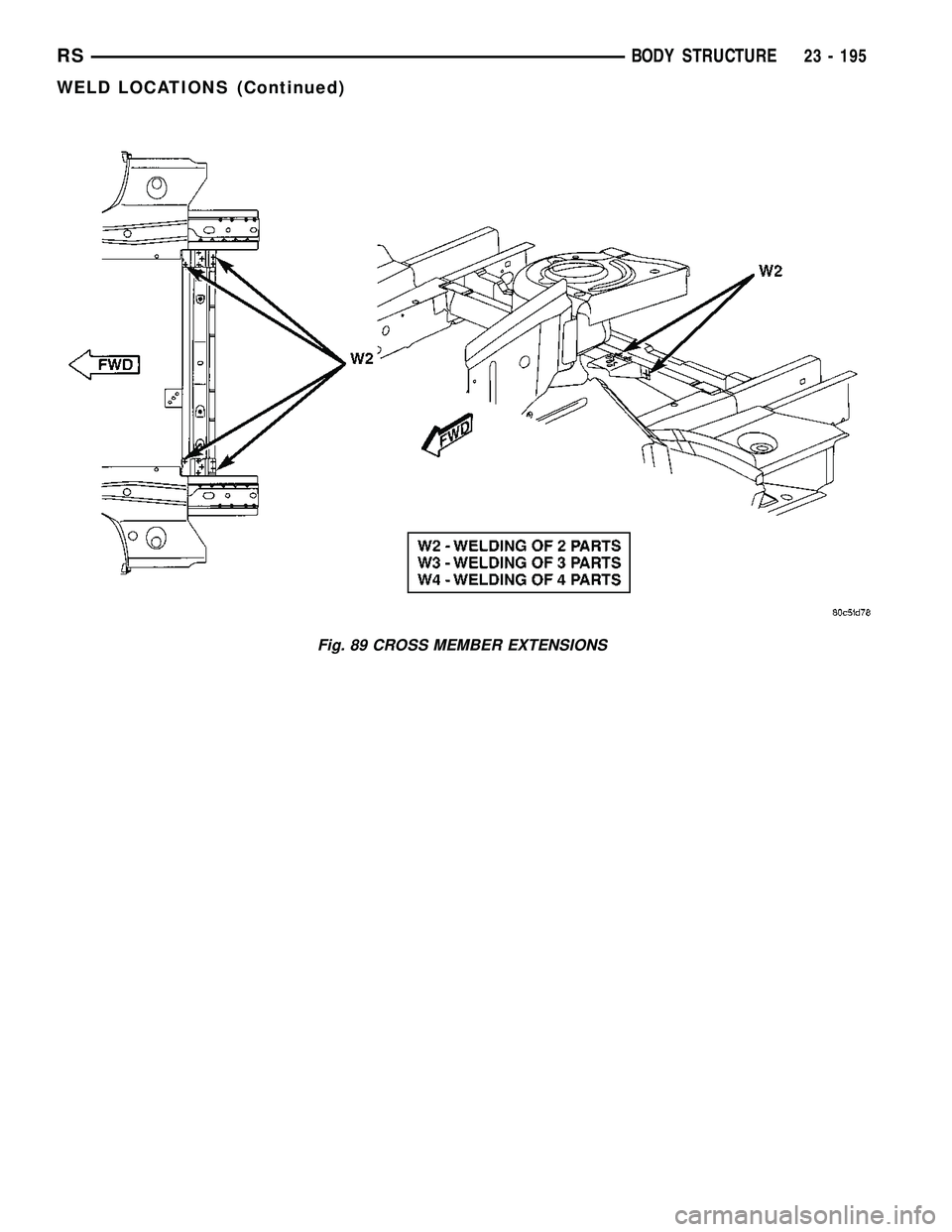

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 89 CROSS MEMBER EXTENSIONS
RSBODY STRUCTURE23 - 195
WELD LOCATIONS (Continued)

Page 2307 of 2585

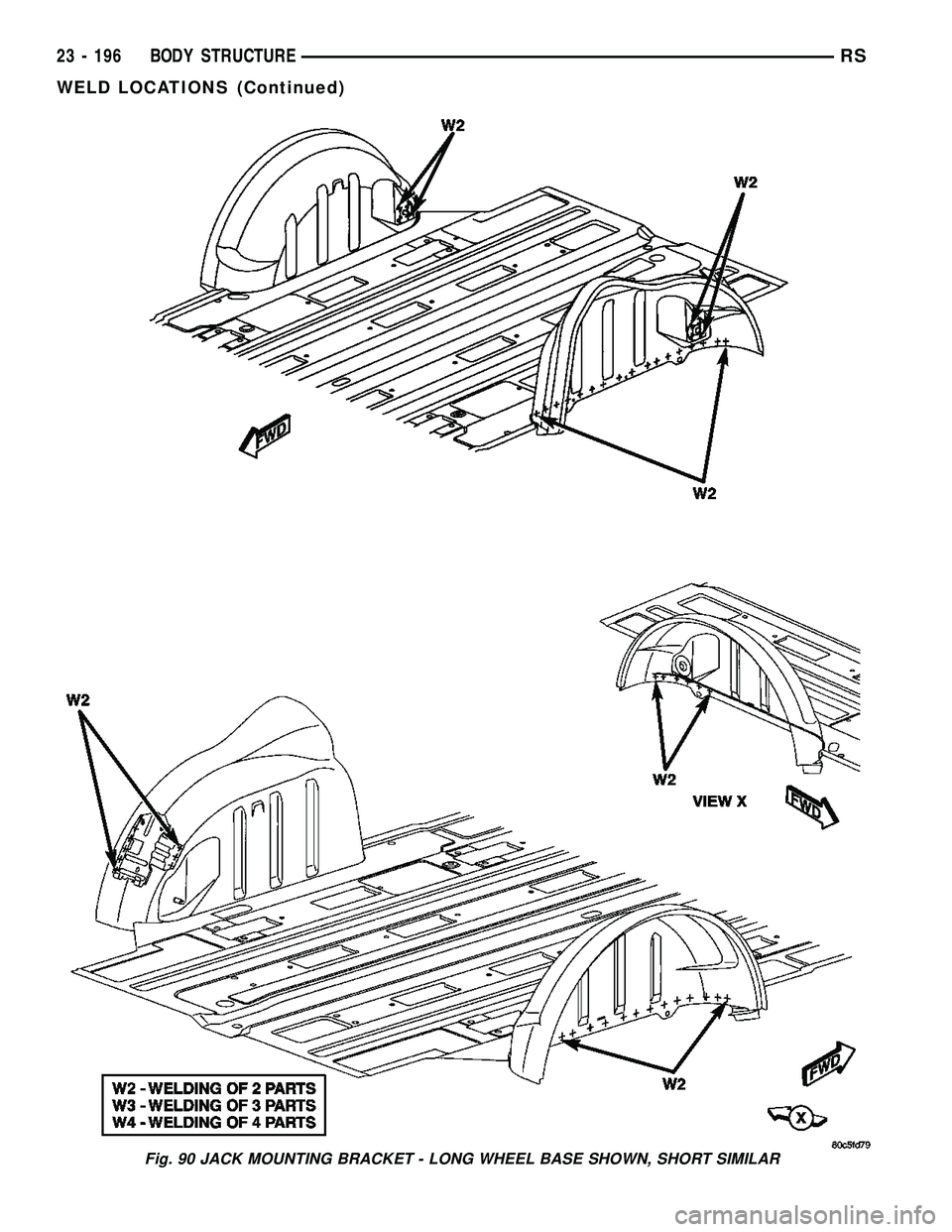

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 90 JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR
23 - 196 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2308 of 2585

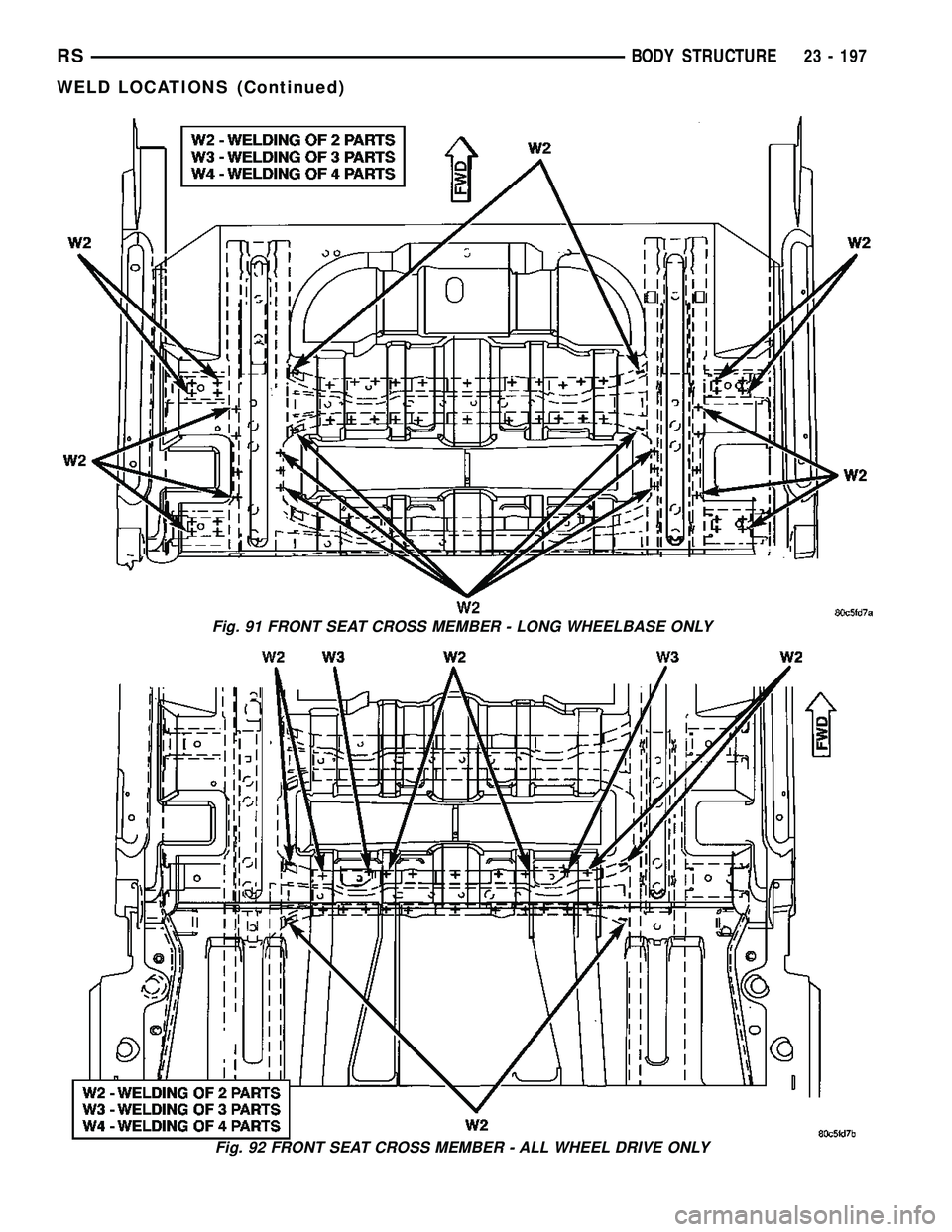

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 91 FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY
Fig. 92 FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY
RSBODY STRUCTURE23 - 197
WELD LOCATIONS (Continued)

Page 2309 of 2585

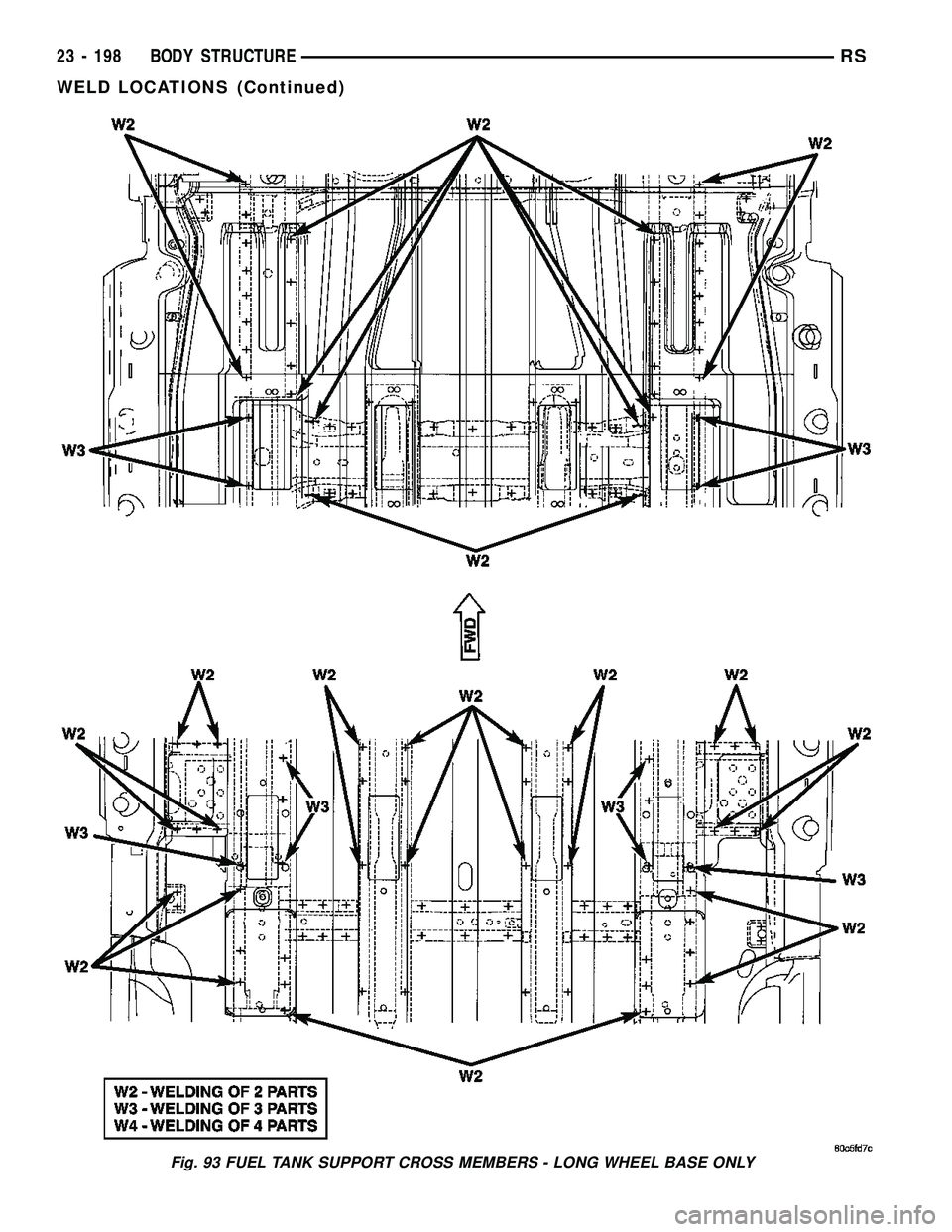

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 93 FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY
23 - 198 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2310 of 2585

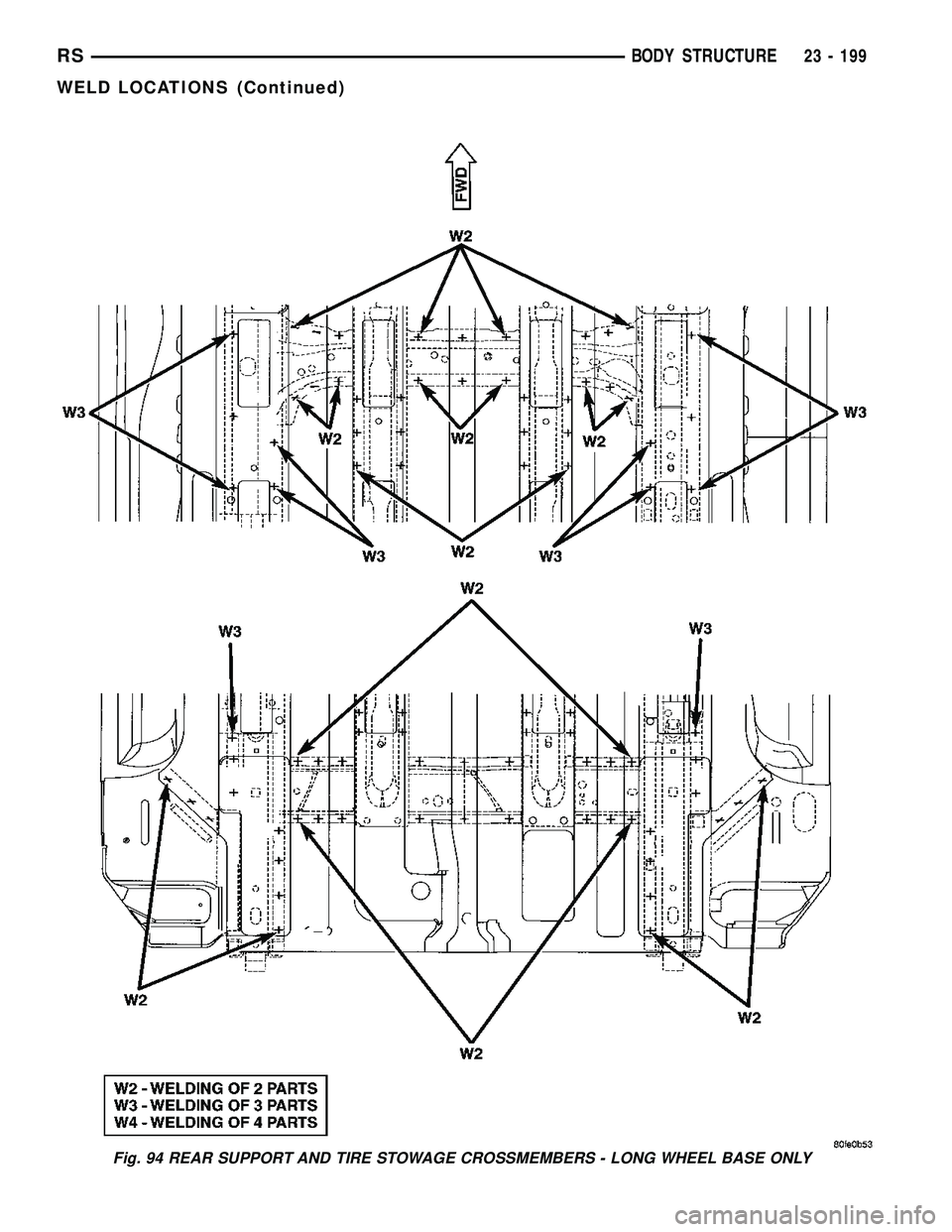

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 94 REAR SUPPORT AND TIRE STOWAGE CROSSMEMBERS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 199
WELD LOCATIONS (Continued)
