Page 2331 of 2585

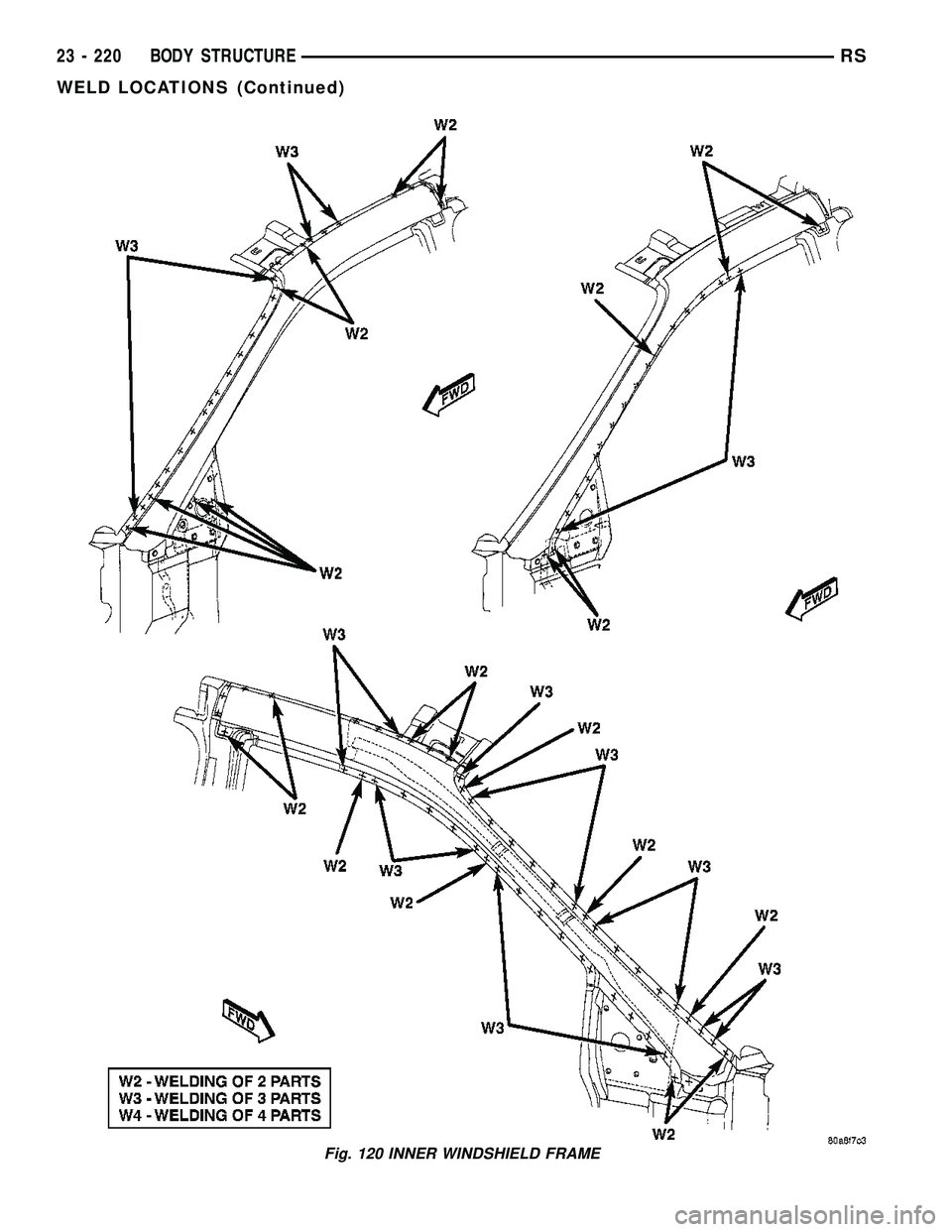

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 120 INNER WINDSHIELD FRAME
23 - 220 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2332 of 2585

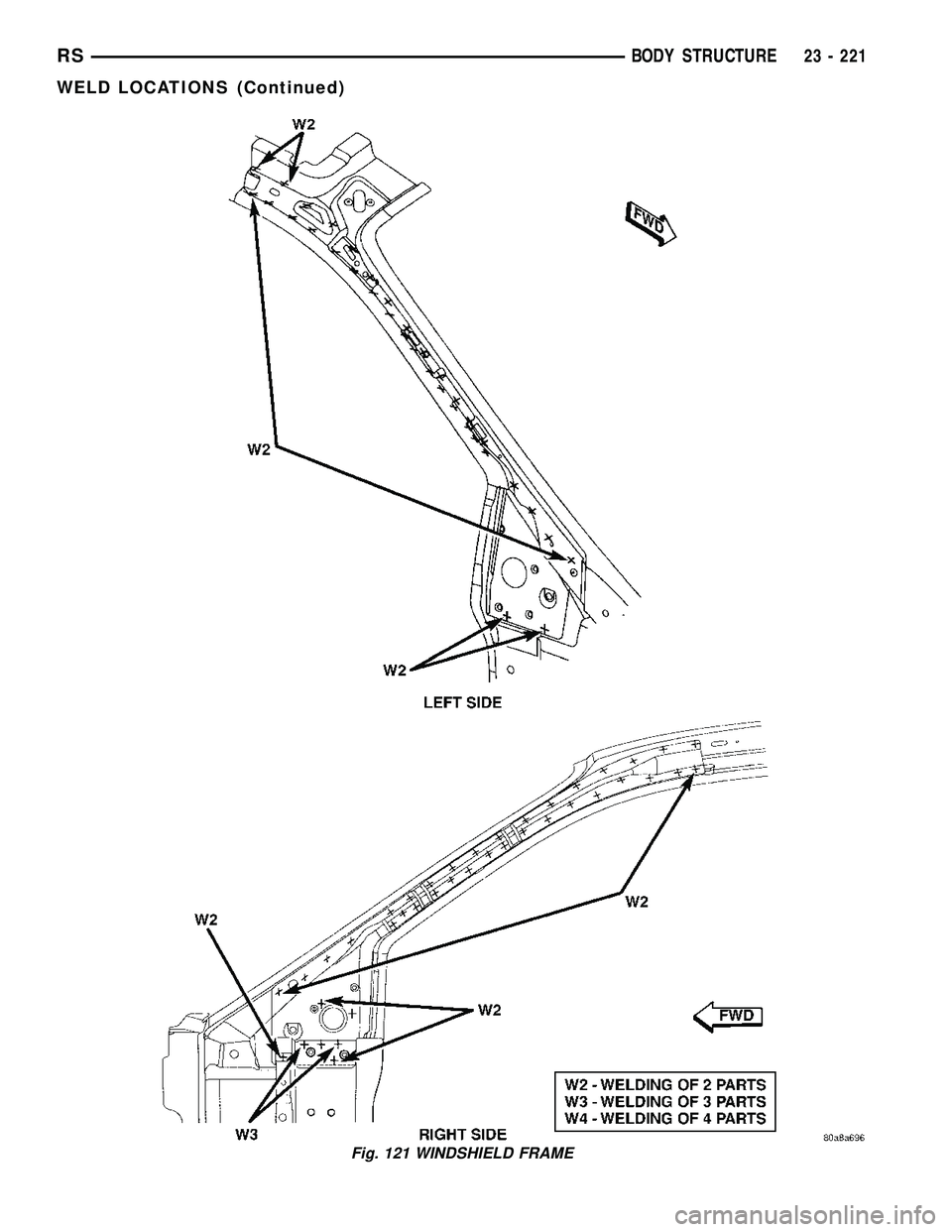

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 121 WINDSHIELD FRAME
RSBODY STRUCTURE23 - 221
WELD LOCATIONS (Continued)

Page 2333 of 2585

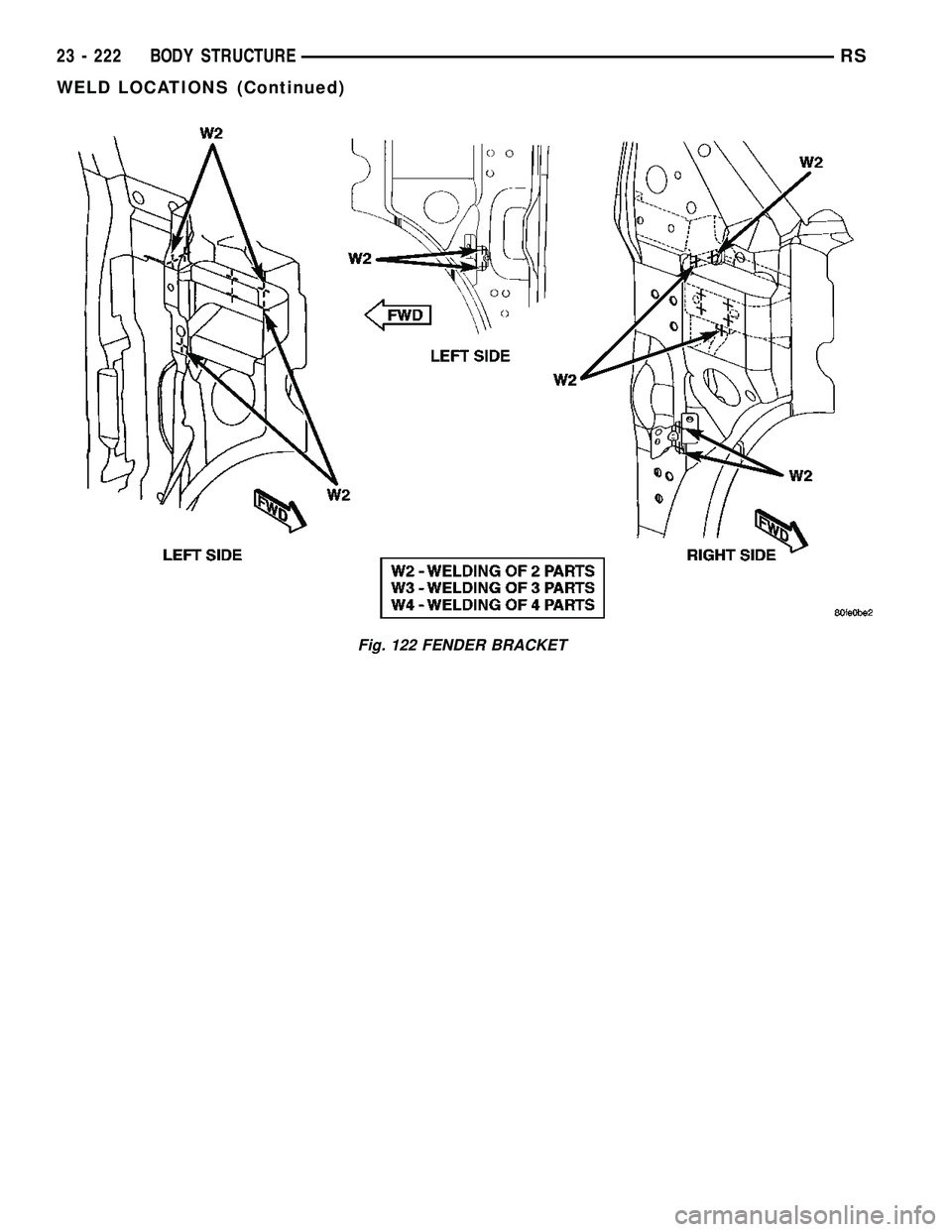

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 122 FENDER BRACKET
23 - 222 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2334 of 2585

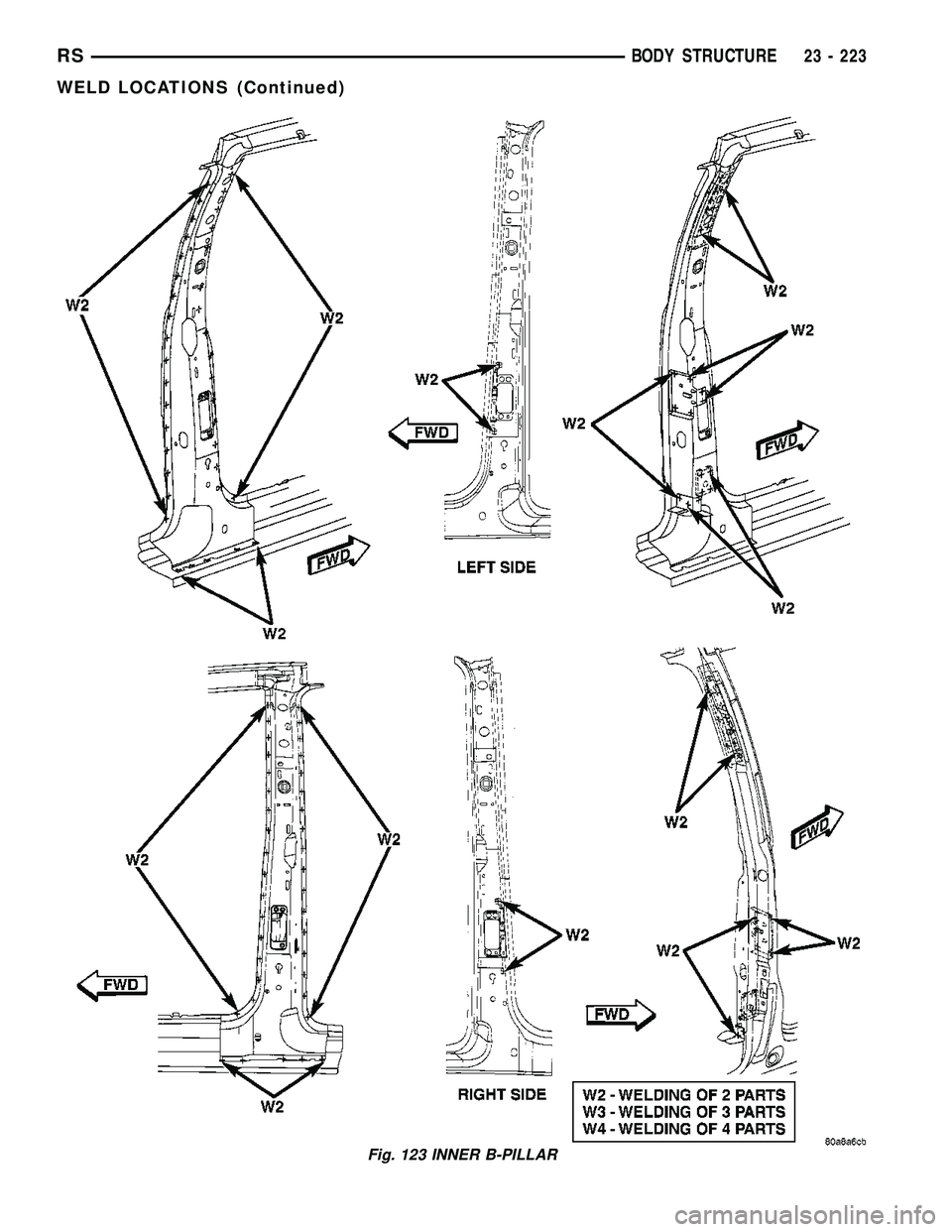

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 123 INNER B-PILLAR
RSBODY STRUCTURE23 - 223
WELD LOCATIONS (Continued)

Page 2335 of 2585

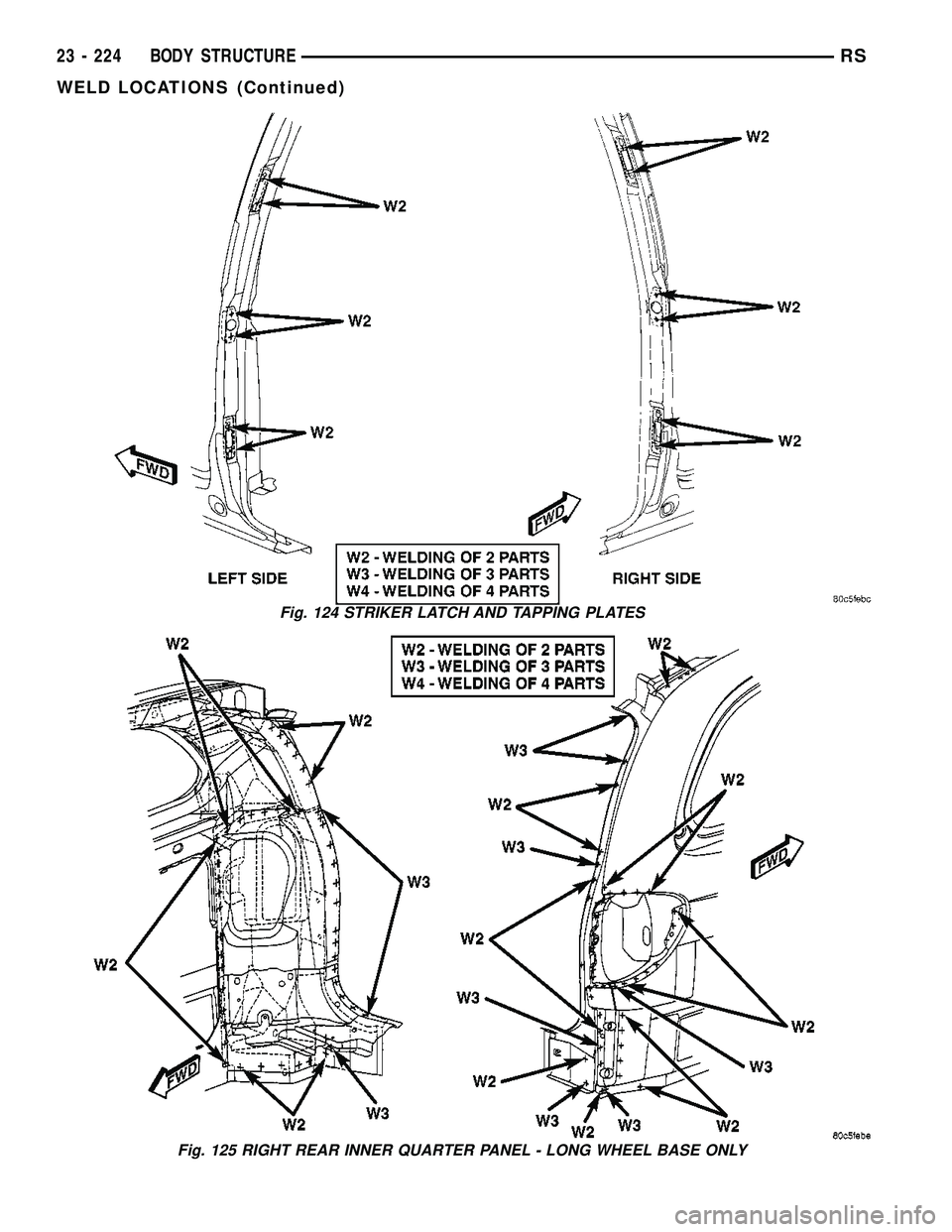

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 124 STRIKER LATCH AND TAPPING PLATES
Fig. 125 RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
23 - 224 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2336 of 2585

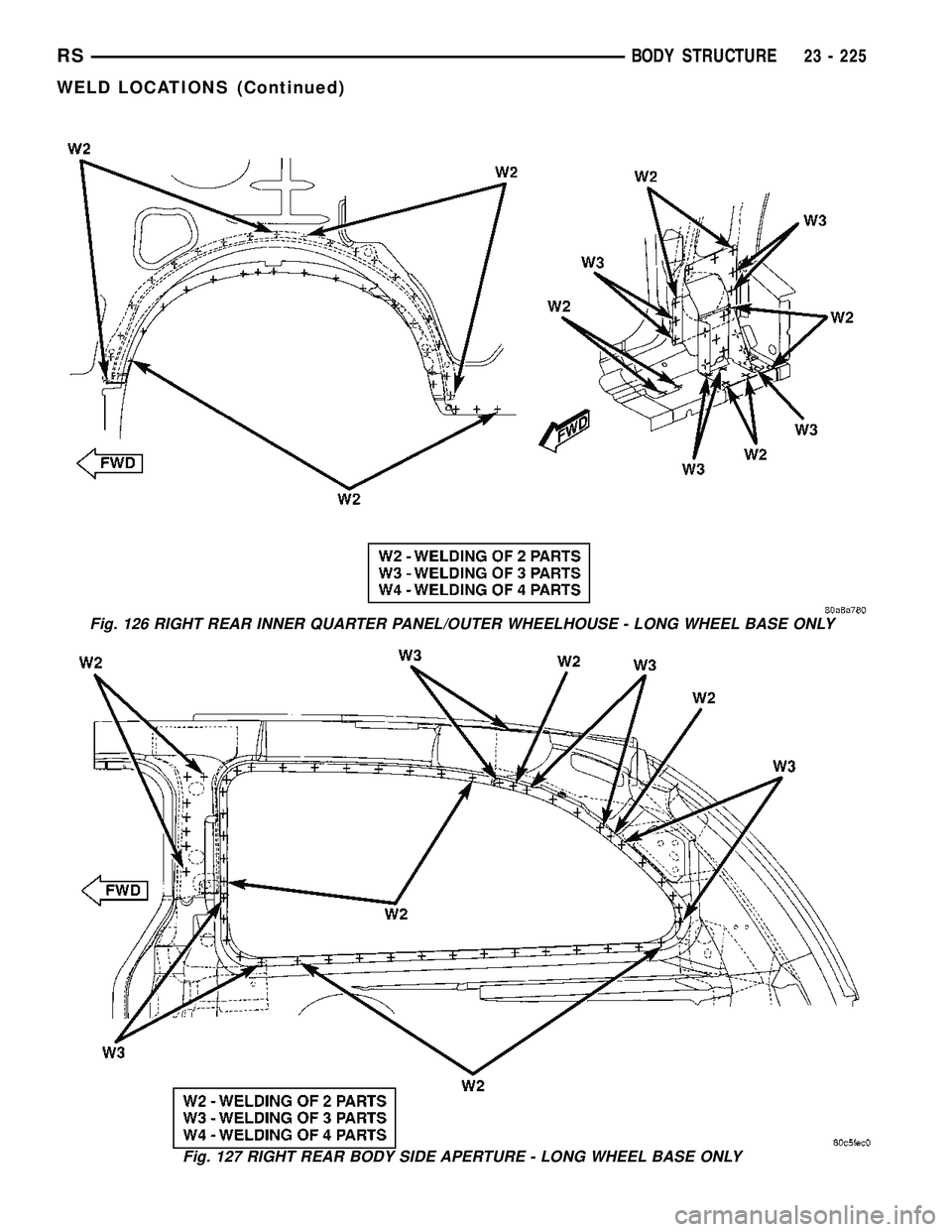

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 126 RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY
Fig. 127 RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 225
WELD LOCATIONS (Continued)

Page 2337 of 2585

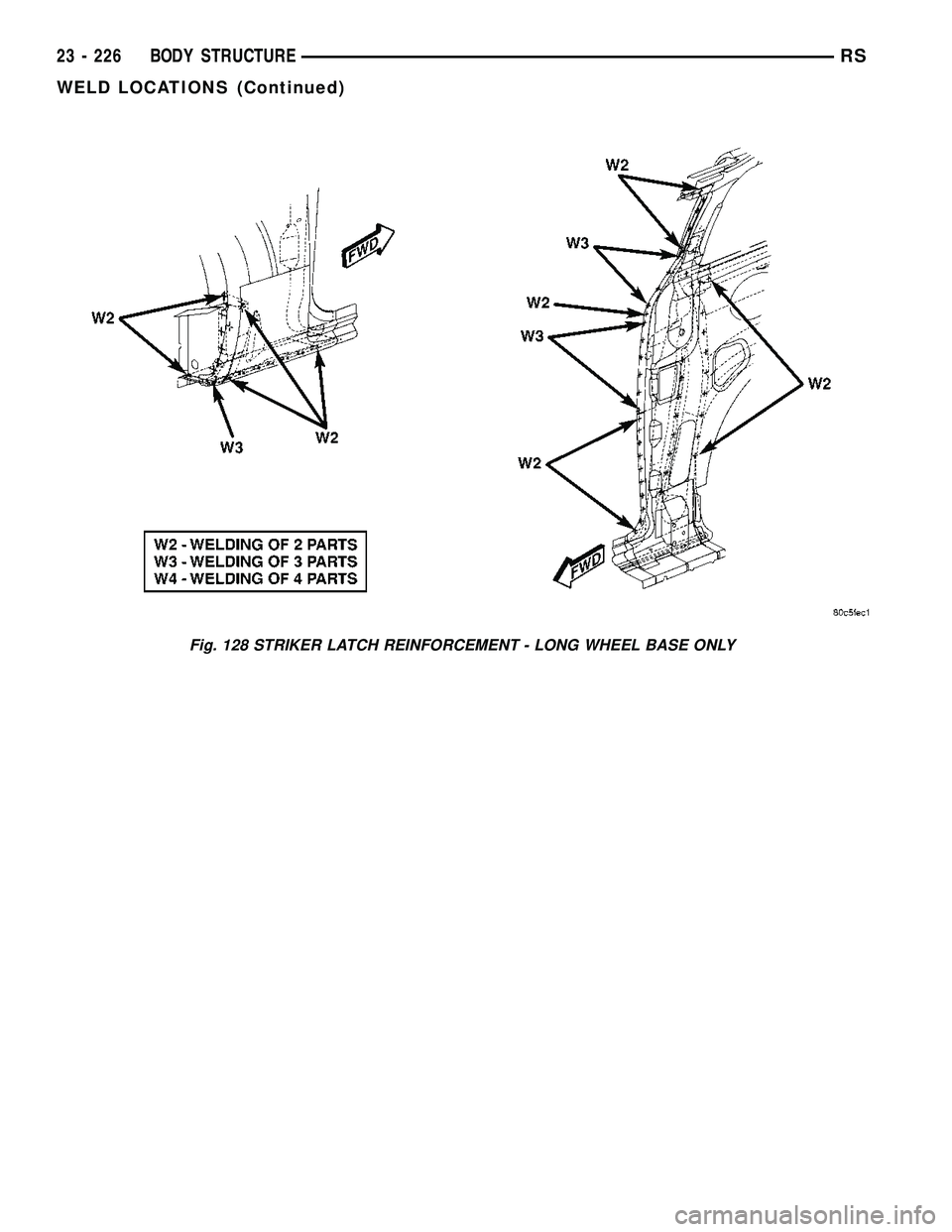

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 128 STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY
23 - 226 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2338 of 2585

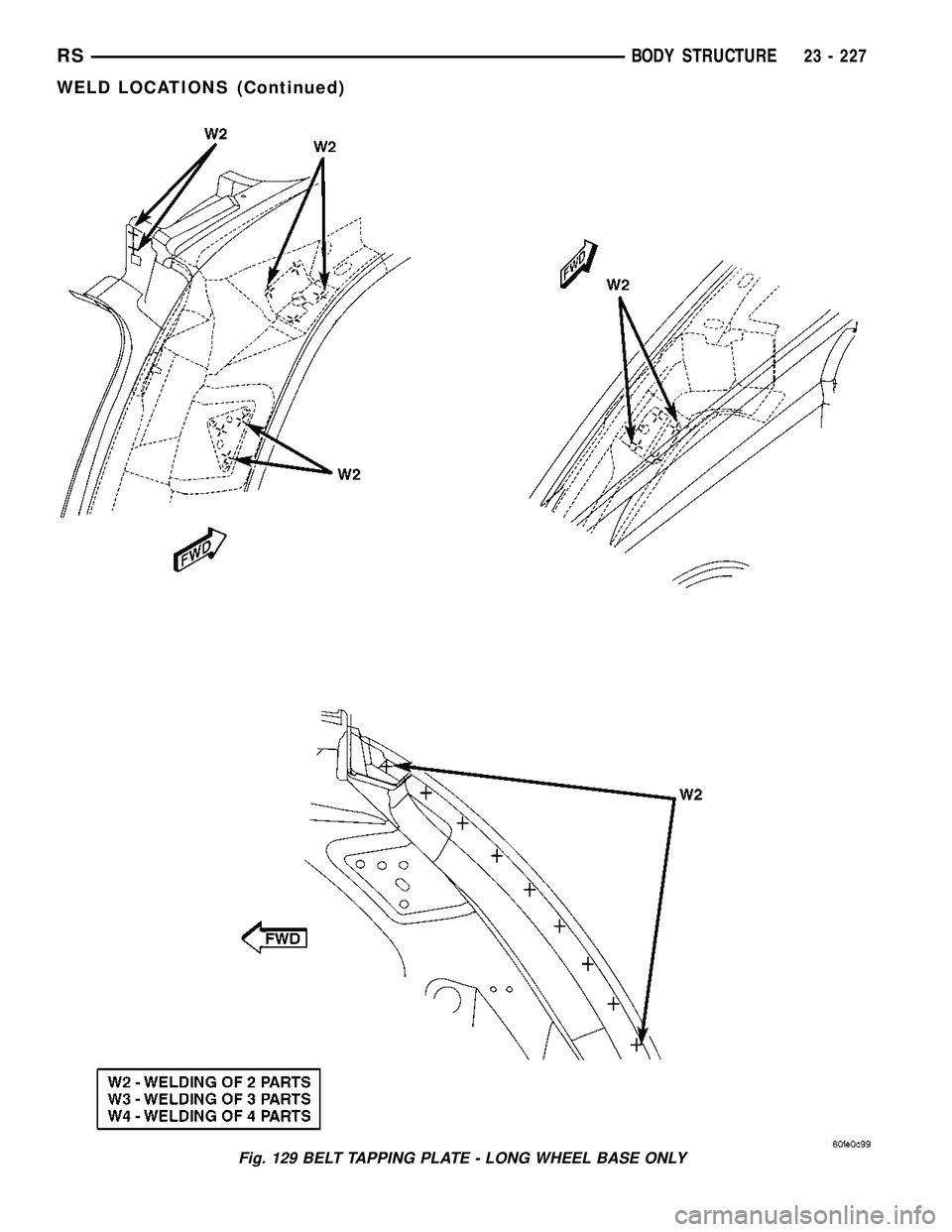

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 129 BELT TAPPING PLATE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 227
WELD LOCATIONS (Continued)

Page 2339 of 2585

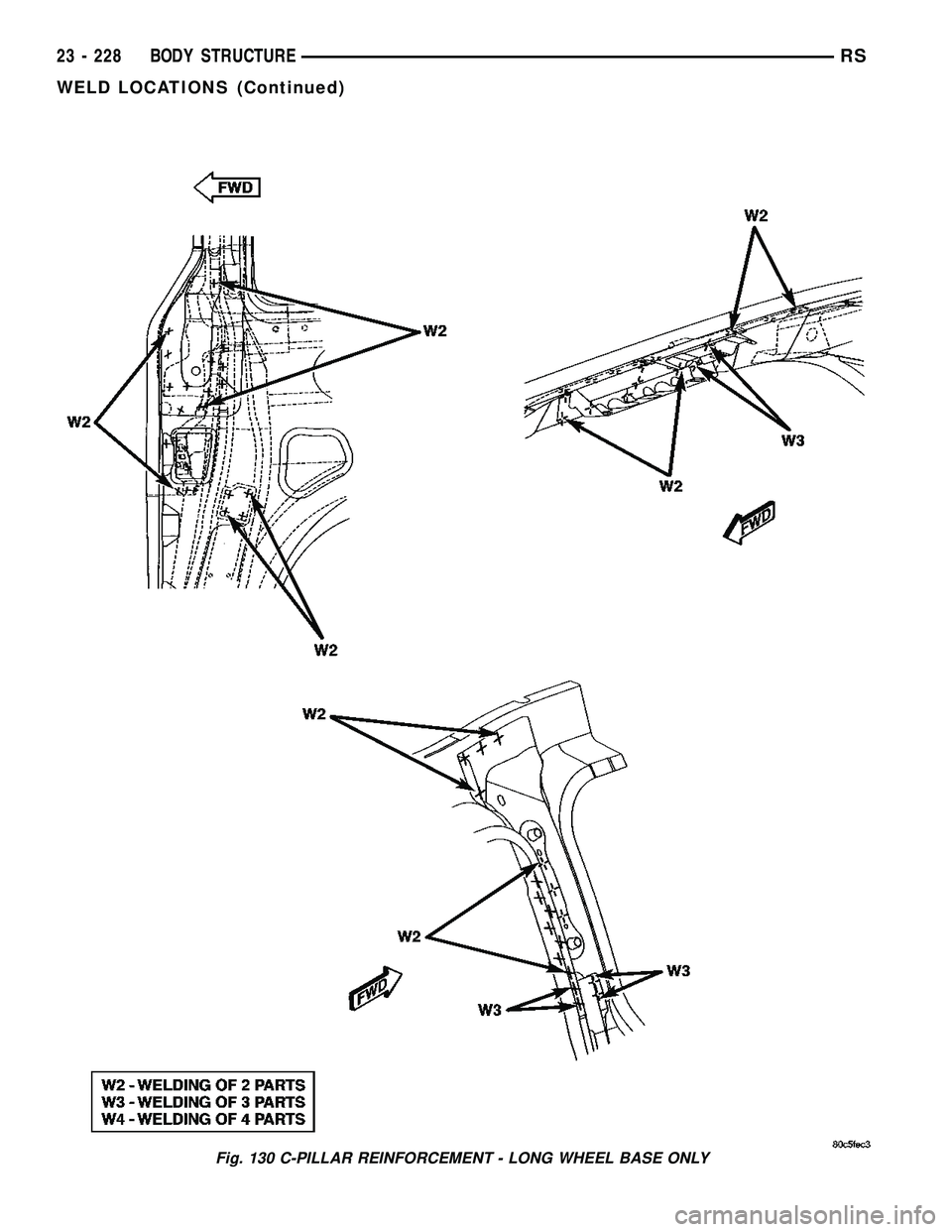

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 130 C-PILLAR REINFORCEMENT - LONG WHEEL BASE ONLY
23 - 228 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Page 2340 of 2585

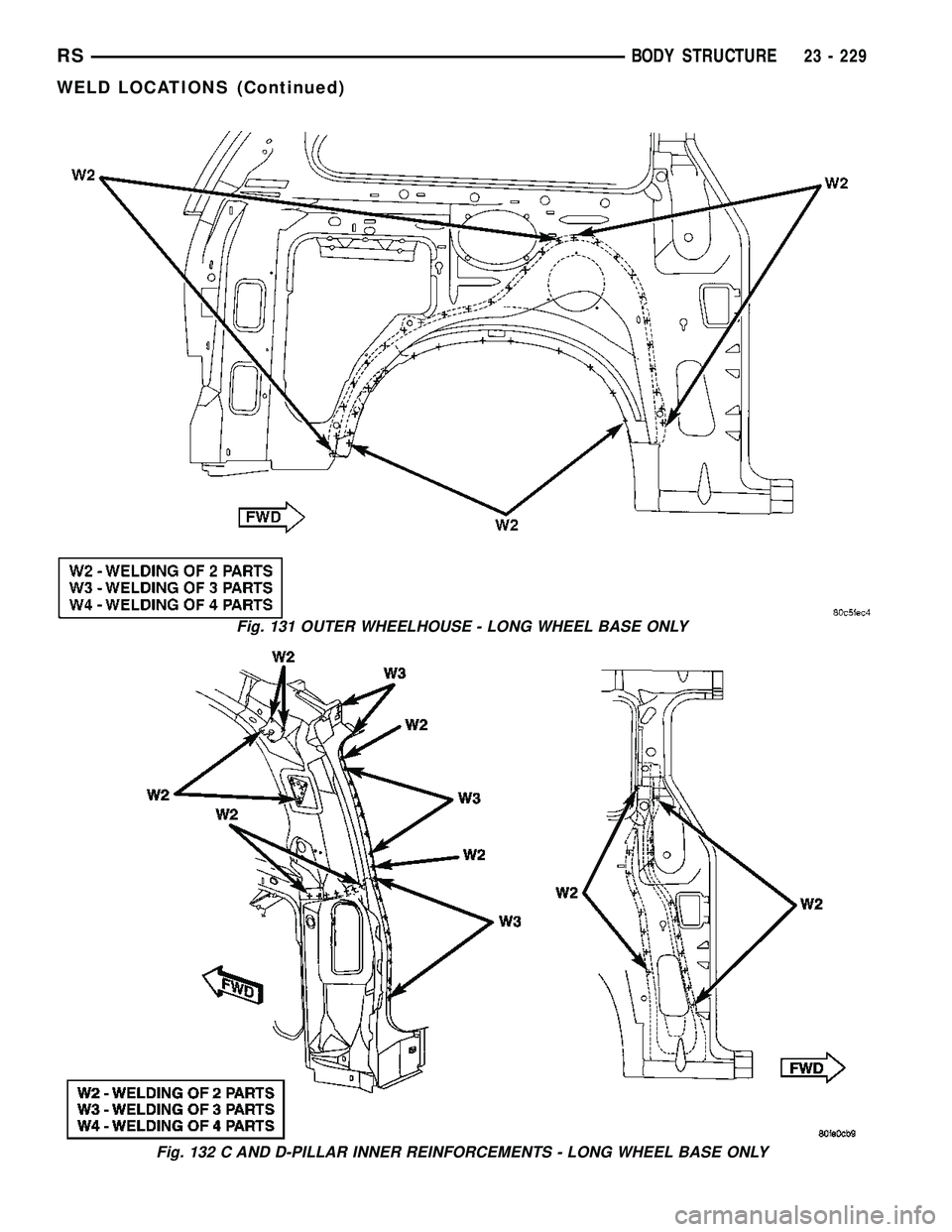

DODGE TOWN AND COUNTRY 2004  Service Manual Fig. 131 OUTER WHEELHOUSE - LONG WHEEL BASE ONLY
Fig. 132 C AND D-PILLAR INNER REINFORCEMENTS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 229
WELD LOCATIONS (Continued)
