Page 671 of 2585

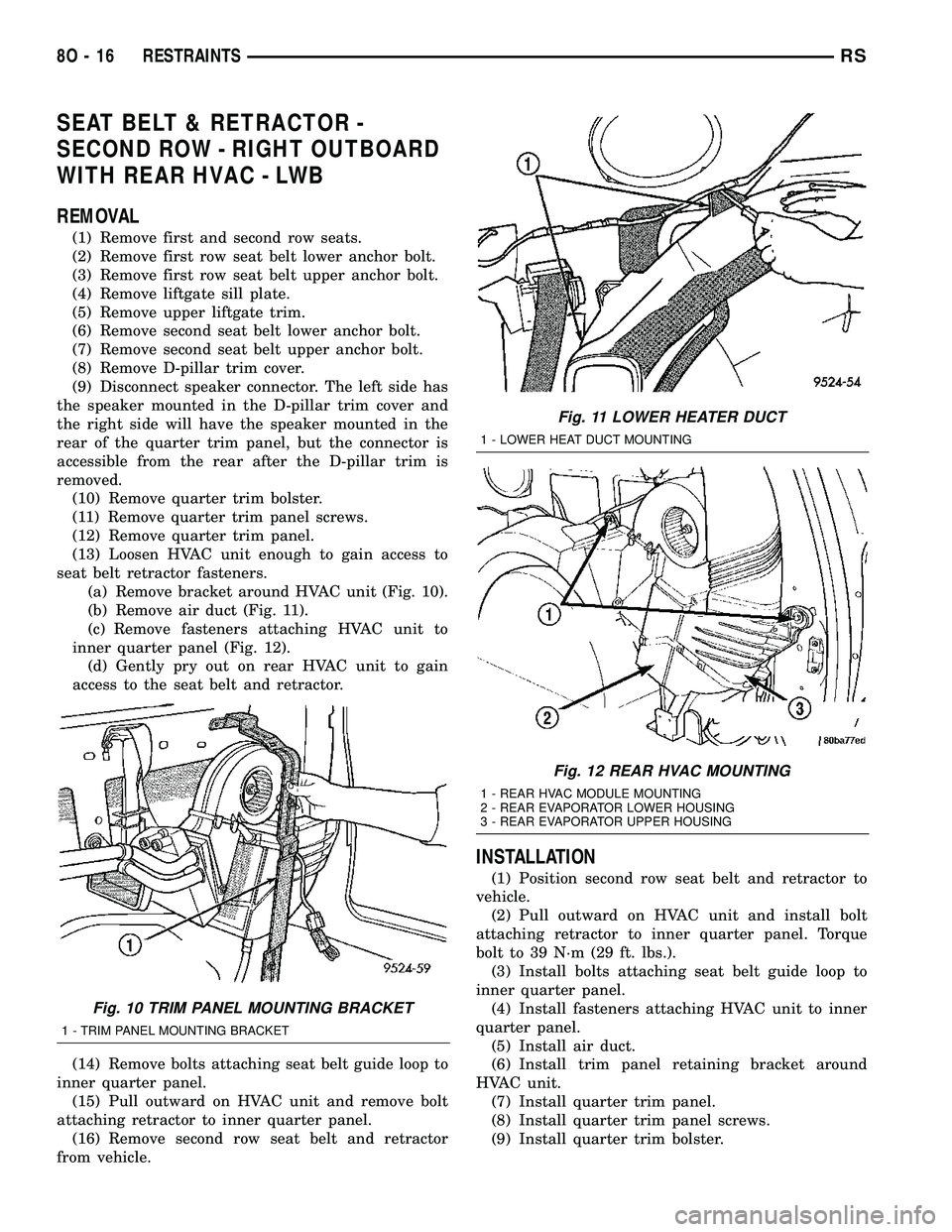

DODGE TOWN AND COUNTRY 2004  Service Manual SEAT BELT & RETRACTOR -
SECOND ROW - RIGHT OUTBOARD
WITH REAR HVAC - LWB
REMOVAL
(1) Remove first and second row seats.
(2) Remove first row seat belt lower anchor bolt.
(3) Remove first row seat belt

Page 672 of 2585

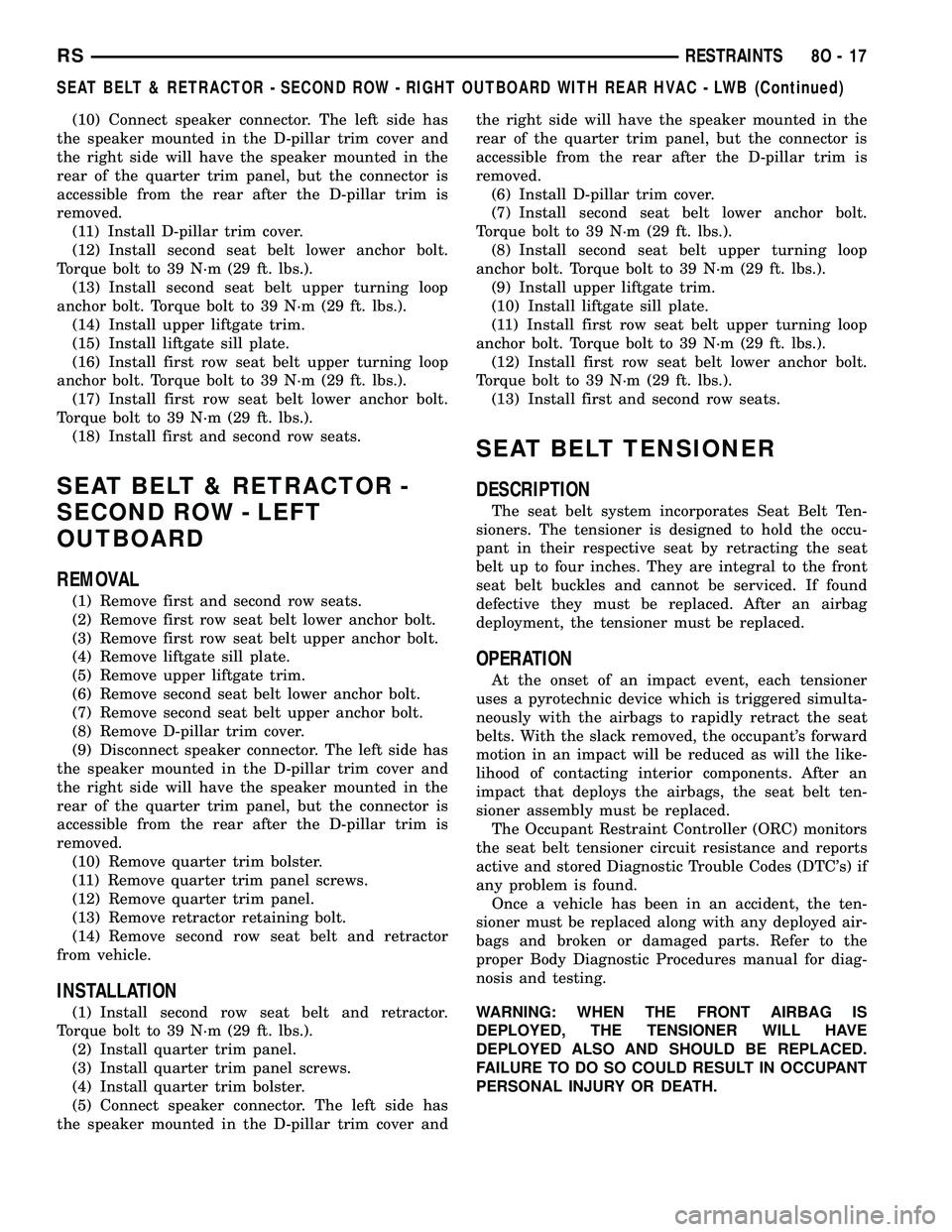

DODGE TOWN AND COUNTRY 2004  Service Manual (10) Connect speaker connector. The left side has
the speaker mounted in the D-pillar trim cover and
the right side will have the speaker mounted in the
rear of the quarter trim panel, but the connect

Page 673 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual

Page 674 of 2585

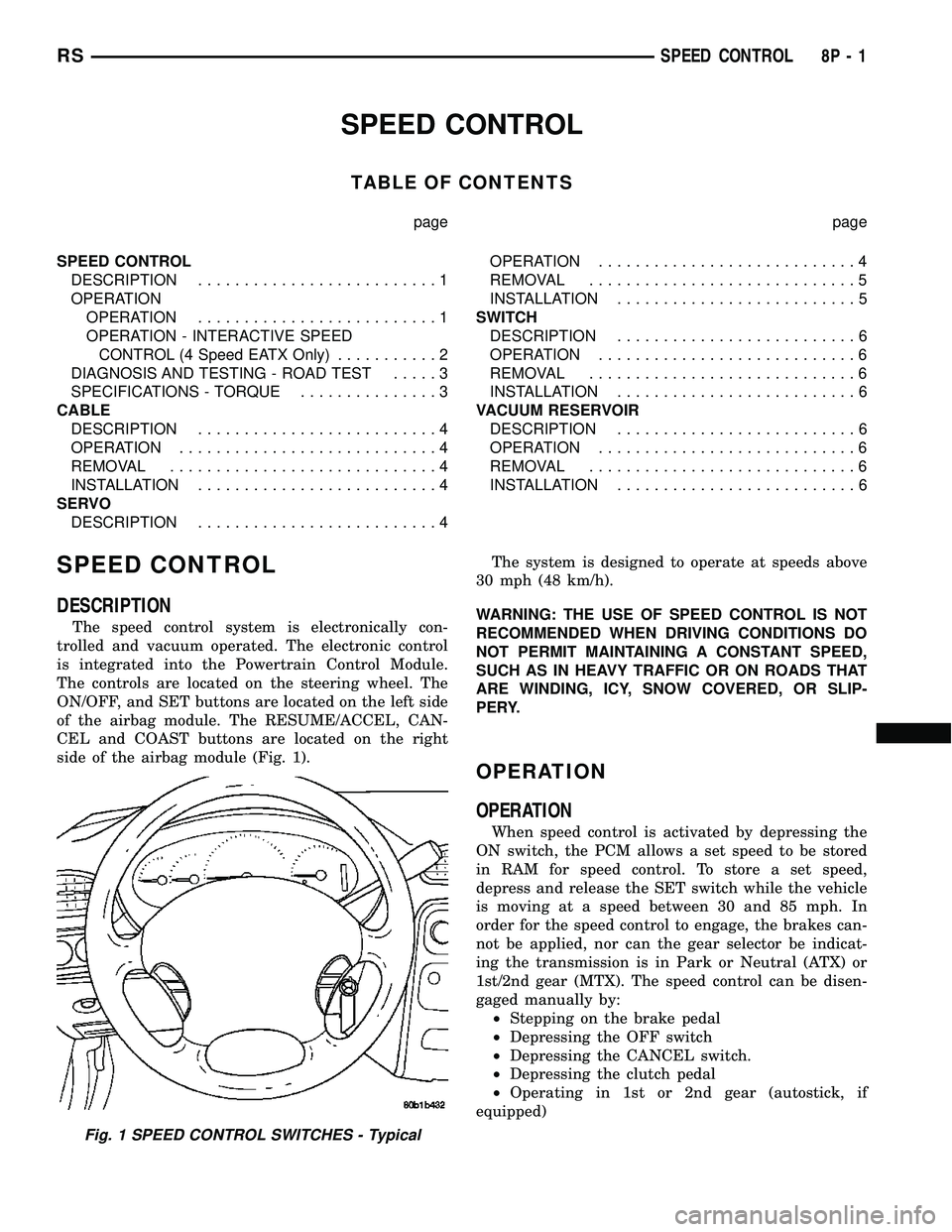

DODGE TOWN AND COUNTRY 2004  Service Manual SPEED CONTROL
TABLE OF CONTENTS
page page
SPEED CONTROL
DESCRIPTION..........................1
OPERATION
OPERATION..........................1
OPERATION - INTERACTIVE SPEED
CONTROL (4 Speed EATX Only).

Page 675 of 2585

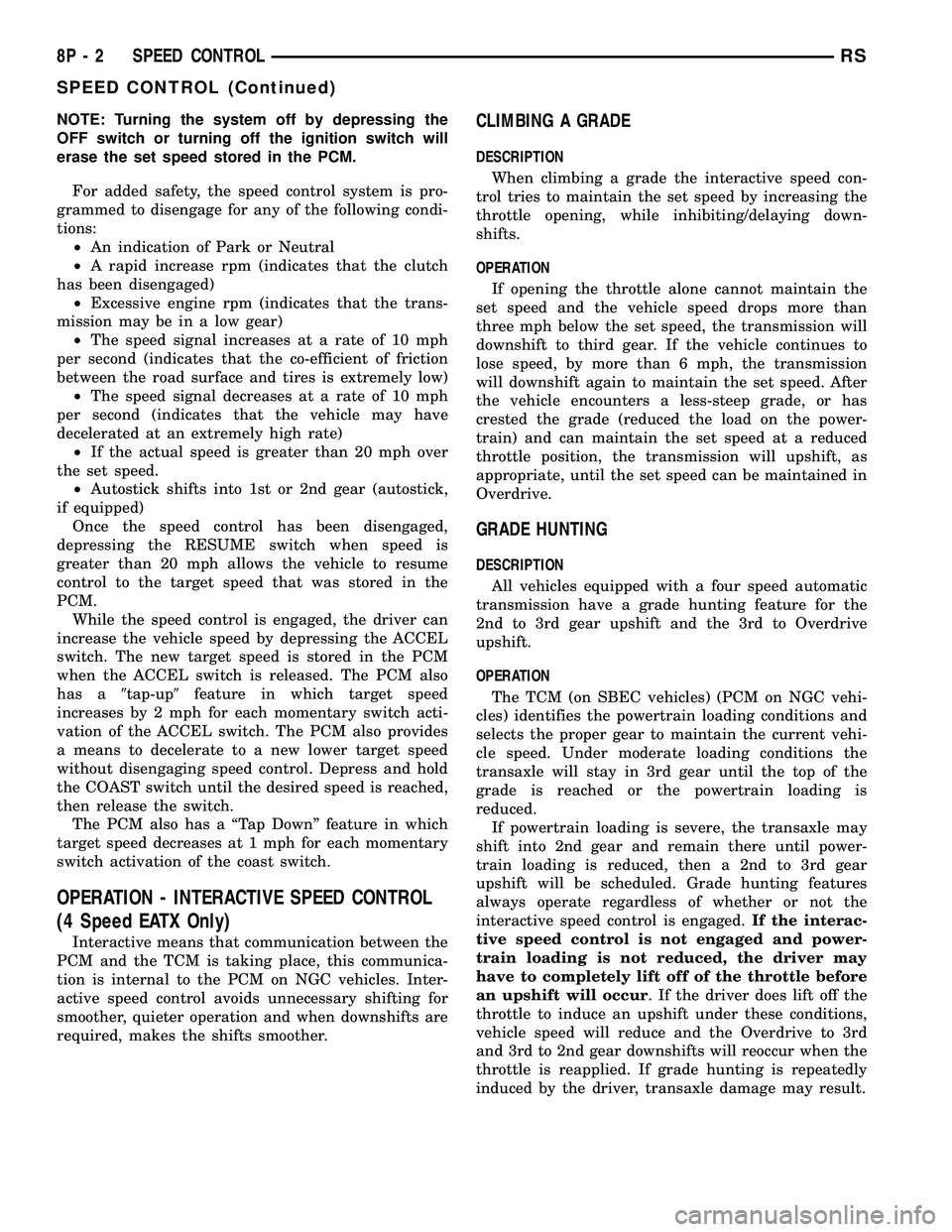

DODGE TOWN AND COUNTRY 2004  Service Manual NOTE: Turning the system off by depressing the
OFF switch or turning off the ignition switch will
erase the set speed stored in the PCM.
For added safety, the speed control system is pro-
grammed to d

Page 676 of 2585

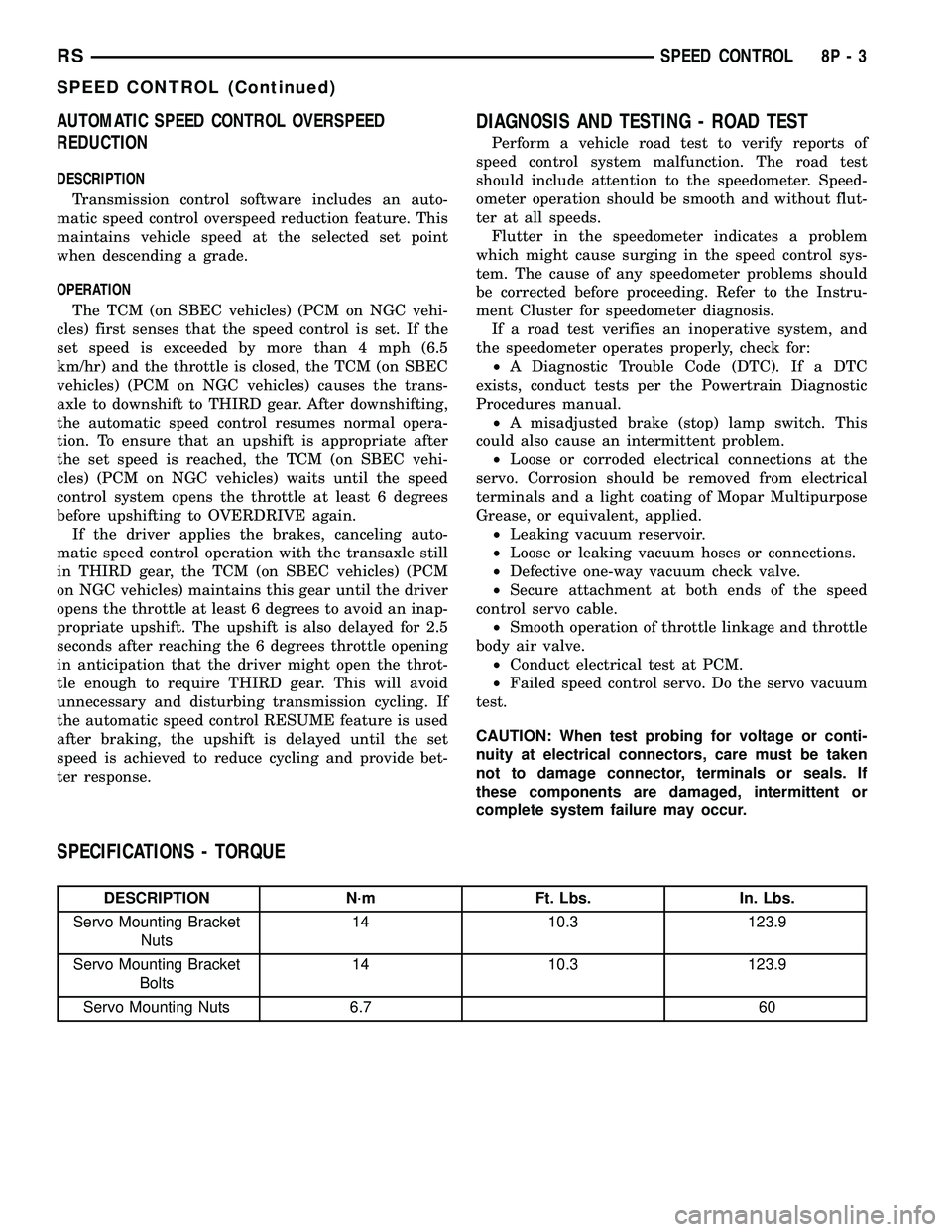

DODGE TOWN AND COUNTRY 2004  Service Manual AUTOMATIC SPEED CONTROL OVERSPEED
REDUCTION
DESCRIPTION
Transmission control software includes an auto-
matic speed control overspeed reduction feature. This
maintains vehicle speed at the selected se

Page 677 of 2585

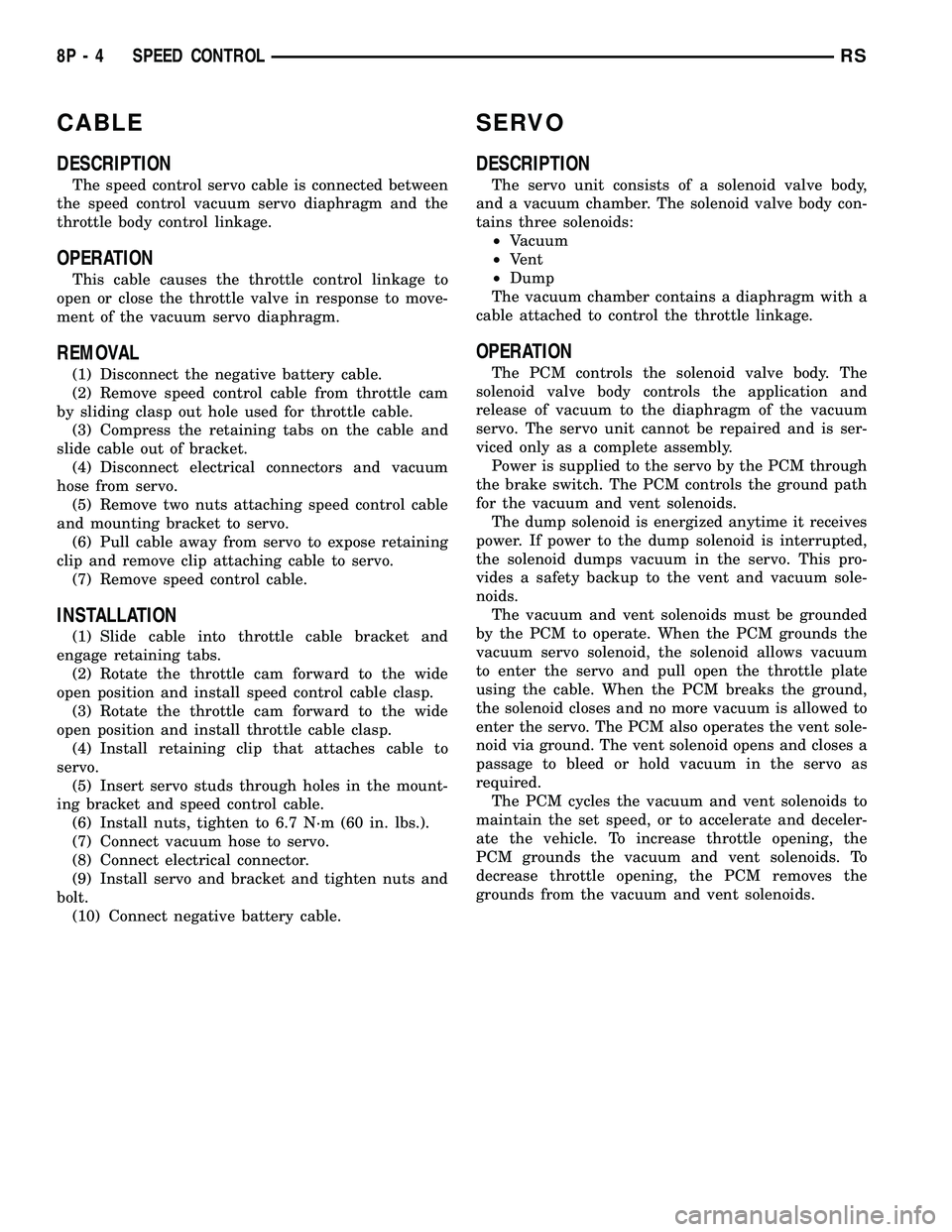

DODGE TOWN AND COUNTRY 2004  Service Manual CABLE
DESCRIPTION
The speed control servo cable is connected between
the speed control vacuum servo diaphragm and the
throttle body control linkage.
OPERATION
This cable causes the throttle control li

Page 678 of 2585

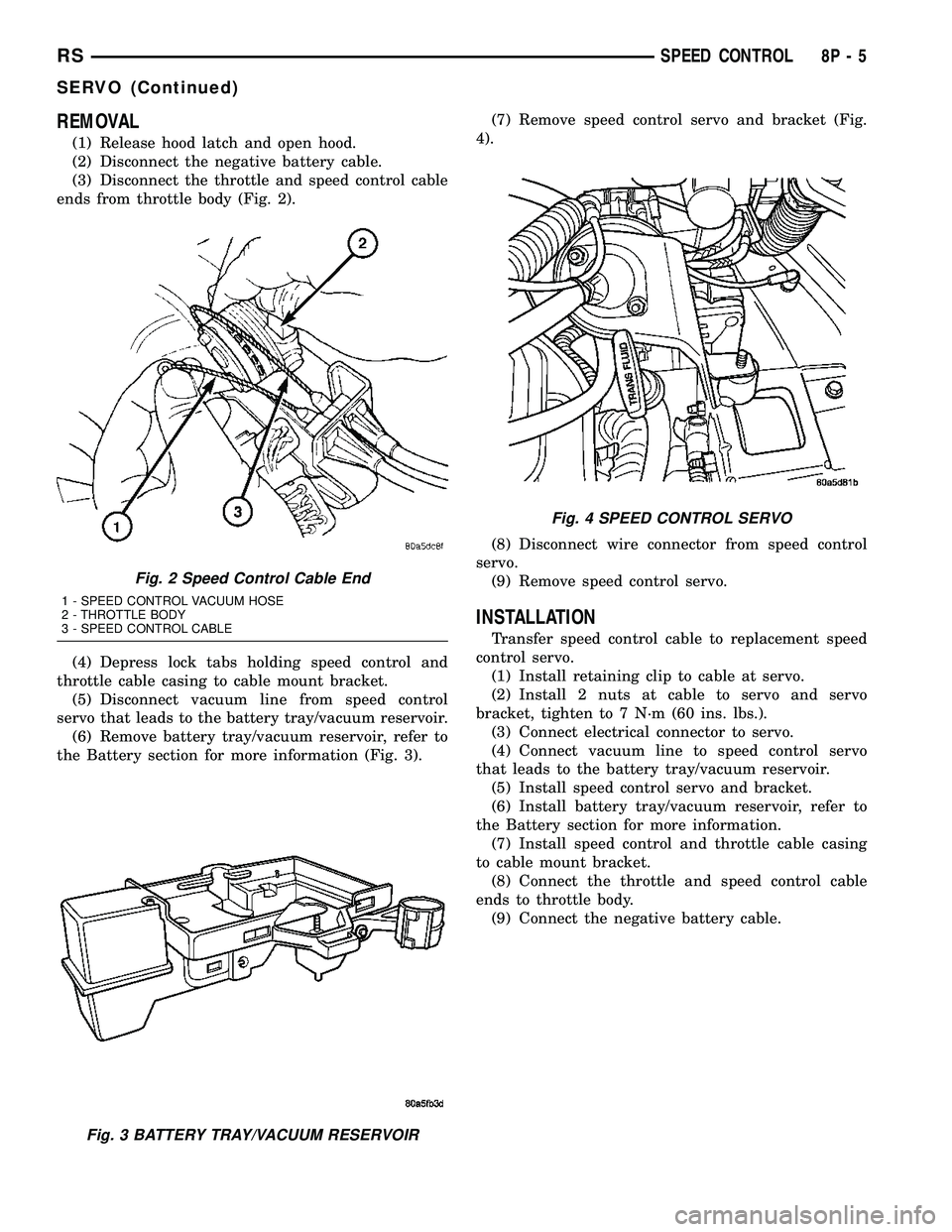

DODGE TOWN AND COUNTRY 2004  Service Manual REMOVAL
(1) Release hood latch and open hood.
(2) Disconnect the negative battery cable.
(3) Disconnect the throttle and speed control cable
ends from throttle body (Fig. 2).
(4) Depress lock tabs hol

Page 679 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual SWITCH
DESCRIPTION
There are two separate switch pods that operate
the speed control system and are located on the
steering wheel.
OPERATION
The speed control system has five separate resis-
tive swit

Page 680 of 2585

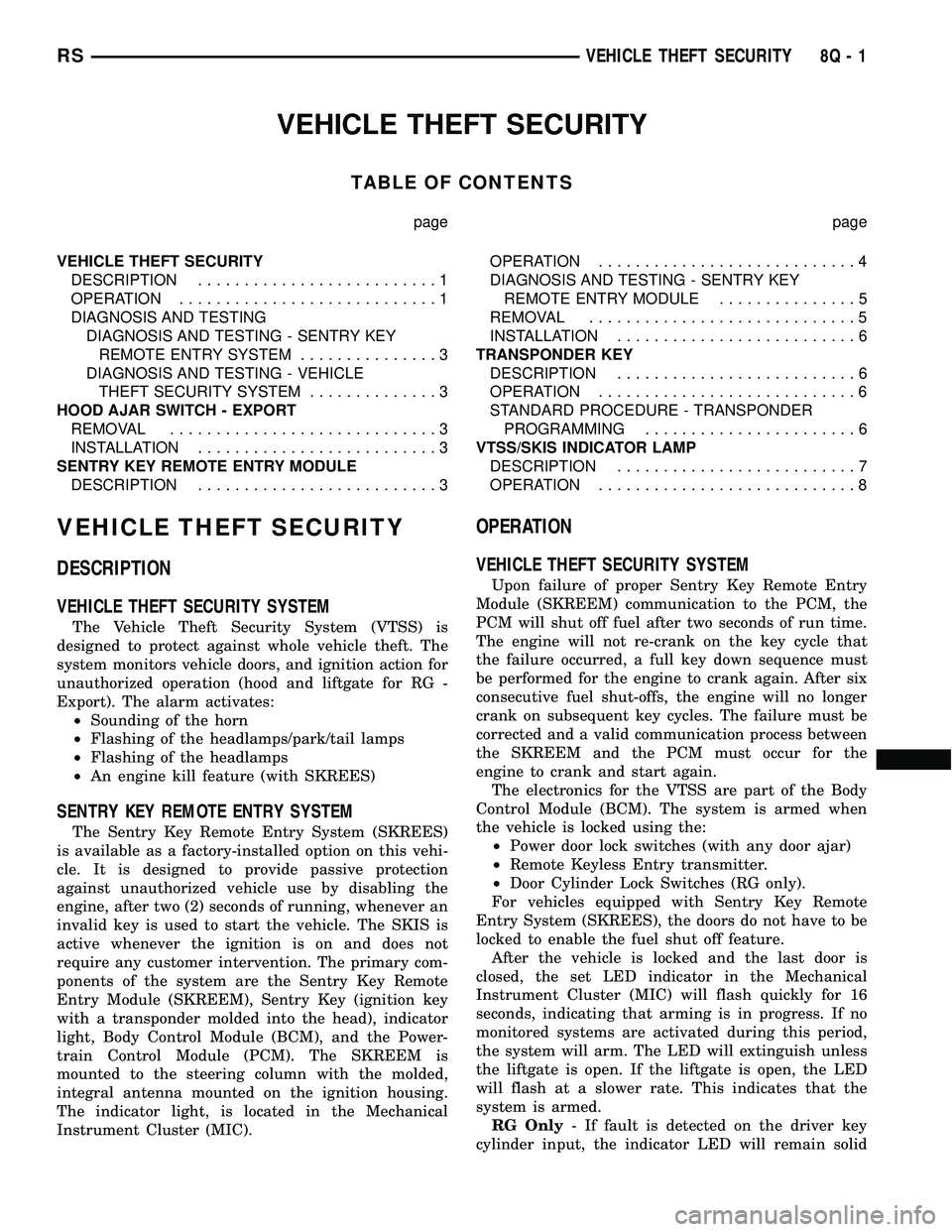

DODGE TOWN AND COUNTRY 2004  Service Manual VEHICLE THEFT SECURITY
TABLE OF CONTENTS
page page
VEHICLE THEFT SECURITY
DESCRIPTION..........................1
OPERATION............................1
DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - SE
