ON/RUN position. If not deactivated through the trans-
mitter or the ignition switch, the alarm will turn off
automatically after 3 minutes.
Programming Additional Transmitters
NOTE:You must have at least one programmed trans-
mitter to perform this procedure. If you do not have a
programmed transmitter, contact your dealer for details.
Use this procedure to program up to three additional
transmitters for your vehicle. To activate the program-
ming feature, proceed as follows:
1. Turn the ignition switch to the ON/RUN position.
2. Set the parking brake.
3. Press and hold the UNLOCK button for at least 5
seconds, but no longer then 10 seconds on a previously
programmed transmitter. Then, press the PANIC button
while still holing the UNLOCK button.4. Release both buttons at the same time. A chime will
sound to signal that the programming feature is acti-
vated.
5. Within 30 seconds, press and release the LOCK button
and the UNLOCK button at the same time on the new
transmitter.
6. Press and release any button one time on the new
transmitter. A chime will sound to indicate that the new
transmitter is programmed. An additional chime will
sound at the end of the 30-second programming period.
It will also sound if the ignition is switched OFF.
7. Repeat Steps 3 through 6 to program each additional
transmitter.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 22 of 303

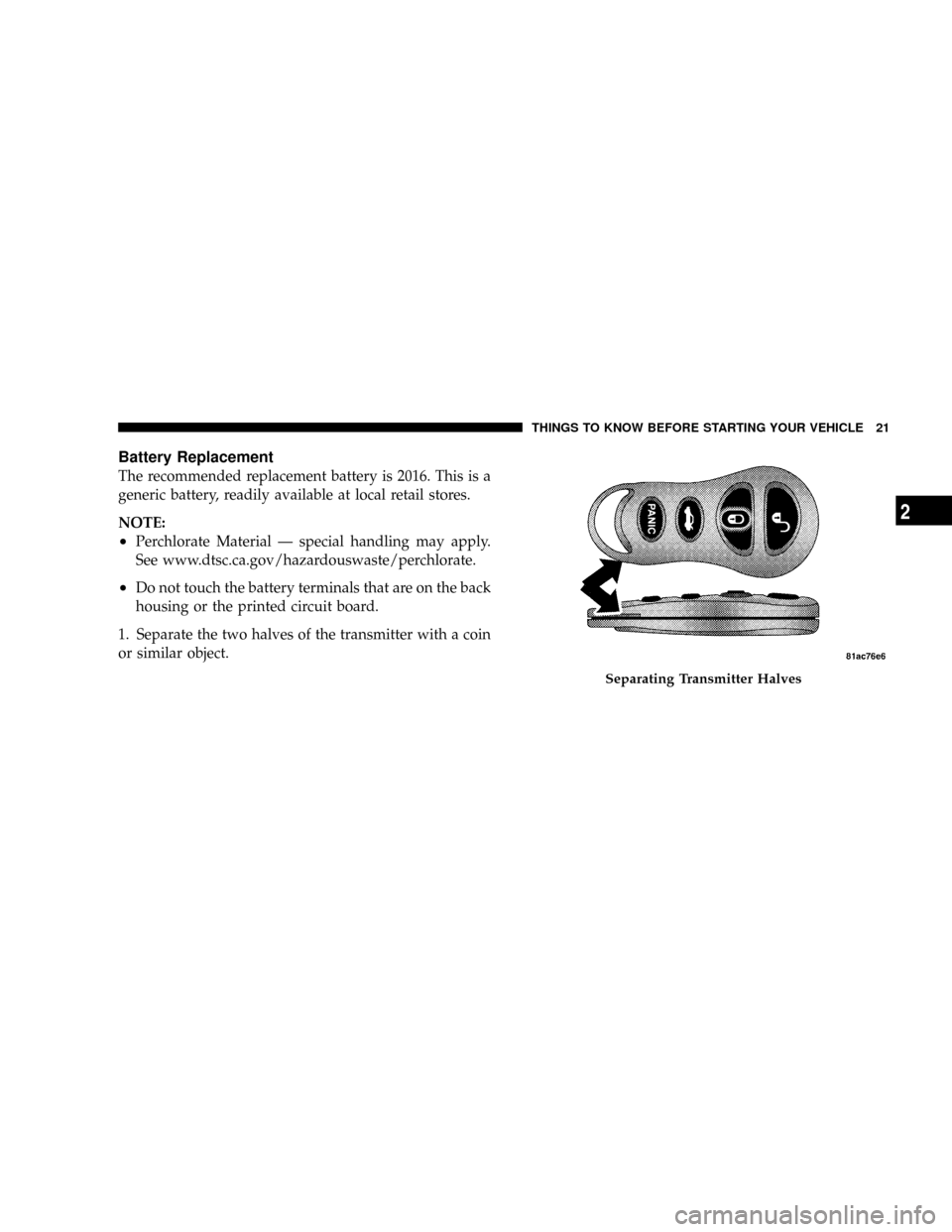

Battery Replacement
The recommended replacement battery is 2016. This is a
generic battery, readily available at local retail stores.
NOTE:
²Perchlorate Material Ð special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
²Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Separate the two halves of the transmitter with a coin
or similar object.
Separating Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2
Page 23 of 303

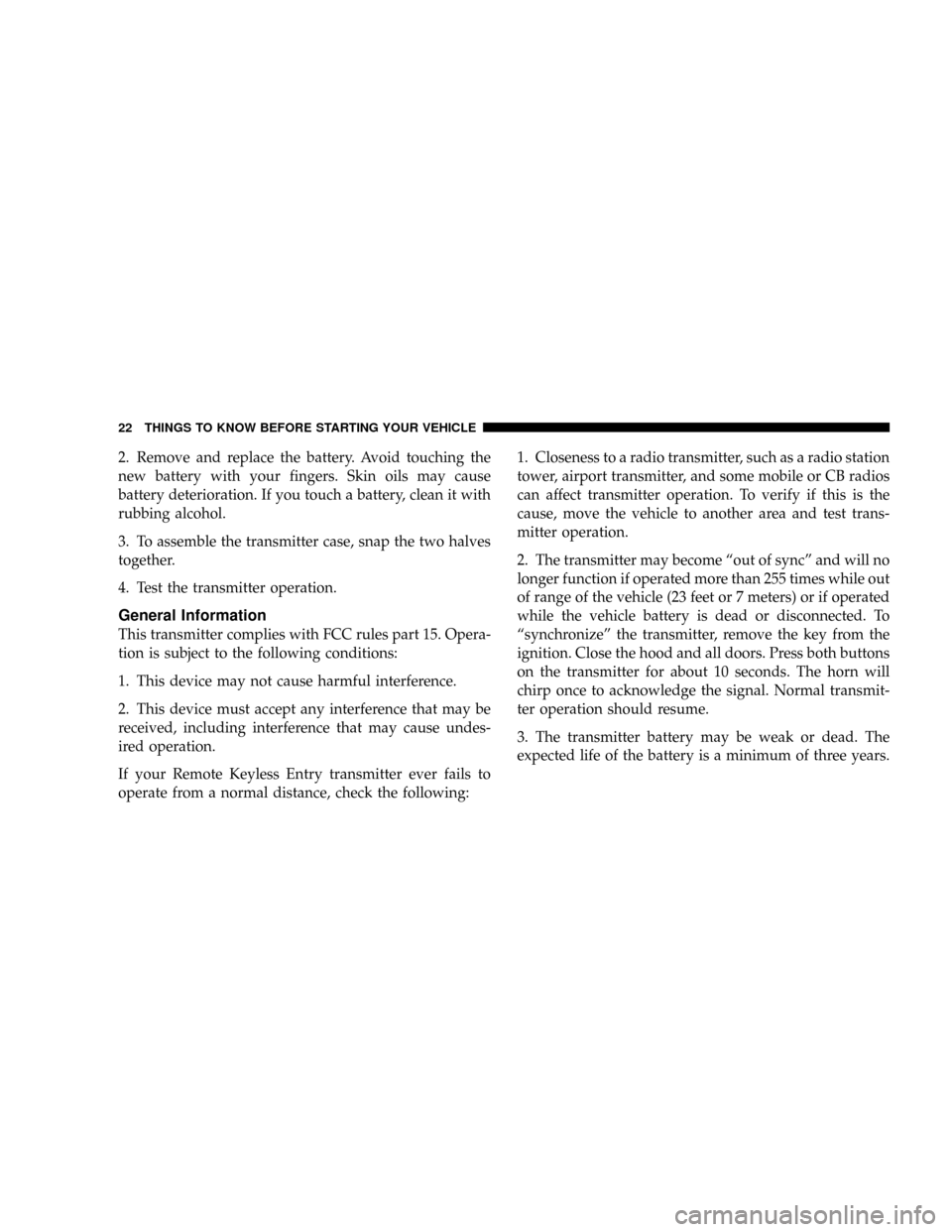

2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the transmitter case, snap the two halves
together.
4. Test the transmitter operation.
General Information
This transmitter complies with FCC rules part 15. Opera-
tion is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
If your Remote Keyless Entry transmitter ever fails to
operate from a normal distance, check the following:1. Closeness to a radio transmitter, such as a radio station
tower, airport transmitter, and some mobile or CB radios
can affect transmitter operation. To verify if this is the
cause, move the vehicle to another area and test trans-
mitter operation.
2. The transmitter may become ªout of syncº and will no
longer function if operated more than 255 times while out
of range of the vehicle (23 feet or 7 meters) or if operated
while the vehicle battery is dead or disconnected. To
ªsynchronizeº the transmitter, remove the key from the
ignition. Close the hood and all doors. Press both buttons
on the transmitter for about 10 seconds. The horn will
chirp once to acknowledge the signal. Normal transmit-
ter operation should resume.
3. The transmitter battery may be weak or dead. The
expected life of the battery is a minimum of three years.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 24 of 303

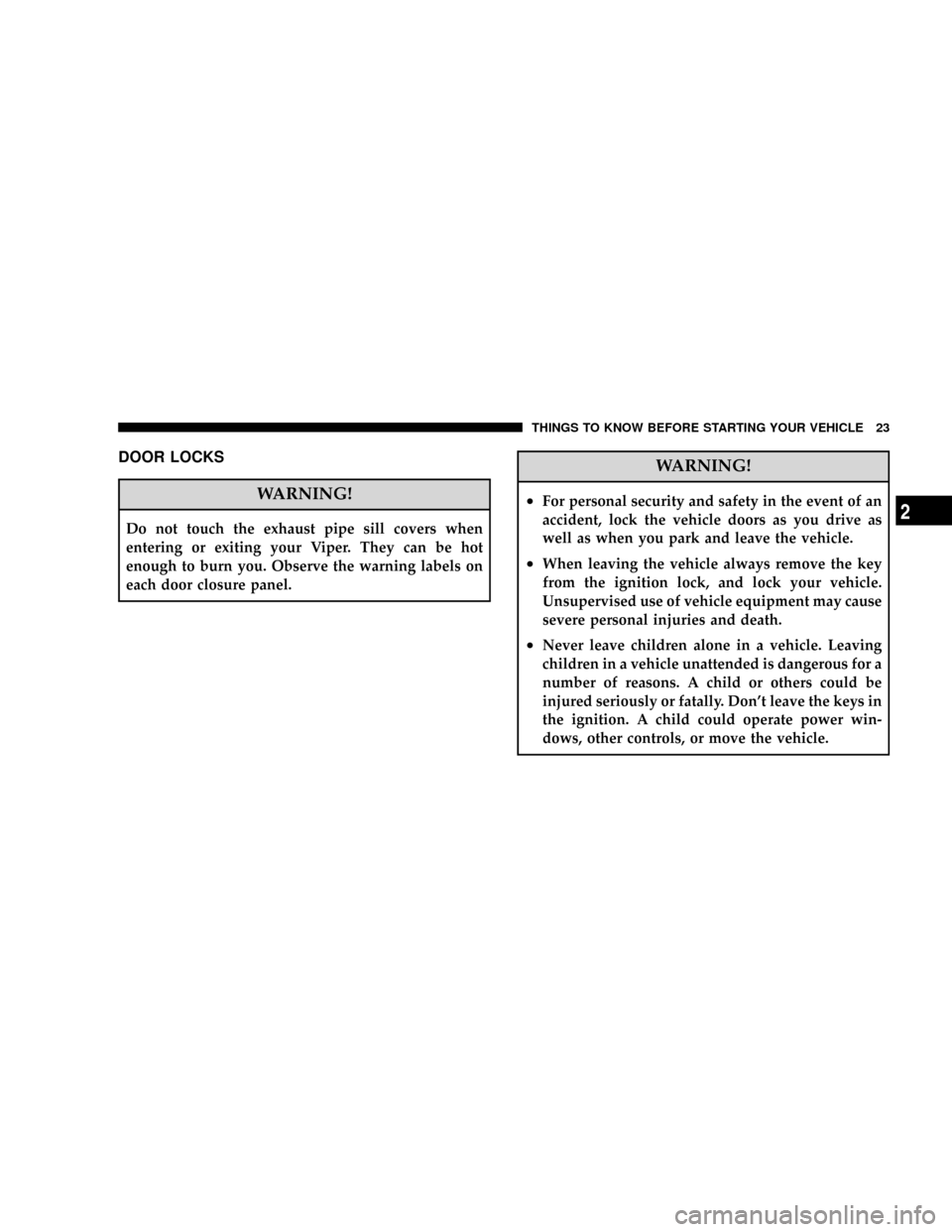

DOOR LOCKS
WARNING!
Do not touch the exhaust pipe sill covers when
entering or exiting your Viper. They can be hot
enough to burn you. Observe the warning labels on
each door closure panel.
WARNING!
²For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
²When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle.
Unsupervised use of vehicle equipment may cause
severe personal injuries and death.
²Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
injured seriously or fatally. Don't leave the keys in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
Page 25 of 303

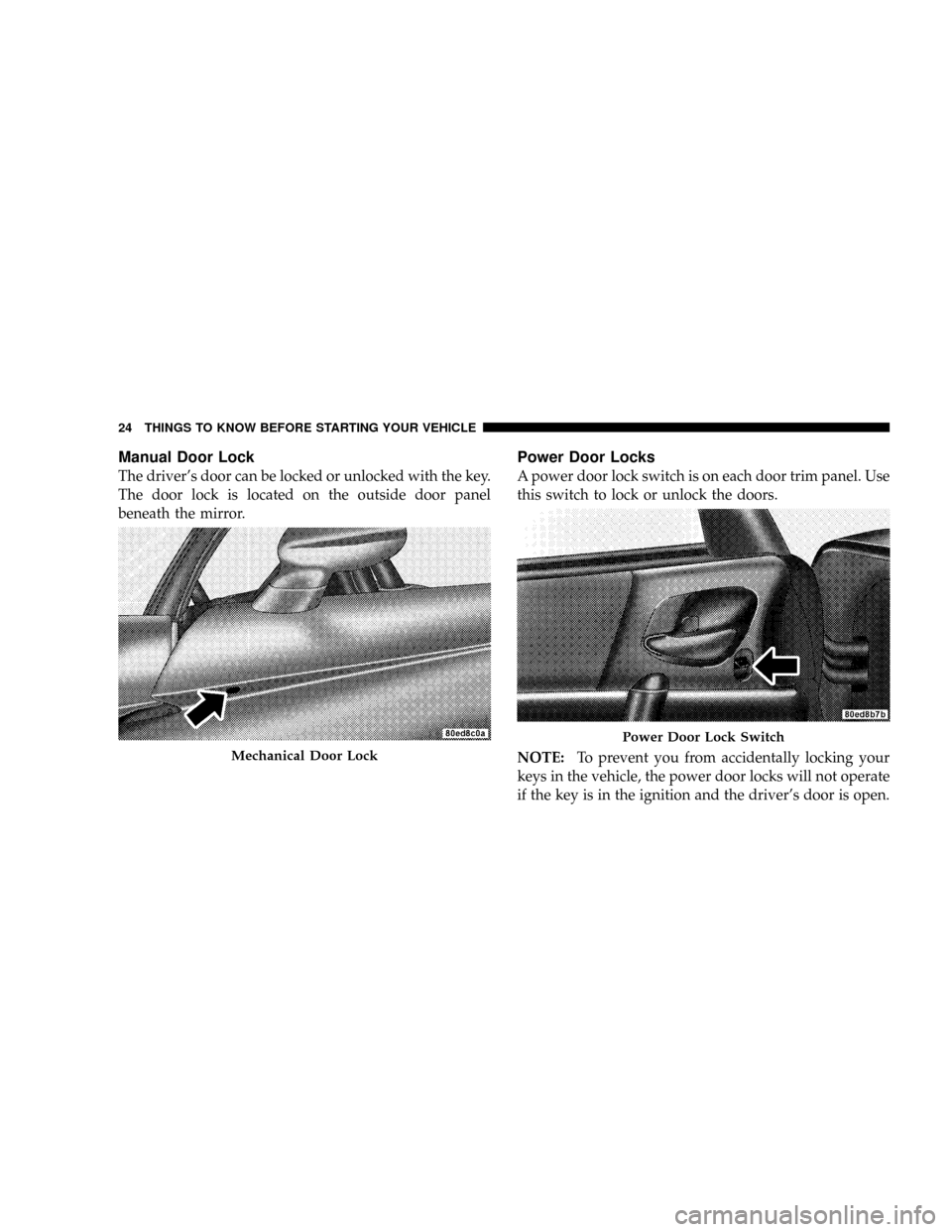

Manual Door Lock
The driver's door can be locked or unlocked with the key.
The door lock is located on the outside door panel
beneath the mirror.
Power Door Locks
A power door lock switch is on each door trim panel. Use
this switch to lock or unlock the doors.
NOTE:To prevent you from accidentally locking your
keys in the vehicle, the power door locks will not operate
if the key is in the ignition and the driver's door is open.
Mechanical Door Lock
Power Door Lock Switch
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 26 of 303

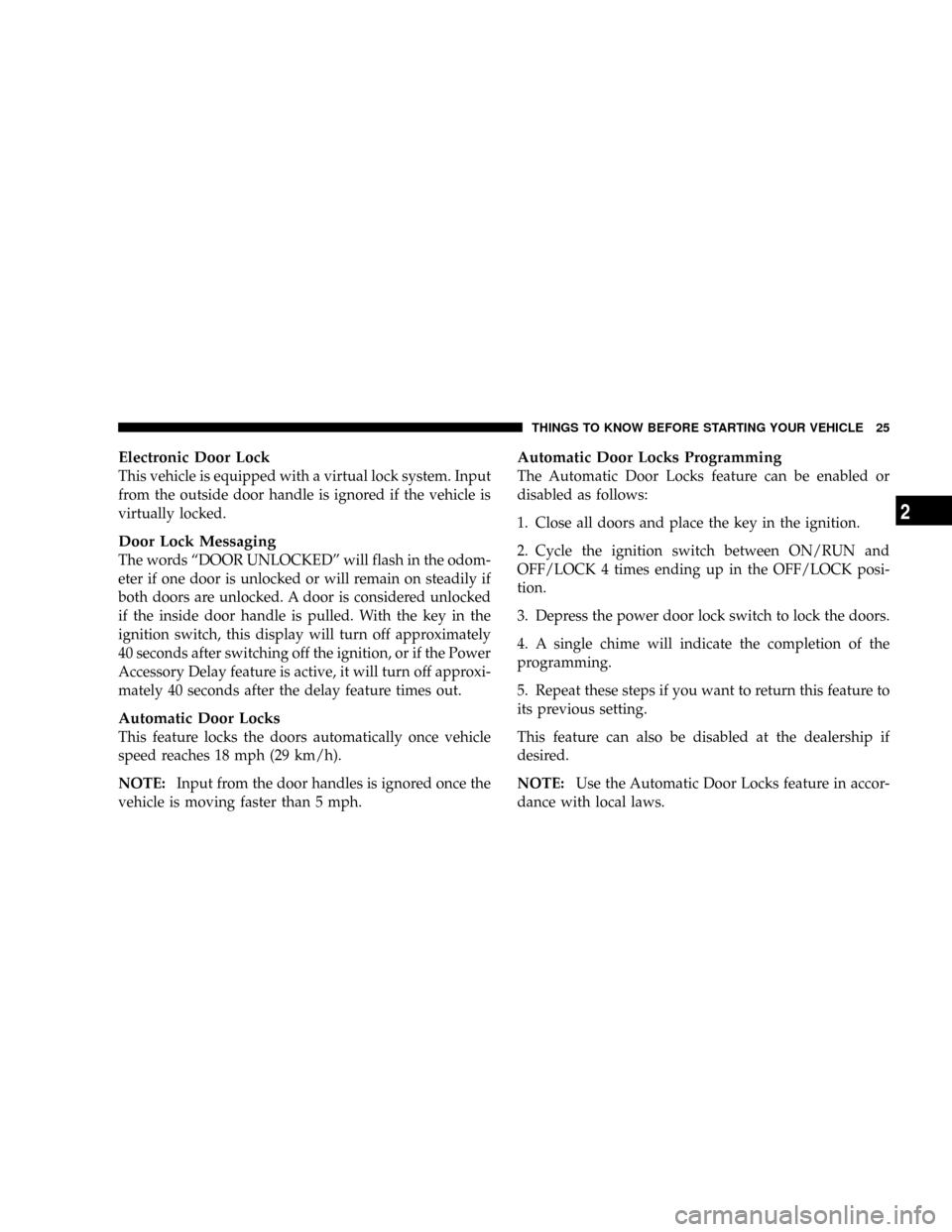

Electronic Door Lock
This vehicle is equipped with a virtual lock system. Input
from the outside door handle is ignored if the vehicle is
virtually locked.
Door Lock Messaging
The words ªDOOR UNLOCKEDº will flash in the odom-
eter if one door is unlocked or will remain on steadily if
both doors are unlocked. A door is considered unlocked
if the inside door handle is pulled. With the key in the
ignition switch, this display will turn off approximately
40 seconds after switching off the ignition, or if the Power
Accessory Delay feature is active, it will turn off approxi-
mately 40 seconds after the delay feature times out.
Automatic Door Locks
This feature locks the doors automatically once vehicle
speed reaches 18 mph (29 km/h).
NOTE:Input from the door handles is ignored once the
vehicle is moving faster than 5 mph.
Automatic Door Locks Programming
The Automatic Door Locks feature can be enabled or
disabled as follows:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between ON/RUN and
OFF/LOCK 4 times ending up in the OFF/LOCK posi-
tion.
3. Depress the power door lock switch to lock the doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
This feature can also be disabled at the dealership if
desired.
NOTE:Use the Automatic Door Locks feature in accor-
dance with local laws.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2
Page 27 of 303
WINDOWS
Power Windows
The power window switches are located between the
driver and passenger seats on the center tunnel bezel, just
to the left of the parking brake. The switch on the left side
controls the driver's window and the switch on the right
controls the passenger's window. The power window
switches are active when the ignition is in ON/RUN or
ACC position.
NOTE:
²The Power Accessory Delay feature allows you to
operate the power windows for 2 minutes after turn-
ing off the ignition switch. Removing the key from the
ignition switch and opening the driver's door will
cancel this feature. Your dealership can enable or
disable the Power Accessory Delay feature as desired.
²Windows cannot be driven up during Power Acces-
sory Delay with a door open. Furthermore, opening
the door will stop the window movement immediately
if the window is in the process of going up.
²The window will lower slightly if it is closed com-
pletely when opening the door. The window will
return to its fully closed position after closing the door.
This action is necessary in order to clear the seal when
opening the door.
WARNING!
Never leave children in a vehicle, with the keys in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the power win-
dows while operating the power window switch. Such
entrapment may result in serious injury or death.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 28 of 303
Auto Down Feature
Both windows have an auto down feature. Press the
window switch to the second detent, release, and the
window will go down automatically. Press the switch a
second time in either direction to stop the window.
To open the window to a desired position, press and hold
the window switch in the first detent. Release the switch
when you want the window to stop.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the top down (convertible models).
This is a normal occurrence and can be minimized by
adjusting one or both windows up or down slightly.
Power Window Switches
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2
Page 29 of 303
LIFTGATE Ð COUPE MODELS ONLY
The liftgate can be unlocked or locked by the Remote
Keyless Entry (RKE) transmitter or by activating either of
the power door lock switches located on the door trim
panels.
To unlock the liftgate with the RKE transmitter, press the
LIFTGATE button on the transmitter for at least one
second. The park lights and turn signal lights will flash
three times to acknowledge the signal.
NOTE:Pressing the UNLOCK button on the transmitter
will also allow liftgate access.
Once unlocked, the liftgate can be opened or closed. To
open the liftgate, depress the liftgate release switch
located in the exterior liftgate handle and pull the liftgate
open with one fluid motion.
NOTE:The liftgate release switch will be ignored under
the following conditions:
²When the ignition is in RUN and the parking brake is
not set.
²When vehicle speed is not a 0 mph (0 km/h).
²When all doors are locked (except for RKE liftgate
access). Refer to ªEntering the liftgate with the System
Armed Ð Coupeº under ªSecurity Alarm Systemº in
this section for additional information.
The word ªDECKº will flash in the odometer when the
liftgate is open. With the key in the ignition switch, this
display will turn off approximately 40 seconds after
switching off the ignition, or if the Power Accessory
Delay feature is active, it will turn off approximately 40
seconds after the delay feature times out.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 30 of 303

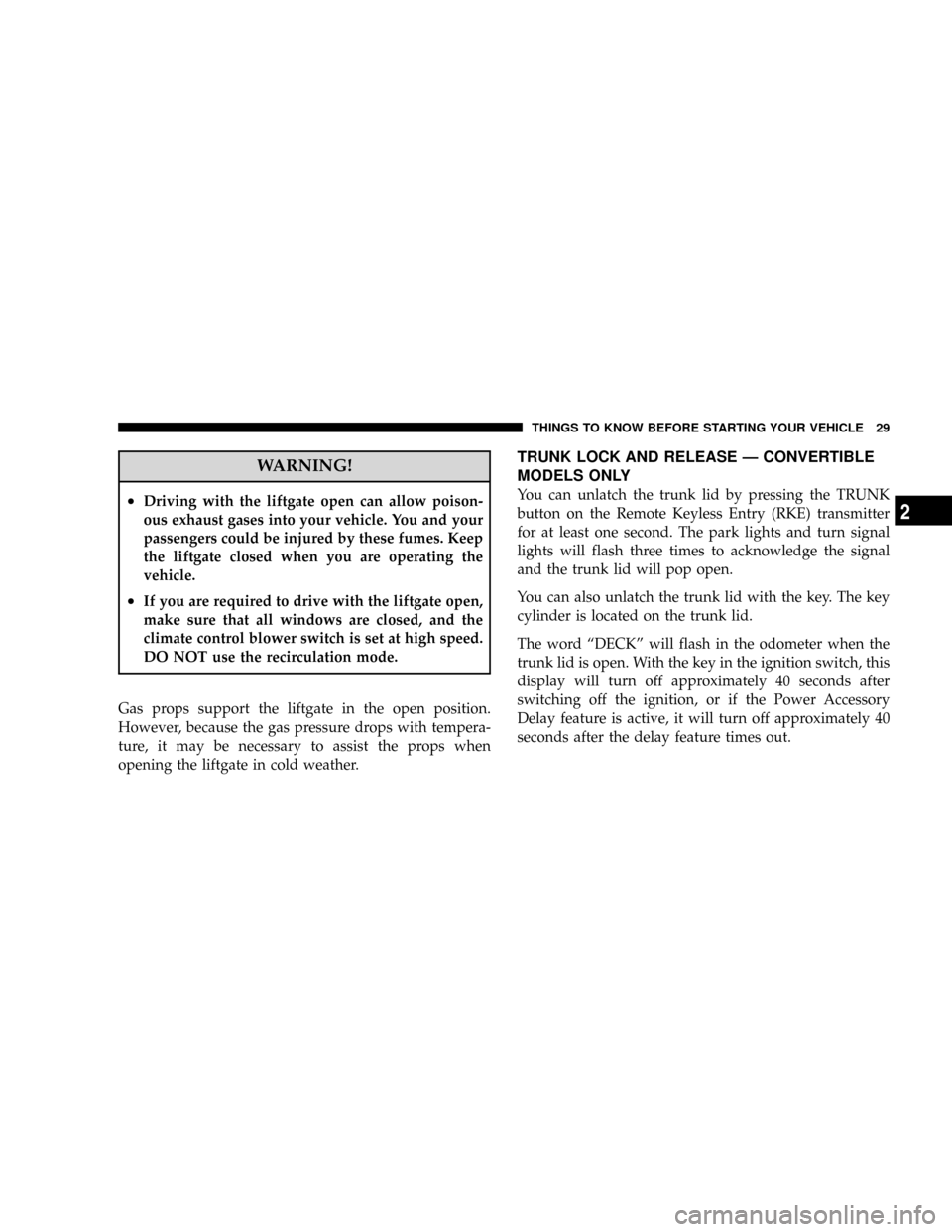

WARNING!
²Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
²If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
TRUNK LOCK AND RELEASE Ð CONVERTIBLE
MODELS ONLY
You can unlatch the trunk lid by pressing the TRUNK
button on the Remote Keyless Entry (RKE) transmitter
for at least one second. The park lights and turn signal
lights will flash three times to acknowledge the signal
and the trunk lid will pop open.
You can also unlatch the trunk lid with the key. The key
cylinder is located on the trunk lid.
The word ªDECKº will flash in the odometer when the
trunk lid is open. With the key in the ignition switch, this
display will turn off approximately 40 seconds after
switching off the ignition, or if the Power Accessory
Delay feature is active, it will turn off approximately 40
seconds after the delay feature times out.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
