THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

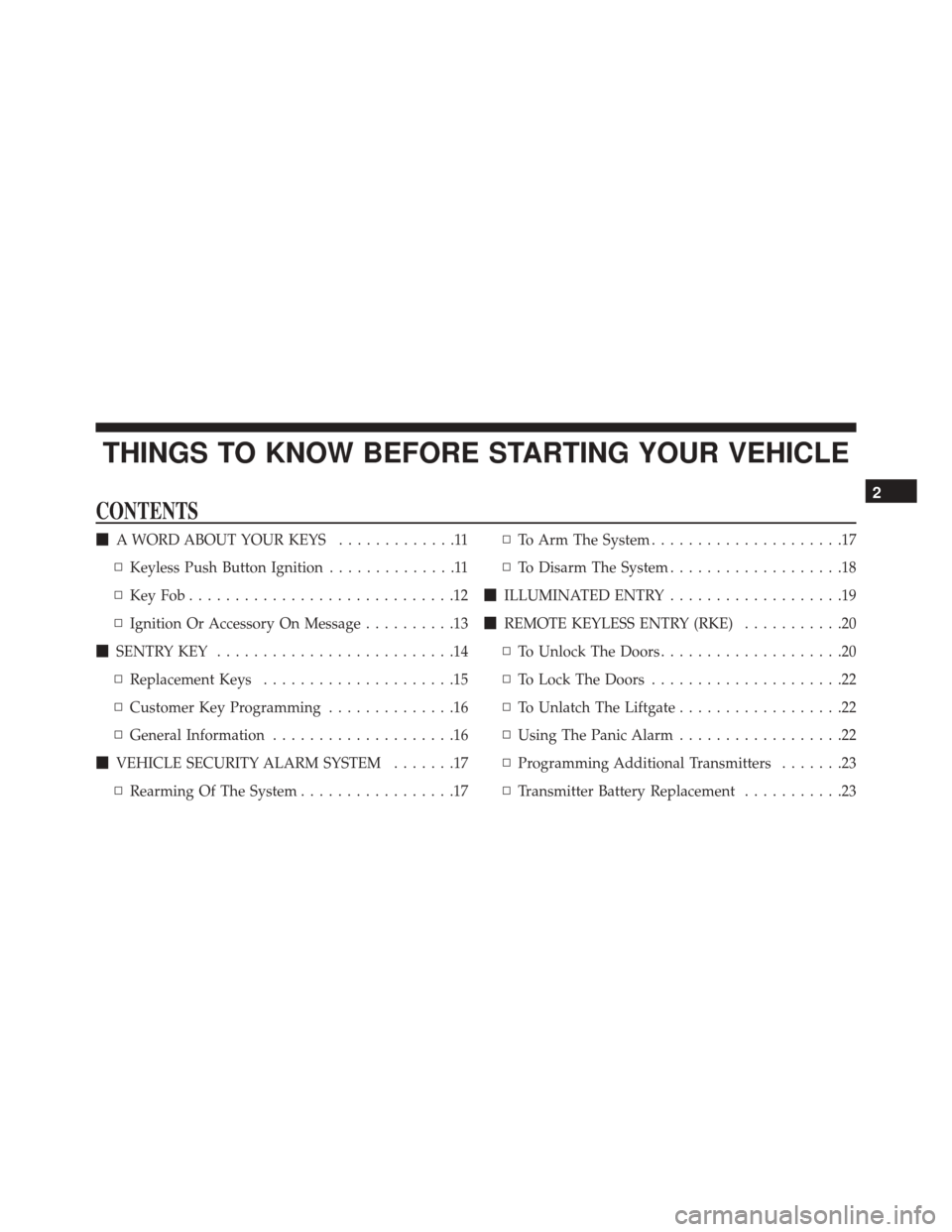

CONTENTS
A WORD ABOUT YOUR KEYS .............11
▫ Keyless Push Button Ignition ..............11
▫ KeyFob.............................12
▫ Ignition Or Accessory On Message ..........13
 SENTRY KEY ..........................14
▫ Replacement Keys .....................15
▫ Customer Key Programming ..............16
▫ General Information ....................16
 VEHICLE SECURITY ALARM SYSTEM .......17
▫ Rearming Of The System .................17 ▫
To Arm The System .....................17
▫ To Disarm The System ...................18
 ILLUMINATED ENTRY ...................19
 REMOTE KEYLESS ENTRY (RKE) ...........20
▫ To Unlock The Doors ....................20
▫ To Lock The Doors .....................22
▫ To Unlatch The Liftgate ..................22
▫ Using The Panic Alarm ..................22
▫ Programming Additional Transmitters .......23
▫ Transmitter Battery Replacement ...........23
2

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Keyless Push Button Ignition.
Keyless Enter-N-Go Feature
This vehicle is equipped with the Keyless Enter-N-Go
ignition feature.
Keyless Push Button Ignition
This feature allows the driver to operate the ignition with
the push of a button, as long as the Remote Keyless Entry
(RKE) transmitter is in the passenger compartment.
The Keyless Push Button Ignition has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.NOTE:
In case the ignition does not change with the
push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery.
Keyless Push Button Ignition1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
on the back of the Key Fob sideways with your thumb
and then pull the key out with your other hand.
NOTE:In the event that the FOB does not start the
vehicle (FOB not Found message) use the FOB nose
(furthest point from key ring) and push the start button.
FOB replaces the finger.
— RKE Liftgate Button
— RKE Door Unlock Button
— RKE Door Lock Button
— RKE PANIC Alarm Button
Remote Keyless Entry (RKE) Transmitter
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

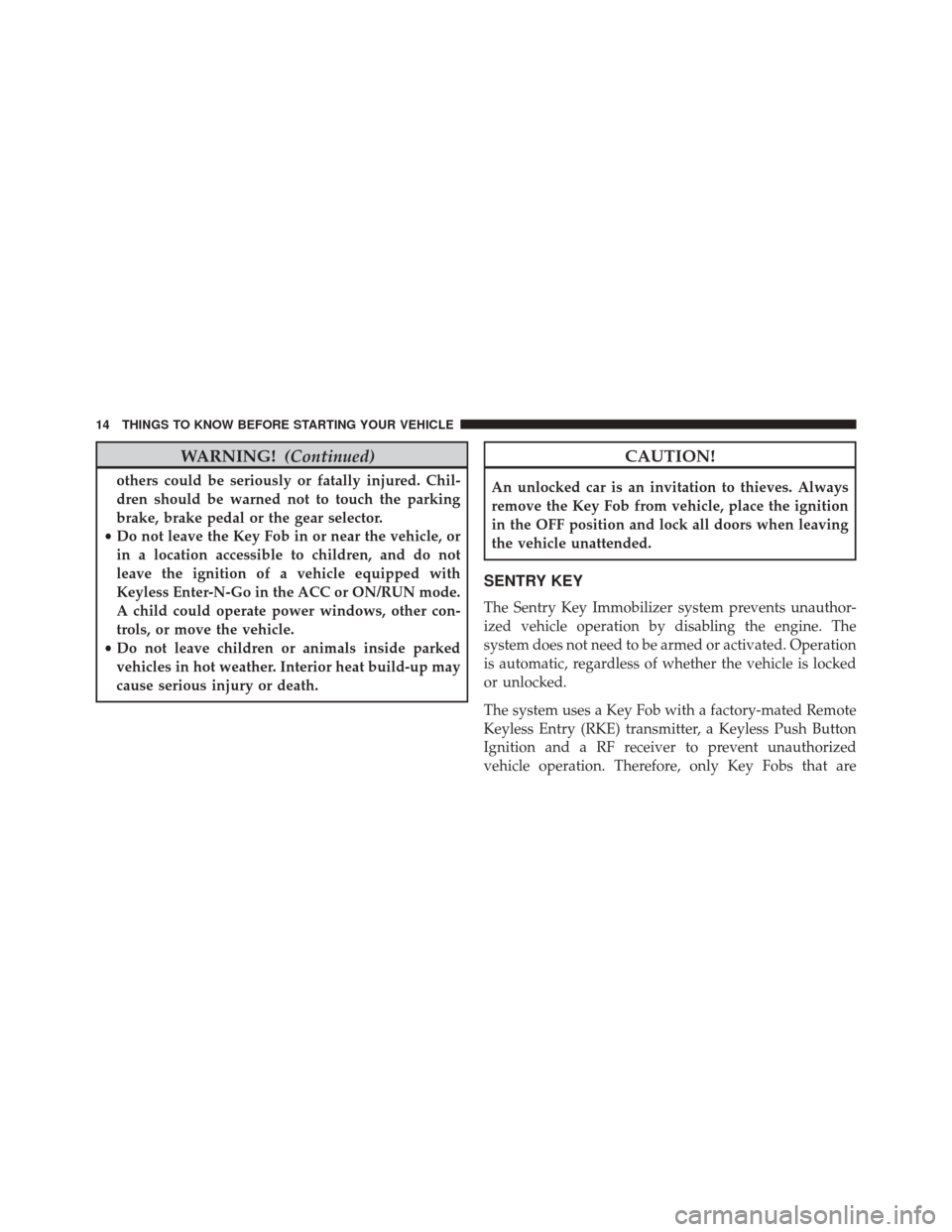

WARNING!(Continued)
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from vehicle, place the ignition
in the OFF position and lock all doors when leaving
the vehicle unattended.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter, a Keyless Push Button
Ignition and a RF receiver to prevent unauthorized
vehicle operation. Therefore, only Key Fobs that are
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

programmed to the vehicle can be used to start and
operate the vehicle. The system will not allow the engine
to crank with an invalid Key Fob.
After placing the ignition to the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the system. In
addition, if the light begins to flash after the bulb check,
it indicates that someone tried to use an invalid Key Fob
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the system.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.CAUTION!
•Do not make modifications or alterations to the
immobilizer system. Modifications or alterations to
the immobilization system may result in a loss of
security protection.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

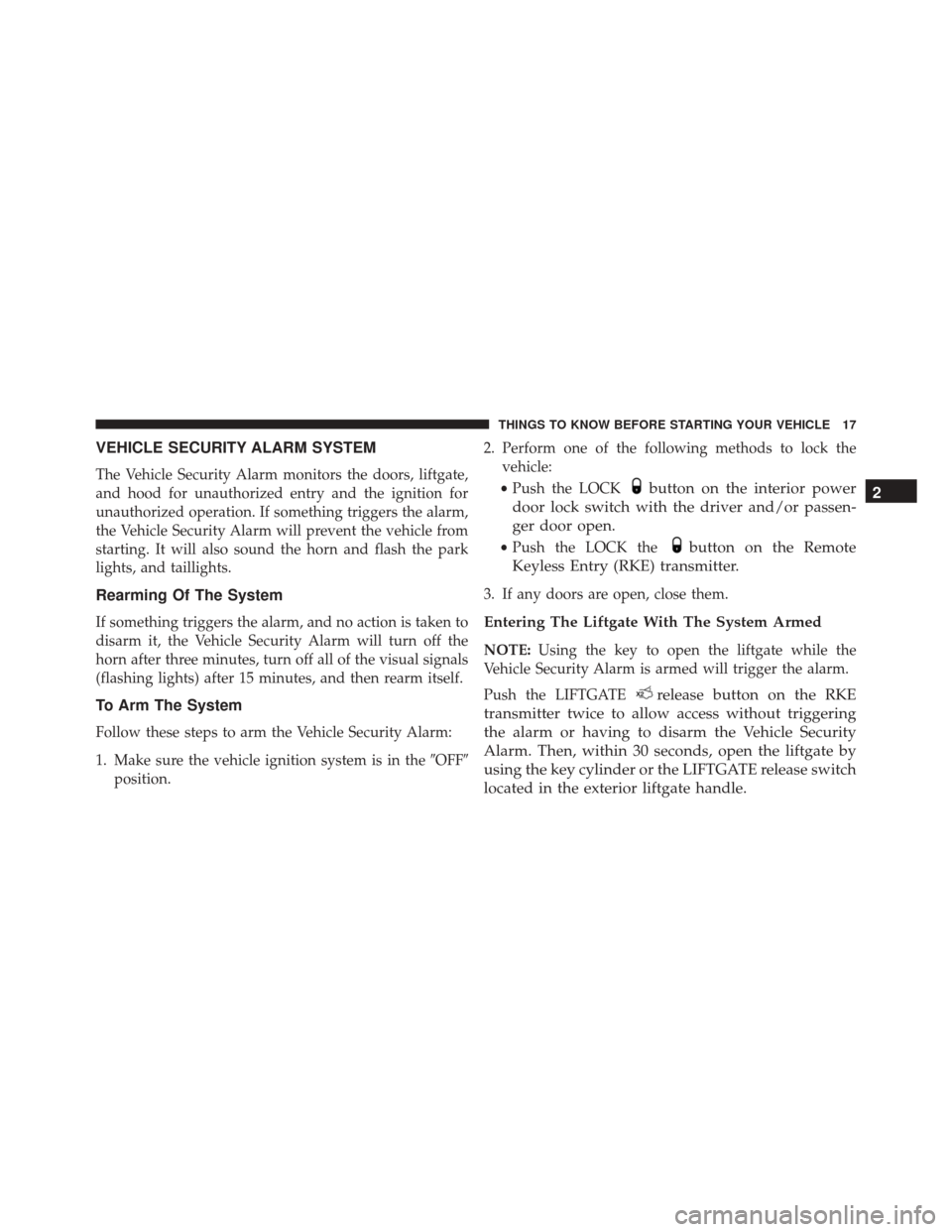

VEHICLE SECURITY ALARM SYSTEM
The Vehicle Security Alarm monitors the doors, liftgate,
and hood for unauthorized entry and the ignition for
unauthorized operation. If something triggers the alarm,
the Vehicle Security Alarm will prevent the vehicle from
starting. It will also sound the horn and flash the park
lights, and taillights.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
(flashing lights) after 15 minutes, and then rearm itself.
To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Make sure the vehicle ignition system is in theOFF
position. 2. Perform one of the following methods to lock the
vehicle:
• Push the LOCK
button on the interior power
door lock switch with the driver and/or passen-
ger door open.
• Push the LOCK thebutton on the Remote
Keyless Entry (RKE) transmitter.
3. If any doors are open, close them.
Entering The Liftgate With The System Armed
NOTE: Using the key to open the liftgate while the
Vehicle Security Alarm is armed will trigger the alarm.
Push the LIFTGATE
release button on the RKE
transmitter twice to allow access without triggering
the alarm or having to disarm the Vehicle Security
Alarm. Then, within 30 seconds, open the liftgate by
using the key cylinder or the LIFTGATE release switch
located in the exterior liftgate handle. 2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
•Push the UNLOCK
button on the Remote Keyless
Entry (RKE) transmitter.
• Cycle the vehicle ignition system out of the OFF
position:
• Push the Keyless Enter-N-Go Start/Stop button
(requires at least one valid Key Fob in the vehicle).
NOTE:
• The liftgate key cylinder cannot arm or disarm the
Vehicle Security Alarm.
• When the Vehicle Security Alarm is armed, the interior
Power Door Lock switches will not unlock the doors.

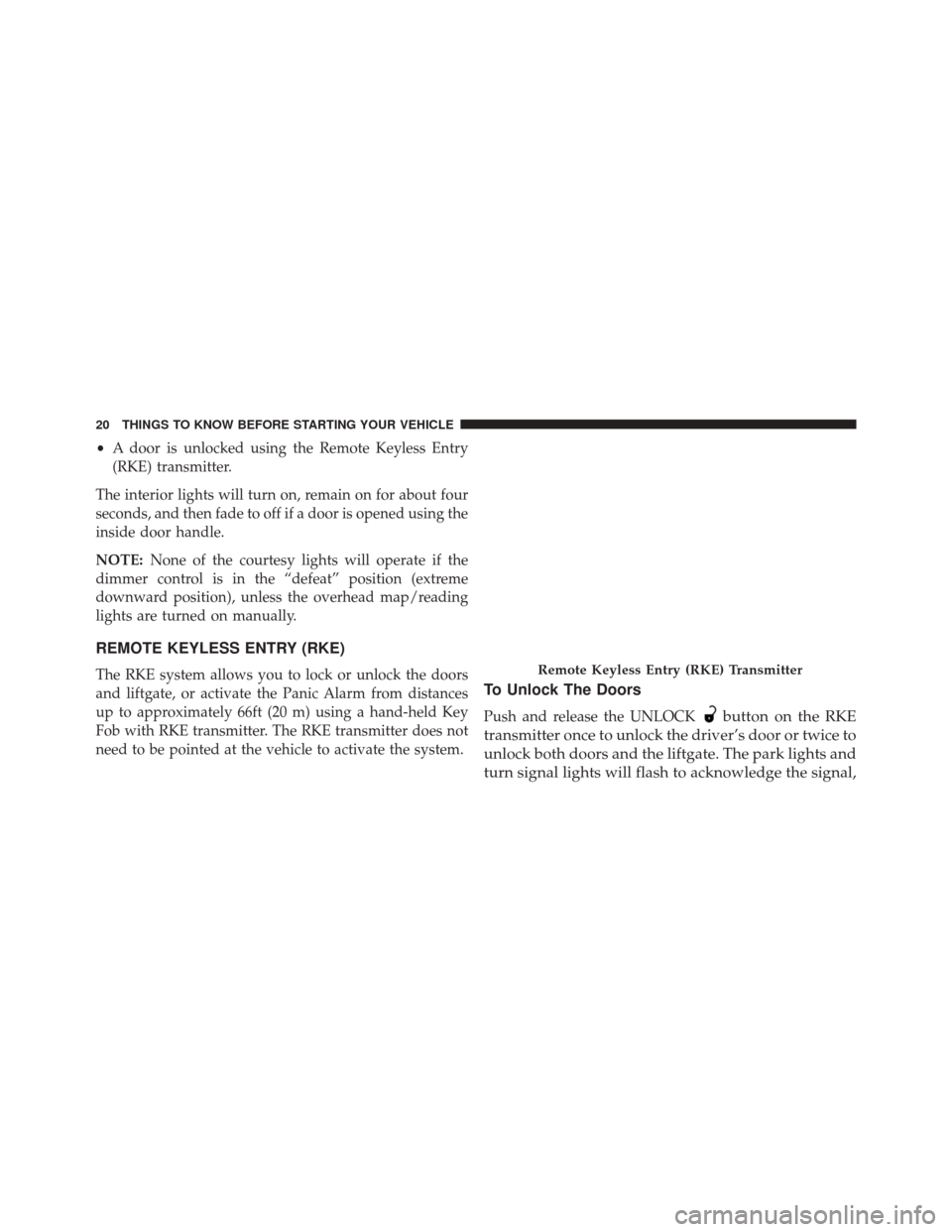

18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•A door is unlocked using the Remote Keyless Entry
(RKE) transmitter.
The interior lights will turn on, remain on for about four
seconds, and then fade to off if a door is opened using the
inside door handle.
NOTE: None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lock or unlock the doors
and liftgate, or activate the Panic Alarm from distances
up to approximately 66ft (20 m) using a hand-held Key
Fob with RKE transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.To Unlock The Doors
Push and release the UNLOCKbutton on the RKE
transmitter once to unlock the driver’s door or twice to
unlock both doors and the liftgate. The park lights and
turn signal lights will flash to acknowledge the signal,
Remote Keyless Entry (RKE) Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

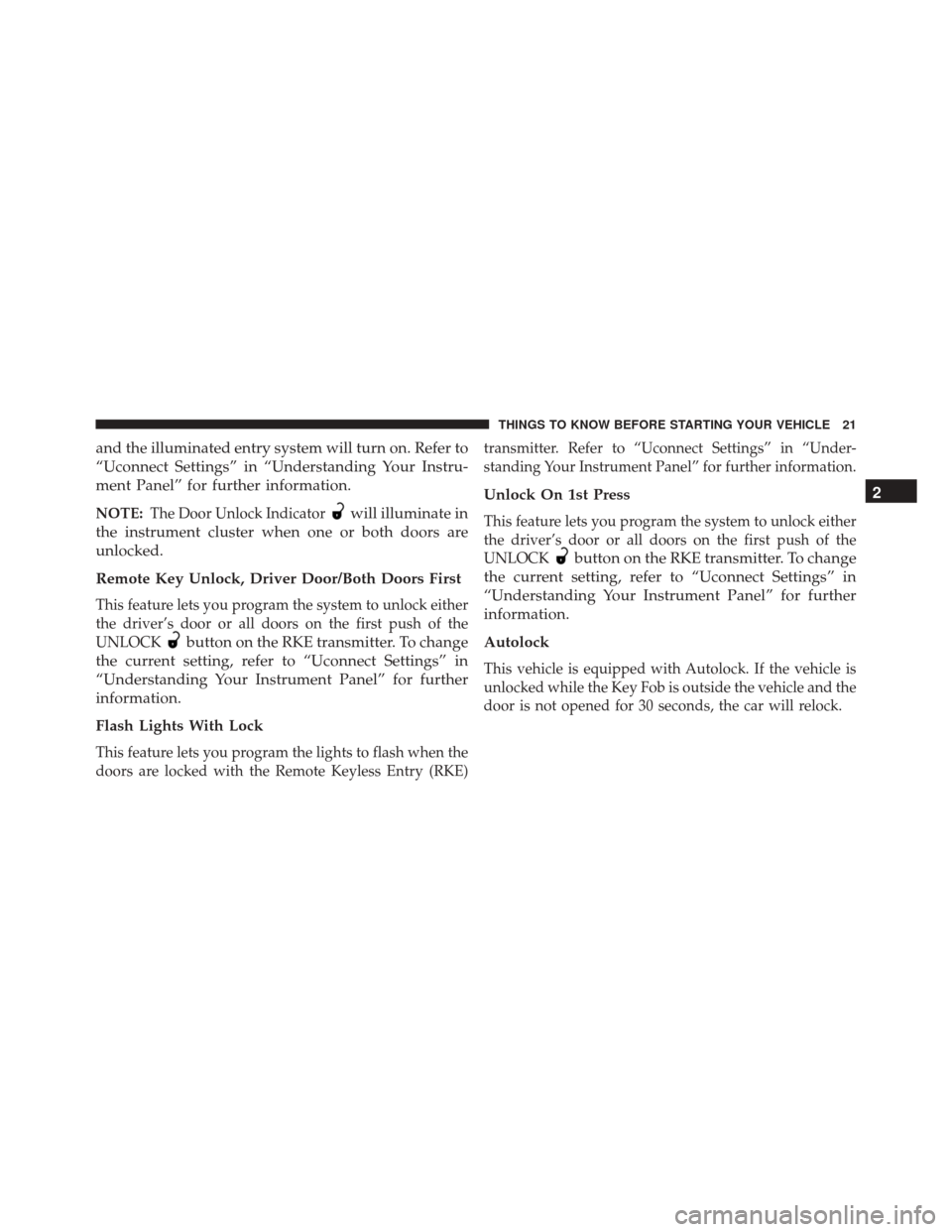

and the illuminated entry system will turn on. Refer to
“Uconnect Settings” in “Understanding Your Instru-
ment Panel” for further information.
NOTE:The Door Unlock Indicatorwill illuminate in
the instrument cluster when one or both doors are
unlocked.
Remote Key Unlock, Driver Door/Both Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
UNLOCK
button on the RKE transmitter. To change
the current setting, refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further
information.
Flash Lights With Lock
This feature lets you program the lights to flash when the
doors are locked with the Remote Keyless Entry (RKE) transmitter. Refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
Unlock On 1st Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
UNLOCK
button on the RKE transmitter. To change
the current setting, refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further
information.
Autolock
This vehicle is equipped with Autolock. If the vehicle is
unlocked while the Key Fob is outside the vehicle and the
door is not opened for 30 seconds, the car will relock.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

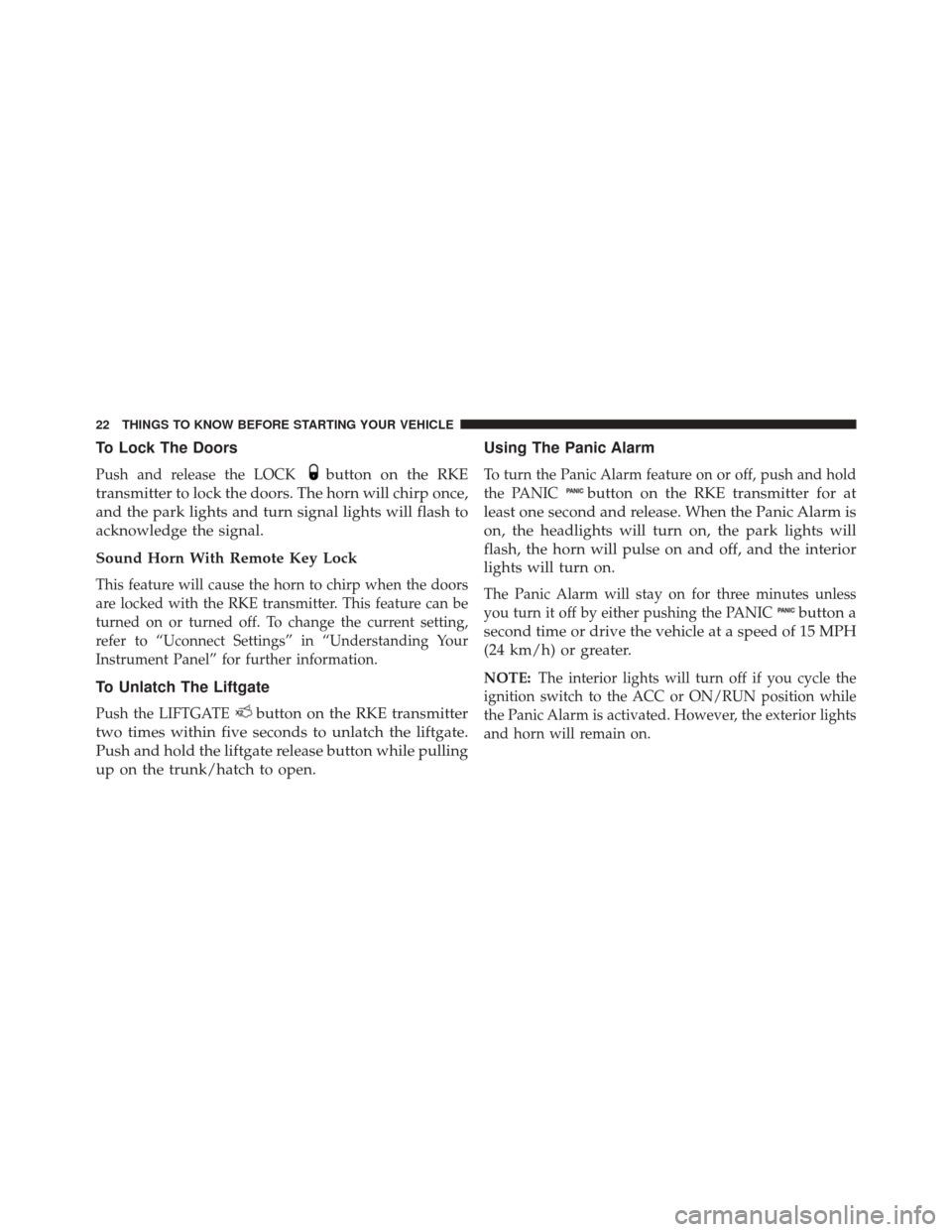

To Lock The Doors
Push and release the LOCKbutton on the RKE
transmitter to lock the doors. The horn will chirp once,
and the park lights and turn signal lights will flash to
acknowledge the signal.
Sound Horn With Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
refer to “Uconnect Settings” in “Understanding Your
Instrument Panel” for further information.
To Unlatch The Liftgate
Push the LIFTGATEbutton on the RKE transmitter
two times within five seconds to unlatch the liftgate.
Push and hold the liftgate release button while pulling
up on the trunk/hatch to open. Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the PANIC
button on the RKE transmitter for at
least one second and release. When the Panic Alarm is
on, the headlights will turn on, the park lights will
flash, the horn will pulse on and off, and the interior
lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pushing the PANIC
button a
second time or drive the vehicle at a speed of 15 MPH
(24 km/h) or greater.
NOTE: The interior lights will turn off if you cycle the
ignition switch to the ACC or ON/RUN position while
the Panic Alarm is activated. However, the exterior lights
and horn will remain on.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
