trailer DODGE VIPER 2016 VX / 3.G Owners Manual

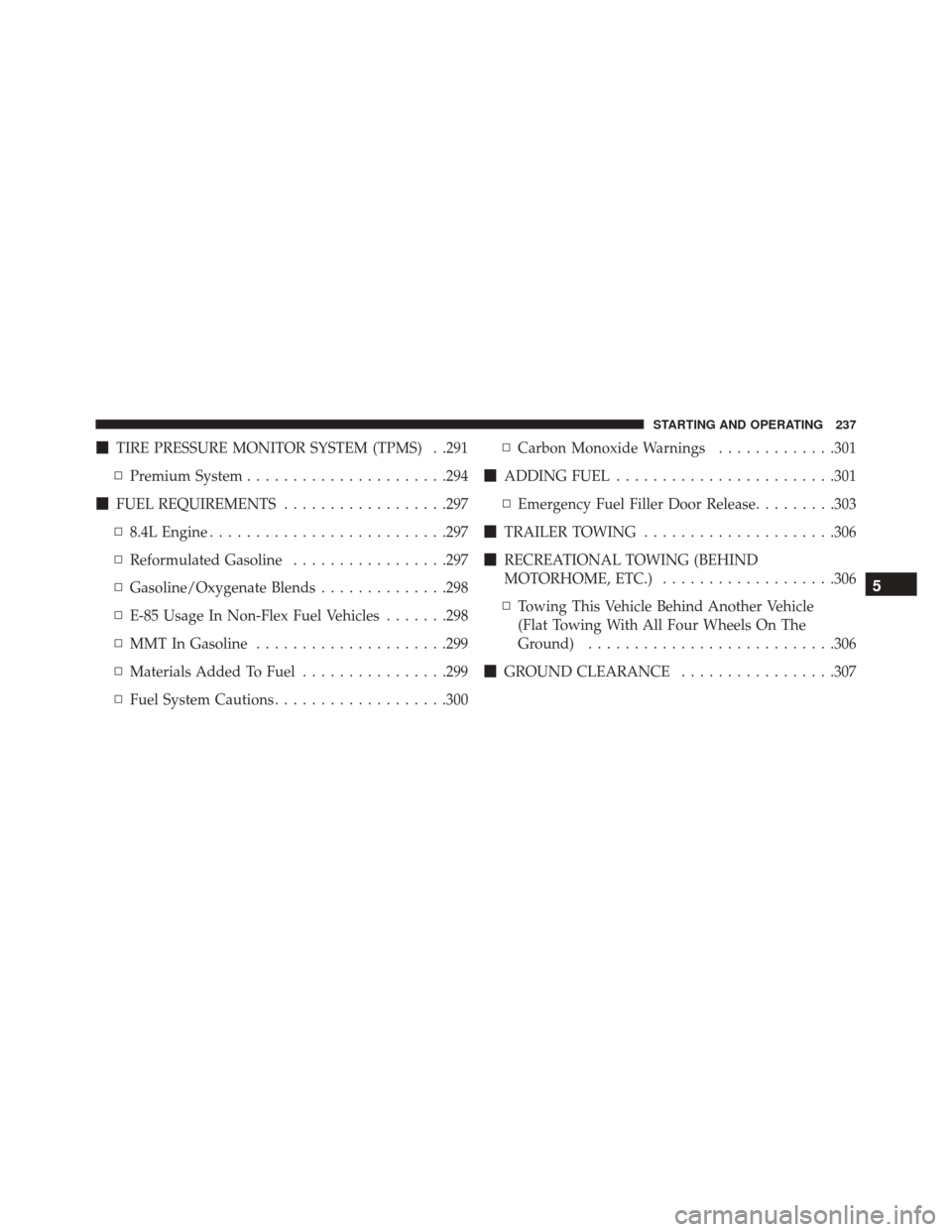

TIRE PRESSURE MONITOR SYSTEM (TPMS) . .291
▫ Premium System ..................... .294
 FUEL REQUIREMENTS ..................297
▫ 8.4L Engine ......................... .297
▫ Reformulated Gasoline .................297
▫ Gasoline/Oxygenate Blends ..............298
▫ E-85 Usage In Non-Flex Fuel Vehicles .......298
▫ MMT In Gasoline .....................299
▫ Materials Added To Fuel ................299
▫ Fuel System Cautions ...................300 ▫
Carbon Monoxide Warnings .............301
 ADDING FUEL ....................... .301
▫ Emergency Fuel Filler Door Release .........303
 TRAILER TOWING .....................306
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................306
▫ Towing This Vehicle Behind Another Vehicle
(Flat Towing With All Four Wheels On The
Ground) .......................... .306
 GROUND CLEARANCE .................307
5
STARTING AND OPERATING 237

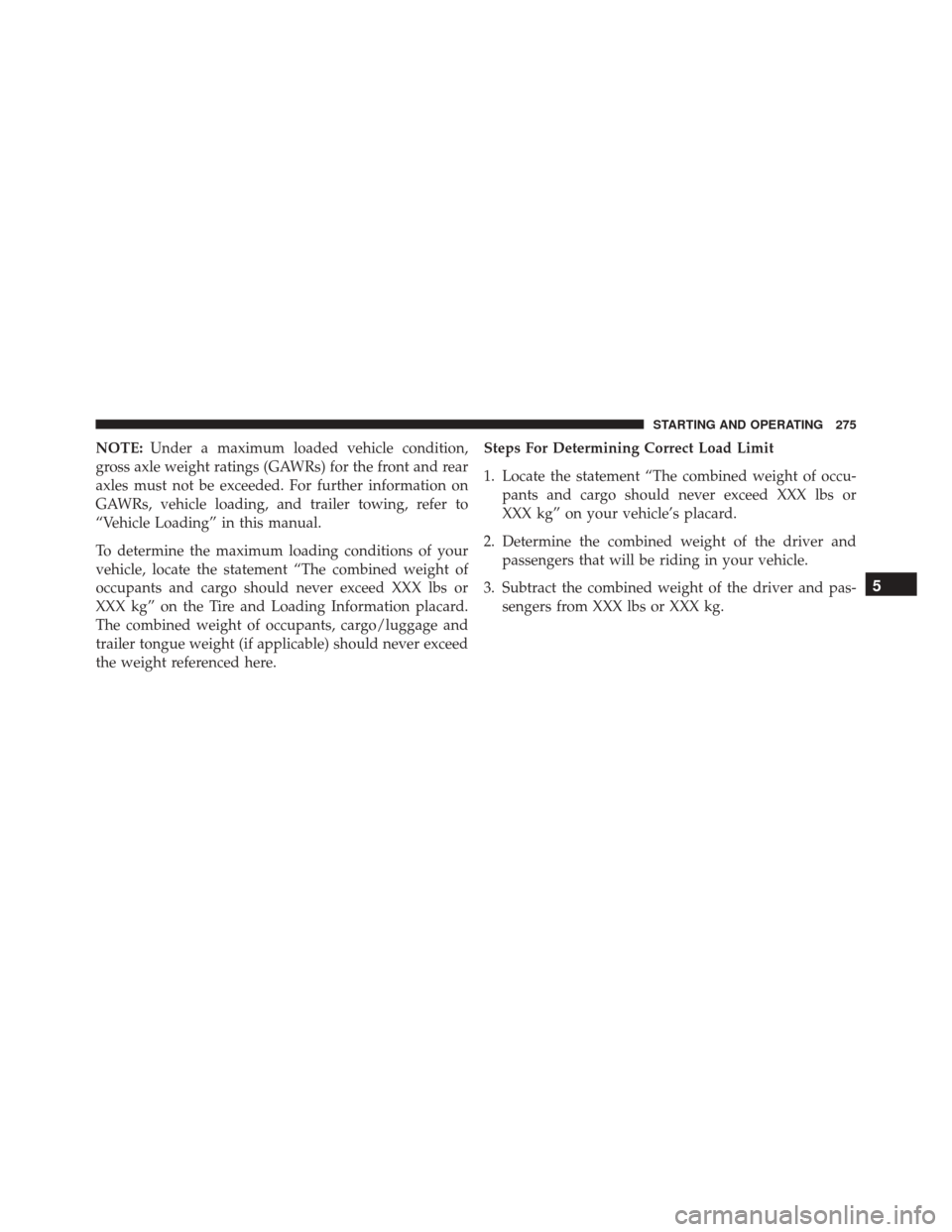

NOTE:Under a maximum loaded vehicle condition,
gross axle weight ratings (GAWRs) for the front and rear
axles must not be exceeded. For further information on
GAWRs, vehicle loading, and trailer towing, refer to
“Vehicle Loading” in this manual.
To determine the maximum loading conditions of your
vehicle, locate the statement “The combined weight of
occupants and cargo should never exceed XXX lbs or
XXX kg” on the Tire and Loading Information placard.
The combined weight of occupants, cargo/luggage and
trailer tongue weight (if applicable) should never exceed
the weight referenced here. Steps For Determining Correct Load Limit
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX lbs or
XXX kg” on your vehicle’s placard.
2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and pas- sengers from XXX lbs or XXX kg.
5
STARTING AND OPERATING 275

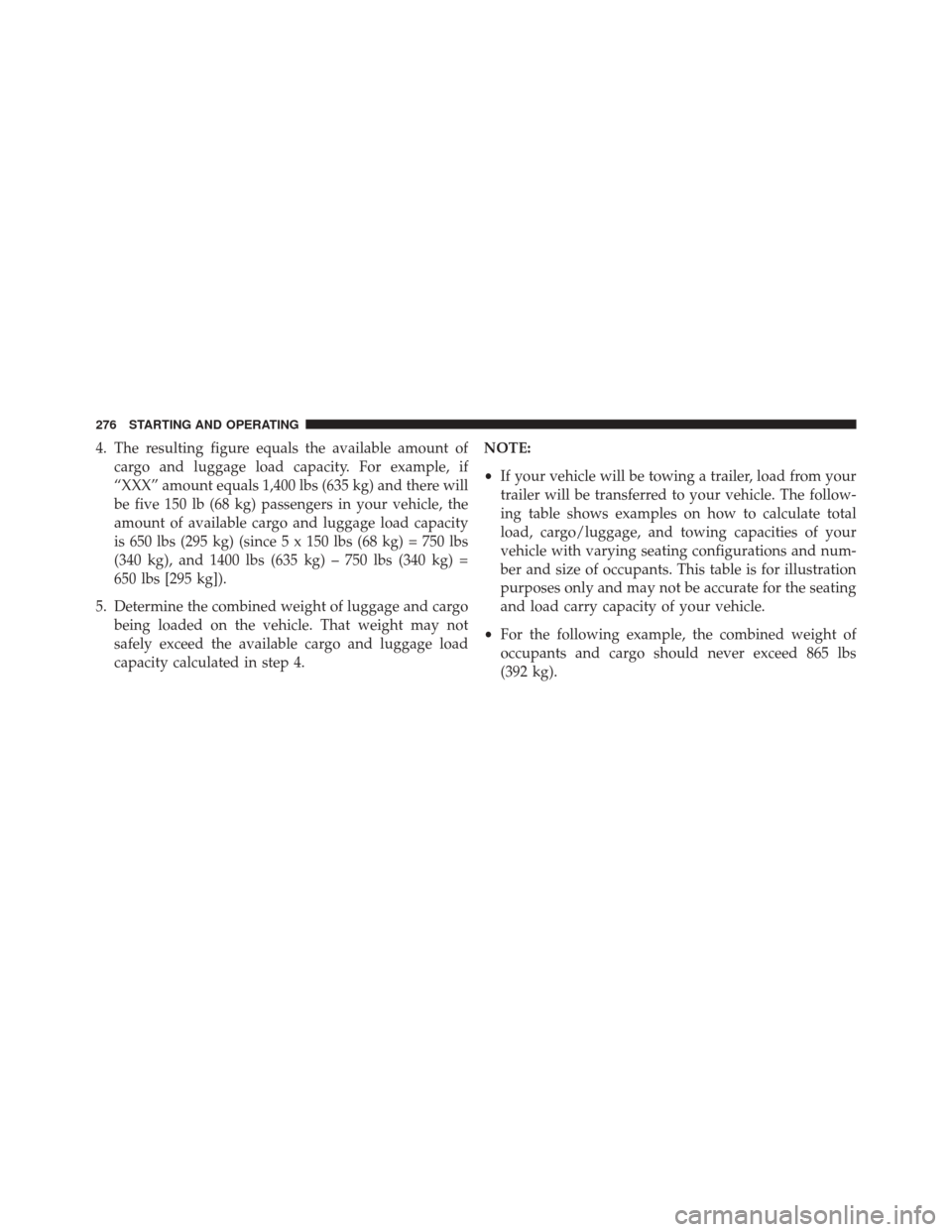

4. The resulting figure equals the available amount ofcargo and luggage load capacity. For example, if
“XXX” amount equals 1,400 lbs (635 kg) and there will
be five 150 lb (68 kg) passengers in your vehicle, the
amount of available cargo and luggage load capacity
is 650 lbs (295 kg) (since 5 x 150 lbs (68 kg) = 750 lbs
(340 kg), and 1400 lbs (635 kg) – 750 lbs (340 kg) =
650 lbs [295 kg]).
5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not
safely exceed the available cargo and luggage load
capacity calculated in step 4. NOTE:
•
If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. The follow-
ing table shows examples on how to calculate total
load, cargo/luggage, and towing capacities of your
vehicle with varying seating configurations and num-
ber and size of occupants. This table is for illustration
purposes only and may not be accurate for the seating
and load carry capacity of your vehicle.
• For the following example, the combined weight of
occupants and cargo should never exceed 865 lbs
(392 kg).
276 STARTING AND OPERATING

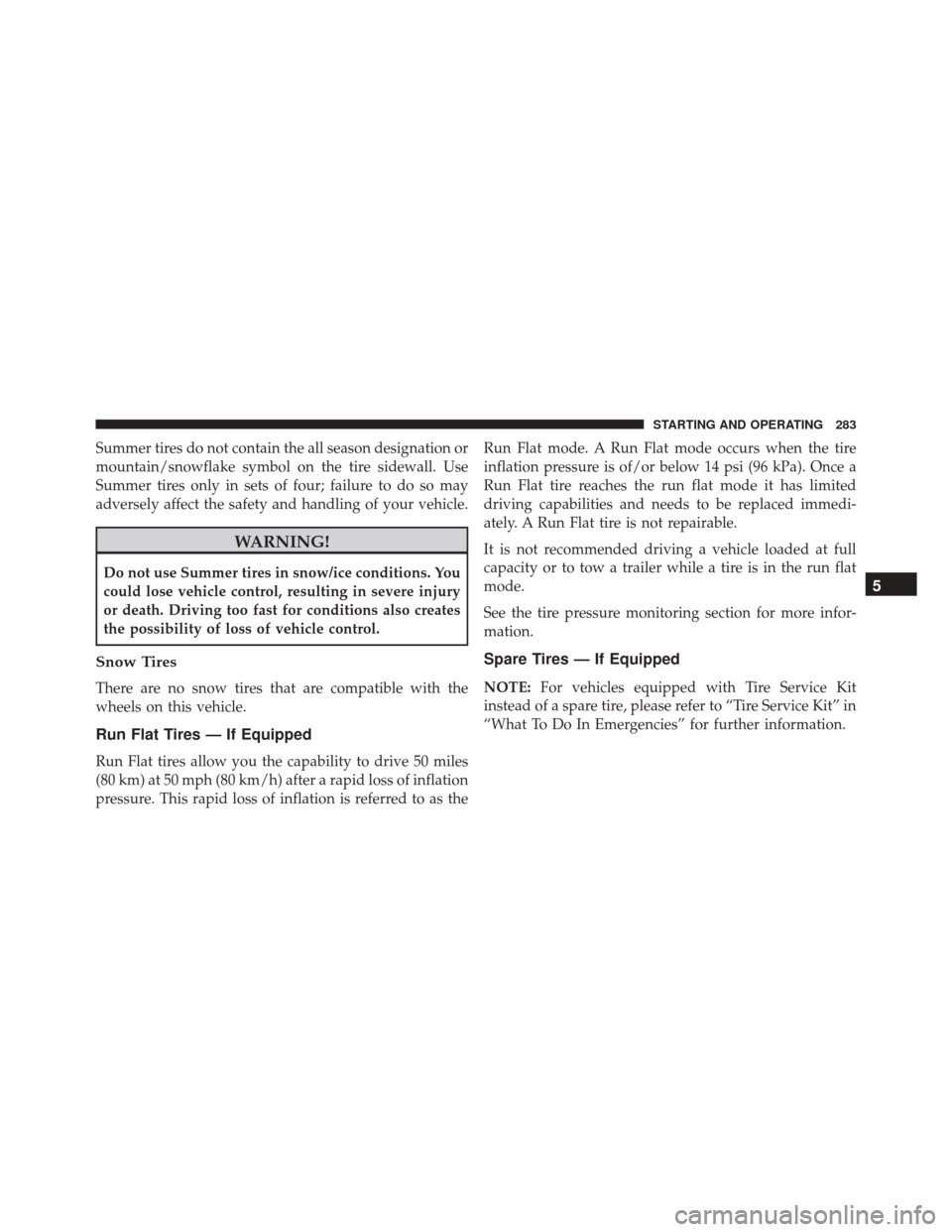

Summer tires do not contain the all season designation or
mountain/snowflake symbol on the tire sidewall. Use
Summer tires only in sets of four; failure to do so may
adversely affect the safety and handling of your vehicle.
WARNING!
Do not use Summer tires in snow/ice conditions. You
could lose vehicle control, resulting in severe injury
or death. Driving too fast for conditions also creates
the possibility of loss of vehicle control.
Snow Tires
There are no snow tires that are compatible with the
wheels on this vehicle.
Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as theRun Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa). Once a
Run Flat tire reaches the run flat mode it has limited
driving capabilities and needs to be replaced immedi-
ately. A Run Flat tire is not repairable.
It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the run flat
mode.
See the tire pressure monitoring section for more infor-
mation.
Spare Tires — If Equipped
NOTE:
For vehicles equipped with Tire Service Kit
instead of a spare tire, please refer to “Tire Service Kit” in
“What To Do In Emergencies” for further information.
5
STARTING AND OPERATING 283

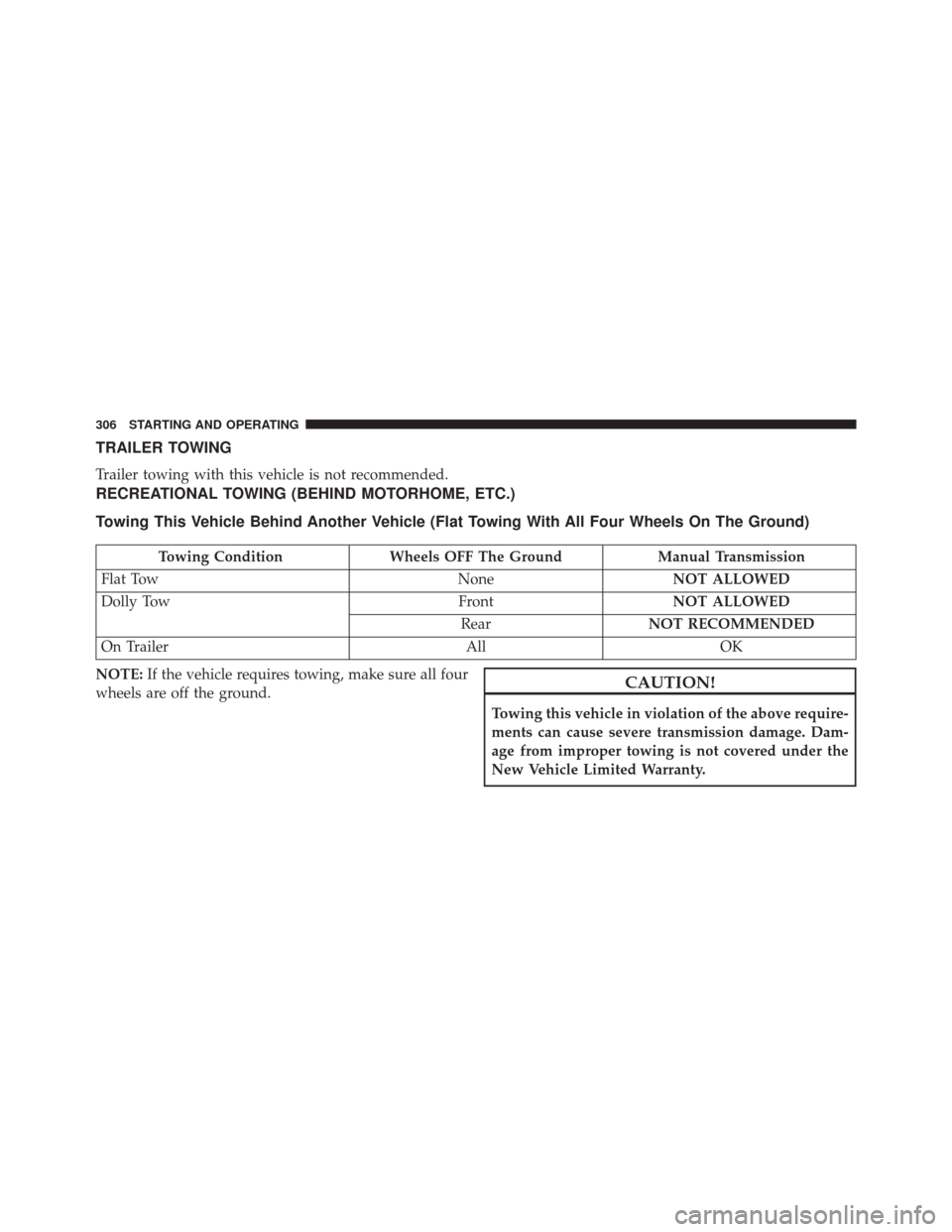

TRAILER TOWING
Trailer towing with this vehicle is not recommended.
RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle (Flat Towing With All Four Wheels On The Ground)
Towing ConditionWheels OFF The Ground Manual Transmission
Flat Tow NoneNOT ALLOWED
Dolly Tow FrontNOT ALLOWED
Rear NOT RECOMMENDED
On Trailer AllOK
NOTE: If the vehicle requires towing, make sure all four
wheels are off the ground.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
306 STARTING AND OPERATING

Supplemental Restraint System - Air Bag.........47
Tilt Steering Column .......................114
Time Delay, Headlight ..................... .106
Tire And Loading Information Placard .......273, 274
Tire Markings ........................... .266
Tires............................ .88, 278, 401
Aging (Life Of Tires) .....................287
Air Pressure .......................... .278
Chains .............................. .290
Compact Spare ........................ .284
General Information .....................278
High Speed .......................... .281
Inflation Pressures ...................... .279
Life Of Tires .......................... .287
Load Capacity ..................... .273, 274
Pressure Monitor System (TPMS) ............291
Pressure Warning Light ...................162
Quality Grading ....................... .401Radial
.............................. .281
Replacement .......................... .288
Rotation ............................. .290
Safety ........................... .266, 278
Sizes ............................... .268
Spinning ............................ .286
Tread Wear Indicators ....................286
Tire Safety Information .....................266
Tire Service Kit .......................... .313
Towing ............................ .306, 329
Disabled Vehicle ....................... .329
Recreational .......................... .306
Towing Vehicle Behind A Motorhome ...........306
Traction ............................ .250, 251
Traction Control ......................... .262
Trailer Towing .......................... .306
Transmission ........................... .357
Fluid ............................... .383
Shifting .......................... .241,

24410
INDEX 417
