DODGE VIPER SRT 2016 VX / 3.G Owners Manual

•Service Antilock Brake System
• Service Electronic Throttle Control
• Cruise Off
• Cruise Ready
• Cruise Set To XXX MPH
• Tire Pressure Screen With Low Tire Pressure Warnings
• Service Tire Pressure System
• Parking Brake Engaged
• Brake Fluid Low
• Service Electronic Braking System
• Engine Temperature Hot
• Battery Voltage Low
• Brake Wear •
Service Electronic Throttle Control
• Lights On
• Right Turn Signal Light Out
• Left Turn Signal Light Out
• Turn Signal On
• Service Air Bag System
• Service Air Bag Warning Light
• Driver Seat Belt Unbuckled
• Passenger Seat Belt Unbuckled
• Front Seat Belts Unbuckled
• Door Open
• Doors Open
• Park Brake Engaged
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

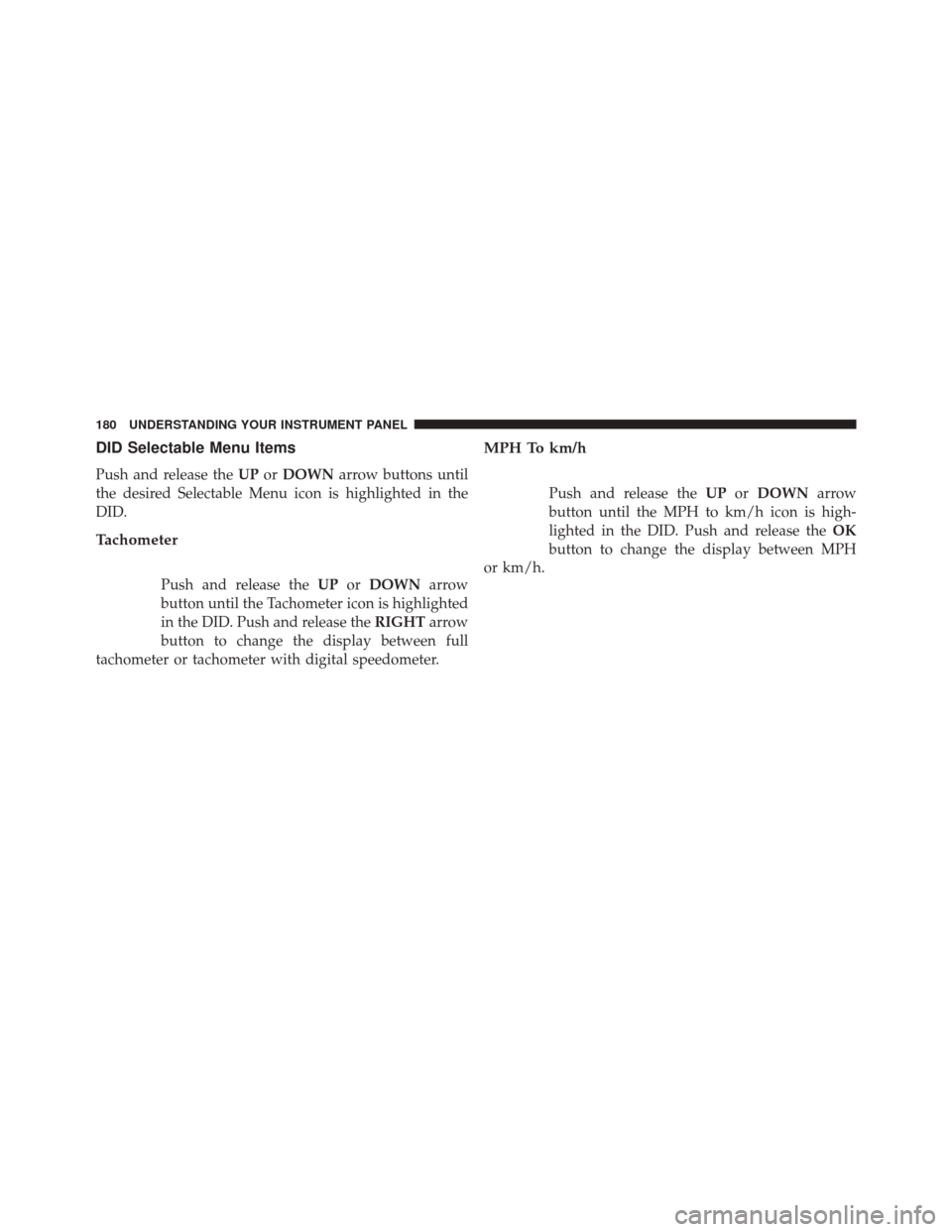

DID Selectable Menu Items
Push and release theUPorDOWN arrow buttons until
the desired Selectable Menu icon is highlighted in the
DID.
Tachometer
Push and release the UPorDOWN arrow
button until the Tachometer icon is highlighted
in the DID. Push and release the RIGHTarrow
button to change the display between full
tachometer or tachometer with digital speedometer.
MPH To km/h
Push and release the UPorDOWN arrow
button until the MPH to km/h icon is high-
lighted in the DID. Push and release the OK
button to change the display between MPH
or km/h.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

Vehicle Info (Customer Information Features)
Push and release theUPorDOWN arrow
button until the Vehicle Info icon is highlighted
in the DID. Push and release the RIGHTarrow
button to display the following information
submenus:
Tire Pressure
Push and release the UPorDOWN arrow button until
“Tire Pressure” is highlighted in the DID. Push and
release the RIGHTarrow button, and one of the follow-
ing will be displayed:
• If tire pressure is OKfor all tires a vehicle ICON is
displayed with tire pressure values in each corner of
the ICON. •
If one or more tires have low pressure, the tire pressure
values in each corner of the ICON with the pressure
value of the low tire displayed in a different color than
the other tire pressure value.
• If the Tire Pressure system requires service, “Service
Tire Pressure System” is displayed.
Tire PSI is an information only function and cannot be
reset. Push and release the LEFTarrow button to return
to the main menu.
Refer to “Tire Pressure Monitoring System (TPMS)”
under “Starting and Operating” for further information.
Coolant Temperature
Push and release the UPorDOWN arrow button until
“Coolant Temperature” is highlighted in the DID. Push
and release the RIGHTarrow button, and the coolant
temperature will be displayed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

Oil Temperature
Push and release theUPorDOWN arrow button until
“Oil Temperature” is highlighted in the DID. Push and
release the RIGHTarrow button, and the oil temperature
will be displayed.
Engine Hours
Push and release the UPorDOWN arrow button until
“Engine Hours” is highlighted in the DID. Push and
release the RIGHTarrow button, and the engine hours
will be displayed.
Intake Air Temp.
Push and release the UPorDOWN arrow button until
“Intake Air Temp.” is highlighted in the DID. Push and
release the RIGHTarrow button, and the intake air
temperature will be displayed. Current Torque
Push and release the
UPorDOWN arrow button until
“Current Torque” is highlighted in the DID. Push and
release the RIGHTarrow button, and the current torque
will be displayed.
Current Power
Push and release the UPorDOWN arrow button until
“Current Power” is highlighted in the DID. Push and
release the RIGHTarrow button, and the current power
will be displayed.
182 UNDERSTANDING YOUR INSTRUMENT PANEL

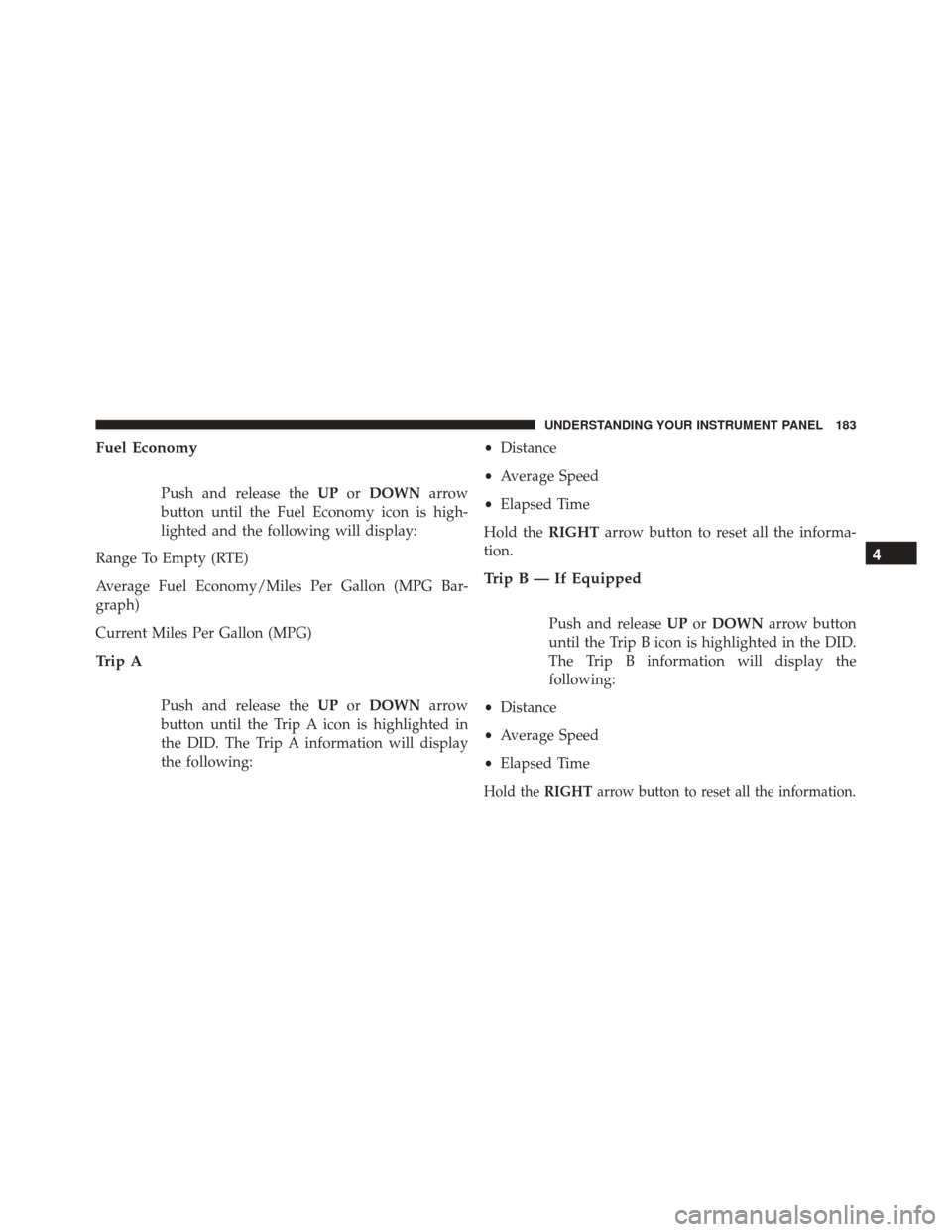

Fuel Economy
Push and release theUPorDOWN arrow
button until the Fuel Economy icon is high-
lighted and the following will display:
Range To Empty (RTE)
Average Fuel Economy/Miles Per Gallon (MPG Bar-
graph)
Current Miles Per Gallon (MPG)
Trip A
Push and release the UPorDOWN arrow
button until the Trip A icon is highlighted in
the DID. The Trip A information will display
the following: •
Distance
• Average Speed
• Elapsed Time
Hold the RIGHTarrow button to reset all the informa-
tion.
TripB—IfEquipped
Push and release UPorDOWN arrow button
until the Trip B icon is highlighted in the DID.
The Trip B information will display the
following:
• Distance
• Average Speed
• Elapsed Time
Hold the RIGHTarrow button to reset all the information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

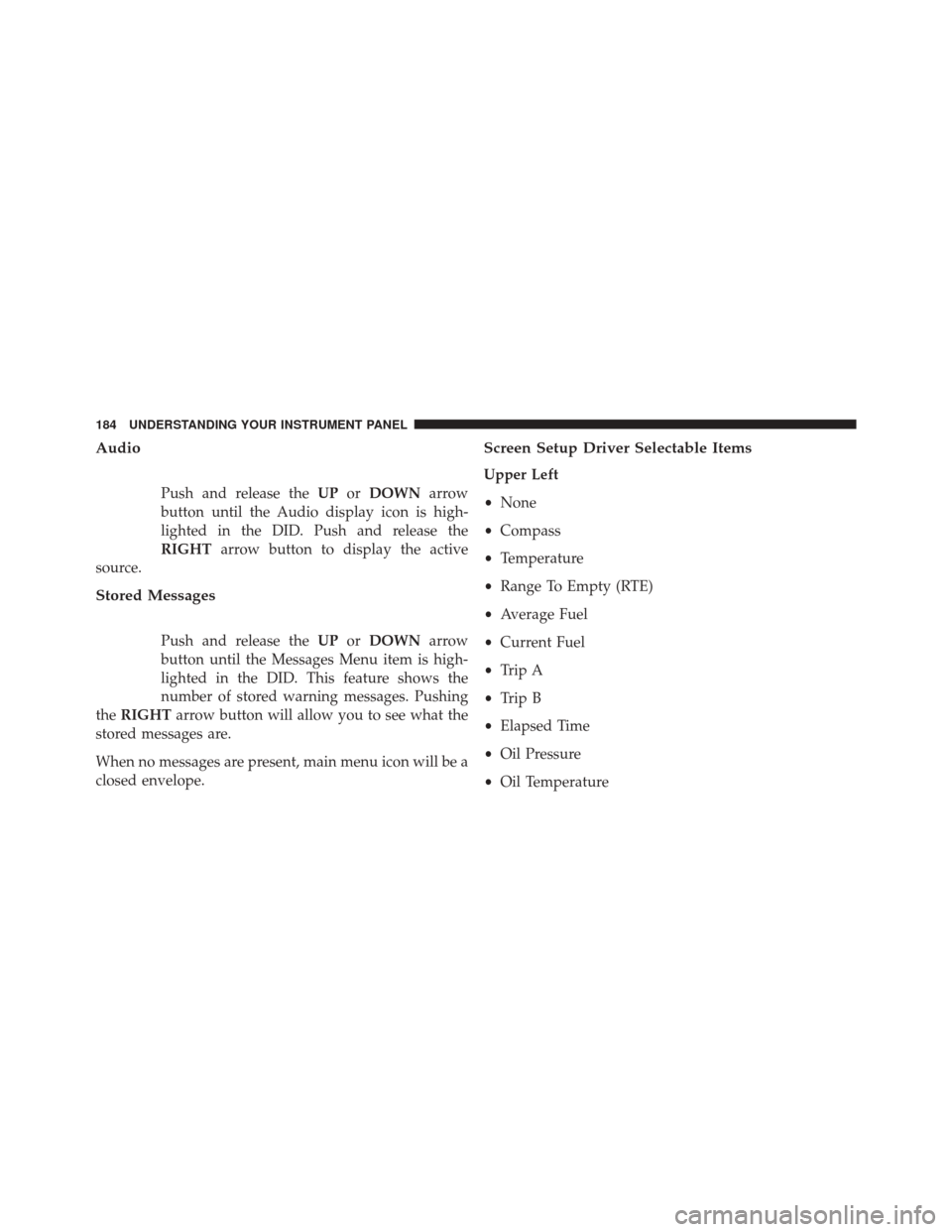

Audio
Push and release theUPorDOWN arrow
button until the Audio display icon is high-
lighted in the DID. Push and release the
RIGHT arrow button to display the active
source.
Stored Messages
Push and release the UPorDOWN arrow
button until the Messages Menu item is high-
lighted in the DID. This feature shows the
number of stored warning messages. Pushing
the RIGHT arrow button will allow you to see what the
stored messages are.
When no messages are present, main menu icon will be a
closed envelope.
Screen Setup Driver Selectable Items
Upper Left
• None
• Compass
• Temperature
• Range To Empty (RTE)
• Average Fuel
• Current Fuel
• Trip A
• Trip B
• Elapsed Time
• Oil Pressure
• Oil Temperature
184 UNDERSTANDING YOUR INSTRUMENT PANEL

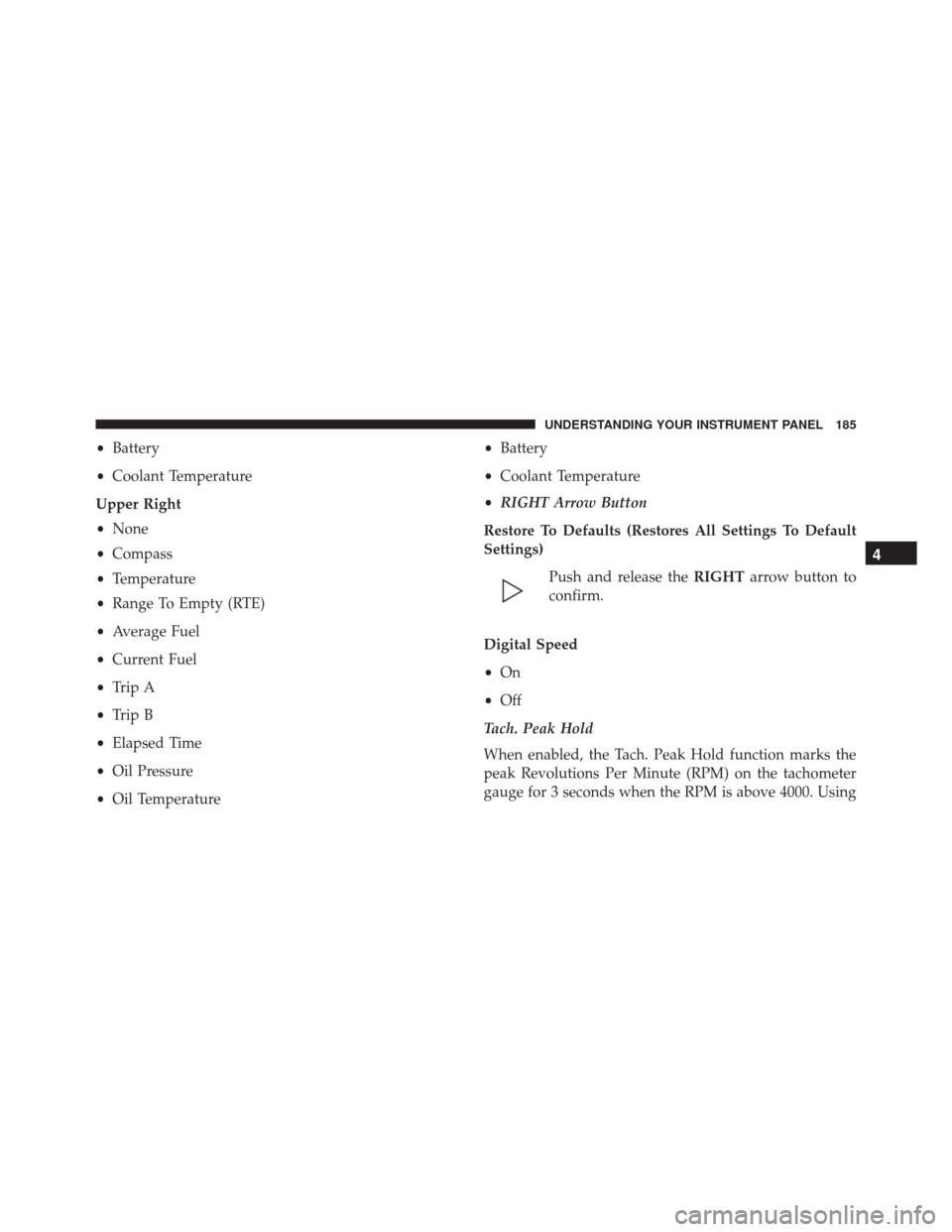

•Battery
• Coolant Temperature
Upper Right
• None
• Compass
• Temperature
• Range To Empty (RTE)
• Average Fuel
• Current Fuel
• Trip A
• Trip B
• Elapsed Time
• Oil Pressure
• Oil Temperature •
Battery
• Coolant Temperature
• RIGHT Arrow Button
Restore To Defaults (Restores All Settings To Default
Settings) Push and release the RIGHTarrow button to
confirm.
Digital Speed
• On
• Off
Tach. Peak Hold
When enabled, the Tach. Peak Hold function marks the
peak Revolutions Per Minute (RPM) on the tachometer
gauge for 3 seconds when the RPM is above 4000. Using
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

theUP and DOWN arrow switches on the left side of the
steering wheel, select the gauges icon from the menu on
the left side of the cluster (highlighted red is the active
menu item). Use the RIGHTarrow to enter the gauges
setup screen and the UP/DOWNarrows to select Tach
Peak from the menu of gauge options. Select up and down to toggle between “ON” and “OFF.”
SRT Performance
WARNING!
Measurement of vehicle statistics with the Perfor-
mance Features is intended for off-highway or off-
road use only and should not be done on any public
roadways. It is recommended that these features be
used in a controlled environment and within the
limits of the law. The capabilities of the vehicle as
measured by the performance pages must never be
exploited in a reckless or dangerous manner, which
(Continued)Tach. Peak Hold
186 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING!(Continued)
can jeopardize the user ’s safety or the safety of
others. Only a safe, attentive, and skillful driver can
prevent accidents.
Push and release the UPorDOWN arrow button until
the SRT icon is highlighted in the DID. Push and release
the RIGHT arrow button, and 0–60 MPH Duration will
be displayed. Push and release the LEFTandRIGHT
arrow button to scroll through the following information
sub-menus:
0–60 Time
Push and release the LEFTandRIGHT arrow button
until the last 0–60 MPH information is displayed.
Braking Distance
Push and release the LEFTandRIGHT arrow button
until the last Braking Distance information is displayed. 1/4 Mile Elapsed Time
Push and release the
LEFTandRIGHT arrow button
until the last 1/4 Mile Top Speed & Duration information
is displayed.
1/8 Mile Elapsed Time
Push and release the LEFTandRIGHT arrow button
until the last 1/8 Mile Top Speed & Duration information
is displayed.
G-Force Instant
Push and release the LEFTandRIGHT arrow button
until the Current G-Forces are displayed.
G-Force Peak
Push and release the LEFTandRIGHT arrow button
until the Peak G-Forces are displayed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

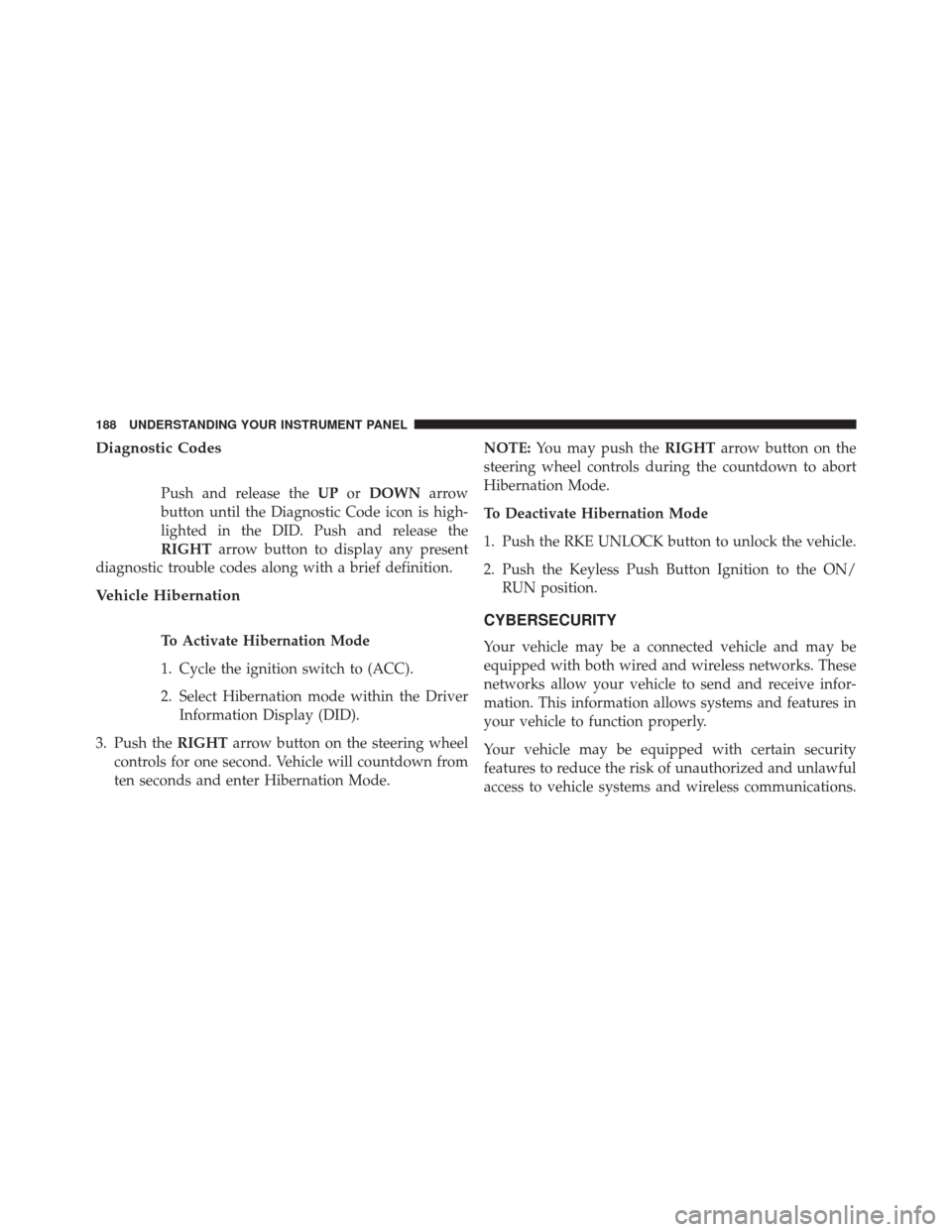

Diagnostic Codes
Push and release theUPorDOWN arrow
button until the Diagnostic Code icon is high-
lighted in the DID. Push and release the
RIGHT arrow button to display any present
diagnostic trouble codes along with a brief definition.
Vehicle Hibernation
To Activate Hibernation Mode
1. Cycle the ignition switch to (ACC).
2. Select Hibernation mode within the Driver Information Display (DID).
3. Push the RIGHTarrow button on the steering wheel
controls for one second. Vehicle will countdown from
ten seconds and enter Hibernation Mode. NOTE:
You may push the RIGHTarrow button on the
steering wheel controls during the countdown to abort
Hibernation Mode.
To Deactivate Hibernation Mode
1. Push the RKE UNLOCK button to unlock the vehicle.
2. Push the Keyless Push Button Ignition to the ON/ RUN position.
CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive infor-
mation. This information allows systems and features in
your vehicle to function properly.
Your vehicle may be equipped with certain security
features to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
