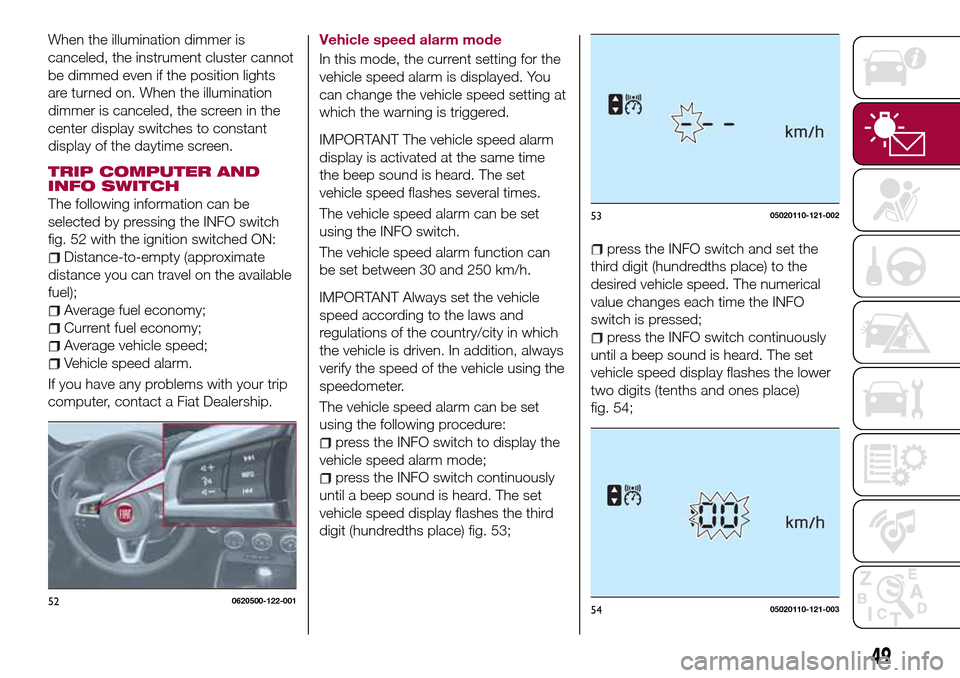

When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the position lights
are turned on. When the illumination
dimmer is canceled, the screen in the
center display switches to constant
display of the daytime screen.
TRIP COMPUTER AND
INFO SWITCH
The following information can be
selected by pressing the INFO switch
fig. 52 with the ignition switched ON:
Distance-to-empty (approximate
distance you can travel on the available
fuel);
Average fuel economy;
Current fuel economy;
Average vehicle speed;
Vehicle speed alarm.
If you have any problems with your trip
computer, contact a Fiat Dealership.Vehicle speed alarm mode
In this mode, the current setting for the
vehicle speed alarm is displayed. You
can change the vehicle speed setting at
which the warning is triggered.
IMPORTANT The vehicle speed alarm
display is activated at the same time
the beep sound is heard. The set
vehicle speed flashes several times.
The vehicle speed alarm can be set
using the INFO switch.
The vehicle speed alarm function can
be set between 30 and 250 km/h.
IMPORTANT Always set the vehicle
speed according to the laws and
regulations of the country/city in which
the vehicle is driven. In addition, always
verify the speed of the vehicle using the
speedometer.
The vehicle speed alarm can be set
using the following procedure:
press the INFO switch to display the
vehicle speed alarm mode;
press the INFO switch continuously
until a beep sound is heard. The set
vehicle speed display flashes the third
digit (hundredths place) fig. 53;
press the INFO switch and set the
third digit (hundredths place) to the
desired vehicle speed. The numerical
value changes each time the INFO
switch is pressed;
press the INFO switch continuously
until a beep sound is heard. The set
vehicle speed display flashes the lower
two digits (tenths and ones place)
fig. 54;
520620500-122-001
5305020110-121-002
5405020110-121-003
49

press the INFO switch and set the
two lower digits (tenths and ones place)
to the desired vehicle speed. The
numerical value changes each time the
INFO switch is pressed;
press the INFO switch continuously
until a beep sound is heard. The set
vehicle speed is displayed on the
vehicle speed alarm screen.

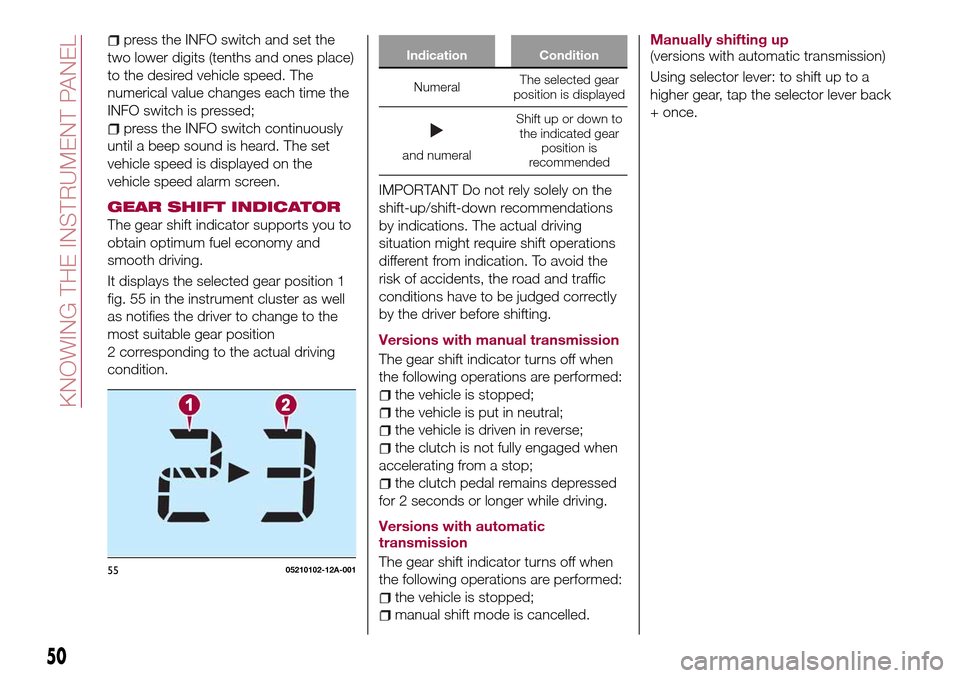

GEAR SHIFT INDICATOR
The gear shift indicator supports you to
obtain optimum fuel economy and
smooth driving.
It displays the selected gear position 1
fig. 55 in the instrument cluster as well
as notifies the driver to change to the
most suitable gear position
2 corresponding to the actual driving
condition.
Indication Condition
NumeralThe selected gear
position is displayed
and numeralShift up or down to
the indicated gear
position is
recommended
IMPORTANT Do not rely solely on the
shift-up/shift-down recommendations
by indications. The actual driving
situation might require shift operations
different from indication. To avoid the
risk of accidents, the road and traffic
conditions have to be judged correctly
by the driver before shifting.
Versions with manual transmission
The gear shift indicator turns off when
the following operations are performed:
the vehicle is stopped;
the vehicle is put in neutral;
the vehicle is driven in reverse;
the clutch is not fully engaged when
accelerating from a stop;
the clutch pedal remains depressed
for 2 seconds or longer while driving.
Versions with automatic
transmission
The gear shift indicator turns off when
the following operations are performed:
the vehicle is stopped;
manual shift mode is cancelled.Manually shifting up
(versions with automatic transmission)
Using selector lever: to shift up to a
higher gear, tap the selector lever back
+ once.
5505210102-12A-001
50
KNOWING THE INSTRUMENT PANEL

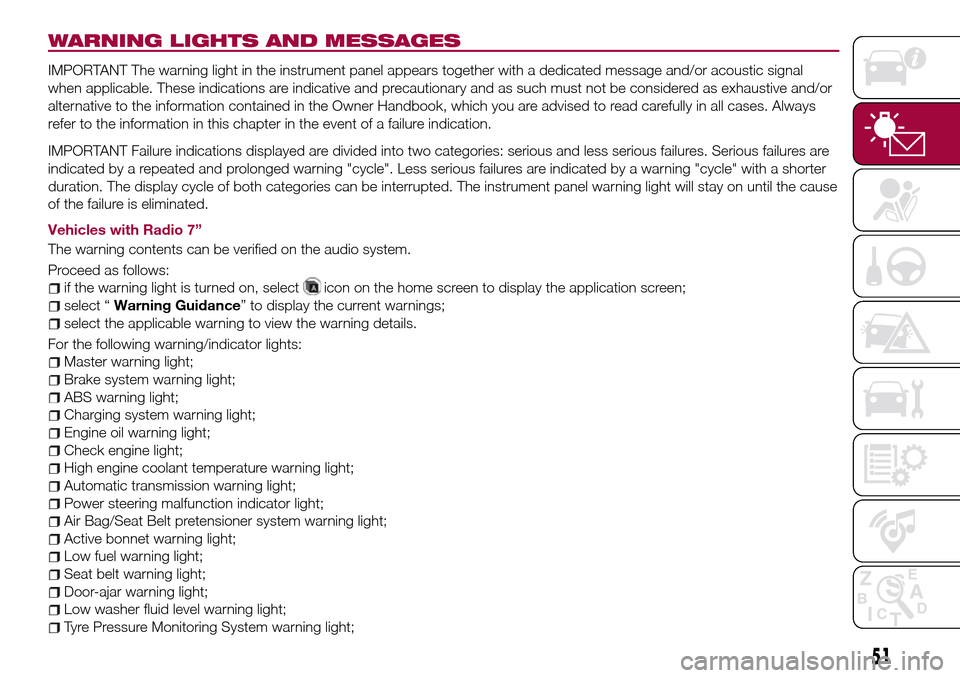

WARNING LIGHTS AND MESSAGES
IMPORTANT The warning light in the instrument panel appears together with a dedicated message and/or acoustic signal
when applicable. These indications are indicative and precautionary and as such must not be considered as exhaustive and/or
alternative to the information contained in the Owner Handbook, which you are advised to read carefully in all cases. Always
refer to the information in this chapter in the event of a failure indication.
IMPORTANT Failure indications displayed are divided into two categories: serious and less serious failures. Serious failures are
indicated by a repeated and prolonged warning "cycle". Less serious failures are indicated by a warning "cycle" with a shorter
duration. The display cycle of both categories can be interrupted. The instrument panel warning light will stay on until the cause
of the failure is eliminated.
Vehicles with Radio 7”
The warning contents can be verified on the audio system.
Proceed as follows:
if the warning light is turned on, selecticon on the home screen to display the application screen;
select “Warning Guidance” to display the current warnings;
select the applicable warning to view the warning details.
For the following warning/indicator lights:
Master warning light;
Brake system warning light;
ABS warning light;
Charging system warning light;
Engine oil warning light;
Check engine light;
High engine coolant temperature warning light;
Automatic transmission warning light;
Power steering malfunction indicator light;
Air Bag/Seat Belt pretensioner system warning light;
Active bonnet warning light;
Low fuel warning light;
Seat belt warning light;
Door-ajar warning light;
Low washer fluid level warning light;
Tyre Pressure Monitoring System warning light;
51

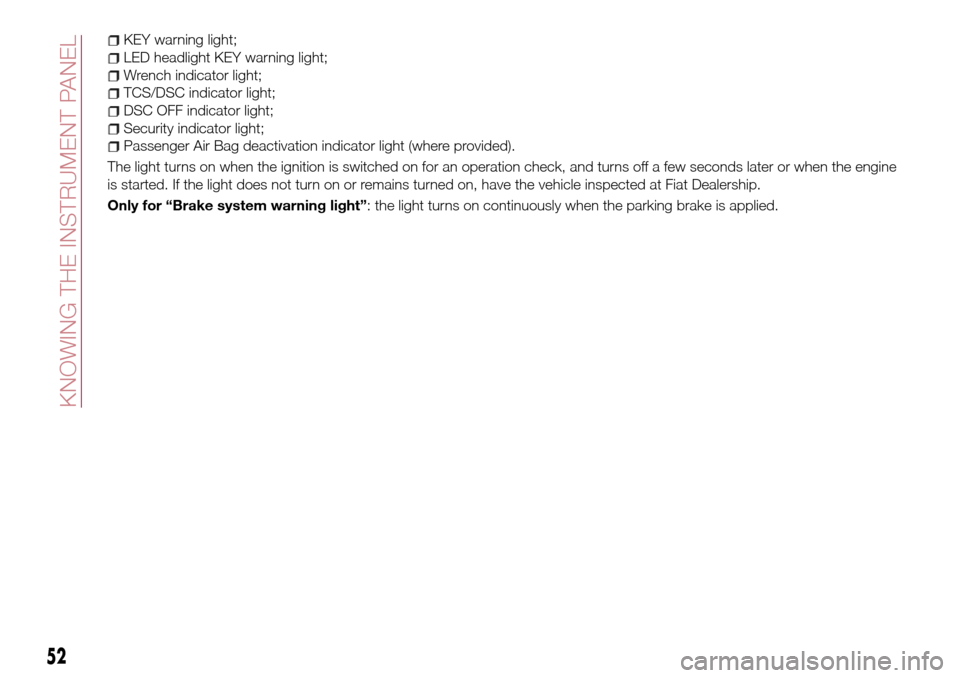

KEY warning light;
LED headlight KEY warning light;
Wrench indicator light;
TCS/DSC indicator light;
DSC OFF indicator light;
Security indicator light;
Passenger Air Bag deactivation indicator light (where provided).
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine
is started. If the light does not turn on or remains turned on, have the vehicle inspected at Fiat Dealership.
Only for “Brake system warning light”: the light turns on continuously when the parking brake is applied.
52
KNOWING THE INSTRUMENT PANEL

WARNING LIGHTS ON INSTRUMENT PANEL

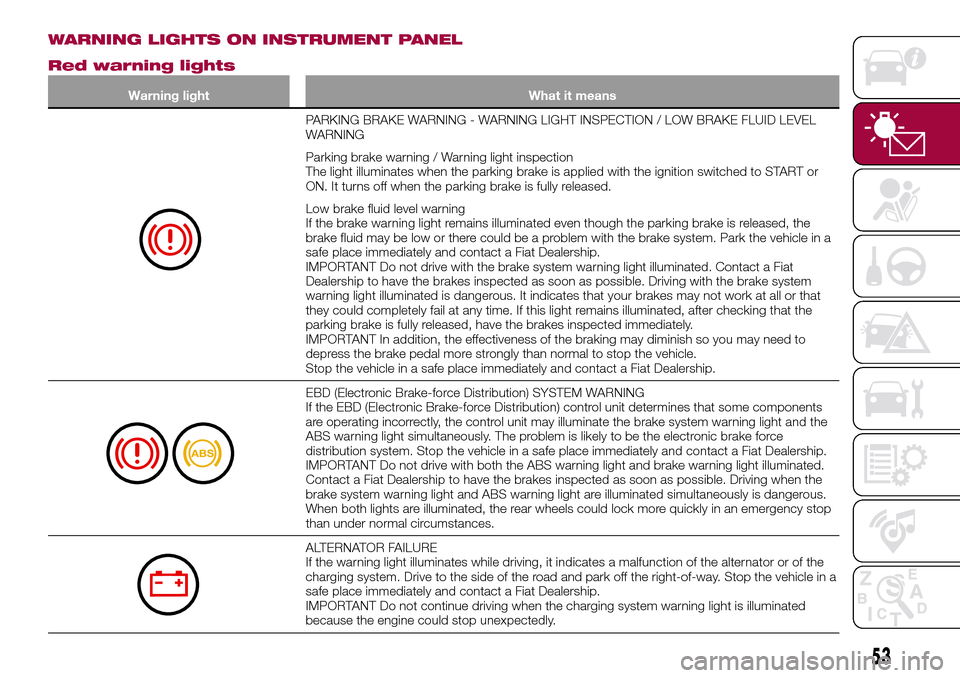

Red warning lights
Warning light What it means
PARKING BRAKE WARNING - WARNING LIGHT INSPECTION / LOW BRAKE FLUID LEVEL
WARNING
Parking brake warning / Warning light inspection
The light illuminates when the parking brake is applied with the ignition switched to START or
ON. It turns off when the parking brake is fully released.
Low brake fluid level warning
If the brake warning light remains illuminated even though the parking brake is released, the
brake fluid may be low or there could be a problem with the brake system. Park the vehicle in a
safe place immediately and contact a Fiat Dealership.
IMPORTANT Do not drive with the brake system warning light illuminated. Contact a Fiat
Dealership to have the brakes inspected as soon as possible. Driving with the brake system
warning light illuminated is dangerous. It indicates that your brakes may not work at all or that
they could completely fail at any time. If this light remains illuminated, after checking that the
parking brake is fully released, have the brakes inspected immediately.
IMPORTANT In addition, the effectiveness of the braking may diminish so you may need to
depress the brake pedal more strongly than normal to stop the vehicle.
Stop the vehicle in a safe place immediately and contact a Fiat Dealership.
EBD (Electronic Brake-force Distribution) SYSTEM WARNING
If the EBD (Electronic Brake-force Distribution) control unit determines that some components
are operating incorrectly, the control unit may illuminate the brake system warning light and the
ABS warning light simultaneously. The problem is likely to be the electronic brake force
distribution system. Stop the vehicle in a safe place immediately and contact a Fiat Dealership.
IMPORTANT Do not drive with both the ABS warning light and brake warning light illuminated.
Contact a Fiat Dealership to have the brakes inspected as soon as possible. Driving when the
brake system warning light and ABS warning light are illuminated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an emergency stop
than under normal circumstances.
ALTERNATOR FAILURE
If the warning light illuminates while driving, it indicates a malfunction of the alternator or of the
charging system. Drive to the side of the road and park off the right-of-way. Stop the vehicle in a
safe place immediately and contact a Fiat Dealership.
IMPORTANT Do not continue driving when the charging system warning light is illuminated
because the engine could stop unexpectedly.
53

Warning light What it means

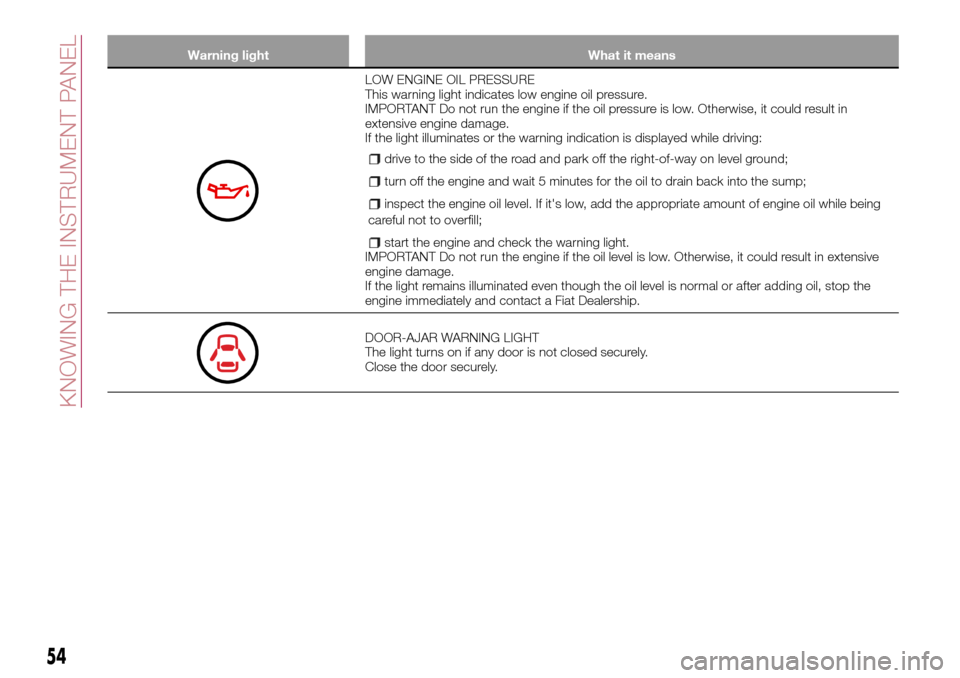

LOW ENGINE OIL PRESSURE
This warning light indicates low engine oil pressure.
IMPORTANT Do not run the engine if the oil pressure is low. Otherwise, it could result in
extensive engine damage.
If the light illuminates or the warning indication is displayed while driving:
drive to the side of the road and park off the right-of-way on level ground;
turn off the engine and wait 5 minutes for the oil to drain back into the sump;
inspect the engine oil level. If it's low, add the appropriate amount of engine oil while being
careful not to overfill;
start the engine and check the warning light.IMPORTANT Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
If the light remains illuminated even though the oil level is normal or after adding oil, stop the
engine immediately and contact a Fiat Dealership.
DOOR-AJAR WARNING LIGHT
The light turns on if any door is not closed securely.
Close the door securely.
54
KNOWING THE INSTRUMENT PANEL

Warning light What it means

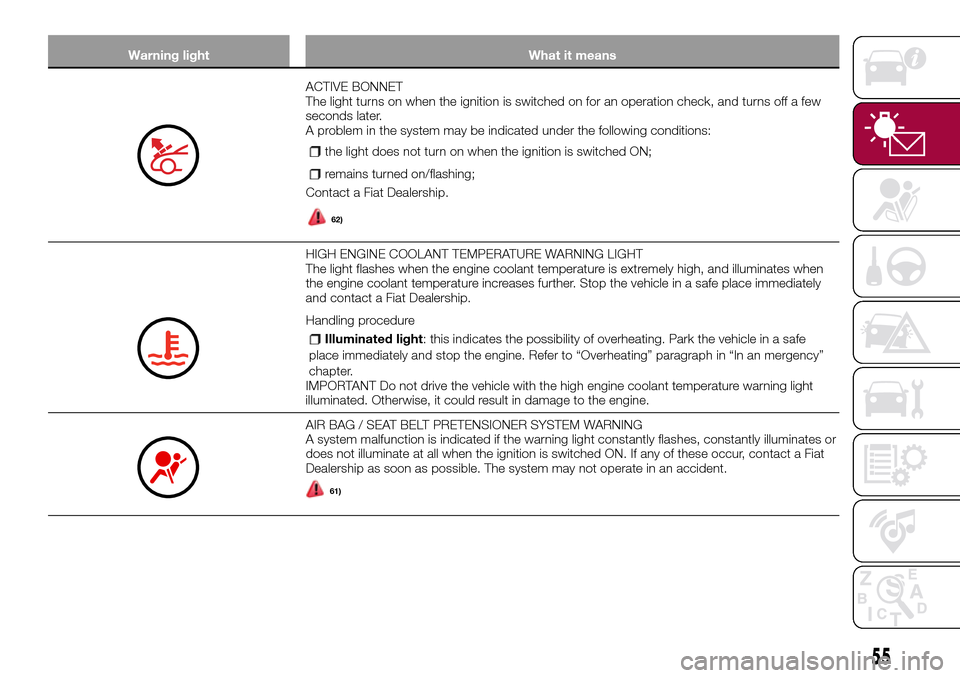

ACTIVE BONNET
The light turns on when the ignition is switched on for an operation check, and turns off a few
seconds later.
A problem in the system may be indicated under the following conditions:
the light does not turn on when the ignition is switched ON;
remains turned on/flashing;
Contact a Fiat Dealership.
62)
HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT
The light flashes when the engine coolant temperature is extremely high, and illuminates when
the engine coolant temperature increases further. Stop the vehicle in a safe place immediately
and contact a Fiat Dealership.
Handling procedure
Illuminated light: this indicates the possibility of overheating. Park the vehicle in a safe
place immediately and stop the engine. Refer to “Overheating” paragraph in “In an mergency”
chapter.
IMPORTANT Do not drive the vehicle with the high engine coolant temperature warning light
illuminated. Otherwise, it could result in damage to the engine.
AIR BAG / SEAT BELT PRETENSIONER SYSTEM WARNING
A system malfunction is indicated if the warning light constantly flashes, constantly illuminates or
does not illuminate at all when the ignition is switched ON. If any of these occur, contact a Fiat
Dealership as soon as possible. The system may not operate in an accident.
61)
55

Warning light What it means

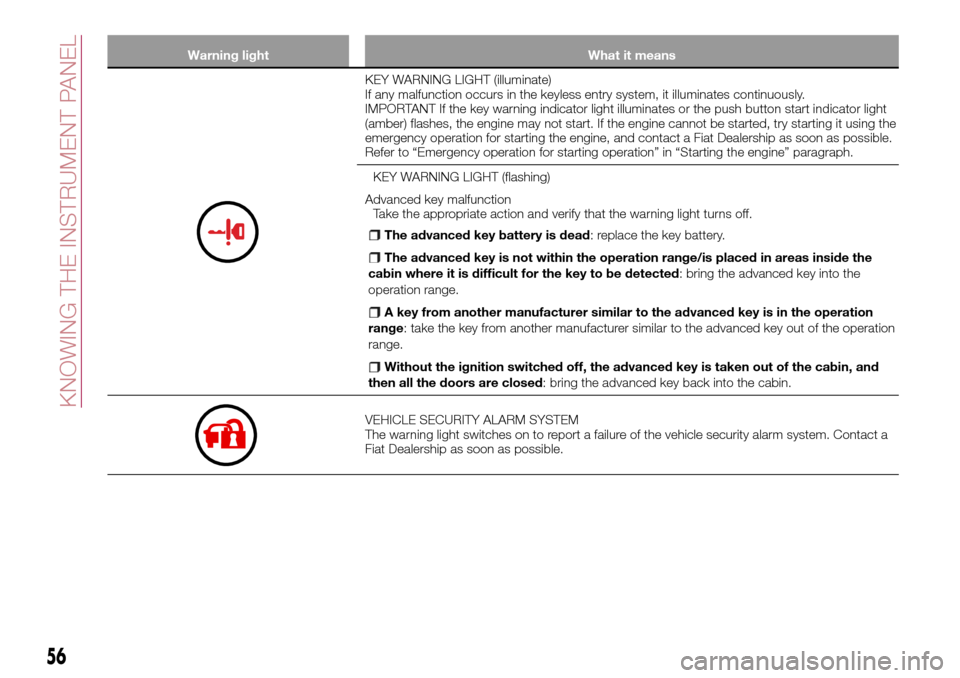

KEY WARNING LIGHT (illuminate)
If any malfunction occurs in the keyless entry system, it illuminates continuously.
IMPORTANT If the key warning indicator light illuminates or the push button start indicator light
(amber) flashes, the engine may not start. If the engine cannot be started, try starting it using the
emergency operation for starting the engine, and contact a Fiat Dealership as soon as possible.
Refer to “Emergency operation for starting operation” in “Starting the engine” paragraph.
KEY WARNING LIGHT (flashing)
Advanced key malfunction
Take the appropriate action and verify that the warning light turns off.
The advanced key battery is dead: replace the key battery.
The advanced key is not within the operation range/is placed in areas inside the
cabin where it is difficult for the key to be detected: bring the advanced key into the
operation range.
A key from another manufacturer similar to the advanced key is in the operation
range: take the key from another manufacturer similar to the advanced key out of the operation
range.
Without the ignition switched off, the advanced key is taken out of the cabin, and
then all the doors are closed: bring the advanced key back into the cabin.
VEHICLE SECURITY ALARM SYSTEM
The warning light switches on to report a failure of the vehicle security alarm system. Contact a
Fiat Dealership as soon as possible.
56
KNOWING THE INSTRUMENT PANEL

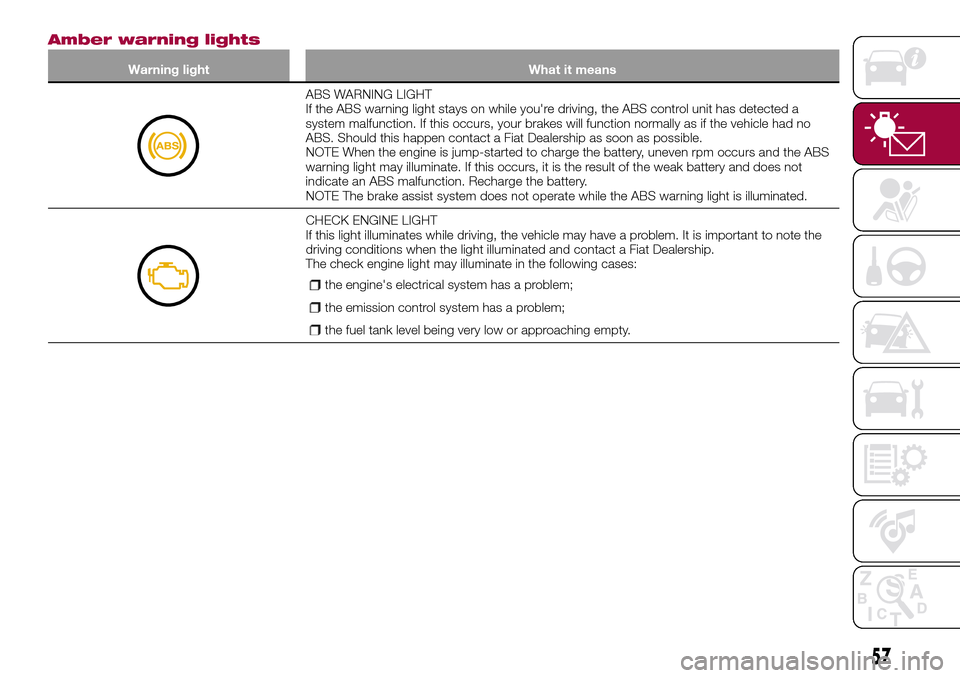

Amber warning lights
Warning light What it means
ABS WARNING LIGHT
If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had no
ABS. Should this happen contact a Fiat Dealership as soon as possible.
NOTE When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does not
indicate an ABS malfunction. Recharge the battery.
NOTE The brake assist system does not operate while the ABS warning light is illuminated.
CHECK ENGINE LIGHT
If this light illuminates while driving, the vehicle may have a problem. It is important to note the
driving conditions when the light illuminated and contact a Fiat Dealership.
The check engine light may illuminate in the following cases:
the engine's electrical system has a problem;
the emission control system has a problem;
the fuel tank level being very low or approaching empty.
57

Warning light What it means

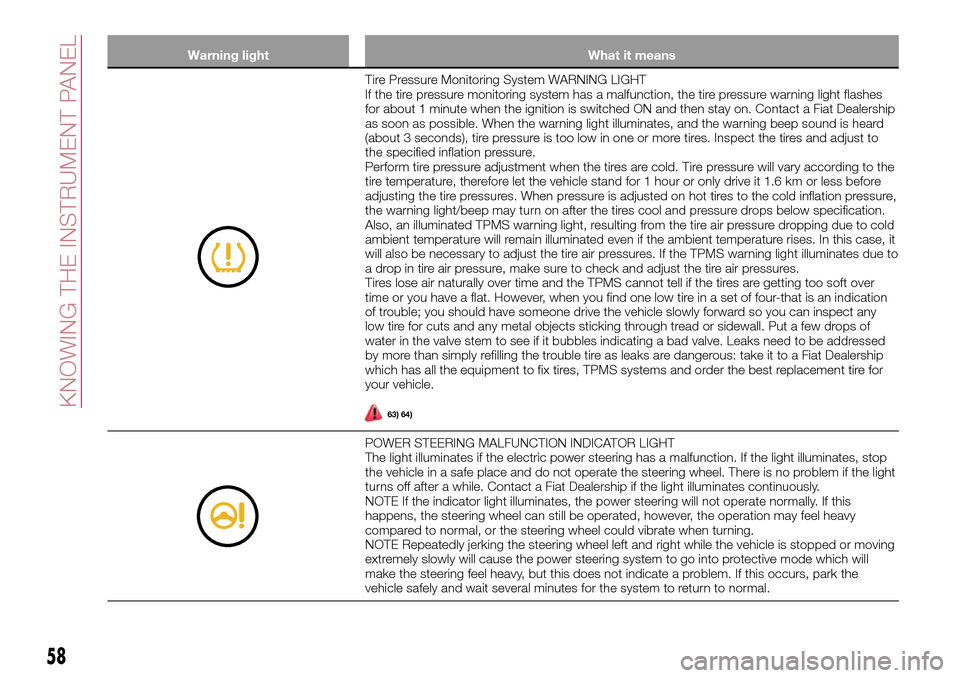

Tire Pressure Monitoring System WARNING LIGHT
If the tire pressure monitoring system has a malfunction, the tire pressure warning light flashes
for about 1 minute when the ignition is switched ON and then stay on. Contact a Fiat Dealership
as soon as possible. When the warning light illuminates, and the warning beep sound is heard
(about 3 seconds), tire pressure is too low in one or more tires. Inspect the tires and adjust to
the specified inflation pressure.
Perform tire pressure adjustment when the tires are cold. Tire pressure will vary according to the
tire temperature, therefore let the vehicle stand for 1 hour or only drive it 1.6 km or less before
adjusting the tire pressures. When pressure is adjusted on hot tires to the cold inflation pressure,
the warning light/beep may turn on after the tires cool and pressure drops below specification.
Also, an illuminated TPMS warning light, resulting from the tire air pressure dropping due to cold
ambient temperature will remain illuminated even if the ambient temperature rises. In this case, it
will also be necessary to adjust the tire air pressures. If the TPMS warning light illuminates due to
a drop in tire air pressure, make sure to check and adjust the tire air pressures.
Tires lose air naturally over time and the TPMS cannot tell if the tires are getting too soft over
time or you have a flat. However, when you find one low tire in a set of four-that is an indication
of trouble; you should have someone drive the vehicle slowly forward so you can inspect any
low tire for cuts and any metal objects sticking through tread or sidewall. Put a few drops of
water in the valve stem to see if it bubbles indicating a bad valve. Leaks need to be addressed
by more than simply refilling the trouble tire as leaks are dangerous: take it to a Fiat Dealership
which has all the equipment to fix tires, TPMS systems and order the best replacement tire for
your vehicle.
63) 64)
POWER STEERING MALFUNCTION INDICATOR LIGHT
The light illuminates if the electric power steering has a malfunction. If the light illuminates, stop
the vehicle in a safe place and do not operate the steering wheel. There is no problem if the light
turns off after a while. Contact a Fiat Dealership if the light illuminates continuously.
NOTE If the indicator light illuminates, the power steering will not operate normally. If this
happens, the steering wheel can still be operated, however, the operation may feel heavy
compared to normal, or the steering wheel could vibrate when turning.
NOTE Repeatedly jerking the steering wheel left and right while the vehicle is stopped or moving
extremely slowly will cause the power steering system to go into protective mode which will
make the steering feel heavy, but this does not indicate a problem. If this occurs, park the
vehicle safely and wait several minutes for the system to return to normal.
58
KNOWING THE INSTRUMENT PANEL
