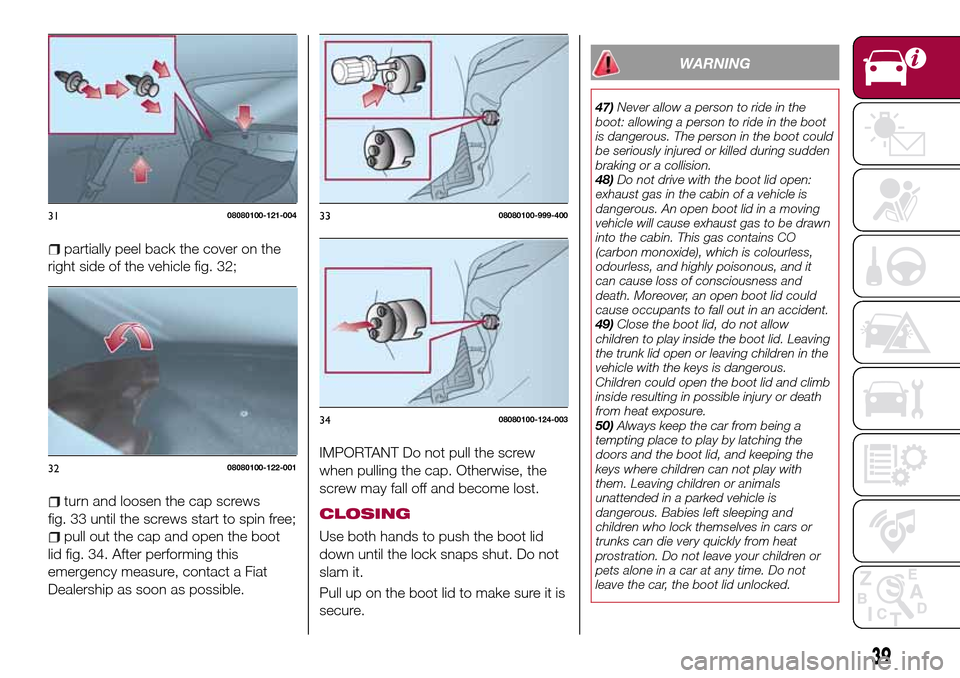

partially peel back the cover on the
right side of the vehicle fig. 32;
turn and loosen the cap screws
fig. 33 until the screws start to spin free;
pull out the cap and open the boot
lid fig. 34. After performing this
emergency measure, contact a Fiat
Dealership as soon as possible.
IMPORTANT Do not pull the screw
when pulling the cap. Otherwise, the
screw may fall off and become lost.
CLOSING
Use both hands to push the boot lid
down until the lock snaps shut. Do not
slam it.
Pull up on the boot lid to make sure it is
secure.
WARNING
47)Never allow a person to ride in the
boot: allowing a person to ride in the boot
is dangerous. The person in the boot could
be seriously injured or killed during sudden
braking or a collision.
48)Do not drive with the boot lid open:
exhaust gas in the cabin of a vehicle is
dangerous. An open boot lid in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colourless,
odourless, and highly poisonous, and it
can cause loss of consciousness and
death. Moreover, an open boot lid could
cause occupants to fall out in an accident.
49)Close the boot lid, do not allow
children to play inside the boot lid. Leaving
the trunk lid open or leaving children in the
vehicle with the keys is dangerous.
Children could open the boot lid and climb
inside resulting in possible injury or death
from heat exposure.
50)Always keep the car from being a
tempting place to play by latching the
doors and the boot lid, and keeping the
keys where children can not play with
them. Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars or
trunks can die very quickly from heat
prostration. Do not leave your children or
pets alone in a car at any time. Do not
leave the car, the boot lid unlocked.
3108080100-121-004
3208080100-122-001
3308080100-999-400
3408080100-124-003
39

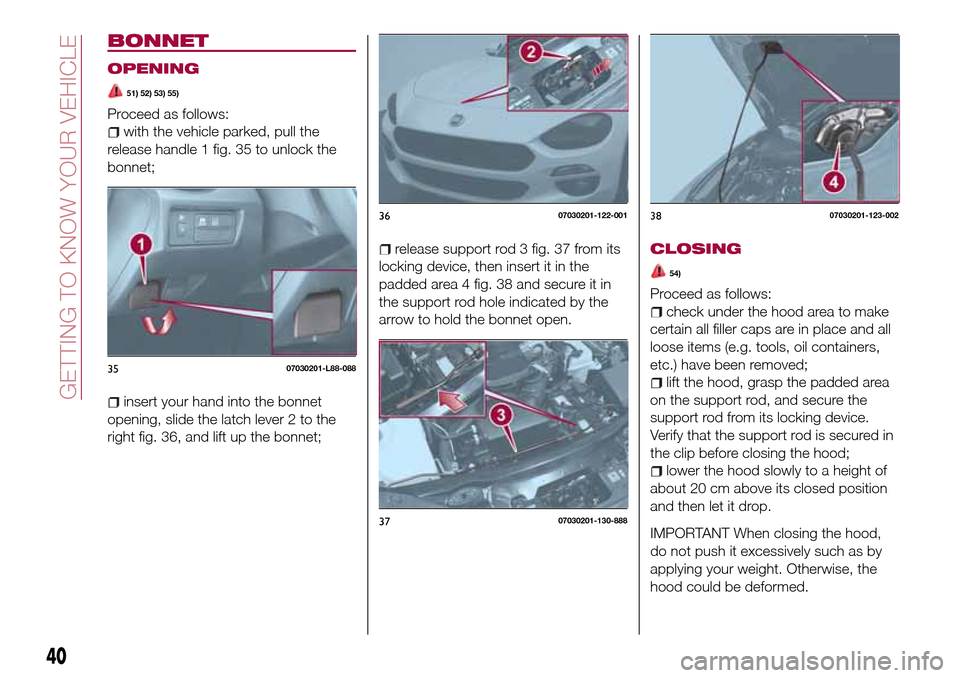

BONNET
OPENING
51) 52) 53) 55)
Proceed as follows:
with the vehicle parked, pull the
release handle 1 fig. 35 to unlock the
bonnet;
insert your hand into the bonnet
opening, slide the latch lever 2 to the
right fig. 36, and lift up the bonnet;
release support rod 3 fig. 37 from its
locking device, then insert it in the
padded area 4 fig. 38 and secure it in
the support rod hole indicated by the
arrow to hold the bonnet open.CLOSING
54)
Proceed as follows:
check under the hood area to make
certain all filler caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed;
lift the hood, grasp the padded area
on the support rod, and secure the
support rod from its locking device.
Verify that the support rod is secured in
the clip before closing the hood;
lower the hood slowly to a height of
about 20 cm above its closed position
and then let it drop.
IMPORTANT When closing the hood,
do not push it excessively such as by
applying your weight. Otherwise, the
hood could be deformed.
3507030201-L88-088
3607030201-122-001
3707030201-130-888
3807030201-123-002
40
GETTING TO KNOW YOUR VEHICLE

WARNING
51)Perform these operations only when
the car is stationary.
52)The bonnet may drop suddenly if the
supporting rod is not positioned correctly.
53)Use both hands to lift the bonnet.
Before lifting, check that the windscreen
wiper arms are not raised from the
windscreen, that the vehicle is stationary
and that the parking brake is engaged.
54)Always check that the bonnet is closed
and securely locked. A bonnet that is not
closed and securely locked is dangerous
as it could fly open while the vehicle is
moving and block the driver's vision which
could result in a serious accident.
55)With active bonnet: do not pull the
bonnet's release handle after the active
bonnet has activated. Pulling the release
handle while the active bonnet is operating
is dangerous as it will raise the bonnet
further and obstruct vision. In addition, the
bonnet cannot be lowered manually,
therefore do not attempt to forcefully push
the bonnet back down. Otherwise, it could
deform the bonnet or cause injury. If the
active bonnet has activated, always consult
an expert repairer, contact a Fiat
Dealership immediately.

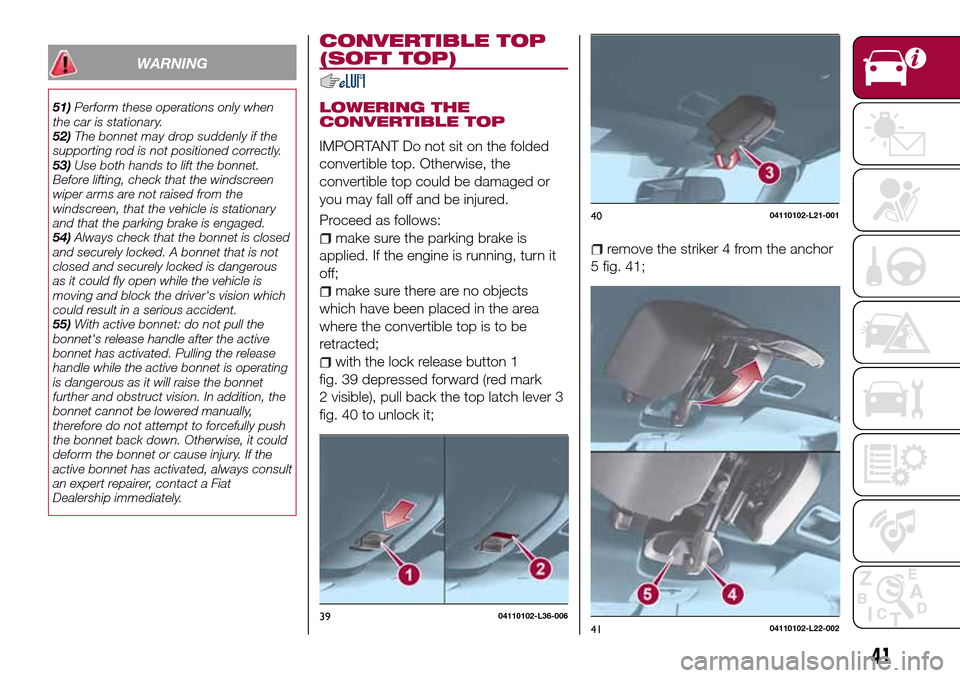

CONVERTIBLE TOP
(SOFT TOP)
LOWERING THE
CONVERTIBLE TOP
IMPORTANT Do not sit on the folded
convertible top. Otherwise, the
convertible top could be damaged or
you may fall off and be injured.
Proceed as follows:
make sure the parking brake is
applied. If the engine is running, turn it
off;
make sure there are no objects
which have been placed in the area
where the convertible top is to be
retracted;
with the lock release button 1
fig. 39 depressed forward (red mark
2 visible), pull back the top latch lever 3
fig. 40 to unlock it;
remove the striker 4 from the anchor
5 fig. 41;
3904110102-L36-006
4004110102-L21-001
4104110102-L22-002
41

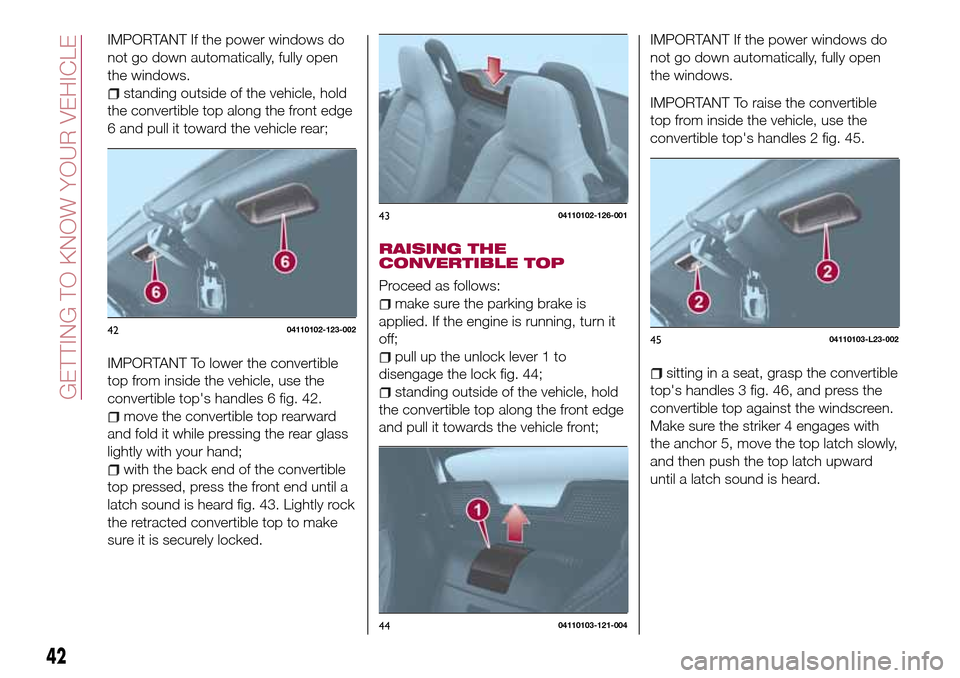

IMPORTANT If the power windows do
not go down automatically, fully open
the windows.
standing outside of the vehicle, hold
the convertible top along the front edge
6 and pull it toward the vehicle rear;
IMPORTANT To lower the convertible
top from inside the vehicle, use the
convertible top's handles 6 fig. 42.
move the convertible top rearward
and fold it while pressing the rear glass
lightly with your hand;
with the back end of the convertible
top pressed, press the front end until a
latch sound is heard fig. 43. Lightly rock
the retracted convertible top to make
sure it is securely locked.
RAISING THE
CONVERTIBLE TOP
Proceed as follows:
make sure the parking brake is
applied. If the engine is running, turn it
off;
pull up the unlock lever 1 to
disengage the lock fig. 44;
standing outside of the vehicle, hold
the convertible top along the front edge
and pull it towards the vehicle front;
IMPORTANT If the power windows do
not go down automatically, fully open
the windows.
IMPORTANT To raise the convertible
top from inside the vehicle, use the
convertible top's handles 2 fig. 45.
sitting in a seat, grasp the convertible
top's handles 3 fig. 46, and press the
convertible top against the windscreen.
Make sure the striker 4 engages with
the anchor 5, move the top latch slowly,
and then push the top latch upward
until a latch sound is heard.
4204110102-123-002
4304110102-126-001
4404110103-121-004
4504110103-L23-002
42
GETTING TO KNOW YOUR VEHICLE

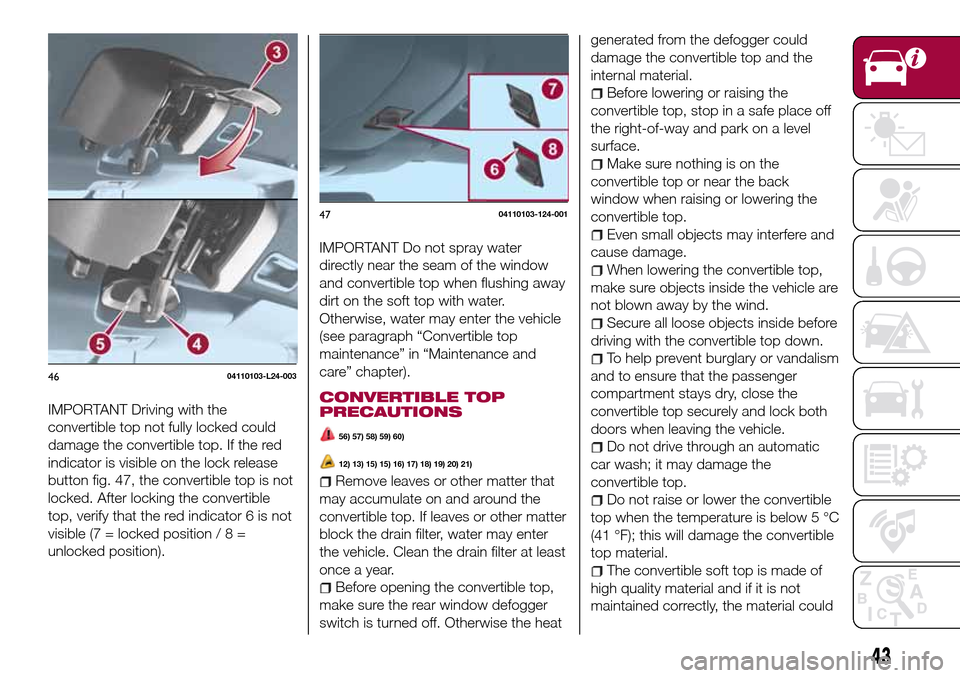

IMPORTANT Driving with the
convertible top not fully locked could
damage the convertible top. If the red
indicator is visible on the lock release
button fig. 47, the convertible top is not
locked. After locking the convertible
top, verify that the red indicator 6 is not
visible (7 = locked position/8=
unlocked position).IMPORTANT Do not spray water
directly near the seam of the window
and convertible top when flushing away
dirt on the soft top with water.
Otherwise, water may enter the vehicle
(see paragraph “Convertible top
maintenance” in “Maintenance and
care” chapter).
CONVERTIBLE TOP
PRECAUTIONS
56) 57) 58) 59) 60)
12) 13) 15) 15) 16) 17) 18) 19) 20) 21)
Remove leaves or other matter that
may accumulate on and around the
convertible top. If leaves or other matter
block the drain filter, water may enter
the vehicle. Clean the drain filter at least
once a year.
Before opening the convertible top,
make sure the rear window defogger
switch is turned off. Otherwise the heatgenerated from the defogger could
damage the convertible top and the
internal material.
Before lowering or raising the
convertible top, stop in a safe place off
the right-of-way and park on a level
surface.
Make sure nothing is on the
convertible top or near the back
window when raising or lowering the
convertible top.
Even small objects may interfere and
cause damage.
When lowering the convertible top,
make sure objects inside the vehicle are
not blown away by the wind.
Secure all loose objects inside before
driving with the convertible top down.
To help prevent burglary or vandalism
and to ensure that the passenger
compartment stays dry, close the
convertible top securely and lock both
doors when leaving the vehicle.
Do not drive through an automatic
car wash; it may damage the
convertible top.
Do not raise or lower the convertible
top when the temperature is below 5 °C
(41 °F); this will damage the convertible
top material.
The convertible soft top is made of
high quality material and if it is not
maintained correctly, the material could
4604110103-L24-003
4704110103-124-001
43

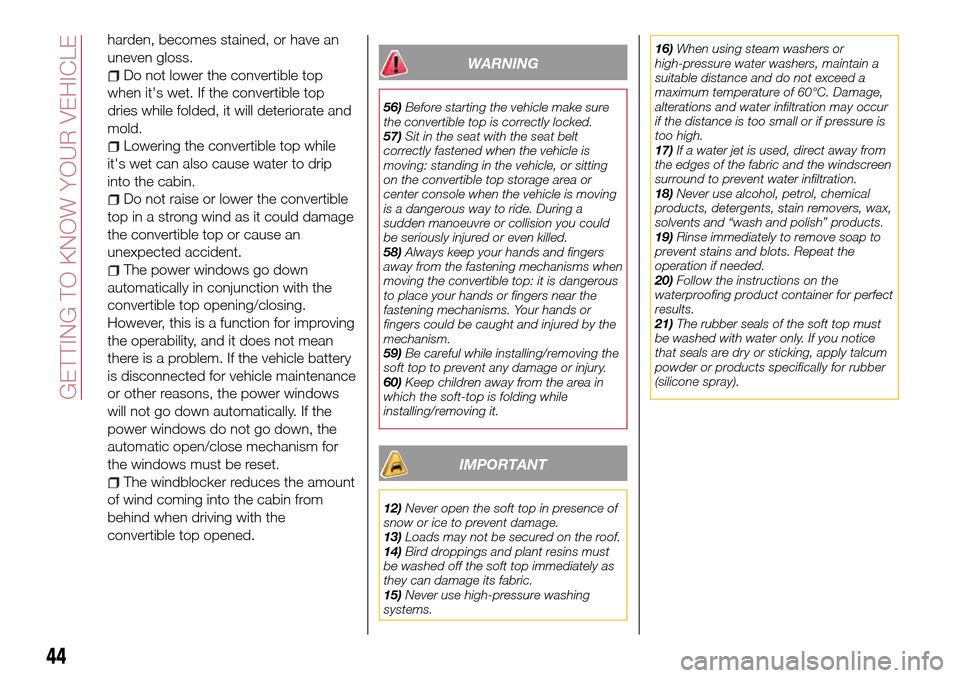

harden, becomes stained, or have an
uneven gloss.
Do not lower the convertible top
when it's wet. If the convertible top
dries while folded, it will deteriorate and
mold.
Lowering the convertible top while
it's wet can also cause water to drip
into the cabin.
Do not raise or lower the convertible
top in a strong wind as it could damage
the convertible top or cause an
unexpected accident.
The power windows go down
automatically in conjunction with the
convertible top opening/closing.
However, this is a function for improving
the operability, and it does not mean
there is a problem. If the vehicle battery
is disconnected for vehicle maintenance
or other reasons, the power windows
will not go down automatically. If the
power windows do not go down, the
automatic open/close mechanism for
the windows must be reset.
The windblocker reduces the amount
of wind coming into the cabin from
behind when driving with the
convertible top opened.
WARNING
56)Before starting the vehicle make sure
the convertible top is correctly locked.
57)Sit in the seat with the seat belt
correctly fastened when the vehicle is
moving: standing in the vehicle, or sitting
on the convertible top storage area or
center console when the vehicle is moving
is a dangerous way to ride. During a
sudden manoeuvre or collision you could
be seriously injured or even killed.
58)Always keep your hands and fingers
away from the fastening mechanisms when
moving the convertible top: it is dangerous
to place your hands or fingers near the
fastening mechanisms. Your hands or
fingers could be caught and injured by the
mechanism.
59)Be careful while installing/removing the
soft top to prevent any damage or injury.
60)Keep children away from the area in
which the soft-top is folding while
installing/removing it.
IMPORTANT
12)Never open the soft top in presence of
snow or ice to prevent damage.
13)Loads may not be secured on the roof.
14)Bird droppings and plant resins must
be washed off the soft top immediately as
they can damage its fabric.
15)Never use high-pressure washing
systems.16)When using steam washers or
high-pressure water washers, maintain a
suitable distance and do not exceed a
maximum temperature of 60°C. Damage,
alterations and water infiltration may occur
if the distance is too small or if pressure is
too high.
17)If a water jet is used, direct away from
the edges of the fabric and the windscreen
surround to prevent water infiltration.
18)Never use alcohol, petrol, chemical
products, detergents, stain removers, wax,
solvents and “wash and polish” products.
19)Rinse immediately to remove soap to
prevent stains and blots. Repeat the
operation if needed.
20)Follow the instructions on the
waterproofing product container for perfect
results.
21)The rubber seals of the soft top must
be washed with water only. If you notice
that seals are dry or sticking, apply talcum
powder or products specifically for rubber
(silicone spray).
44
GETTING TO KNOW YOUR VEHICLE

KNOWING THE INSTRUMENT PANEL
This section of the owner handbook
gives you all the information you need
to understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
INSTRUMENTS..............46
WARNING LIGHTS AND
MESSAGES................51
45

CONTROL PANEL AND INSTRUMENTS

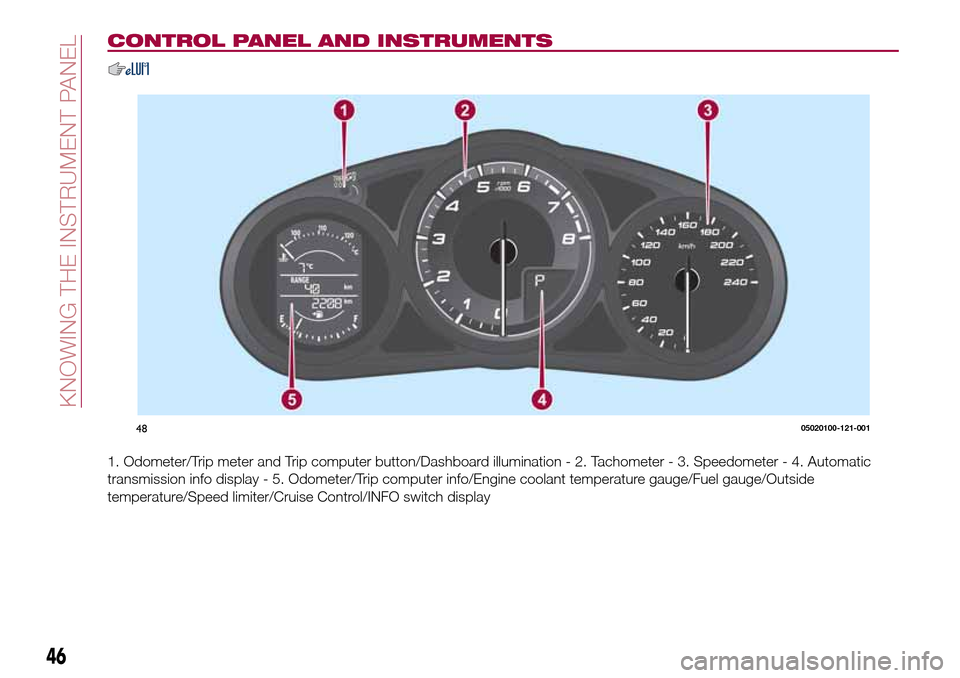

1. Odometer/Trip meter and Trip computer button/Dashboard illumination - 2. Tachometer - 3. Speedometer - 4. Automatic
transmission info display - 5. Odometer/Trip computer info/Engine coolant temperature gauge/Fuel gauge/Outside
temperature/Speed limiter/Cruise Control/INFO switch display
4805020100-121-001
46
KNOWING THE INSTRUMENT PANEL

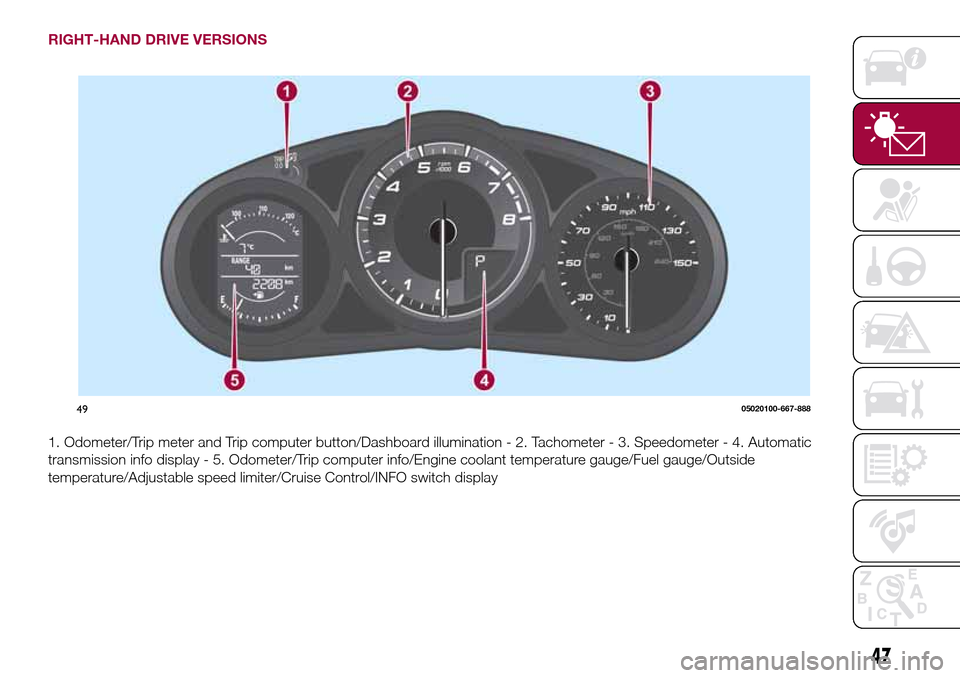

RIGHT-HAND DRIVE VERSIONS
1. Odometer/Trip meter and Trip computer button/Dashboard illumination - 2. Tachometer - 3. Speedometer - 4. Automatic
transmission info display - 5. Odometer/Trip computer info/Engine coolant temperature gauge/Fuel gauge/Outside
temperature/Adjustable speed limiter/Cruise Control/INFO switch display
4905020100-667-888
47

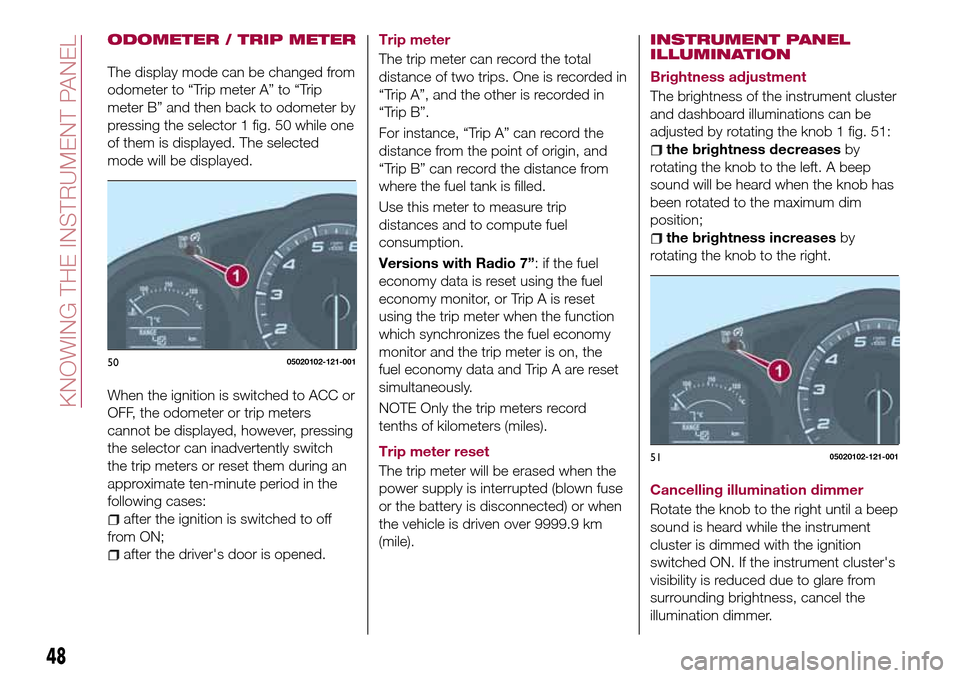

ODOMETER / TRIP METER
The display mode can be changed from
odometer to “Trip meter A” to “Trip
meter B” and then back to odometer by
pressing the selector 1 fig. 50 while one
of them is displayed. The selected
mode will be displayed.
When the ignition is switched to ACC or
OFF, the odometer or trip meters
cannot be displayed, however, pressing
the selector can inadvertently switch
the trip meters or reset them during an
approximate ten-minute period in the
following cases:
after the ignition is switched to off
from ON;
after the driver's door is opened.Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
“Trip A”, and the other is recorded in
“Trip B”.
For instance, “Trip A” can record the
distance from the point of origin, and
“Trip B” can record the distance from
where the fuel tank is filled.
Use this meter to measure trip
distances and to compute fuel
consumption.
Versions with Radio 7”: if the fuel
economy data is reset using the fuel
economy monitor, or Trip A is reset
using the trip meter when the function
which synchronizes the fuel economy
monitor and the trip meter is on, the
fuel economy data and Trip A are reset
simultaneously.
NOTE Only the trip meters record
tenths of kilometers (miles).
Trip meter reset
The trip meter will be erased when the
power supply is interrupted (blown fuse
or the battery is disconnected) or when
the vehicle is driven over 9999.9 km
(mile).
INSTRUMENT PANEL
ILLUMINATION
Brightness adjustment
The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob 1 fig. 51:
the brightness decreasesby
rotating the knob to the left. A beep
sound will be heard when the knob has
been rotated to the maximum dim
position;
the brightness increasesby
rotating the knob to the right.
Cancelling illumination dimmer
Rotate the knob to the right until a beep
sound is heard while the instrument
cluster is dimmed with the ignition
switched ON. If the instrument cluster's
visibility is reduced due to glare from
surrounding brightness, cancel the
illumination dimmer.
5005020102-121-001
5105020102-121-001
48
KNOWING THE INSTRUMENT PANEL
