FIAT 500 ABARTH 2013 2.G Owners Manual

FIAT 500 ABARTH
Chrysler Group LLCOWNER’S MANUAL
2013
2013 FIAT 500 ABARTH
13FX24-126-AEFifth Edition Rev 1Printed in U.S.A.

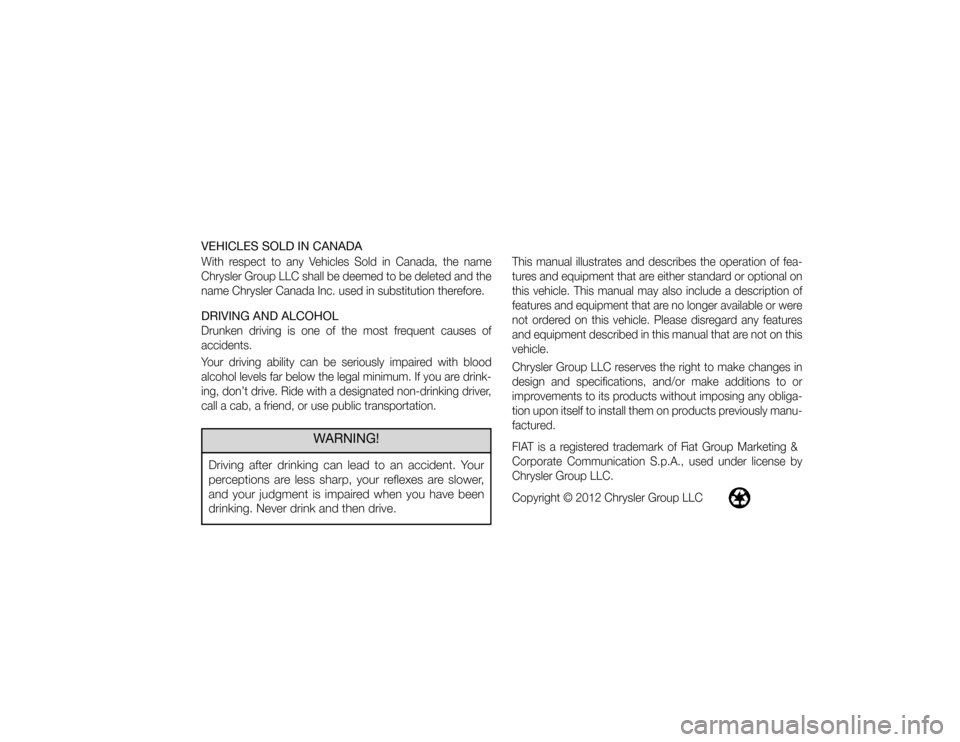

VEHICLES SOLD IN CANADAWith respect to any Vehicles Sold in Canada, the nameChrysler Group LLC shall be deemed to be deleted and thename Chrysler Canada Inc. used in substitution therefore.DRIVING AND ALCOHOLDrunken driving is one of the most frequent causes ofaccidents.Your driving ability can be seriously impaired with bloodalcohol levels far below the legal minimum. If you are drink-ing, don’t drive. Ride with a designated non-drinking driver,call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Yourperceptions are less sharp, your reflexes are slower,and your judgment is impaired when you have beendrinking. Never drink and then drive.
This manual illustrates and describes the operation of fea-tures and equipment that are either standard or optional onthis vehicle. This manual may also include a description offeatures and equipment that are no longer available or werenot ordered on this vehicle. Please disregard any featuresand equipment described in this manual that are not on thisvehicle.Chrysler Group LLC reserves the right to make changes indesign and specifications, and/or make additions to orimprovements to its products without imposing any obliga-tion upon itself to install them on products previously manu-factured.FIAT is a registered trademark of Fiat Group Marketing &Corporate Communication S.p.A., used under license byChrysler Group LLC.Copyright © 2012 Chrysler Group LLC

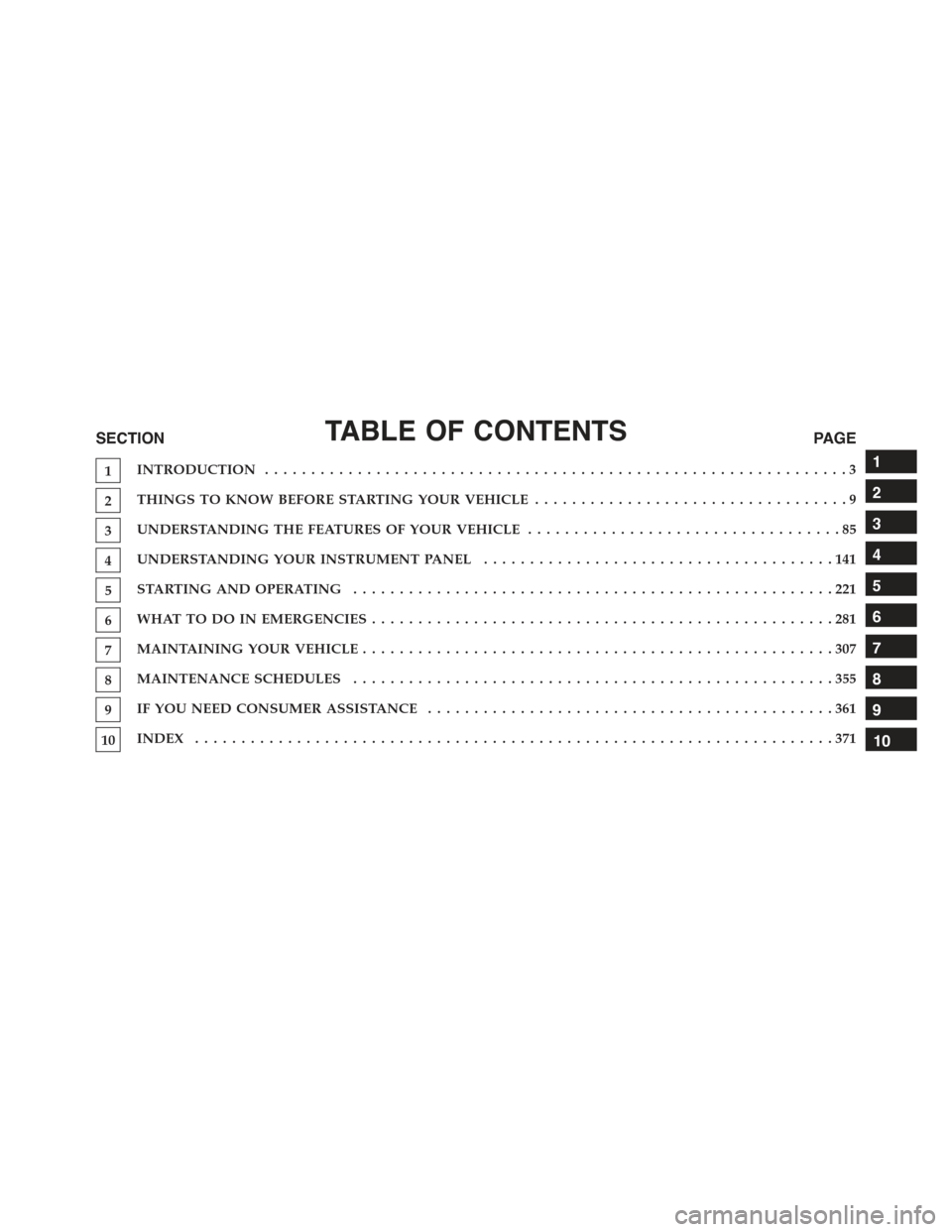

TABLE OF CONTENTSSECTIONPAGE
1INTRODUCTION ...............................................................3
2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE..................................9
3UNDERSTANDING THE FEATURES OF YOUR VEHICLE..................................85
4UNDERSTANDING YOUR INSTRUMENT PANEL......................................141
5STARTING AND OPERATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
6WHAT TO DO IN EMERGENCIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
7MAINTAINING YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
8MAINTENANCE SCHEDULES....................................................355
9IF YOU NEED CONSUMER ASSISTANCE............................................361
10INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
1
2
3
4
5
6
7
8
9
10

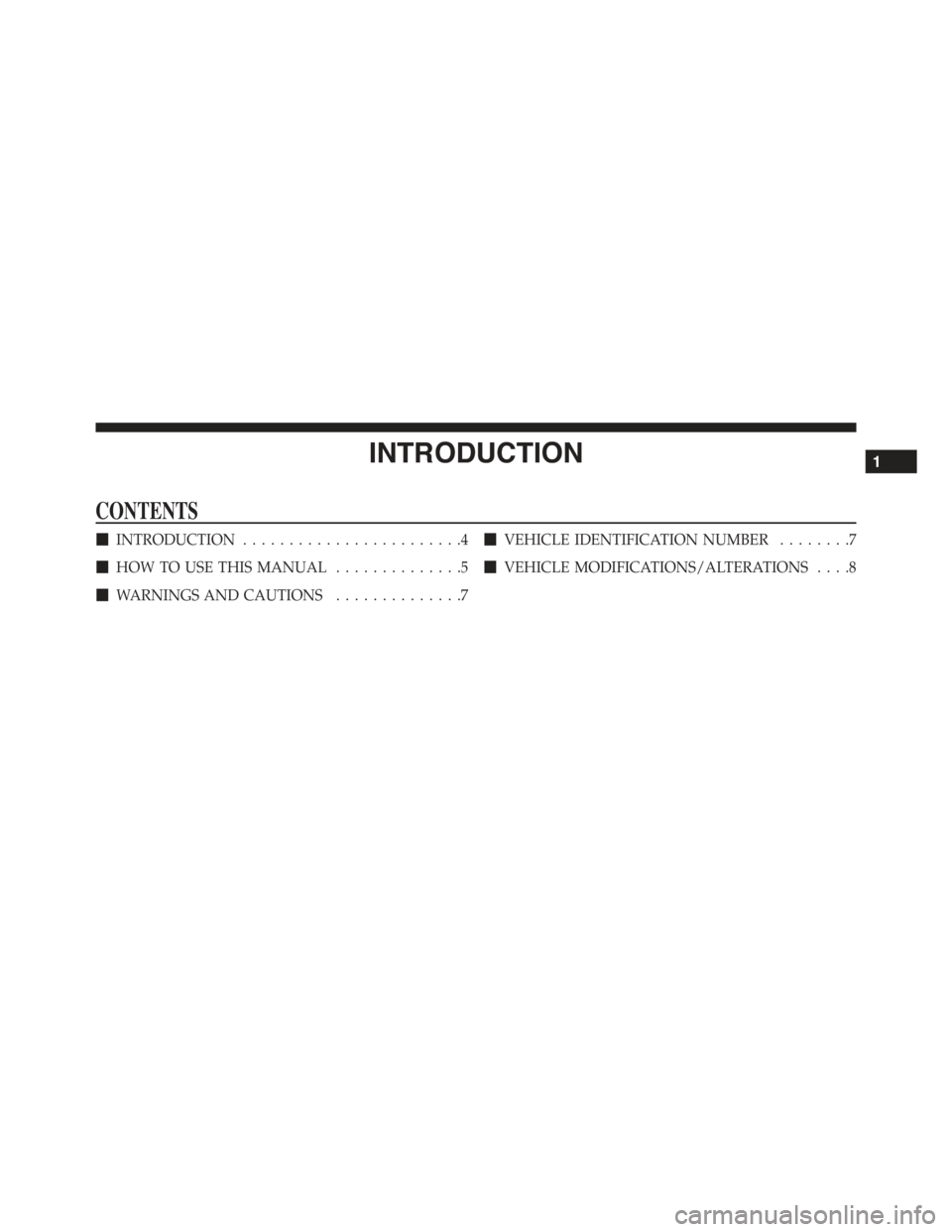

INTRODUCTION
CONTENTS
!INTRODUCTION........................4
!HOW TO USE THIS MANUAL..............5
!WARNINGS AND CAUTIONS..............7
!VEHICLE IDENTIFICATION NUMBER........7
!VEHICLE MODIFICATIONS/ALTERATIONS....8
1

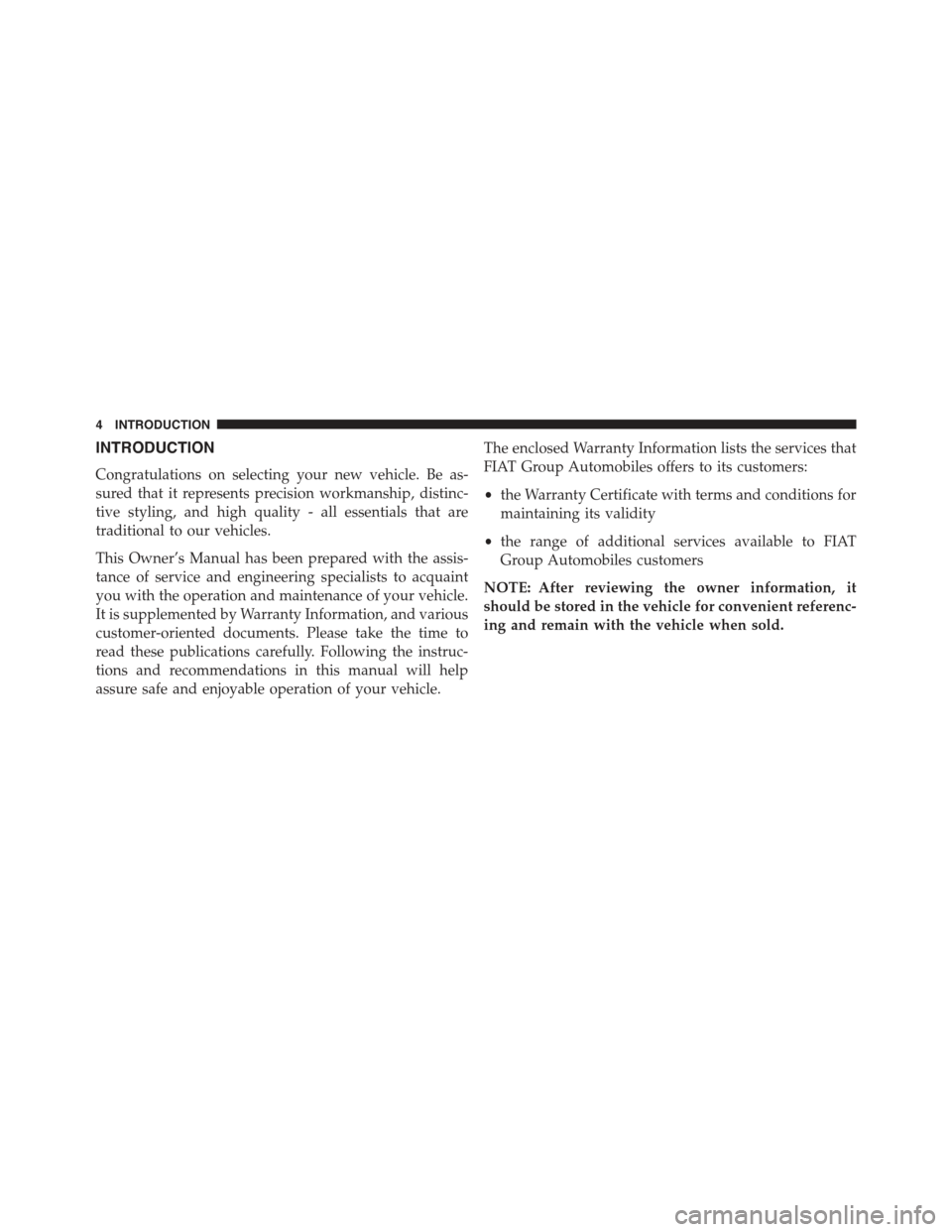

INTRODUCTION
Congratulations on selecting your new vehicle. Be as-
sured that it represents precision workmanship, distinc-
tive styling, and high quality - all essentials that are
traditional to our vehicles.
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by Warranty Information, and various
customer-oriented documents. Please take the time to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
The enclosed Warranty Information lists the services that
FIAT Group Automobiles offers to its customers:
•the Warranty Certificate with terms and conditions for
maintaining its validity
•the range of additional services available to FIAT
Group Automobiles customers
NOTE: After reviewing the owner information, it
should be stored in the vehicle for convenient referenc-
ing and remain with the vehicle when sold.
4INTRODUCTION

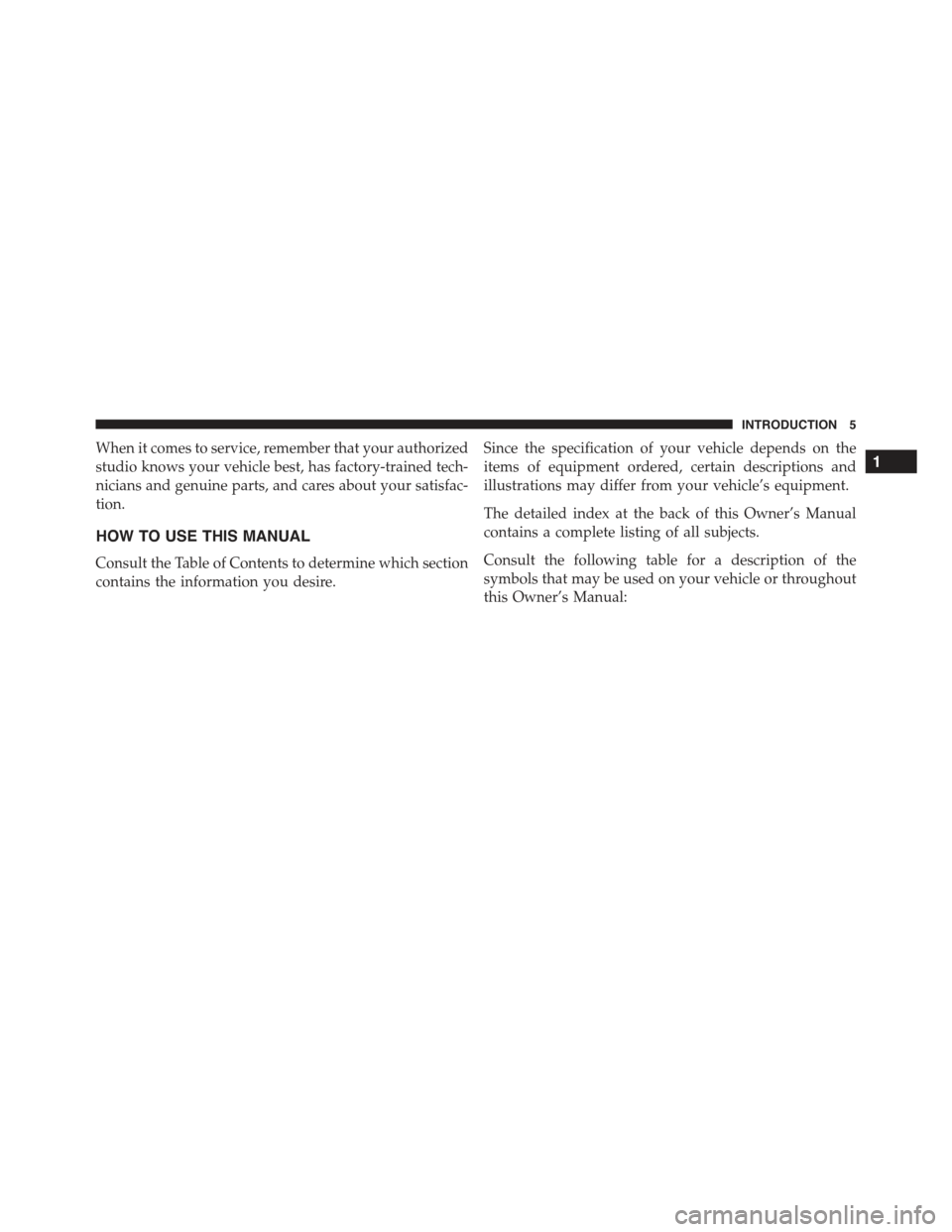

When it comes to service, remember that your authorized
studio knows your vehicle best, has factory-trained tech-
nicians and genuine parts, and cares about your satisfac-
tion.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment.
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.

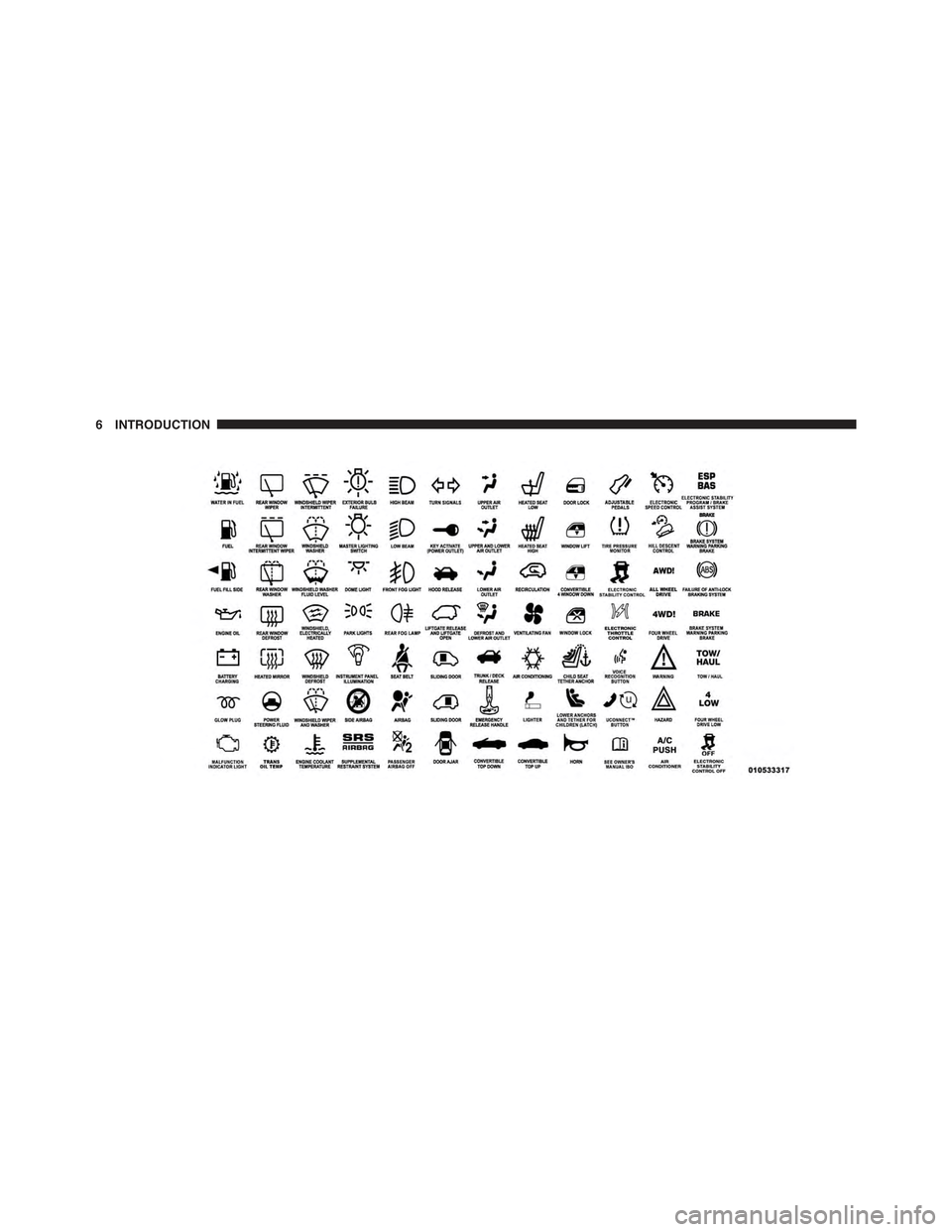

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:
1
INTRODUCTION 5

6INTRODUCTION

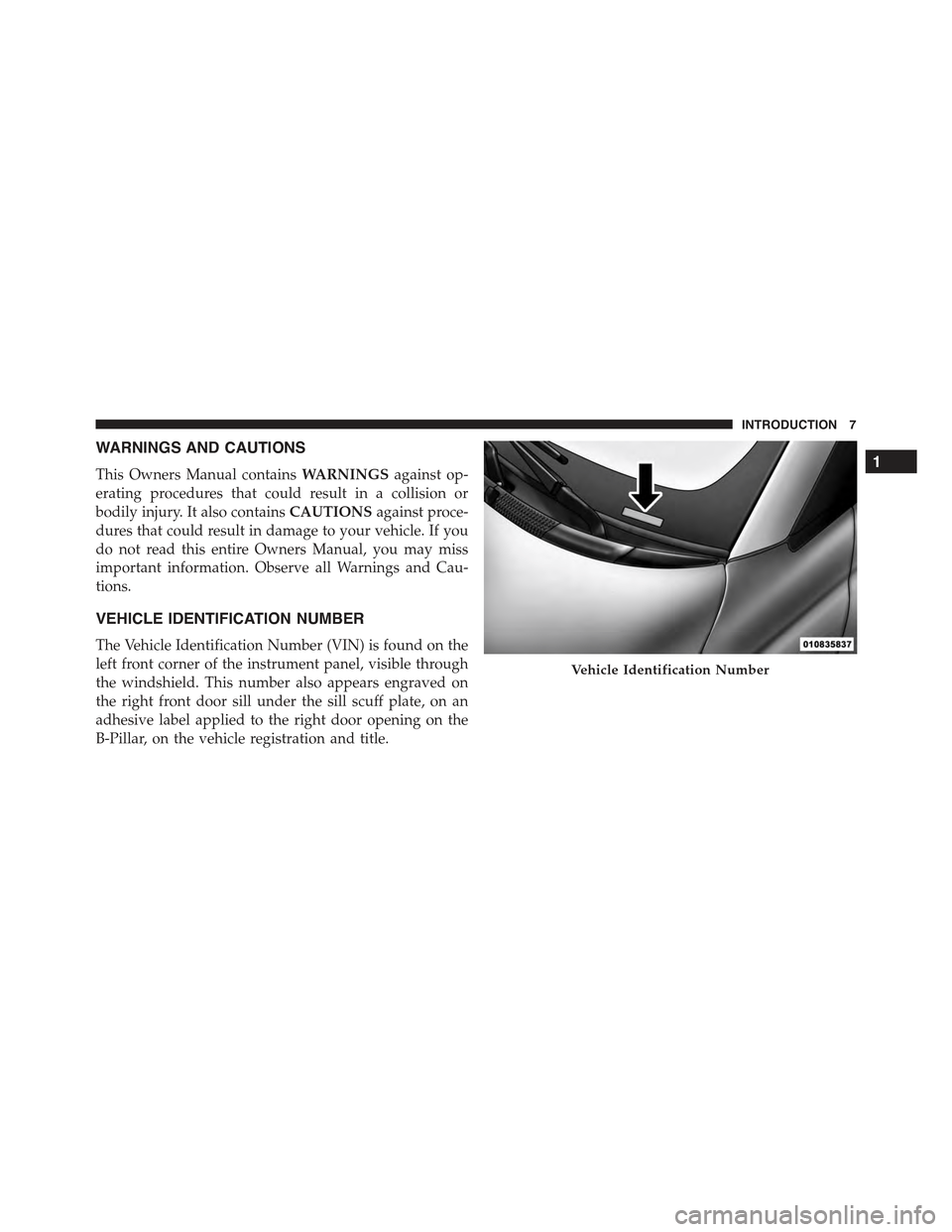

WARNINGS AND CAUTIONS
This Owners Manual containsWARNINGSagainst op-
erating procedures that could result in a collision or
bodily injury. It also containsCAUTIONSagainst proce-
dures that could result in damage to your vehicle. If you
do not read this entire Owners Manual, you may miss
important information. Observe all Warnings and Cau-
tions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears engraved on
the right front door sill under the sill scuff plate, on an
adhesive label applied to the right door opening on the
B-Pillar, on the vehicle registration and title.
Vehicle Identification Number
1
INTRODUCTION 7

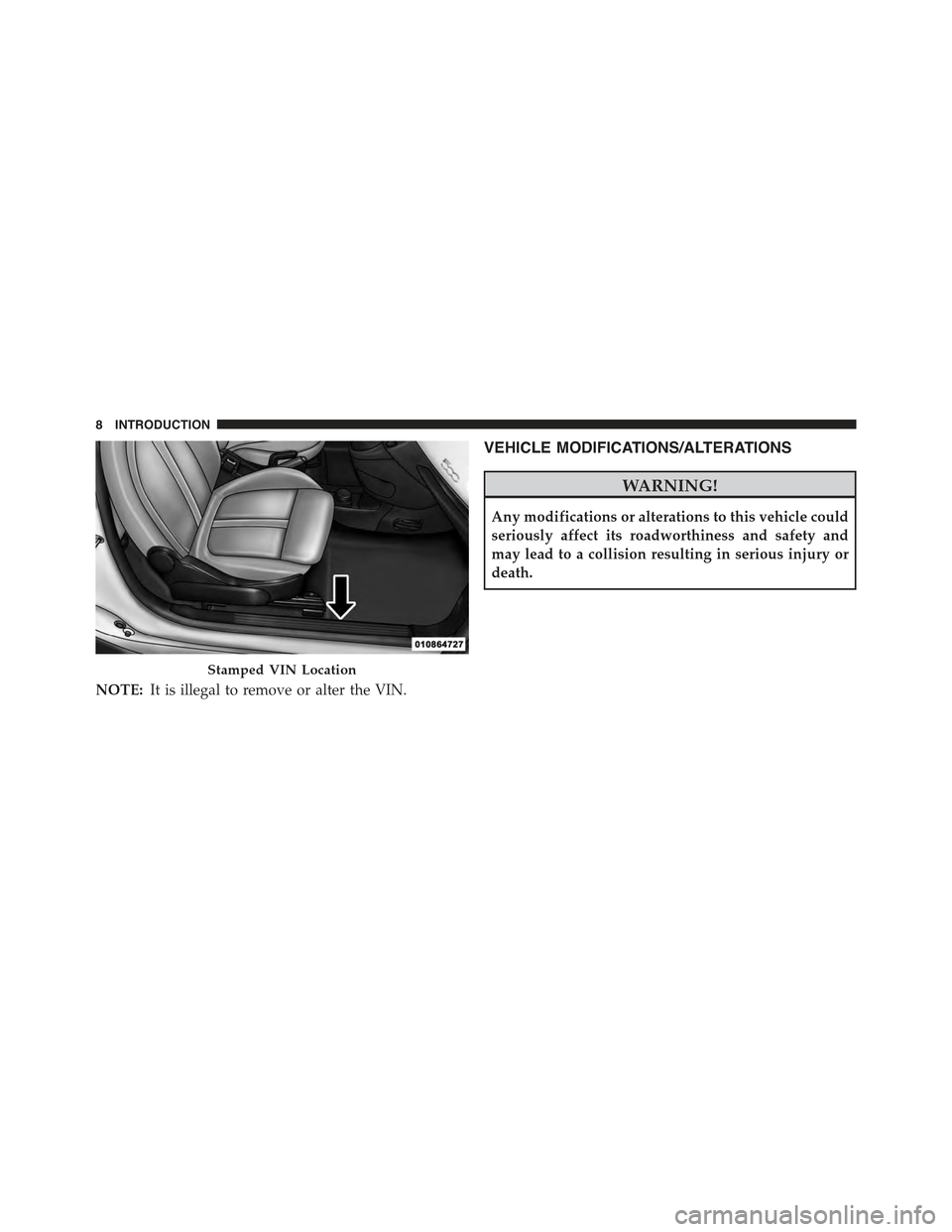

NOTE:It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.
Stamped VIN Location
8INTRODUCTION
