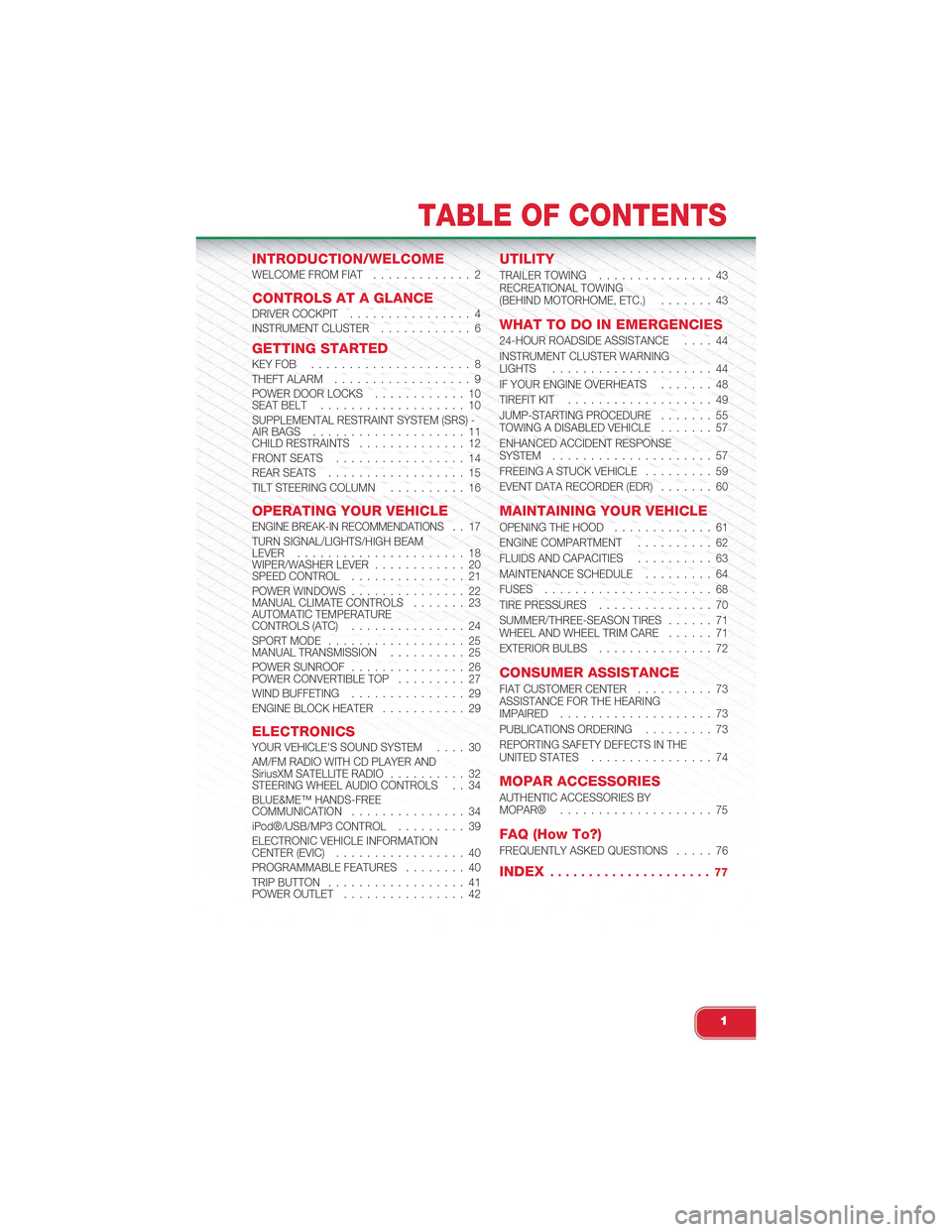

TABLE OF CONTENTS
1

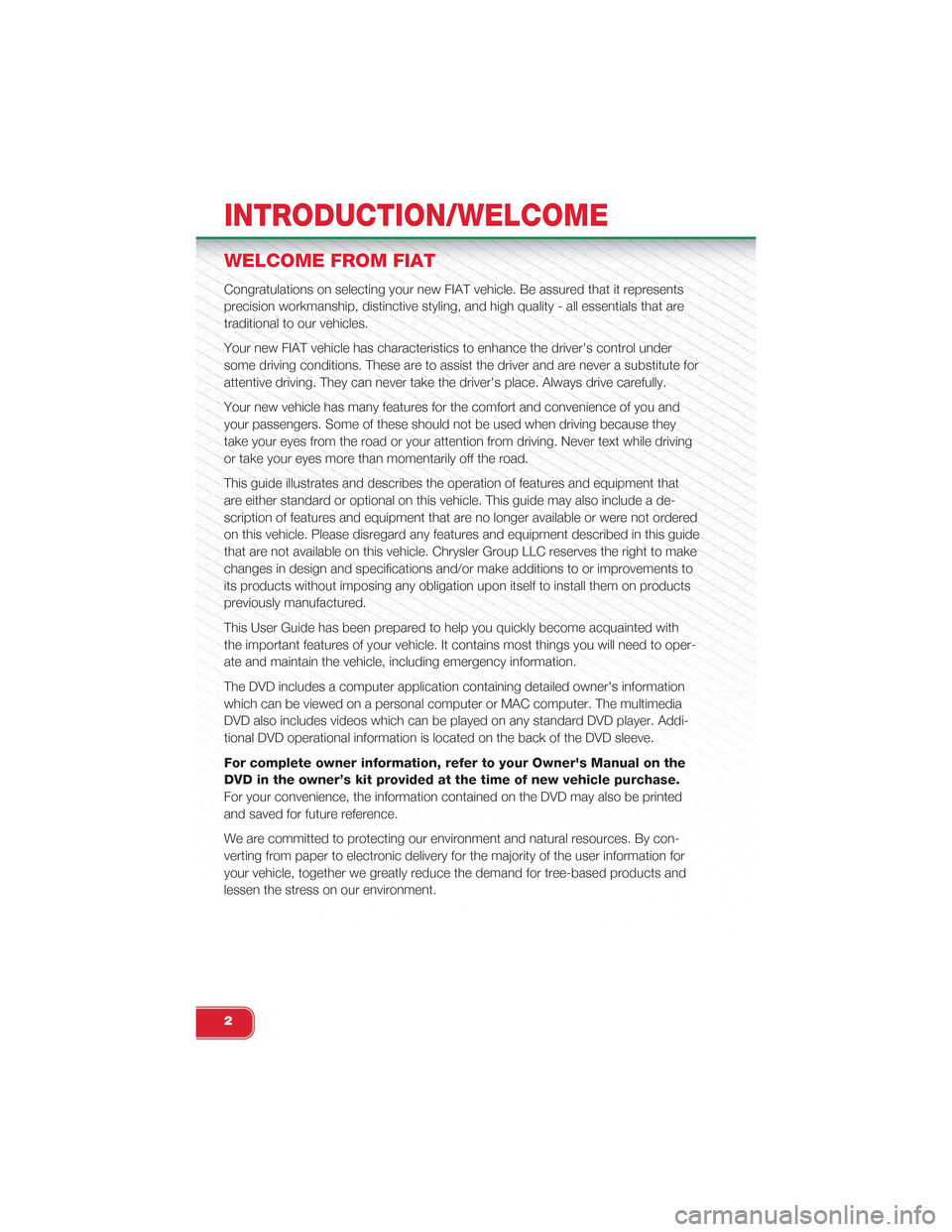

WELCOME FROM FIAT
Congratulations on selecting your new FIAT vehicle. Be assured that it represents
precision workmanship, distinctive styling, and high quality - all essentials that are
traditional to our vehicles.
Your new FIAT vehicle has characteristics to enhance the driver's control under
some driving conditions. These are to assist the driver and are never a substitute for
attentive driving. They can never take the driver's place. Always drive carefully.
Your new vehicle has many features for the comfort and convenience of you and
your passengers. Some of these should not be used when driving because they
take your eyes from the road or your attention from driving. Never text while driving
or take your eyes more than momentarily off the road.
This guide illustrates and describes the operation of features and equipment that
are either standard or optional on this vehicle. This guide may also include a de-
scription of features and equipment that are no longer available or were not ordered
on this vehicle. Please disregard any features and equipment described in this guide
that are not available on this vehicle. Chrysler Group LLC reserves the right to make
changes in design and specifications and/or make additions to or improvements to
its products without imposing any obligation upon itself to install them on products
previously manufactured.
This User Guide has been prepared to help you quickly become acquainted with
the important features of your vehicle. It contains most things you will need to oper-
ate and maintain the vehicle, including emergency information.
The DVD includes a computer application containing detailed owner's information
which can be viewed on a personal computer or MAC computer. The multimedia
DVD also includes videos which can be played on any standard DVD player. Addi-
tional DVD operational information is located on the back of the DVD sleeve.
For complete owner information, refer to your Owner's Manual on the
DVD in the owner’s kit provided at the time of new vehicle purchase.
For your convenience, the information contained on the DVD may also be printed
and saved for future reference.
We are committed to protecting our environment and natural resources. By con-
verting from paper to electronic delivery for the majority of the user information for
your vehicle, together we greatly reduce the demand for tree-based products and
lessen the stress on our environment.
INTRODUCTION/WELCOME
2

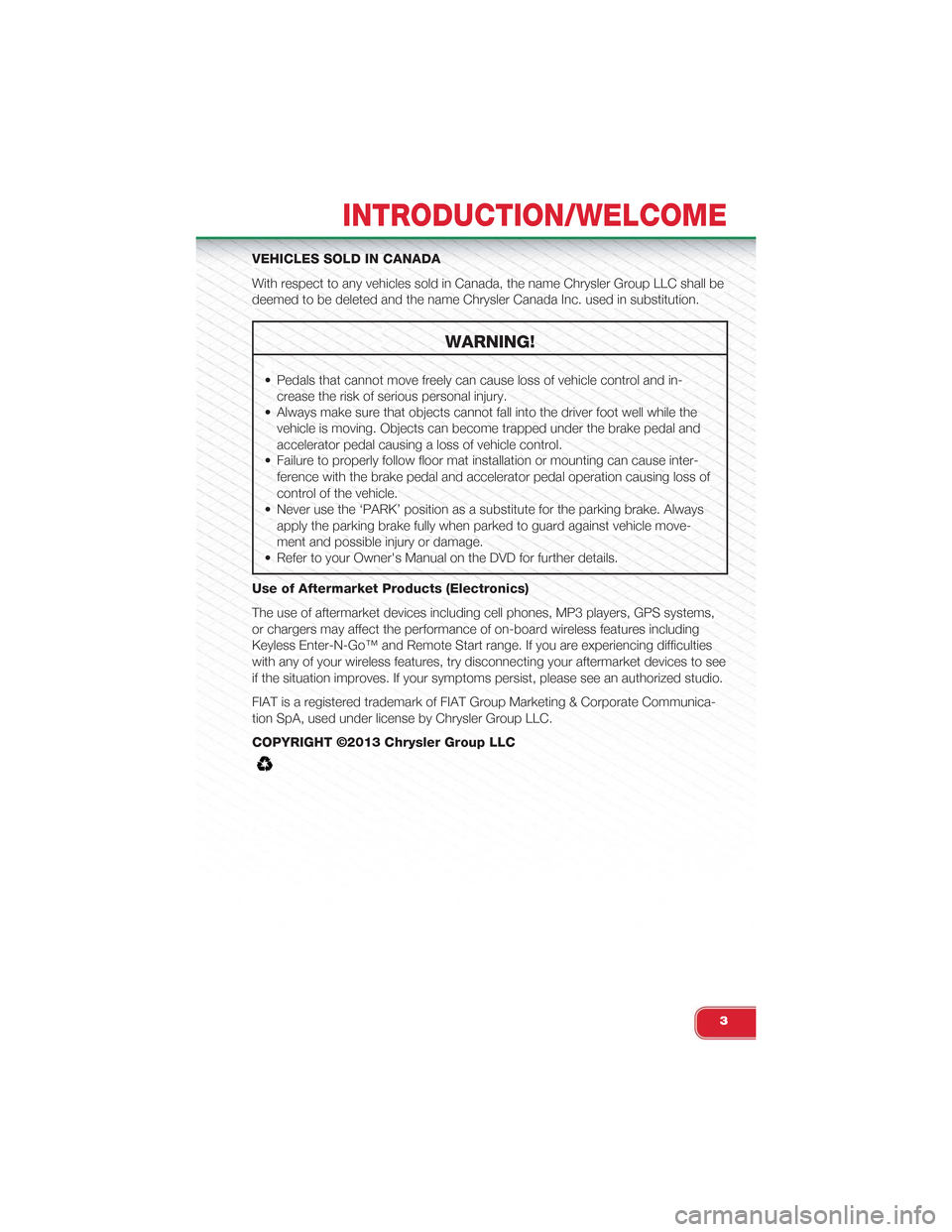

VEHICLES SOLD IN CANADA
With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be
deemed to be deleted and the name Chrysler Canada Inc. used in substitution.
WARNING!
• Pedals that cannot move freely can cause loss of vehicle control and in-
crease the risk of serious personal injury.
• Always make sure that objects cannot fall into the driver foot well while the
vehicle is moving. Objects can become trapped under the brake pedal and
accelerator pedal causing a loss of vehicle control.
• Failure to properly follow floor mat installation or mounting can cause inter-
ference with the brake pedal and accelerator pedal operation causing loss of
control of the vehicle.
• Never use the ‘PARK’ position as a substitute for the parking brake. Always
apply the parking brake fully when parked to guard against vehicle move-
ment and possible injury or damage.
• Refer to your Owner's Manual on the DVD for further details.
Use of Aftermarket Products (Electronics)
The use of aftermarket devices including cell phones, MP3 players, GPS systems,
or chargers may affect the performance of on-board wireless features including
Keyless Enter-N-Go™ and Remote Start range. If you are experiencing difficulties
with any of your wireless features, try disconnecting your aftermarket devices to see
if the situation improves. If your symptoms persist, please see an authorized studio.
FIAT is a registered trademark of FIAT Group Marketing & Corporate Communica-
tion SpA, used under license by Chrysler Group LLC.
COPYRIGHT ©2013 Chrysler Group LLC
INTRODUCTION/WELCOME
3

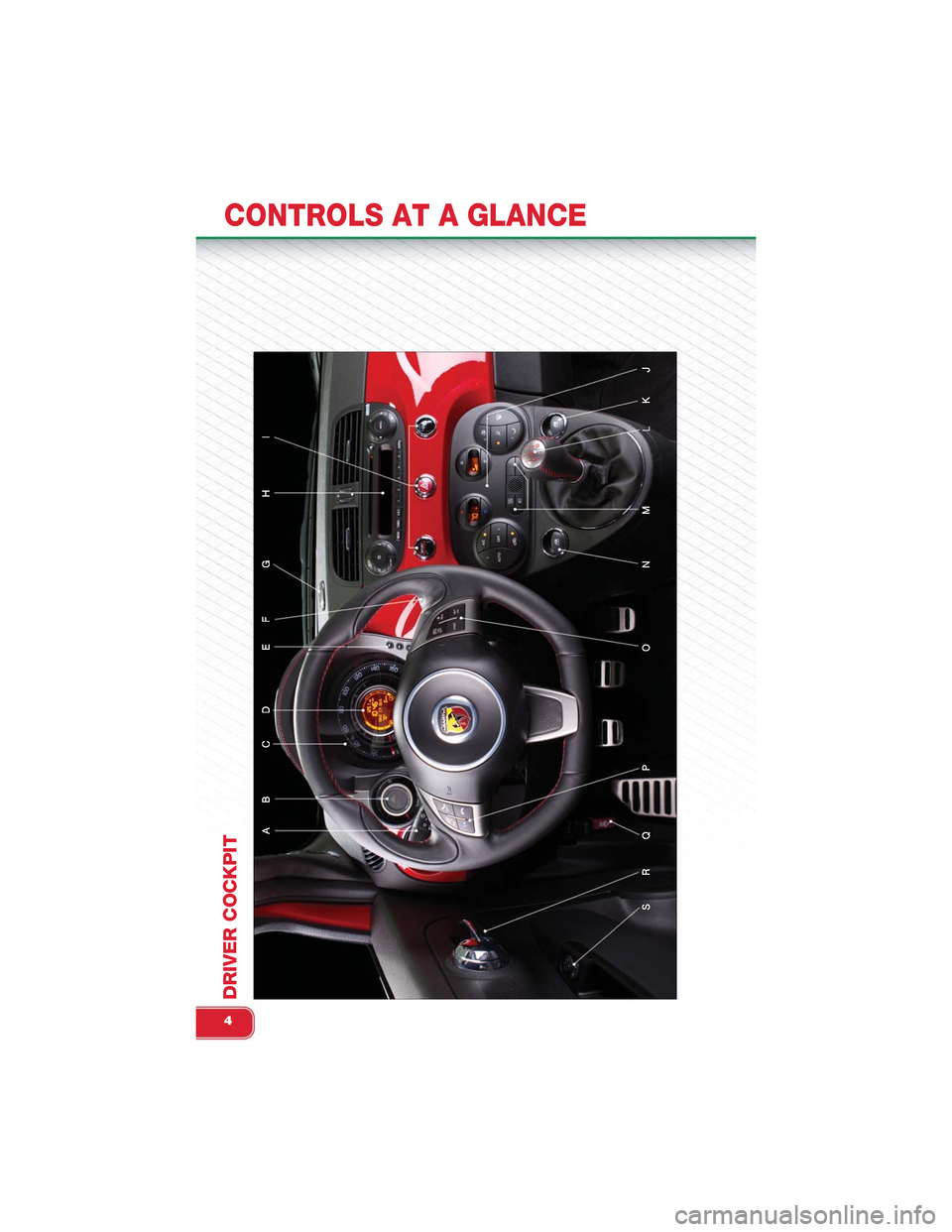

DRIVER COCKPIT
CONTROLS AT A GLANCE
4

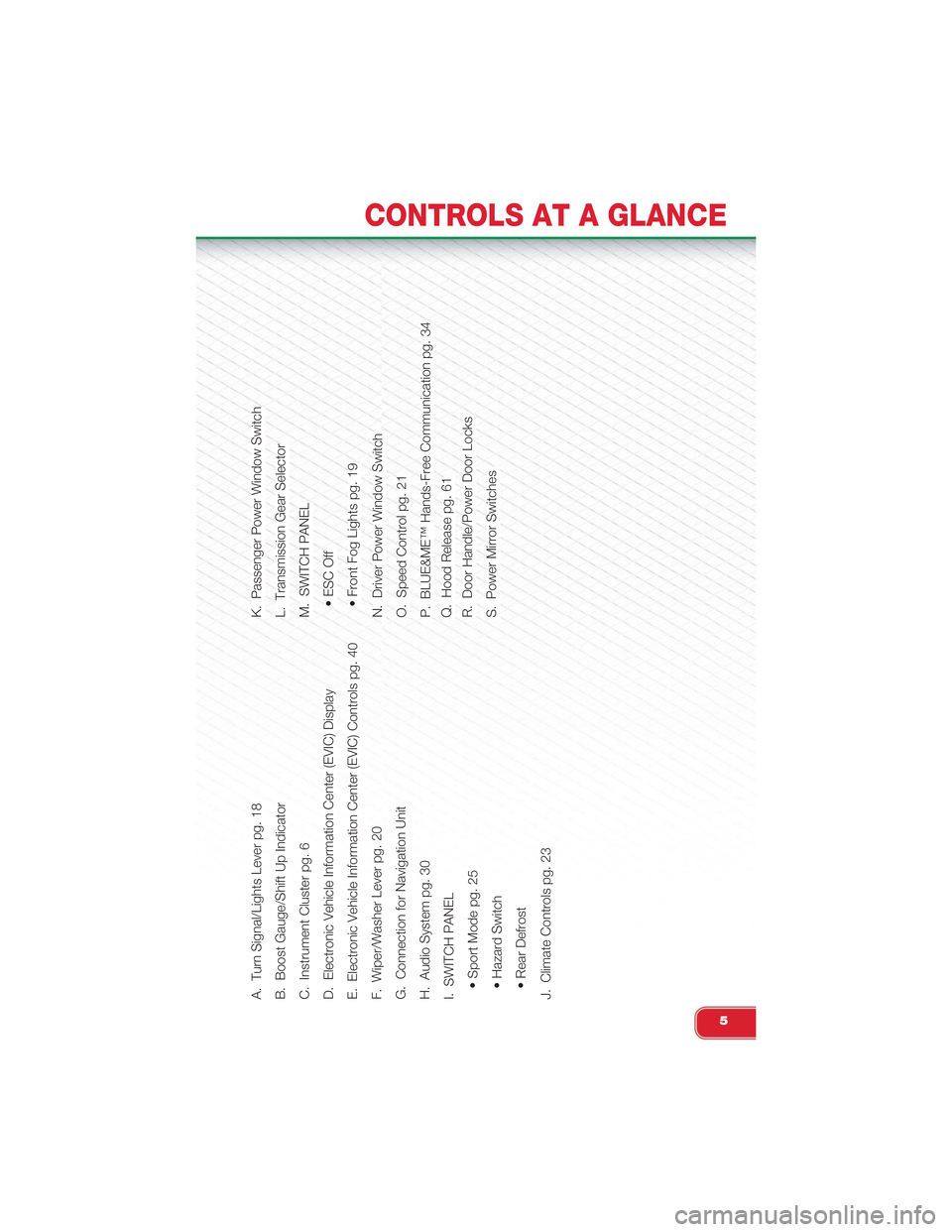

A. Turn Signal/Lights Lever pg. 18B. Boost Gauge/Shift Up IndicatorC. Instrument Cluster pg. 6D. Electronic Vehicle Information Center (EVIC) DisplayE. Electronic Vehicle Information Center (EVIC) Controls pg. 40F. Wiper/Washer Lever pg. 20G. Connection for Navigation UnitH. Audio System pg. 30I. SWITCH PANEL• Sport Mode pg. 25• Hazard Switch• Rear DefrostJ. Climate Controls pg. 23
K. Passenger Power Window SwitchL. Transmission Gear SelectorM. SWITCH PANEL• ESC Off• Front Fog Lights pg. 19N. Driver Power Window SwitchO. Speed Control pg. 21P. BLUE&ME™ Hands-Free Communication pg. 34Q. Hood Release pg. 61R. Door Handle/Power Door LocksS. Power Mirror Switches
CONTROLS AT A GLANCE
5

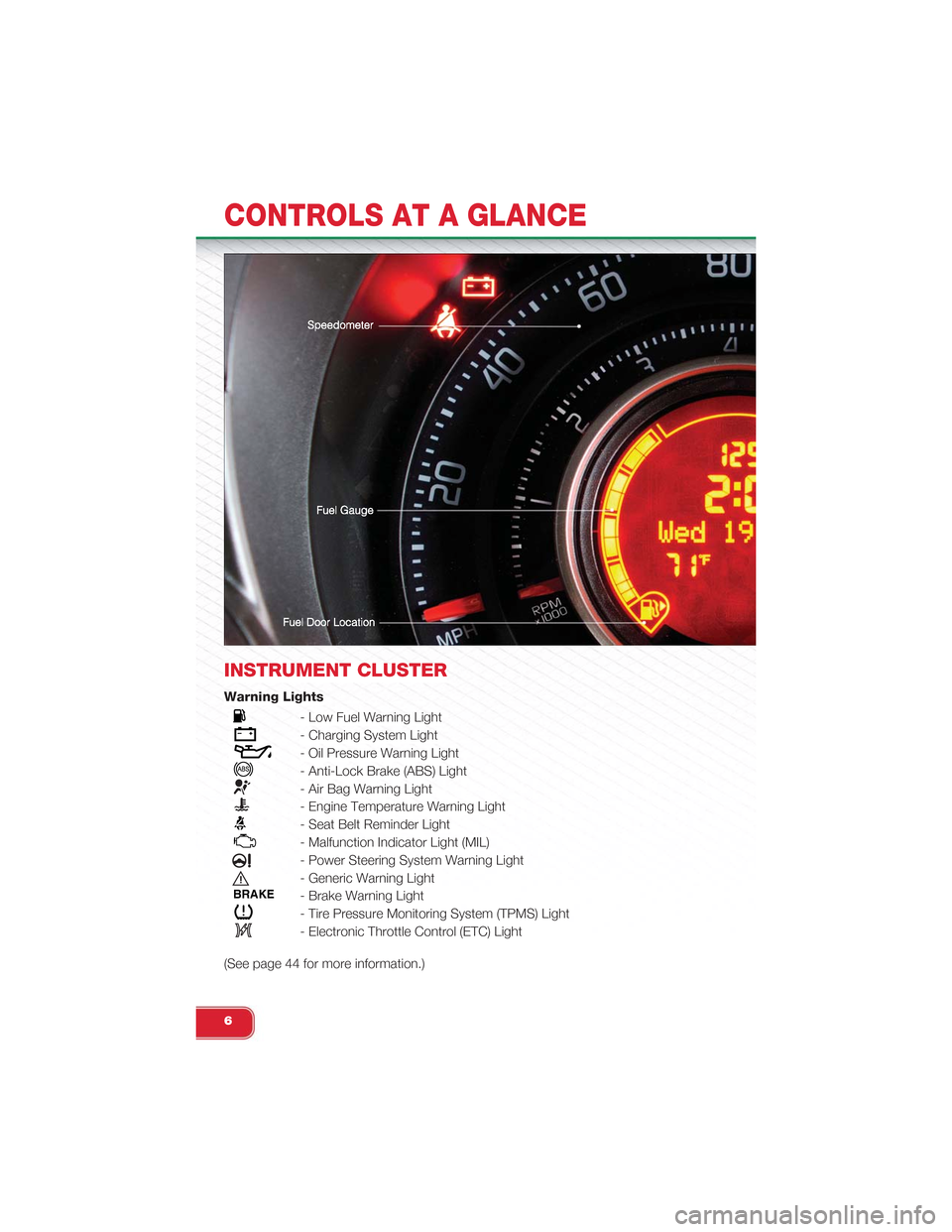

INSTRUMENT CLUSTER
Warning Lights
- Low Fuel Warning Light
- Charging System Light
- Oil Pressure Warning Light
- Anti-Lock Brake (ABS) Light
- Air Bag Warning Light
- Engine Temperature Warning Light
- Seat Belt Reminder Light
- Malfunction Indicator Light (MIL)
- Power Steering System Warning Light
- Generic Warning Light
BRAKE- Brake Warning Light
- Tire Pressure Monitoring System (TPMS) Light
- Electronic Throttle Control (ETC) Light
(See page 44 for more information.)
CONTROLS AT A GLANCE
6

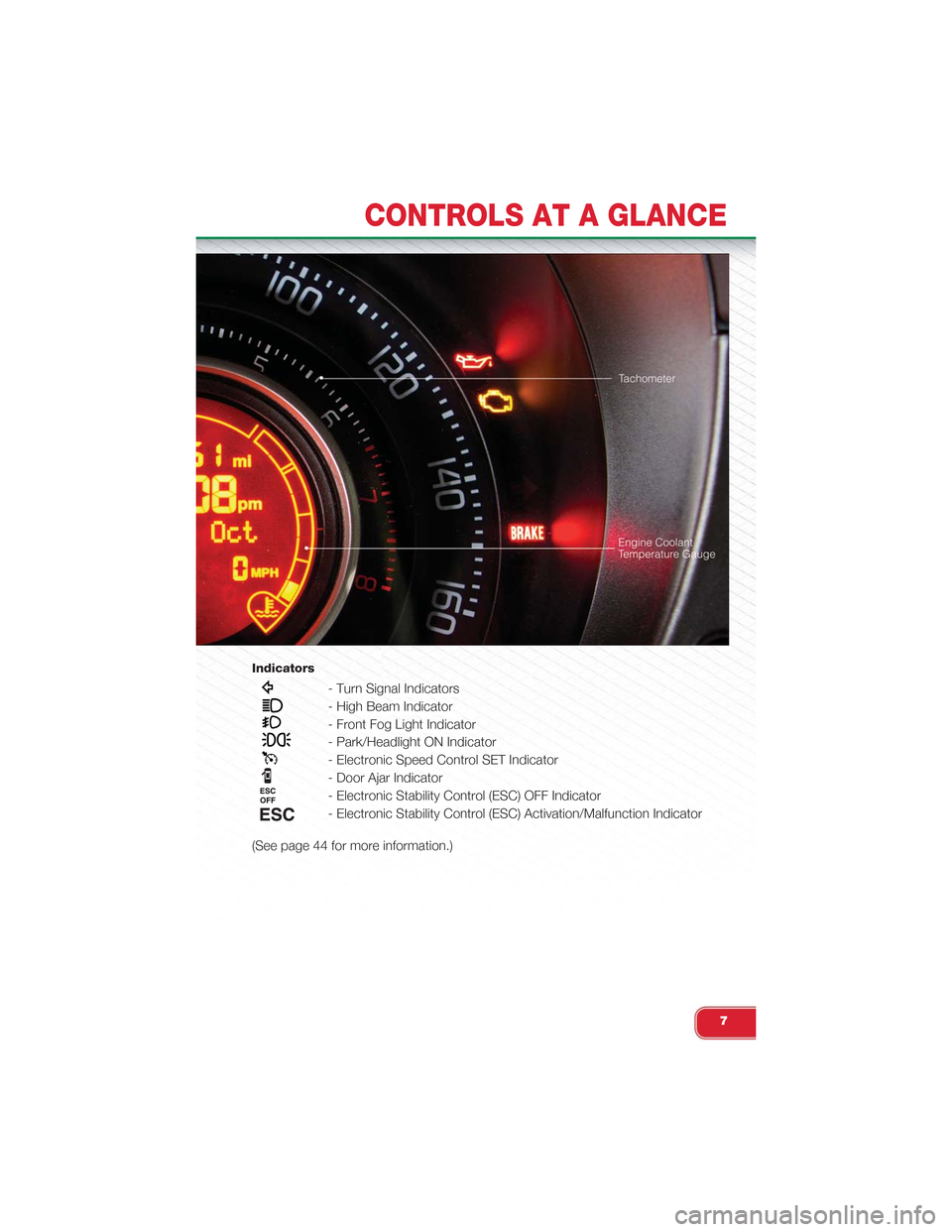

Indicators
- Turn Signal Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Park/Headlight ON Indicator
- Electronic Speed Control SET Indicator
- Door Ajar Indicator
- Electronic Stability Control (ESC) OFF Indicator
- Electronic Stability Control (ESC) Activation/Malfunction Indicator
(See page 44 for more information.)
CONTROLS AT A GLANCE
7

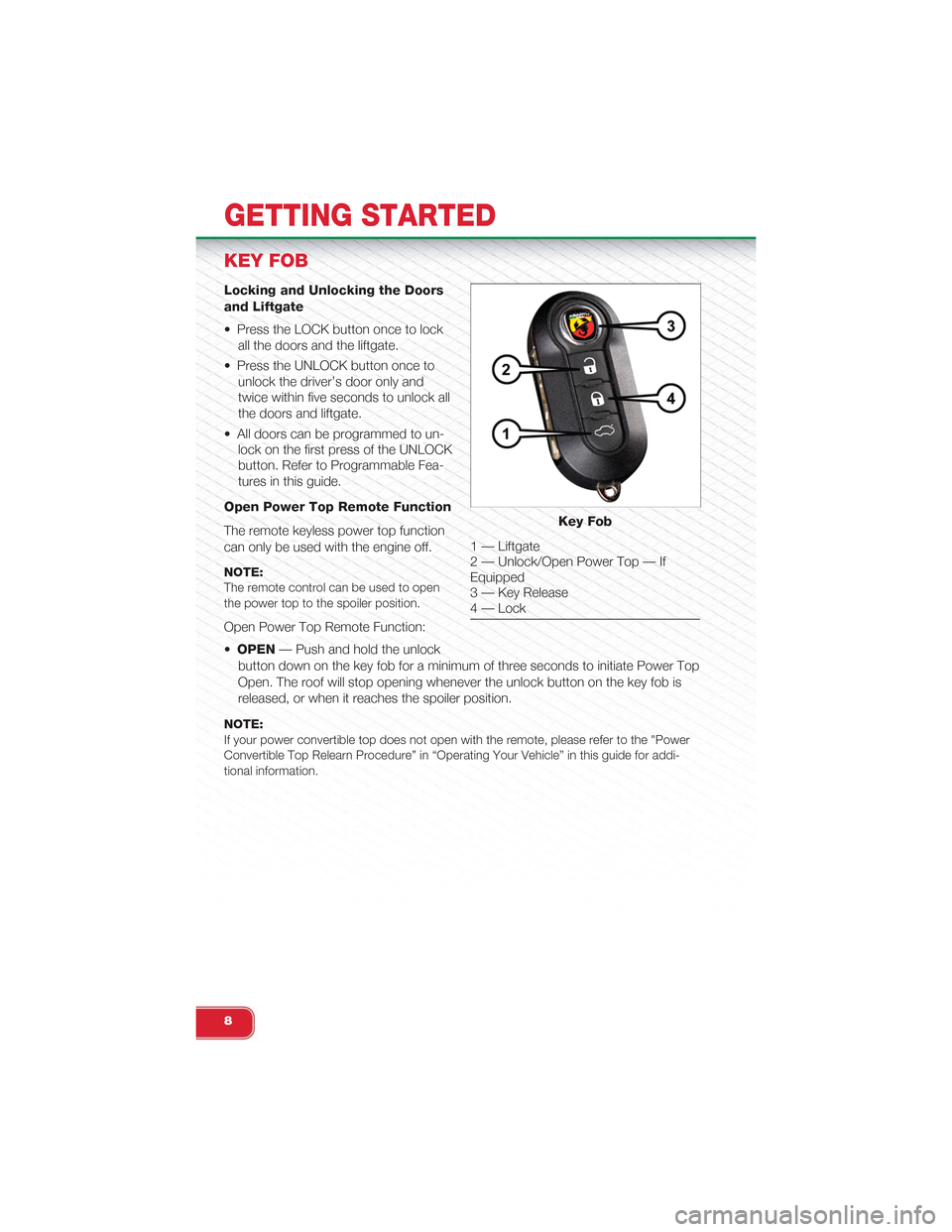

KEY FOB
Locking and Unlocking the Doors
and Liftgate
• Press the LOCK button once to lock
all the doors and the liftgate.
• Press the UNLOCK button once to
unlock the driver’s door only and
twice within five seconds to unlock all
the doors and liftgate.
• All doors can be programmed to un-
lock on the first press of the UNLOCK
button. Refer to Programmable Fea-
tures in this guide.
Open Power Top Remote Function
The remote keyless power top function
can only be used with the engine off.
NOTE:The remote control can be used to openthe power top to the spoiler position.
Open Power Top Remote Function:
•OPEN— Push and hold the unlock
button down on the key fob for a minimum of three seconds to initiate Power Top
Open. The roof will stop opening whenever the unlock button on the key fob is
released, or when it reaches the spoiler position.
NOTE:If your power convertible top does not open with the remote, please refer to the "PowerConvertible Top Relearn Procedure” in “Operating Your Vehicle” in this guide for addi-tional information.
Key Fob
1 — Liftgate2 — Unlock/Open Power Top — IfEquipped3 — Key Release4 — Lock
GETTING STARTED
8
