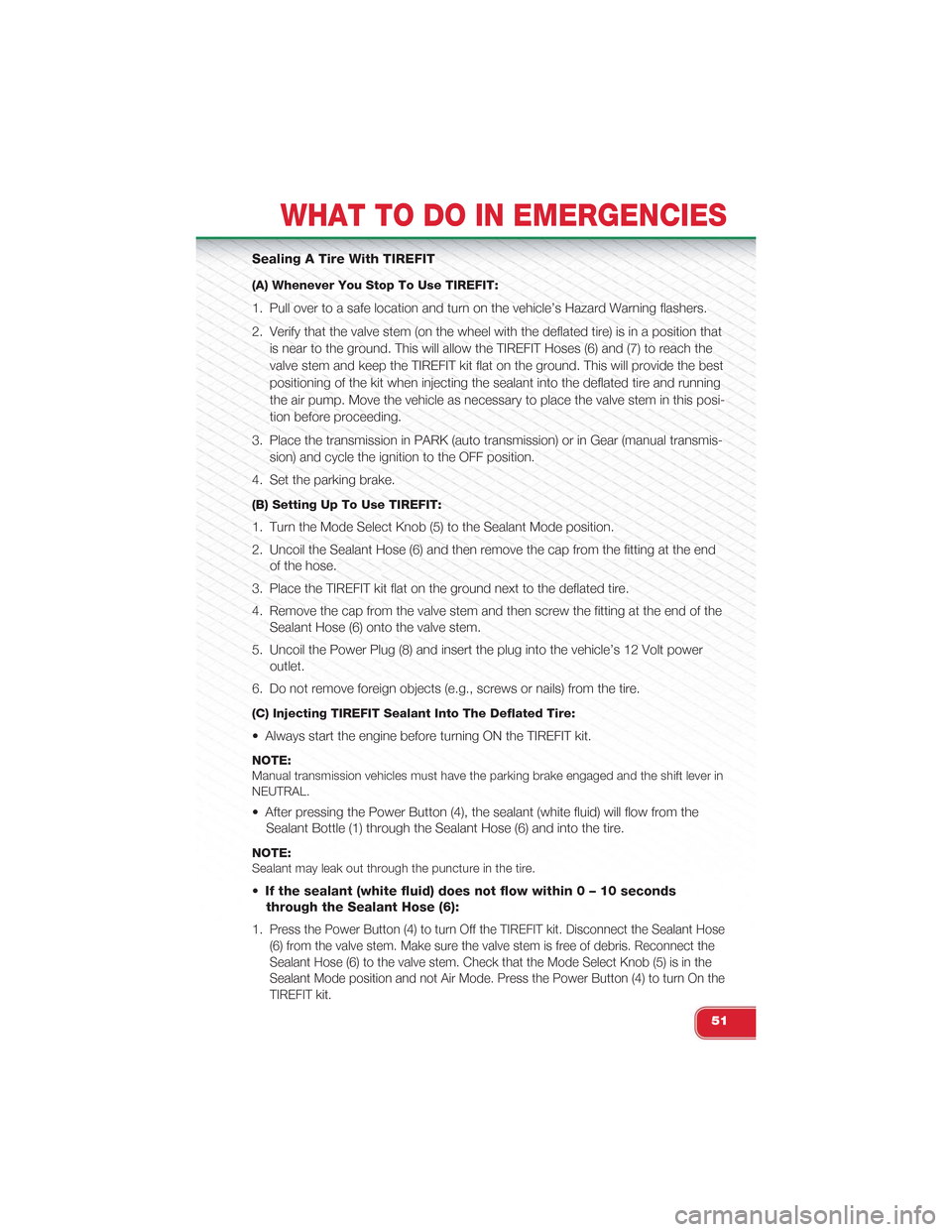

Sealing A Tire With TIREFIT
(A) Whenever You Stop To Use TIREFIT:
1. Pull over to a safe location and turn on the vehicle’s Hazard Warning flashers.
2. Verify that the valve stem (on the wheel with the deflated tire) is in a position that
is near to the ground. This will allow the TIREFIT Hoses (6) and (7) to reach the
valve stem and keep the TIREFIT kit flat on the ground. This will provide the best
positioning of the kit when injecting the sealant into the deflated tire and running
the air pump. Move the vehicle as necessary to place the valve stem in this posi-
tion before proceeding.
3. Place the transmission in PARK (auto transmission) or in Gear (manual transmis-
sion) and cycle the ignition to the OFF position.
4. Set the parking brake.
(B) Setting Up To Use TIREFIT:
1. Turn the Mode Select Knob (5) to the Sealant Mode position.
2. Uncoil the Sealant Hose (6) and then remove the cap from the fitting at the end
of the hose.
3. Place the TIREFIT kit flat on the ground next to the deflated tire.
4. Remove the cap from the valve stem and then screw the fitting at the end of the
Sealant Hose (6) onto the valve stem.
5. Uncoil the Power Plug (8) and insert the plug into the vehicle’s 12 Volt power
outlet.
6. Do not remove foreign objects (e.g., screws or nails) from the tire.
(C) Injecting TIREFIT Sealant Into The Deflated Tire:
• Always start the engine before turning ON the TIREFIT kit.
NOTE:Manual transmission vehicles must have the parking brake engaged and the shift lever inNEUTRAL.
• After pressing the Power Button (4), the sealant (white fluid) will flow from the
Sealant Bottle (1) through the Sealant Hose (6) and into the tire.
NOTE:Sealant may leak out through the puncture in the tire.
•If the sealant (white fluid) does not flow within 0 – 10seconds
through the Sealant Hose (6):
1.Press the Power Button (4) to turn Off the TIREFIT kit. Disconnect the Sealant Hose
(6) from the valve stem. Make sure the valve stem is free of debris. Reconnect the
Sealant Hose (6) to the valve stem. Check that the Mode Select Knob (5) is in the
Sealant Mode position and not Air Mode. Press the Power Button (4) to turn On the
TIREFIT kit.
WHAT TO DO IN EMERGENCIES
51

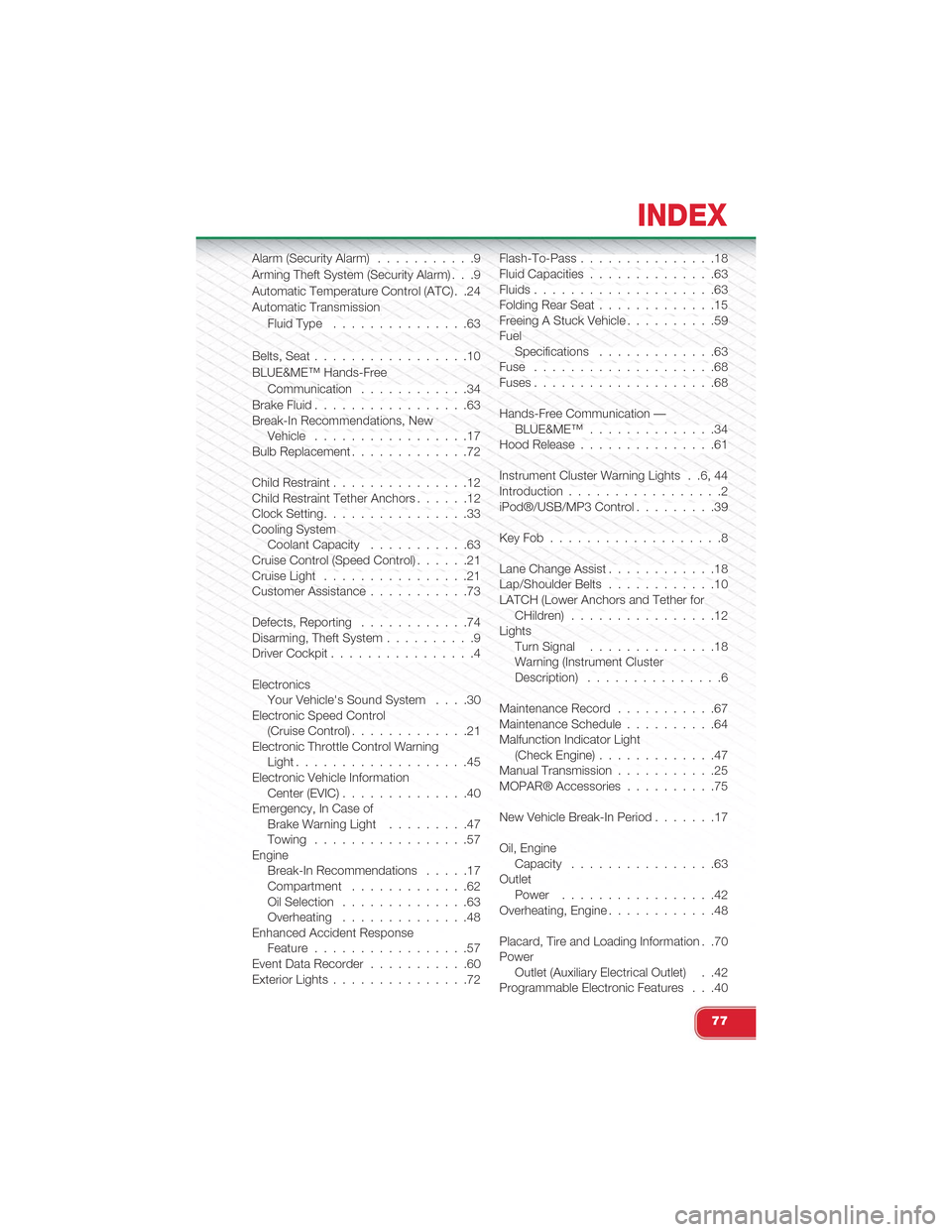

Alarm (Security Alarm). . . . . . . . . . .9
Arming Theft System (Security Alarm) . . .9
Automatic Temperature Control (ATC) . .24
Automatic Transmission
Fluid Type. . . . . . . . . . . . . . .63
Belts, Seat. . . . . . . . . . . . . . . . .10
BLUE&ME™ Hands-Free
Communication. . . . . . . . . . . .34
Brake Fluid. . . . . . . . . . . . . . . . .63Break-In Recommendations, NewVehicle. . . . . . . . . . . . . . . . .17Bulb Replacement. . . . . . . . . . . . .72
Child Restraint. . . . . . . . . . . . . . .12Child Restraint Tether Anchors. . . . . .12Clock Setting. . . . . . . . . . . . . . . .33Cooling SystemCoolant Capacity. . . . . . . . . . .63Cruise Control (Speed Control). . . . . .21Cruise Light. . . . . . . . . . . . . . . .21Customer Assistance. . . . . . . . . . .73
Defects, Reporting. . . . . . . . . . . .74Disarming, Theft System. . . . . . . . . .9Driver Cockpit. . . . . . . . . . . . . . . .4
ElectronicsYour Vehicle's Sound System. . . .30Electronic Speed Control(Cruise Control). . . . . . . . . . . . .21Electronic Throttle Control WarningLight. . . . . . . . . . . . . . . . . . .45Electronic Vehicle InformationCenter (EVIC). . . . . . . . . . . . . .40Emergency, In Case ofBrake Warning Light . .. . . . . . .47Towing. . . . . . . . . . . . . . . . .57EngineBreak-In Recommendations. . . . .17Compartment. . . . . . . . . . . . .62Oil Selection. . . . . . . . . . . . . .63Overheating. . . . . . . . . . . . . .48Enhanced Accident ResponseFeature. . . . . . . . . . . . . . . . .57Event Data Recorder. . . . . . . . . . .60Exterior Lights. . . . . . . . . . . . . . .72
Flash-To-Pass .. . . . . . . . . . . . . .18Fluid Capacities . . . . . . .. . . . . . .63Fluids . . . . . .. . . . . . . . . . . . . .63Folding Rear Seat. . . . . . . . . . . . .15Freeing A Stuck Vehicle . . .. . . . . . .59FuelSpecifications. . . . . . . . . . . . .63Fuse. . . . . . . . . . . . . . . . . . . .68Fuses. . . . . . . . . . . . . . . . . . . .68
Hands-Free Communication —BLUE&ME™. . . . . . . . . . . . . .34Hood Release .. . . . . . . . . . . . . .61
Instrument Cluster Warning Lights . .6, 44Introduction. . . . . . . . . . . . . . . . .2iPod®/USB/MP3 Control. . . . . . . . .39
Key Fob . . . . . . . . . . . . . . . . . . .8
Lane Change Assist. . . . . . . . . . . .18Lap/Shoulder Belts . . . . .. . . . . . .10LATCH (Lower Anchors and Tether forCHildren) . . .. . . . . . . . . . . . .12LightsTurn Signal. . . . . . . . . . . . . .18Warning (Instrument ClusterDescription) . . .. . . . . . . . . . . .6
Maintenance Record. . . . . . . . . . .67Maintenance Schedule . . .. . . . . . .64Malfunction Indicator Light(Check Engine) . . . . . . . . . . . . .47Manual Transmission . . . .. . . . . . .25MOPAR® Accessories . .. . . . . . . .75
New Vehicle Break-In Period. . . . . . .17
Oil, EngineCapacity. . . . . . . . . . . . . . . .63OutletPower .. . . . . . . . . . . . . . . .42Overheating, Engine. . . . . . . . . . . .48
Placard, Tire and Loading Information . .70PowerOutlet (Auxiliary Electrical Outlet) . .42Programmable Electronic Features . . .40
INDEX
77
