4. Remove slack in the tether strap according to thechild restraint manufacturer ’s instructions.
WARNING!
•An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchorage position directly
behind the child seat to secure a child restraint
top tether strap.
• If your vehicle is equipped with a split rear seat,
make sure the tether strap does not slip into the
opening between the seatbacks as you remove
slack in the strap.
Transporting Pets
Air Bags deploying in the front seat could harm your
pet. An unrestrained pet will be thrown about and
possibly injured, or injure a passenger during panic
braking or in a collision.
Pets should be restrained in the rear seat in pet har-
nesses or pet carriers that are secured by seat belts.
Rear Seat Tether Strap Mounting
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59

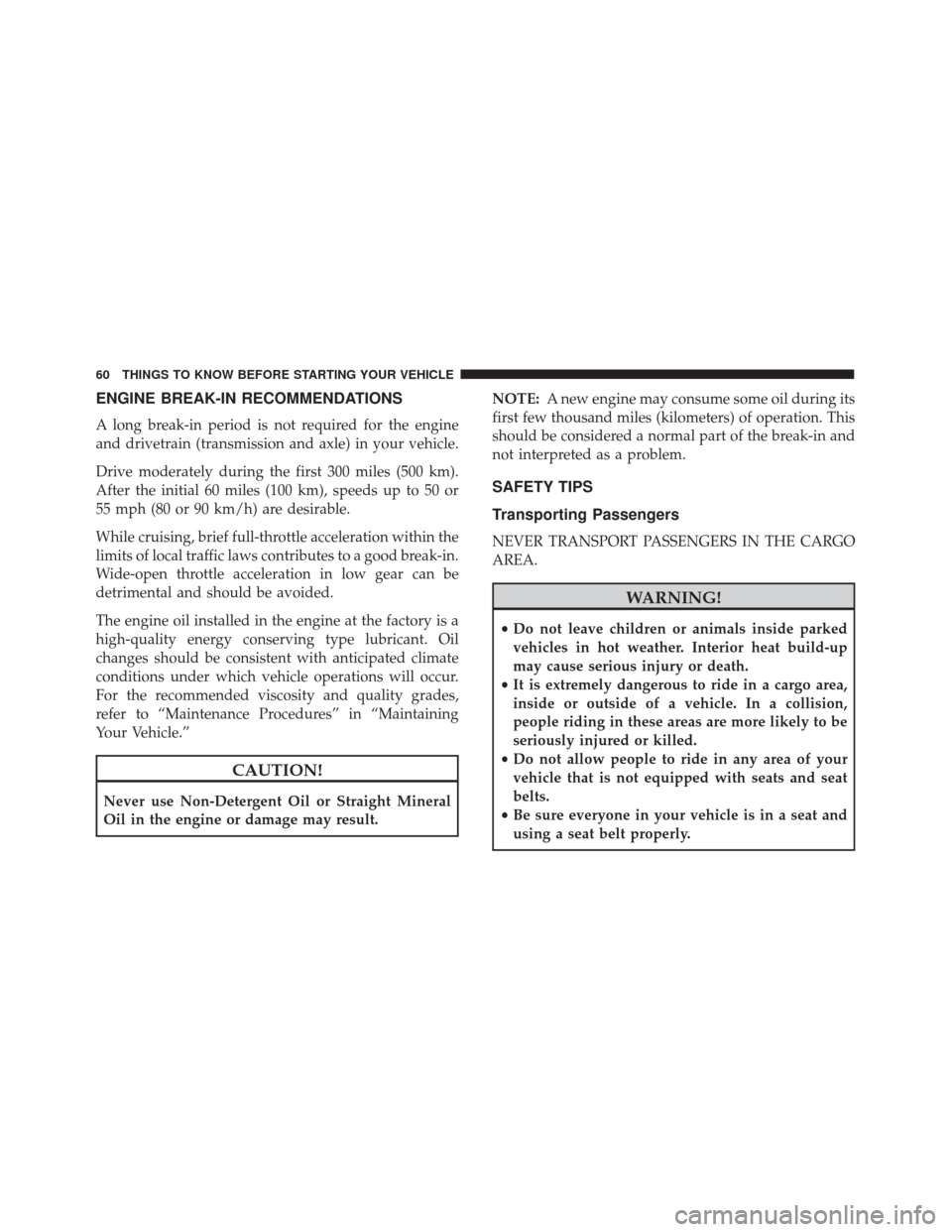

ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine
and drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be
detrimental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
For the recommended viscosity and quality grades,
refer to “Maintenance Procedures” in “Maintaining
Your Vehicle.”
CAUTION!
Never use Non-Detergent Oil or Straight Mineral
Oil in the engine or damage may result.NOTE:
A new engine may consume some oil during its
first few thousand miles (kilometers) of operation. This
should be considered a normal part of the break-in and
not interpreted as a problem.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up
may cause serious injury or death.
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

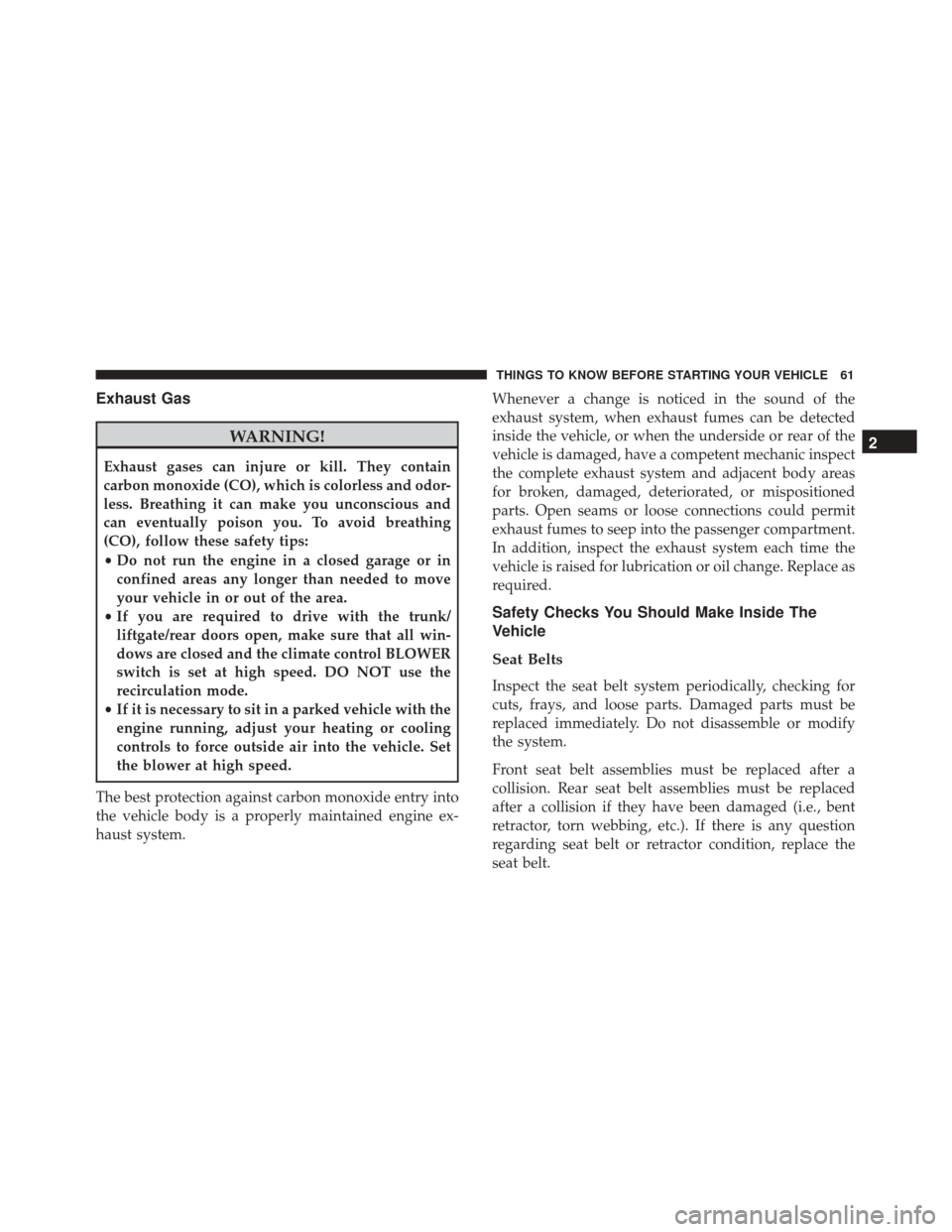

Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain
carbon monoxide (CO), which is colorless and odor-
less. Breathing it can make you unconscious and
can eventually poison you. To avoid breathing
(CO), follow these safety tips:
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
• If you are required to drive with the trunk/
liftgate/rear doors open, make sure that all win-
dows are closed and the climate control BLOWER
switch is set at high speed. DO NOT use the
recirculation mode.
• If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set
the blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine ex-
haust system. Whenever a change is noticed in the sound of the
exhaust system, when exhaust fumes can be detected
inside the vehicle, or when the underside or rear of the
vehicle is damaged, have a competent mechanic inspect
the complete exhaust system and adjacent body areas
for broken, damaged, deteriorated, or mispositioned
parts. Open seams or loose connections could permit
exhaust fumes to seep into the passenger compartment.
In addition, inspect the exhaust system each time the
vehicle is raised for lubrication or oil change. Replace as
required.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify
the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced
after a collision if they have been damaged (i.e., bent
retractor, torn webbing, etc.). If there is any question
regarding seat belt or retractor condition, replace the
seat belt.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61

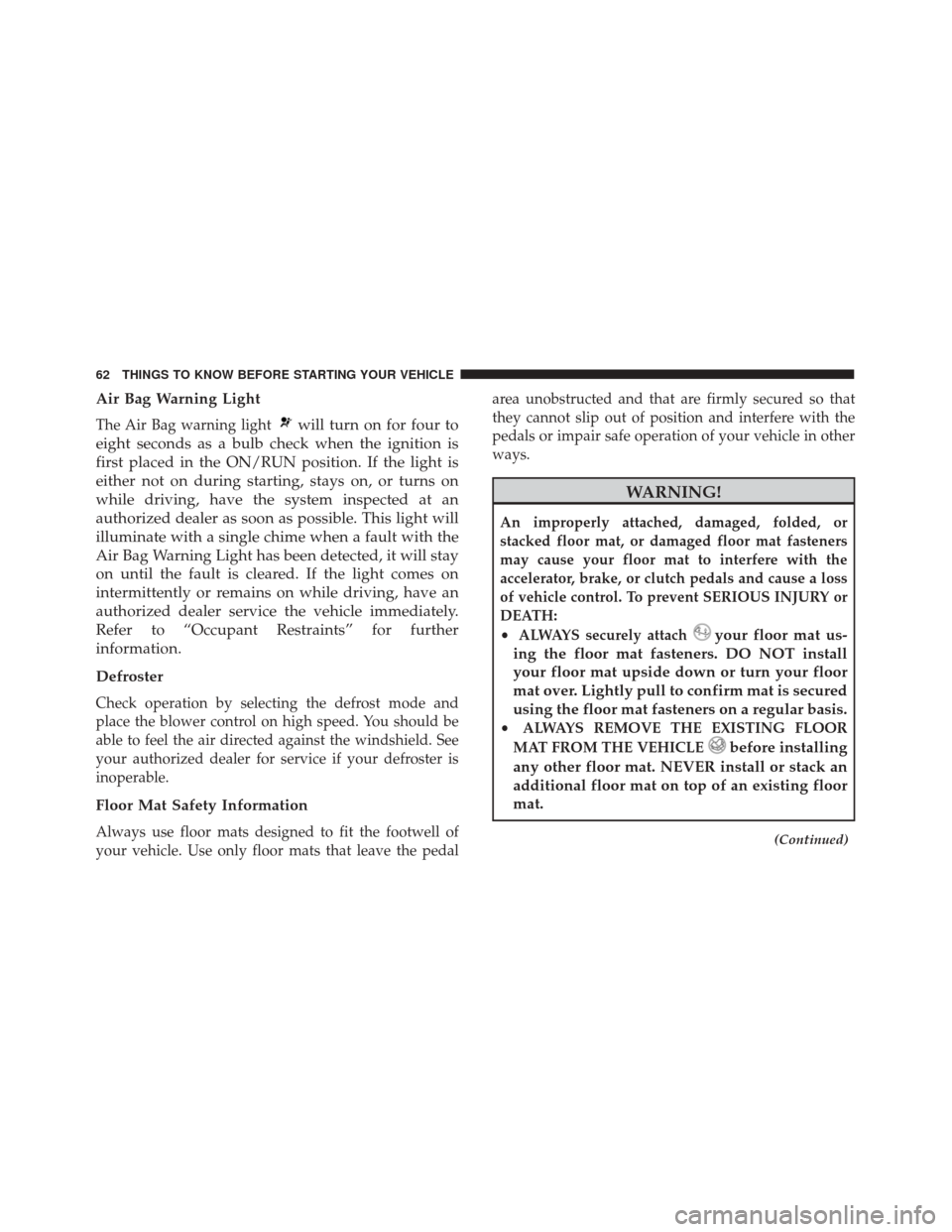

Air Bag Warning Light
The Air Bag warning lightwill turn on for four to
eight seconds as a bulb check when the ignition is
first placed in the ON/RUN position. If the light is
either not on during starting, stays on, or turns on
while driving, have the system inspected at an
authorized dealer as soon as possible. This light will
illuminate with a single chime when a fault with the
Air Bag Warning Light has been detected, it will stay
on until the fault is cleared. If the light comes on
intermittently or remains on while driving, have an
authorized dealer service the vehicle immediately.
Refer to “Occupant Restraints” for further
information.
Defroster
Check operation by selecting the defrost mode and
place the blower control on high speed. You should be
able to feel the air directed against the windshield. See
your authorized dealer for service if your defroster is
inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of
your vehicle. Use only floor mats that leave the pedal area unobstructed and that are firmly secured so that
they cannot slip out of position and interfere with the
pedals or impair safe operation of your vehicle in other
ways.
WARNING!
An improperly attached, damaged, folded, or
stacked floor mat, or damaged floor mat fasteners
may cause your floor mat to interfere with the
accelerator, brake, or clutch pedals and cause a loss
of vehicle control. To prevent SERIOUS INJURY or
DEATH:
•
ALWAYS securely attach
your floor mat us-
ing the floor mat fasteners. DO NOT install
your floor mat upside down or turn your floor
mat over. Lightly pull to confirm mat is secured
using the floor mat fasteners on a regular basis.
• ALWAYS REMOVE THE EXISTING FLOOR
MAT FROM THE VEHICLE
before installing
any other floor mat. NEVER install or stack an
additional floor mat on top of an existing floor
mat.
(Continued)
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!(Continued)
•ONLY install floor mats designed to fit your
vehicle. NEVER install a floor mat that cannot be
properly attached and secured to your vehicle. If a
floor mat needs to be replaced, only use a FCA
approved floor mat for the specific make, model,
and year of your vehicle.
• ONLY use the driver ’s side floor mat on the
driver ’s side floor area. To check for interference,
with the vehicle properly parked with the engine
off, fully depress the accelerator, the brake, and
the clutch pedal (if present) to check for interfer-
ence. If your floor mat interferes with the opera-
tion of any pedal, or is not secure to the floor,
remove the floor mat from the vehicle and place
the floor mat in your trunk.
• ONLY use the passenger ’s side floor mat on the
passenger ’s side floor area.
• ALWAYS make sure objects cannot fall or slide
into the driver ’s side floor area when the vehicle
is moving. Objects can become trapped under
accelerator, brake, or clutch pedals and could
cause a loss of vehicle control.
(Continued)
WARNING! (Continued)
•NEVER place any objects under the floor mat
(e.g., towels, keys, etc.). These objects could
change the position of the floor mat and may
cause interference with the accelerator, brake, or
clutch pedals.
• If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the
floor and check the floor mat fasteners are secure
to the vehicle carpet. Fully depress each pedal to
check for interference with the accelerator, brake,
or clutch pedals then re-install the floor mats.
• It is recommended to only use mild soap and
water to clean your floor mats. After cleaning,
always check your floor mat has been properly
installed and is secured to your vehicle using the
floor mat fasteners by lightly pulling mat.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63

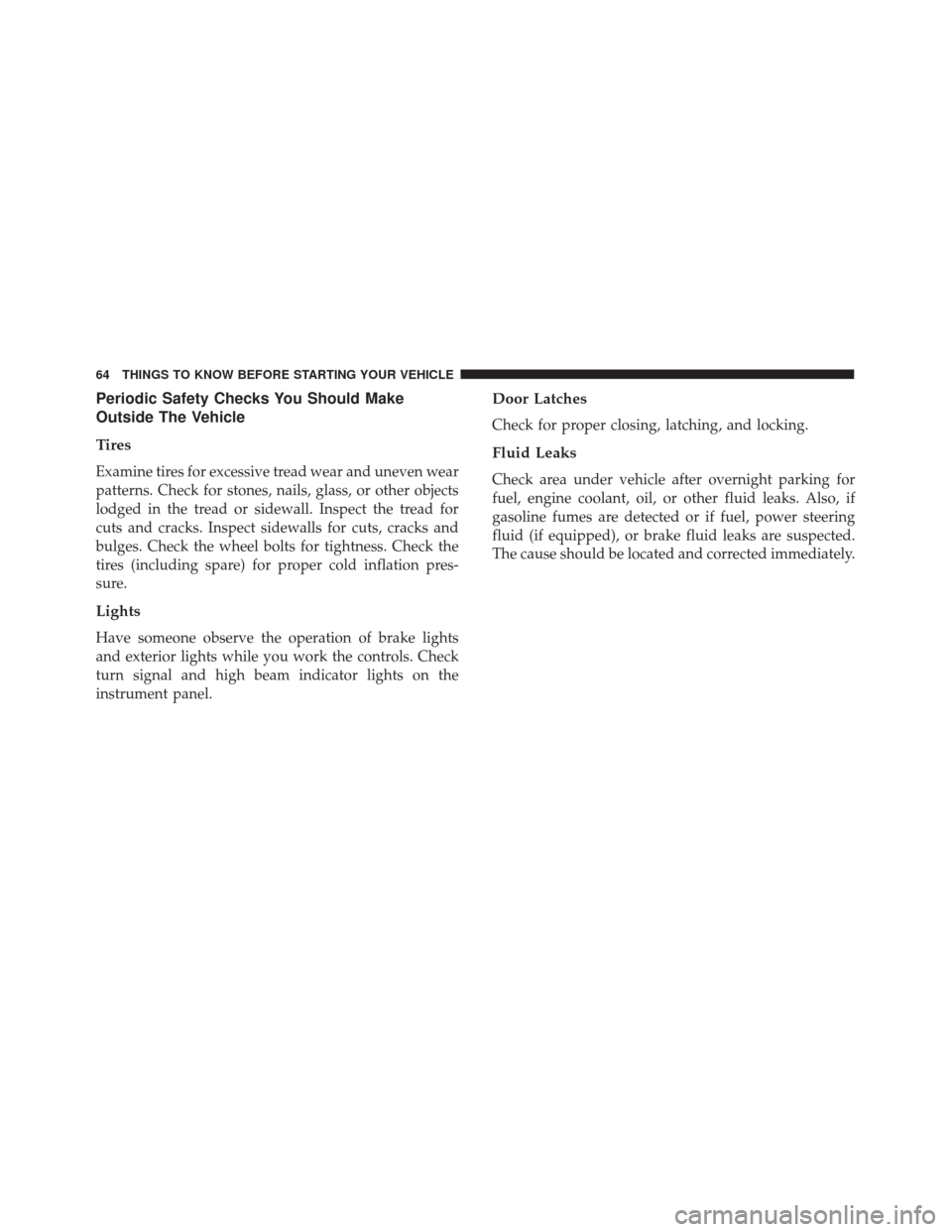

Periodic Safety Checks You Should Make
Outside The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for
cuts and cracks. Inspect sidewalls for cuts, cracks and
bulges. Check the wheel bolts for tightness. Check the
tires (including spare) for proper cold inflation pres-
sure.
Lights
Have someone observe the operation of brake lights
and exterior lights while you work the controls. Check
turn signal and high beam indicator lights on the
instrument panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for
fuel, engine coolant, oil, or other fluid leaks. Also, if
gasoline fumes are detected or if fuel, power steering
fluid (if equipped), or brake fluid leaks are suspected.
The cause should be located and corrected immediately.
64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
POWER CONVERTIBLE TOP — IF EQUIPPED . .68
▫Lowering The Power Top ................68
▫ Raising The Power Top .................69
▫ Power Convertible Top Relearn Procedure ....70
▫ Wind Stop ..........................71
 MIRRORS ...........................71
▫ Inside Day/Night Mirror ................71
▫ Automatic Dimming Mirror — If Equipped . .71
▫ Power Mirrors .......................72
▫ Folding Mirrors .......................73
▫ Heated Mirrors — If Equipped ...........73
▫ Sun Visors ..........................74
 SEATS ..............................74
▫ Forward/Rearward Adjustment ...........75▫
Recline Adjustment ....................76
▫ Seat Height Adjustment .................76
▫ EZ Entry Feature ......................76
▫ Memory Feature ......................77
▫ Heated Seats — If Equipped .............77
▫ Front Non-Adjustable Head Restraints ......78
 TO OPEN AND CLOSE THE HOOD ........80
 LIGHTS .............................82
▫ Multifunction Lever ...................82
▫ Headlights ..........................82
▫ High Beams .........................82
▫ Flash-To-Pass ........................83
▫ Parking Lights .......................83
▫ Daytime Running Lights ................83
3

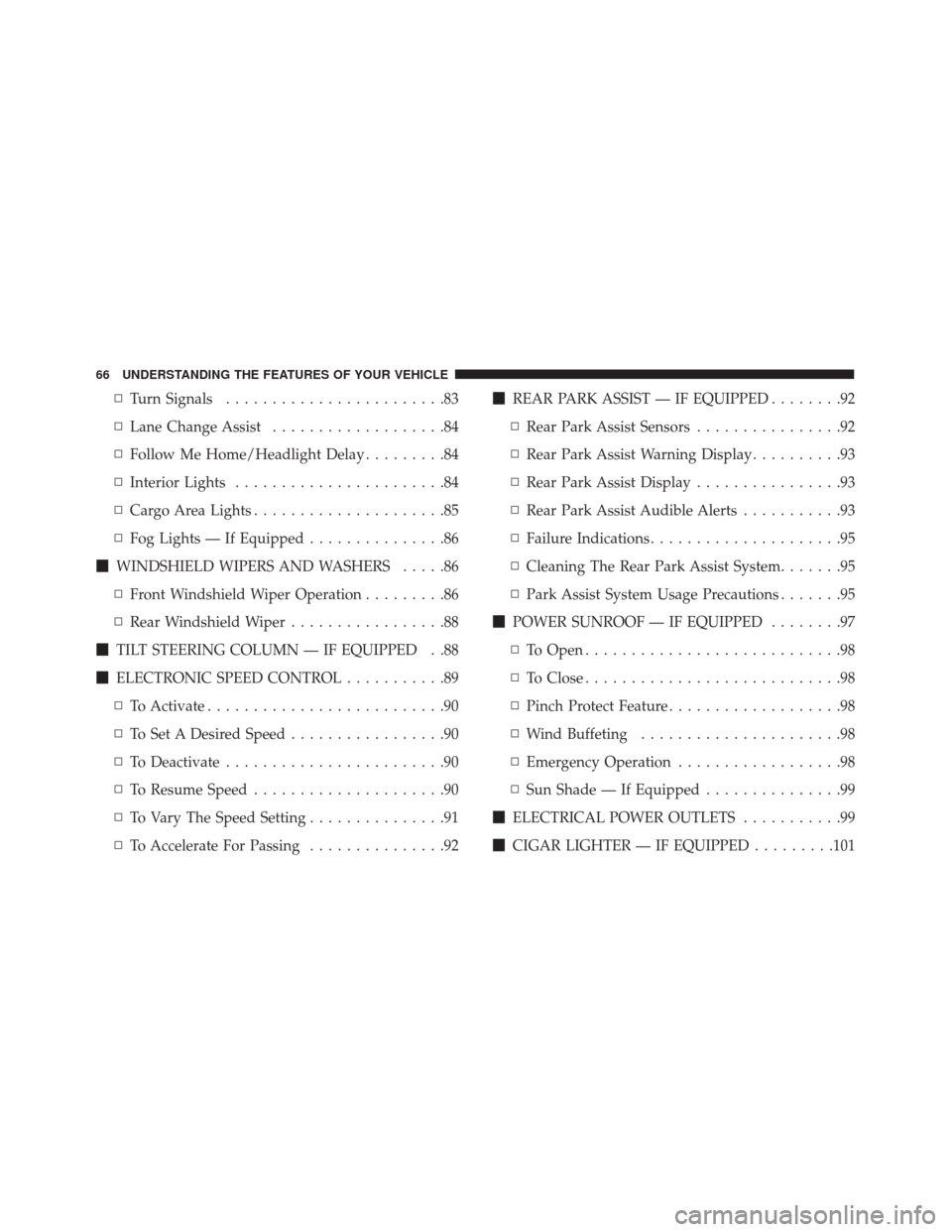

▫Turn Signals ........................83
▫ Lane Change Assist ...................84
▫ Follow Me Home/Headlight Delay .........84
▫ Interior Lights .......................84
▫ Cargo Area Lights .....................85
▫ Fog Lights — If Equipped ...............86
 WINDSHIELD WIPERS AND WASHERS .....86
▫ Front Windshield Wiper Operation .........86
▫ Rear Windshield Wiper .................88
 TILT STEERING COLUMN — IF EQUIPPED . .88
 ELECTRONIC SPEED CONTROL ...........89
▫ To Activate ..........................90
▫ To Set A Desired Speed .................90
▫ To Deactivate ........................90
▫ To Resume Speed .....................90
▫ To Vary The Speed Setting ...............91
▫ To Accelerate For Passing ...............92
REAR PARK ASSIST — IF EQUIPPED ........92
▫ Rear Park Assist Sensors ................92
▫ Rear Park Assist Warning Display ..........93
▫ Rear Park Assist Display ................93
▫ Rear Park Assist Audible Alerts ...........93
▫ Failure Indications .....................95
▫ Cleaning The Rear Park Assist System .......95
▫ Park Assist System Usage Precautions .......95
 POWER SUNROOF — IF EQUIPPED ........97
▫ To Open ............................98
▫ To Close ............................98
▫ Pinch Protect Feature ...................98
▫ Wind Buffeting ......................98
▫ Emergency Operation ..................98
▫ Sun Shade — If Equipped ...............99
 ELECTRICAL POWER OUTLETS ...........99
 CIGAR LIGHTER — IF EQUIPPED .........101
66 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

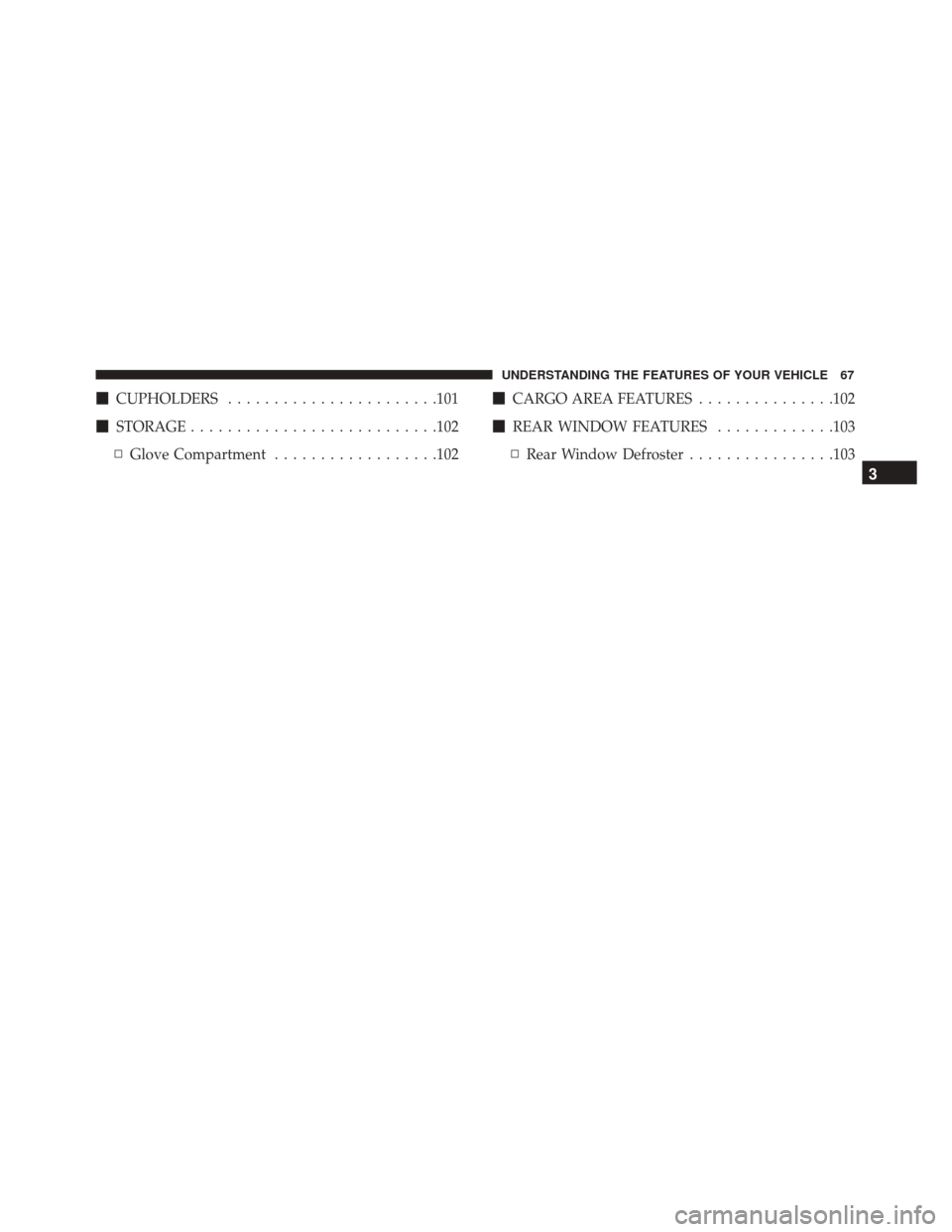

CUPHOLDERS ...................... .101
 STORAGE .......................... .102
▫ Glove Compartment ..................102
CARGO AREA FEATURES ...............102
 REAR WINDOW FEATURES .............103
▫ Rear Window Defroster ................103
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 67

POWER CONVERTIBLE TOP — IF EQUIPPED
On vehicles equipped with a power convertible top, the
power convertible top switch is located on the overhead
console. The switch contains two buttons. The passen-
ger side button, is used to open the power top, and the
driver side button, is used to close the power top.
NOTE:
•The power top buttons will operate when the ignition
switch is turned to the ACC/ON/RUN position. •
The power top can be remotely operated with the key
fob. Refer to “Opening Power Top Remote Function” in
“Things To Know Before Starting” for more information.
• The soft top cannot be lowered in temperatures lower
than –22°F (-30°C) but it can be closed at tempera-
tures as low as –4° F (-20°C).
• The highest temperature that the convertible top is
operational is at 176°F (80°C).
Lowering The Power Top
Auto Open
Push the top open button approximately one second for
the three-quarter open/spoiler position. Push the top
open button for approximately one second a second
time to fully open the convertible top.
Manual Open
For manual open, push and hold the open button until
desired roof position or until spoiler position.
Power Convertible Top Switch
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
