Sun Shade — If Equipped
For vehicles equipped with either a power sunroof or a
fixed glass roof, there is a sun shade that can be open or
closed. To open the sun shade, push the tab and move
the shade to a full open position.
ELECTRICAL POWER OUTLETS
There is a standard 12 Volt (13 Amp) power outlet,
located in the floor console, for added convenience. This
power outlet can power mobile phones, electronics and
other low power devices.Power is available when the ignition switch is in the
ON/RUN or START position. Insert the cigar lighter or
accessory plug into the outlet for use. To preserve the
heating element, do not hold the lighter in the heating
position.
CAUTION!
•
Do not exceed the maximum power of 160 Watts
(13 Amps) at 12 Volts. If the 160 Watts (13 Amps)
power rating is exceeded, the fuse protecting the
system will need to be replaced.
(Continued)
Manual Sun Shade
Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

CAUTION!(Continued)
•Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow
the fuse. Improper use of the power outlet can
cause damage not covered by your New Vehicle
Limited Warranty.
WARNING!
To avoid serious injury or death:
• Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving
the vehicle.
• If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with great caution.
(Continued)
Power Outlet Fuse Location – Underhood
F15 Fuse 15 A Blue Cigar Lighter Front Console/Aux Power
Outlet 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!(Continued)
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
CIGAR LIGHTER — IF EQUIPPED
This is located on the center console, in front of the cup
holders. To activate the cigar lighter, push and release
the knob. After a few seconds the knob automatically
returns to its initial position, and the cigar lighter is
ready for use.
WARNING!
When the cigar lighter is in use it becomes very hot.
To avoid serious injury, handle the cigar lighter
with care. Always check that the cigar lighter has
turned off.
CUPHOLDERS
For the driver and front passenger, cupholders are
located on the floor console between the front seats.
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

For rear passengers, there are cupholders located on the
floor between the front driver and passenger seats.
STORAGE
Glove Compartment
The glove compartment is located on the right side of
the instrument panel. Pull outward on the glove com-
partment latch to open the glove compartment. Push
the glove compartment door upward to close it.
CARGO AREA FEATURES
The rear seatbacks have a fold down feature to allow
increased cargo capacity.
Push down the release button, located at the outboard
top of the seatback and move the seatback to its
folded-down position to provide a flat load floor cargo
area. When returning the seatback to its upright posi-
tion, push rearward until the seatback is properly
latched.Rear Cupholders
Glove Compartment Latch
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located in
the center of the instrument panel, below the
radio. Push this button to turn on the rear window
defroster. An indicator in the Instrument Cluster Dis-
play will illuminate when the rear window defroster is
on. The rear window defroster automatically turns off
after approximately 20 minutes. To manually shut the
defroster off, push the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Rear Seat Release Buttons
Folded Rear Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

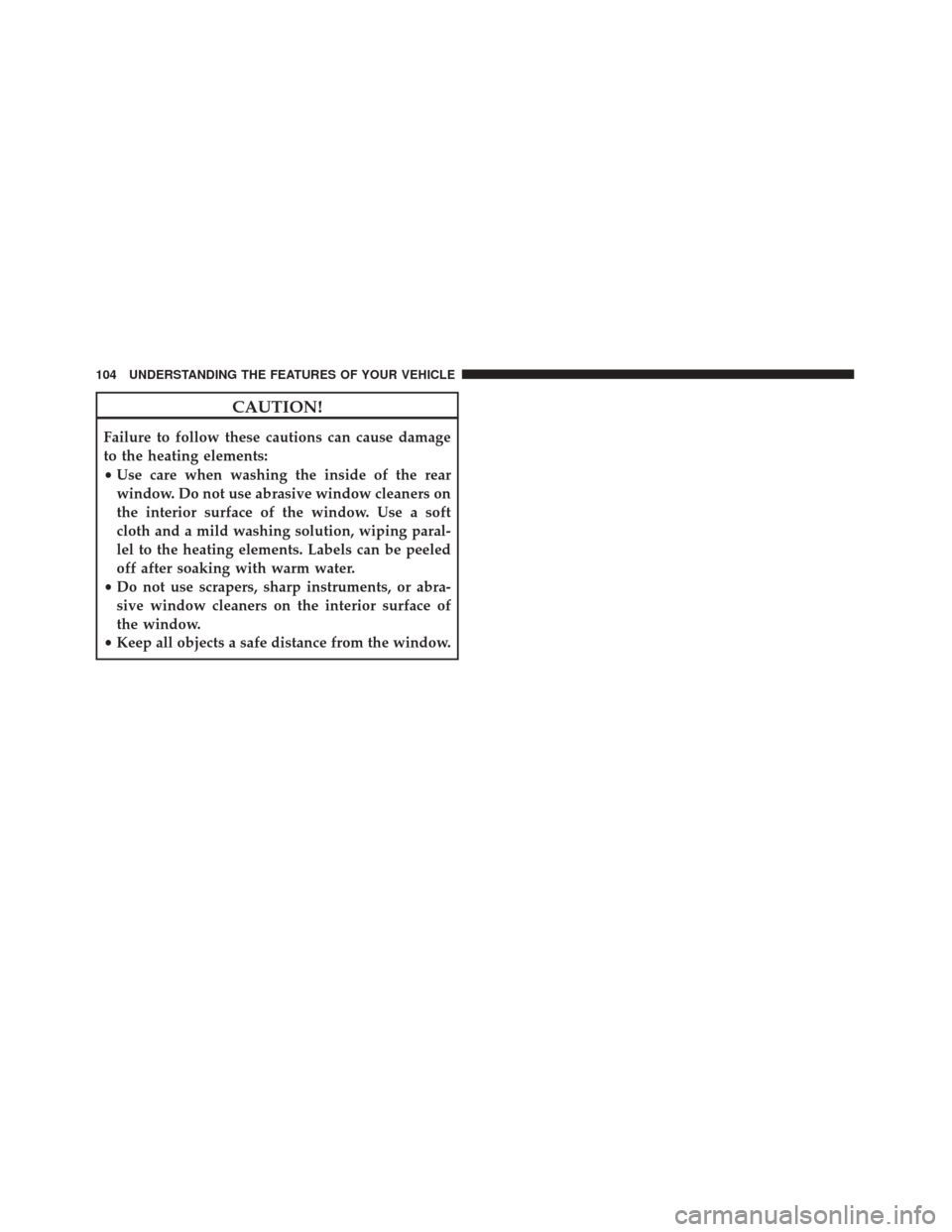

CAUTION!
Failure to follow these cautions can cause damage
to the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft
cloth and a mild washing solution, wiping paral-
lel to the heating elements. Labels can be peeled
off after soaking with warm water.
• Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of
the window.
• Keep all objects a safe distance from the window.
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES .........107
 TURBO BOOST GAUGE .................108
 SPORT INSTRUMENT CLUSTERS .........109
 SPORT TURBO INSTRUMENT CLUSTERS . . .113
 INSTRUMENT CLUSTER ................117
 WARNING AND INDICATOR LIGHTS ......119
▫ Red Telltale Indicator Lights .............120
▫ Yellow Telltale Indicator Lights ...........127
▫ Green Telltale Indicator Lights ...........137
▫ Blue Telltale Indicator Lights ............138
▫ White Telltale Indicator Lights ...........138
 INSTRUMENT CLUSTER DISPLAY ........139
▫ Instrument Cluster Display And Controls . . .139
▫ Display Menu Set-Up ..................140 ▫
Oil Change Message Reset ..............142
▫ Trip Computer ..................... .142
▫ Trip Button ........................ .143
▫ Tire Pressure ....................... .143
▫ Trip Functions ..................... .143
▫ Values Displayed .....................144
▫ Submenu Personal Settings .............145
 CYBERSECURITY ..................... .150
 UCONNECT RADIOS ..................151
 IPOD/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED ......................... .151
 UCONNECT SETTINGS .................152
▫ Buttons On The Faceplate ...............152
▫ Buttons On The Touchscreen .............1534

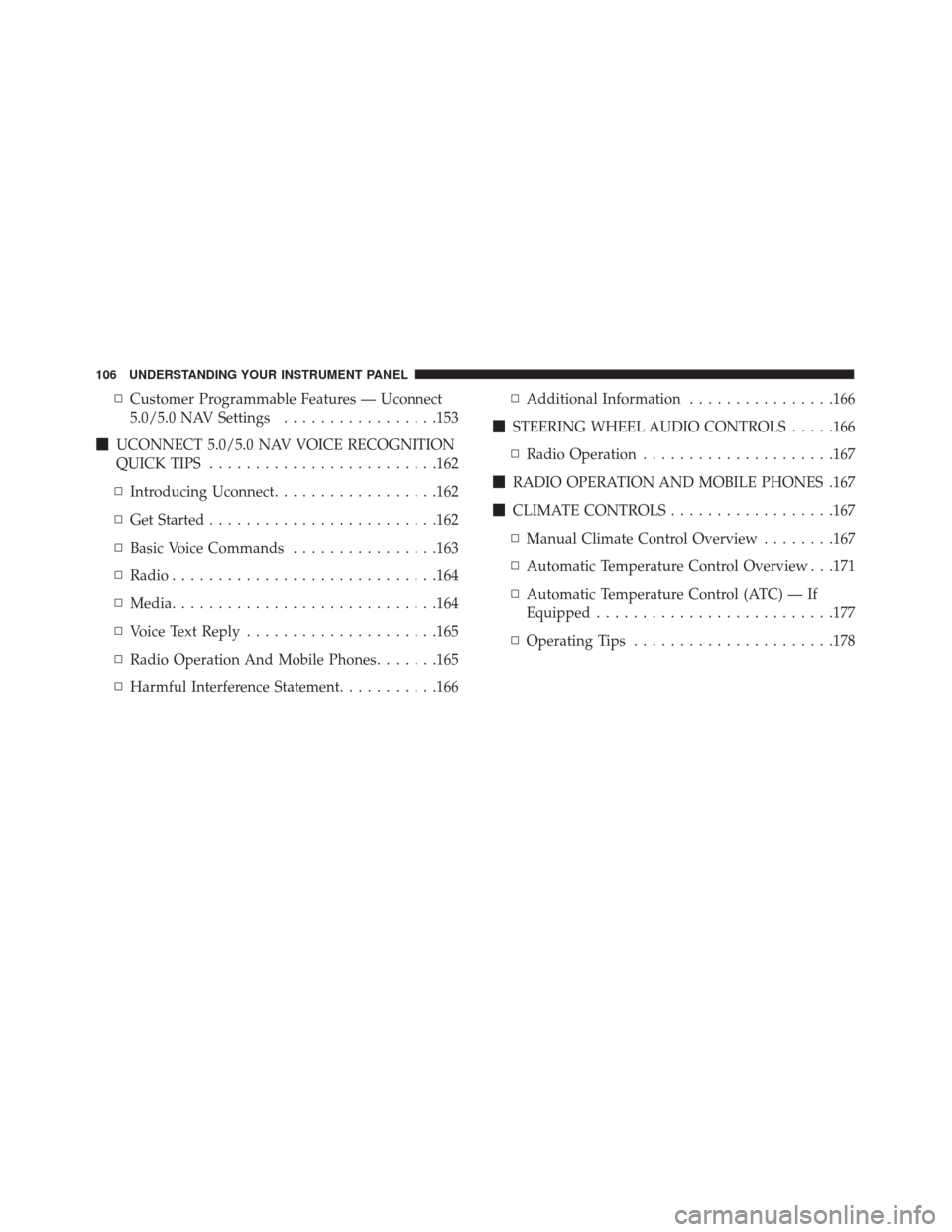

▫Customer Programmable Features — Uconnect
5.0/5.0 NAV Settings .................153
 UCONNECT 5.0/5.0 NAV VOICE RECOGNITION
QUICK TIPS ........................ .162
▫ Introducing Uconnect ..................162
▫ Get Started ........................ .162
▫ Basic Voice Commands ................163
▫ Radio ............................ .164
▫ Media ............................ .164
▫ Voice Text Reply .....................165
▫ Radio Operation And Mobile Phones .......165
▫ Harmful Interference Statement ...........166▫
Additional Information ................166
 STEERING WHEEL AUDIO CONTROLS .....166
▫ Radio Operation .....................167
 RADIO OPERATION AND MOBILE PHONES .167
 CLIMATE CONTROLS ..................167
▫ Manual Climate Control Overview ........167
▫ Automatic Temperature Control Overview . . .171
▫ Automatic Temperature Control (ATC) — If
Equipped ......................... .177
▫ Operating Tips ..................... .178
106 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Passenger Air Bag13 — Storage Compartment
2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Gear Selector
3 — Instrument Cluster And Warning
Lights 9 — Rear Defrost Button
15 — Sport Button
4 — Windshield Wiper, Washer, Trip Com-
puter 10 — Hazard Button
16 — Horn/Driver Airbag
5 — Central Air Vents 11 — Climate Controls17 — Boost Gauge
6 — Radio 12 — Power Windows Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 107

TURBO BOOST GAUGE
Your vehicle is equipped with a boost gauge and
integrated shift light indicator located to the left of the
instrument cluster. The boost gauge indicates the intake
manifold pressure relative to barometric pressure. The
engine management system in your vehicle intelligently
regulates intake manifold pressure based on environ-
mental (ambient) and engine operating conditions.
Turbo Boost Gauge
1 — Turbo Boost Gauge
2 — SPORT Indicator
108 UNDERSTANDING YOUR INSTRUMENT PANEL
