FIAT 500C 2014 2.G Owners Manual

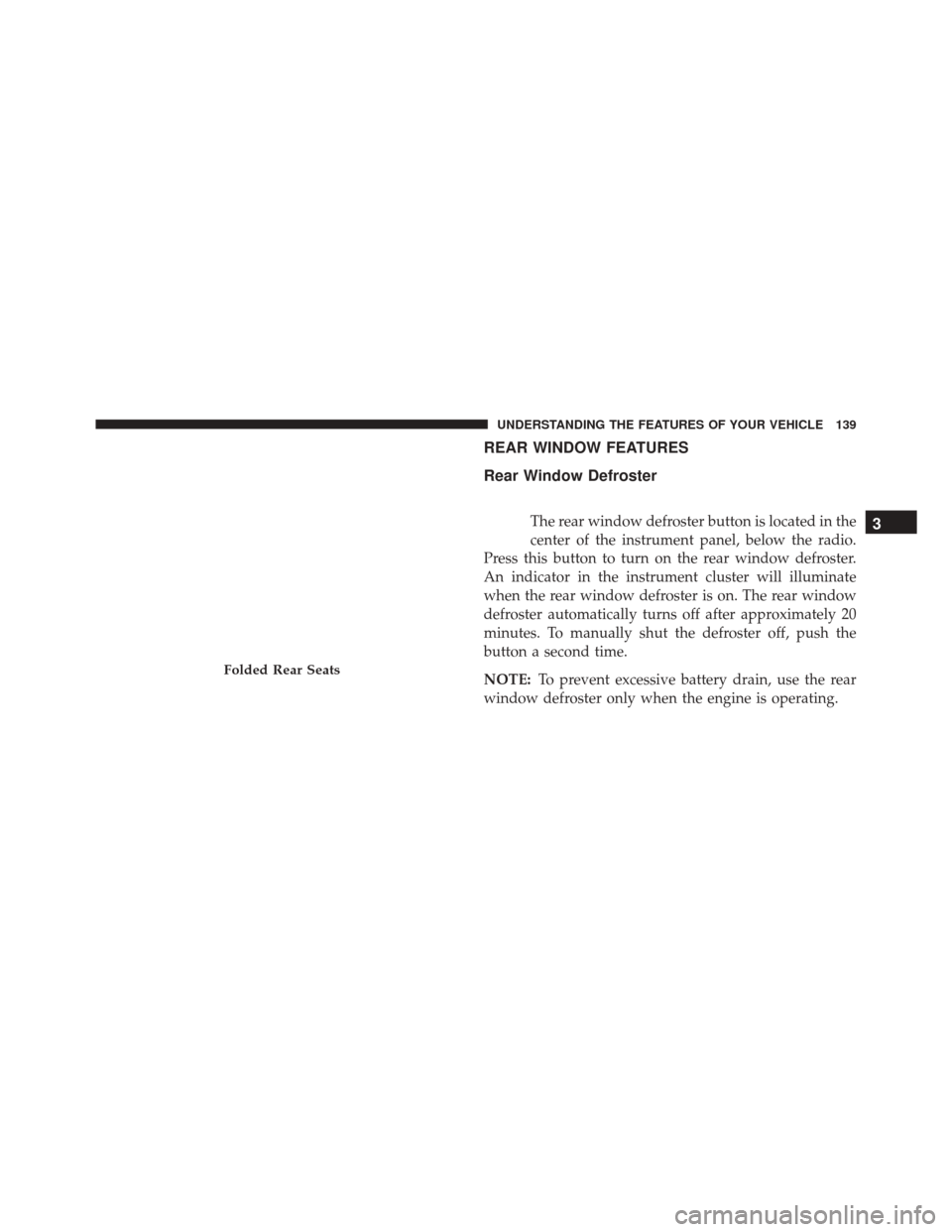

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located in the
center of the instrument panel, below the radio.
Press this button to turn on the rear window defroster.
An indicator in the instrument cluster will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately 20
minutes. To manually shut the defroster off, push the
button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Folded Rear Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139

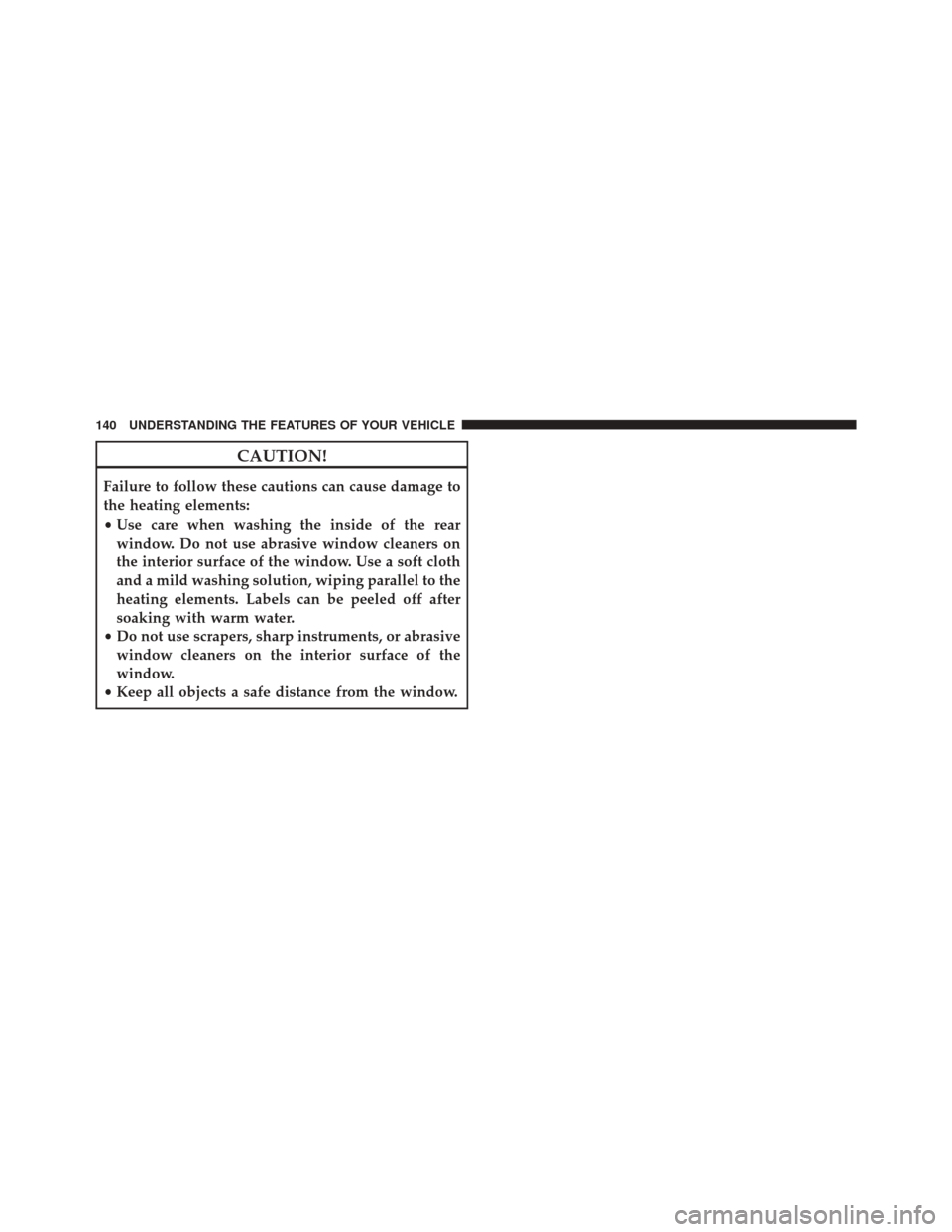

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........143
 INSTRUMENT CLUSTER — POP, LOUNGE,
500C ............................... .144
 INSTRUMENT CLUSTER — SPORT ..........145
 INSTRUMENT CLUSTER DESCRIPTIONS .....146
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ...................... .158
▫ EVIC Displays ....................... .159
▫ EVIC Control Buttons ..................160
▫ Electronic Vehicle Information Center (EVIC)
Setup Menu ........................ .160▫
Change Engine Oil Indicator System ........162
▫ Trip Computer ...................... .163
▫ Trip Button ......................... .163
▫ Trip Functions ...................... .164
▫ Values Displayed ..................... .165
▫ Personal Settings (Customer-Programmable
Features) ........................... .166
 SALES CODE (RAB) RADIO ..............177
▫ Introduction ........................ .178
▫ Suggestions ......................... .1784

▫Technical Specifications .................180
▫ Quick Guide ........................ .181
▫ General Information ....................184
▫ Functions And Adjustments ..............185
▫ Radio ............................. .192
▫ SiriusXM Satellite Radio — If Equipped ......194
▫ CD Player .......................... .197
▫ CD MP3 Player ...................... .199
▫ Troubleshooting ...................... .202
 iPod®/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED .......................... .203
 STEERING WHEEL AUDIO CONTROLS ......204▫
Radio Operation ..................... .205
▫ CD Player Operation ...................205
▫ Operating Instructions — Hands-Free Phone
(If Equipped) ........................ .205
 CD/DVD DISC MAINTENANCE ...........205
 RADIO OPERATION AND MOBILE PHONES . .206
 CLIMATE CONTROLS ...................206
▫ Manual Heating And Air Conditioning ......207
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... .209
▫ Operating Tips ...................... .216
142 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Passenger Air Bag13 — Storage Compartment
2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Shift Lever
3—
Instrument Cluster And Warning Lights9 — Rear Defrost Button 15 — Sport Button
4—Windshield Wiper, Washer, Trip Computer10 — Hazard Button 16 — Horn/Driver Airbag
5 — Central Air Vents 11 — Climate Controls
6 — Storage Compartment/Radio 12 — Power Windows Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 143

INSTRUMENT CLUSTER — POP, LOUNGE, 500C
144 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER — SPORT
4
UNDERSTANDING YOUR INSTRUMENT PANEL 145

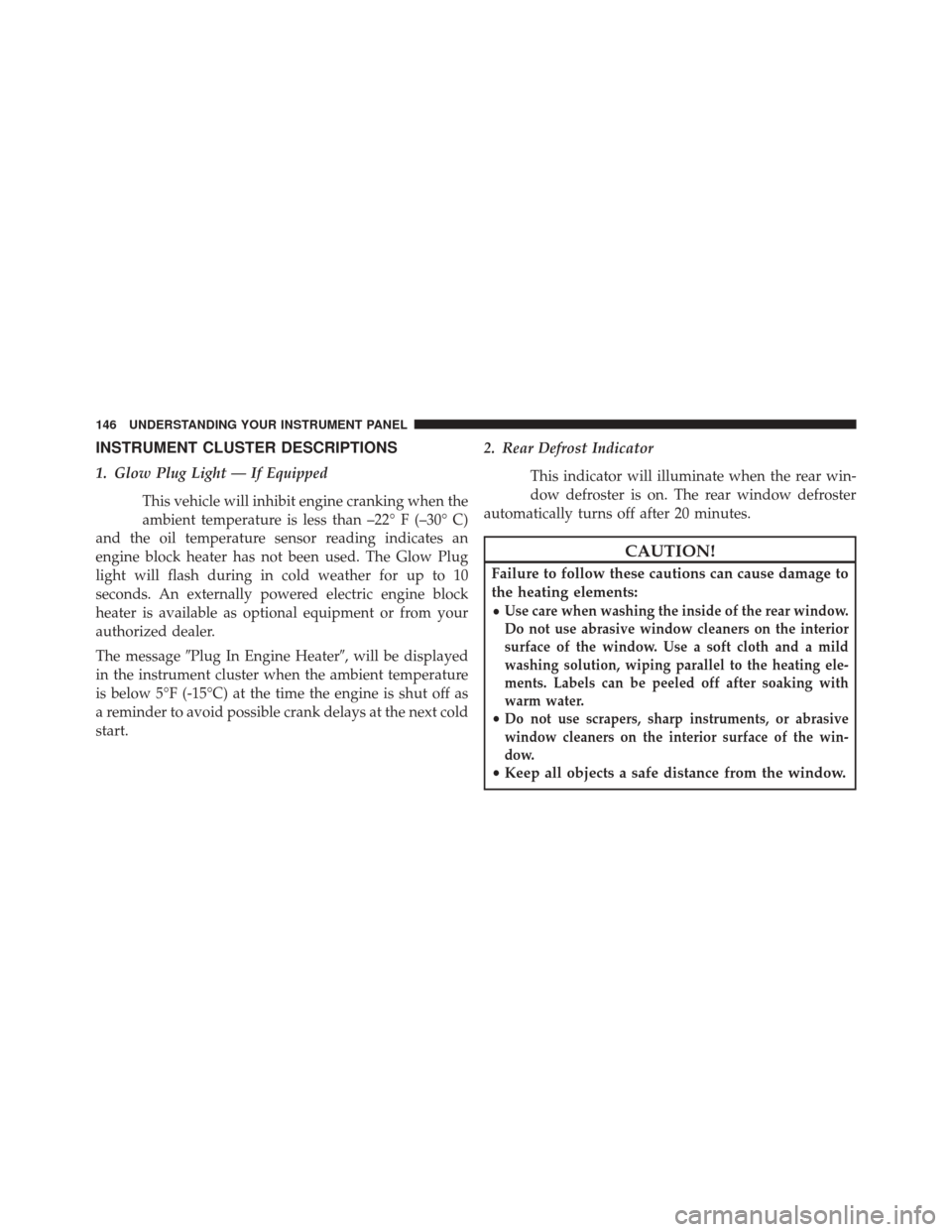

INSTRUMENT CLUSTER DESCRIPTIONS
1. Glow Plug Light — If EquippedThis vehicle will inhibit engine cranking when the
ambient temperature is less than –22° F (–30° C)
and the oil temperature sensor reading indicates an
engine block heater has not been used. The Glow Plug
light will flash during in cold weather for up to 10
seconds. An externally powered electric engine block
heater is available as optional equipment or from your
authorized dealer.
The message Plug In Engine Heater, will be displayed
in the instrument cluster when the ambient temperature
is below 5°F (-15°C) at the time the engine is shut off as
a reminder to avoid possible crank delays at the next cold
start. 2. Rear Defrost Indicator
This indicator will illuminate when the rear win-
dow defroster is on. The rear window defroster
automatically turns off after 20 minutes.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•
Use care when washing the inside of the rear window.
Do not use abrasive window cleaners on the interior
surface of the window. Use a soft cloth and a mild
washing solution, wiping parallel to the heating ele-
ments. Labels can be peeled off after soaking with
warm water.
•Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the win-
dow.
• Keep all objects a safe distance from the window.
146 UNDERSTANDING YOUR INSTRUMENT PANEL

3. Front Fog Light Indicator — If EquippedThis indicator will illuminate when the front fog
lights are on.
4. Low Fuel Light
When the fuel level reaches approximately 1.0
gallon (3.8L) this light will turn on, and remain on
until fuel is added.
5. High Beam Indicator
This light indicates that the headlights are on high
beam. Pull the turn signal lever toward the steer-
ing wheel to switch the headlights to low beam.
6. Park/Headlight ON Indicator / Follow Me Home
(Headlight Delay) Indicator — If Equipped
This indicator will illuminate when the park
lights or headlights are turned on. If the Follow
Me Home feature is activated this indicator will illuminate and the EVIC will show how long the
function remains active. For further information, refer to
“Follow Me Home” in “Understanding The Features of
Your Vehicle”.
7. Turn Signal Indicator
The arrow will flash in unison with the exterior
turn signal, when using the turn signal lever.
8. Generic Warning Light The Generic Warning Light will illuminate if
any of the following conditions occur: Oil
Change Request, Engine Oil Pressure Sensor
Failure, External Light Failure, Fuel Cut-Off
Intervention, Fuel Cut-Off Not Available, Parking Sensor
Failure.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 147

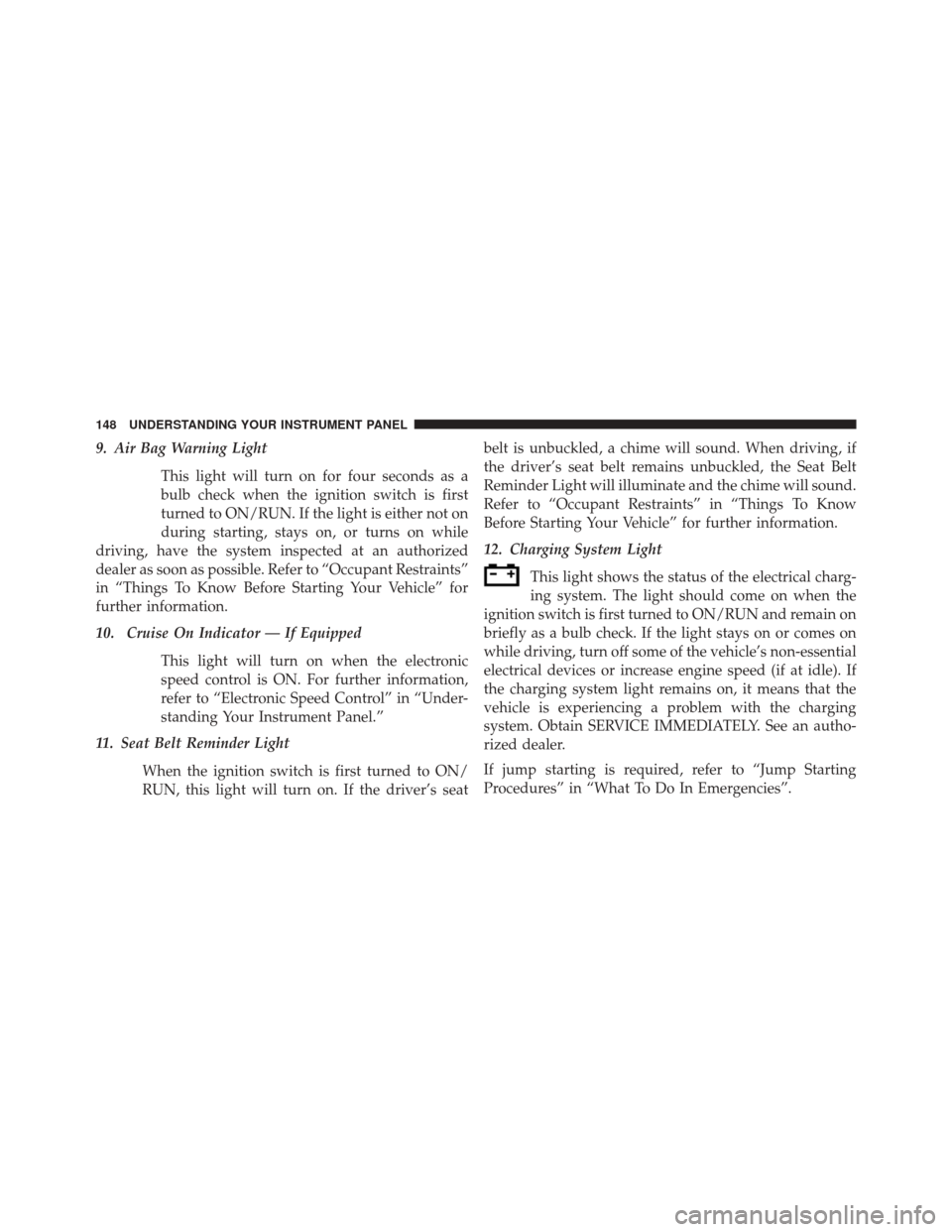

9. Air Bag Warning LightThis light will turn on for four seconds as a
bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while
driving, have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
10. Cruise On Indicator — If Equipped
This light will turn on when the electronic
speed control is ON. For further information,
refer to “Electronic Speed Control” in “Under-
standing Your Instrument Panel.”
11. Seat Belt Reminder Light
When the ignition switch is first turned to ON/
RUN, this light will turn on. If the driver’s seat belt is unbuckled, a chime will sound. When driving, if
the driver’s seat belt remains unbuckled, the Seat Belt
Reminder Light will illuminate and the chime will sound.
Refer to “Occupant Restraints” in “Things To Know
Before Starting Your Vehicle” for further information.
12. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
