FIAT 500C 2014 2.G Owners Manual

EVIC Displays
SPORT Instrument Cluster
1 — Temperature Indicator 6 — Message Display
2 — Fuel Level Gauge 7 —Coolant Temperature Gauge3 — Clock8 — Digital Speedometer
4 — Odometer 9 — Ice Warning Indicator
5 — Sport Mode 10 — Gear Shift Indicator (GSI)
Premium Instrument Cluster
1 — Ice Warning Indicator 6 — Message Display
2 — Temperature Indicator 7 —Coolant Temperature Gauge3 — Fuel Level Gauge8 — Digital Speedometer
4 — Clock 9 — Autostick® Gear Indicator
5 — Odometer 10 —
Auto/Sport/ECO Indicator
4
UNDERSTANDING YOUR INSTRUMENT PANEL 159

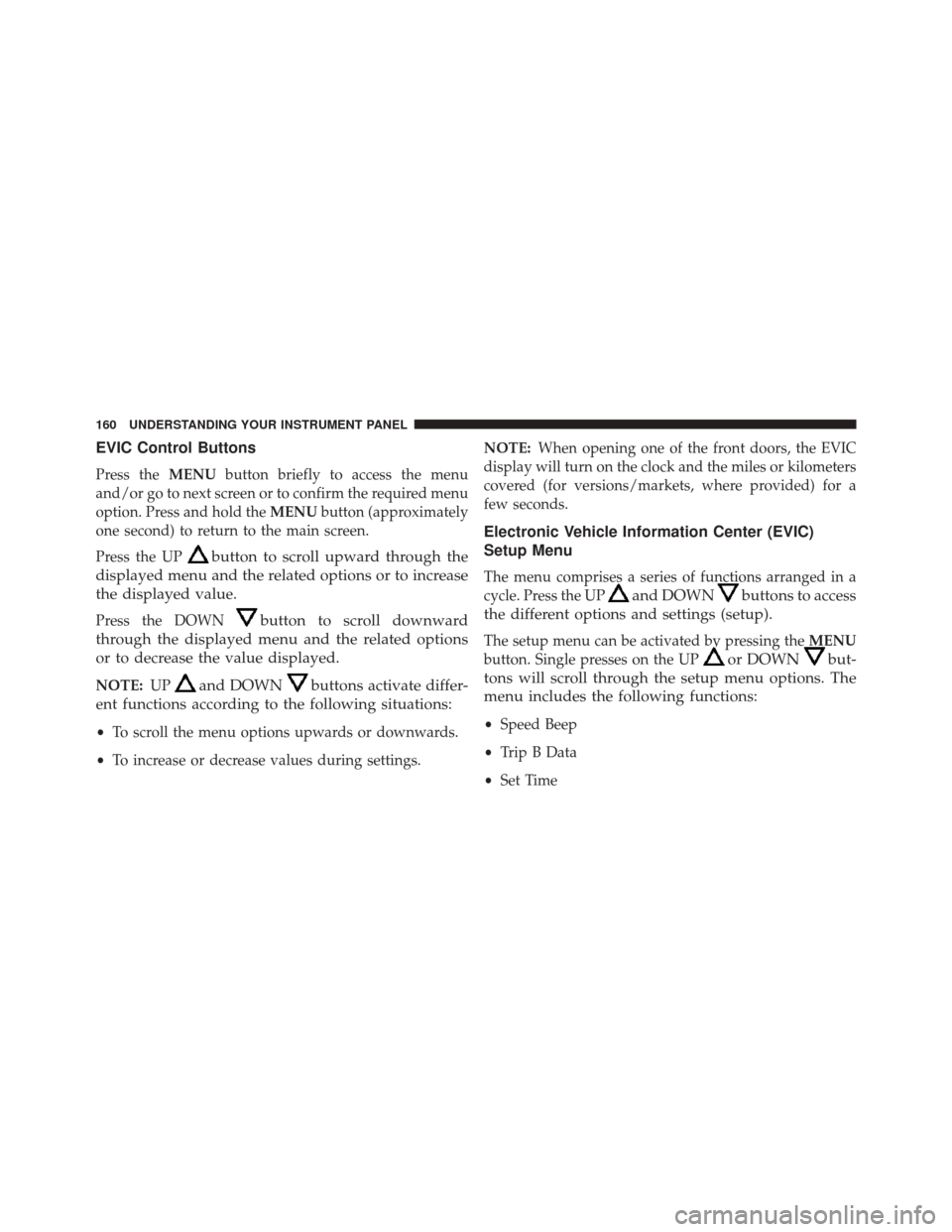

EVIC Control Buttons
Press theMENUbutton briefly to access the menu
and/or go to next screen or to confirm the required menu
option. Press and hold the MENUbutton (approximately
one second) to return to the main screen.
Press the UP
button to scroll upward through the
displayed menu and the related options or to increase
the displayed value.
Press the DOWNbutton to scroll downward
through the displayed menu and the related options
or to decrease the value displayed.
NOTE: UPand DOWNbuttons activate differ-
ent functions according to the following situations:
• To scroll the menu options upwards or downwards.
• To increase or decrease values during settings. NOTE:
When opening one of the front doors, the EVIC
display will turn on the clock and the miles or kilometers
covered (for versions/markets, where provided) for a
few seconds.
Electronic Vehicle Information Center (EVIC)
Setup Menu
The menu comprises a series of functions arranged in a
cycle. Press the UP
and DOWNbuttons to access
the different options and settings (setup).
The setup menu can be activated by pressing the MENU
button. Single presses on the UP
or DOWNbut-
tons will scroll through the setup menu options. The
menu includes the following functions:
• Speed Beep
• Trip B Data
• Set Time
160 UNDERSTANDING YOUR INSTRUMENT PANEL

•Set Date
• See Radio
• Speed Display
• Autoclose
• Units
• Language
• Buzzer Volume
• Button Volume
• Daylights (D.R.L.)
• Hill Start
• Tire Pressure
• Unlock Driver Door First
• Unlock All Doors •
Exit Menu
Selecting An Option Of The Main Menu Without
Submenu
1. Briefly press the MENUbutton to select the main
menu option to set.
2. Press the UP
or DOWNbutton (by single
presses) to select the new setting.
3. Briefly press the MENUbutton to store the new
setting and go back to the main menu option previ-
ously selected.
Selecting An Option Of The Main Menu With Submenu
1. Briefly press the MENUbutton to display the first
submenu option.
2. Press the UP
or DOWNbutton (by single
presses) to scroll through all the submenu options. 4
UNDERSTANDING YOUR INSTRUMENT PANEL 161

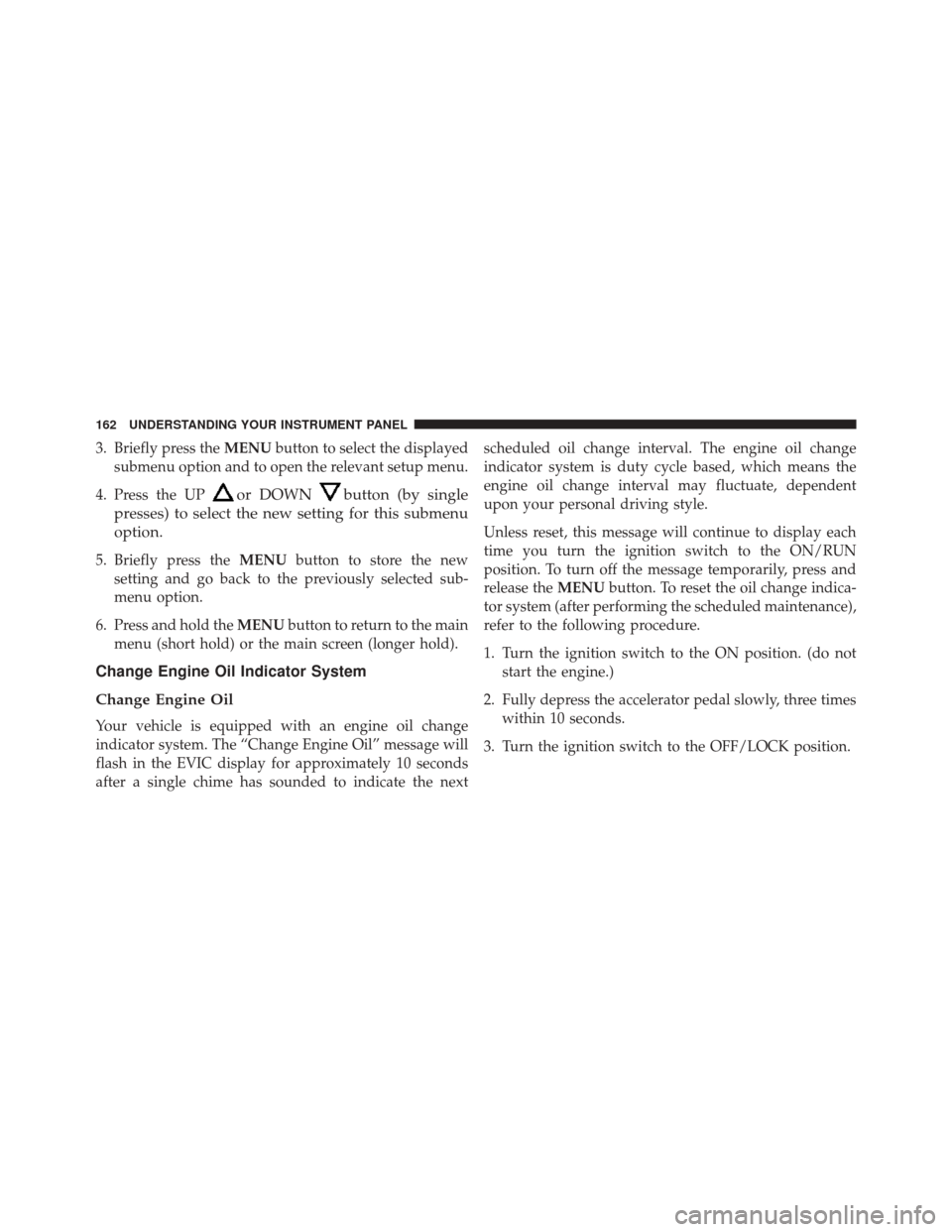

3. Briefly press theMENUbutton to select the displayed
submenu option and to open the relevant setup menu.
4. Press the UP
or DOWNbutton (by single
presses) to select the new setting for this submenu
option.
5. Briefly press the MENUbutton to store the new
setting and go back to the previously selected sub-
menu option.
6. Press and hold the MENUbutton to return to the main
menu (short hold) or the main screen (longer hold).
Change Engine Oil Indicator System
Change Engine Oil
Your vehicle is equipped with an engine oil change
indicator system. The “Change Engine Oil” message will
flash in the EVIC display for approximately 10 seconds
after a single chime has sounded to indicate the next scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent
upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the
MENUbutton. To reset the oil change indica-
tor system (after performing the scheduled maintenance),
refer to the following procedure.
1. Turn the ignition switch to the ON position. (do not start the engine.)
2. Fully depress the accelerator pedal slowly, three times within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
162 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Trip Computer
The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa-
tion such as; trip information, range, fuel consumption,
average speed and travel time).
Trip Button
The TRIP button, located on the right steering column
stalk, can be used to display and to reset the previously
described values.
• A short button press displays the different values.
• A long button press resets the system and then starts a
new trip.
New Trip
To reset:
• Push and hold the TRIPbutton to reset the system
manually.
• When the “Trip distance” reaches 99999.9 miles or
kilometers or when the “Travel time” reaches 999.59
(999 hours and 59 minutes), the system is reset auto-
matically.
• Disconnecting/Reconnecting the battery resets the
system.
NOTE: If the reset operation occurs in the presence of
the screens concerning Trip A or Trip B, only the infor-
mation associated with Trip A or Trip B functions will be
reset.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 163

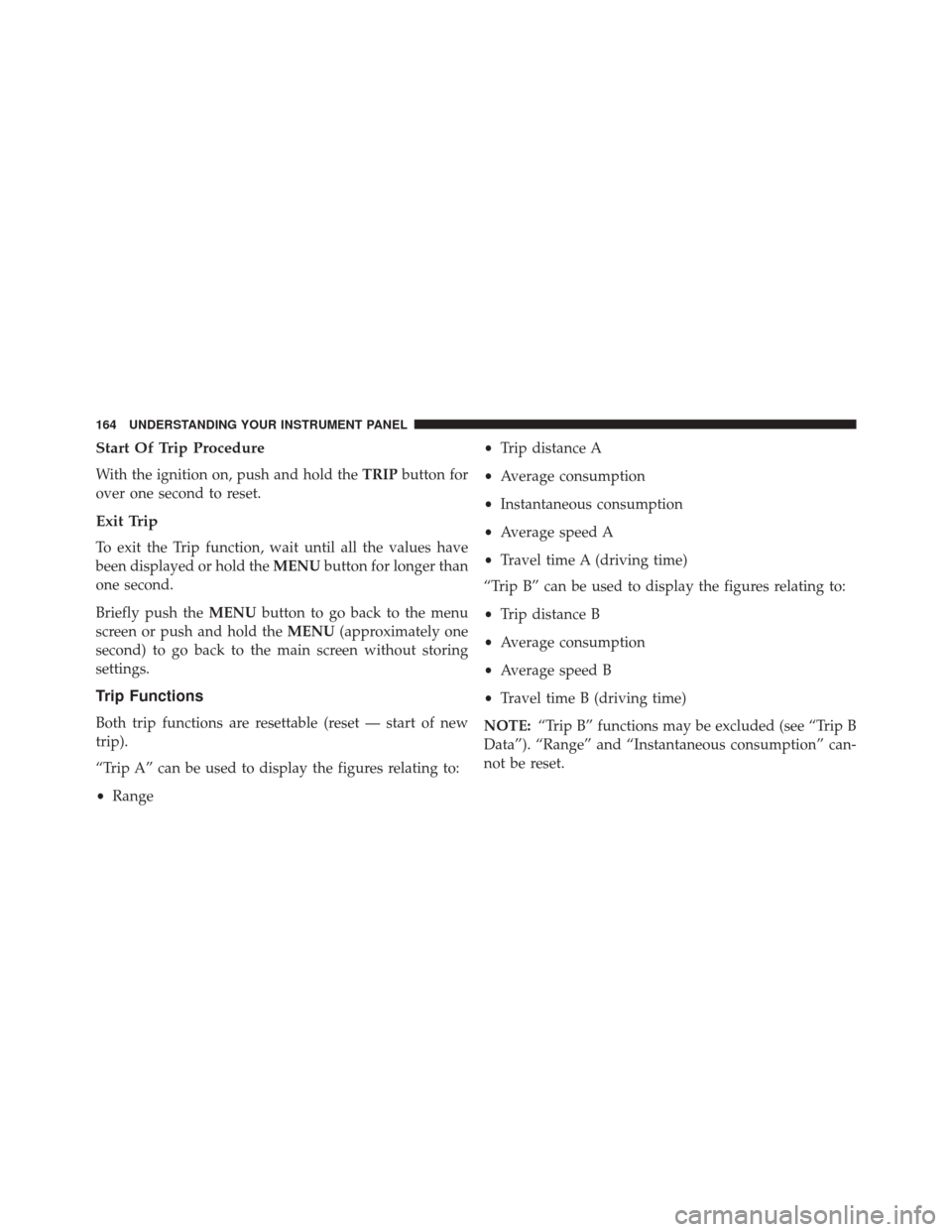

Start Of Trip Procedure
With the ignition on, push and hold theTRIPbutton for
over one second to reset.
Exit Trip
To exit the Trip function, wait until all the values have
been displayed or hold the MENUbutton for longer than
one second.
Briefly push the MENUbutton to go back to the menu
screen or push and hold the MENU(approximately one
second) to go back to the main screen without storing
settings.
Trip Functions
Both trip functions are resettable (reset — start of new
trip).
“Trip A” can be used to display the figures relating to:
• Range •
Trip distance A
• Average consumption
• Instantaneous consumption
• Average speed A
• Travel time A (driving time)
“Trip B” can be used to display the figures relating to:
• Trip distance B
• Average consumption
• Average speed B
• Travel time B (driving time)
NOTE: “Trip B” functions may be excluded (see “Trip B
Data”). “Range” and “Instantaneous consumption” can-
not be reset.
164 UNDERSTANDING YOUR INSTRUMENT PANEL

Values Displayed
Range
This indicates the distance which may be traveled with
the fuel remaining in the tank, assuming that driving
conditions will not change. The message “----” will
appear on the display in the following cases:
•Distance less than 30 miles (or 50 km).
• The vehicle is parked for a long time with the engine
running.
NOTE: The range depends on several factors: driving
style, type of route (freeway, residential, mountain roads,
etc.), conditions of use of the car (load, tire pressure, etc.).
Trip planning must take into account the above notes.
Distance Traveled
This value shows the distance covered since the last reset.
Average Consumption
This value shows the approximate average consumption
since the last reset.
Instant Consumption
This indicates the fuel consumption. The value is con-
stantly updated. The message “----” will appear on the
display if the car is parked with the engine running.
Average Speed
This value shows the vehicle’s average speed as a func-
tion of the overall time elapsed since the last reset.
Travel Time
This value shows the time elapsed since the last reset.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 165

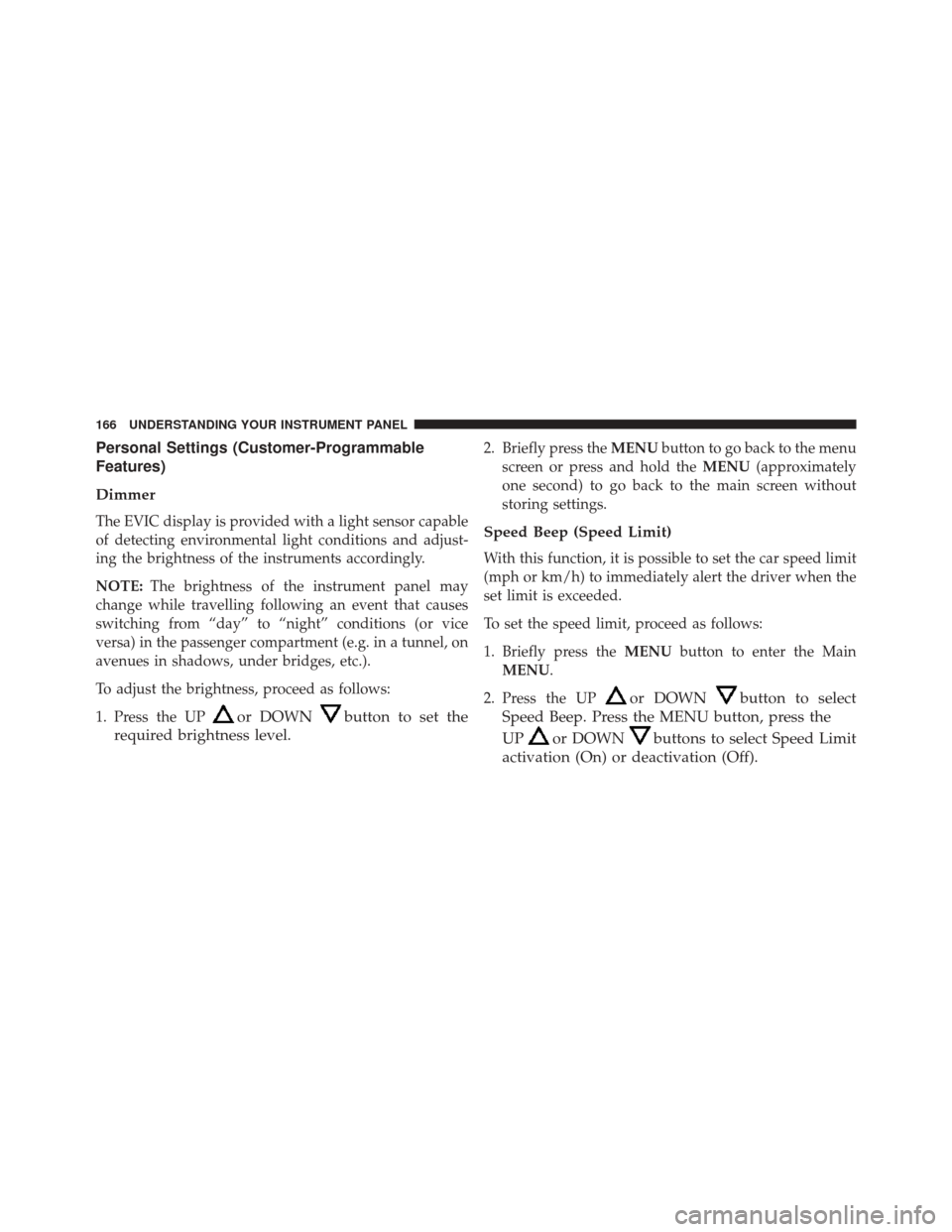

Personal Settings (Customer-Programmable
Features)
Dimmer
The EVIC display is provided with a light sensor capable
of detecting environmental light conditions and adjust-
ing the brightness of the instruments accordingly.
NOTE:The brightness of the instrument panel may
change while travelling following an event that causes
switching from “day” to “night” conditions (or vice
versa) in the passenger compartment (e.g. in a tunnel, on
avenues in shadows, under bridges, etc.).
To adjust the brightness, proceed as follows:
1. Press the UP
or DOWNbutton to set the
required brightness level.
2. Briefly press the MENUbutton to go back to the menu
screen or press and hold the MENU(approximately
one second) to go back to the main screen without
storing settings.
Speed Beep (Speed Limit)
With this function, it is possible to set the car speed limit
(mph or km/h) to immediately alert the driver when the
set limit is exceeded.
To set the speed limit, proceed as follows:
1. Briefly press the MENUbutton to enter the Main
MENU.
2. Press the UP
or DOWNbutton to select
Speed Beep. Press the MENU button, press the
UP
or DOWNbuttons to select Speed Limit
activation (On) or deactivation (Off).
166 UNDERSTANDING YOUR INSTRUMENT PANEL

3. When the function is activated (On), briefly press theMENU button to display the presently set activation
speed. Pressing the UP
or DOWNbuttons
selects the speed limit. Press MENU
to confirm
selection.
NOTE: The setting can be increased or decreased by
5 mph or km/h each time the UP/DOWN button is
pressed for speed settings above 20 mph (32 km/h). To
increase or decrease the set speed rapidly, press and hold
the UP/DOWN button. Save the setting by briefly press-
ing the button when you approach the required setting.
• Briefly press the MENUbutton to go back to the menu
screen, or press and hold the MENUbutton (approxi-
mately one second) to go back to the main screen
without storing the settings. To cancel the setting, proceed as follows:
1. Briefly press the
MENUbutton. “On” will flash on the
display.
2. Press the DOWNbutton. “Off” will flash on the
display.
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the MENUbutton (approxi-
mately one second) to go back to the main screen
without storing the settings.
Trip B Data (Trip B On)
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information see “Trip Computer.”
For activation / deactivation, proceed as follows:
1. Briefly press the MENUbutton.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 167

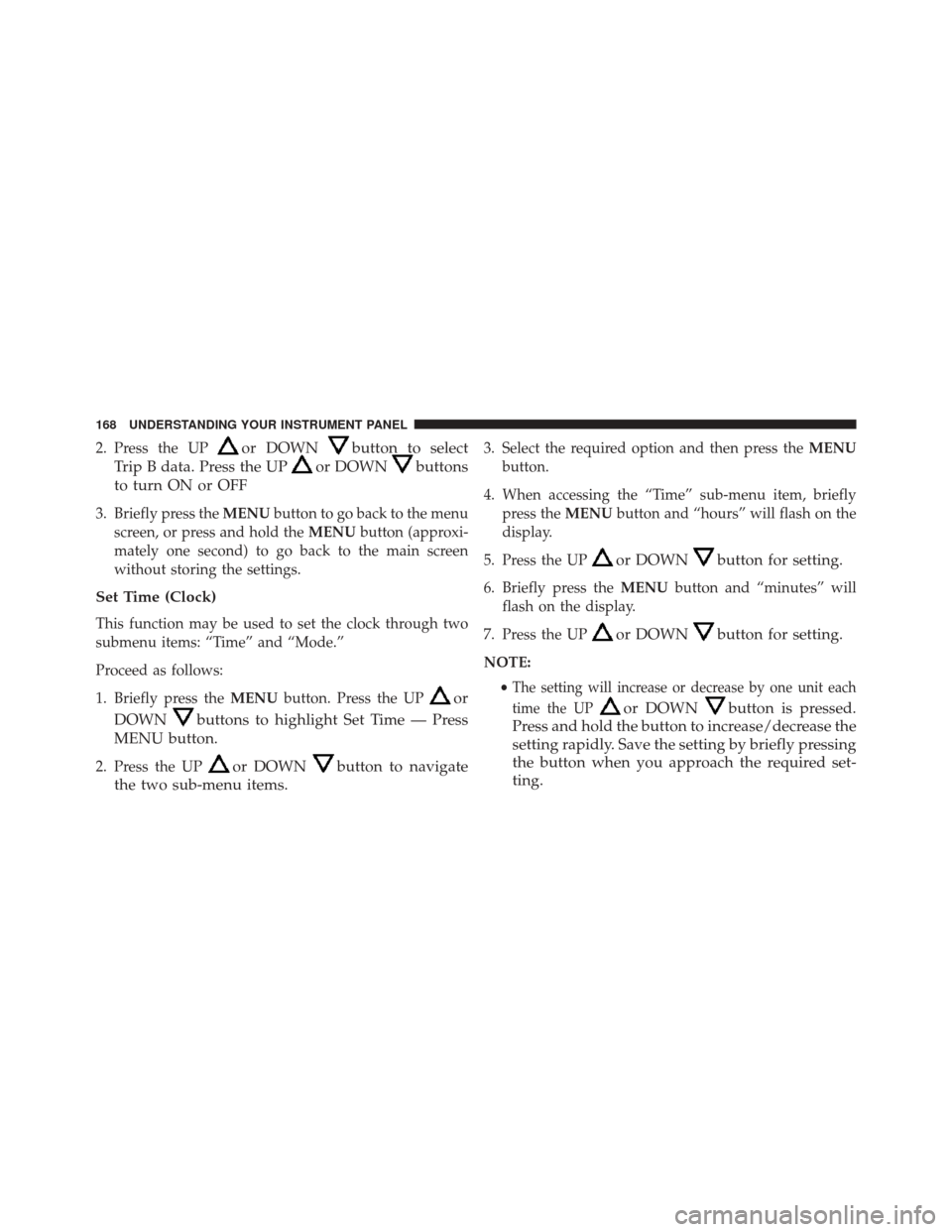

2. Press the UPor DOWNbutton to select
Trip B data. Press the UP
or DOWNbuttons
to turn ON or OFF
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the MENUbutton (approxi-
mately one second) to go back to the main screen
without storing the settings.
Set Time (Clock)
This function may be used to set the clock through two
submenu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly press the MENUbutton. Press the UP
or
DOWN
buttons to highlight Set Time — Press
MENU button.
2. Press the UPor DOWNbutton to navigate
the two sub-menu items.
3. Select the required option and then press the MENU
button.
4. When accessing the “Time” sub-menu item, briefly press the MENUbutton and “hours” will flash on the
display.
5. Press the UP
or DOWNbutton for setting.
6. Briefly press the MENUbutton and “minutes” will
flash on the display.
7. Press the UP
or DOWNbutton for setting.
NOTE: •
The setting will increase or decrease by one unit each
time the UP
or DOWNbutton is pressed.
Press and hold the button to increase/decrease the
setting rapidly. Save the setting by briefly pressing
the button when you approach the required set-
ting.
168 UNDERSTANDING YOUR INSTRUMENT PANEL
