FIAT 500C 2015 2.G Owners Manual

Power is available when the ignition switch is in the
ON/RUN or START position. Insert the cigar lighter or
accessory plug into the outlet for use. To preserve the
heating element, do not hold the lighter in the heating
position.
CAUTION!
•Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watts (13 Amps) power
rating is exceeded, the fuse protecting the system
will need to be replaced.
• Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.
Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
(Continued)
Power Outlet Fuse Location Underhood
F15 Fuse 15 A Blue Cigar Lighter Front Console 130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

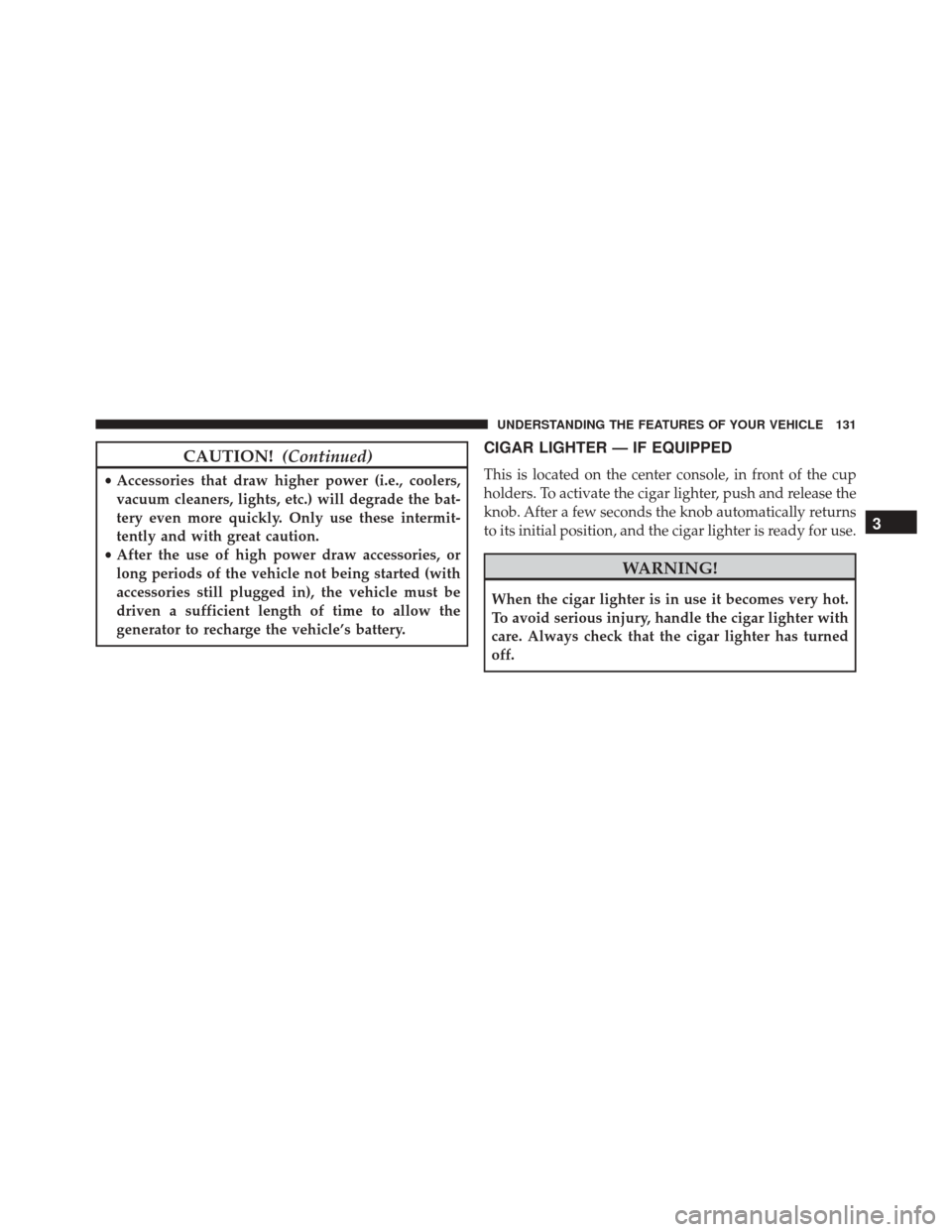

CAUTION!(Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with great caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
CIGAR LIGHTER — IF EQUIPPED
This is located on the center console, in front of the cup
holders. To activate the cigar lighter, push and release the
knob. After a few seconds the knob automatically returns
to its initial position, and the cigar lighter is ready for use.
WARNING!
When the cigar lighter is in use it becomes very hot.
To avoid serious injury, handle the cigar lighter with
care. Always check that the cigar lighter has turned
off.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

CUPHOLDERS
For the driver and front passenger, cupholders are lo-
cated on the floor console between the front seats.For rear passengers, there are cupholders located on the
floor between the front driver and passenger seats.
Front Cupholders
Rear Cupholders
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

STORAGE
Glove Compartment
The glove compartment is located on the right side of the
instrument panel. Pull outward on the glove compart-
ment latch to open the glove compartment. Push the
glove compartment door upward to close it.
CARGO AREA FEATURES
The rear seatbacks have a fold down feature to allow
increased cargo capacity.
Glove Compartment Latch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

Push down the release button, located at the outboard
top of the seatback and move the seatback to its folded-
down position to provide a flat load floor cargo area.
When returning the seatback to its upright position, push
rearward until the seatback is properly latched.
Rear Seat Release Buttons
Folded Rear Seats
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

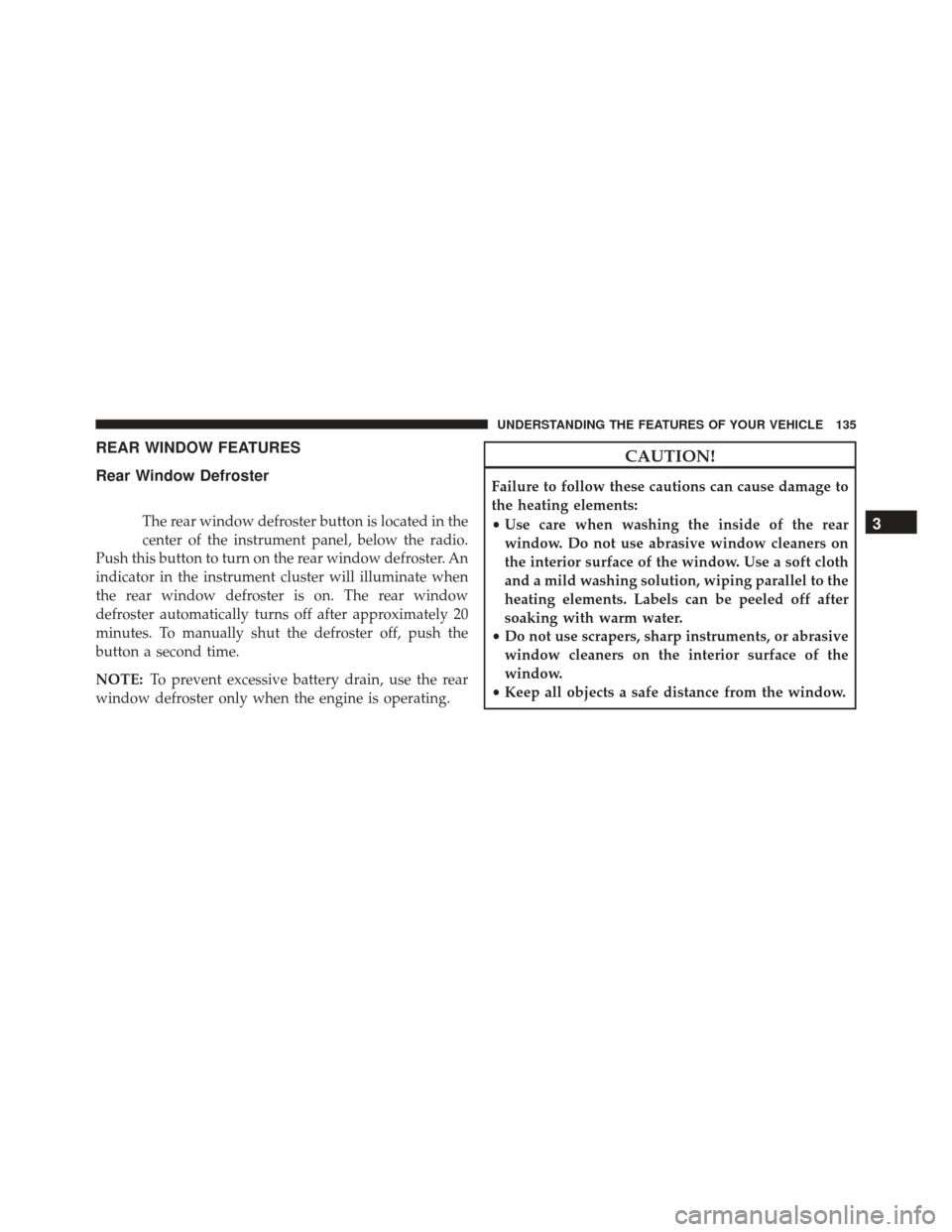

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located in the
center of the instrument panel, below the radio.
Push this button to turn on the rear window defroster. An
indicator in the instrument cluster will illuminate when
the rear window defroster is on. The rear window
defroster automatically turns off after approximately 20
minutes. To manually shut the defroster off, push the
button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

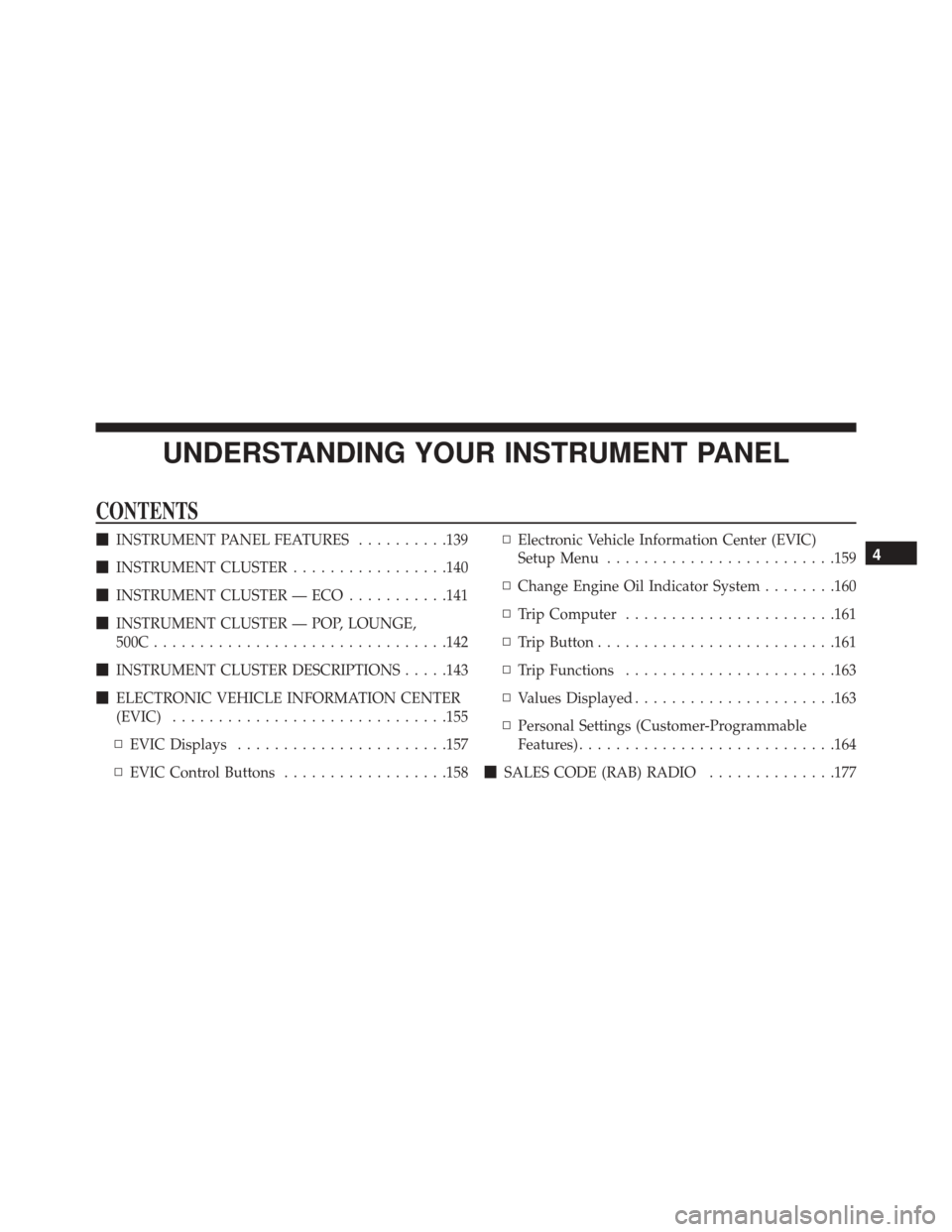

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........139
 INSTRUMENT CLUSTER .................140
 INSTRUMENT CLUSTER — ECO ...........141
 INSTRUMENT CLUSTER — POP, LOUNGE,
500C ............................... .142
 INSTRUMENT CLUSTER DESCRIPTIONS .....143
 ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) ............................. .155
▫ EVIC Displays ...................... .157
▫ EVIC Control Buttons ..................158 ▫
Electronic Vehicle Information Center (EVIC)
Setup Menu ........................ .159
▫ Change Engine Oil Indicator System ........160
▫ Trip Computer ...................... .161
▫ Trip Button ......................... .161
▫ Trip Functions ...................... .163
▫ Values Displayed ..................... .163
▫ Personal Settings (Customer-Programmable
Features) ........................... .164
 SALES CODE (RAB) RADIO ..............1774

▫Introduction ........................ .177
▫ Suggestions ......................... .177
▫ Technical Specifications .................179
▫ Quick Guide ........................ .180
▫ General Information ....................184
▫ Functions And Adjustments ..............185
▫ Radio ............................. .192
▫ SiriusXM Satellite Radio — If Equipped ......194
▫ CD Player .......................... .197
▫ CD MP3 Player ...................... .199
▫ Troubleshooting ...................... .202
 iPod®/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED .......................... .203
STEERING WHEEL AUDIO CONTROLS ......204
▫ Radio Operation ..................... .205
▫ CD Player Operation ...................205
▫ Operating Instructions — Hands-Free Phone
(If Equipped) ........................ .205
 CD/DVD DISC MAINTENANCE ...........205
 RADIO OPERATION AND MOBILE PHONES . .206
 CLIMATE CONTROLS ...................206
▫ Manual Heating And Air Conditioning ......207
▫ Automatic Temperature Control (ATC) ......209
▫ Operating Tips ...................... .215
138 UNDERSTANDING YOUR INSTRUMENT PANEL
