CAUTION!(Continued)
•Towing this vehicle in violation of the above re-
quirements can cause severe transmission damage.
Damage from improper towing is not covered un-
der the New Vehicle Limited Warranty.
Manual Transmission
• Vehicle can be flat towed (all four wheels on the
ground) with the transmission in NEUTRAL.
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off
the ground).

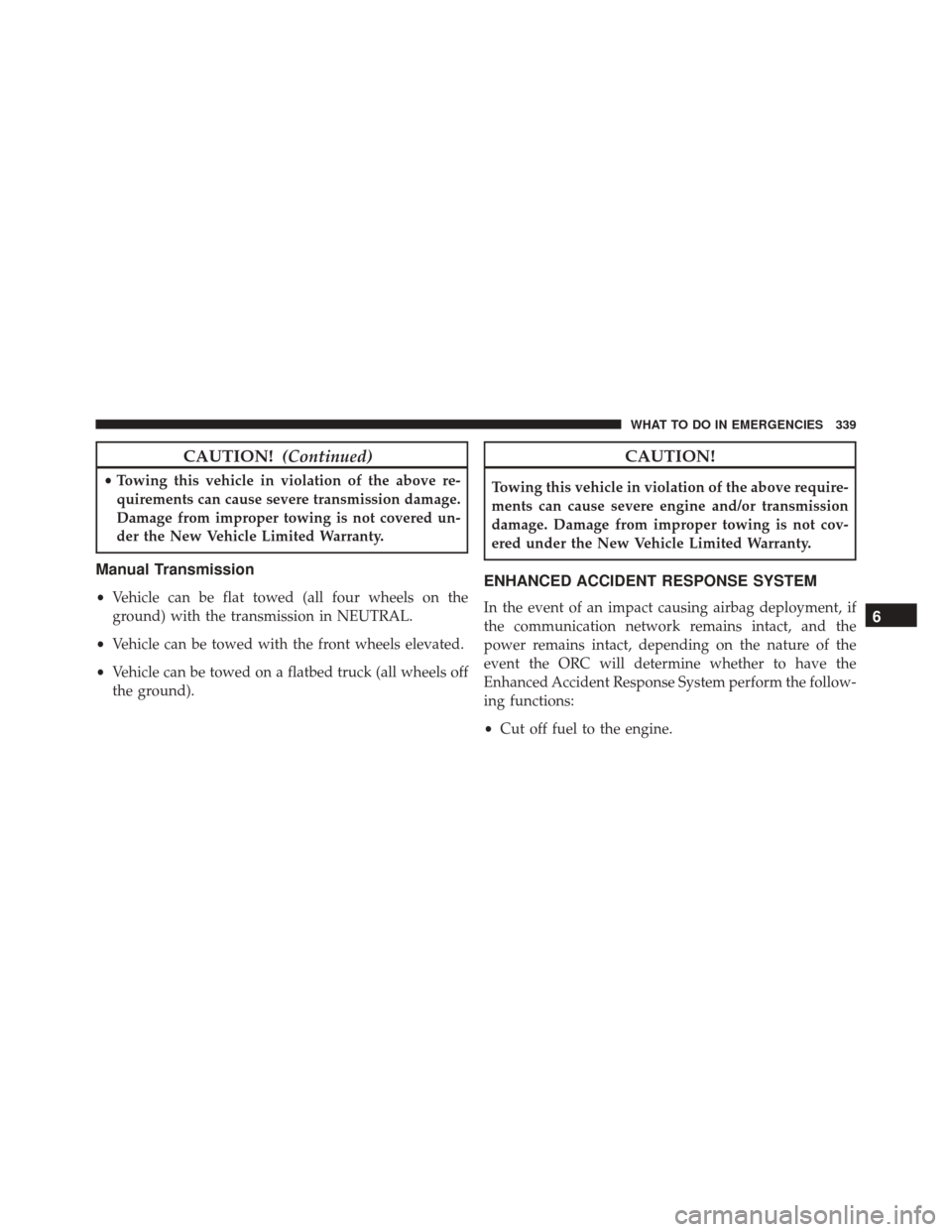

CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe engine and/or transmission
damage. Damage from improper towing is not cov-
ered under the New Vehicle Limited Warranty.
ENHANCED ACCIDENT RESPONSE SYSTEM
In the event of an impact causing airbag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
• Cut off fuel to the engine.6
WHAT TO DO IN EMERGENCIES 339

•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
• Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
• Unlock the doors automatically.
After the event occurs, when the system is active, the
message Fuel Cutoff See Handbook is displayed.
Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine com-
partment and fuel tank before resetting the system and
starting the engine. System Reset Procedure
After an impact causing airbag deployment, the left and
right turn signal lights, located in the instrument panel
cluster, will both be blinking, until the ignition is turned
off.
In order to move your vehicle to the side of the road you
must follow the system reset procedure.
340 WHAT TO DO IN EMERGENCIES

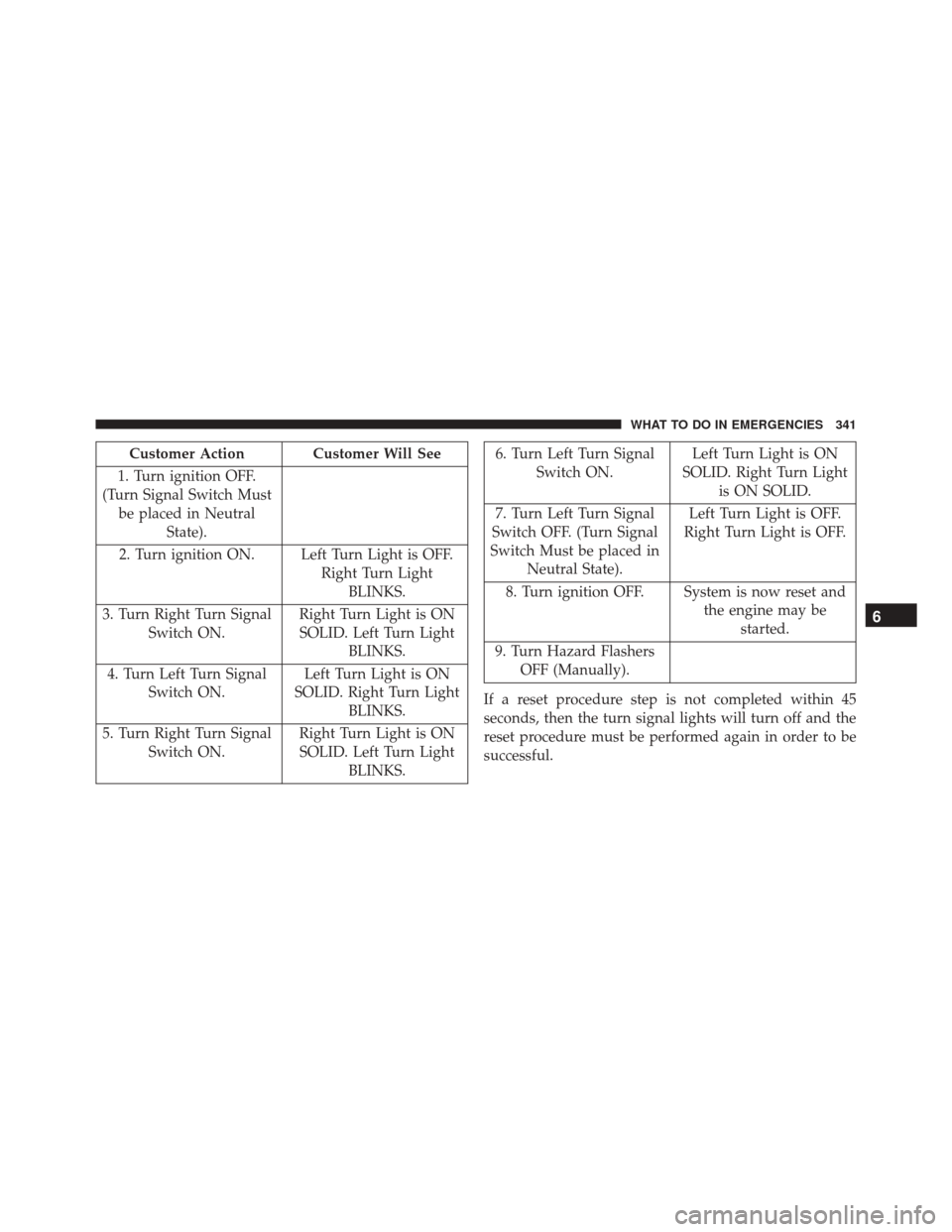

Customer Action Customer Will See
1. Turn ignition OFF.
(Turn Signal Switch Must be placed in Neutral State).
2. Turn ignition ON. Left Turn Light is OFF. Right Turn LightBLINKS.
3. Turn Right Turn Signal Switch ON. Right Turn Light is ON
SOLID. Left Turn Light BLINKS.
4. Turn Left Turn Signal Switch ON. Left Turn Light is ON
SOLID. Right Turn Light BLINKS.
5. Turn Right Turn Signal Switch ON. Right Turn Light is ON
SOLID. Left Turn Light BLINKS.6. Turn Left Turn SignalSwitch ON. Left Turn Light is ON
SOLID. Right Turn Light is ON SOLID.
7. Turn Left Turn Signal
Switch OFF. (Turn Signal
Switch Must be placed in Neutral State). Left Turn Light is OFF.
Right Turn Light is OFF.
8. Turn ignition OFF. System is now reset and the engine may bestarted.
9. Turn Hazard Flashers OFF (Manually).
If a reset procedure step is not completed within 45
seconds, then the turn signal lights will turn off and the
reset procedure must be performed again in order to be
successful.
6
WHAT TO DO IN EMERGENCIES 341

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 1.4L ..........345
 ENGINE COMPARTMENT — 1.4L TURBO . . . .346
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .347
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .347
 REPLACEMENT PARTS ..................349
 DEALER SERVICE ..................... .349
 MAINTENANCE PROCEDURES ...........350
▫ Engine Oil ......................... .350
▫ Engine Oil Filter ..................... .354▫
Engine Air Cleaner Filter ................354
▫ Maintenance-Free Battery ...............355
▫ Air Conditioner Maintenance .............356
▫ Body Lubrication .....................360
▫ Wiper Blades ....................... .360
▫ Adding Washer Fluid ..................363
▫ Exhaust System ..................... .363
▫ Cooling System ..................... .366
▫ Brake System ....................... .371
▫ Manual Transmission — If Equipped .......374
7

▫Automatic Transmission — If Equipped .....374
▫ Appearance Care And Protection From
Corrosion .......................... .376
▫ Convertible Top Care — If Equipped .......383
 FUSES ............................. .385
▫ Interior Fuses ....................... .386
▫ Underhood Fuses ..................... .388
 VEHICLE STORAGE ....................391
 REPLACEMENT BULBS .................392
 BULB REPLACEMENT ..................393
▫ Headlamps Low Beam and High Beam ......393▫
Front Turn Signal, Parking And Daytime Running
Lamps ............................ .394
▫ Front Fog Lamps ..................... .394
▫ Front/Rear Side Marker Lamps ............395
▫ Rear Tail, Stop, Backup And Turn Signal
Lamps ............................ .395
▫ Center High Mounted Stop Lamp (CHMSL) . . .396
 FLUID CAPACITIES ....................397
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .398
▫ Engine ............................ .398
▫ Chassis ........................... .400
344 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 1.4L
1 — Engine Coolant Reservoir5 — Battery
2 — Engine Oil Dipstick 6 — Air Cleaner Filter
3 — Brake Fluid Reservoir 7 — Engine Oil Fill
4 — Front Distribution Unit (Fuses) 8 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 345

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Battery
2 — Engine Oil Dipstick 6 — Engine Oil Fill
3 — Brake Fluid Reservoir 7 — Washer Fluid Reservoir
4 — Front Distribution Unit (Fuses) 346 MAINTAINING YOUR VEHICLE

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
• If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
7
MAINTAINING YOUR VEHICLE 347

Indicator Light (MIL)” is functioning and is not on when
the engine is running, and that the OBD II system is
ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition actuated test, which
you can use prior to going to the test station. To check if
your vehicle’s OBD II system is ready, you must do the
following:
1. Cycle the ignition switch to the ON position, but do not crank or start the engine.
NOTE: If you crank or start the engine, you will have to
start this test over. 2. As soon as you cycle the ignition switch to the ON
position, you will see the Malfunction Indicator Light
(MIL) symbol come on as part of a normal bulb check.
3. Approximately 15 seconds later, one of two things will happen:
• The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
• The MIL will not flash at all and will remain fully
illuminated until you place the ignition in the off
position or start the engine. This means that your
vehicle’s OBD II system is readyand you can proceed
to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
348 MAINTAINING YOUR VEHICLE
