UNDERSTANDING THE FEATURES OF YOUR VEHICLE

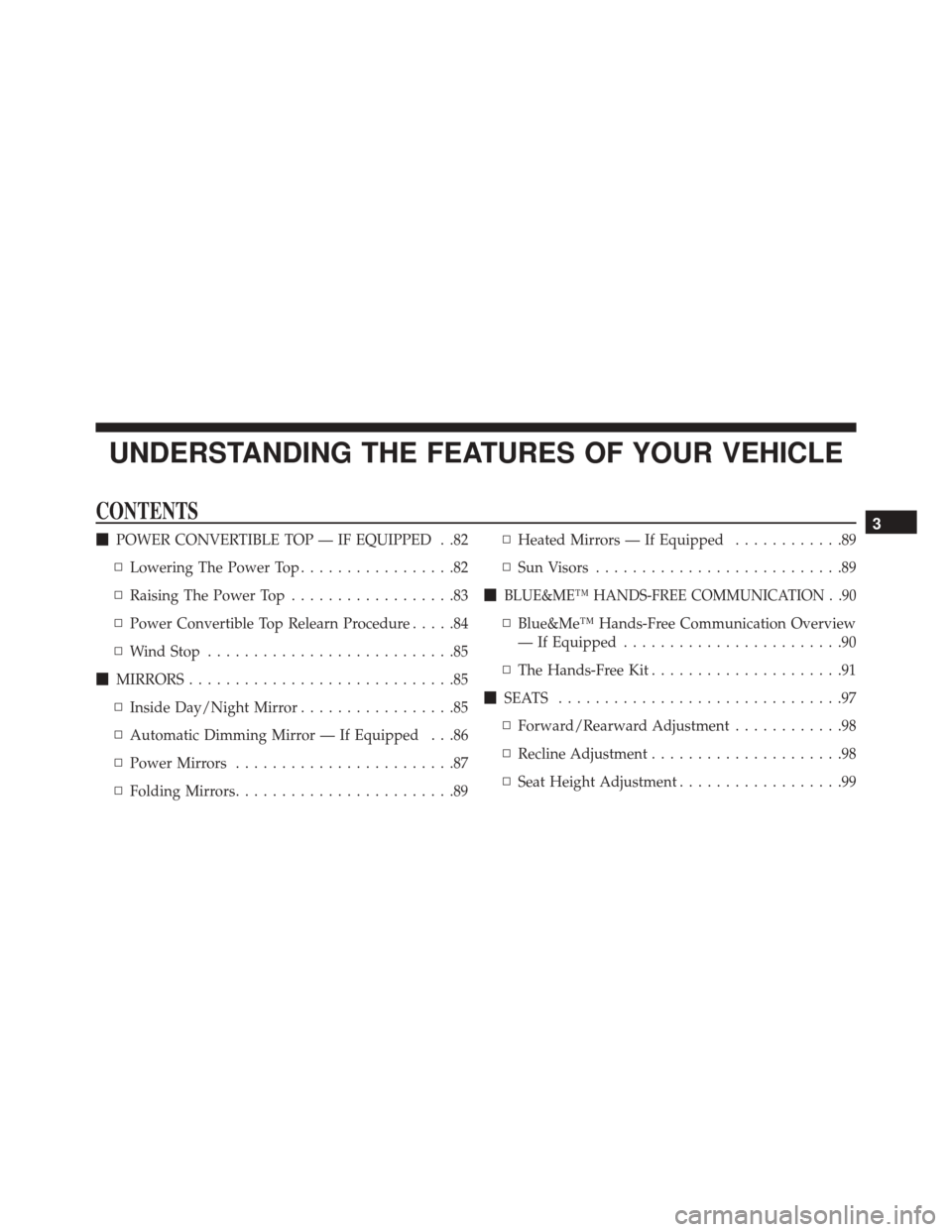

CONTENTS
POWER CONVERTIBLE TOP — IF EQUIPPED . .82
▫ Lowering The Power Top .................82
▫ Raising The Power Top ..................83
▫ Power Convertible Top Relearn Procedure .....84
▫ Wind Stop ...........................85
 MIRRORS .............................85
▫ Inside Day/Night Mirror .................85
▫ Automatic Dimming Mirror — If Equipped . . .86
▫ Power Mirrors ........................87
▫ Folding Mirrors ........................89 ▫
Heated Mirrors — If Equipped ............89
▫ Sun Visors ...........................89

BLUE&ME™ HANDS-FREE COMMUNICATION . .90
▫ Blue&Me™ Hands-Free Communication Overview
— If Equipped ........................90
▫ The Hands-Free Kit .....................91
 SEATS ...............................97
▫ Forward/Rearward Adjustment ............98
▫ Recline Adjustment .....................98
▫ Seat Height Adjustment ..................99
3

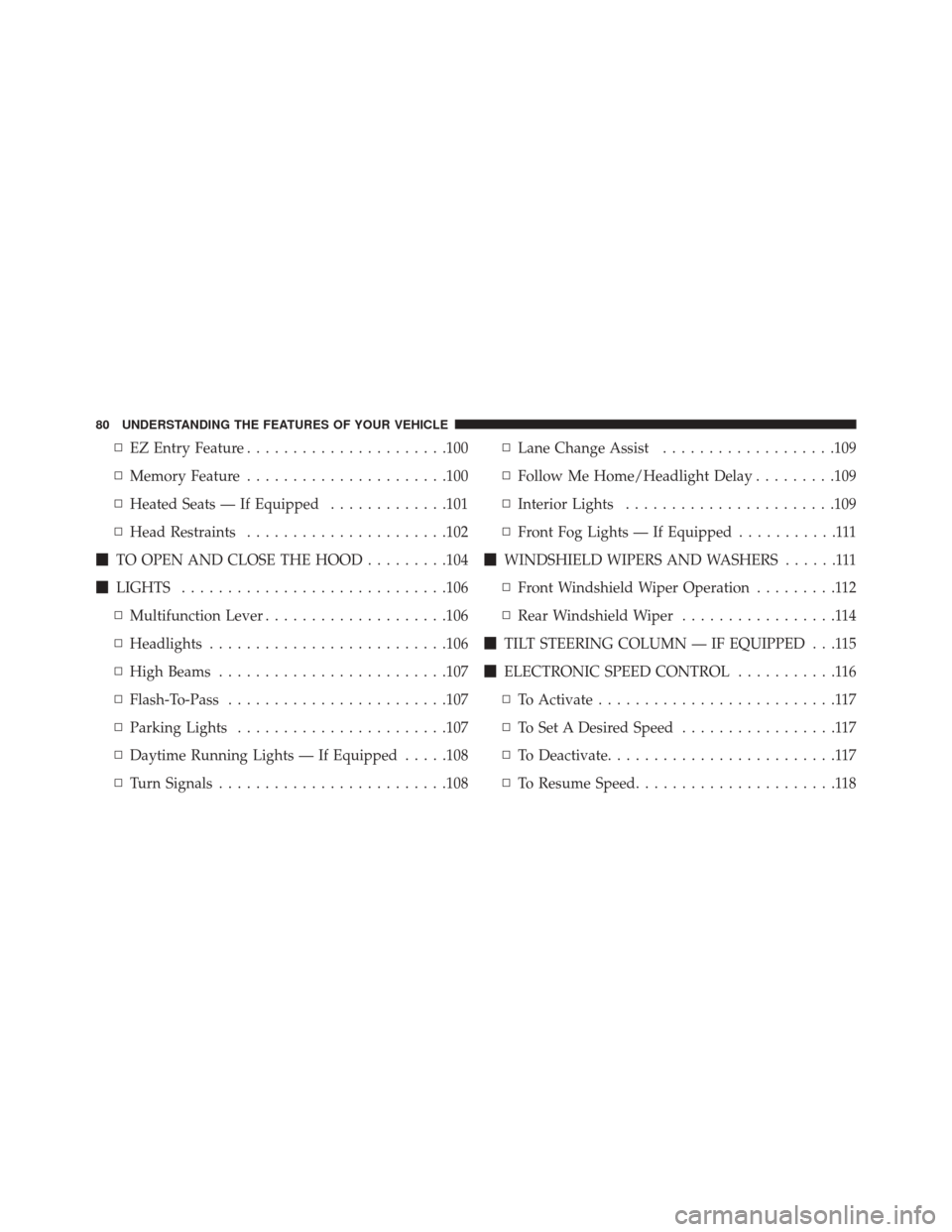

▫EZ Entry Feature ..................... .100
▫ Memory Feature ..................... .100
▫ Heated Seats — If Equipped .............101
▫ Head Restraints ..................... .102
 TO OPEN AND CLOSE THE HOOD .........104
 LIGHTS ............................ .106
▫ Multifunction Lever ....................106
▫ Headlights ......................... .106
▫ High Beams ........................ .107
▫ Flash-To-Pass ....................... .107
▫ Parking Lights ...................... .107
▫ Daytime Running Lights — If Equipped .....108
▫ Turn Signals ........................ .108▫
Lane Change Assist ...................109
▫ Follow Me Home/Headlight Delay .........109
▫ Interior Lights ...................... .109
▫ Front Fog Lights — If Equipped ...........111
 WINDSHIELD WIPERS AND WASHERS ......111
▫ Front Windshield Wiper Operation .........112
▫ Rear Windshield Wiper .................114
 TILT STEERING COLUMN — IF EQUIPPED . . .115
 ELECTRONIC SPEED CONTROL ...........116
▫ To Activate ..........................117
▫ To Set A Desired Speed .................117
▫ To Deactivate .........................117
▫ To Resume Speed ......................118
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫To Vary The Speed Setting ...............118
▫ To Accelerate For Passing ................119
 REAR PARK ASSIST — IF EQUIPPED ........120
▫ Rear Park Assist Sensors ................120
▫ Rear Park Assist Warning Display ..........121
▫ Rear Park Assist Display ................121
▫ Rear Park Assist Audible Alerts ...........121
▫ Failure Indications .....................123
▫ Cleaning The Rear Park Assist System .......123
▫ Park Assist System Usage Precautions .......124
 POWER SUNROOF — IF EQUIPPED ........126
▫ To Open ........................... .127
▫ To Close ........................... .127▫
Pinch Protect Feature ...................127
▫ Wind Buffeting ...................... .127
▫ Emergency Operation ...................128
▫ Sun Shade — If Equipped ...............128
 ELECTRICAL POWER OUTLETS ...........128
 CIGAR LIGHTER — IF EQUIPPED ..........131
 CUPHOLDERS ....................... .132
 STORAGE ........................... .133
▫ Glove Compartment ...................133
 CARGO AREA FEATURES ................133
 REAR WINDOW FEATURES ..............135
▫ Rear Window Defroster .................135
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

POWER CONVERTIBLE TOP — IF EQUIPPED
On vehicles equipped with a power convertible top, the
power convertible top switch is located on the overhead
console. The switch contains two buttons. The passenger
side button, is used to open the power top, and the driver
side button, is used to close the power top.NOTE:
•
The power top buttons will operate when the ignition
switch is turned to the ACC/ON/RUN position.
• The power top can be remotely operated with the key
fob. Refer to “Opening Power Top Remote Function”
in “Things To Know Before Starting” for more infor-
mation.
Lowering The Power Top
Auto Open
Push the top open button approximately one second for
the three-quarter open/spoiler position. Push the top
open button for approximately one second a second time
to fully open the convertible top.
Manual Open
For manual open, push and hold the open button until
desired roof position or until spoiler position.
Power Convertible Top Switch
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

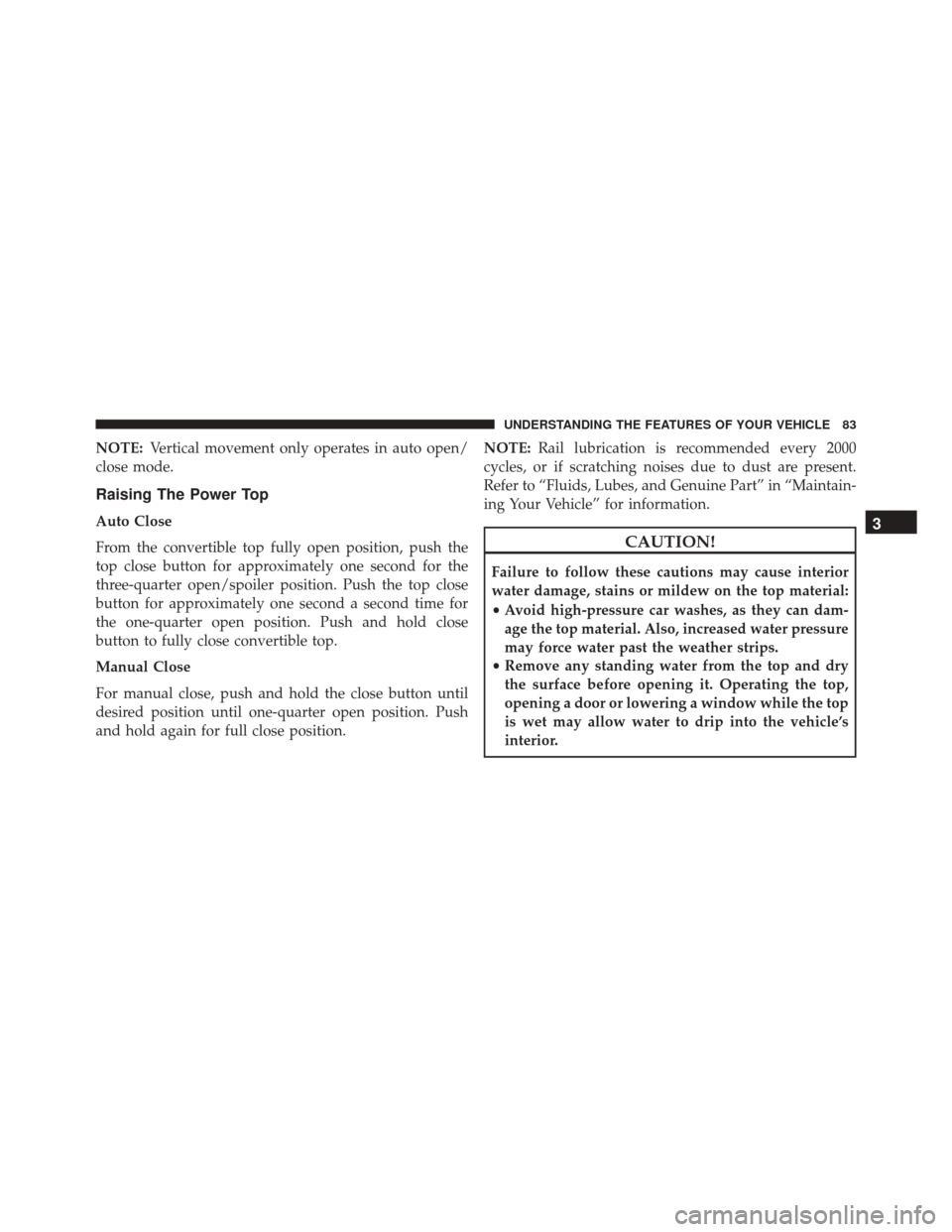

NOTE:Vertical movement only operates in auto open/
close mode.
Raising The Power Top
Auto Close
From the convertible top fully open position, push the
top close button for approximately one second for the
three-quarter open/spoiler position. Push the top close
button for approximately one second a second time for
the one-quarter open position. Push and hold close
button to fully close convertible top.
Manual Close
For manual close, push and hold the close button until
desired position until one-quarter open position. Push
and hold again for full close position. NOTE:
Rail lubrication is recommended every 2000
cycles, or if scratching noises due to dust are present.
Refer to “Fluids, Lubes, and Genuine Part” in “Maintain-
ing Your Vehicle” for information.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
• Avoid high-pressure car washes, as they can dam-
age the top material. Also, increased water pressure
may force water past the weather strips.
• Remove any standing water from the top and dry
the surface before opening it. Operating the top,
opening a door or lowering a window while the top
is wet may allow water to drip into the vehicle’s
interior.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

CAUTION!(Continued)
•Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicle’s interior.
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection
of the occupants in a collision. Therefore, it is impor-
tant that all occupants wear their seat belts at all
times. Death or serious injuries could occur if you are
ejected from the vehicle during a collision.
Power Convertible Top Relearn Procedure
If your power convertible top does not operate in the
Auto Opening/Closing mode (automatically opening/
closing to the one-quarter open and three-quarter open
comfort stops), or if the remote keyless power top
function is inoperable, or if the trunk lid does not open -
the following relearn procedure may be necessary.
1. Confirm that the door/trunk lid are closed.
2. Begin with the top in the fully closed position (using manual mode).
3. Hold the OPEN button to move the top to the fully open position.
4. CONTINUE to hold the OPEN button for an addi- tional three seconds.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

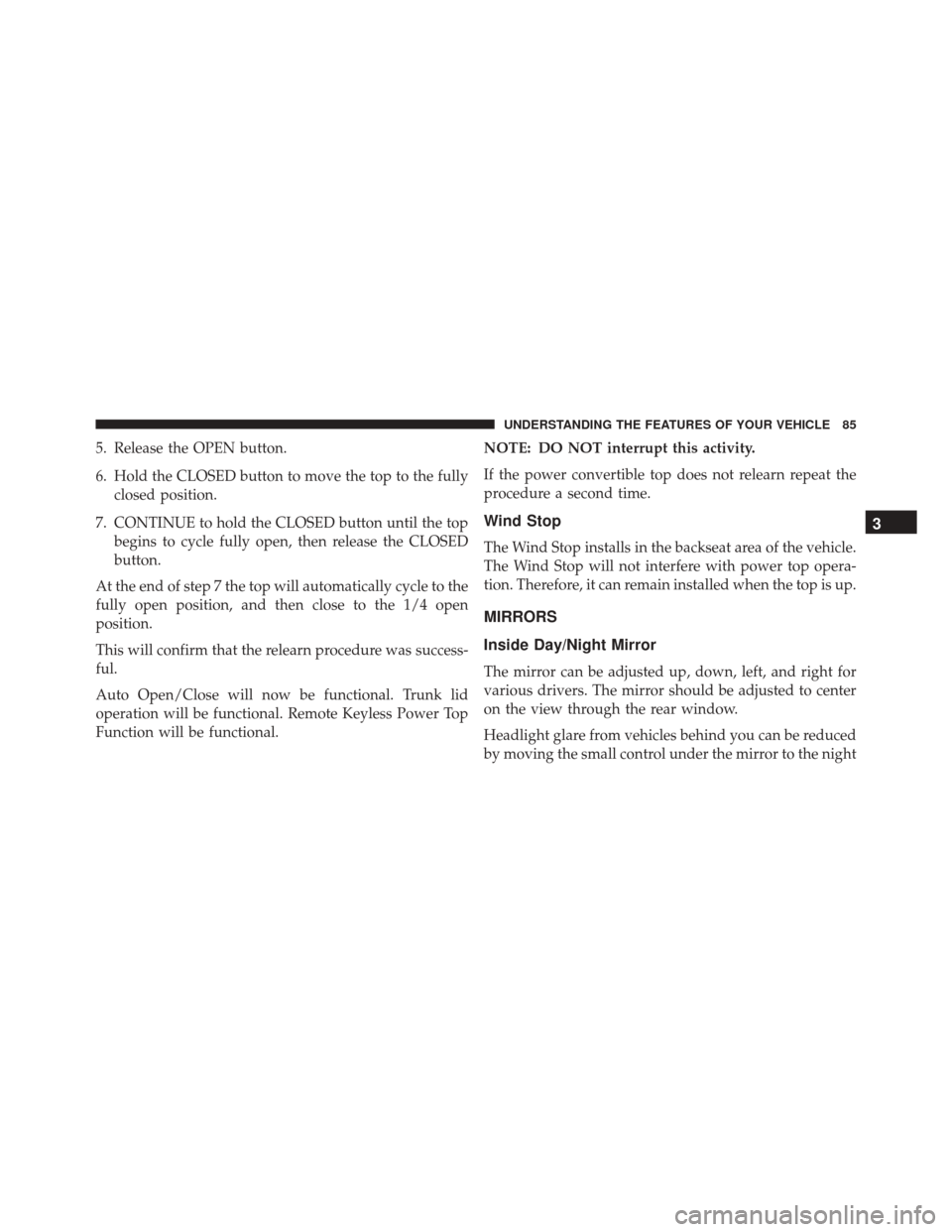

5. Release the OPEN button.
6. Hold the CLOSED button to move the top to the fullyclosed position.
7. CONTINUE to hold the CLOSED button until the top begins to cycle fully open, then release the CLOSED
button.
At the end of step 7 the top will automatically cycle to the
fully open position, and then close to the 1/4 open
position.
This will confirm that the relearn procedure was success-
ful.
Auto Open/Close will now be functional. Trunk lid
operation will be functional. Remote Keyless Power Top
Function will be functional. NOTE: DO NOT interrupt this activity.
If the power convertible top does not relearn repeat the
procedure a second time.
Wind Stop
The Wind Stop installs in the backseat area of the vehicle.
The Wind Stop will not interfere with power top opera-
tion. Therefore, it can remain installed when the top is up.
MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center
on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pushing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
Adjusting Rearview Mirror
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Power Mirrors
The power mirror controls are located on the driver ’s
door trim panel.
Automatic Dimming Mirror
Power Mirror Switches
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

The power mirror controls consist of a mirror select
switch and a four-way mirror control switch. To adjust a
mirror, push the mirror select switch to either the L (left)
or R (right) to select the mirror you need to adjust.
Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to
move.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side convex mirror.
Spotter Mirror — If Equipped
Some models are equipped with a driver’s side spotter
mirror. The spotter mirror allows for a greater range of
visibility on the driver’s side of the vehicle.
Spotter Mirror
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
